EVAPORATORS AND ITS TYPES

An evaporator is a device used for the process of turning the form of a substance from liquid to gaseous form or vapor and the process is known as evaporation.

alaquainc1
Download Presentation

EVAPORATORS AND ITS TYPES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

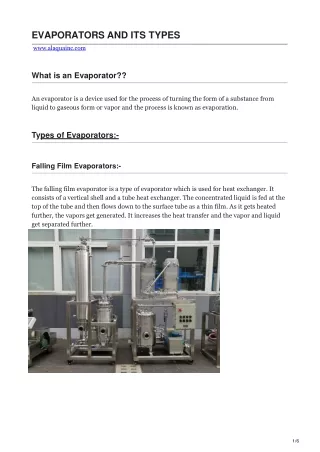

  1. EVAPORATORS AND ITS TYPES www.alaquainc.com What is an Evaporator?? An evaporator is a device used for the process of turning the form of a substance from liquid to gaseous form or vapor and the process is known as evaporation. T ypes of Evaporators:- Falling Film Evaporators:- The falling film evaporator is a type of evaporator which is used for heat exchanger. It consists of a vertical shell and a tube heat exchanger. The concentrated liquid is fed at the top of the tube and then flows down to the surface tube as a thin film. As it gets heated further, the vapors get generated. It increases the heat transfer and the vapor and liquid get separated further. 1/6

  2. Rising Film, LTV (Long Tube Vertical) Evaporators:- The rising film evaporator is very similar to the falling film evaporator. It’s just the opposite of falling film. It also consists of a vertical shell and a tube heat exchanger and it is also used for heat exchanging. The concentrated liquid is fed at the bottom of the tube. As the heat increases further the vapors get generated and lift the liquid upward. As a result the vapor and liquid get separated further. 2/6

  3. Forced Circulation Evaporators:- Force circulation evaporator is a type of evaporator which is used to separate mixture which is not possible by normal evaporating unit. In normal circular evaporator the velocity of liquid flow is 0.3 to 1M/S but forced circular evaporator increases the velocity of liquid flow to 2 to 6m/s. It contains a circulation pump and because of this it is used for both heat exchanger and flash separation. It separates the mixture without using normal conventional boiling. It consists of a vertical shell and heat exchanger tube with a centrifugal pump. 3/6

  4. Plate Evaporators:- Plane evaporators consist of a plate and frame heat exchanger and are mainly used in food and beverage industry. Plate evaporator is a type of evaporator in which a thin film of liquid is passed and flows between the plates for the process of evaporation. It is typically used for fruit juices, fruit puree, syrup, coffee, milk. 4/6

  5. Thermal Vapor Recompression (TVR):- Thermal vapor recompression evaporator is a type of evaporator which is used as a Thermo compressor to reduce the steam required for the process of evaporation. A vapor steam is compressed to a higher temperature and pressure by a steam jet pump. 5/6

  6. Mechanical Vapor Recompression (MVR):- Mechanical vapor recompression is a type of evaporator in which the water vapor is Compressed which results in rise of temperature and pressure. The rise in temperature makes the temperature difference between the vapor and the fluid. The further heat Transfer results in heat exchanger. The compressed vapor is again fed back to generate more steam. This is energy efficient and energy recovery process. Regardless of your needs, ALAQUAINC can supply you with an industrial-grade evaporator that lowers operating costs without lowering productivity. Contact us to learn more about how we can help you find the perfect evaporator for your company. Visit us at h www.alaquainc.com/ 6/6
