Core Pulmonary Concepts

Core Pulmonary Concepts. Lung volumes and capacities. Pulmonary Function. Lung volumes. Tidal volume (Vt) Inspiratory reserve volume (IRV) Expiratory Reserve volume (ERV) Residual volume (RV). Lung capacities. Vital capacity (VC) Inspiratory capacity (IC) Functional Residual Capacity

alan-brooks
Download Presentation

Core Pulmonary Concepts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Core Pulmonary Concepts

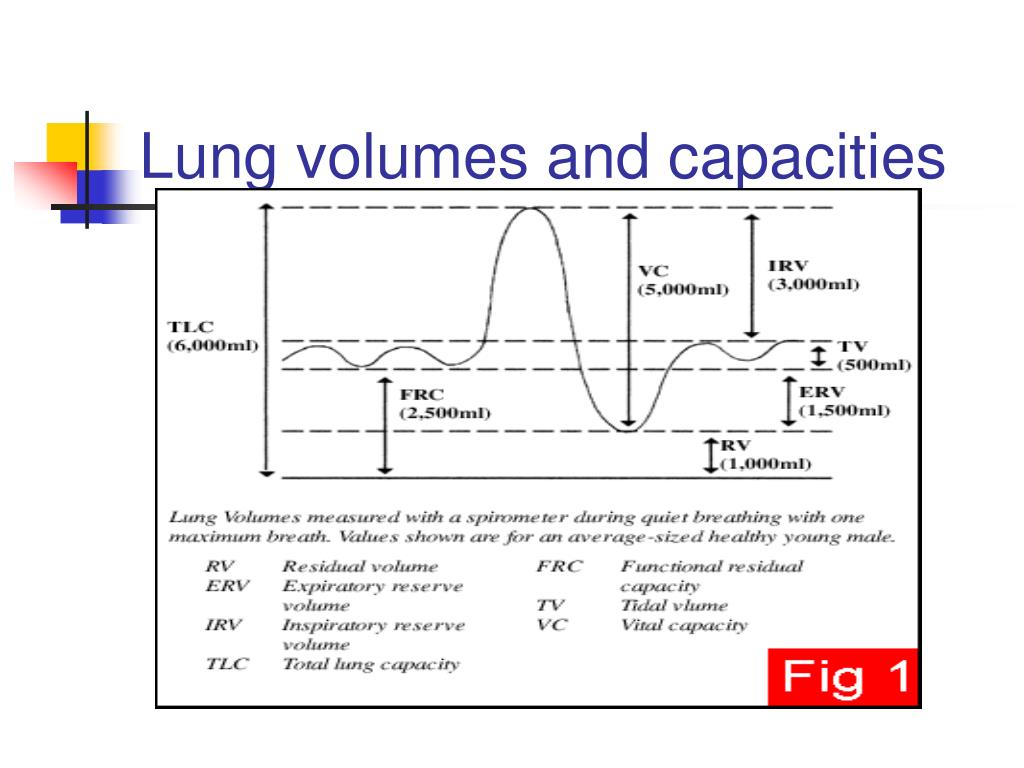

  2. Lung volumes and capacities

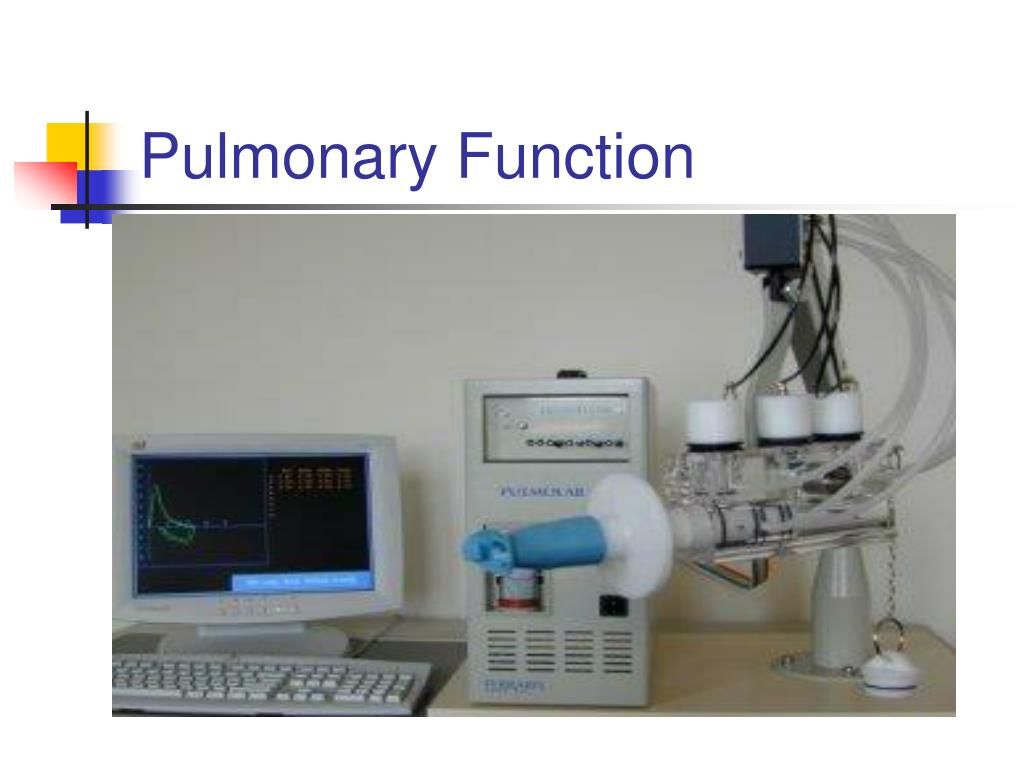

  3. Pulmonary Function

  4. Lung volumes • Tidal volume (Vt) • Inspiratory reserve volume (IRV) • Expiratory Reserve volume (ERV) • Residual volume (RV)

  5. Lung capacities • Vital capacity (VC) • Inspiratory capacity (IC) • Functional Residual Capacity • Total lung capacity (TLC)

  6. Spirometery

  7. Core measurements • FVC • Forced vital capacity: maximum volume that can be exhaled forcefully (aka VC) FEV1: forced expiratory volume 1 second maximum volume exhaled in the first second of the test

  8. Core measurements • Peak expiratory flow rate (PEFR): • Maximum flow rate during a FVC maneuver; varies with sex, age, height, etc. • FEF25-75% : forced expiratory flow, 25-75%-the average flow rate dudring the mid portion of the test

  9. Flow-volume loop

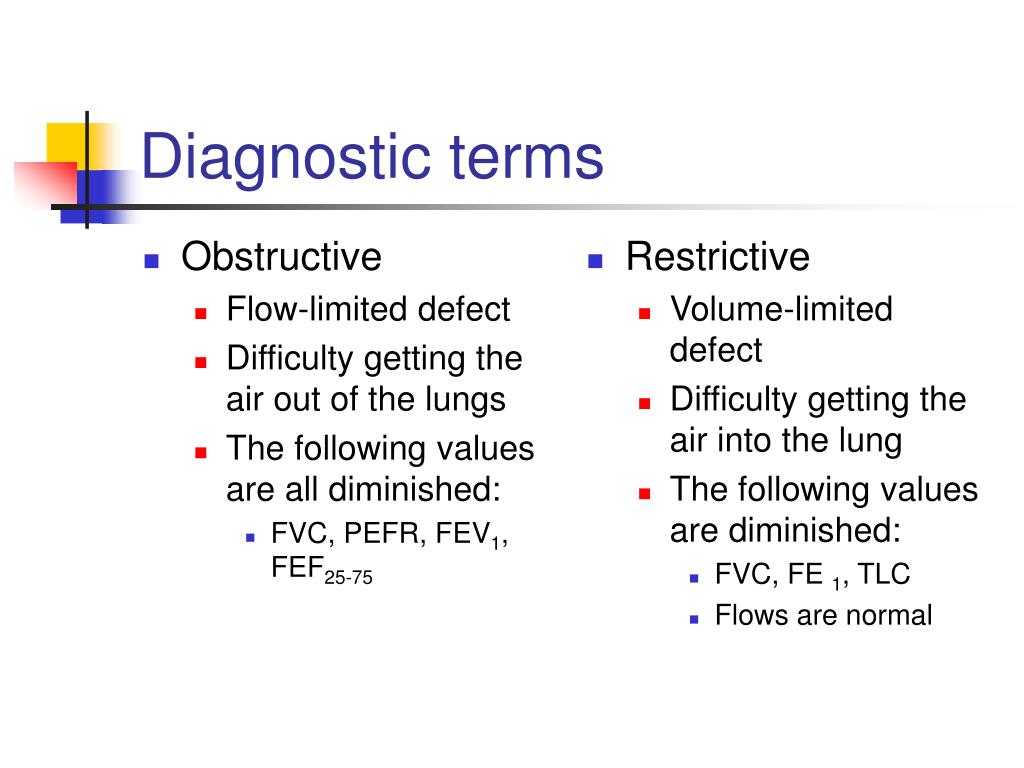

  10. Obstructive Flow-limited defect Difficulty getting the air out of the lungs The following values are all diminished: FVC, PEFR, FEV1, FEF25-75 Restrictive Volume-limited defect Difficulty getting the air into the lung The following values are diminished: FVC, FE 1, TLC Flows are normal Diagnostic terms

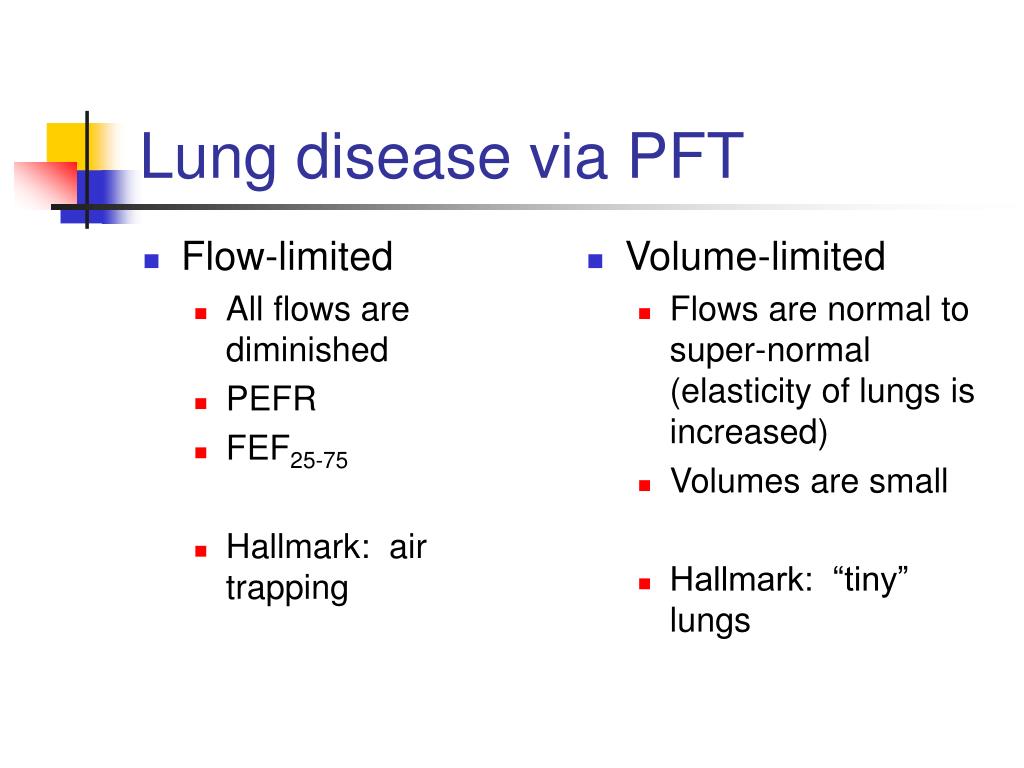

  11. Flow-limited All flows are diminished PEFR FEF25-75 Hallmark: air trapping Volume-limited Flows are normal to super-normal (elasticity of lungs is increased) Volumes are small Hallmark: “tiny” lungs Lung disease via PFT

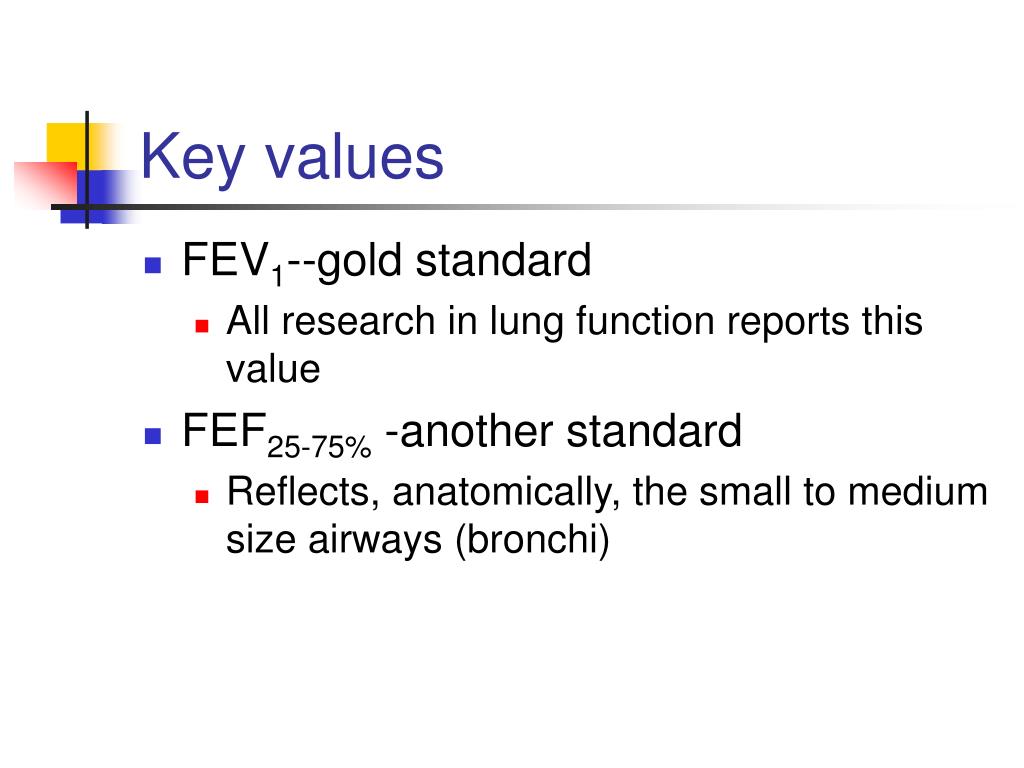

  12. Key values • FEV1--gold standard • All research in lung function reports this value • FEF25-75% -another standard • Reflects, anatomically, the small to medium size airways (bronchi)
