품 목 : D.A.P EXPANSION INPUT UNITS 모델명 : AUDIA EXPI 제조사 : BIAMP

품 목 : D.A.P EXPANSION INPUT UNITS 모델명 : AUDIA EXPI 제조사 : BIAMP. Specifications Frequency Response (20~20kHz@ -20dB) : + 0/-0.4dB THD+N (20Hz~20kHz @ -20dBFS): line level (0dBu ) : < 0.006% mic level (-60dBu ) : < 0.065% Equivalent Input Noise : -123dBu

alaire
Download Presentation

품 목 : D.A.P EXPANSION INPUT UNITS 모델명 : AUDIA EXPI 제조사 : BIAMP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

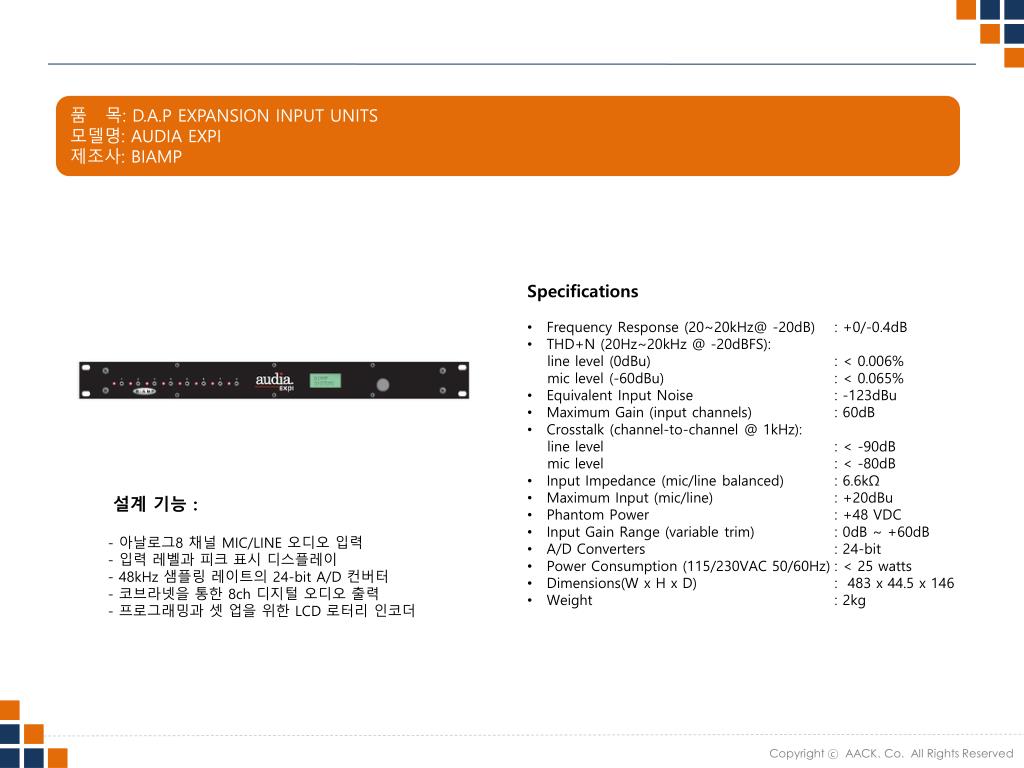

  1. 품 목: D.A.P EXPANSION INPUT UNITS 모델명: AUDIA EXPI 제조사: BIAMP • Specifications • Frequency Response (20~20kHz@ -20dB): +0/-0.4dB • THD+N (20Hz~20kHz @ -20dBFS): • line level (0dBu) : < 0.006% • mic level (-60dBu) : < 0.065% • Equivalent Input Noise : -123dBu • Maximum Gain (input channels) : 60dB • Crosstalk (channel-to-channel @ 1kHz): • line level : < -90dB • mic level : < -80dB • Input Impedance (mic/line balanced) : 6.6kΩ • Maximum Input (mic/line) : +20dBu • Phantom Power : +48 VDC • Input Gain Range (variable trim) : 0dB ~ +60dB • A/D Converters : 24-bit • Power Consumption (115/230VAC 50/60Hz) : < 25 watts • Dimensions(W x H x D) : 483 x 44.5 x 146 • Weight : 2kg 설계 기능 : - 아날로그8 채널 MIC/LINE 오디오 입력 - 입력 레벨과 피크 표시 디스플레이 - 48kHz 샘플링 레이트의24-bit A/D 컨버터 - 코브라넷을통한 8ch 디지털 오디오 출력 - 프로그래밍과 셋 업을 위한 LCD 로터리 인코더
