Control of Airborne Respirable Dust Hazards: A Training Program for Underground Coal Miners

Control of Airborne Respirable Dust Hazards: A Training Program for Underground Coal Miners. Penn State. The Penn State Miner Training Program University Park, PA 16802 Raja V. Ramani, Ph.D., P.E, C.M.S.P. Mark C. Radomsky, Ph.D. MPA, C.M.S.P. Joseph P. Flick, M.S., C.M.S.P.

alair
Download Presentation

Control of Airborne Respirable Dust Hazards: A Training Program for Underground Coal Miners

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Control of Airborne Respirable Dust Hazards:A Training Program for Underground Coal Miners Penn State The Penn State Miner Training Program University Park, PA 16802 Raja V. Ramani, Ph.D., P.E, C.M.S.P. Mark C. Radomsky, Ph.D. MPA, C.M.S.P. Joseph P. Flick, M.S., C.M.S.P. March 31, 2003

  2. CENTERS FOR DISEASECONTROL AND PREVENTION NATIONAL INSTITUTE FOR OCUPATIONAL SAFETY AND HEALTH GENERIC MINERAL TECHNOLOGY CENTER ON RESPIRABLE DUST PENNSYLVANIA BUREAU OF DEEP MINE SAFETY

  3. RESPIRABLE DUST TRAINING PROGRAM Section 11 COAL MINE DUST SAMPLING PROCEDURES

  4. Monitoring Exposure And Health • Monitoring Includes: • Monitoring dust levels in the mine workings and in the miner’s breathing zone • Monitoring the health status of the miner population

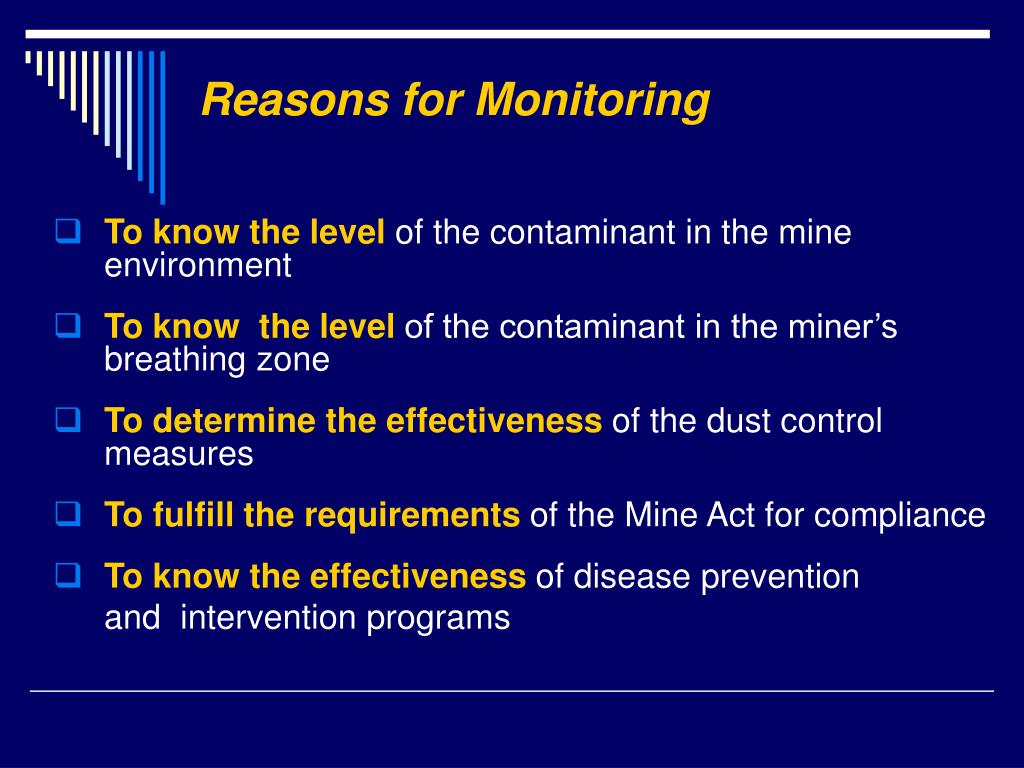

  5. Reasons for Monitoring • To knowthe level of the contaminant in the mine environment • To know the level of the contaminant in the miner’s breathing zone • To determine the effectiveness of the dust control measures • To fulfill the requirements of the Mine Act for compliance • To know the effectiveness of disease prevention and intervention programs

  6. Elements of a Monitoring Program • The Program has several elements: • Operator’s Sampling Program • MSHA’s Sampling Program, and Part 90 Sampling Program • Ad Hoc and or Additional MSHA Sampling may be done under Section 103[g] of the Act

  7. Approved Sampling Equipment • Sampling must be done using approved equipment. The approved personal dust sampler consists of: • a sampling pump • a filter cassette • a sampling head assembly with a cyclone • tubing and clips • Testing and approval of coal mine dust personal sampler units are covered in 30 CFR 74.

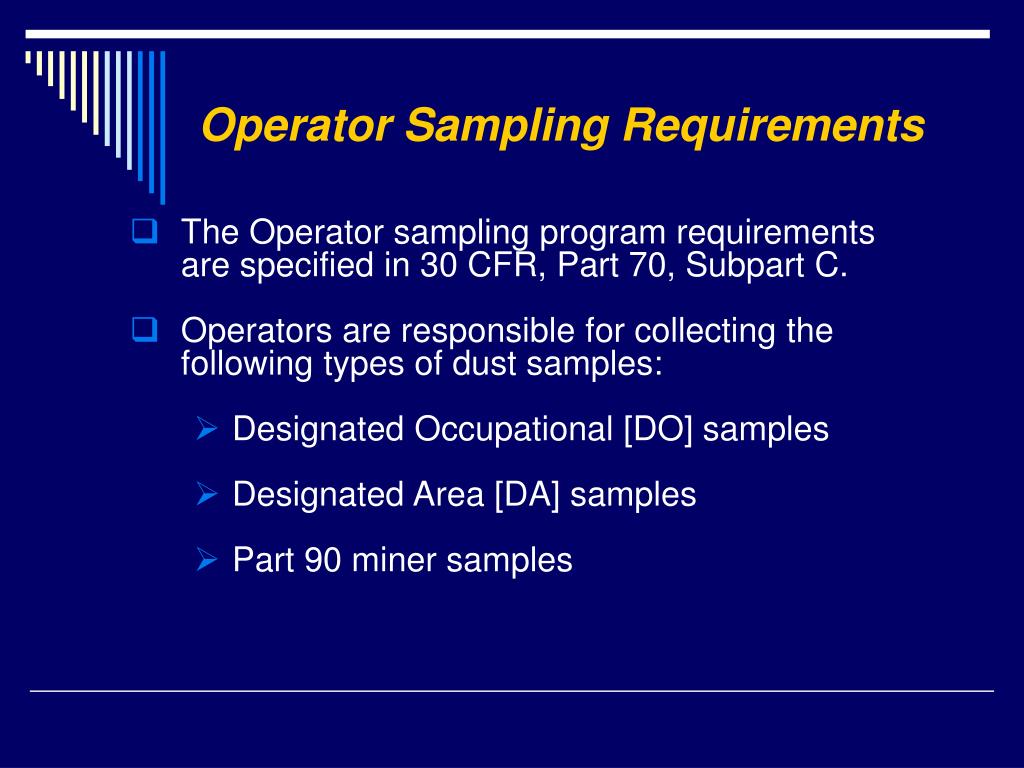

  8. Operator Sampling Requirements • The Operator sampling program requirements are specified in 30 CFR, Part 70, Subpart C. • Operators are responsible for collecting the following types of dust samples: • Designated Occupational [DO] samples • Designated Area [DA] samples • Part 90 miner samples

  9. MSHA Sampling Program Details • The MSHA sampling program is described in the MSHA Policy Manual • The MSHA program also includes DO and DA samples • MSHA also designates certain work locations on the surface for sampling purposes as Designated Work Positions [DWP]

  10. Learn about the dust sampling procedures at your mine! • When? • Where? • Why? • Results?

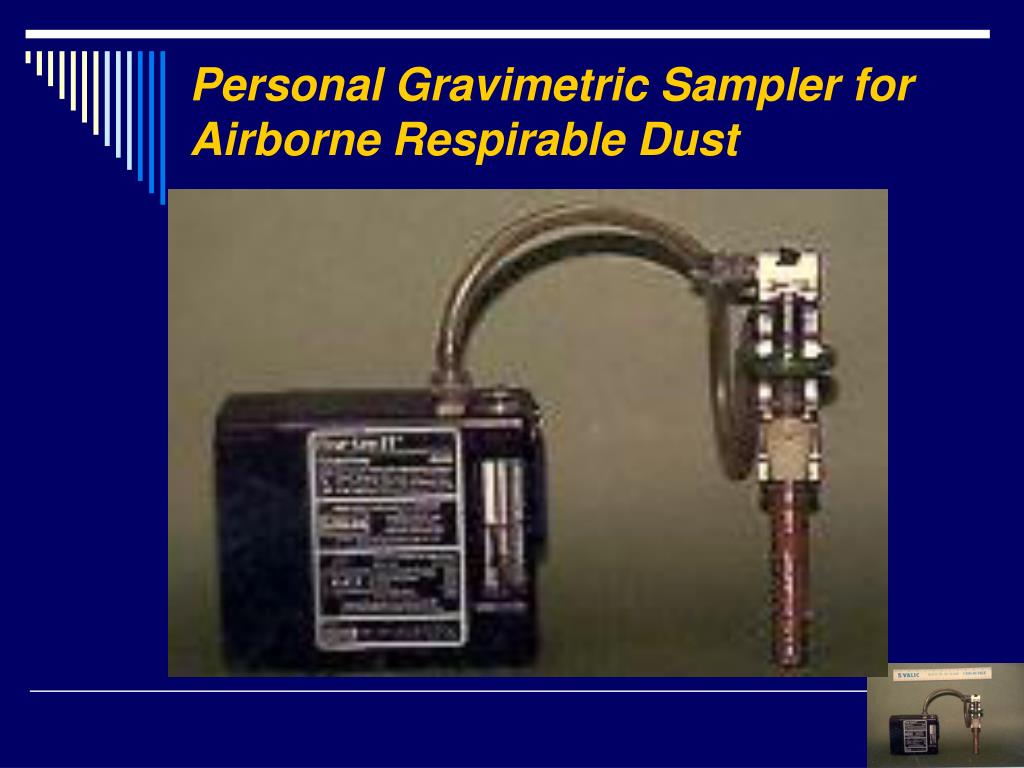

  11. Personal Gravimetric Sampler for Airborne Respirable Dust

  12. Total Sampling Package Worn by a Miner

  13. Section View of the Cyclone and Respirable Dust Filter

  14. Efficiency of Sampler for Airborne Respirable Dust

  15. Proceed to Section 12 Medical Surveillance
