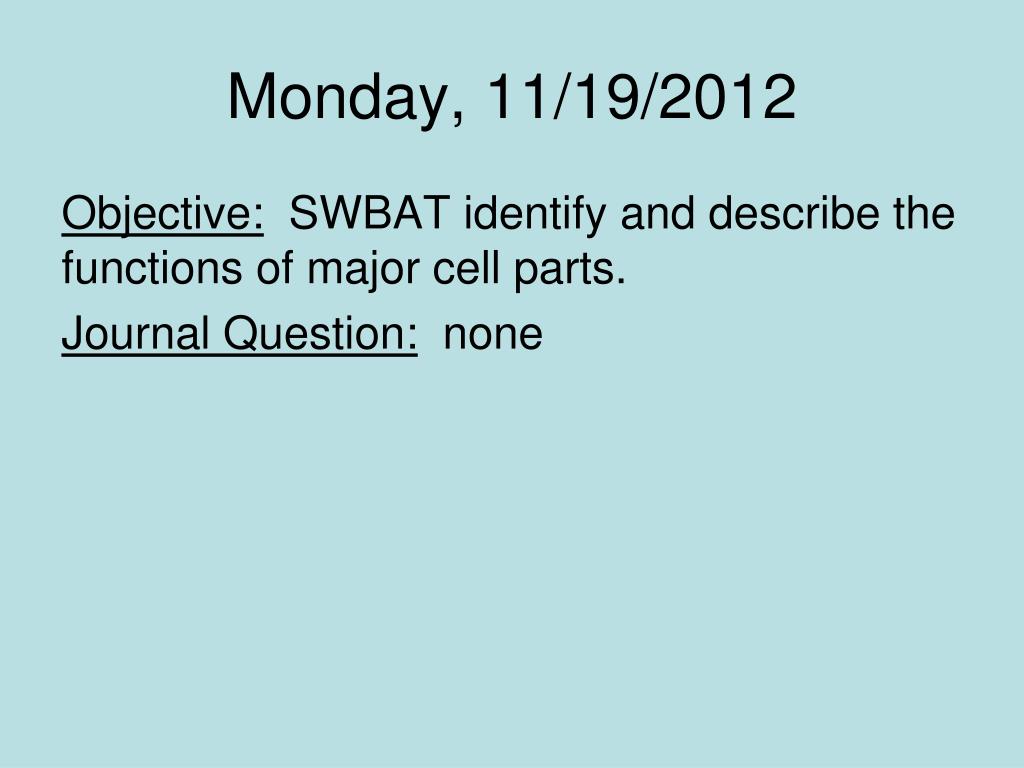

  1. Monday, 11/19/2012 Objective: SWBAT identify and describe the functions of major cell parts. Journal Question: none

  2. Chapter 7 Notes: Parts of the Cell

  3. Cell Theory • All organisms are made of 1 or more cells. These cells contain basic organelles. • The cell is the basic unit of organization of organisms. Cells may develop specialized functions based on the complexity of the organism. • All cells come from pre-existing cells.

  4. Cell Factoid of the Day How long do cells live? • White blood cells typically live only 7-8 hours. That’s a short life!

  5. Cell Factoid of the Day How long do cells live? • Live bacteria have been found in Canada that are over 500,000 years old. That’s a looooong life! Professor Eske Willerslev collecting soil samples in the permafrost in the Yukon, Canada. Researchers found half million year old bacteria in some of the samples collected. (Credit: Duane Froese, ScienceDaily Aug. 28, 2007)

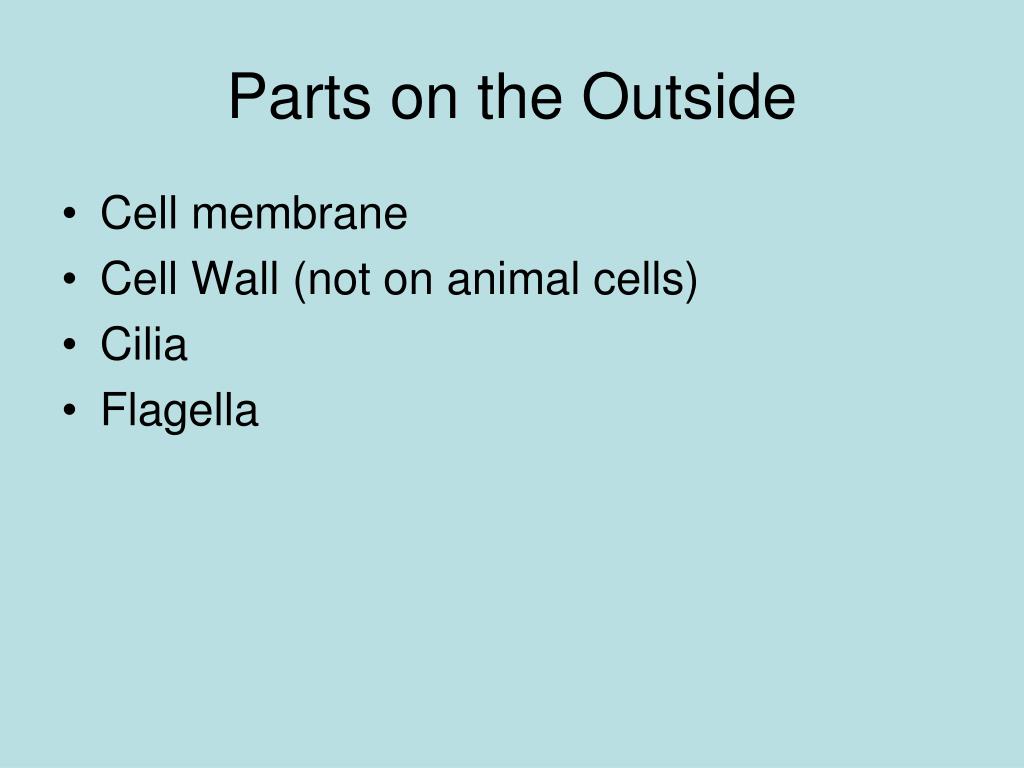

  6. Parts on the Outside • Cell membrane • Cell Wall (not on animal cells) • Cilia • Flagella

  7. CELL MEMBRANE • Boundary between cell and its external environment Two layers = lipid bilayer

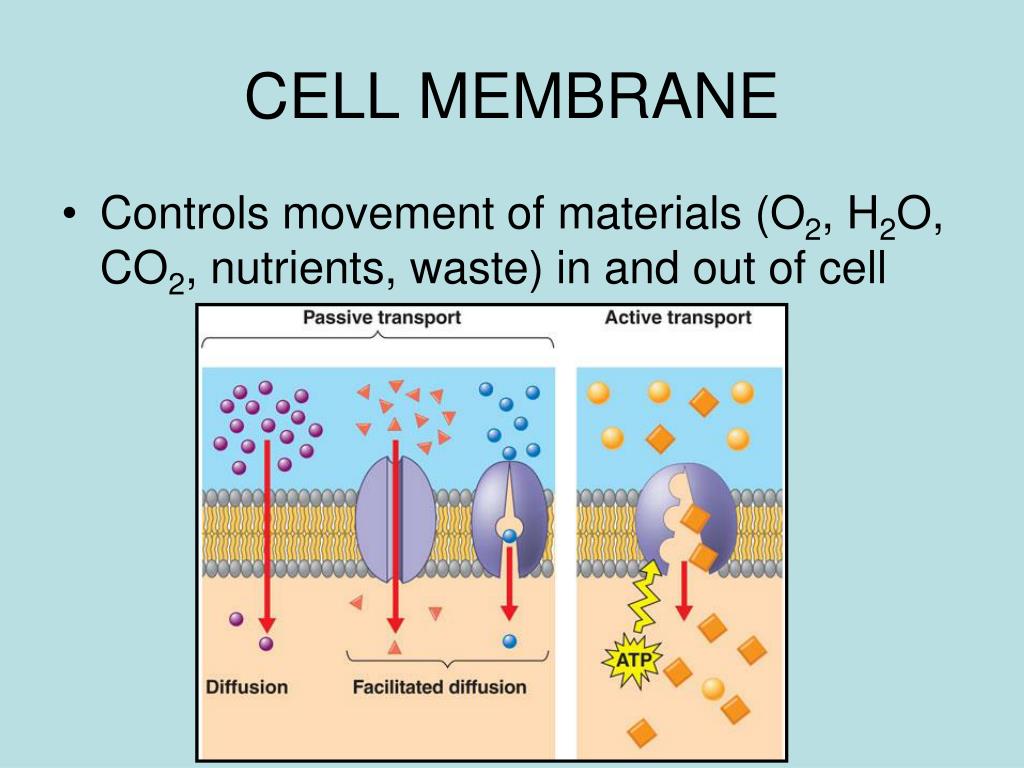

  8. CELL MEMBRANE • Controls movement of materials (O2, H2O, CO2, nutrients, waste) in and out of cell

  9. CELL WALL (plants) • Surrounds the cell membrane • Adds strength and support to cell http://www.aber.ac.uk/gwydd-cym/graffeg/biolgell/cludiant/collenchyma.jpg

  10. CILIA • Short hairs on outside of the cell • Provide movement Lung Cilia Image: Richard Superfine

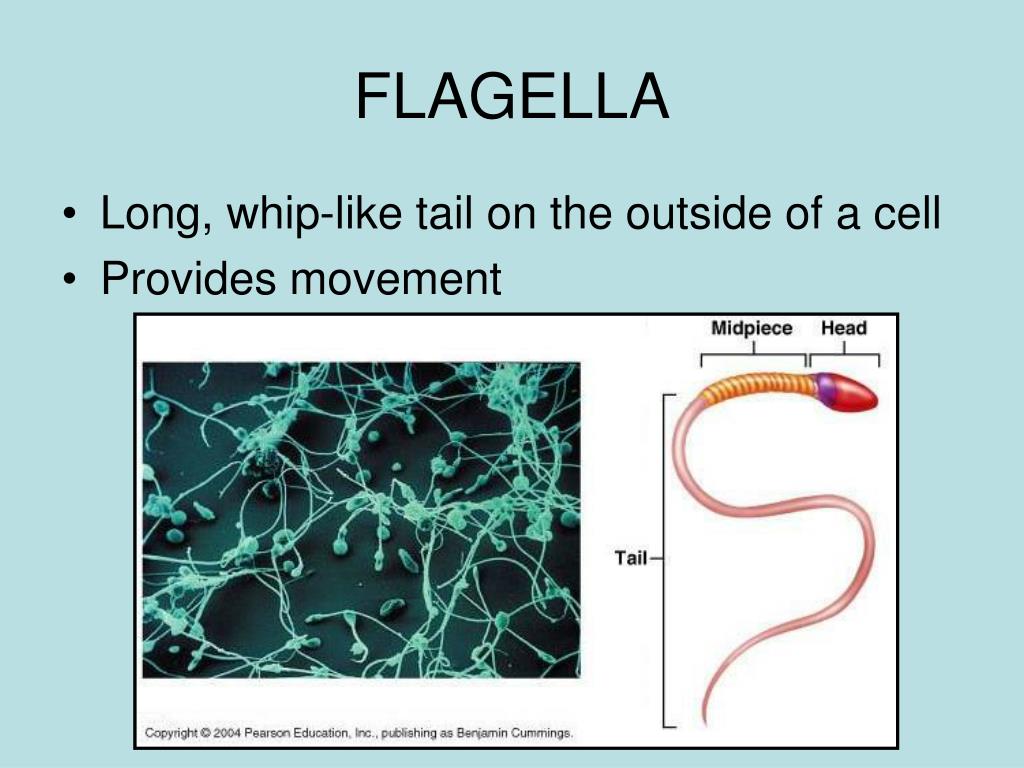

  11. FLAGELLA • Long, whip-like tail on the outside of a cell • Provides movement

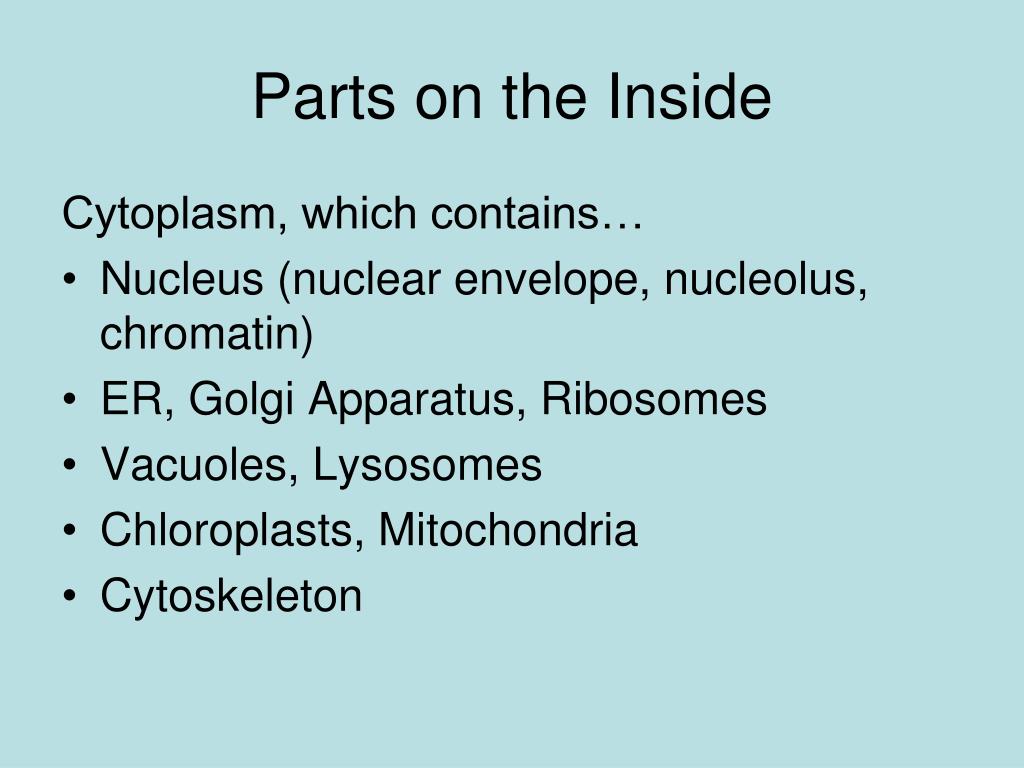

  12. Parts on the Inside Cytoplasm, which contains… • Nucleus (nuclear envelope, nucleolus, chromatin) • ER, Golgi Apparatus, Ribosomes • Vacuoles, Lysosomes • Chloroplasts, Mitochondria • Cytoskeleton

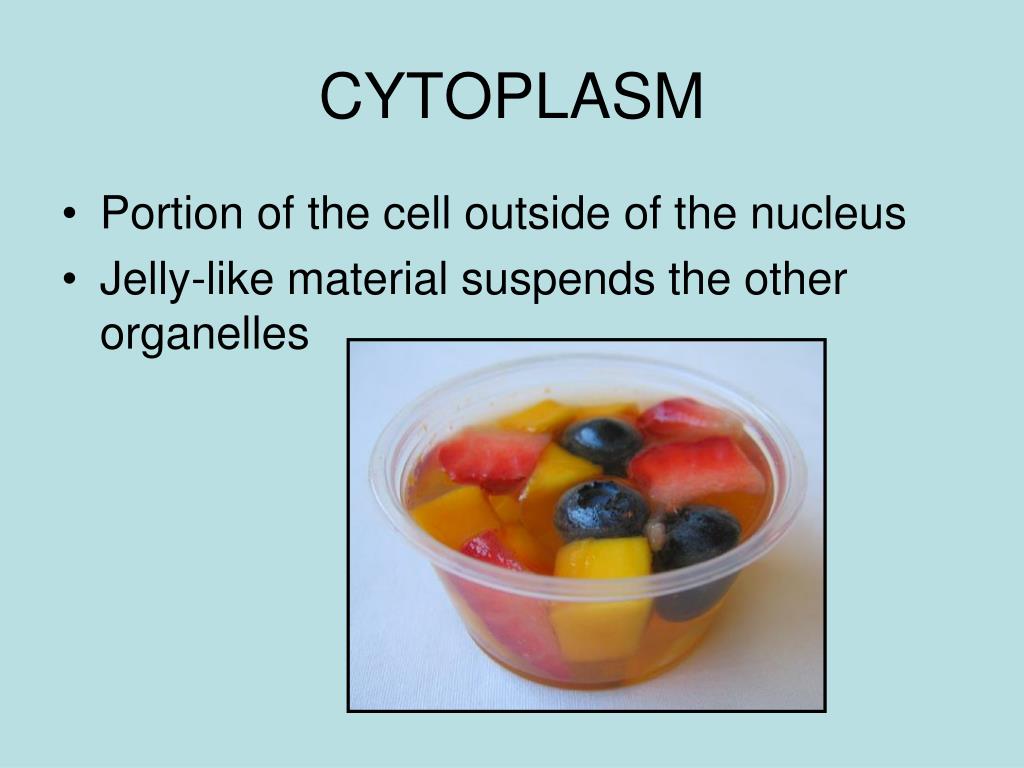

  13. CYTOPLASM • Portion of the cell outside of the nucleus • Jelly-like material suspends the other organelles

  14. NUCLEUS • Control center for eukaryotic cells • Contains chromosomes http://www.emc.maricopa.edu/faculty/farabee/

  15. Cell Factoid of the Day Not all eukaryotic cells have one nucleus… • Red blood cells (erythrocytes) discard their nuclei at maturity, which makes them better at carrying oxygen to body tissues.

  16. Cell Factoid of the Day Not all eukaryotic cells have one nucleus… • Skeletal muscle cells and plasmodial slime molds have many nuclei within a single cell membrane.

  17. Condensed Chromosome CHROMATIN • DNA wrapped around proteins • Makes up chromosomes Uncondensed Chromosome

  18. NUCLEAR ENVELOPE • Boundary between nucleus and cytoplasm • Contains pores (holes) for materials to pass in/out http://acs.lbl.gov/ImgLib/ http://elliottcelltour.com/files/QuickSiteImages/Nucleus.jpg

  19. Tuesday, 11/20/2012 Objective: SWBAT identify and describe the functions of major cell parts. Warm-up Questions: 1. What is the relationship between you and your cells?

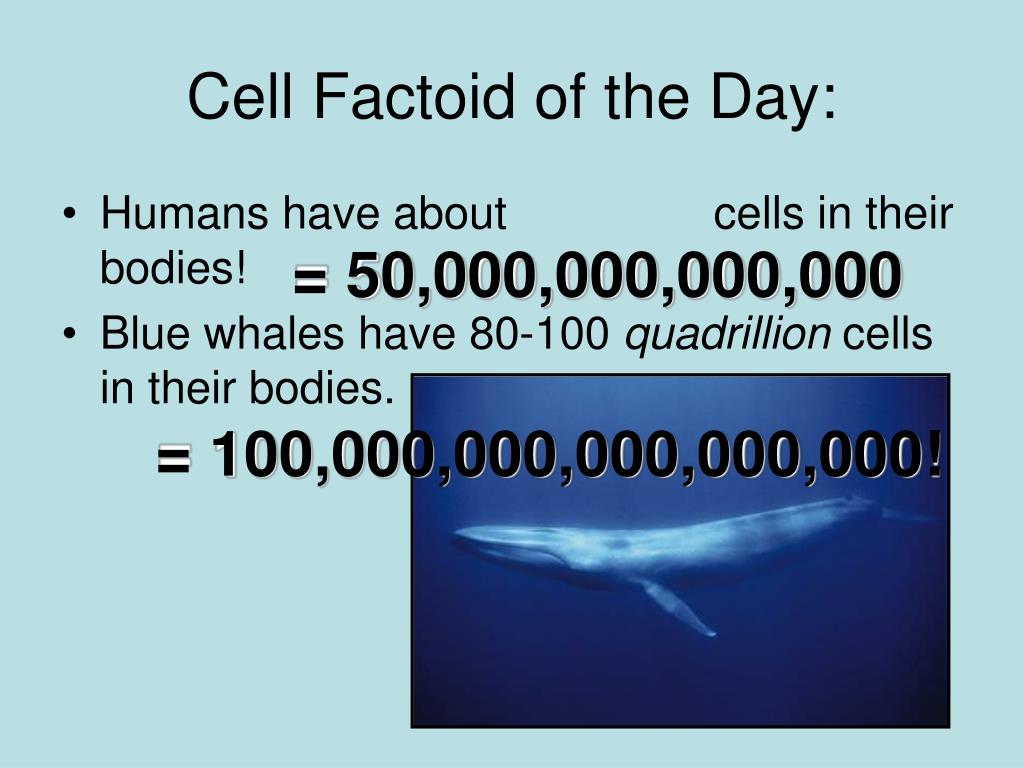

  20. Cell Factoid of the Day: • Humans have about 50 trillion cells in their bodies! • Blue whales have 80-100 quadrillion cells in their bodies. = 50,000,000,000,000 = 100,000,000,000,000,000!

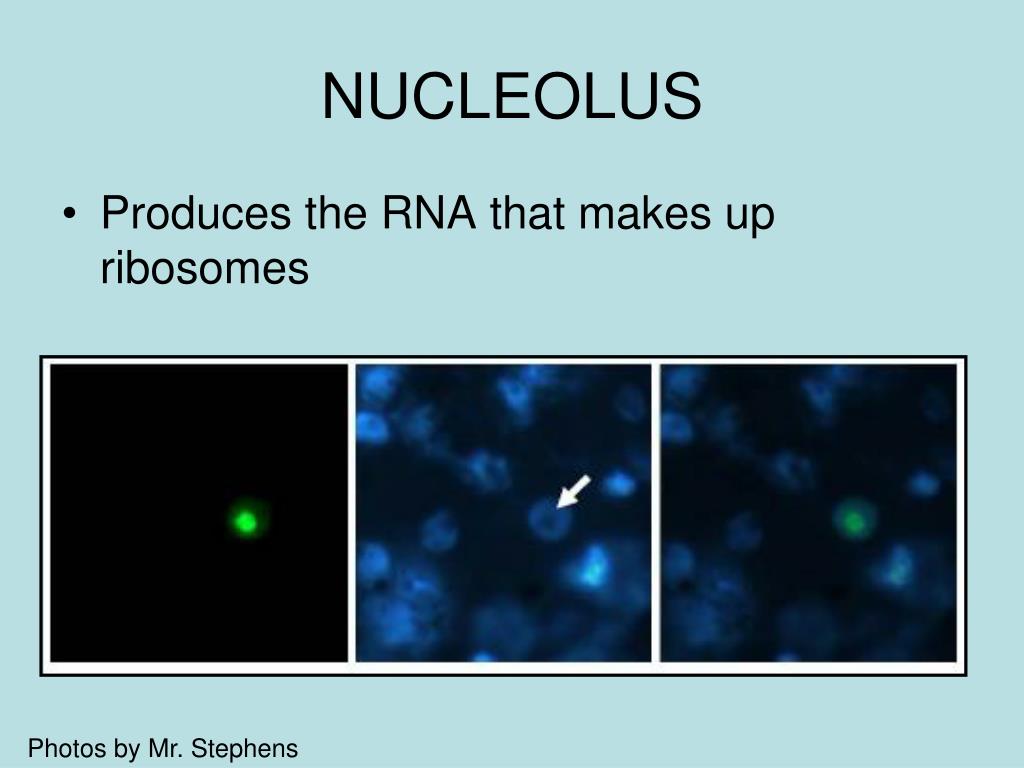

  21. NUCLEOLUS • Produces the RNA that makes up ribosomes Photos by Mr. Stephens

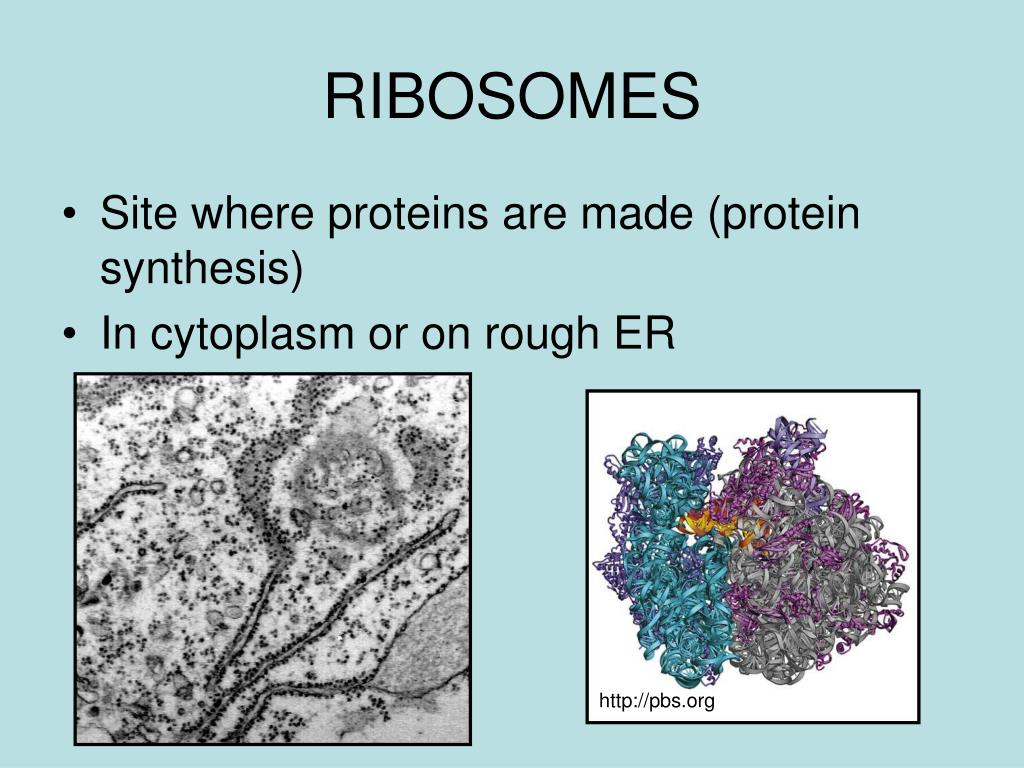

  22. http://pbs.org RIBOSOMES • Site where proteins are made (protein synthesis) • In cytoplasm or on rough ER

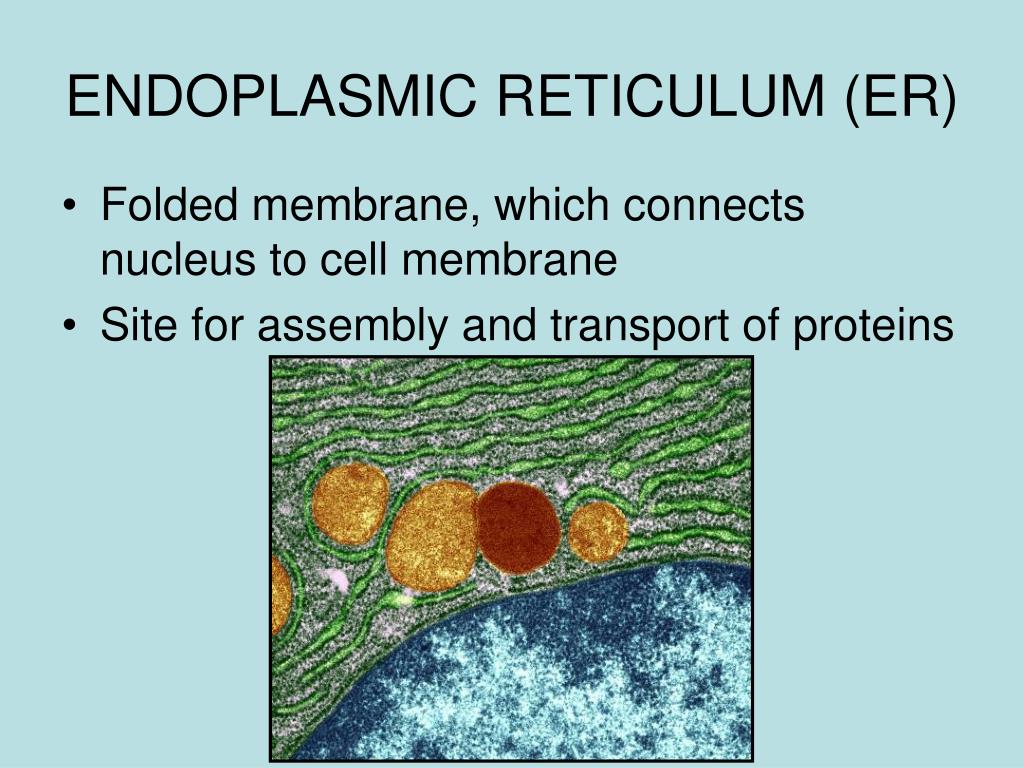

  23. ENDOPLASMIC RETICULUM (ER) • Folded membrane, which connects nucleus to cell membrane • Site for assembly and transport of proteins

  24. ENDOPLASMIC RETICULUM (ER) • ROUGH ER • SMOOTH ER

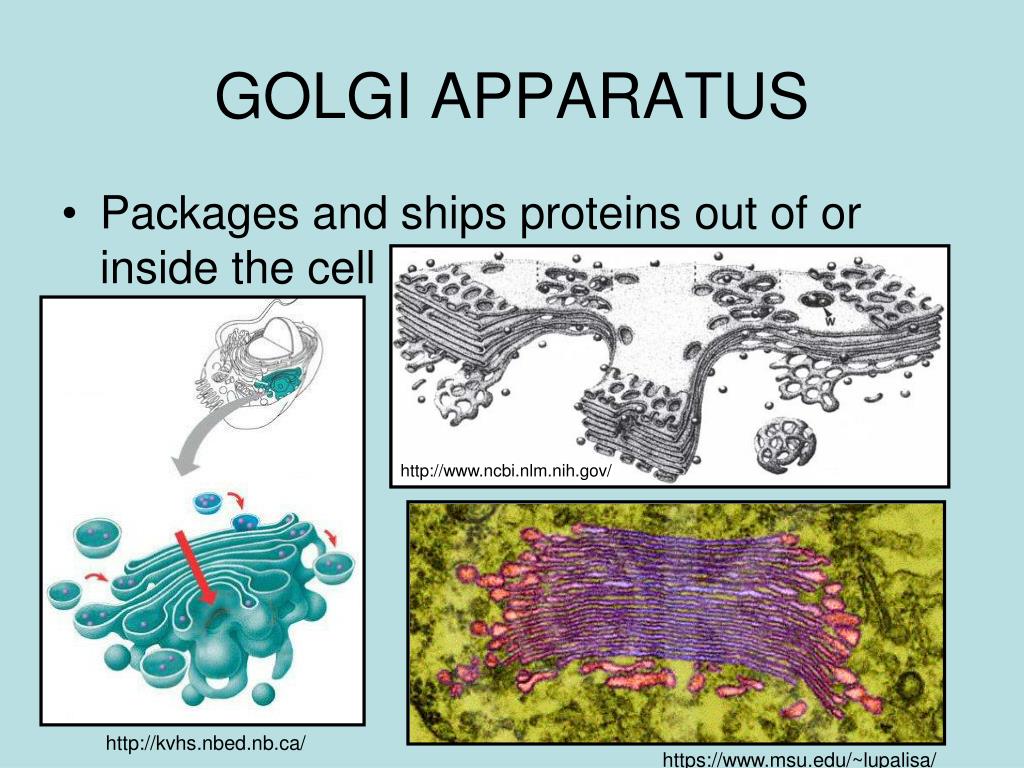

  25. GOLGI APPARATUS • Packages and ships proteins out of or inside the cell http://www.ncbi.nlm.nih.gov/ http://kvhs.nbed.nb.ca/ https://www.msu.edu/~lupalisa/

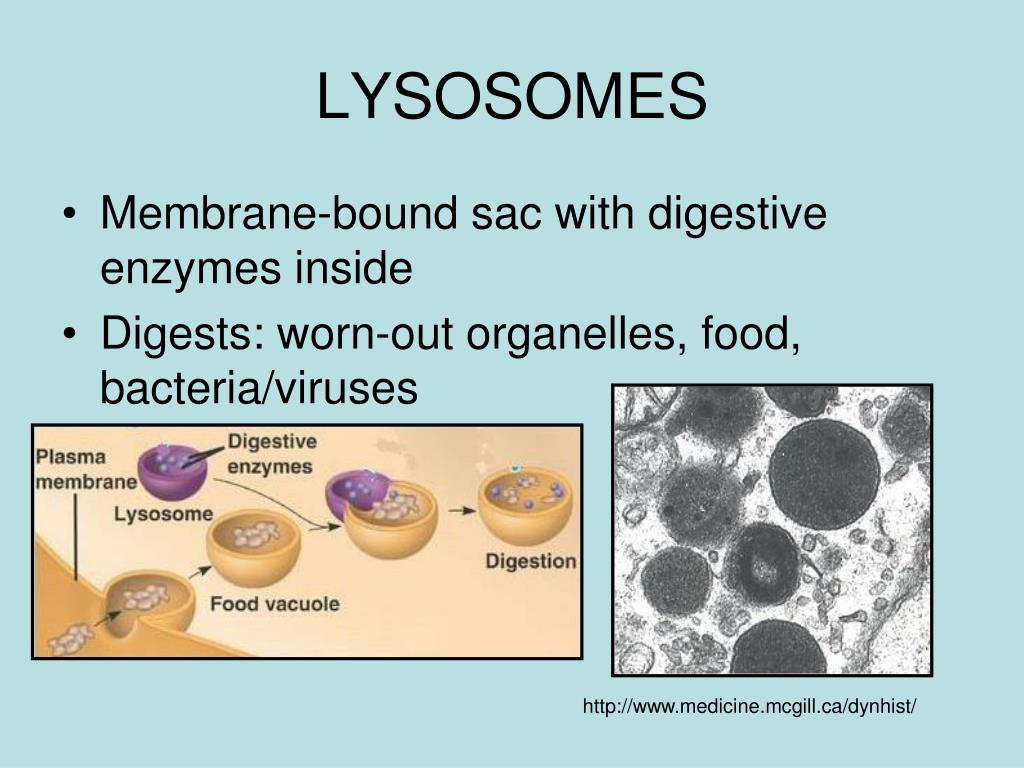

  26. LYSOSOMES • Membrane-bound sac with digestive enzymes inside • Digests: worn-out organelles, food, bacteria/viruses http://www.medicine.mcgill.ca/dynhist/

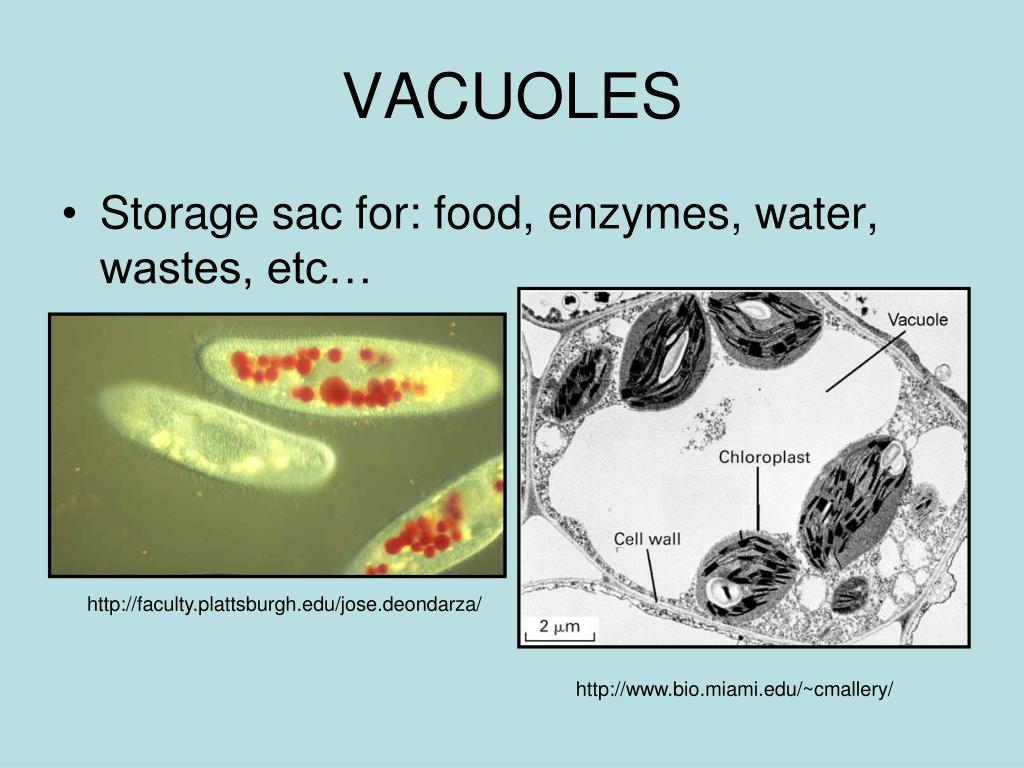

  27. VACUOLES • Storage sac for: food, enzymes, water, wastes, etc… http://faculty.plattsburgh.edu/jose.deondarza/ http://www.bio.miami.edu/~cmallery/

  28. MITOCHONDRIA • Produces energy for the cell • Breaks sugars (glucose) down for energy (ATP) http://porpax.bio.miami.edu/~cmallery/150/makeatp/makeatp.htm

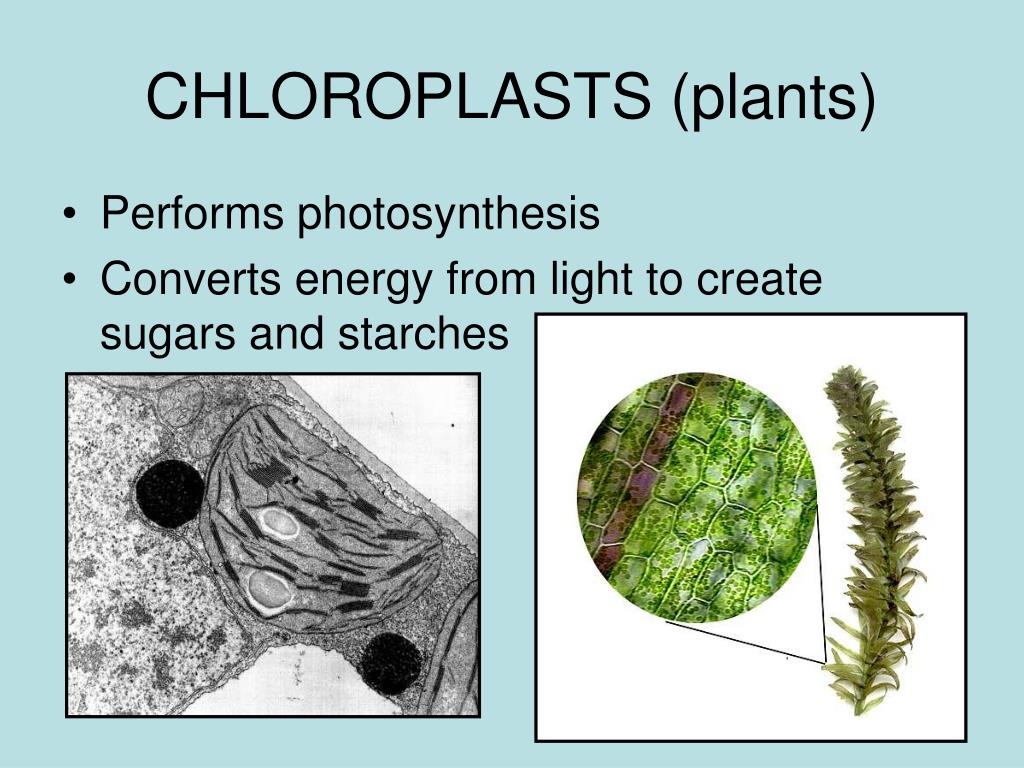

  29. CHLOROPLASTS (plants) • Performs photosynthesis • Converts energy from light to create sugars and starches

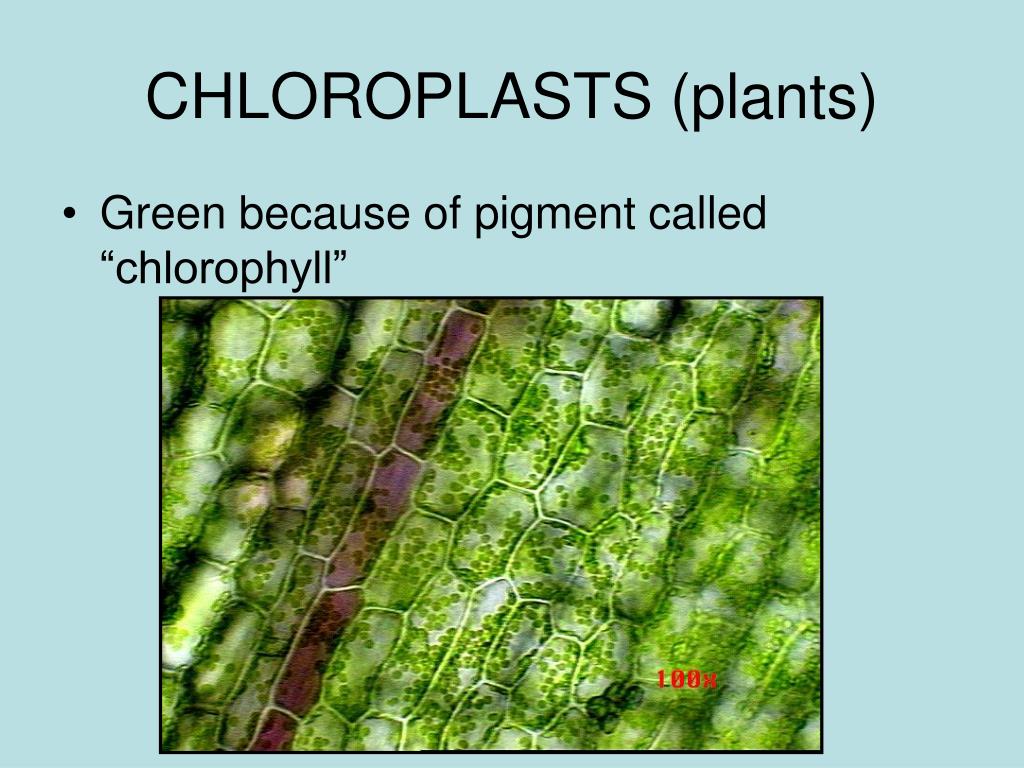

  30. CHLOROPLASTS (plants) • Green because of pigment called “chlorophyll”

  31. Photosynthetic Sea slugs http://www.seaslugforum.net/

  32. MICROTUBULES • Cytoskeleton • Provides support for organelles and maintain cell shape; used in cell division http://elliottcelltour.com/

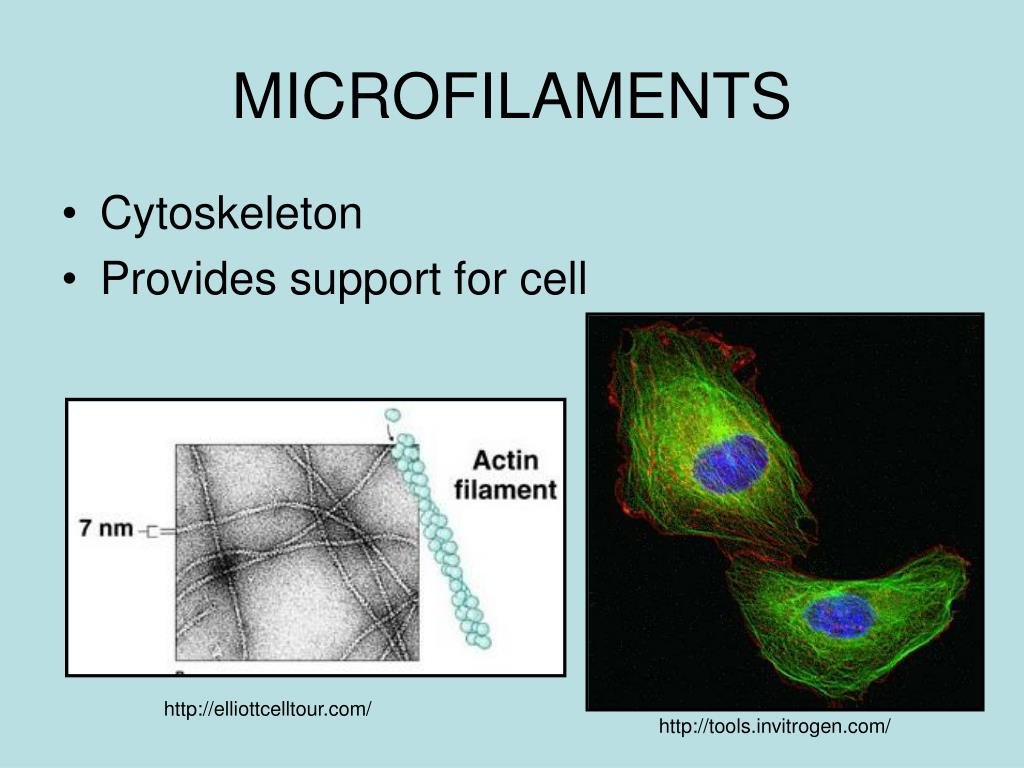

  33. MICROFILAMENTS • Cytoskeleton • Provides support for cell http://elliottcelltour.com/ http://tools.invitrogen.com/

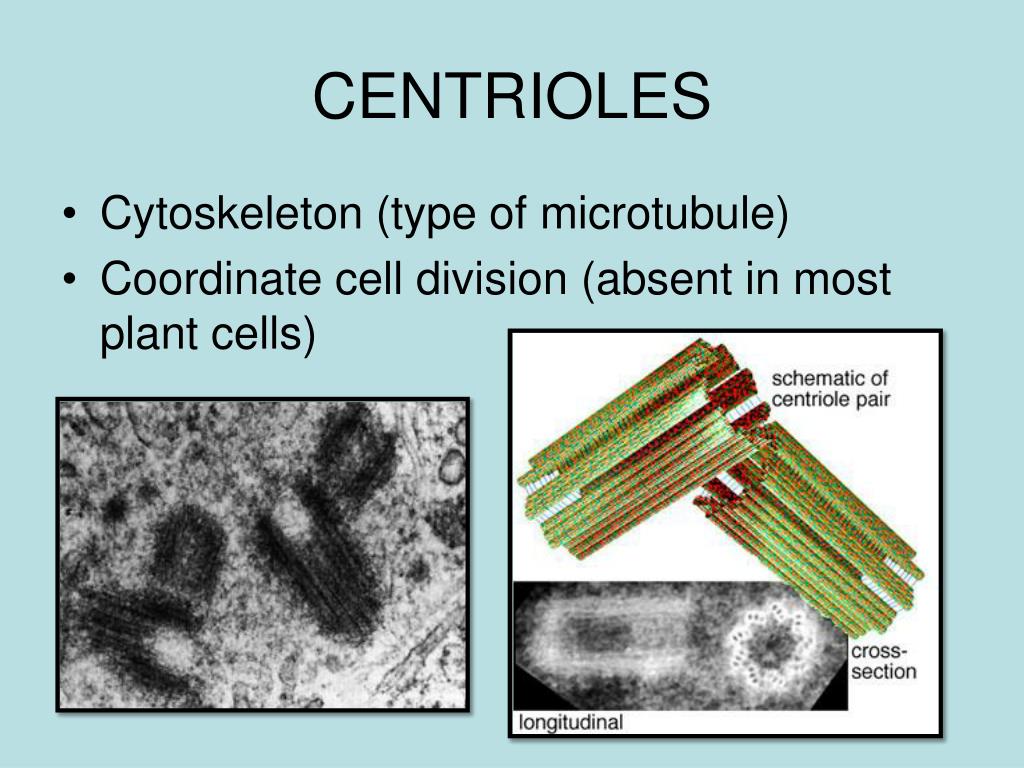

  34. CENTRIOLES • Cytoskeleton (type of microtubule) • Coordinate cell division (absent in most plant cells)

  35. Monday, 11/21/2011 Objective: SWBAT identify and describe the functions of major cell parts. Journal Question: Describe the process of assembling and transporting a protein in the cell. Be sure to include all of the organelles involved.

  36. Tuesday, 11/22/2011 Objective: SWBAT identify and describe the functions of major cell parts. Journal Question: Draw and label a nucleus. Be sure to include all of the parts that you’ve learned about.

  37. Worksheet 7-2: Scoring Each cell diagram on the front page counts as a single question. Completion grade only (are all of the parts labeled?)

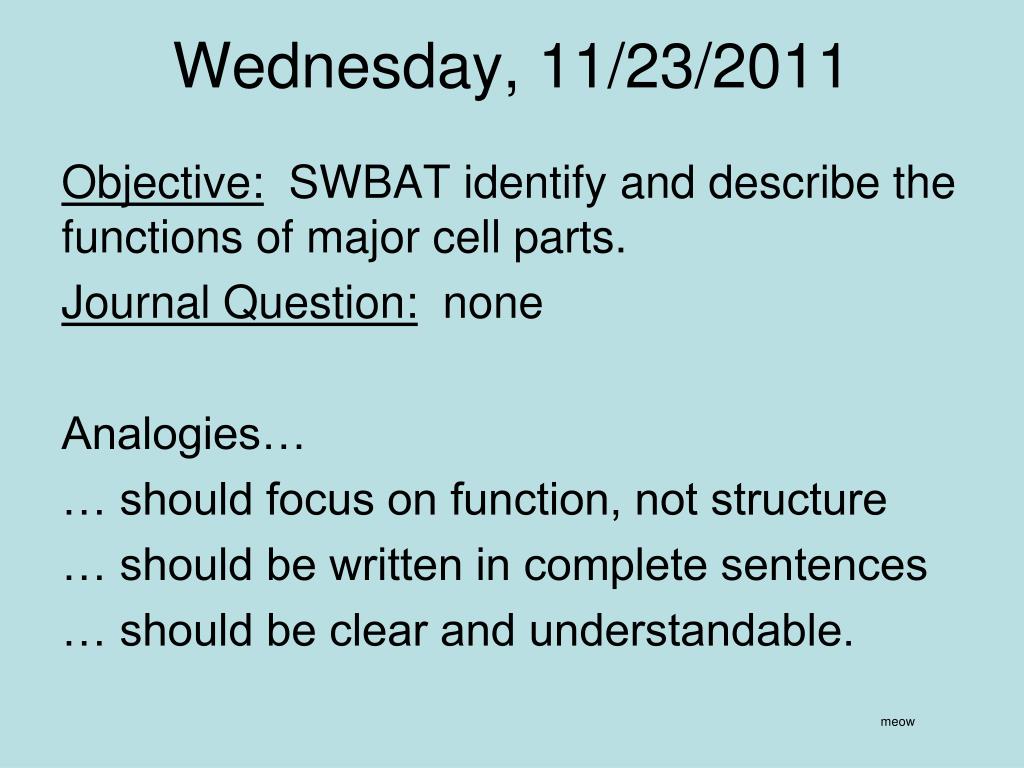

  38. Wednesday, 11/23/2011 Objective: SWBAT identify and describe the functions of major cell parts. Journal Question: none Analogies… … should focus on function, not structure … should be written in complete sentences … should be clear and understandable. meow
