Chapter 38

Chapter 38

Nervous System

Learning objectives

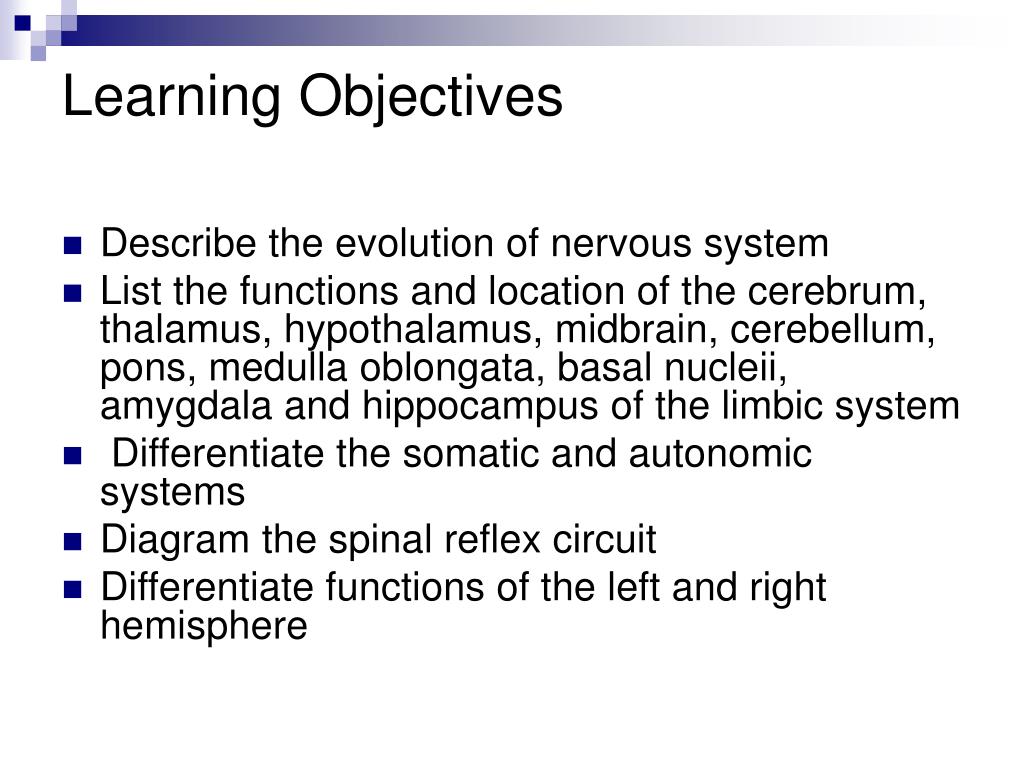

Learning Objectives

  • Describe the evolution of nervous system

  • List the functions and location of the cerebrum, thalamus, hypothalamus, midbrain, cerebellum, pons, medulla oblongata, basal nucleii, amygdala and hippocampus of the limbic system

  • Differentiate the somatic and autonomic systems

  • Diagram the spinal reflex circuit

  • Differentiate functions of the left and right hemisphere

Learning objectives1

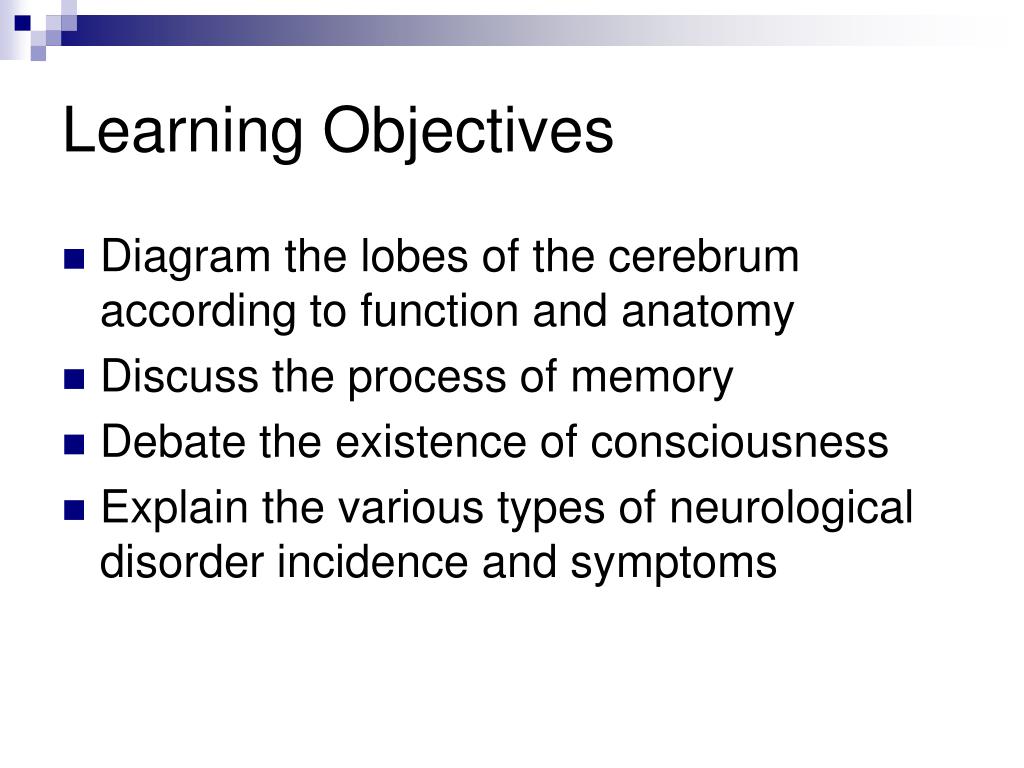

Learning Objectives

  • Diagram the lobes of the cerebrum according to function and anatomy

  • Discuss the process of memory

  • Debate the existence of consciousness

  • Explain the various types of neurological disorder incidence and symptoms

Invertebrate nervous systems 1
Invertebrate Nervous Systems (1)

  • Simplest nervous systems: The nerve nets of cnidarians

  • Echinoderms have modified nerve nets, with some neurons grouped into nerves

Invertebrate nervous systems 2
Invertebrate Nervous Systems (2)

  • Flatworms, arthropods, and mollusks have a simple central nervous system (CNS)

    • Ganglia in the head region (brain)

  • Peripheral nervous system (PNS)

    • Nerve cords from central ganglia to rest of body

Chapter 38

c. Planarian (flatworm)



Longitudinal nerve cords

Fig. 38.1c, p. 869

Chapter 38

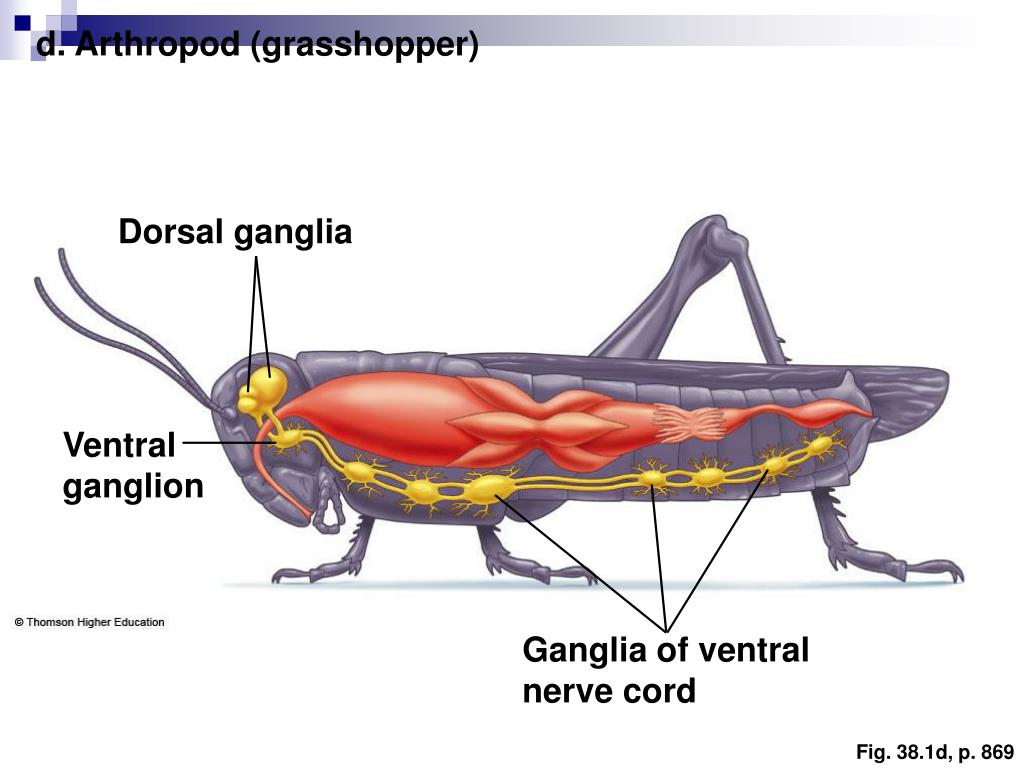

d. Arthropod (grasshopper)

Dorsal ganglia

Ventral ganglion

Ganglia of ventral nerve cord

Fig. 38.1d, p. 869

Chapter 38

e. Mollusk (octopus)

Ganglia associated with internal organs

Optic lobe

Frontal lobes

Lobed brain


Fig. 38.1e, p. 869

Chordate nervous systems
Chordate Nervous Systems

  • CNS

    • Large brain located in the head

    • Hollow spinal cord

  • PNS

    • All the nerves and ganglia connecting CNS to the rest of the body

Development in vertebrates

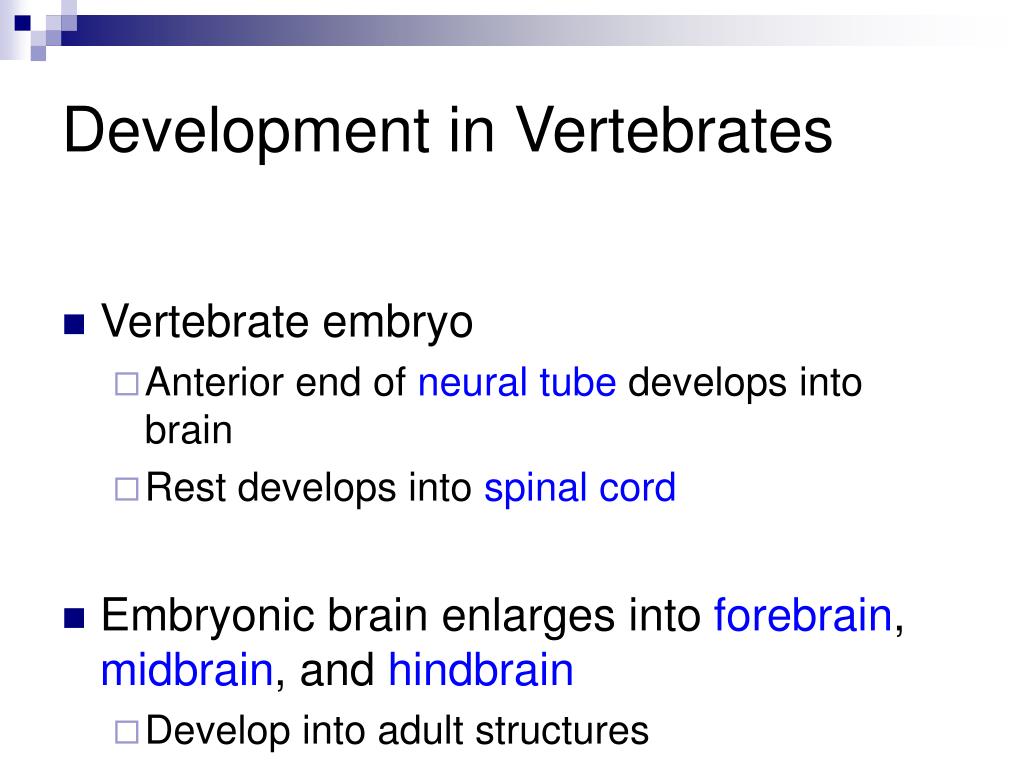

Development in Vertebrates

  • Vertebrate embryo

    • Anterior end of neural tube develops into brain

    • Rest develops into spinal cord

  • Embryonic brain enlarges into forebrain, midbrain, and hindbrain

    • Develop into adult structures

Chapter 38

Regions in 4-week embryo

Regions in adult

Regions in 5-week embryo

Functions in adult

Neural tube

Higher functions, such as thought, action, and communication

Telencephalon (cerebrum)


Coordinates sensory input and relays it to cerebellum




Center for homeostatic control of internal environment


Coordinates involuntary reactions and relays signals to telencephalon




Integrates signals for muscle movement





Center for information flow between cerebellum and telencephalon

Medulla oblongata

Controls many involuntary tasks


Fig. 38.2a, p. 870

Chapter 38


Hemisphere of cerebrum


Brain stem: Midbrain



Medulla oblongata

Spinal cord

Central canal

Adult brain regions

Fig. 38.2e, p. 870

The peripheral nervous system
The Peripheral Nervous System

  • Somatic system controls skeletal muscles

    • Voluntary body movements

    • Involuntary muscle contractions that maintain balance, posture, muscle tone

  • Autonomic system controls involuntary functions

    • Sympathetic system

    • Parasympathetic system

Chapter 38

Parasympathetic Division

Sympathetic Division

Constricts pupil; adjusts eye for near vision

Dilates pupil; adjusts eye for far vision

Optic nerve



Cranial nerves

Salivary glands

Stimulates secretion

Salivary glands

Inhibits secretion

Vagus nerve

Decreases heart rate

Increases heart rate



Constricts bronchioles (airways)


Dilates bronchioles


Stimulates stomach activity


Inhibits stomach activity


Inhibits glucose release


Stimulates glucose release


Stimulates activity



Inhibits activity

Stimulates contraction (emptying)

Relaxes bladder muscles



Inhibits penile or clitoral arousal

Stimulates penile or clitoral arousal

Chain of sympathetic ganglia



Spinal nerves

Fig. 38.4, p. 872

The spinal cord
The Spinal Cord

  • Carries signals between the brain and the PNS

  • Its neuron circuits control reflex muscular movements and some autonomicreflexes

Chapter 38

2 The afferent neuron transmits the impulses to the spinal cord.

3 Interneurons integrate the information.

1 A pain receptor in the finger stimulates an afferent neuron.

Interneuron connections leading to brain

Integrating interneurons in spinal cord



Spinal nerve

Central canal

Gray matter

White matter

Biceps muscle (flexor) contracts


4 One efferent neuron stimulates the flexor muscle to contract.

Hand withdrawn

5 The other efferent neuron sends inhibitory signals that keep the extensor muscle from contracting.


Triceps muscle (extensor) relaxes

6 The flexor contracts, withdrawing the hand from the pain.

Fig. 38.5, p. 873

Major brain structures
Major Brain Structures cord.

  • Cerebrum

  • Brain stem

    • Medulla

    • Pons

    • Midbrain

  • Thalamus and hypothalamus

Structures of the cerebrum
Structures of the Cerebrum cord.

  • Right and left cerebral hemispheres

    • Connected by corpus callosum

  • Cerebral cortex

    • Thin gray matter covering core of white matter

  • Basal nuclei

    • Collections of gray matter deep in telencephalon

Protecting the cns
Protecting the CNS cord.

  • Cerebrospinal fluid provides nutrients and cushions the CNS

  • A blood-brain barrier allows only selected substances to enter the cerebrospinal fluid

Chapter 38

Layer of cerebrospinal fluid between meninges cord.


Central canal of spinal cord

Cerebral cortex (gray matter)

White matter

Corpus callosum

Basal nuclei (gray matter)



Right cerebral hemisphere

Left cerebral hemisphere

Fig. 38.6, p. 874

Functions of the brain stem

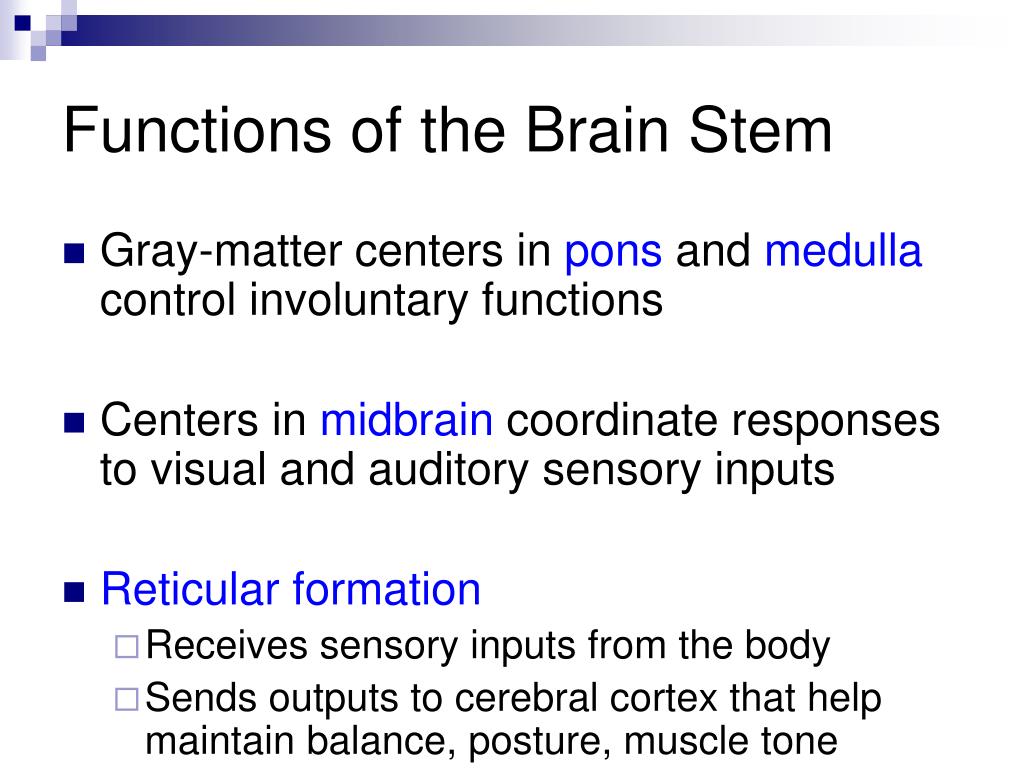

Functions of the Brain Stem cord.

  • Gray-matter centers in pons and medulla control involuntary functions

  • Centers in midbrain coordinate responses to visual and auditory sensory inputs

  • Reticular formation

    • Receives sensory inputs from the body

    • Sends outputs to cerebral cortex that help maintain balance, posture, muscle tone

    • Regulates states of wakefulness and sleep

Chapter 38

Midbrain cord.




Reticular formation

Fig. 38.8, p. 875

Chapter 38

Front of brain cord.

Fig. 38.7, p. 875

Functions of the cerebellum
Functions of the Cerebellum cord.

  • Integrates sensory inputs to coordinate body movements

    • Positions of muscles and joints

    • Visual and auditory information

The telencephalon s subcortical gray matter centers
The Telencephalon’s Subcortical cord.Gray-Matter Centers

  • Thalamus

    • Receives, filters, and relays sensory and motor information to/from regions of cerebral cortex

  • Hypothalamus

    • Regulates basic homeostatic functions of body

    • Contributes to endocrine control of body functions

  • Basal nuclei

    • Affect fine-tuning of body movements

The limbic system
The Limbic System cord.

  • Structures

    • Parts of thalamus, hypothalamus, basal nuclei

    • Amygdala and hippocampus

  • Functions

    • Controls emotions

    • Influences basic body functions controlled by hypothalamus and brain stem

Chapter 38

Cerebrum cord.


Gathers sensory information before distribution to higher areas

Basal nuclei


Involved mainly with memory

Olfactory bulbs



Controls emotions, activates “fight or flight” self-preservation reactions

Fig. 38.9, p. 876

The cerebral cortex
The Cerebral Cortex cord.

Primary somatosensory areas

  • Register information on touch, pain, temperature, and pressure from all parts of the body

  • Right cerebral hemisphere receives sensory information from left side of body and vice versa

  • Primary motor areas control voluntary movements of skeletal muscles

  • Chapter 38

    Front cord.

    Primary somatosensory area of left hemisphere

    Primary motor area of left hemisphere


    Left hemisphere



    Cross-sectional view

    Cross-sectional view

    Fig. 38.11, p. 878

    Association areas of cerebral cortex

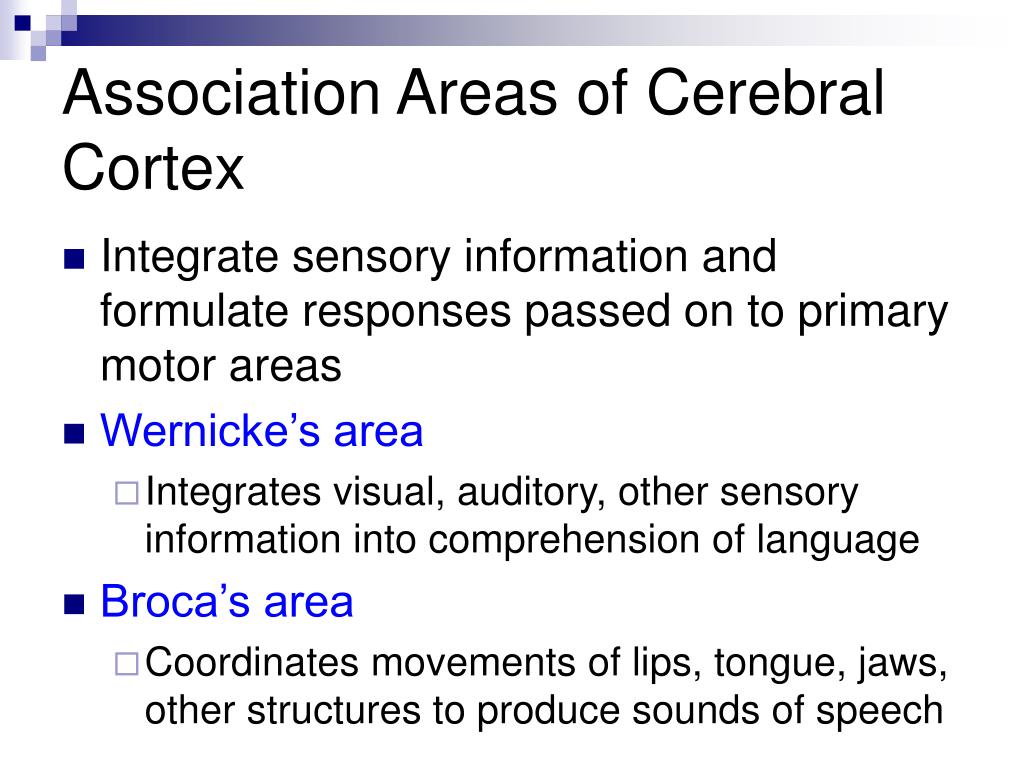

    Association Areas of Cerebral Cortex cord.

    • Integrate sensory information and formulate responses passed on to primary motor areas

    • Wernicke’s area

      • Integrates visual, auditory, other sensory information into comprehension of language

    • Broca’s area

      • Coordinates movements of lips, tongue, jaws, other structures to produce sounds of speech

    Chapter 38

    General motor association area cord.

    Primary motor area


    Association area


    Primary somatosensory area

    General sensory association area

    Parietal lobe

    Wernicke’s area (understanding language)

    Frontal lobe


    Visual association area

    Occipital lobe


    Temporal lobe

    Broca’s area (expressing language)

    Primary visual cortex (visual input)

    Auditory area (hearing input)


    Auditory association area

    Facial recognition area (on inner side of cortex)

    Brain stem

    Fig. 38.10, p. 877

    Lateralization of the cerebral hemispheres
    Lateralization of the cord.Cerebral Hemispheres

    • Left hemisphere functions

      • Spoken and written language, abstract reasoning, precise mathematical calculations

    • Right hemisphere functions

      • Nonverbal conceptualizing, mathematical estimation, intuitive thinking, spatial recognition, artistic and musical abilities

    • Equal functions

      • Long-term memory and consciousness

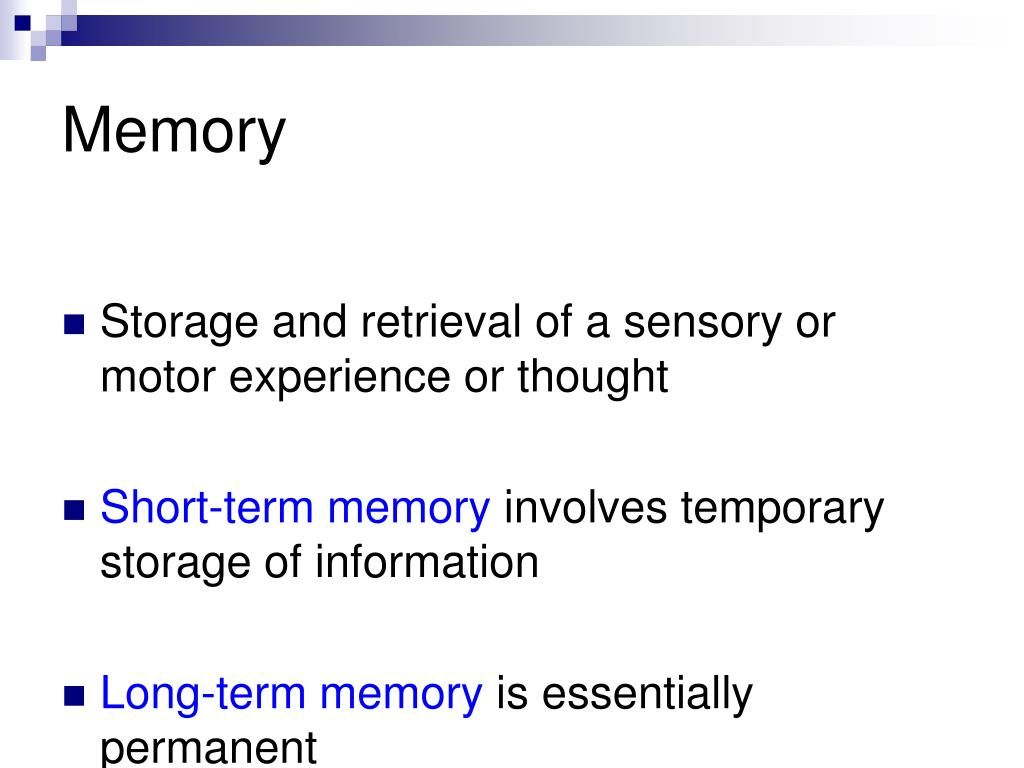

    Memory cord.

    • Storage and retrieval of a sensory or motor experience or thought

    • Short-term memory involves temporary storage of information

    • Long-term memory is essentially permanent

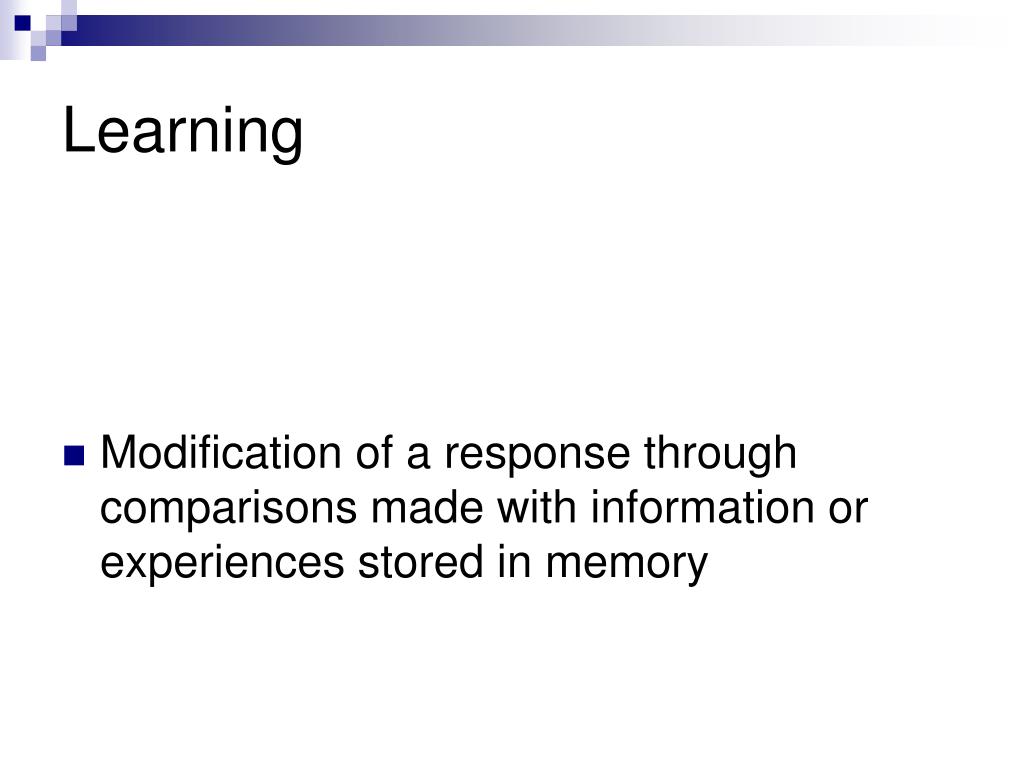

    Learning cord.

    • Modification of a response through comparisons made with information or experiences stored in memory

    Consciousness cord.

    • Awareness of ourselves, our identity, and our surroundings

    • Varies through states from full alertness to sleep

    • Controlled by the reticular activating system

    Chapter 38

    Awake cord.

    (beta waves)

    Eyes closed, relaxed (alpha waves)


    (theta waves)

    Deep sleep (delta waves)

    Time (sec)

    Fig. 38.13, p. 882

    Major diseases of the brain
    Major Diseases of the Brain cord.

    • Autism Spectrum Disorder

    • ADHD

    • Alzheimer’s Disease/Dementia

    • Schizophrenia

    Autism spectrum disorder

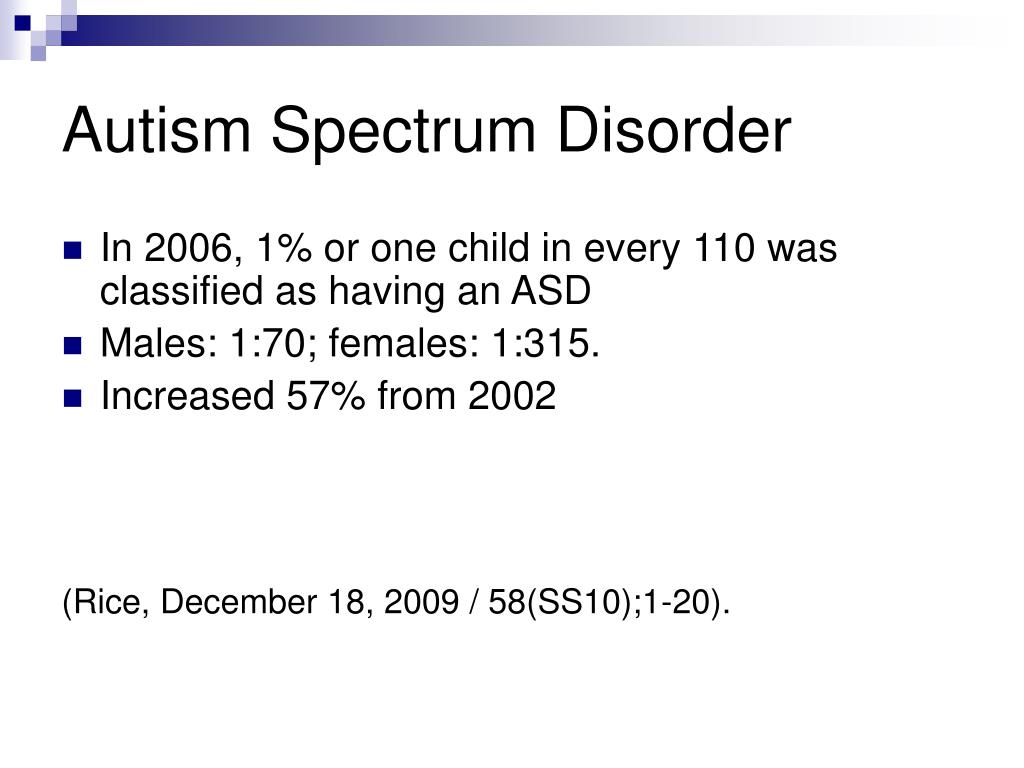

    Autism Spectrum Disorder cord.

    • In 2006, 1% or one child in every 110 was classified as having an ASD

    • Males: 1:70; females: 1:315.

    • Increased 57% from 2002

      (Rice, December 18, 2009 / 58(SS10);1-20).

    Chapter 38
    ASD cord.

    People with autistic disorder usually have significant language delays, social and communication challenges, and unusual behaviors and interests

    People with Asperger syndrome usually have some milder symptoms of autistic disorder.  They might have social challenges and unusual behaviors and interests.  However, they typically do not have problems with language or intellectual disability.

    Chapter 38
    ADHD cord.

    • 4.5 million children 5-17 years of age have ever been diagnosed with ADHD as of 2006.

    • 3%-7% of school-aged children suffer from ADHD. Some studies have estimated higher rates in community samples

    • Boys (9.5%) are more likely than girls (5.9%) to have been diagnosed with ADHD. Diagnosis of ADHD increased an average of 3% per year from 1997 to 2006


    Types of adhd

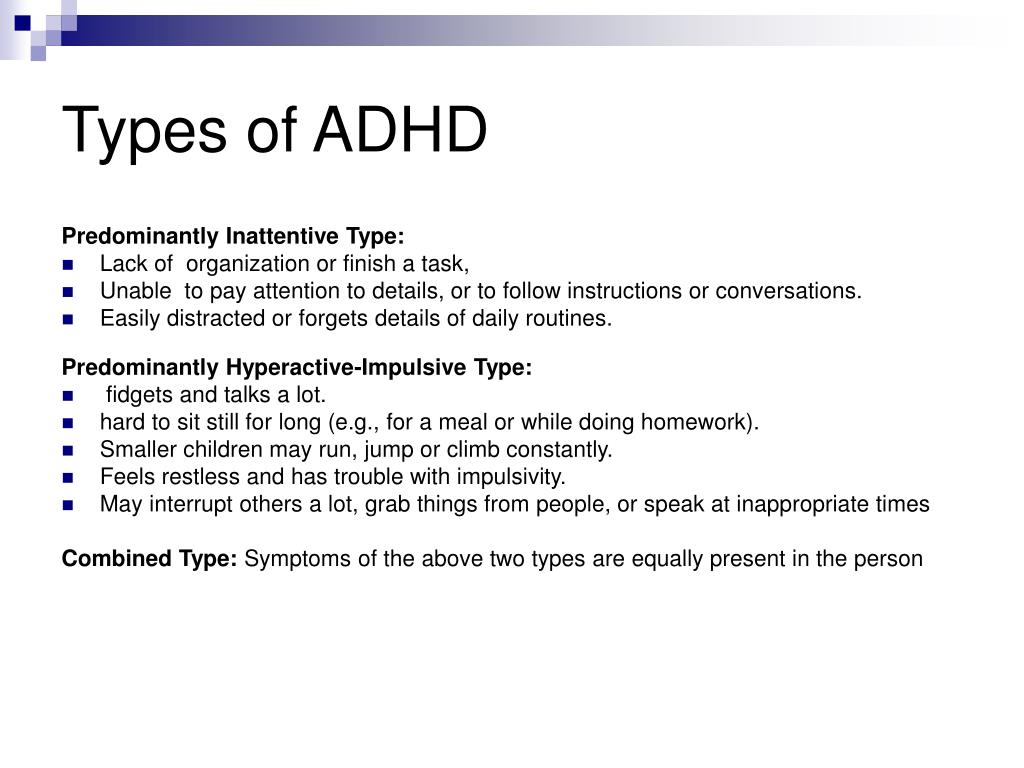

    Types of ADHD cord.

    Predominantly Inattentive Type:

    • Lack of organization or finish a task,

    • Unable to pay attention to details, or to follow instructions or conversations.

    • Easily distracted or forgets details of daily routines.

      Predominantly Hyperactive-Impulsive Type:

    • fidgets and talks a lot.

    • hard to sit still for long (e.g., for a meal or while doing homework).

    • Smaller children may run, jump or climb constantly.

    • Feels restless and has trouble with impulsivity.

    • May interrupt others a lot, grab things from people, or speak at inappropriate times

      Combined Type: Symptoms of the above two types are equally present in the person

    Alzheimer s disease dementia
    Alzheimer’s Disease/Dementia cord.

    • About 5% ages 65-74 year old

    • About 50% over 80 years old

    • An estimated 5 million Americans have Alzheimer’s disease.

    • This number has doubled since 1980

    • It is expected to be as high as 13.4 million by 2050

    • Individuals with Alzheimer’s disease make up less than 13 percent of the Medicare population, yet they account for 34 percent of Medicare spending.*

    • How old will you be in 2050? Who is paying the bill?

    Schizophrenia cord.

    • Affects 1.1 percent of the population

    • Onset usually after age 18

    • Later in women

    • Often addicted to nicotine and other substances

    • Genetically linked

    Symptoms cord.

    • Positive:

    • Hallucinations (voices are common)

    • Delusions (religious or alien, or authority)

    • Thought disorders

    • Movement disorders

    • Negative:

    • Absence of pleasure, planning, enjoyment (affect), speaking, etc.

    • Cognitive defects:

    • Little understanding, trouble focusing, and little memory
