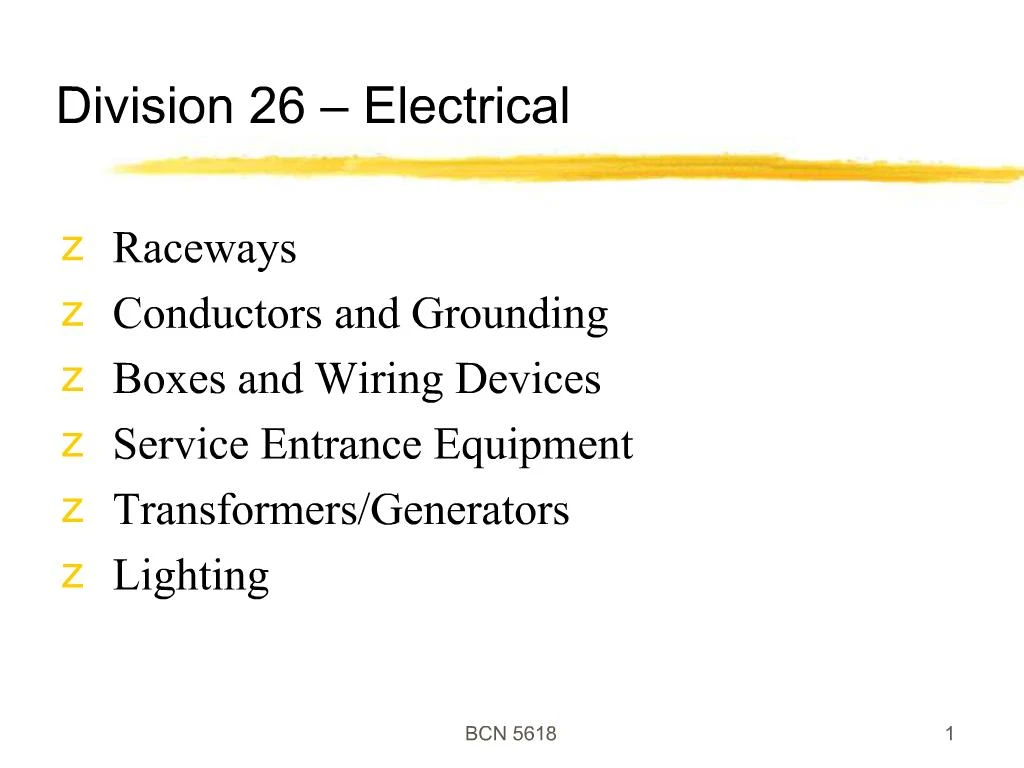

    1. BCN 5618 1 Division 26 – Electrical Raceways Conductors and Grounding Boxes and Wiring Devices Service Entrance Equipment Transformers/Generators Lighting

    2. BCN 5618 2

    3. BCN 5618 3 Raceways Rigid galvanized steel (RGS) conduit is the safest system. Conduit systems may also be aluminum or electrical metallic tubing (EMT). Flexible conduit, or Greenfield, is easier to install. Where codes allow, the least expensive method of wiring is pre-wired armored cable (BX) or non-metallic sheathed cable (NM) such as Romex.

    4. BCN 5618 4

    5. BCN 5618 5 Raceways Cont. Conduit in concrete slab: PVC schedule 40 or RGS Conduit in trench: RGS Unit: LF, note type and size  Duct System: Some floor systems have raceway built in, others are added in the floor fill. Standard duct is 1 3/8" x 3 1/8". Lengths are 5', 6', 10', and 12'. Unit: LF, note type, size and required fittings.

    6. BCN 5618 6

    7. BCN 5618 7 Conductors Wire materials: copper Wire insulation: temperature rating (THW, THWN, ...) Wire size: 14, 12, 10, 8, 6, 4, 3, 2, 1, 0, 00, 000 Number of hot wires (14/2, 12/3, ...) Unit for wires and cables: CLF, note voltage, material, insulation type, size, and number of hot wires

    8. BCN 5618 8 Grounding Rod: copper clad; unit is each (note size and length) Bare Copper; unit is CLF (note size)

    9. BCN 5618 9

    10. BCN 5618 10 Boxes Outlet boxes; unit each (note material, shape, and size) Pull boxes and cabinets; unit each (note type and size)

    11. BCN 5618 11

    12. BCN 5618 12 Wiring Devices Switch; unit each, note type (quiet/dimmer, single pole/3 way/4 way) and amperage:15, 20, ...) Receptacle; unit each, note amperage (15, 20, 30, and 50) Wall plates; unit each, note number of gang (1, 2, 3, 4), type of device (switch, outlet, telephone)

    13. BCN 5618 13 Service Entrance Equipment Consists of the service drop, service entrance conductors, the meter, and main control center (for residential work: circuit breaker-fuse panel)  The local utility will govern the details of this installation and may furnish the meter. Unit for circuit breaker is each; note voltage, amperage, and number of circuits.

    14. BCN 5618 14

    15. BCN 5618 15 Transformers/Generators Transformers: Unit: each, note single or three phase, primary and secondary voltage, and Kilovolt Ampere (KVA) Generators: Unit: each, note phase, number of wires, voltage, and kilowatt (KW)

    16. BCN 5618 16 Lighting Exit and emergency lighting Exterior fixtures Interior lighting fixtures Unit: each, price varies widely

    17. BCN 5618 17

    18. BCN 5618 18

    19. BCN 5618 19

    20. BCN 5618 20

    21. BCN 5618 21

    22. BCN 5618 22

    23. BCN 5618 23

    24. BCN 5618 24

    25. BCN 5618 25

    26. BCN 5618 26

    27. BCN 5618 27 Division 27 - Communications Optical Fiber Audio-Video System Public Address System Sound System Nurse Call Systems Clock Systems

    28. BCN 5618 28 Division 28 – Electronic Safety and Security Security Access Detection Intrusion Detection Closed Circuit Television System Fire detection and Alarm Fuel-Gas Detection and Alarm
