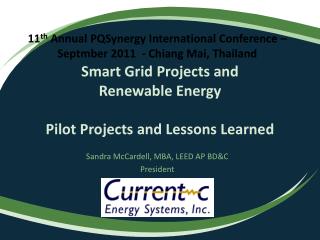

  1. 11th Annual PQSynergy International Conference – Septmber 2011 - Chiang Mai, Thailand Smart Grid Projects and Renewable EnergyPilot Projects and Lessons Learned Sandra McCardell, MBA, LEED AP BD&C President

  2. Presentation Outline • Smart Grid Elements • Push towards Renewables in Smart Grids • Pilot Projects – General Comments • Renewable Energy in Smart Grids • 4 Pilot Projects • Summary • Lessons learned

  3. The Smart Grid Source: The Grid of The Future, T-Systems Customer Magazine BEST PRACTICE, 0212010

  4. Source: Elster; Accelerating Smart Grid Benefits with Hosted Solutions for Utilities, AkliaGanapathy, webinar 7/2011

  5. Why Smart Grid? Source: Kazuyuki Kakada, “Smart Grid Related Activities in NEDO, Smart Grid Advisory Meeting, 10/2009

  6. Characteristics of Renewable Energy in Smart Grids • Generation Types: • Traditional Generation • Wind • Solar (various technologies) • Hydro • Biomass • Geothermal • Electric vehicle • Transmission and Distribution 2-way power flow • Active and Fluctuating Operations • 2-way (or more) communications • High Variability and localized solutions

  7. For Utilities – Opportunities with Renewables in Smart Grid • Regional planning & coordination • Build off existing infrastructure • Increased reliability and security • Help “Self healing” • With “real time” decision making, provide local alternative generation • Integrate different generators & generator types

  8. For Utilities - Challengeswith Renewables in Smart Grid • Lack of customer understanding • Utilities need to change thinking to react more quickly • Variability & differential generation patterns • Lack of standards and interoperability • Financial models for cost recovery must change • Security of grid • No “one size fits all” solutions

  9. Countries without targets Countries with targets Countries with renewable energy targets From 45 in 2005 to 85 in 2010 Source: The Race for New Energy, Wilson Rickerson, Global New Energy Summit 2011

  10. Pilot Projects are Testing…

  11. International Projects Source: http://www.sgiclearinghouse.org/

  12. International Pilots • Elektromed • Elektromed • Turkey • Grinpal Energy Management • Grinpal Energy Management • India • Intelligent Energy System (IES) Pilot Project • Energy Market Authority (EMA) • Singapore • Jeju Smart Grid Test-bed • Korea Smart Grid Institute (KSGI) • South Korea • KESC - Karachi Electricity Supply Company AMI • KESC - Karachi Electricity Supply Company • Pakistan • LESCO - Pakistan Electricity Company • Pakistan Electricity Company • Pakistan • Smart Grid Demonstration Project in Shanghai World Expo • Shanghai Municipal Electric Power Company • China • Smart Grid Demonstration Project in Sino-Singapore Tianjin Eco-city • Tianjin Electric Power Company • China

  13. US Projects Source: http://www.sgiclearinghouse.org/

  14. Pilot Projects Presented • Powerstream in Ontario, Canada • CenterPoint in Texas, USA • Friedrichshafen (“T-City”), Germany • KuzumakiPrefacture, Japan

  15. PowerStream – Ontario, Canada • Renewables Picture: • Currently primarily hydro • Potential small RE projects • Several integrated “pilot projects: • Communications interface with GIS • “Self Healing” Grid • Digital Fault Indicators • Smart Meters for Distribution Transformers • Vehicle Battery “smart charging” • Home Area Networks “Go Green with Powerstream” Source: “A Brave New World”, Edward Chatten, SVP Smart Grid & Strategic Support, Smart Grid Technology Conference, San Jose CA June 2011

  16. Guiding Principles • Customer Empowerment • Improve Reliability • Focus on Value – Shareholders, Customers • Increase Safety • Integrate with energy conservation & DSM programs • Explore regional opportunities • Leverage – equipment, information, programs, enterprise systems • Recover all costs • Support local green energy & economic development goals • Maximize security of grid and customer information Source: “A Brave New World”, Edward Chatten, SVP Smart Grid & Strategic Support, Smart Grid Technology Conference, San Jose CA June 2011

  17. Lessons Learned • Price of failure to adapt very high • Everything changing very quickly • Difficulty of technology integration (including Renewables) • Technology obsolescence is a problem (including Renewables) • Customers very different, with varied expectations • SmartGriddesign and function will vary by utility and region • Cost / Benefit ratio should be positive • Sitingchallenges • Barriers to scale Source: “A Brave New World”, Edward Chatten, SVP Smart Grid & Strategic Support, Smart Grid Technology Conference, San Jose CA June 2011

  18. CenterPoint Energy, Houston,Texas USA (& 5 other states) • Renewables Picture: • Currently Coal & Natural Gas • Transmission Constraints • Important wind resources • Good solar resources • Pilot Elements: • Advanced Metering Systems • Intelligent Grid • Vision: “CNP seeks to enable the Texas electricity market to extract the full functionality of the Smart Grid by supporting individual management of electricity consumption, fostering adoption of market-driven programs and achieving maximum operational readiness and efficiency.” Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  19. Intelligent Grid Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  20. Intelligent Grid - 2 Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  21. Managing Outages Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  22. Grid Sensing Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  23. Systems Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  24. Communication Source: Robert Frazier, SmartGrid conference, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”

  25. Friedrichshafen, Germany • T-Systems: • Provides IT and communication services, dynamic services, energy services, cloud-based services – largest German telecom company • Energy efforts started with small metering solution for German market, focus on privacy and security • Renewables Picture: • Germany well-known for focus on variety of distributed renewable energy generation • PV, electric cars, wind, solar thermal, biomass all in place

  26. Friedrichshafen Summary • Cooperative effort • “Laboratory” with focus on implementation • Smart metering, smart grid, and general smart technology services • Multi-utility, sub-metering, multiple standards in smart metering platform • Small smart grid applications • Demand response, power plant requirements, economics research, market value research

  27. Friedrichshafen Findings • Communication is key with different types of buildings & users, and generators • Architecture which brings together different meters is most useful • Transformative technologies and methods • Data privacy and data security critical • Many common solutions would not meet security requirements of telecom industry • In Germany, change from yearly billing required • Rapid, complete roll-out most cost effective

  28. Community scale smart grid in Japan • Grid severely supply limited • Acceleration of Smart Grid adoption may be good alternative for future • Potential Smart Grid elements: • Accelerate adoption of technologies and grid • Smart meter options needed • Mechanism needed for market signals – price and command signals

  29. Impacts from the Disaster • After the earthquake and tsunami, surviving fossil fuel power plants not able to handle load left by Fukushima closure • Substation breakers were only tools available to keep grid in balance, so had system of rolling blackouts • Current actions: • Recommissioning old plants • Importing gas turbines • Running all at full capacity

  30. Kuzumaki Prefecture • Local Smart Grid – Kuzumaki • 8,000 people, 50 miles from coast • Power out for 1 day (connected to grid) • Started program 10 years ago • Wind farm • Biogas generator • Biodiesel refinery • PV on school roofs • Elder-care facilities heated by pellet mill Source: http://www.industcards.com/biomass-elsewhere.htm

  31. Lessons from Kuzumaki • Intermittent renewables work in system • Price and control signals • Wind power at night increases • Cloud over sun during day • Small regions of grid disconnect temporarily and keep operating Source: http://www.solartoday-digital.org/solartoday/201106/#pg12 Source: http://aoatools.aua.gr/pilotec/files/bibliography/RES_japan-2204205825/RES_japan.pdf

  32. Smart Grid Changes Source: Robert Frazier, SmartGrid conference, San Jose CA, 6/2011 – “SmartGrid Projects – Current Projects to Future Functionality”
