WHAT IS MEANT BY PPM?

WHAT IS MEANT BY PPM?. ANSWER: PARTS PER MILLION. IF A MILLION PARTICLES OF AIR BY VOLUME CONTAINS ONE PART OF a particle ( Eg : H2S) IT IS 1 PPM. 1PPM = 0.0001% 10 PPM = 0.001% (TLV) 100 PPM = 0.01% 1000 PPM = 0.1% 10,000 PPM = 1%. H2S TOXIC EFFECTS.

ailish
Download Presentation

WHAT IS MEANT BY PPM?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. WHAT IS MEANT BY PPM? ANSWER: PARTS PER MILLION IF A MILLION PARTICLES OF AIR BY VOLUME CONTAINS ONE PART OF a particle (Eg: H2S)IT IS 1 PPM • 1PPM = 0.0001% • 10 PPM = 0.001% (TLV) • 100 PPM = 0.01% • 1000 PPM = 0.1% • 10,000 PPM = 1%

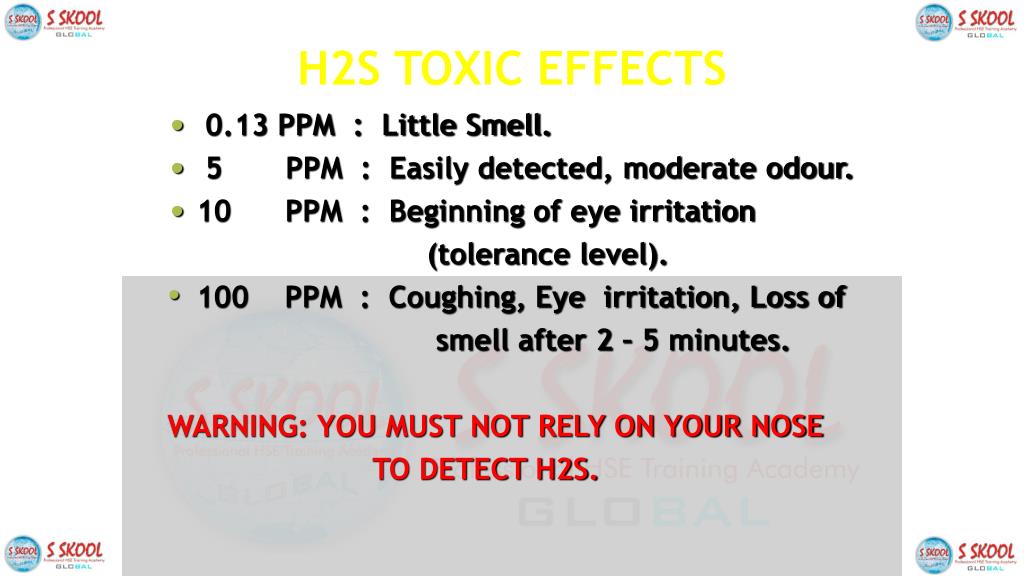

  2. H2S TOXIC EFFECTS • 0.13 PPM : Little Smell. • 5 PPM : Easily detected, moderate odour. • 10 PPM : Beginning of eye irritation • (tolerance level). • 100 PPM : Coughing, Eye irritation, Loss of • smell after 2 – 5 minutes. • WARNING: YOU MUST NOT RELY ON YOUR NOSE • TO DETECT H2S.

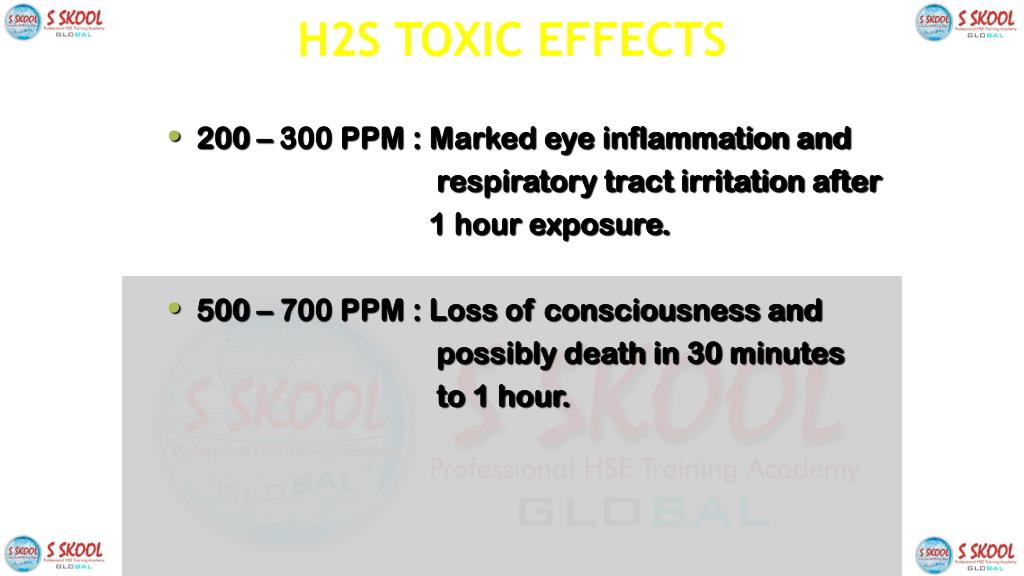

  3. H2S TOXIC EFFECTS • 200 – 300 PPM : Marked eye inflammation and • respiratory tract irritation after • 1 hour exposure. • 500 – 700 PPM : Loss of consciousness and • possibly death in 30 minutes • to 1 hour.

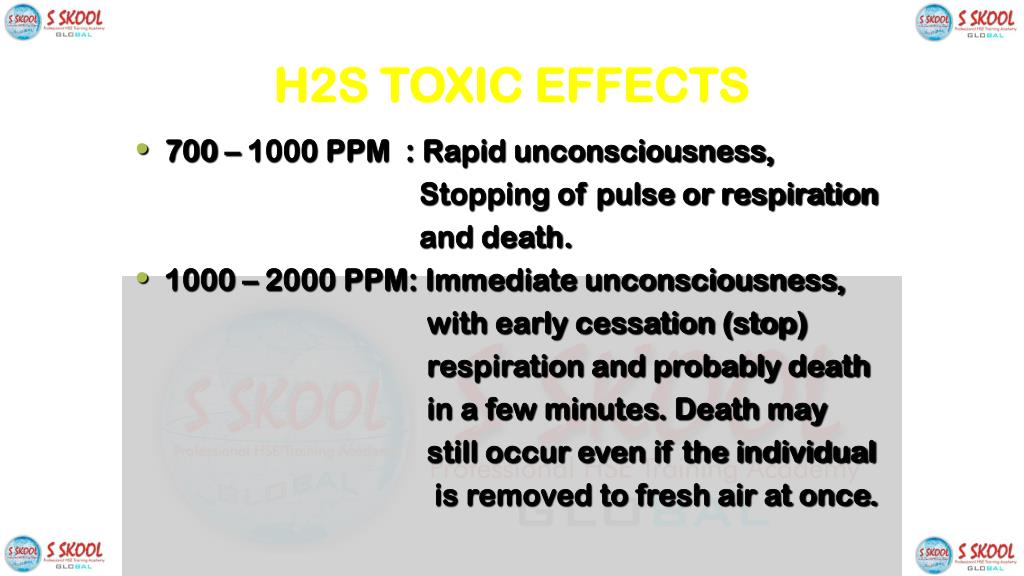

  4. H2S TOXIC EFFECTS • 700 – 1000 PPM : Rapid unconsciousness, • Stopping of pulse or respiration • and death. • 1000 – 2000 PPM: Immediate unconsciousness, • with early cessation (stop) • respiration and probably death • in a few minutes. Death may • still occur even if the individual • is removed to fresh air at once.
