  1. Using Scientific Equipment Triple Beam Balance, Calculating Volume of a Regular Object

  2. Using a Triple Beam Balance 1. Wipe off the pan

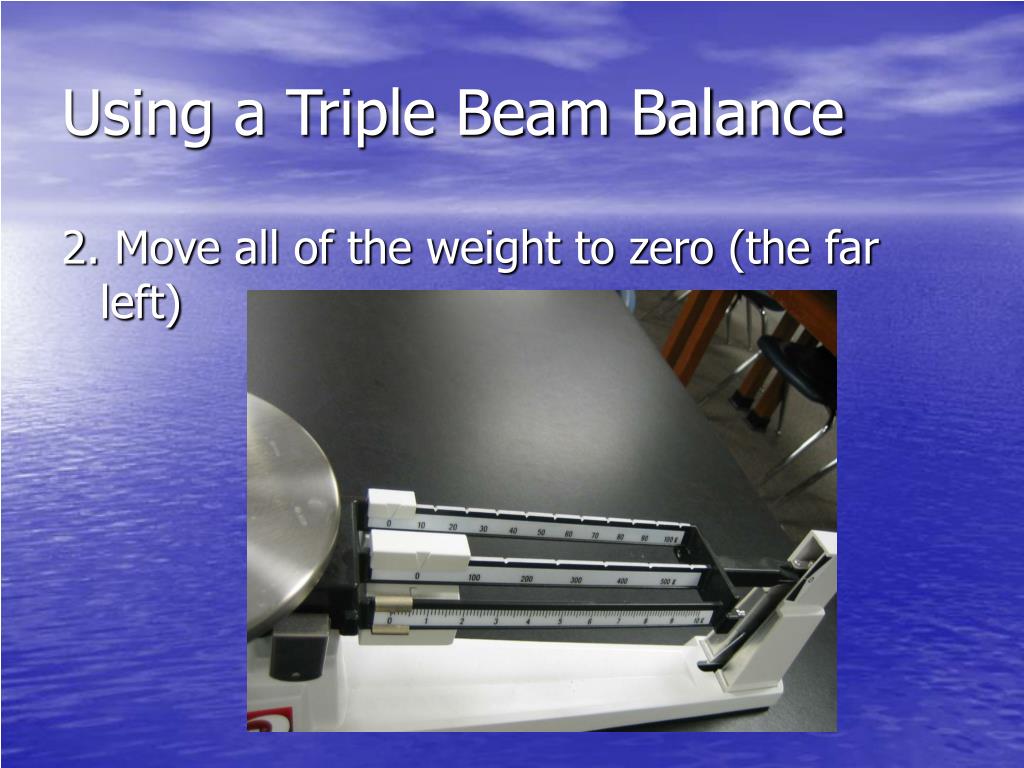

  3. Using a Triple Beam Balance 2. Move all of the weight to zero (the far left)

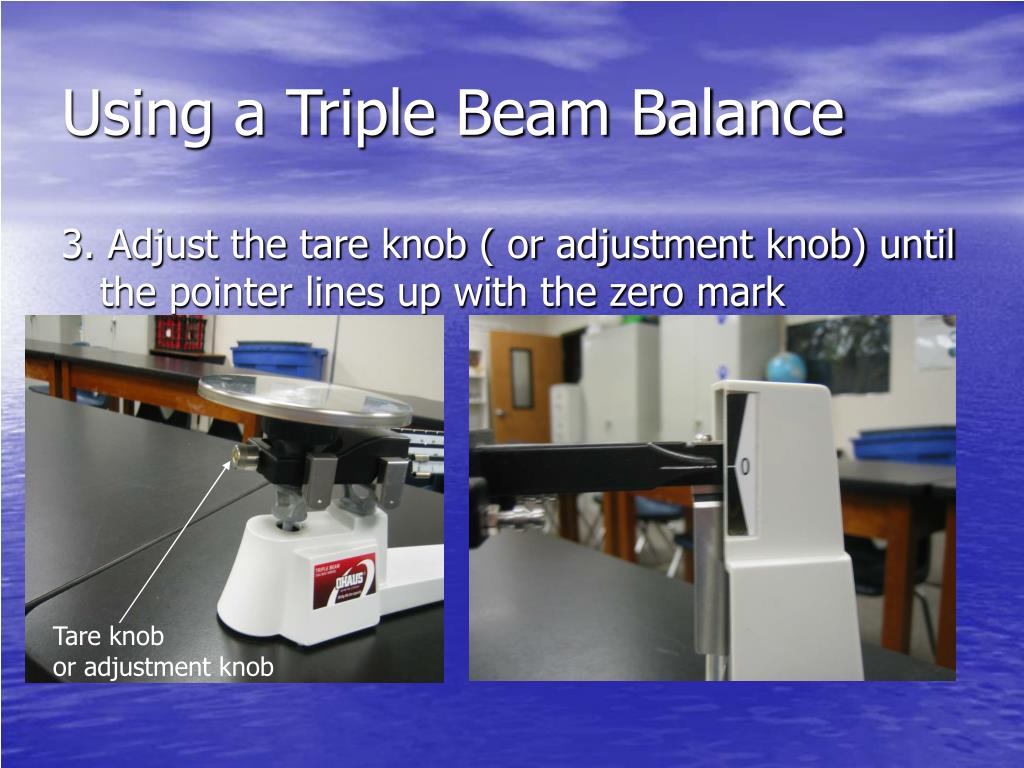

  4. Using a Triple Beam Balance 3. Adjust the tare knob ( or adjustment knob) until the pointer lines up with the zero mark Tare knob or adjustment knob

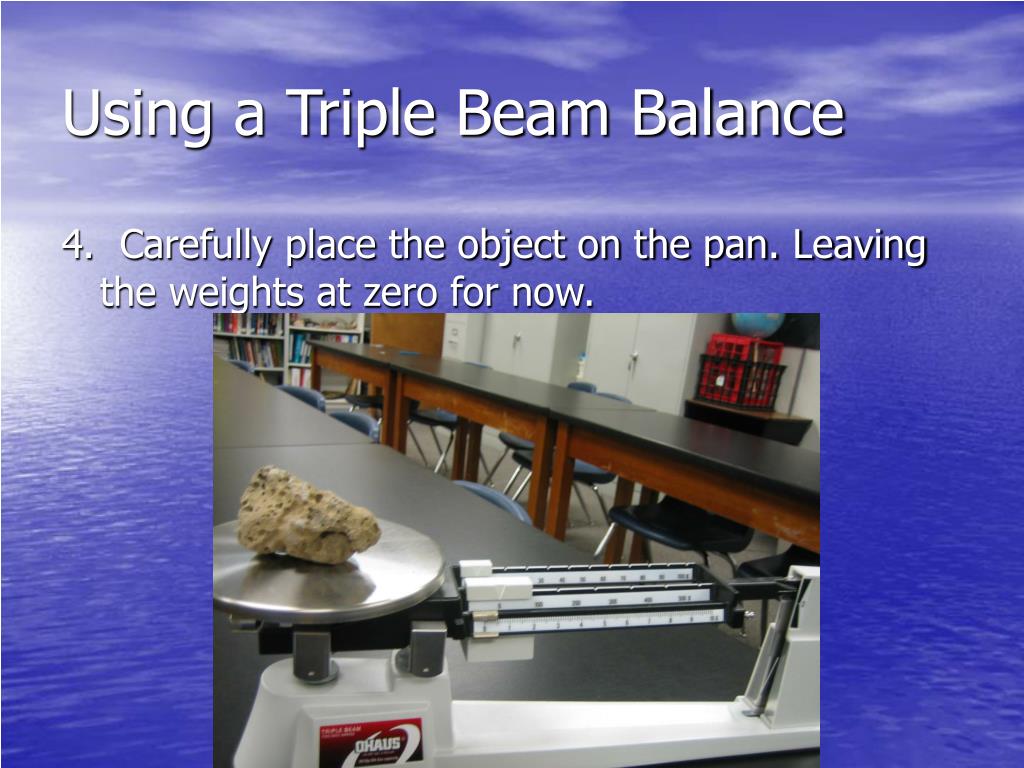

  5. Using a Triple Beam Balance 4. Carefully place the object on the pan. Leaving the weights at zero for now.

  6. Using a Triple Beam Balance 5. Move the weight on the bars until the pointer lines up with the zero mark. *For large or heavy objects start with the large weight that moves in 100 gram increments * For small and lighter objects start with the smaller weights that move in 1 gram or 10 gram increments

  7. Using a Triple Beam Balance 5.

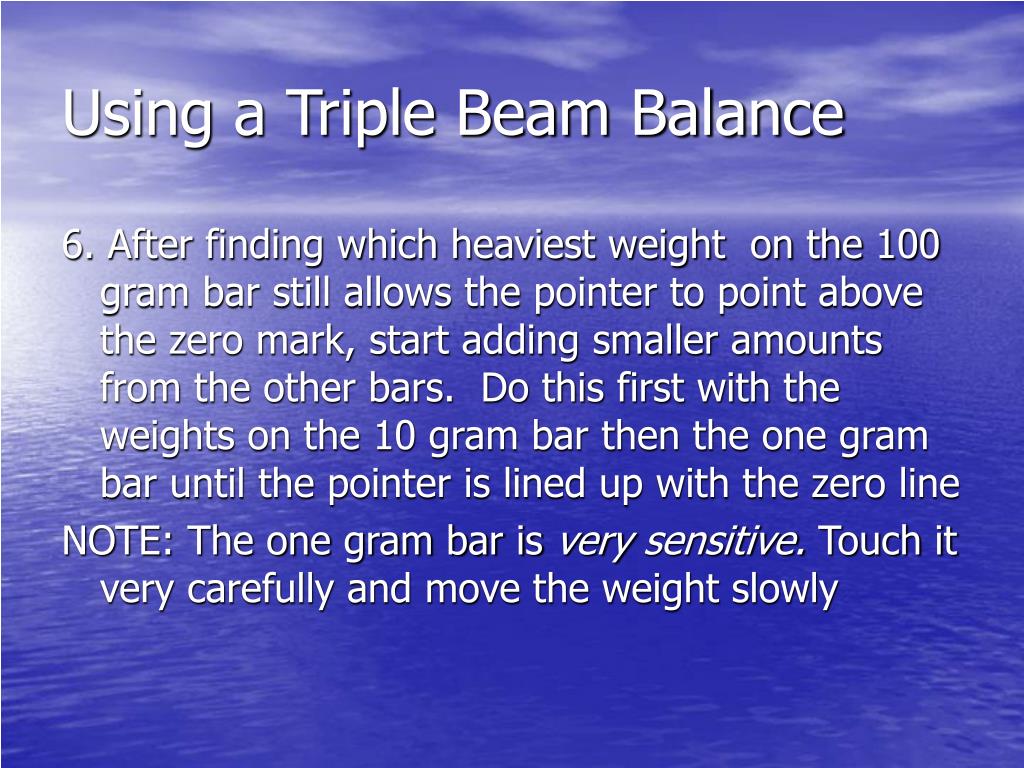

  8. Using a Triple Beam Balance 6. After finding which heaviest weight on the 100 gram bar still allows the pointer to point above the zero mark, start adding smaller amounts from the other bars. Do this first with the weights on the 10 gram bar then the one gram bar until the pointer is lined up with the zero line NOTE: The one gram bar is verysensitive. Touch it very carefully and move the weight slowly

  9. Using a Triple Beam Balance 6A

  10. Using a Triple Beam Balance 6B

  11. REVIEW: Using a Triple Beam Balance 1. Wipe off the pan 2. Move all of the weights to zero 3. Adjust the tare knob( also called the adjustment knob) until the pointer lines up with the zero mark 4. Carefully put the object on the pan

  12. Using a Triple Beam Balance • Move the weight on the bars until the pointer lines up with the zero mark. *For large or heavy objects start with the large weight that moves in 100 gram increments * For small and lighter objects start with the smaller weights that move in 1 gram or 10 gram increments

  13. Using a Triple Beam Balance 6. After finding which heaviest weight on the 100 gram bar still allows the pointer to point above the zero mark, start adding smaller amounts from the other bars. Do this first with the weights on the 10 gram bar then the one gram bar until the pointer is lined up with the zero line NOTE: The one gram bar is verysensitive. Touch it very carefully and move the weight slowly

  14. Calculating the Volume of a Regular Object • Calculating the volume of a regular object is easy. • Just multiply Length X Width X Height Width Length Height

  15. Calculating the Volume of a Cubic Object • For instance, if you have a cube that is 4 centimeters long, 4 centimeters wide and 4 centimeters high you would multiply 4cm X 4cm X 4cm = 64 cubic centimeters
