objectives
OBJECTIVES

The students will:

  • Identify the principles of water supply and tactics for establishing water supplies using municipal sources, static sources, and portable sources.
  • Identify the principles and tactics to achieve salvage.
  • Explain the correct procedures and select the appropriate size hoselines for attaching to a fire department connection.
objectives cont d
OBJECTIVES (cont'd)
  • Describe the procedures for deployment of a hoseline from a standpipe system.
  • Using the command sequence cycle, develop a water supply action plan based on the incident presented.
  • Using the command sequence cycle, develop a salvage action plan based on the incident presented.
definition of water supply
DEFINITION OF WATER SUPPLY

The tactical operation of providing sufficient water to meet needed fire flows at fire incidents.

principle of water supply
PRINCIPLE OF WATER SUPPLY

Develop water supply adequate to support all fireground operations.

slide6

Pump

Gravity

Source

Water

Tower

City

Pump

MUNICIPAL WATER SUPPLY

municipal water systems
MUNICIPAL WATER SYSTEMS
  • Know quantity of water available.
  • Flow is determined at low demand times.
slide8

Water Distribution

DEAD END MAINS

LOOP SYSTEM

municipal water system
MUNICIPAL WATER SYSTEM

Select size and number of supply lines

flow with increased hose diameter

600 ft.

10 psi

Residual

65 psi

Hose Size

2-1/2"

3"

3-1/2"

4"

5"

gpm flowing

210

330

520

670

1,250

Source: Fire Stream Management Handbook, p. 16.

FLOW WITH INCREASED HOSE DIAMETER
static water systems
STATIC WATER SYSTEMS
  • Preplan to locate sources
  • Use relay pumping
relaying water

700 feet

2-1/2"Hose

1,200 feet

5"Hose

RELAYING WATER
portable water sources
PORTABLE WATER SOURCES
  • Tanker/Tender effectiveness
  • Tanker/Tender delivery rate
tanker tender delivery cycle
TANKER/TENDER DELIVERY CYCLE

The time it takes a tanker/tender to set up, dump the water, travel to the fill site, fill up, and return to the dump site.

tanker tender delivery rate

2500 Gallons

20 Minutes

2,500 Gallon

Tanker/Tender

TDR =

125 Gallons

Minute

=

20 Minutes

To Dump, Travel, Fill,

Travel Back

TANKER/TENDER DELIVERY RATE
setting up fill and dump sites
SETTING UP FILL AND DUMP SITES
  • Locate for best access
  • Avoid backing up
  • Assign water supply officer
water supply coordination
WATER SUPPLY COORDINATION
  • Find out required fire flow from Incident Commander (IC).
  • Coordinate with end users to assure adequate supply for all tactics.
sizeup report of fireground conditions
SIZEUP REPORT OF FIREGROUND CONDITIONS
  • Initial report

To be given immediately upon arrival on location

  • Exact location and conditions as observed
    • – Nothing showing
    • – Size of structure--stories and dimensions--type of construction--occupied or vacant
    • – Smoke/Fire--location and density
    • – Status of occupants--if known
    • – Exposures--Sides A, B, C, D, or other
    • – Engine __ is establishing ___ Street Command.
sizeup report of fireground conditions cont d
SIZEUP REPORT OF FIREGROUND CONDITIONS (cont'd)
  • Subsequent report

Information not immediately reported and/or information developed upon investigation. To be given ASAP or within 5 minutes.

  • Progress report

To be given by the IC every 10 minutes until fire is under control.

command sequence water supply action plan

COMMAND SEQUENCE WATER SUPPLY ACTION PLAN

Command Sequence # 7

125 18th Street

slide24

Side A

Walk-around

125 18th St.

Command

Sequence # 7

N

Side D

Four-story, 60' x 80', ordinary construction. Occupancy is a clothing distributor. All occupants have been removed. Building is not sprinklered.

slide25

Walk-around

125 18th St.

Command

Sequence # 7

Side B

Side A

Sides A and B

slide26

Side B

Walkway

Side C

Walk-around

125 18th St.

Command

Sequence # 7

slide27

Side C

Side B

Exposure C1

Walkway

Side C

Walk-around

125 18th St.

Command

Sequence # 7

Sides B and C

slide28

Side D

Side C

Walk-around

125 18th St.

Command

Sequence # 7

Sides C and D

slide29

Side D

Side A

Walk-around

125 18th St.

Command

Sequence # 7

Sides A and D

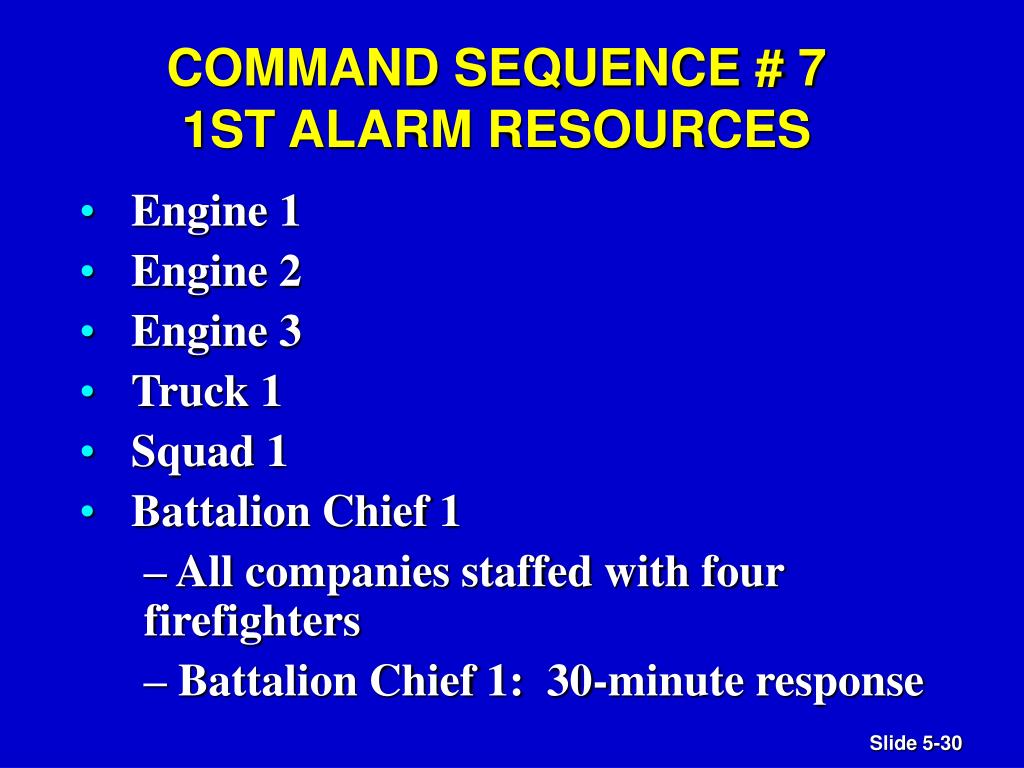

command sequence 7 1st alarm resources
COMMAND SEQUENCE # 7 1ST ALARM RESOURCES
  • Engine 1
  • Engine 2
  • Engine 3
  • Truck 1
  • Squad 1
  • Battalion Chief 1
    • – All companies staffed with four firefighters
    • – Battalion Chief 1: 30-minute response
slide31

N

125 18th Street

Command

Sequence # 7

Side A

Thursday 4PM

Wind 10 MPH

Out of the South

Temperature 9°F

Heavy fire two windows, second floor, Side A. Medium smoke upper floors. All occupants have been removed. Building is not sprinklered.

slide32

N

Reception Area

Breezeway To

1st Floor

Side C

Parking

Side D

Side B

Stair and Elevator

Shaft

Side A

125 18th St.

what is the situation sizeup
WHAT IS THE SITUATION?(SIZEUP)

Sizeup report example:

  • On location at 125 18th Street, four-story building, 60' x 80', ordinary construction, occupied as a clothing distributor.
  • Heavy fire and smoke two windows, second floor Side A, medium smoke upper floors.
  • All occupants have been removed.
  • Exposure Side C is an attached walkway, no other immediate exposures.
  • Engine 1 is establishing 18th Street Command.
what can be accomplished incident objectives
WHAT CAN BE ACCOMPLISHED?INCIDENT OBJECTIVES

Contain and control fire to room/ building of origin.

what needs to be done incident strategy ies
WHAT NEEDS TO BE DONE?INCIDENT STRATEGY(IES)
  • Exposure protection
  • Confinement/Extinguishment
  • Ventilation
  • Salvage
how are you going to do it incident tactics
HOW ARE YOU GOING TO DO IT?INCIDENT TACTICS
  • Exposure protection

– Deploy large diameter hoseline support for water supply

– Deploy one 1-3/4-inch hoseline to Side A third floor for exposure protection

  • Confinement/Extinguishment

– Deploy one 2-1/2-inch hoseline to Side A second floor for confinement/extinguishment

– Deploy one 1-3/4-inch hoseline to second floor Side A for backup hoseline support

  • Ventilation

– Vent roof apertures of fire building

– Horizontal ventilation all floors

  • Salvage

– Deploy salvage covers to protect contents

– Limit water application where possible

implement the water supply action plan
IMPLEMENT THE WATER SUPPLY ACTION PLAN

Communicate assignments clearly to all resources operating on the incident

evaluate the water supply action plan
EVALUATE THE WATER SUPPLY ACTION PLAN
  • Evaluate progress every 10 minutes.
  • Obtain feedback reports from resources operating on the incident.
slide40

N

125 18th Street

Command

Sequence # 7

Side A

Heavy fire two windows, second floor, Side A. Medium smoke upper floors. All occupants have been removed. Building is not sprinklered.

slide42

Sides A and D

Side A

122 M Street

Side D

Walk-around

122 M Street

Activity 5.1

Scenario 1

slide43

Side B

Walk-around

122 M Street

Activity 5.1

Scenario 1

slide44

Walk-around

122 M Street

Activity 5.1

Scenario 1

Side C

slide45

Walk-around

122 M Street

Activity 5.1

Scenario 1

Exposure C1

Side C

slide46

Side D

Exposure C2

Walk-around

122 M Street

Activity 5.1

Scenario 1

activity 5 1 scenario 1 1st alarm resources
ACTIVITY 5.1 SCENARIO 1 1ST ALARM RESOURCES
  • Engine 1
  • Engine 2
  • Engine 3
  • Truck 1
  • Tanker/Tender 1--2000 gallons
  • Tanker/Tender 2--2000 gallons
  • Battalion Chief 1
    • – All companies staffed with four firefighters
    • – Battalion Chief 1: 30-minute response
slide48

Activity 5.1

Scenario 1

122 M Street

Side C

Heavy fire, third floor, Side C.

All occupants have been removed.

slide49

N

Exposure C1

Exposure C2

Side C

Side B

Side D

Parking

122 M St.

Side A

slide50

Third Floor

Side C

45'

BR

Ba

K

25'

LR

BR

Side D

Side B

Side A

122 M St.

slide52

Side A

Side B

Walk-around

246 10th Street

Activity 5.1

Scenario 2

Sides A and B

slide53

Side B

Side A

Walk-around

246 10th Street

Activity 5.1

Scenario 2

Sides A and B

slide54

Side C

Walk-around

246 10th Street

Activity 5.1

Scenario 2

slide55

Side D

Side A

Walk-around

246 10th Street

Activity 5.1

Scenario 2

Sides A and D

activity 5 1 scenario 2 1st alarm resources
ACTIVITY 5.1 SCENARIO 21ST ALARM RESOURCES
  • Engine 1
  • Engine 2
  • Engine 3
  • Truck 1
  • Tanker/Tender 1--2000 gallons
  • Tanker/Tender 2--2000 gallons
  • Squad 1
  • Battalion Chief 1

– All companies staffed with four firefighters

– Battalion Chief 1: 30-minute response

slide57

Walk-around

246 10th Street

Activity 5.2

Scenario 2

Side A

Side B

Heavy fire second floor, Side B. Medium smoke upper floors.

Light smoke, Side A. All occupants have been removed.

First-floor occupancy uses various acids for mixing.

slide58

246 10th Street

Activity 5.1

Scenario 2

Side A

Side D

Medium to heavy smoke smoke Sides A and D. Light smoke Side C. All occupants have been removed.

slide59

246 10th St.

N

Side C

1-story

1-story

E

2-story

Warehouse

Side D

Fire on

Second

Floor

E

50'

3-story

Warehouse

E

Side B

3-story

Office

75'

Side A

slide60

Activity 5.1

Scenario 3Water Supply567 J Street

slide61

Side A

Side D

Walk-around

567 J Street

Activity 5.1

Scenario 3

Sides A and D

slide62

Side C

Side B

Walk-around

567 J Street

Activity 5.1

Scenario 3

Sides B and C

slide63

Side C

Side B

Walk-around

567 J Street

Activity 5.1

Scenario 3

slide64

Walk-around

567 J Street

Activity 5.1

Scenario 3

Side D

activity 5 1 scenario 3 1st alarm resources
ACTIVITY 5.1 SCENARIO 3 1ST ALARM RESOURCES
  • Engine 1
  • Engine 2
  • Engine 3
  • Truck 1
  • Tanker/Tender 1--2000 gallons
  • Tanker/Tender 2--2000 gallons
  • Battalion Chief 1

– All companies staffed with four firefighters

– Battalion Chief 1: 30-minute response

slide66

Side A

Activity 5.1

Scenario 3

567 J Street

Side D

Heavy fire, Side A. Medium smoke upper floors.

All occupants have been removed.

slide67

N

Typical all Floors--Fire on First Floor

567 J St.

Side B

E

250'

Side C

Side A

90'

Side D

automatic sprinkler system
AUTOMATIC SPRINKLER SYSTEM
  • System of piping, valves, and water discharge heads
  • Highly effective in confining or extinguishing fires
standpipe system
STANDPIPE SYSTEM
  • System of piping and valves to provide water supply at fire floor
  • Provide 2-1/2-inch connection with 500 gpm at 100 psi
slide71

CLASS CONNECTION MINIMUM MINIMUM

SIZE FLOW PRESSURE

I 2-1/2" 500 gpm 100 psi

II 1-1/2" 100 gpm 65 psi

III 2-1/2" to 500 gpm 100 psi

1-1/2"

preincident planning
PREINCIDENT PLANNING
  • Normal water supply for system
  • Fire pump
  • Control valves
  • Fire department connection
connecting to a fire department connection
CONNECTING TO A FIRE DEPARTMENT CONNECTION
  • One of first alarm companies must connect to system.
  • Check for debris in connections.
  • Connection may have only one water supply intake.
slide74

(b)

(a)

No Clapper Valves

Clapper Valves

SIAMESE CONNECTION

slide75

From Source

CHECK VALVES

To Sprinklers

connecting attack line to standpipe connection
CONNECTING ATTACK LINE TO STANDPIPE CONNECTION
  • Standpipe kit
  • Stretch hose up stairs past fire floor
  • Use Wye for smaller attack lines
  • Look for fire pump activation (pressure surge)
  • Coordinate pressure with pump operator
coordinate with other tactical assignments
COORDINATE WITH OTHER TACTICAL ASSIGNMENTS
  • Other hoselines
  • Water supply
  • Ventilation
  • Laddering
  • Air supply
  • Other support functions
safety considerations
SAFETY CONSIDERATIONS
  • Can risks be managed?
  • Coordination.
  • Keep IC informed.
  • Be aware of time and structural conditions.
  • You are the safety officer for your crew.
sizeup report of fireground conditions1
SIZEUP REPORT OF FIREGROUND CONDITIONS
  • Initial report

To be given immediately upon arrival on location

  • Exact location and conditions as observed

– Nothing showing

– Size of structure--stories and dimensions--type of construction--occupied or vacant

– Smoke/Fire--location and density

– Status of occupants--if known

– Exposures--Sides A, B, C, D, or other

– Engine is establishing ___ Street Command.

sizeup report of fireground conditions cont d1
SIZEUP REPORT OF FIREGROUND CONDITIONS (cont'd)
  • Subsequent report

Information not immediately reported and/or information developed upon investigation. To be given ASAP or within 5 minutes.

  • Progress report

To be given by the IC every 10 minutes until fire is under control.

command sequence water supply fixed systems action plan command sequence 8 100 r street

COMMAND SEQUENCE WATER SUPPLYFIXED SYSTEMSACTION PLANCommand Sequence # 8100 R Street

slide87

Sixth floor

Side A

N

Fifth floor

Fourth floor

Third floor

Side B

Second floor

First floor

Walk-around

100 R Street

Command

Sequence # 8

Six-story building, 75' X 300', mill construction, occupied as outlet stores. Building contains sprinklers and standpipes.
