  1. Enabling Large-Scale Storage in Sensor Networks with the Coffee File System ISPN 2009 Lawrence

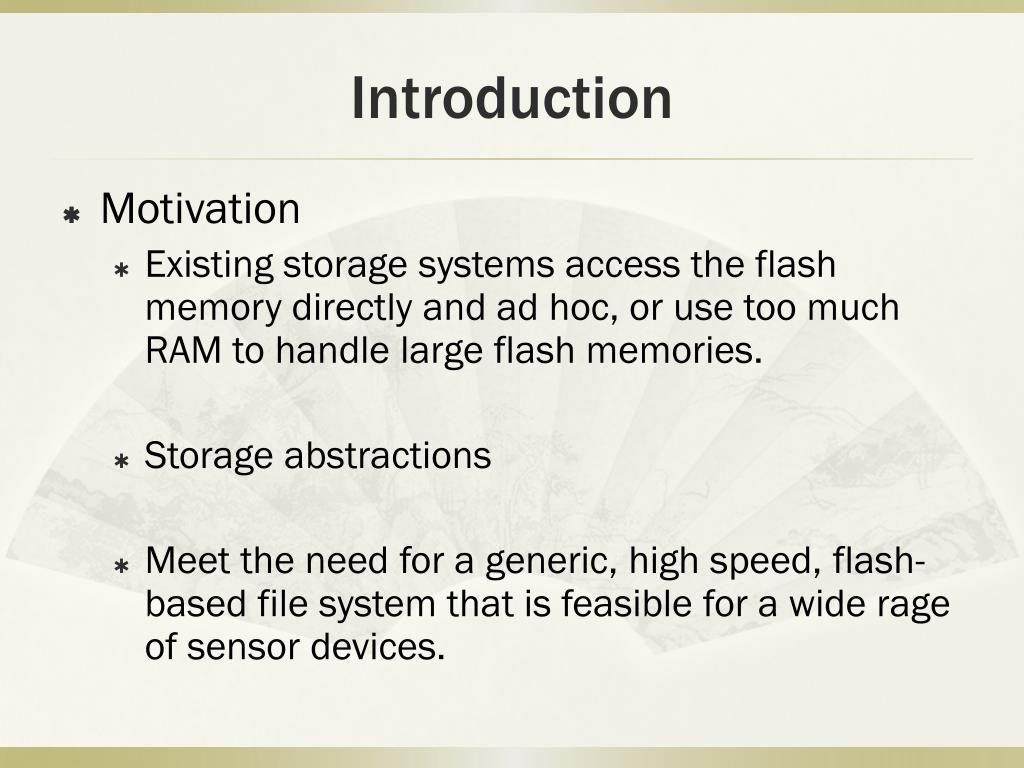

  2. Introduction • Motivation • Existing storage systems access the flash memory directly and ad hoc, or use too much RAM to handle large flash memories. • Storage abstractions • Meet the need for a generic, high speed, flash-based file system that is feasible for a wide rage of sensor devices.

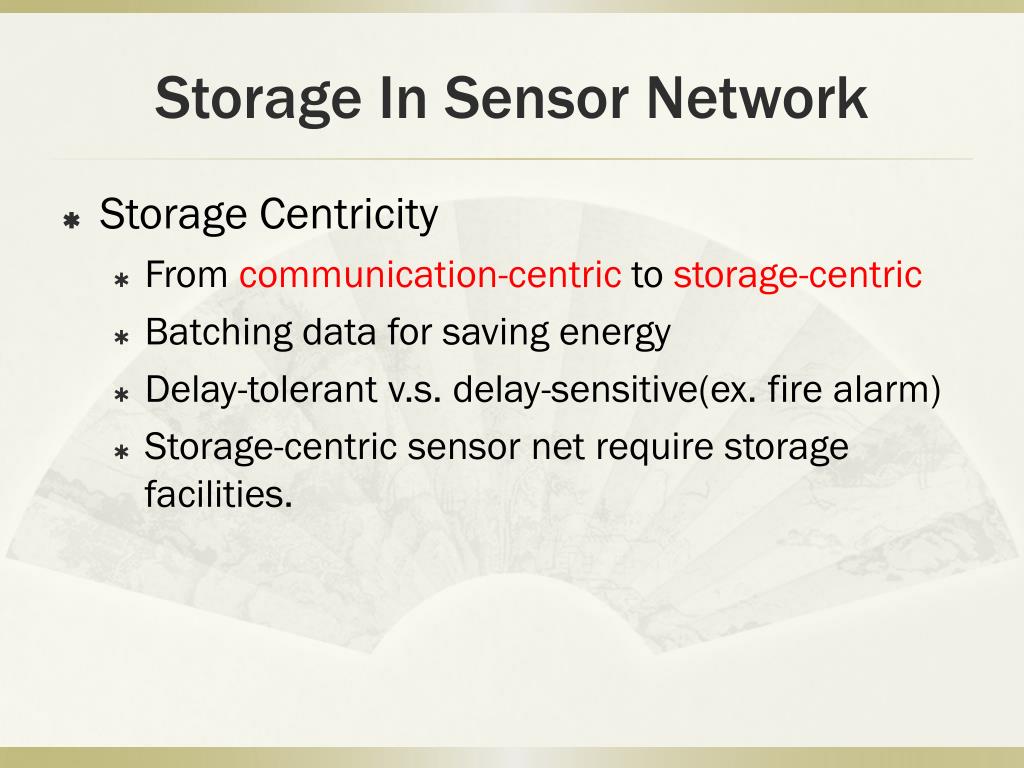

  3. Storage In Sensor Network • Storage Centricity • From communication-centric to storage-centric • Batching data for saving energy • Delay-tolerant v.s. delay-sensitive(ex. fire alarm) • Storage-centric sensor net require storage facilities.

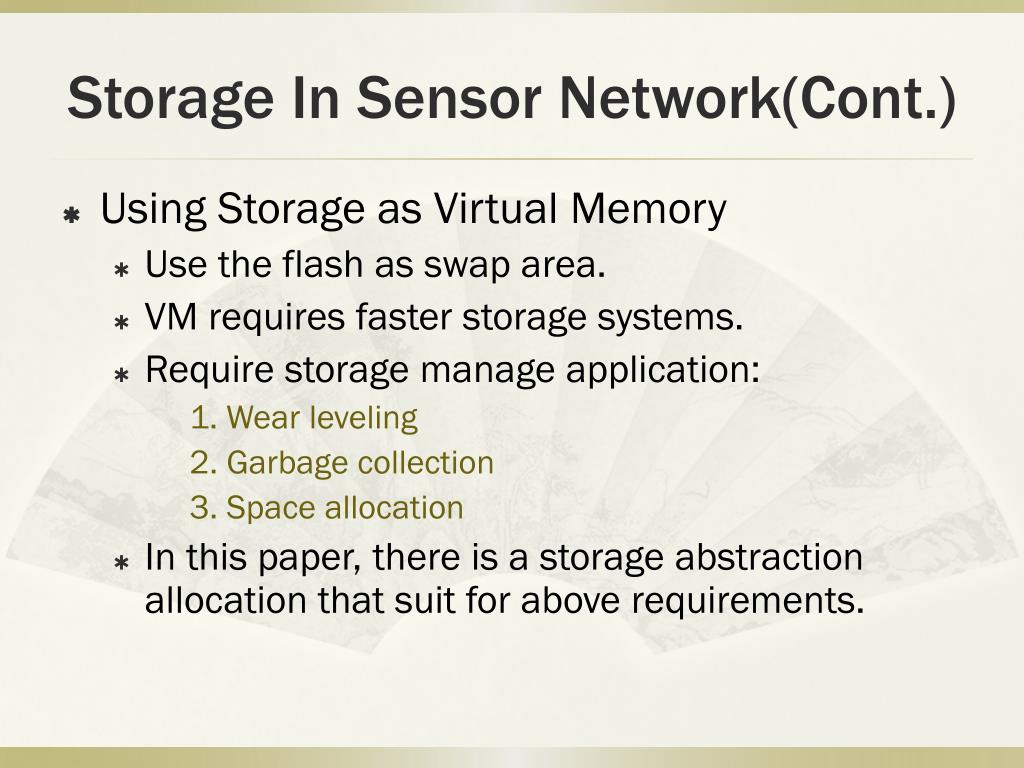

  4. Storage In Sensor Network(Cont.) • Using Storage as Virtual Memory • Use the flash as swap area. • VM requires faster storage systems. • Require storage manage application: 1. Wear leveling 2. Garbage collection 3. Space allocation • In this paper, there is a storage abstraction allocation that suit for above requirements.

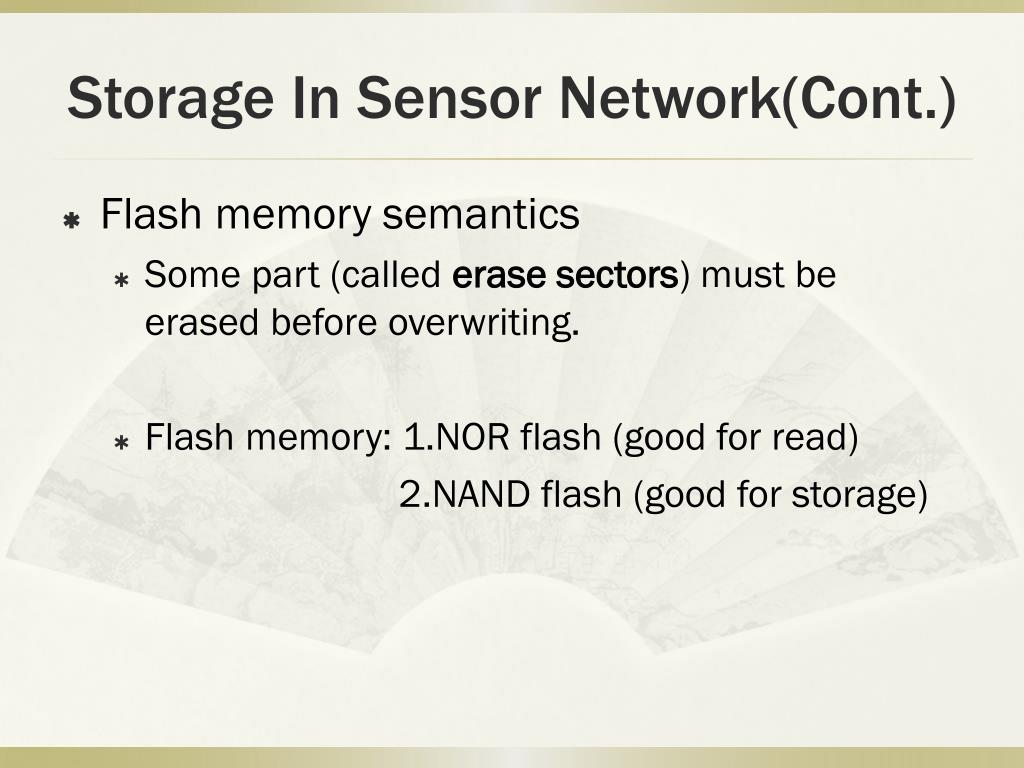

  5. Storage In Sensor Network(Cont.) • Flash memory semantics • Some part (called erase sectors) must be erased before overwriting. • Flash memory: 1.NOR flash (good for read) 2.NAND flash (good for storage)

  6. COFFEE Coffee is a portable, high-speed file system for sensor device equipped with flash memories. Micro logs to handle file modifications. Use a small footprint: each open file O(1) RAM.

  7. COFFEE (Cont.) • Design principles • Memory and code size constraints. • Small memory footprints-regardless of the file sizes. • Rule: • 1.divided into erase sectors of size • 2.Erease sets all bits to 1 • 3.Programming switches a subset of the bits in a page from 1 to 0.

  8. COFFEE (Cont.)

  9. COFFEE (Cont.) • Page Structure • A file is stored as a contiguous group • Page Allocation Algorithm: first-fit policy.

  10. Minimizing metadata in the RAM • (metadata in first page of file)

  11. Locating File • File cache for locations. • If not in cache => cache miss (sequentially scan)

  12. Garbage Collection

  13. Wear Leveling Policy • What is wear leveling • Erase too much -> memory corrupt • Method: delay garbage collection until a space reservation request cannot be fulfilled.

  14. Evaluation

  15. Conclusion Coffee’s high throughput and low latency make it a suitable underlying layer for storage abstractions.
