in vehicle secure wireless personal area network swpan

In-Vehicle Secure Wireless Personal Area Network(SWPAN)

Reference:

S. M. Mahmud and Shobhit Shanker, “In-Vehicle Secure Wireless Personal

Area Network (SWPAN)”, IEEE Transactions on Vehicular Technology,

vol. 55, no3, MAY 2006

2007. 9. 6

Seung Jae Shin

contents
Contents

Introduction

Bluetooth Security

In-Vehicular Secure WPAN (SWPAN)

Performance and Cost Efficiency

Conclusion

In-Vehicle Secure WPAN

introduction
Introduction

In-Vehicle WPAN

WPAN (Wireless Personal Area Network) within a vehicle

Mostly uses Bluetooth enabled devices

cell-phone, PDA, laptop, headset, RKE (Remote Keyless Entry)

Can be used in conjunction with wired In-vehicular network

Uses AP (Access Point) connecting to CAN (Control Area Network)

Figure 1 In-Vehicle WPAN with CAN

In-Vehicle Secure WPAN

introduction4
Introduction

In-Vehicle WPAN (cont’d)

Possible usage examples

Access the Internet through the laptop within the vehicle

Listen to music through the wireless headset in driving

Turn on head-lights just by speaking through the voice activated headset

Start the engine from the office by using RKE during the winter season

In-Vehicle Secure WPAN

bluetooth security
Bluetooth Security

Security Mechanisms in Bluetooth

Authentication

Challenge-and-response process using 128-bit link (authentication) key

Performs E1 algorithm to compute response value

Link key is changed after each authentication

Data Privacy

Performs E0 algorithm using encryption key derived from link key

authenticator

supplicant

48-bit BD_ADDR

Link Key

Link Key (128 bit)

128-bit RAND

E1Klink(BD_ADDR || RAND)

Encryption Key

(8 ~ 128bit)

Encryption Key

Secure Communication Session

Figure 2 Authentication process

In-Vehicle Secure WPAN

bluetooth security6
Bluetooth Security

Security Mechanisms in Bluetooth (cont’d)

Link key Generation

Type of link key

Initialization key (Kinit): used during initialization only

Unit key (KA): derived from the information of a single unit A

Combination key (KAB): derived from the information in both units A and B

Master key (Kmaster): only used during current session for broadcast

KA, KAB and Kmaster are derived from Kinit

PIN plays a vital role in initialization key generation

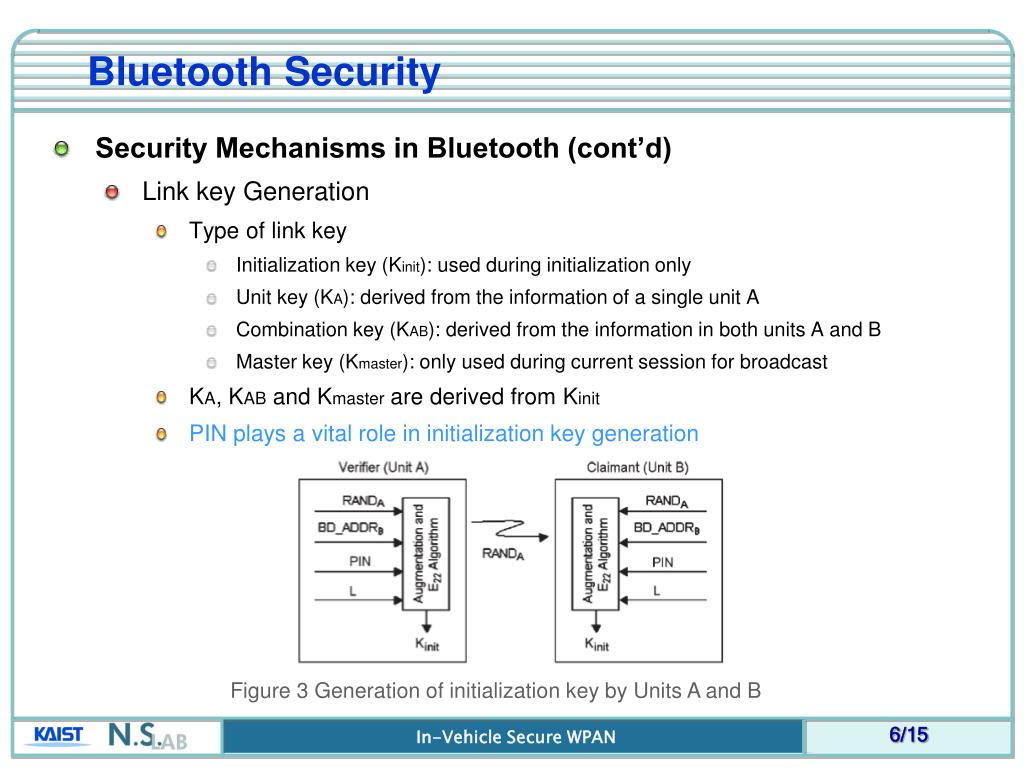

Figure 3 Generation of initialization key by Units A and B

In-Vehicle Secure WPAN

bluetooth security7
Bluetooth Security

Security Mechanisms in Bluetooth (cont’d)

Problems with Bluetooth Security

Importance of Initialization key

If it is compromised, keys generated from it are also compromised

Generation of Initialization key depends on RANDA, BD_ADDRB, PIN

RANDA and BD_ADDRBis transmitted publicly

So secrecy of PIN is required

Problems with PIN management

In most case, PIN is configured manually

Possibility of the brute force key derivation: 4-digit PIN is generally used

The PINs are “0000” as default value in 50% of the devices

Considerable Solutions

Long-size PIN: difficult and cumbersome to manually configure the device

Certificate based PIN exchange: high cost

Diffie-Hellman exchange: threat of man-in-the-middle attack

In-Vehicle Secure WPAN

in vehicle secure wpan swpan

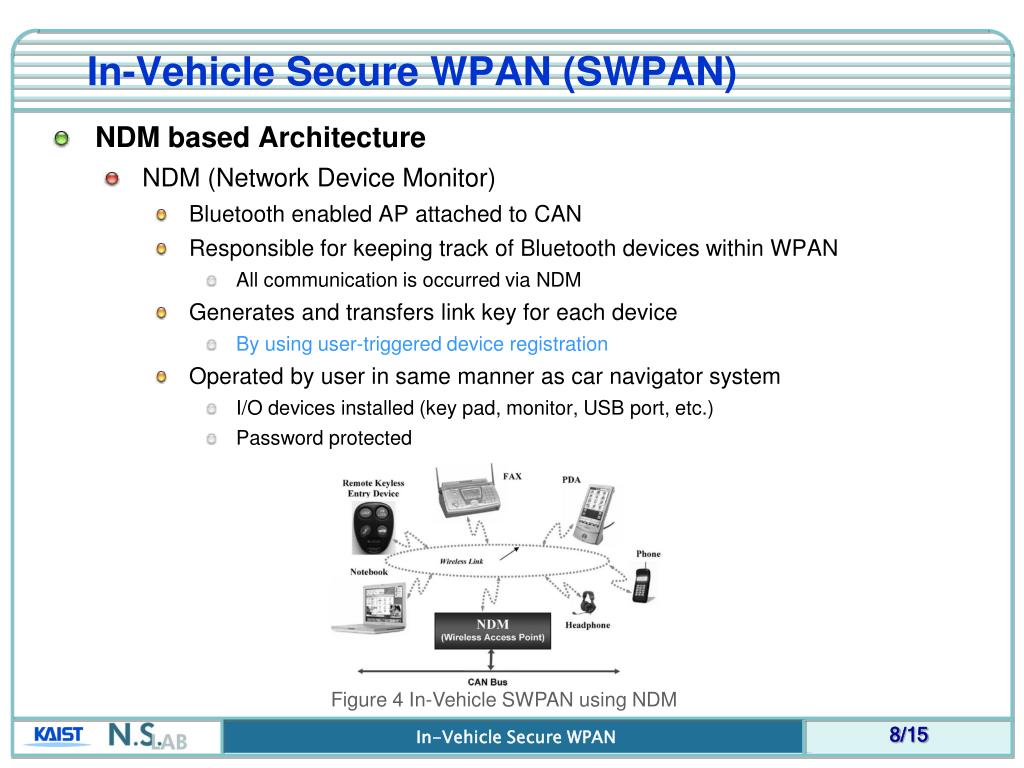

In-Vehicle Secure WPAN (SWPAN)

NDM based Architecture

NDM (Network Device Monitor)

Bluetooth enabled AP attached to CAN

Responsible for keeping track of Bluetooth devices within WPAN

All communication is occurred via NDM

Generates and transfers link key for each device

By using user-triggered device registration

Operated by user in same manner as car navigator system

I/O devices installed (key pad, monitor, USB port, etc.)

Password protected

Figure 4 In-Vehicle SWPAN using NDM

In-Vehicle Secure WPAN

in vehicle secure wpan swpan9
In-Vehicle Secure WPAN (SWPAN)

NDM based Architecture (cont’d)

Registration and Key Transfer process

User registers the device to NDM

By entering some device information such as UID, serial number

NDM generates a set of link keys (unit key or combination key)

Link keys are generated automatically and randomly

Key generation is transparent for user

NDM transfers link keys to device through the local port

USB port, IR (Infrared) link, VSRW (Very Short Range Wireless) link

Almost handheld devices have at least one of above types

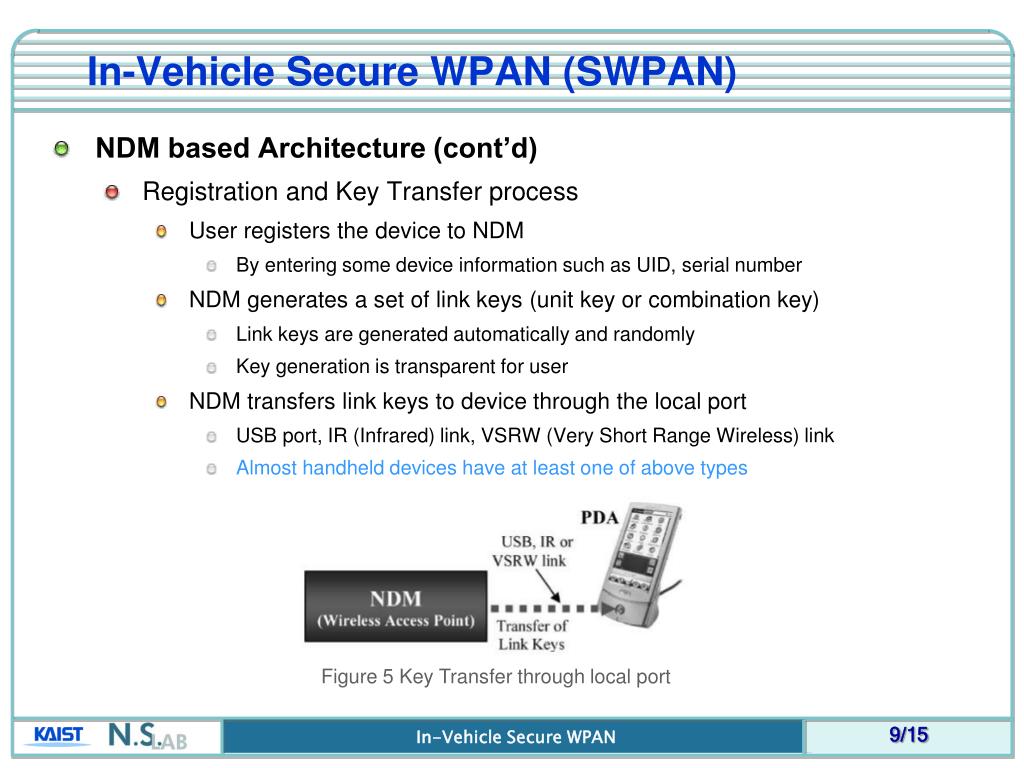

Figure 5 Key Transfer through local port

In-Vehicle Secure WPAN

in vehicle secure wpan swpan10
In-Vehicle Secure WPAN (SWPAN)

NDM based Architecture (cont’d)

Establishing a secure session

Figure 6 Secure Session Establishment Process

In-Vehicle Secure WPAN

in vehicle secure wpan swpan11
In-Vehicle Secure WPAN (SWPAN)

NDM based Architecture (cont’d)

Link key management

Distribution of new link keys

NDM uses secure channel established by last link key of previous set

Registration by user required only once

if he want to use it within a car continuously

Device de-registration

User can remove registered device in NDM

User may do not want to use some device no more

Device may be stolen or lost

NDM delete key sets for the device from its memory

In-Vehicle Secure WPAN

in vehicle secure wpan swpan12
In-Vehicle Secure WPAN (SWPAN)

NDM based Architecture (cont’d)

Link key management (cont’d)

Example

NDM establishes and completes session with D1, D2, D3 respectively

Then, it establishes another session with D1 again

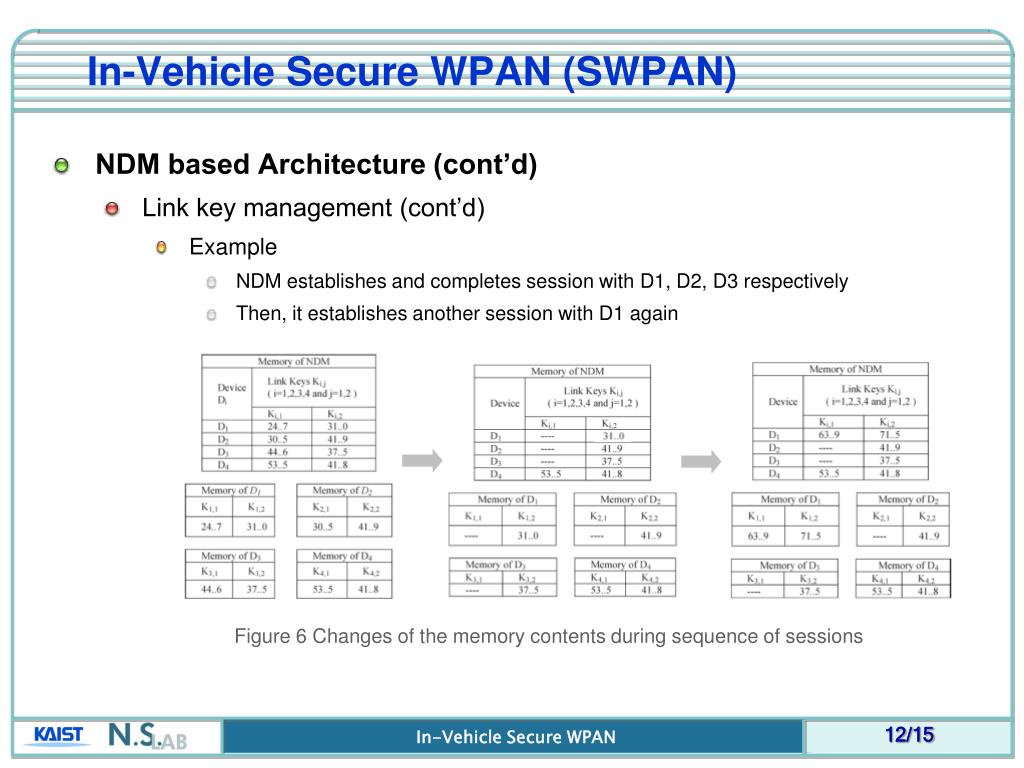

Figure 6 Changes of the memory contents during sequence of sessions

In-Vehicle Secure WPAN

performance and cost efficiency

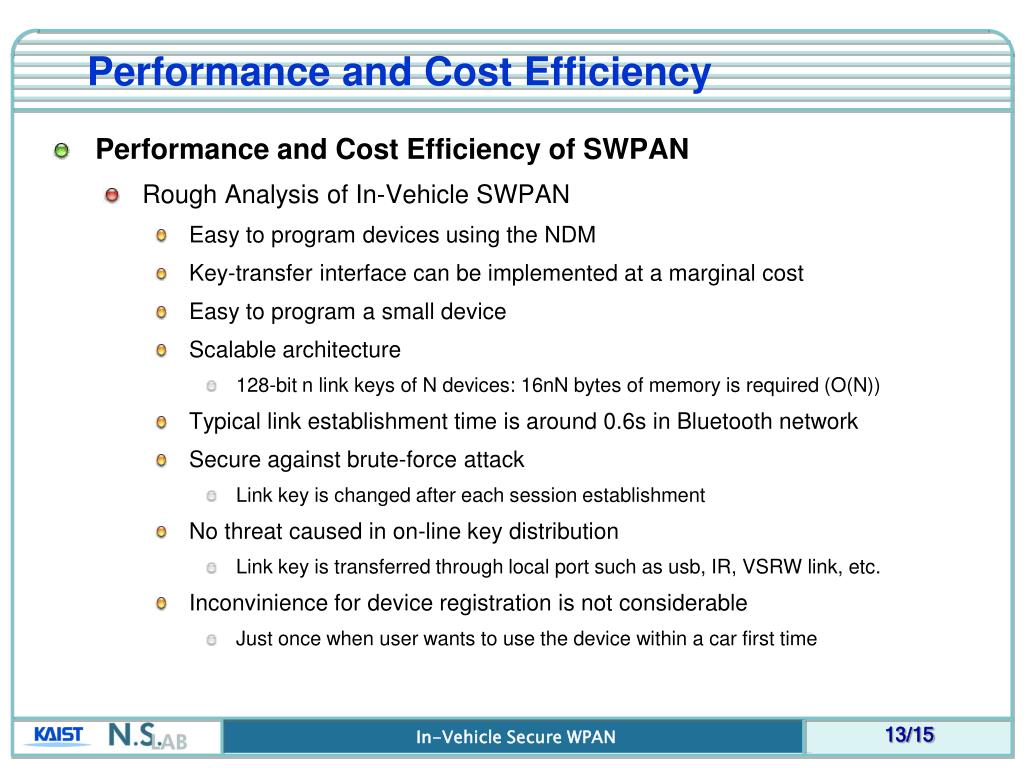

Performance and Cost Efficiency

Performance and Cost Efficiency of SWPAN

Rough Analysis of In-Vehicle SWPAN

Easy to program devices using the NDM

Key-transfer interface can be implemented at a marginal cost

Easy to program a small device

Scalable architecture

128-bit n link keys of N devices: 16nN bytes of memory is required (O(N))

Typical link establishment time is around 0.6s in Bluetooth network

Secure against brute-force attack

Link key is changed after each session establishment

No threat caused in on-line key distribution

Link key is transferred through local port such as usb, IR, VSRW link, etc.

Inconvinience for device registration is not considerable

Just once when user wants to use the device within a car first time

In-Vehicle Secure WPAN

conclusion
Conclusion

Architecture for Secure WPAN within a vehicle

Naïve and intuitive approach

Based on practical usage of Bluetooth alliances

NDM based Architecture

Production cost could be reasonable

Just consider the car navigation system!

User-triggered registration process

More secure compared with on-line link key distribution

Can be designed to user-friendly form

Required only once when user want to use new devices within a car

In-Vehicle Secure WPAN

slide15
Q & A

Any Questions?

Comments?

In-Vehicle Secure WPAN
