  1. GPU Workshop: July, 2010 Scott Briggs PhD Candidate Civil/Env. Engineering Contaminant Hydrogeology Supervisors: B. E. Sleep and B. W. Karney

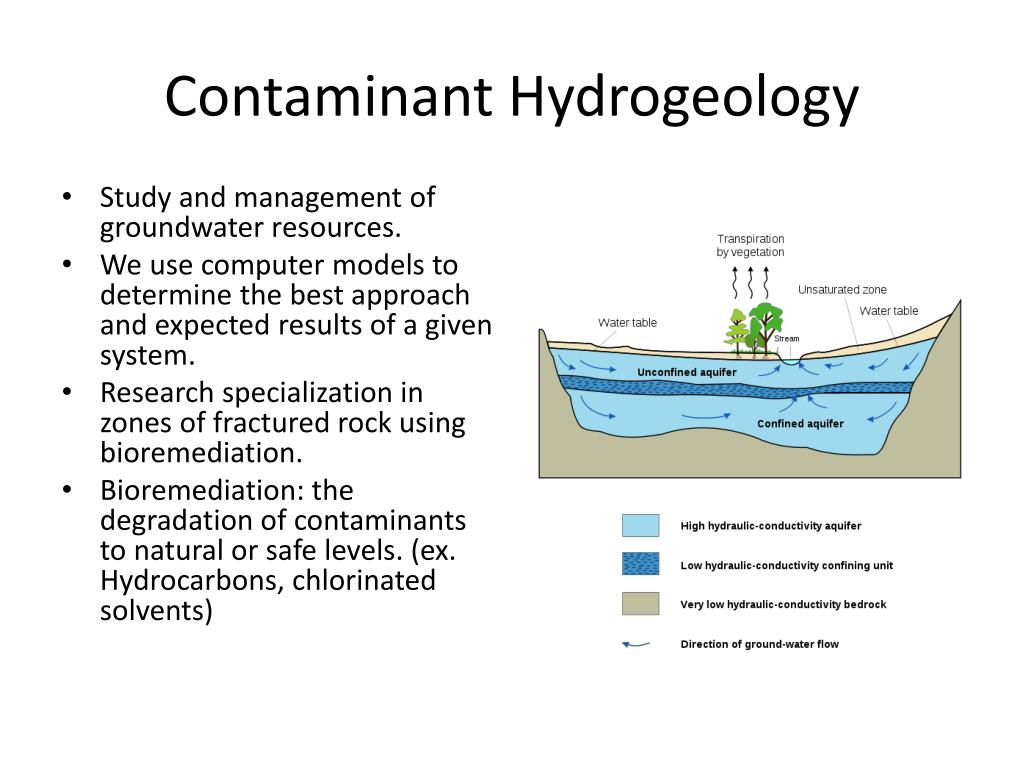

  2. Contaminant Hydrogeology • Study and management of groundwater resources. • We use computer models to determine the best approach and expected results of a given system. • Research specialization in zones of fractured rock using bioremediation. • Bioremediation: the degradation of contaminants to natural or safe levels. (ex. Hydrocarbons, chlorinated solvents)

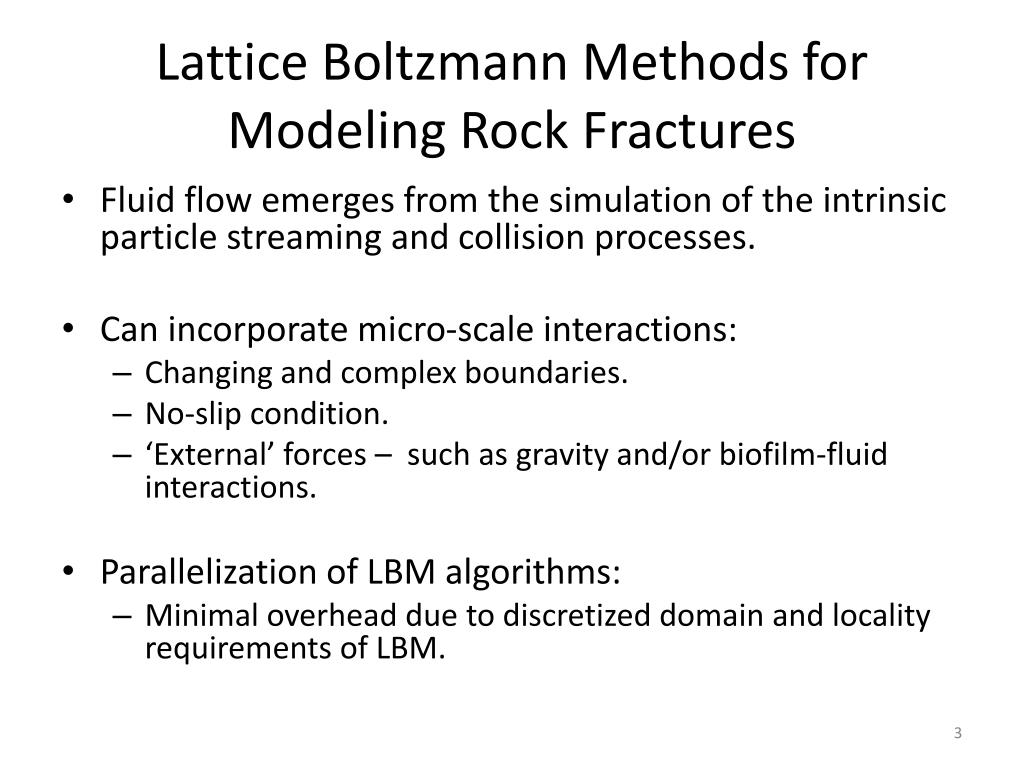

  3. Lattice Boltzmann Methods for Modeling Rock Fractures • Fluid flow emerges from the simulation of the intrinsic particle streaming and collision processes. • Can incorporate micro-scale interactions: • Changing and complex boundaries. • No-slip condition. • ‘External’ forces – such as gravity and/or biofilm-fluid interactions. • Parallelization of LBM algorithms: • Minimal overhead due to discretized domain and locality requirements of LBM.

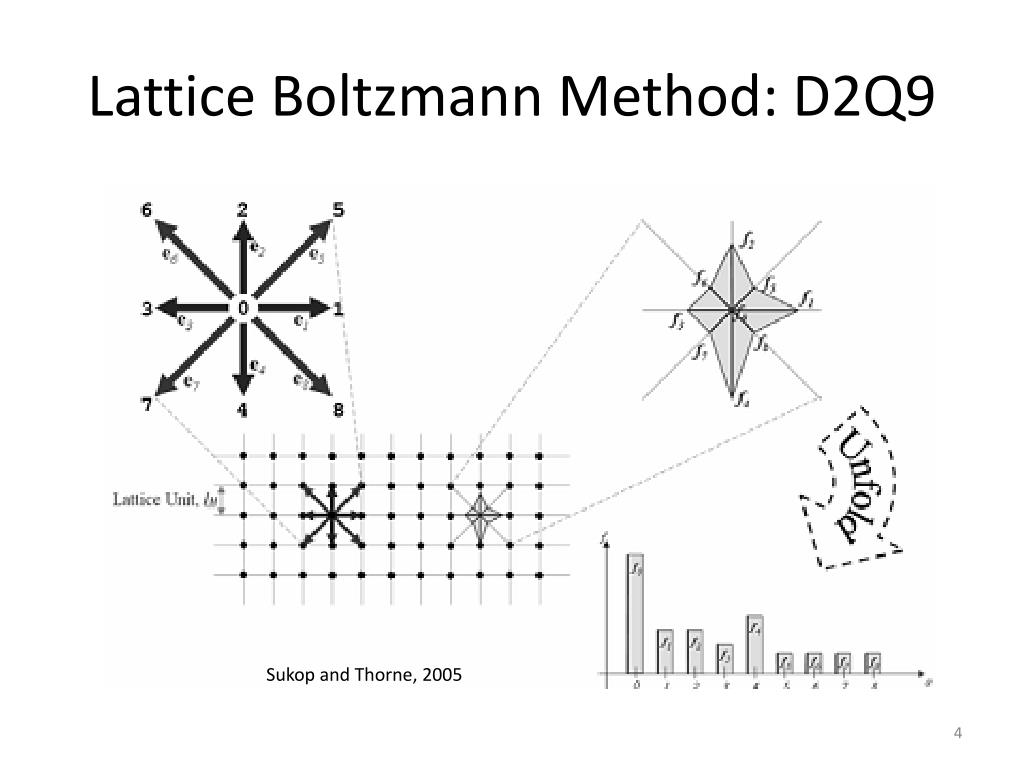

  4. Lattice Boltzmann Method: D2Q9 Sukop and Thorne, 2005

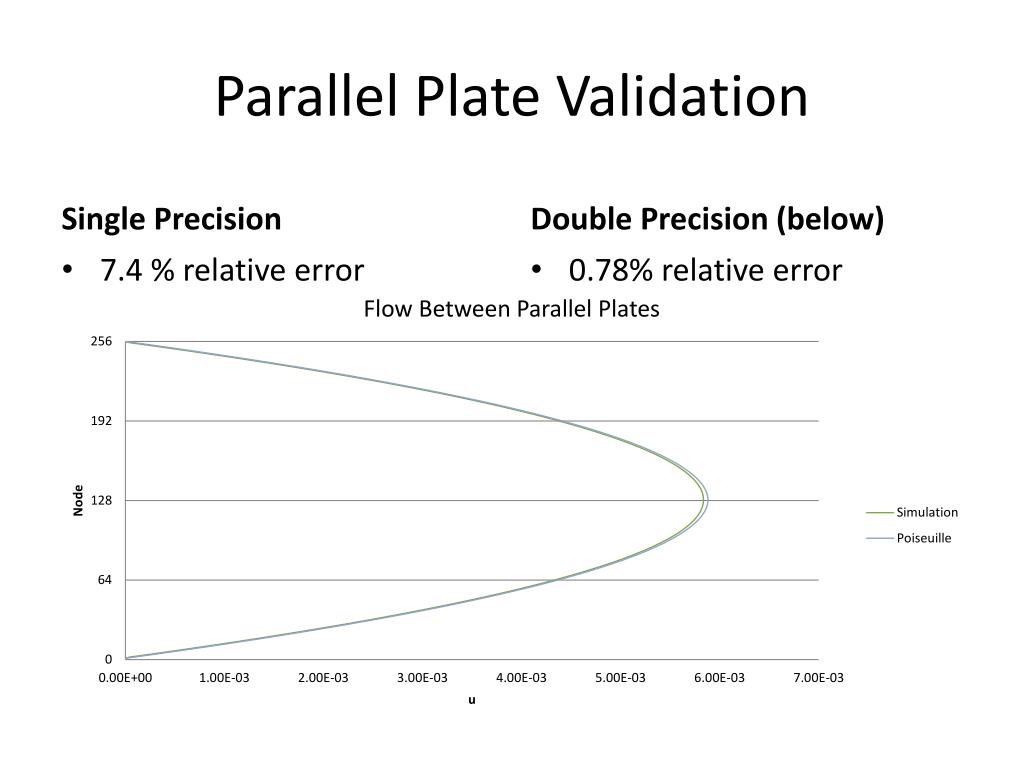

  5. Parallel Plate Validation Single Precision Double Precision (below) 0.78% relative error • 7.4 % relative error

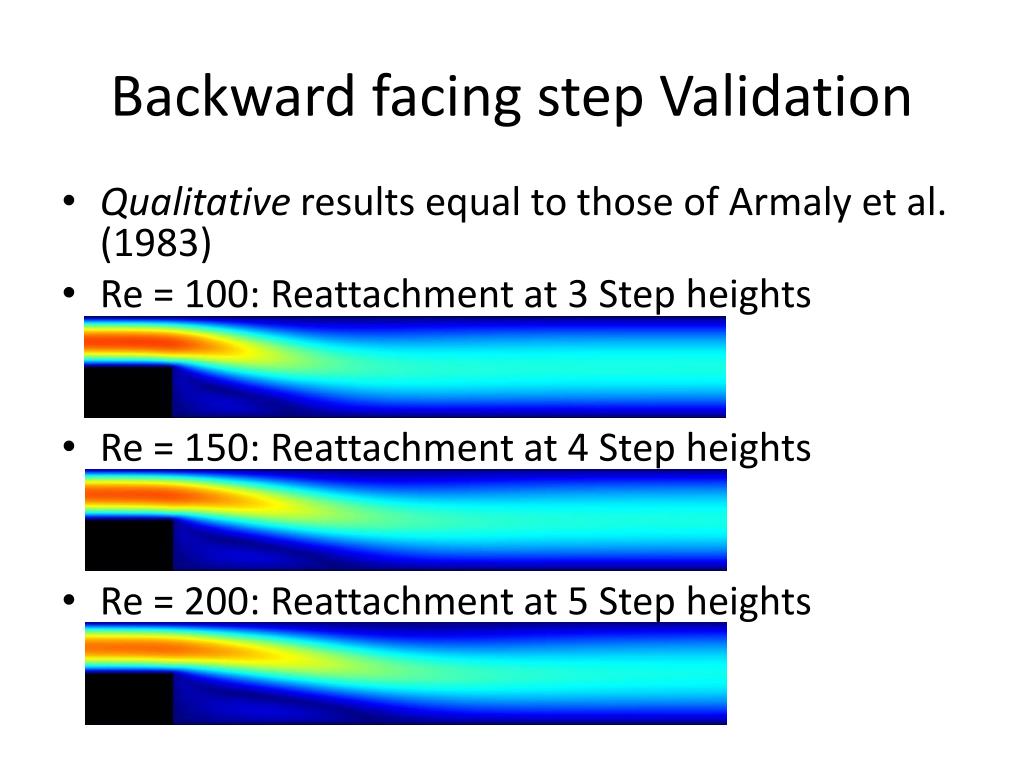

  6. Backward facing step Validation • Qualitative results equal to those of Armaly et al. (1983) • Re = 100: Reattachment at 3 Step heights • Re = 150: Reattachment at 4 Step heights • Re = 200: Reattachment at 5 Step heights

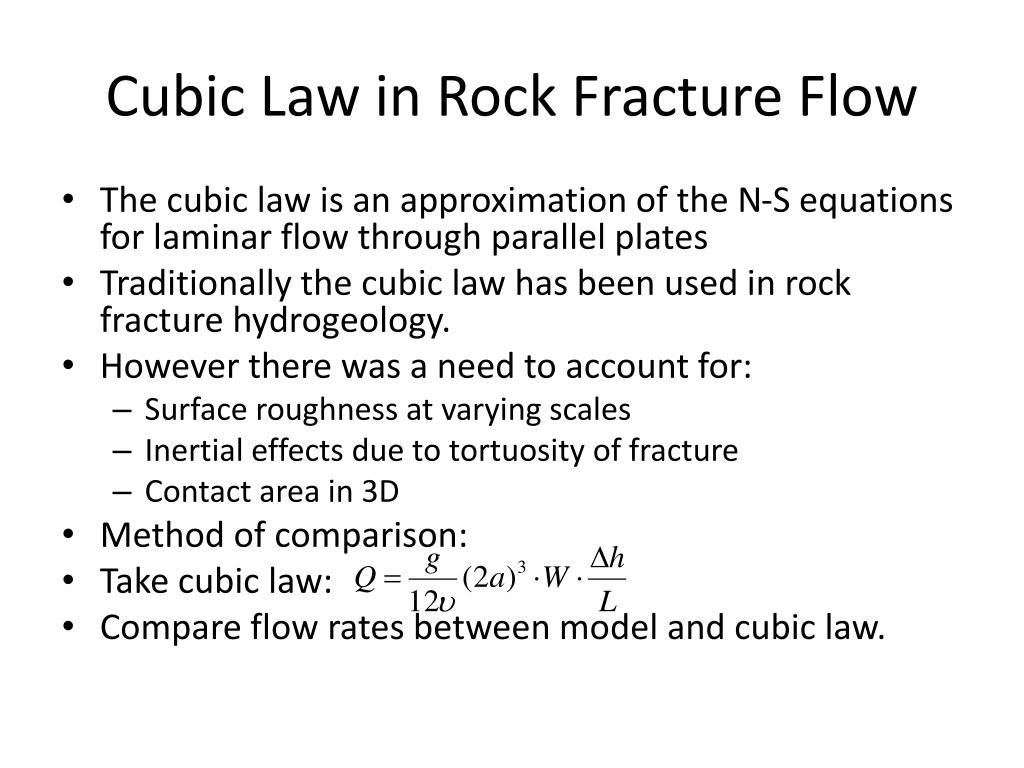

  7. Cubic Law in Rock Fracture Flow • The cubic law is an approximation of the N-S equations for laminar flow through parallel plates • Traditionally the cubic law has been used in rock fracture hydrogeology. • However there was a need to account for: • Surface roughness at varying scales • Inertial effects due to tortuosity of fracture • Contact area in 3D • Method of comparison: • Take cubic law: • Compare flow rates between model and cubic law.

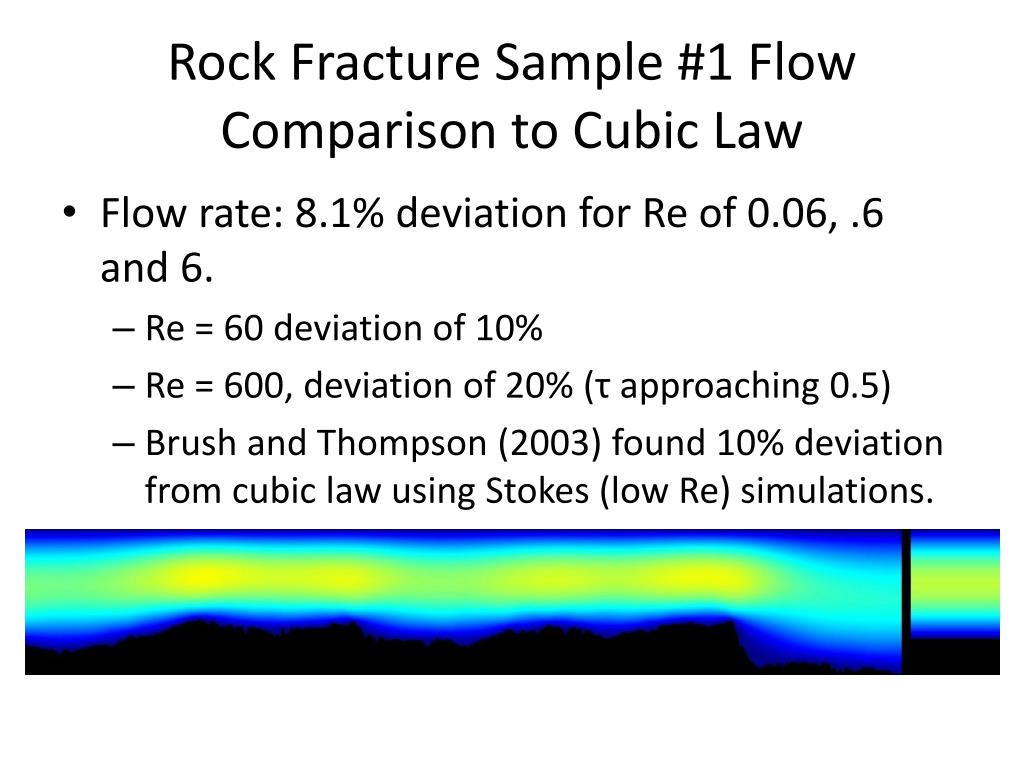

  8. Rock Fracture Sample #1 Flow Comparison to Cubic Law • Flow rate: 8.1% deviation for Re of 0.06, .6 and 6. • Re = 60 deviation of 10% • Re = 600, deviation of 20% (τ approaching 0.5) • Brush and Thompson (2003) found 10% deviation from cubic law using Stokes (low Re) simulations.

  9. Rock Fracture Sample #2 Flow Comparison to Cubic Law • Flow rate: 50-55% deviation for Re = 0.0006, through Re = 60. • Brown (1987) found the Cubic law to hold within 50% • Tsang (1984) suggested a order of magnitude or more variation could occur due to tortuosity.

  10. Rock Fracture Flow Insights • Clearly the literature is divided about the cubic law, as are our results. • Exactly why we chose LBM and the use of the GPU made is possible. • LBM method allows for much more insight into the flow dynamics within the fracture, something not allowed by cubic law approximation. • Bioremediation:

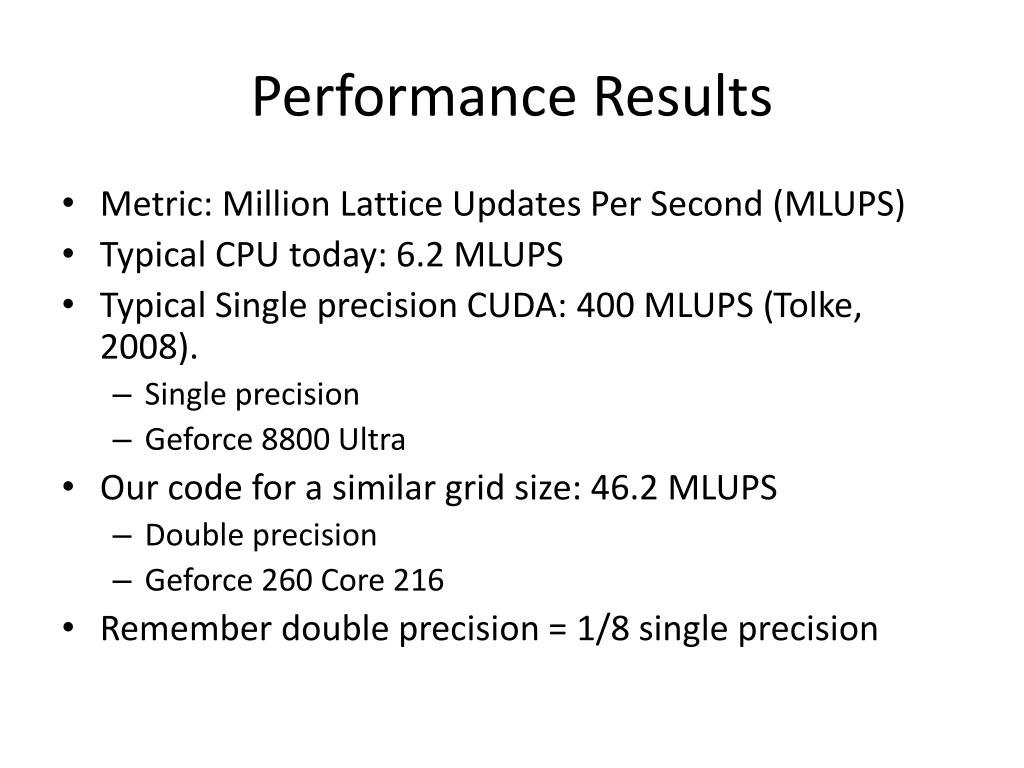

  11. Performance Results • Metric: Million Lattice Updates Per Second (MLUPS) • Typical CPU today: 6.2 MLUPS • Typical Single precision CUDA: 400 MLUPS (Tolke, 2008). • Single precision • Geforce 8800 Ultra • Our code for a similar grid size: 46.2 MLUPS • Double precision • Geforce 260 Core 216 • Remember double precision = 1/8 single precision

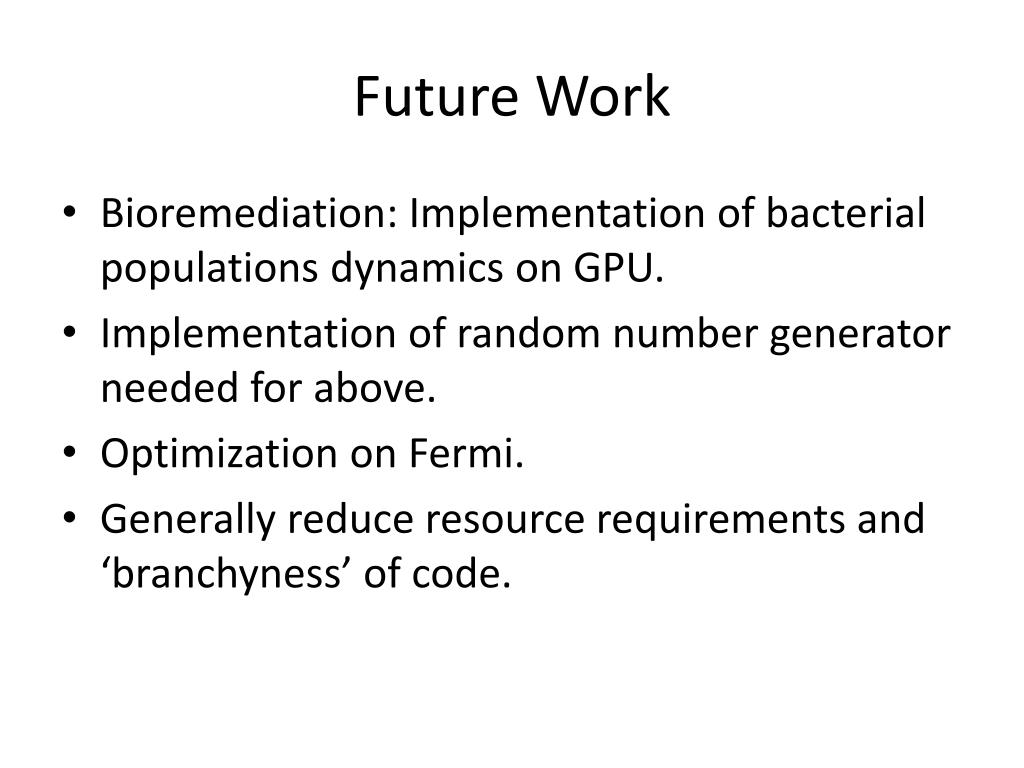

  12. Future Work • Bioremediation: Implementation of bacterial populations dynamics on GPU. • Implementation of random number generator needed for above. • Optimization on Fermi. • Generally reduce resource requirements and ‘branchyness’ of code.

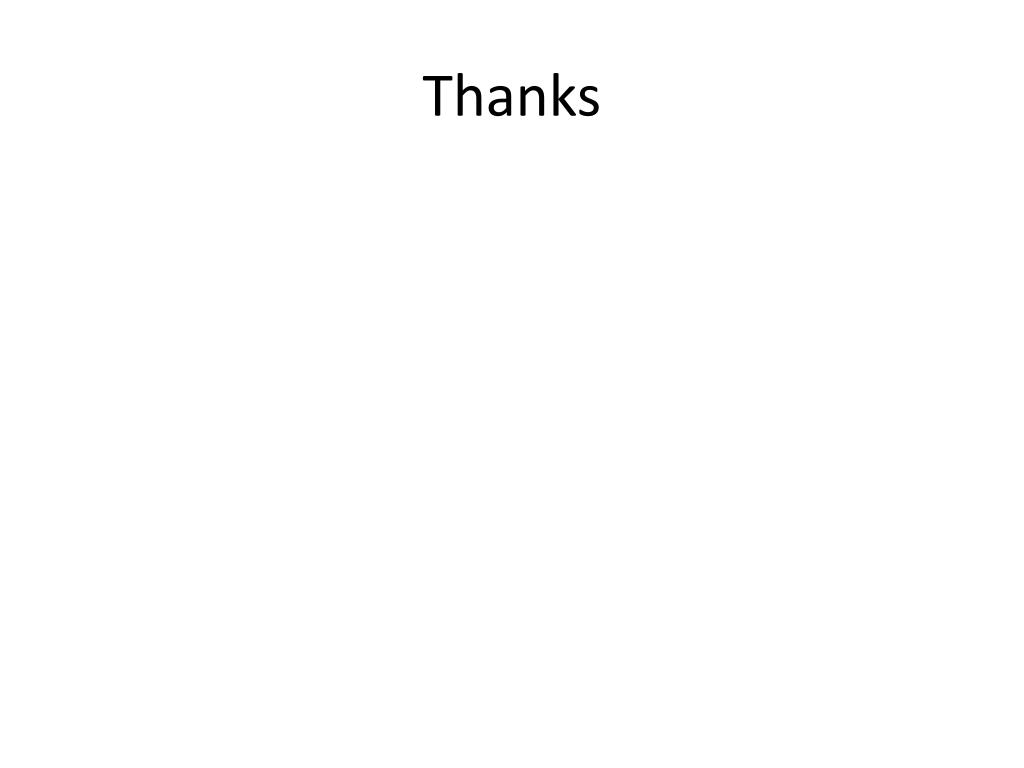

  13. Thanks
