reserve evaluation for enhance oil recovery purposes using dynamic reserve evaluation model

Woodside Research Facility

GPO Box U 1987Perth West Australia 6845

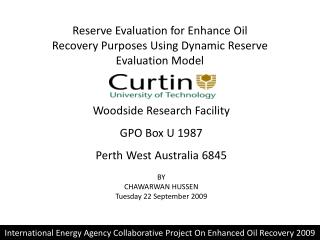

Reserve Evaluation for Enhance Oil Recovery PurposesUsing Dynamic Reserve Evaluation Model

BY

CHAWARWAN HUSSEN

Tuesday 22 September 2009

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes
Reserve Evaluation for Enhance Oil Recovery Purposes

Outline of The Presentation

  • Introduction and Objective of the presentation
  • Reserve Definition and Reserve Growth
  • Requirements of EOR response to CO2 injection from analogous reservoirs and Data Needed to Analysis for Analogy Method
  • Estimation Incremental Increase and classification in Recovery Factor
  • Estimation of Recovery Factor and Classification of Reserve
  • Estimation of Dynamic Reserve Evaluation Model
  • Estimation of Growth Rate and Estimation of Current Price of Oil Reserves
  • Estimation of Petroleum Reserve Bankability

1) Booking price in term of growth rate

2) Booking price in term of money

  • A case Study
  • Conclusion

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes1
Reserve Evaluation for Enhance Oil Recovery Purposes

Introduction and Objective of the Presentation

  • The first objective is the concept of EOR to make decision whether the reserve should be re-classified in terms of recoverable, commercially or potentially from known or unknown reservoir, therefore, add them again into the categorizations of reserves such as 1P, 2P and 3P or waiting for the development of market viability, technology advance or removal of other constraints to the development .
  • The second objective is Dynamic Reserve Evaluation Model (DREM) will be a function of an economic analysis from forecasting economic conditions, reserve management and reporting reserves, based on petroleum reserve bankability to estimate the return on the investment of (DREM).

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes2
Reserve Evaluation for Enhance Oil Recovery Purposes

Reserve Definition and Reserve Growth

  • SPE and SEC regulations applicable to oil and gas reserves
  • Petroleum Reserve Definition 1997
  • Petroleum Resource Classification and definition 2000
  • Guidelines for the Evaluation of Petroleum Reserves and
  • Resources 2001
  • Accounting Series Release No. 257
  • Financial Accounting Standard Board

Society of Petroleum Engineer (SPE)

Securities and Exchange Commission (SEC)

Definition of Reserve:

Reserves identified those accumulations that can be extracted profitably with existing technology under present economic conditions.

Definition depends both on price, and on time frame of assessment

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes3
Reserve Evaluation for Enhance Oil Recovery Purposes

Reserve Definition and Reserve Growth

  • Definition of Reserve Growth
  • Reserve growth is the observed increase in reserves for fields over time. Initial estimates of reserves are lower than the ultimate volume of oil produced.
  • Cause of Reserve Growth
  • Factors that contribute to the reserve growth of fields can be grouped into five categories that are not independent of each other:
  • Reserve calculation
  • Recovery percentage
  • Additional oil and gas in place
  • Production Technology
  • Political economic changes

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes4
Reserve Evaluation for Enhance Oil Recovery Purposes

After Field Discovery

Analogy Method:

The purpose of this method is to apply knowledge gained from analogous and mature reservoirs or recovery processes to estimate the performance in target reservoir. Especially when new recovery mechanism or enhancements are introduced to a field (e.g. CO2 flooding). Mostly this method will be applied at the early stage of evaluation when there is not enough definitive performance and/or geologic data available.

The proof of this method, the rock and fluid properties of the target reservoir need to be equal to or more positive than the analogous reservoir properties in order to qualify for proven reserves.

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes5
Reserve Evaluation for Enhance Oil Recovery Purposes

Analogy Method

Data Needed to Analysis for Analogy Method

  • Need a good estimate of OOIP (STB) for both the analogy reservoir and the reservoir being studied.
  • CO2 Flood Area OOIP
  • Initial Oil Formation Volume Factor
  • Current Oil Formation Volume Factor
  • Current Reservoir Temperature and Pressure
  • CO2 Formation Volume Factor
  • Initial and Residual Oil Saturation
  • Historical production and injection rates

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes6
Reserve Evaluation for Enhance Oil Recovery Purposes

Development Defines Field Limits

Volumetric Method

  • - Area (A)
  • - Thickness (h)
  • - Average reservoir porosity, %
  • - Average water saturation (Swi)
  • Oil formation volume factor (Boi) at initial reservoir pressure (Pi).
  • Oil saturation after CO2 injection (Sor)%

Estimation of OIIP from Natural energy of the Reservoir.

  • Requirements to estimate RF using volumetric equation
  • Estimation OIIP from natural energy of the reservoir
  • Estimation of OIIP after volumetric depletion at Pa
  • Estimation of OIIP after CO2 injection at Pi

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes7
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Recovery Factor

Securities and Exchange Commission (SEC)

Reserves cannot be classified as proved undeveloped reserves based on improved recovery techniques until;

Such time that they have been proved effective in that target reservoir already being studied in `the same geologic formation in the immediate area’.

As the SEC guidelines state “the intent of the definition of proved reserves is interpreted as estimates that are more likely to result in a positive revision than a negative revision” immediately

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes8
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Recovery Factor and Incremental Increase in Recovery Factor

Estimation of Recovery Factor from Natural Energy of the Reservoir

According to the equation incremental increase in recovery factor of re-evaluated reserve will be categorized into three groups.

1- IIRF ≥ 50% (Good reserve)

2- 20% ≥ IIRF ≤ 50% (Intermediate reserve)

3- IIRF is less 10% ( Poor reserve)

Estimation of Recovery Factor after CO2 injection at initial reservoir pressure

Estimation of Incremental Increase in Recovery Factor

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes9
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Recovery Factor and Classification of Reserve

Total Recovery Factor of Re-evaluated Reserve

: Total Recovery Factor

: Incremental Increase in Recovery Factor

: Recovery Factor at Natural Reservoir

  • According to the equation (TRF%) re-classification of the re-evaluated reserve will also be categorized into three groups. For example value of recovery factor:
  • 1- If TRF is 90% (proved reserve)
  • 2- TRF is 50 % (probable reserve)
  • 3- TRF 10% (possible reserve)

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes10
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Petroleum Reserve Bankability

Petroleum Reserve Bankability

: Booking price $ in term of growth rate

: Booking price in term of money

: Current price $

: Development price $

: Growth rate of cumulative oil produce for the reclassified reserve%.

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes11
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Dynamic Reserve Evaluation (DREM)

Where

- OIIP : Oil Initial in Place

- TRF% : Total Recovery Factor

Forecasting an Economic Limit

Estimation of growth rate of Cumulative oil produced from the re-evaluated reserve.

V(t0) : start Volume, STB

V(tn) : finish volume, STB

tn − t0 : number of years

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes12
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Current Price Of Oil Reserves

Source: Chevillon and Rifflart (2009)

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes13
Reserve Evaluation for Enhance Oil Recovery Purposes

Estimation of Current Price Of Oil Reserves

24.2104

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes14
Reserve Evaluation for Enhance Oil Recovery Purposes
  • Case Study of Application Model

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes15
Reserve Evaluation for Enhance Oil Recovery Purposes
  • Firstly, calculating oil initial in place
  • = 7758 * A * h = 7758 * 26700 * 49 = 10.15 MMMbbl
  • 1- Oil initial in place by volumetric method
  • 2- The oil in place after volumetric depletion to abandonment pressure:
  • 3- The oil in place after CO2 injection at initial reservoir pressure:

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes16
Reserve Evaluation for Enhance Oil Recovery Purposes

Secondly, Estimation of Recovery Factor

1- Estimation of Recovery Factor from Natural Energy of the Reservoir

2- Estimation of Recovery Factor after CO2 injection at initial reservoir pressure

3- Estimation of Incremental Increase in Recovery Factor

4- Estimation of Total Recovery Factor

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes17
Reserve Evaluation for Enhance Oil Recovery Purposes

Thirdly, using Dynamic Reserve Evaluation for Estimating Reserve

According to a case study, production rate of a well at time 0 is 100 BOPD, initial nominal exponential decline rate is 0.5/year, and hyperbolic exponent is 0.9. Assuming hyperbolic decline predict the amount of oil produced for five years. To find out the growth rate, production at the end of each year must be determined.

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes18
Reserve Evaluation for Enhance Oil Recovery Purposes

Thus, growth rate of the reserve for five year is:

Estimation of Current Oil Price, Based on the Excel Simulation Model to Forecast Oil Price for the Selected Five Years.

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes19
Reserve Evaluation for Enhance Oil Recovery Purposes

In the last step, petroleum reserve bankability

International Energy Agency Collaborative Project On Enhanced Oil Recovery 2009

reserve evaluation for enhance oil recovery purposes20
Reserve Evaluation for Enhance Oil Recovery Purposes

Conclusion

  • This model deals with the estimation of the combined effects of the geological economical uncertainty of hydrocarbon reserves.
  • The geological uncertainty is mainly associated with the quality and quantity of hydrocarbon reserves which is different according to the nature of rock and fluid properties, as well as the location offshore or onshore, or in shallow or deepwater.
