  1. Xenon Detector Hardware Liquid Xenon Group

  2. Outline • Detector in 2008 • Operation in 2008 • Hardware Upgrade and Schedule • Summary

  3. Detector

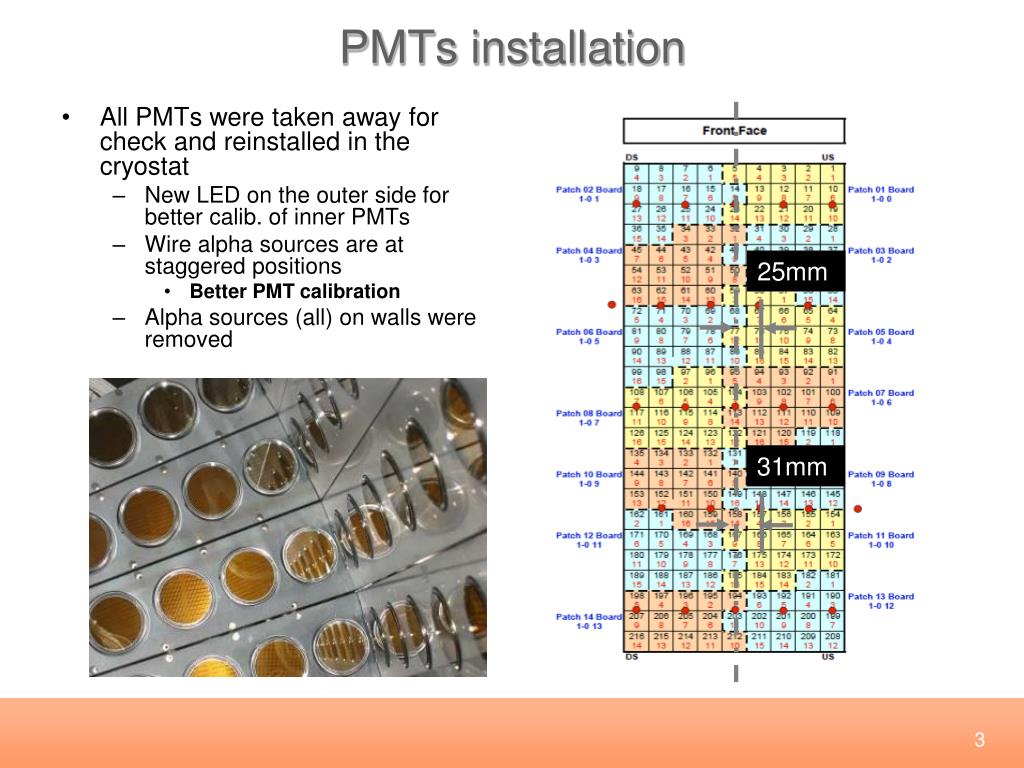

  4. PMTs installation • All PMTs were taken away for check and reinstalled in the cryostat • New LED on the outer side for better calib. of inner PMTs • Wire alpha sources are at staggered positions • Better PMT calibration • Alpha sources (all) on walls were removed 25mm 31mm

  5. New LEDs • Higher voltage with attenuation by coating LEDS • Stable against instability of the input voltage

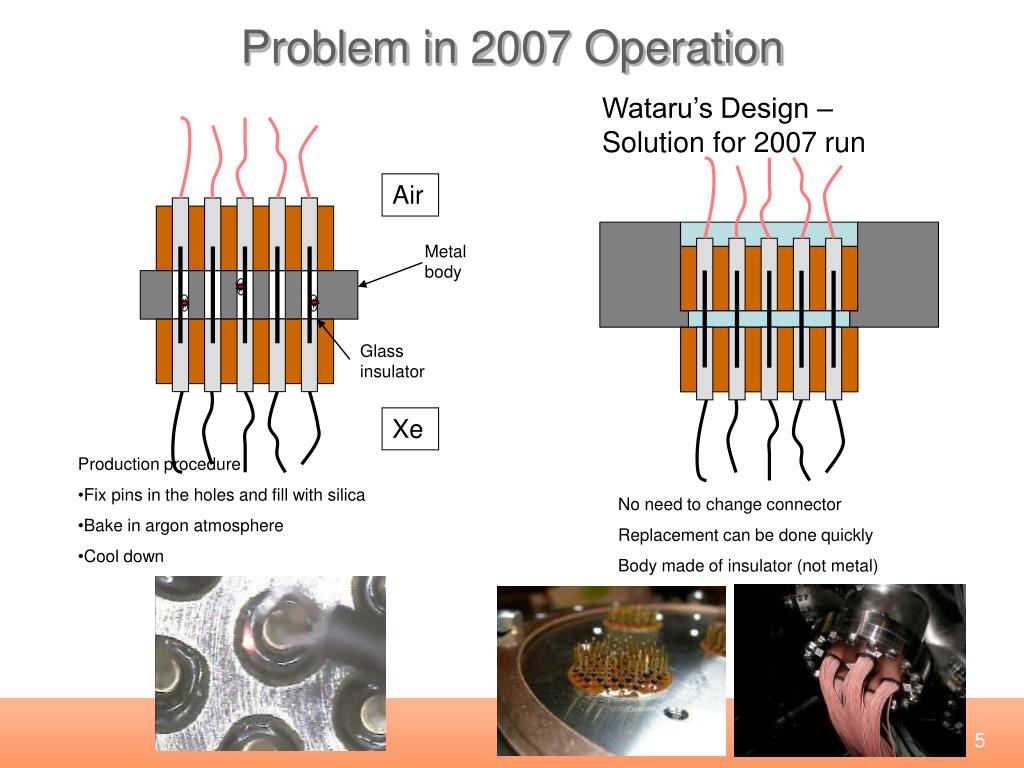

  6. Problem in 2007 Operation Wataru’s Design – Solution for 2007 run Air Metal body Glass insulator Xe • Production procedure • Fix pins in the holes and fill with silica • Bake in argon atmosphere • Cool down No need to change connector Replacement can be done quickly Body made of insulator (not metal)

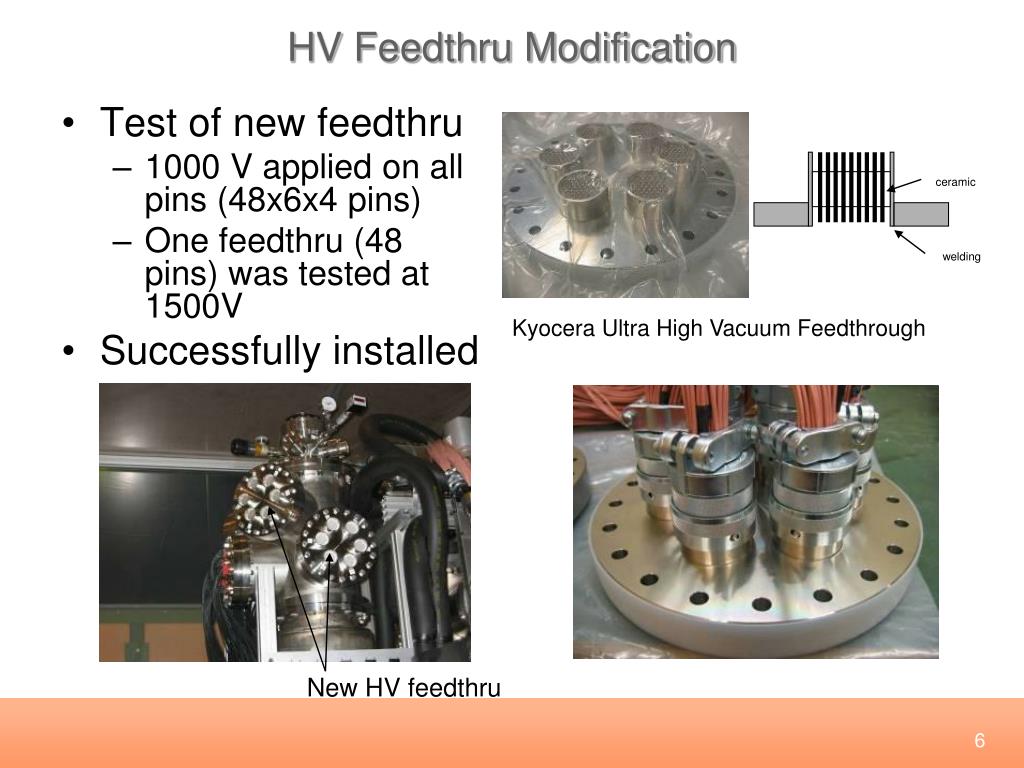

  7. ceramic welding HV Feedthru Modification • Test of new feedthru • 1000 V applied on all pins (48x6x4 pins) • One feedthru (48 pins) was tested at 1500V • Successfully installed Kyocera Ultra High Vacuum Feedthrough New HV feedthru

  8. PMTs ? Cables Pipes New LN2 feedthru Installation • Pressure was slowly increasing under normal operating condition in 2007 runs • 6 new LN2 feedthru have been installed • Stainless steel pipes instead of Cu pipes • Pipes are precisely and strongly centered in order not to touch the wall • Bellows connection for the cooling pipes on the covers • 30-40W reduction of heat load was achieved • But … still pressure is slowly increasing…. !!!!!!!!!! • Refrigerator cooling power: 200W

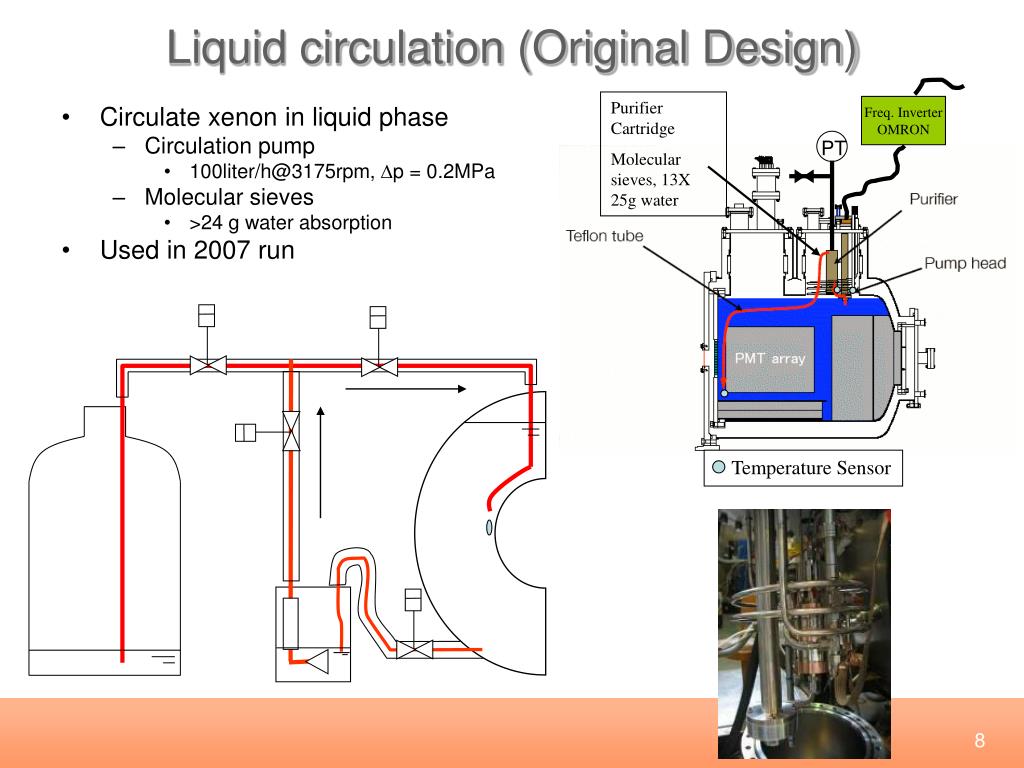

  9. Temperature Sensor Liquid circulation (Original Design) Purifier Cartridge Molecular sieves, 13X 25g water Freq. Inverter OMRON • Circulate xenon in liquid phase • Circulation pump • 100liter/h@3175rpm, Dp = 0.2MPa • Molecular sieves • >24 g water absorption • Used in 2007 run PT

  10. Electronegative Impurity Removal(Update in 2008 Run) • O2 getter cartridge • Developed for LAr use at CERN • Mounted at the exit MEG liquid-phase purifier with by-pass valves

  11. Liquid-phase Purifier Modification • New purifier cartridge to remove water • Oxidization-reduction of Cu • Outside of the purifier cryostat • MS is replaced to new pellet • Particle filter has been installed

  12. Modification of Splitter-DRS Connections/Cables • GND line from splitter floating  grounding on DRS board • Copper tape + black tape DRS pedestal distribution before/after modification

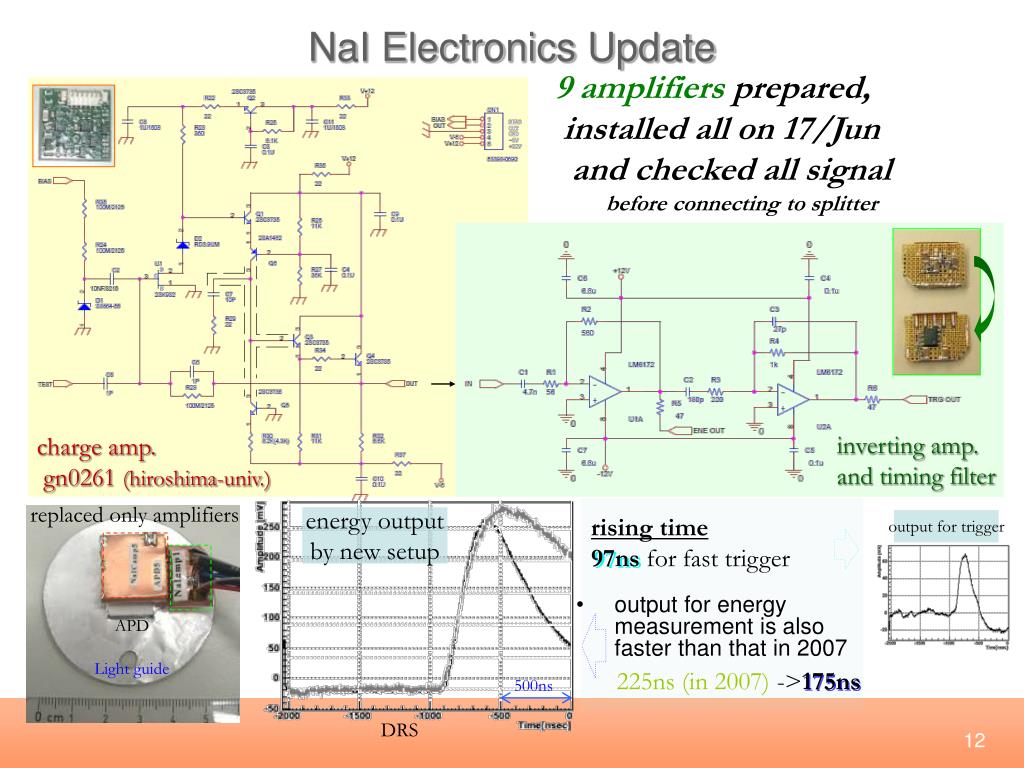

  13. NaI Electronics Update 9 amplifiers prepared, installed all on 17/Jun and checked all signal before connecting to splitter • output for energy measurement is also faster than that in 2007 inverting amp.and timing filter charge amp. gn0261 (hiroshima-univ.) replaced only amplifiers rising time 97ns for fast trigger 225ns (in 2007) ->175ns energy outputby new setup output for trigger 97ns APD Light guide 500ns 175ns DRS

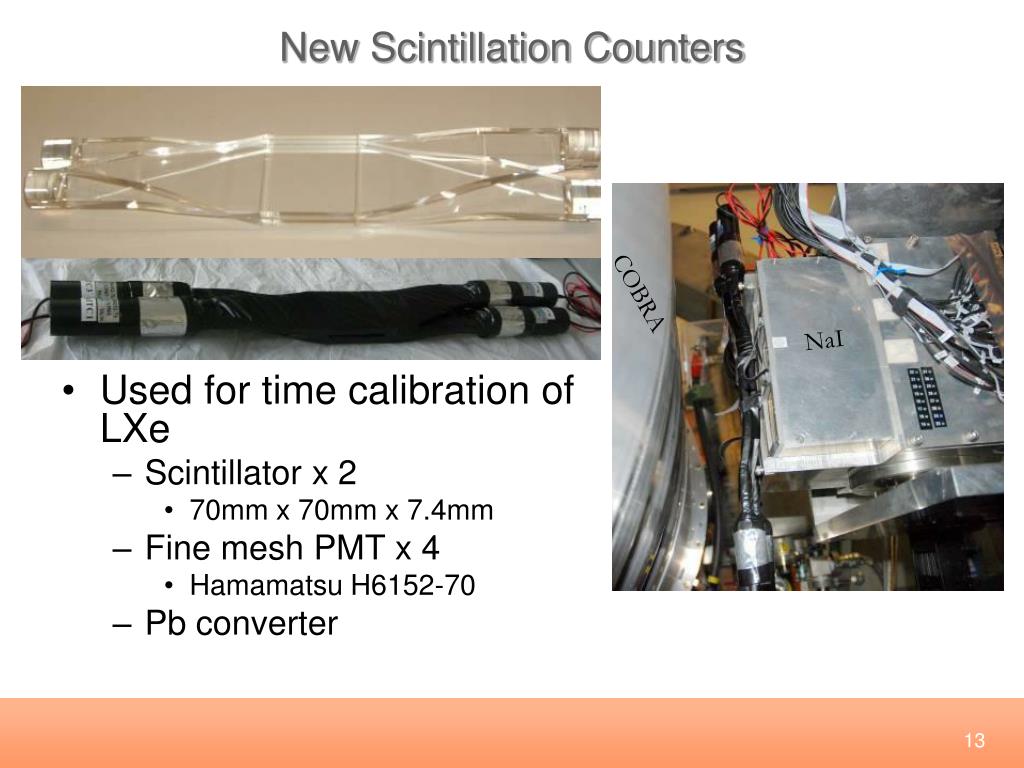

  14. New Scintillation Counters • Used for time calibration of LXe • Scintillator x 2 • 70mm x 70mm x 7.4mm • Fine mesh PMT x 4 • Hamamatsu H6152-70 • Pb converter COBRA NaI

  15. Operation

  16. Gas/liquid system Gas-phase purifier Gas line Liquid line High pressure Storage Detector 1000L dewar Liquid-phase purifier

  17. a Scintillation Light Yield • In 2007 operation, there was an energy scale discrepancy btw alpha and gamma • Too small light yield from g events ( < 1/2) • Purity seemed to be good because we observed • Improvement and plateau of light yield of both gammas and alphas • but <Q/A>g / <Q/A>a was found to be smaller than expectation and LP data 2007 Data

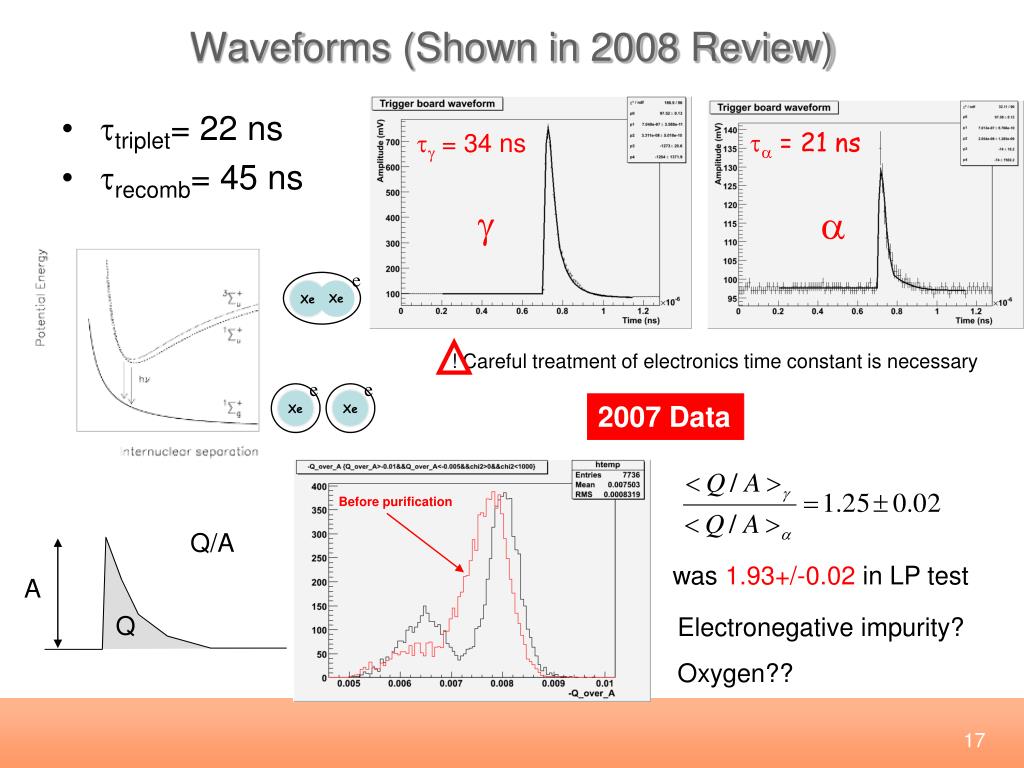

  18. g a e Xe Xe e e Xe Xe Waveforms (Shown in 2008 Review) • triplet= 22 ns • recomb= 45 ns tg = 34 ns ta = 21 ns ! Careful treatment of electronics time constant is necessary 2007 Data Before purification Q/A was 1.93+/-0.02 in LP test A Q Electronegative impurity? Oxygen??

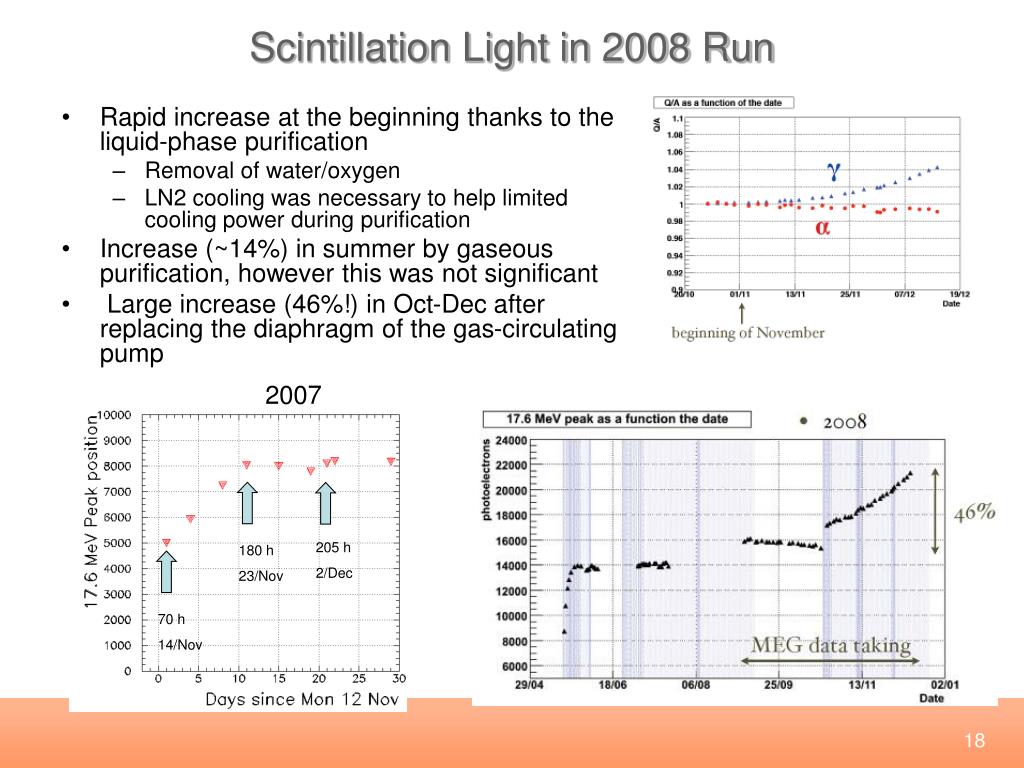

  19. Scintillation Light in 2008 Run • Rapid increase at the beginning thanks to the liquid-phase purification • Removal of water/oxygen • LN2 cooling was necessary to help limited cooling power during purification • Increase (~14%) in summer by gaseous purification, however this was not significant • Large increase (46%!) in Oct-Dec after replacing the diaphragm of the gas-circulating pump 2007 205 h 2/Dec 180 h 23/Nov 70 h 14/Nov

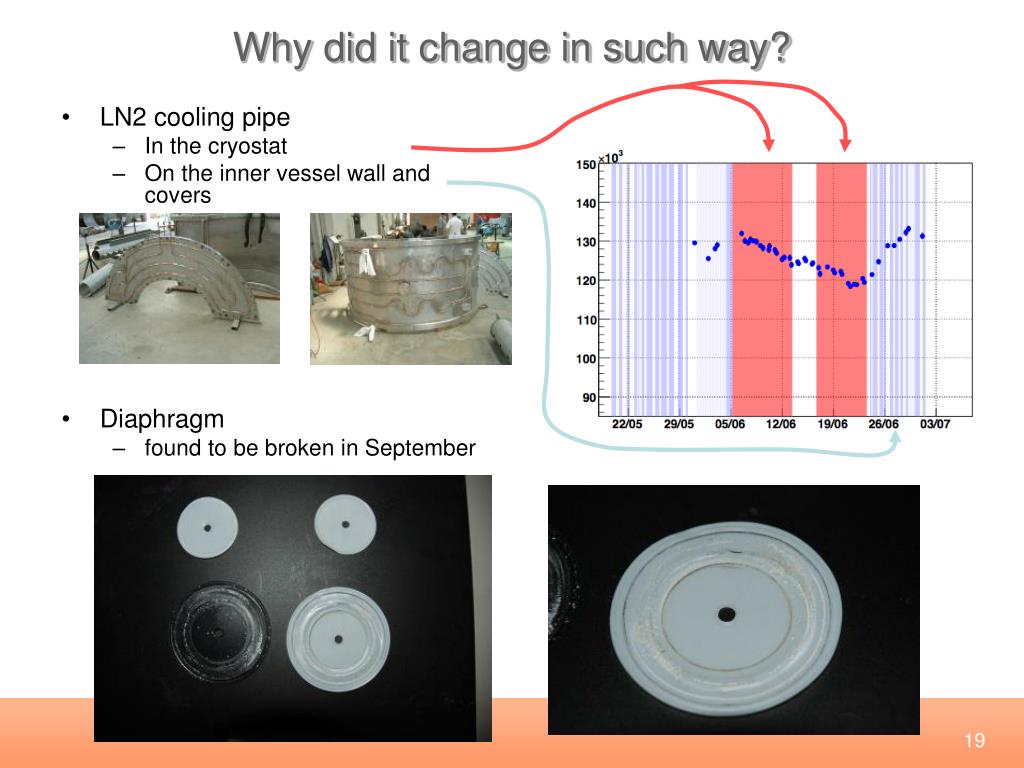

  20. Why did it change in such way? • LN2 cooling pipe • In the cryostat • On the inner vessel wall and covers • Diaphragm • found to be broken in September

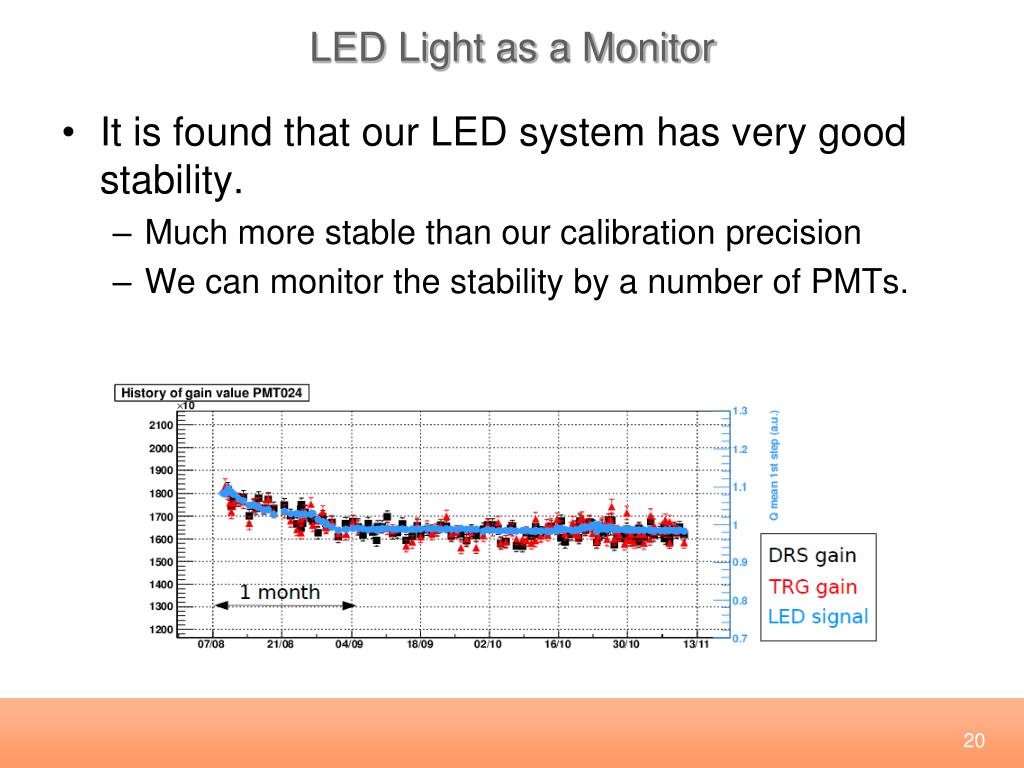

  21. LED Light as a Monitor • It is found that our LED system has very good stability. • Much more stable than our calibration precision • We can monitor the stability by a number of PMTs.

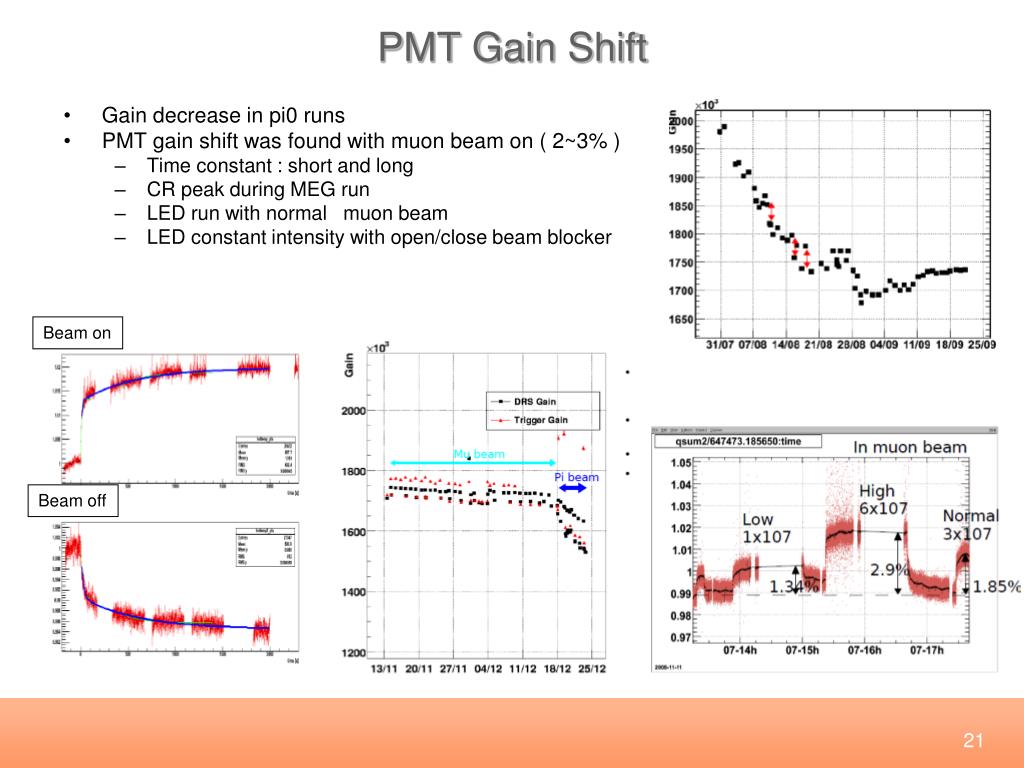

  22. PMT Gain Shift • Gain decrease in pi0 runs • PMT gain shift was found with muon beam on ( 2~3% ) • Time constant : short and long • CR peak during MEG run • LED run with normal muon beam • LED constant intensity with open/close beam blocker Beam on Beam off

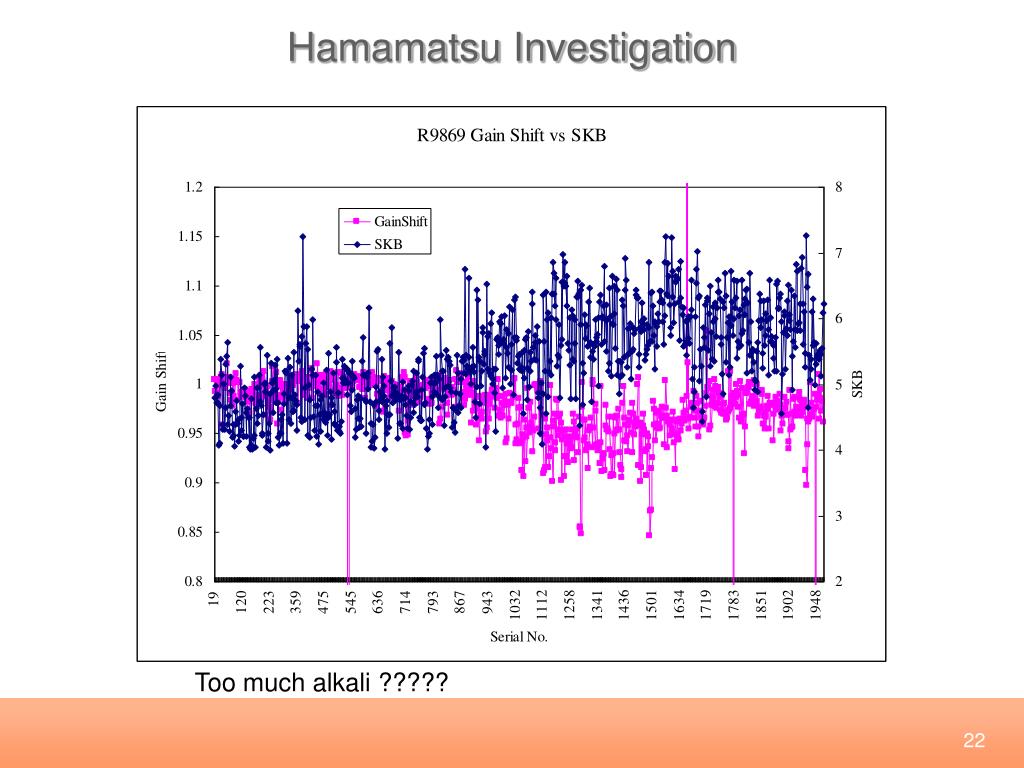

  23. Hamamatsu Investigation Too much alkali ?????

  24. Yet Another Way to Monitor the Light • (Cosmic ray) • Am-Be alpha source

  25. Hardware Upgradeand Schedule

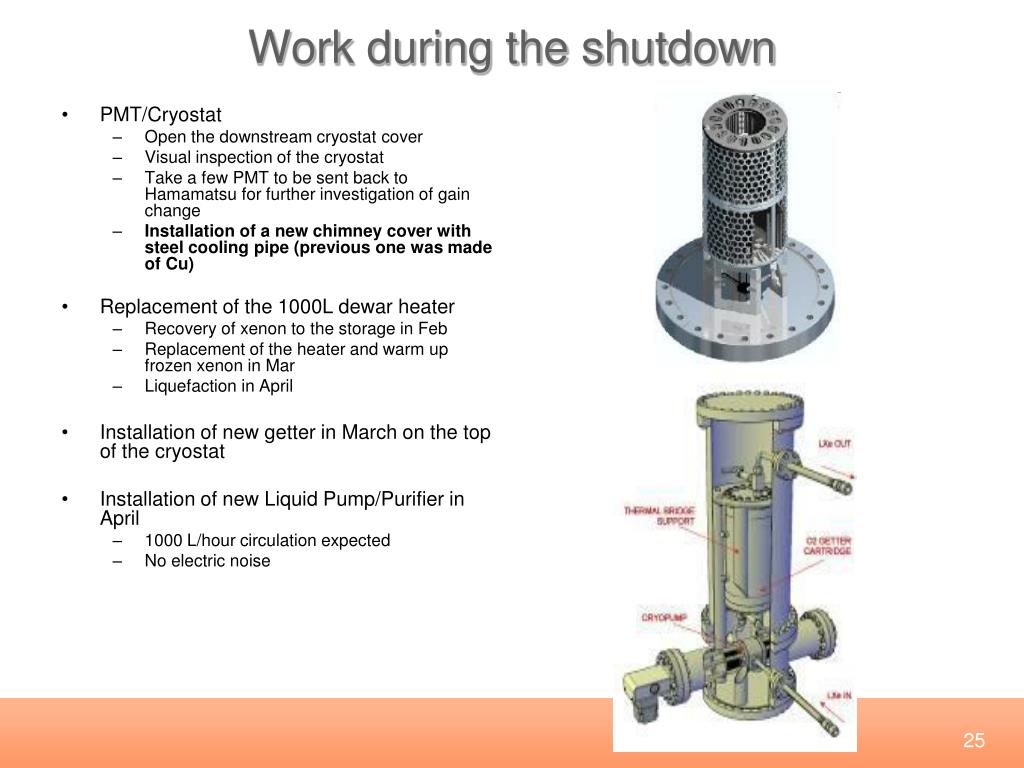

  26. Work during the shutdown • PMT/Cryostat • Open the downstream cryostat cover • Visual inspection of the cryostat • Take a few PMT to be sent back to Hamamatsu for further investigation of gain change • Installation of a new chimney cover with steel cooling pipe (previous one was made of Cu) • Replacement of the 1000L dewar heater • Recovery of xenon to the storage in Feb • Replacement of the heater and warm up frozen xenon in Mar • Liquefaction in April • Installation of new getter in March on the top of the cryostat • Installation of new Liquid Pump/Purifier in April • 1000 L/hour circulation expected • No electric noise

  27. Detector 6-19/April Evacuation 20-22/April pre-cooling 23-24/April cold gas alpha DAQ 25-26/April Liquid transfer 27/April-10/May Electronics test Purifier test 11/May- Purification and test 1000L dewar 26/Jan-27/Feb Recovery of xenon to the storage 2/Mar-6/Mar Recovery of the gas in the dewar 9/Mar-13/Mar Repair work of the heater 14/Mar-1/April Evacuation 2/April-22/April Liquefaction Complete removal of impurities Liquid filling schedule

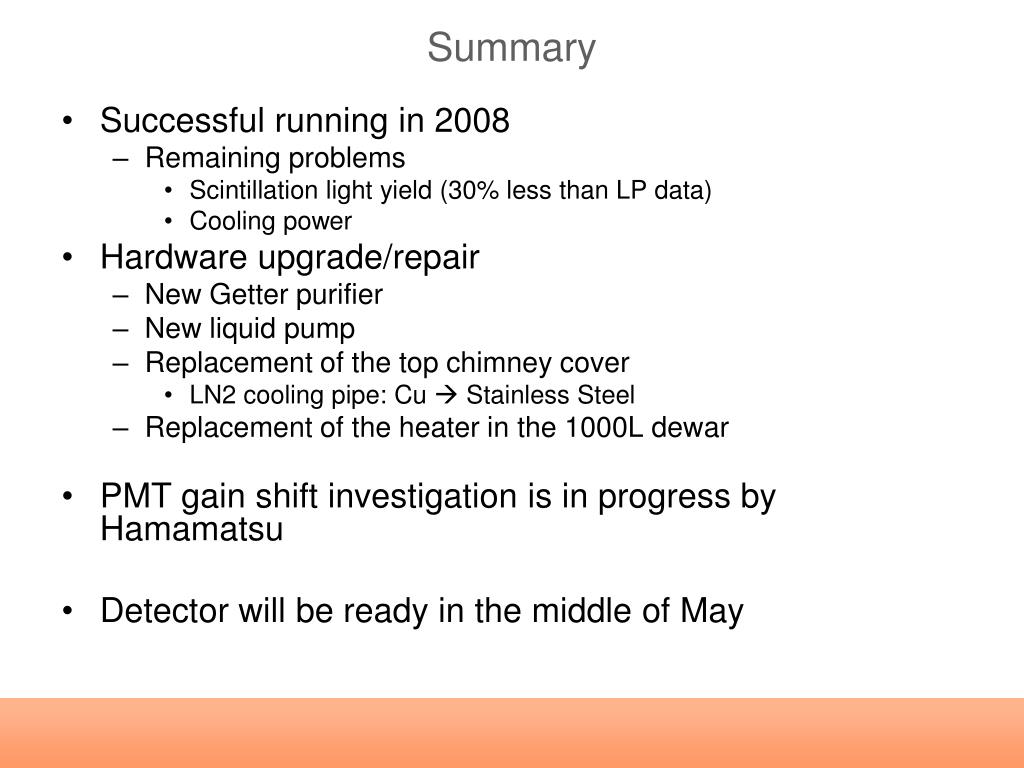

  28. Summary • Successful running in 2008 • Remaining problems • Scintillation light yield (30% less than LP data) • Cooling power • Hardware upgrade/repair • New Getter purifier • New liquid pump • Replacement of the top chimney cover • LN2 cooling pipe: Cu  Stainless Steel • Replacement of the heater in the 1000L dewar • PMT gain shift investigation is in progress by Hamamatsu • Detector will be ready in the middle of May
