  1. SDI-Link

  2. Models WSDI-M SDI-Link Master WSDI-S SDI-Link Slave WSDI-SIO SDI-Link Slave with I/O OPTIONS 5100-0030 7 Amp-Hr Battery 5100-0040 24 Amp-Hr Battery 5100-0410-1 20Watt 6661-1300-1 Mounting Bracket Kit 6661-1306-20 8.5 dB Omni Kit with 20 ft cable SDI-Link Models & Options

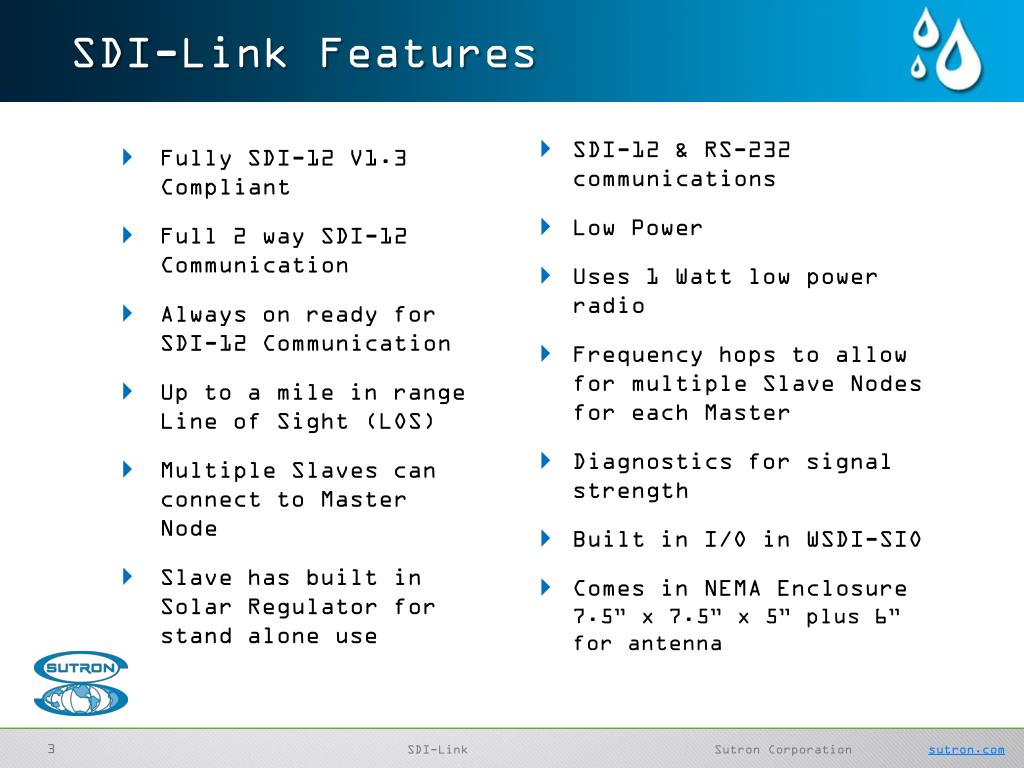

  3. Fully SDI-12 V1.3 Compliant Full 2 way SDI-12 Communication Always on ready for SDI-12 Communication Up to a mile in range Line of Sight (LOS) Multiple Slaves can connect to Master Node Slave has built in Solar Regulator for stand alone use SDI-Link Features • SDI-12 & RS-232 communications • Low Power • Uses 1 Watt low power radio • Frequency hops to allow for multiple Slave Nodes for each Master • Diagnostics for signal strength • Built in I/O in WSDI-SIO • Comes in NEMA Enclosure 7.5” x 7.5” x 5” plus 6” for antenna

  4. Frequency: 2.4 GHz Radios Range: Up to 1 Mile Line of sight Interface: SDI-12 V1.3, RS232 Power Consumption: WSDI-M 7mA Typical Average WSDI-S 6mA Typical Average Operating Temp: -40C to +60C Housing: Nema 4X Lockable Enclosure Solar Panel Regulator: Supports up to 20 Watt Panel WSDI-SIO Model A/D Accuracy: 24 Bit Switched Battery: Short Protected Diagnostics: RSS, Charging Current, Voltage Power: 10-1VDC, reverse protected Key Technical Specifications

  5. Single Ended Inputs: 2 Channels Accuracy: 0.02% Full Scale Diff Inputs: 3 Channels Resolution: 4.657nV 4-20mA: 1 Channel Frequency Counter: 1 Channel Key Technical Specifications

  6. Reservoirs & other Surface Water Tidal and Oceanic Water Quality Ground Water Both Hot and Cold Climates Lock Monitoring Flood Monitoring Met Stations AGMET Stations Bridge Locations to locate Logger off of the Bridge Quick Deployment Gages Any Project with long cable runs Key Applications

  7. Competitive Analysis

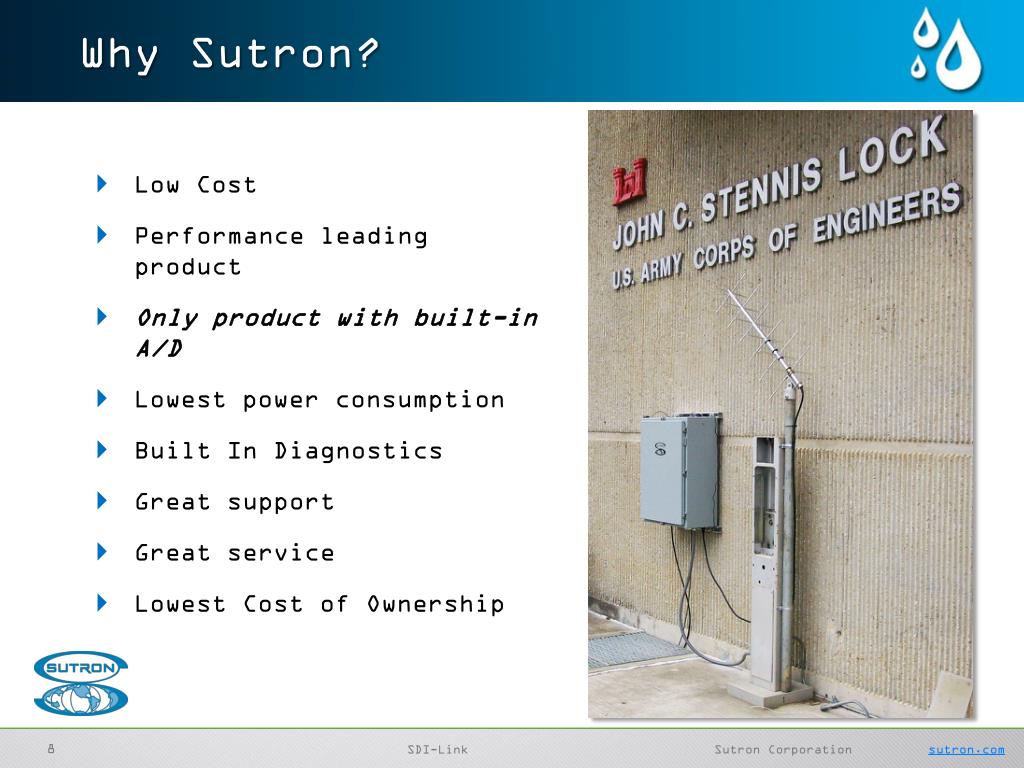

  8. Low Cost Performance leading product Only product with built-in A/D Lowest power consumption Built In Diagnostics Great support Great service Lowest Cost of Ownership Why Sutron?

  9. SDI-Links are currently being used to monitor the Lock on the Tennessee Tombigbee Water Way. Using SDI-Link allows the installation of sensors to be completed without costly major construction at the Locks SDI-Link offers Quick 10 Second readings for up-to-date readings in the control house. SDI-Link is important to decision making regarding when to open gates during locking and flood events. Case Study/Installation Example

  10. Tennessee Tombigbee Water Way USACE USGS Customer References
