slide1

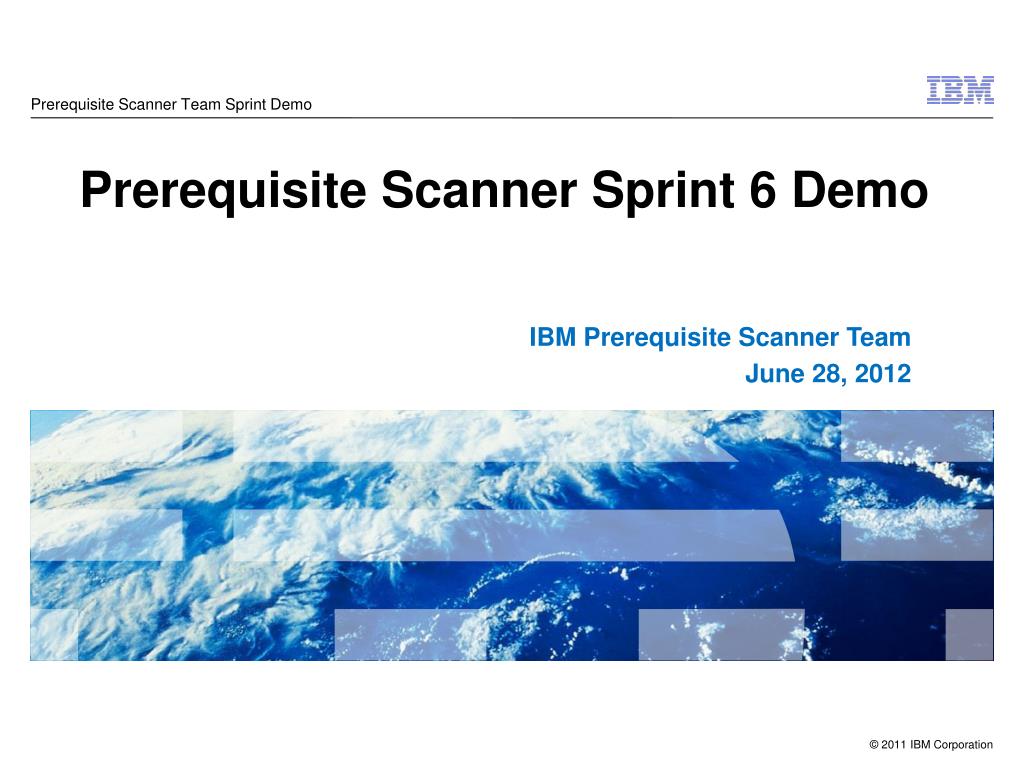

Prerequisite Scanner Team Sprint Demo

Prerequisite Scanner Sprint 6 Demo

IBM Prerequisite Scanner Team

June 28, 2012

slide2

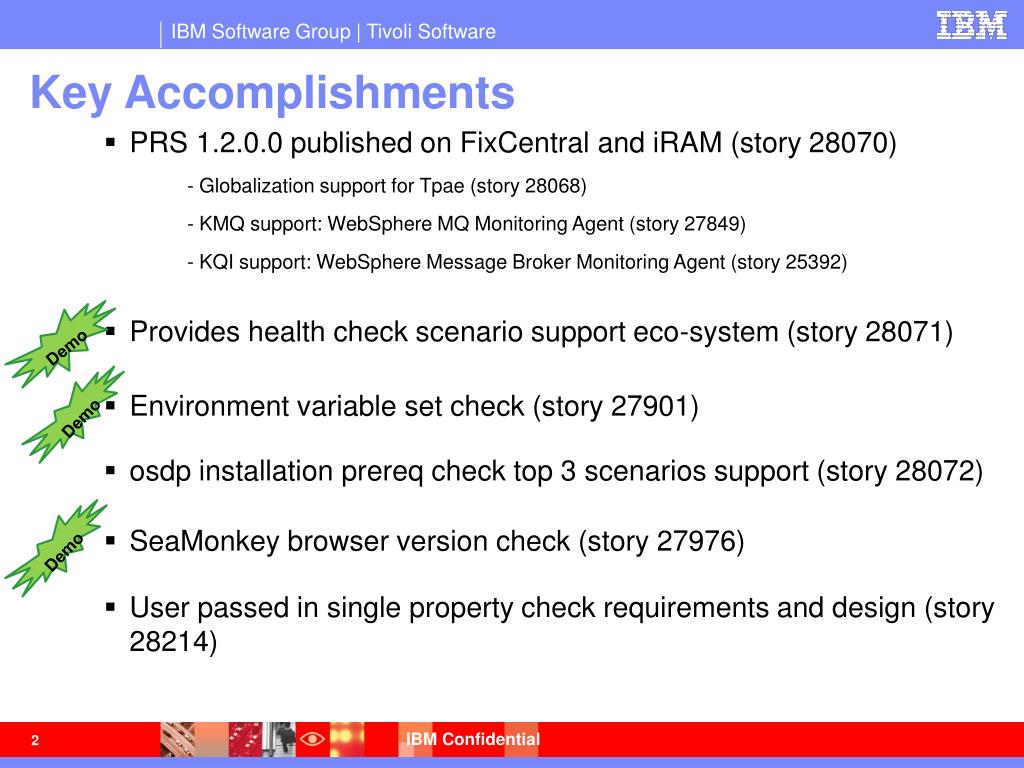

Key Accomplishments

  • PRS 1.2.0.0 published on FixCentral and iRAM (story 28070)

- Globalization support for Tpae (story 28068)

- KMQ support: WebSphere MQ Monitoring Agent (story 27849)

- KQI support: WebSphere Message Broker Monitoring Agent (story 25392)

  • Provides health check scenario support eco-system (story 28071)
  • Environment variable set check (story 27901)
  • osdp installation prereq check top 3 scenarios support (story 28072)
  • SeaMonkey browser version check (story 27976)
  • User passed in single property check requirements and design (story 28214)

Demo

Demo

Demo

slide3

Demo 1 - Health check scenario eco-system support

  • Supported health check scenarios
    • inactive: product installed, but not started on the system

 most cases applies to configuration checking

    • active: product installed & running on the system

 most cases applies to operational checking

  • Optional command line arguments

-health [inactive|active]

  • Health check results
    • <PRS_HOME>/result_health_[inactive|active].txt
    • <PRS_HOME>/result_health_[inactive|active].xml
slide4

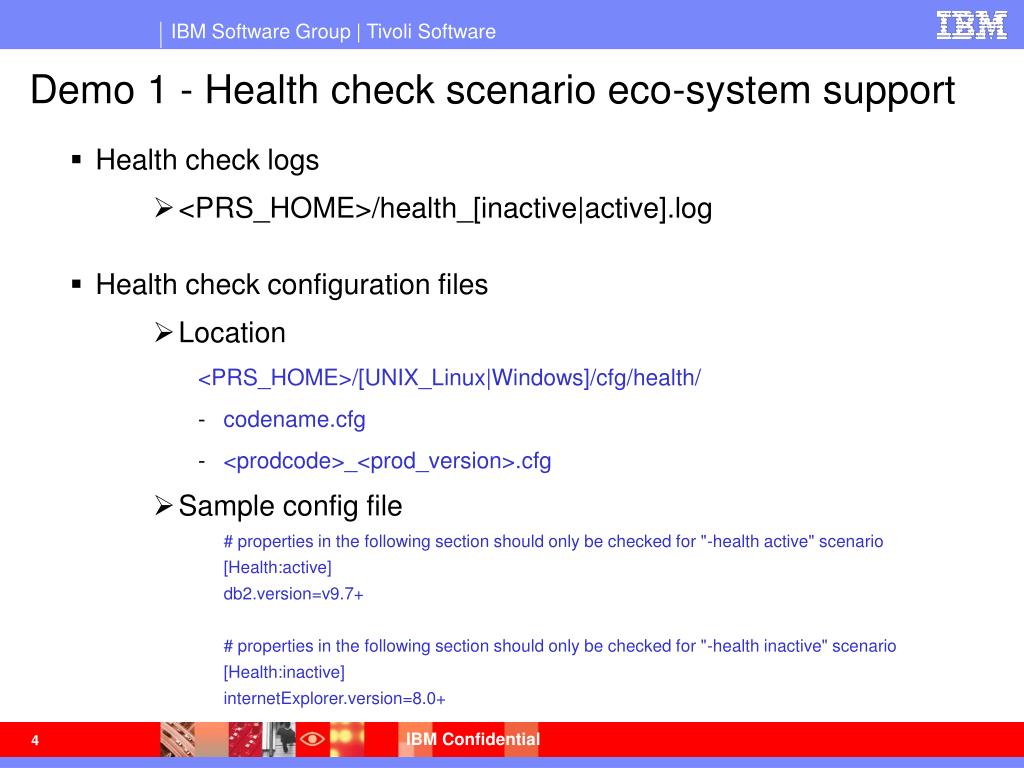

Demo 1 - Health check scenario eco-system support

  • Health check logs
    • <PRS_HOME>/health_[inactive|active].log
  • Health check configuration files
    • Location

<PRS_HOME>/[UNIX_Linux|Windows]/cfg/health/

      • codename.cfg
      • <prodcode>_<prod_version>.cfg
    • Sample config file

# properties in the following section should only be checked for "-health active" scenario

[Health:active]

db2.version=v9.7+

# properties in the following section should only be checked for "-health inactive" scenario

[Health:inactive]

internetExplorer.version=8.0+

slide5

Demo 1 - Health check scenario eco-system support

  • Live demo
  • Next step
    • Identify high priority health checks to be implemented
    • White paper creation on how to extend PRS to add health checks
    • Call to action

– use PRS for your products’ health check

slide6

Demo 2 – Environment variable set check

  • Stage 1 work of Java and JRE version check
  • What does this check do

Identify whether an environment variable is set or not.

    • Windows supports 4 types of environment variables

1) User -- Applies to the user currently logged on to the computer and is saved between logoffs and restarts

2) System -- Applies to all users of the computer and is saved between logoffs and restarts

3) Volatile -- Applies to current logon session and is not saved between logoffs and restarts

4) Process -- Applies to current process and might be passed to child processes

    • Unix supports environment variable set check for global variables
  • Property name, valid value
  • Property name: env.var.set.<variable name>
  • Valid value: True|False
  • On windows [type:<type>] used to specify types. Default is “Process”.

For example: env.var.set.JAVA_HOME[type:User]=True

slide7

Demo 3 – SeaMonkey browser version check

  • What does this check do
    • checks for a specific version of SeaMonkey on the machine
    • requirement is for Linux platforms only
  • Property name and value
  • Property name: os.SeaMonkeyVersion
  • Valid value: numeric format, for example: 2.10
  • special characters can be used to represent types of ranges:
    • 2.10+ check for version 2.10 or higher
    • 2.* version can be 2.0, 2.1, 2,2, etc

Example:

os.SeaMonkeyVersion=2.10+

slide9

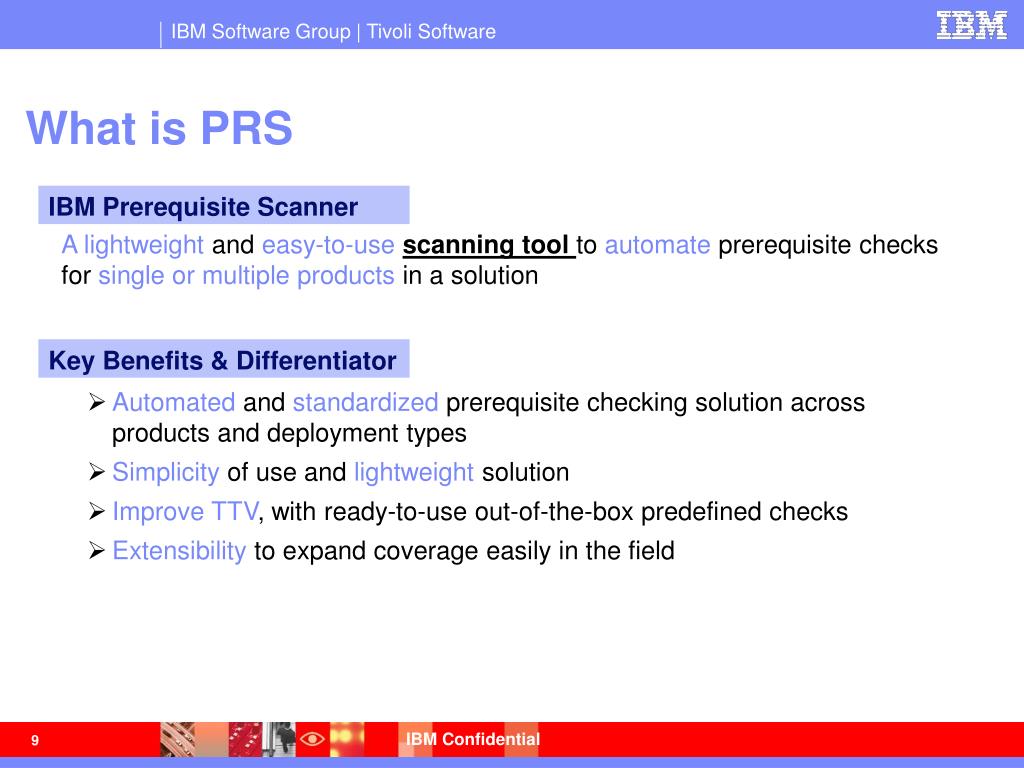

What is PRS

A lightweight and easy-to-usescanning tool to automate prerequisite checks for single or multiple products in a solution

  • Automated and standardized prerequisite checking solution across products and deployment types
  • Simplicity of use and lightweight solution
  • Improve TTV, with ready-to-use out-of-the-box predefined checks
  • Extensibility to expand coverage easily in the field

IBM Prerequisite Scanner

Key Benefits & Differentiator

slide10

Completed sprint 6 stories

Story: As part of OSDP helath checking, investigate the ability to run a single check (28236)Story: as admin services team, I would like PRS to design to support our user scenarios for pre and post installation (28214)Story: osdp installation prereq check support stage2 work (28072)Story: add post-install health check support to PRS as officially supported feature (28071)Story: release PRS 1.2 to FixCentral (28070)Story: remove user's guide from PRS release build (28068)Feature request: SeaMonkey webbrowser version check support (27976)Publish KMQ and KQI agent support to FixCentral (27849)Story: as KMQ agent adopter team, I would like PRS to smoke test KMQ agent support (26419)Story: Add coverage for KMQ and KQI Agent (25392)Feature Request :  Environment variable is set, for example, JAVA_HOME (27901)Add TADDM coverage to support Gulf Breeze Transparent Dev (26442)Story: Evaluate ITM remote deploy training to support GTS engagements (28232)Story: Evaluate existing Oracle prereq scripts for reuse in PRS (28238)Story: For IBM Services engagments, I want to check for Oracle prerequisites as part of the solution (27877)Story: To support GTS PI2 engagement activity, add TADDM, TSAM, ORACLE coverage (28237)
