unit and functional testing your flex applications

Unit and Functional Testing Your Flex Applications

Mike Nimer

Dir. Of Engineering

nomee.com

slide2

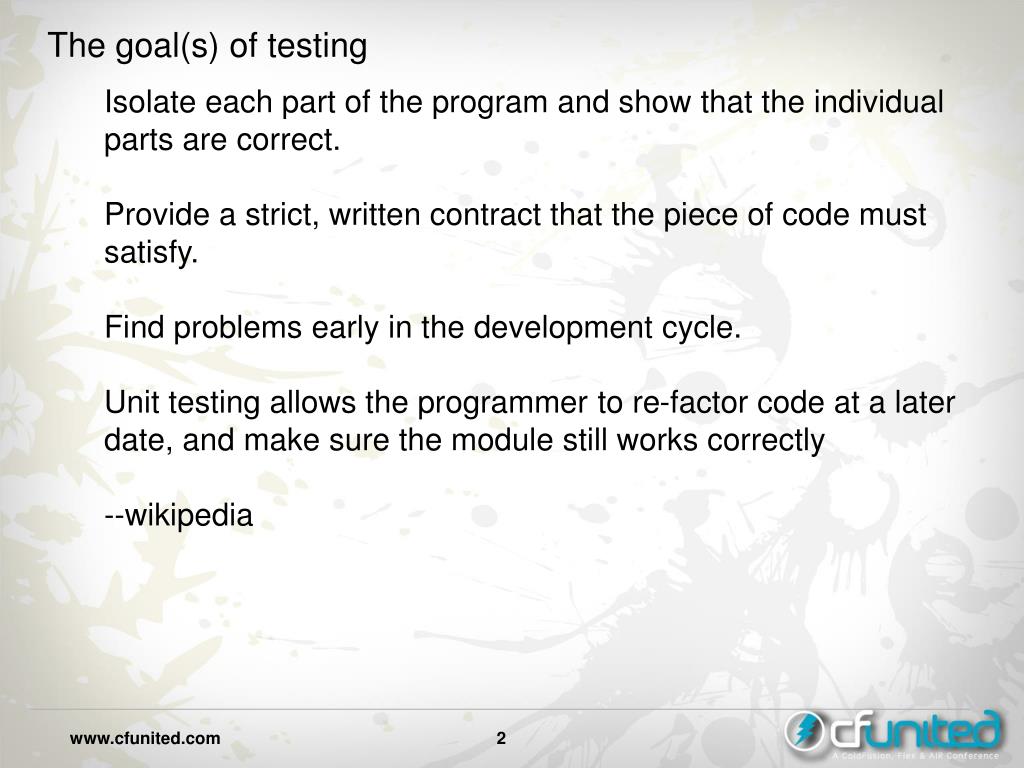

The goal(s) of testing

  • Isolate each part of the program and show that the individual parts are correct.
  • Provide a strict, written contract that the piece of code must satisfy.
  • Find problems early in the development cycle.
  • Unit testing allows the programmer to re-factor code at a later date, and make sure the module still works correctly
  • --wikipedia
types of testing
Types of Testing

Manual

Humans create test scripts.

Step by Step instructions (word doc).

Humans execute those tests.

Low cost to begin. High cost over the life of a project

Testing generally happens less often

Automated

Humans create test methods. Machines execute those tests.

Higher cost to develop. Much lower cost over the life of a project

Testing can happen continually

On every check-in

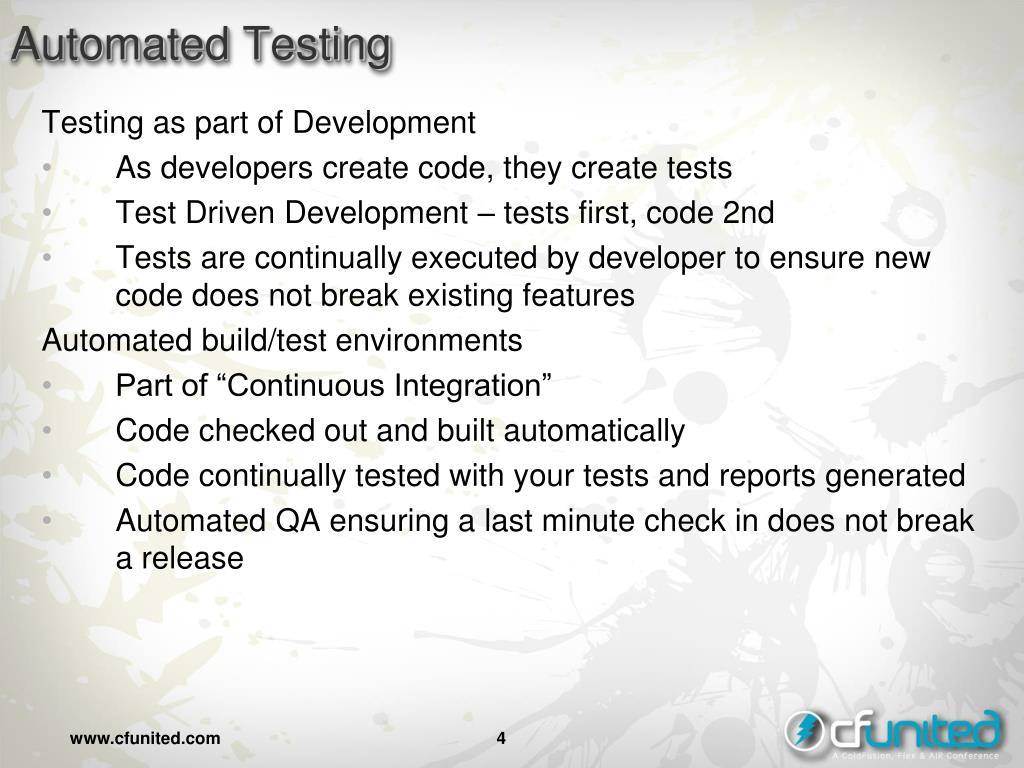

automated testing
Automated Testing

Testing as part of Development

As developers create code, they create tests

Test Driven Development – tests first, code 2nd

Tests are continually executed by developer to ensure new code does not break existing features

Automated build/test environments

Part of “Continuous Integration”

Code checked out and built automatically

Code continually tested with your tests and reports generated

Automated QA ensuring a last minute check in does not break a release

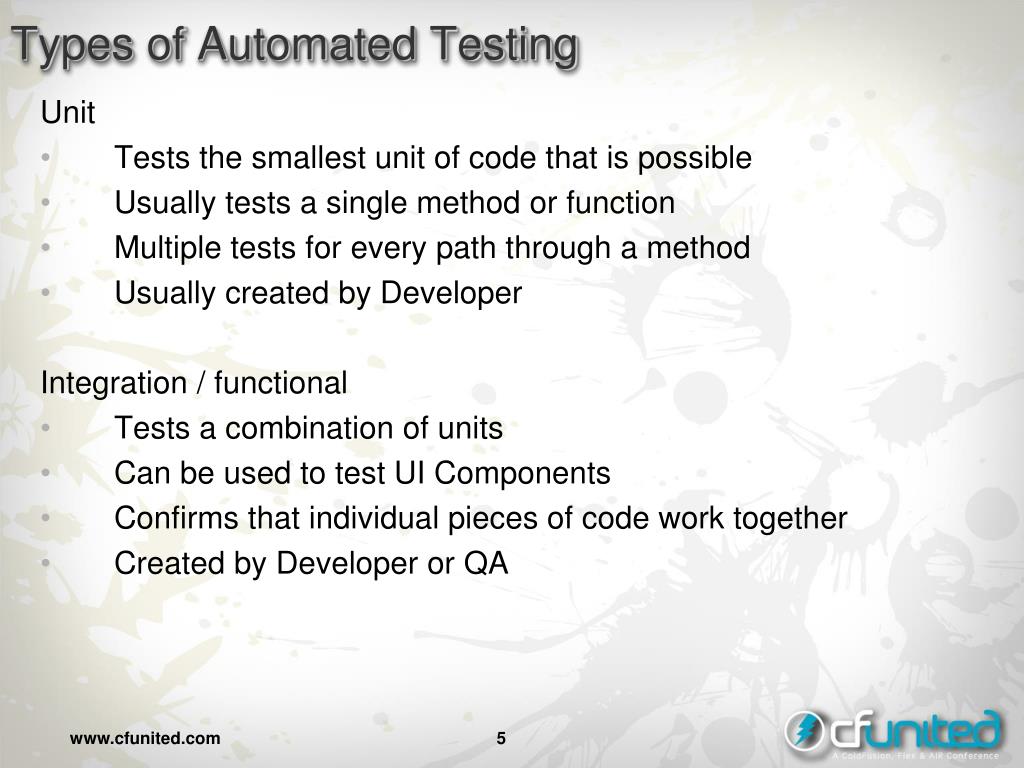

types of automated testing
Types of Automated Testing

Unit

Tests the smallest unit of code that is possible

Usually tests a single method or function

Multiple tests for every path through a method

Usually created by Developer

Integration / functional

Tests a combination of units

Can be used to test UI Components

Confirms that individual pieces of code work together

Created by Developer or QA

tools for unit testing

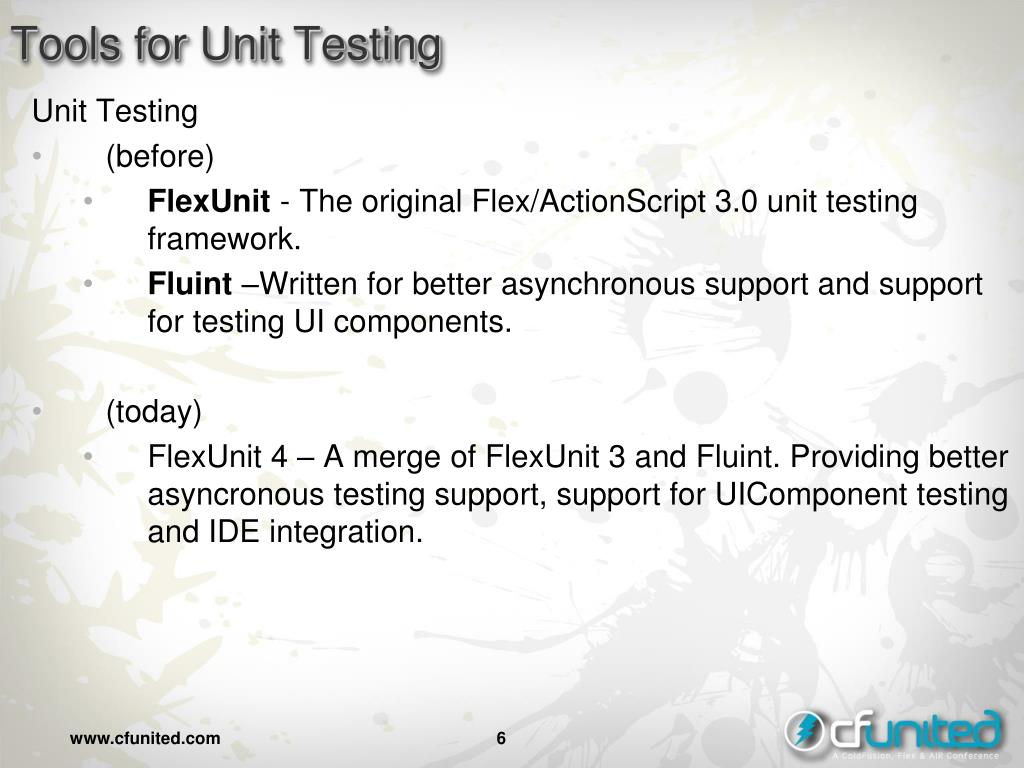

Tools for Unit Testing

Unit Testing

(before)

FlexUnit - The original Flex/ActionScript 3.0 unit testing framework.

Fluint –Written for better asynchronous support and support for testing UI components.

(today)

FlexUnit 4 – A merge of FlexUnit 3 and Fluint. Providing better asyncronous testing support, support for UIComponent testing and IDE integration.

tools for automated testing

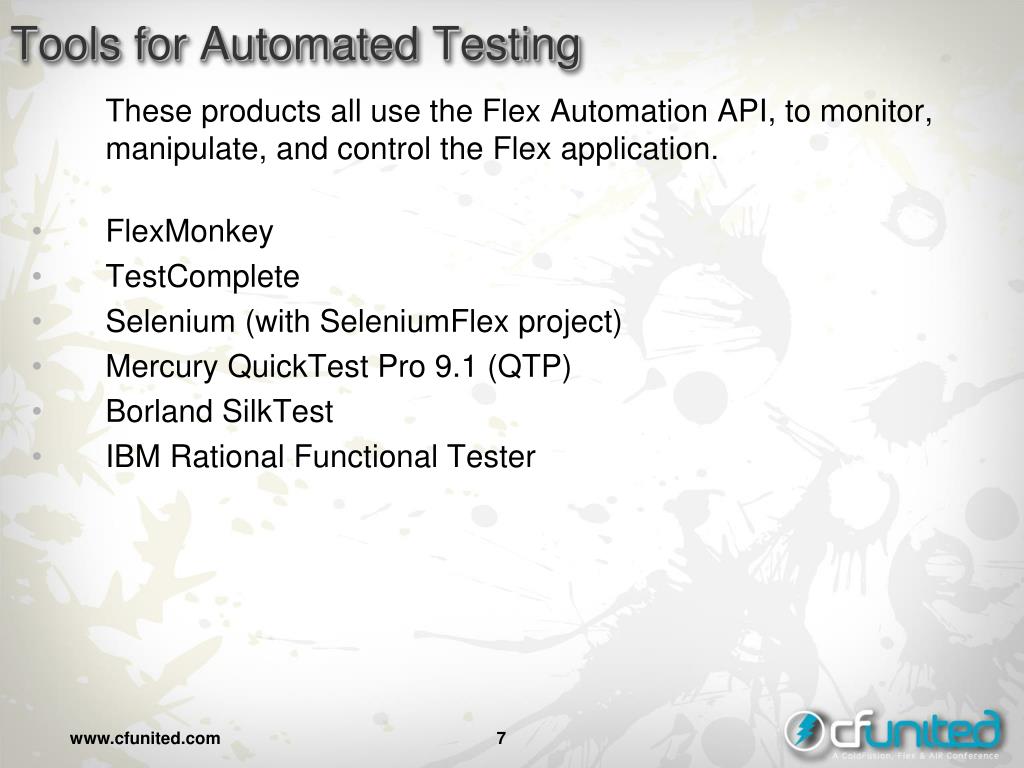

Tools for Automated Testing

These products all use the Flex Automation API, to monitor, manipulate, and control the Flex application.

FlexMonkey

TestComplete

Selenium (with SeleniumFlex project)

Mercury QuickTest Pro 9.1 (QTP)

Borland SilkTest

IBM Rational Functional Tester

testing terminology

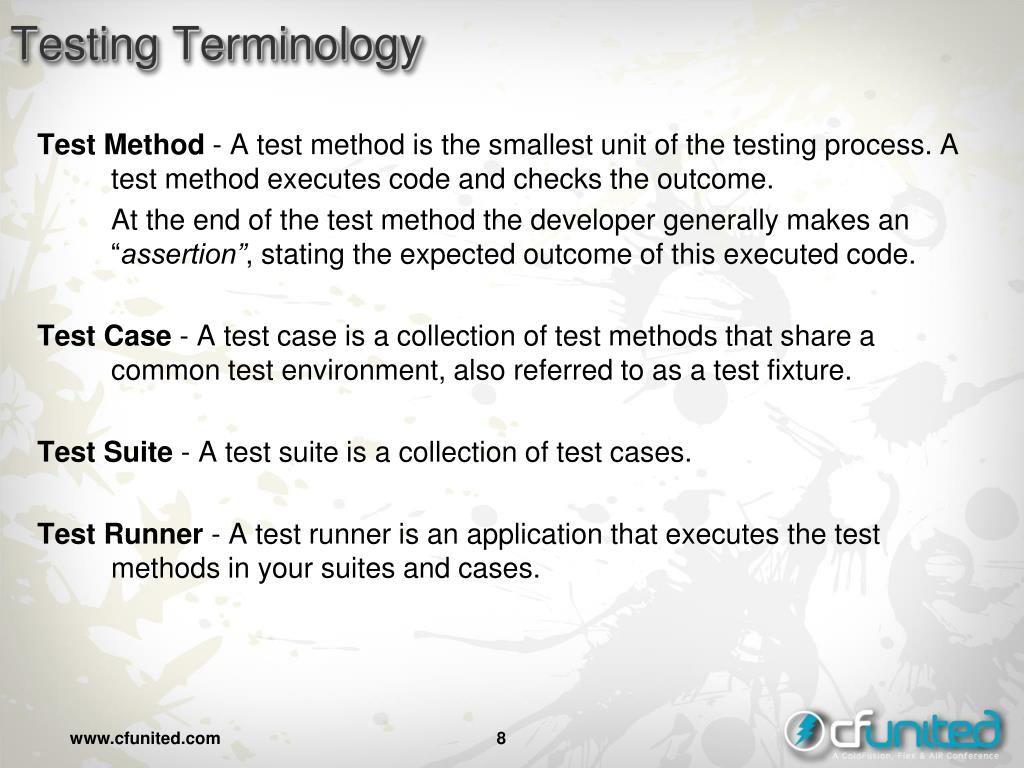

Testing Terminology

Test Method - A test method is the smallest unit of the testing process. A test method executes code and checks the outcome.

At the end of the test method the developer generally makes an “assertion”, stating the expected outcome of this executed code.

Test Case - A test case is a collection of test methods that share a common test environment, also referred to as a test fixture.

Test Suite - A test suite is a collection of test cases.

Test Runner - A test runner is an application that executes the test methods in your suites and cases.

understanding assertions
Understanding Assertions

assertEquals()—Accepts two parameters and is a valid assertion if the two values are equal (==).

assertStrictlyEquals()—Accepts two parameters and is a valid assertion if the two values are strictly equal (===).

assertTrue()—Accepts a single parameter and is a valid assertion if the value is true.

assertFalse()—Accepts a single parameter and is a valid assertion if the value is false.

assertNull()—Accepts a single parameter and is a valid assertion if the value is null.

assertNotNull()—Accepts a single parameter and is a valid assertion if the value is not null.

fail()— Marks the test failed.

whats new in flexunit 4

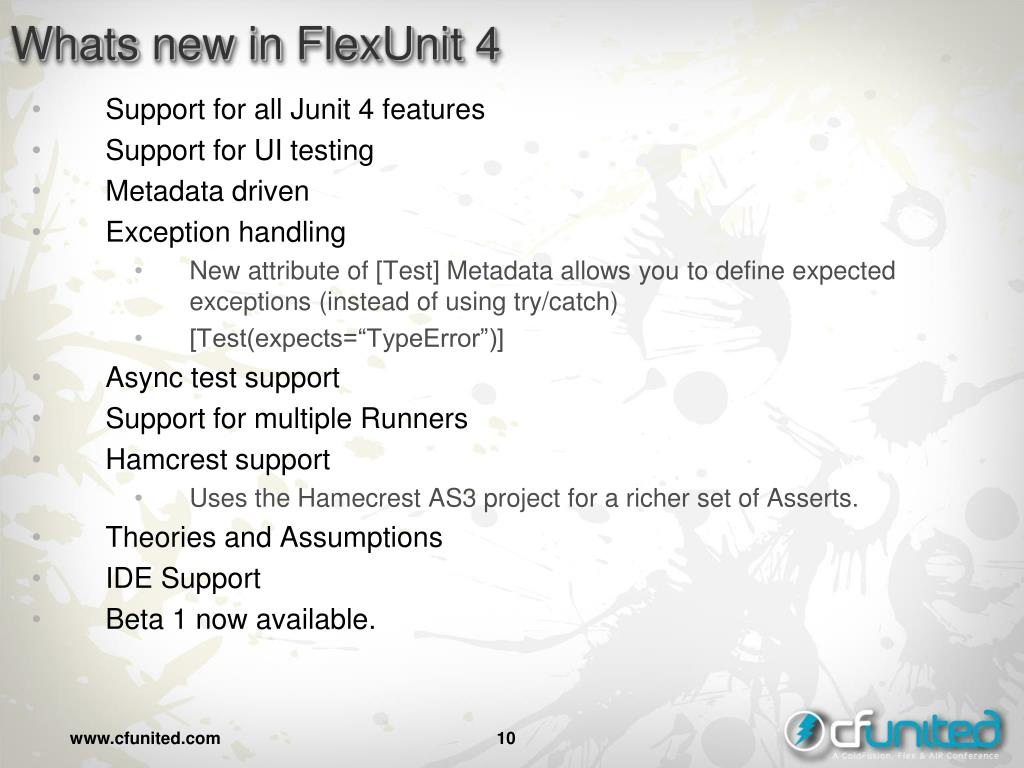

Whats new in FlexUnit 4

Support for all Junit 4 features

Support for UI testing

Metadata driven

Exception handling

New attribute of [Test] Metadata allows you to define expected exceptions (instead of using try/catch)

[Test(expects=“TypeError”)]

Async test support

Support for multiple Runners

Hamcrest support

Uses the Hamecrest AS3 project for a richer set of Asserts.

Theories and Assumptions

IDE Support

Beta 1 now available.

slide11

Understanding Metadata

  • FlexUnit 4 can be driven off of specific flexmetadata (similar to java annotations). This allows you to define tests as you see fit, with your own naming conventions or in existing code.
  • Before metadata you had to name your test methods a certain way, and your tests had to extend specific classes.
  • [Test]
  • [Suite]
  • [Before]
  • [After]
  • [BeforeClass]
  • [AfterClass]
  • [Ignore]
  • [DataPoints]
  • [Theory]
  • [RunWith]
creating a basic unit test

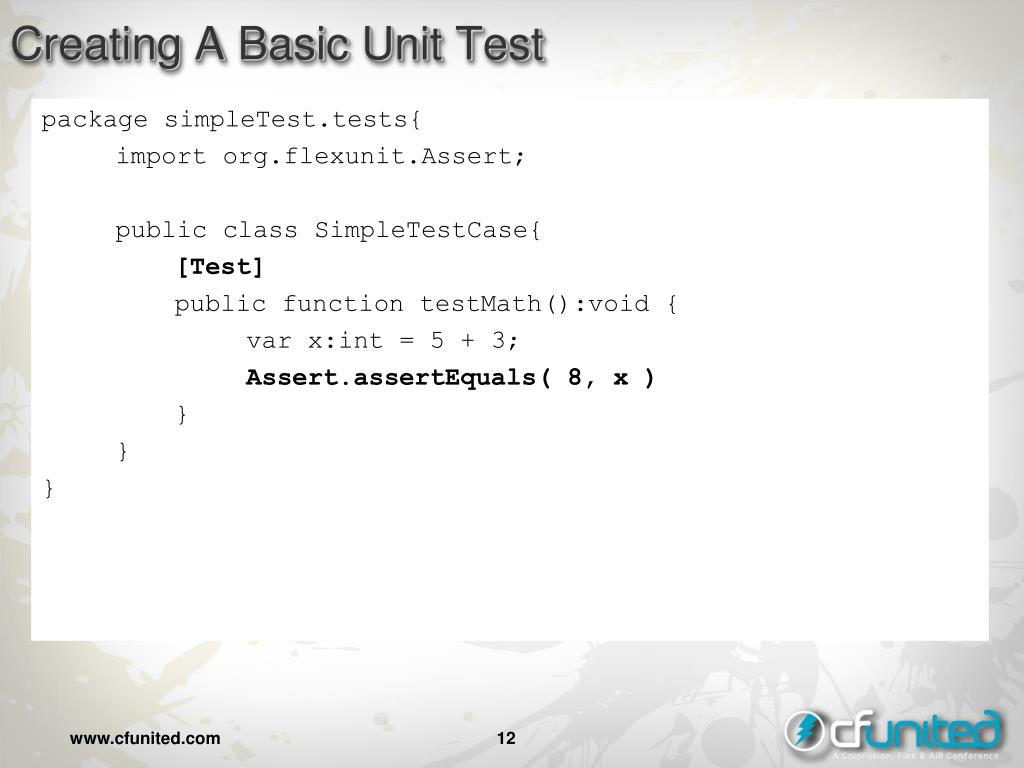

Creating A Basic Unit Test

package simpleTest.tests{

import org.flexunit.Assert;

public class SimpleTestCase{

[Test]

public function testMath():void {

var x:int = 5 + 3;

Assert.assertEquals( 8, x )

}

}

}

creating a basic test suite
Creating A Basic Test Suite

package simpleTest

{

import flexunit.framework.TestSuite;

import simpleTest.tests.SimpleTestCase;

[Suite]

[RunWith("org.flexunit.runners.Suite")]

public class SimpleTestSuite

{

// define a var for each test case.

public var simpleTestCase:SimpleTestCase;

}

}

creating a test runner
Creating A Test Runner

<?xml version="1.0" encoding="utf-8"?>

<mx:Application xmlns:mx="http://www.adobe.com/2006/mxml"

creationComplete="runMe()"

xmlns:flexUnitUIRunner="http://www.adobe.com/2009/flexUnitUIRunner" >

<mx:Script><![CDATA[

import simpleTest.SimpleTestSuite;

import org.flexunit.listeners.UIListener;

import org.flexunit.runner.FlexUnitCore;

private var core:FlexUnitCore;

public function runMe():void {

core = new FlexUnitCore();

//Listener for the UI, optional

core.addListener( new UIListener( uiListener ));

core.run( SimpleTestSuite );

}

]]></mx:Script>

<flexUnitUIRunner:TestRunnerBase

id="uiListener"

width="100%" height="100%" />

</mx:Application>

asynchronous testing

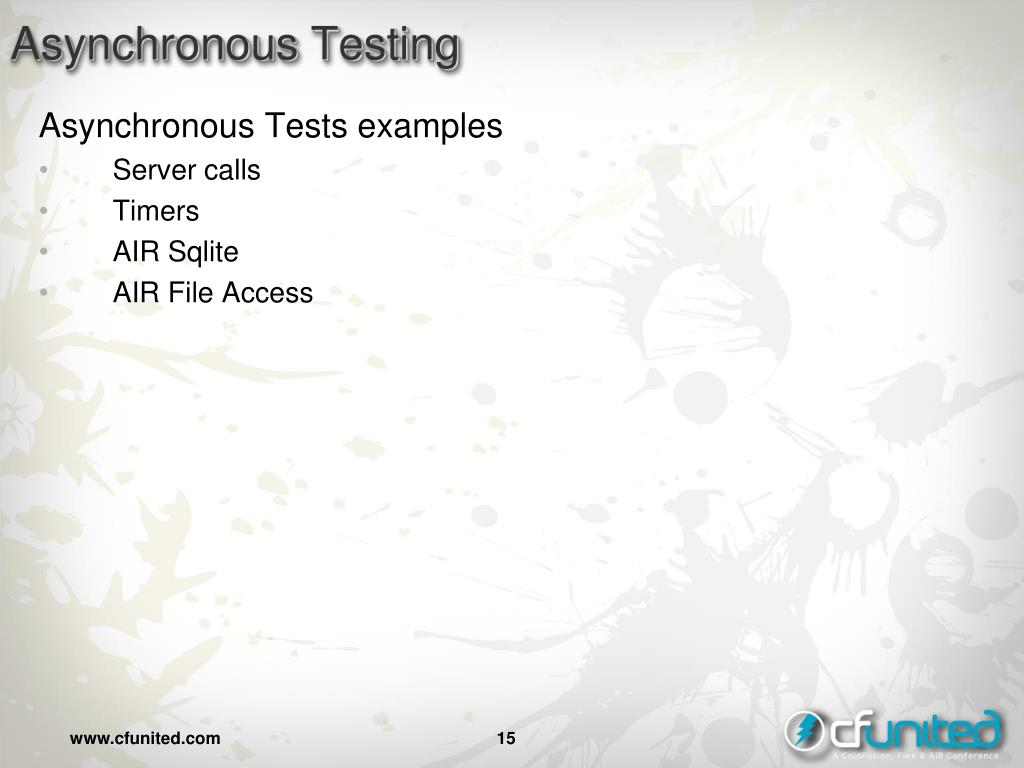

Asynchronous Testing

Asynchronous Tests examples

Server calls

Timers

AIR Sqlite

AIR File Access

creating an asynchronous unit test setup teardown

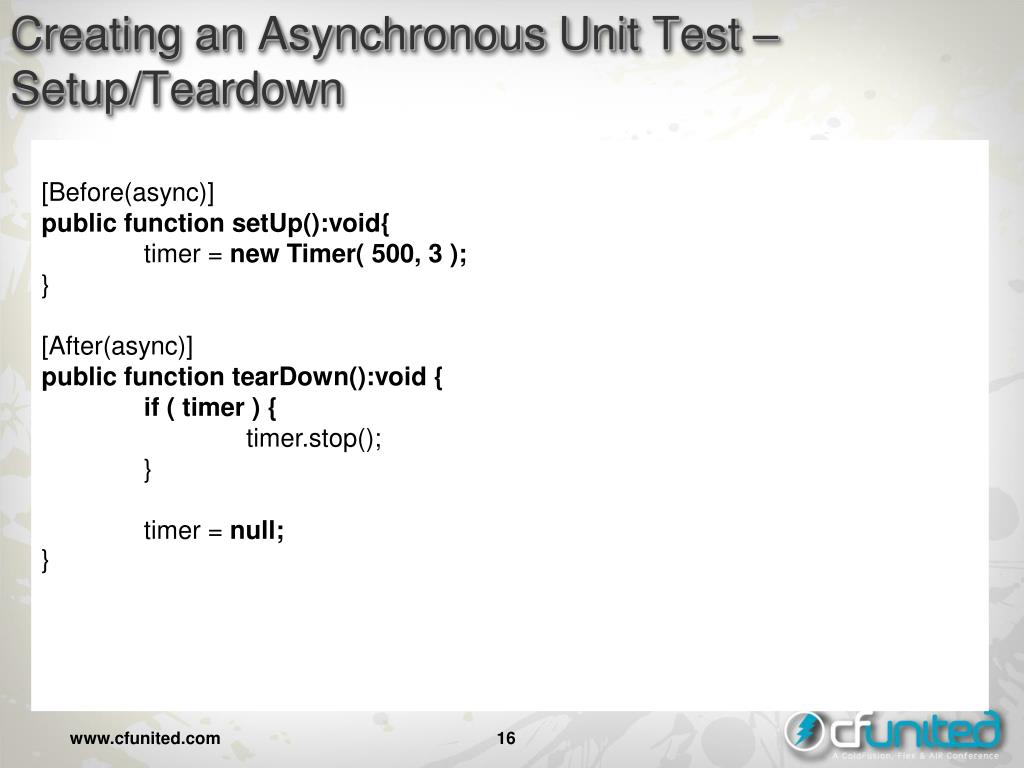

Creating an Asynchronous Unit Test – Setup/Teardown

[Before(async)]

public function setUp():void{

timer = new Timer( 500, 3 );

}

[After(async)]

public function tearDown():void {

if ( timer ) {

timer.stop();

}

timer = null;

}

creating an asynchronous test test method

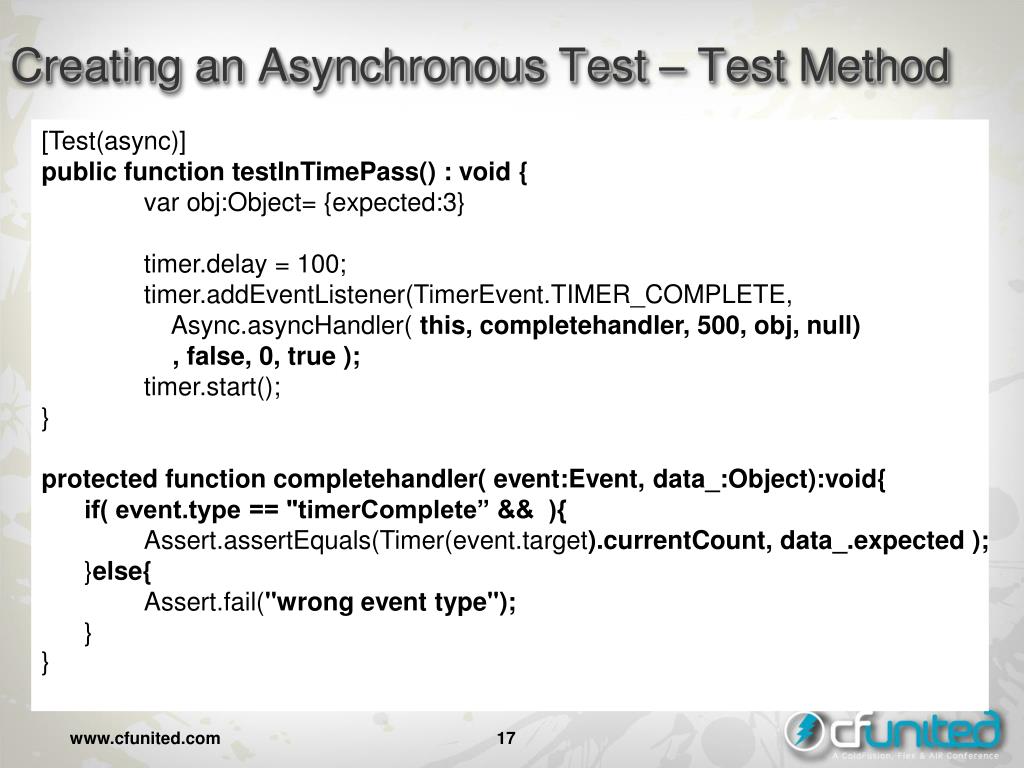

Creating an Asynchronous Test – Test Method

[Test(async)]

public function testInTimePass() : void {

var obj:Object= {expected:3}

timer.delay = 100;

timer.addEventListener(TimerEvent.TIMER_COMPLETE,

Async.asyncHandler( this, completehandler, 500, obj, null)

, false, 0, true );

timer.start();

}

protected function completehandler( event:Event, data_:Object):void{

if( event.type == "timerComplete” && ){

Assert.assertEquals(Timer(event.target).currentCount, data_.expected );

}else{

Assert.fail("wrong event type");

}

}

integration testing

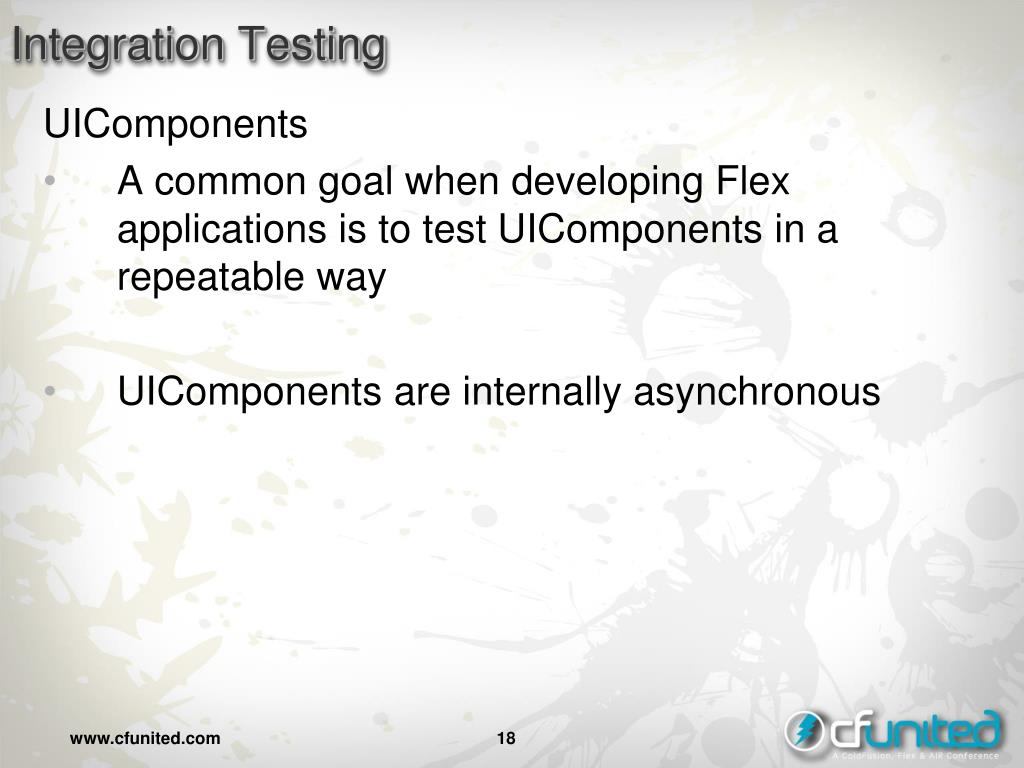

Integration Testing

UIComponents

A common goal when developing Flex applications is to test UIComponents in a repeatable way

UIComponents are internally asynchronous

integration testing flexunit

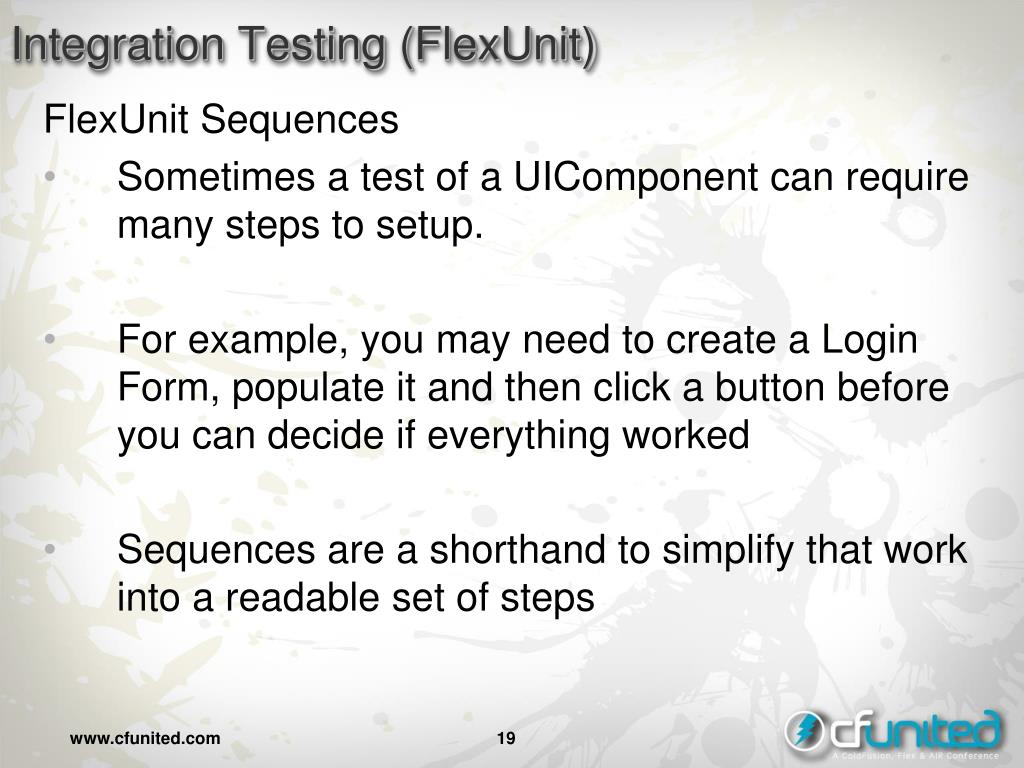

Integration Testing (FlexUnit)

FlexUnit Sequences

Sometimes a test of a UIComponent can require many steps to setup.

For example, you may need to create a Login Form, populate it and then click a button before you can decide if everything worked

Sequences are a shorthand to simplify that work into a readable set of steps

testing uicomponents setup

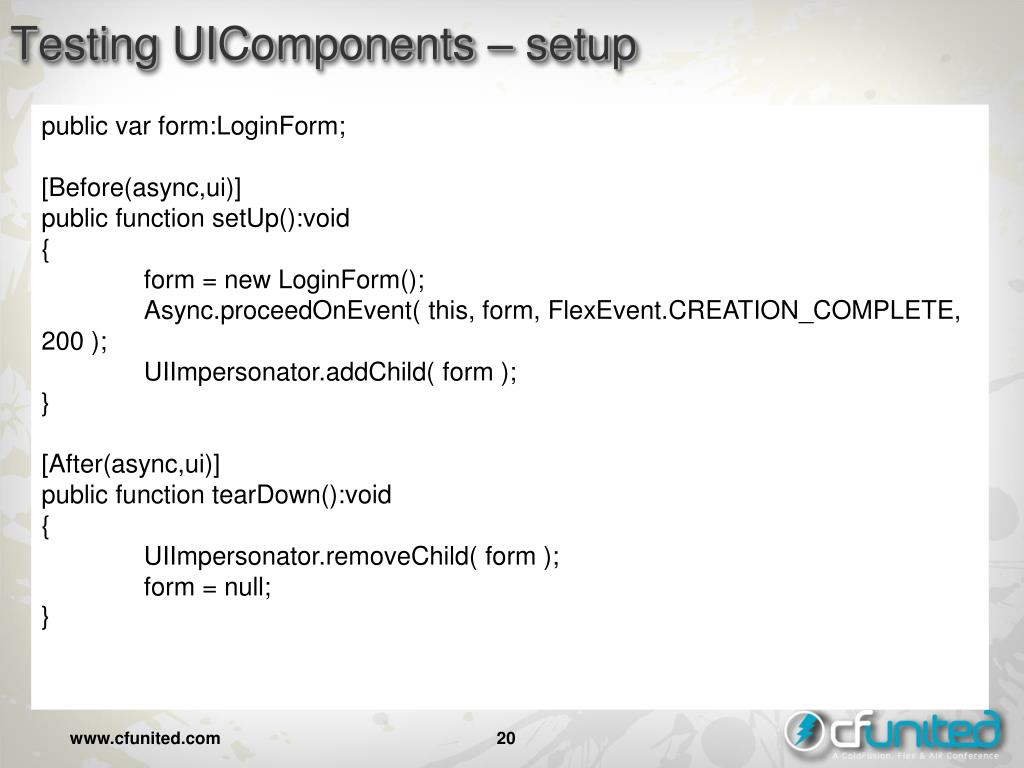

Testing UIComponents – setup

public var form:LoginForm;

[Before(async,ui)]

public function setUp():void

{

form = new LoginForm();

Async.proceedOnEvent( this, form, FlexEvent.CREATION_COMPLETE, 200 );

UIImpersonator.addChild( form );

}

[After(async,ui)]

public function tearDown():void

{

UIImpersonator.removeChild( form );

form = null;

}

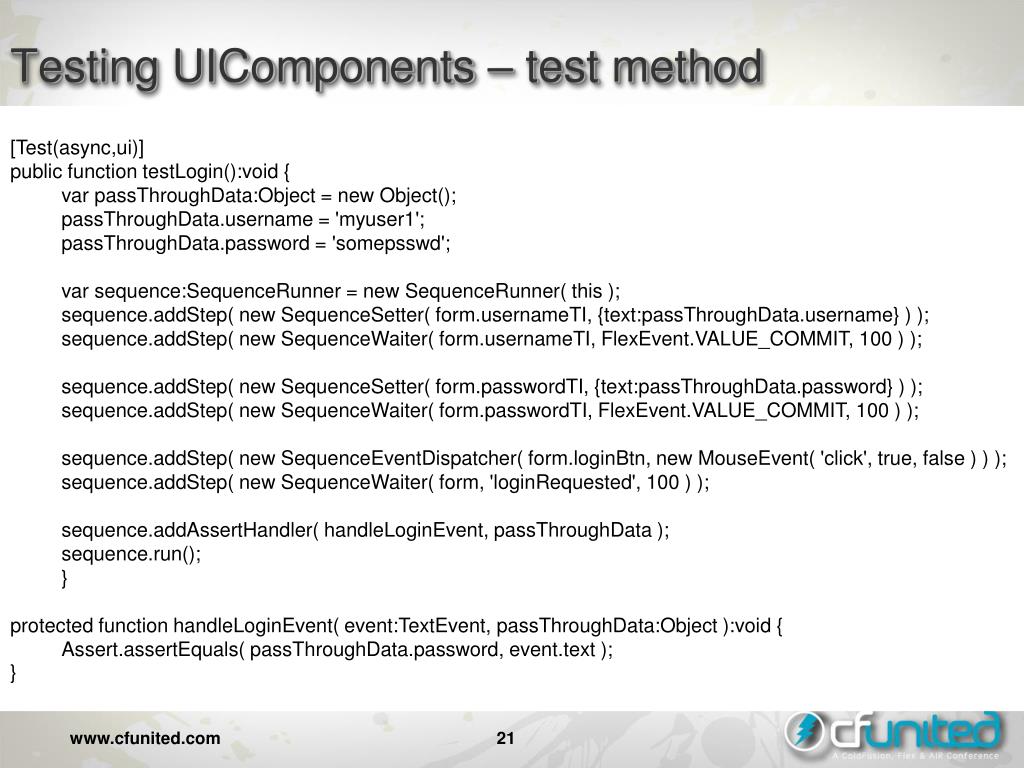

testing uicomponents test method
Testing UIComponents – test method
  • [Test(async,ui)]
  • public function testLogin():void {
    • var passThroughData:Object = new Object();
    • passThroughData.username = 'myuser1';
    • passThroughData.password = 'somepsswd';
    • var sequence:SequenceRunner = new SequenceRunner( this );
    • sequence.addStep( new SequenceSetter( form.usernameTI, {text:passThroughData.username} ) );
    • sequence.addStep( new SequenceWaiter( form.usernameTI, FlexEvent.VALUE_COMMIT, 100 ) );
    • sequence.addStep( new SequenceSetter( form.passwordTI, {text:passThroughData.password} ) );
    • sequence.addStep( new SequenceWaiter( form.passwordTI, FlexEvent.VALUE_COMMIT, 100 ) );
    • sequence.addStep( new SequenceEventDispatcher( form.loginBtn, new MouseEvent( 'click', true, false ) ) );
    • sequence.addStep( new SequenceWaiter( form, 'loginRequested', 100 ) );
    • sequence.addAssertHandler( handleLoginEvent, passThroughData );
    • sequence.run();
    • }
  • protected function handleLoginEvent( event:TextEvent, passThroughData:Object ):void {
    • Assert.assertEquals( passThroughData.password, event.text );
  • }
testing uicomponents test method22

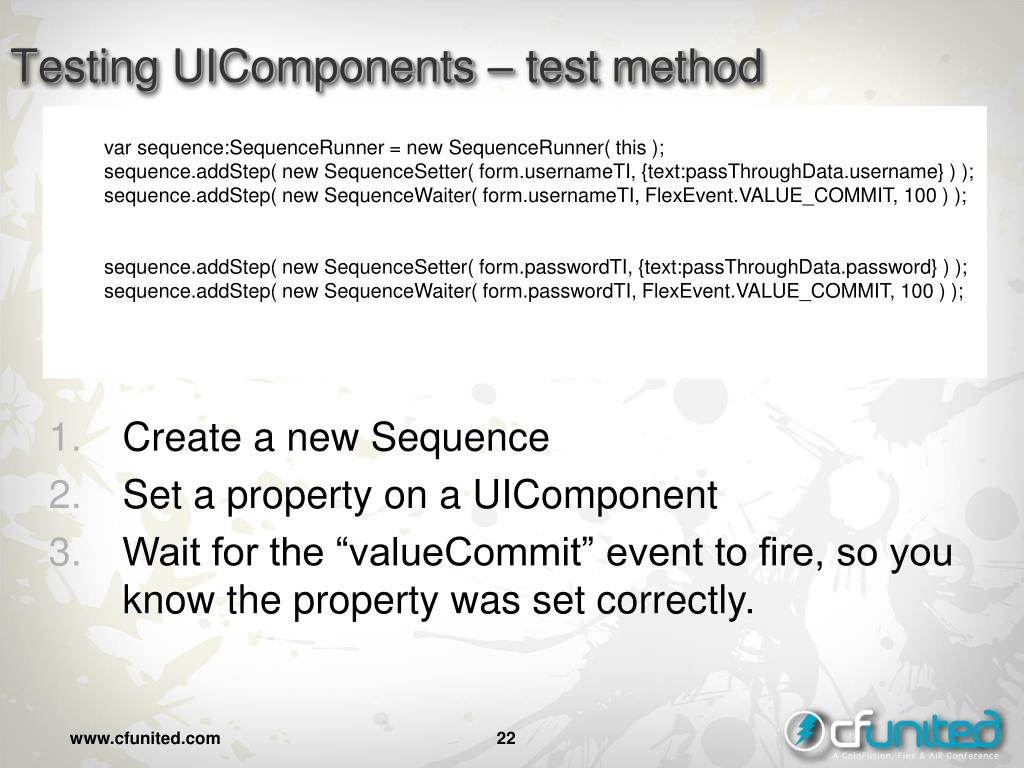

Testing UIComponents – test method
  • var sequence:SequenceRunner = new SequenceRunner( this );
  • sequence.addStep( new SequenceSetter( form.usernameTI, {text:passThroughData.username} ) );
  • sequence.addStep( new SequenceWaiter( form.usernameTI, FlexEvent.VALUE_COMMIT, 100 ) );
  • sequence.addStep( new SequenceSetter( form.passwordTI, {text:passThroughData.password} ) );
  • sequence.addStep( new SequenceWaiter( form.passwordTI, FlexEvent.VALUE_COMMIT, 100 ) );

Create a new Sequence

Set a property on a UIComponent

Wait for the “valueCommit” event to fire, so you know the property was set correctly.

testing uicomponents test method23
Testing UIComponents – test method
  • sequence.addStep(
  • new SequenceEventDispatcher( form.loginBtn, new MouseEvent( 'click', true, false ) ) );
  • sequence.addStep( new SequenceWaiter( form, 'loginRequested', 100 ) );
  • sequence.addAssertHandler( handleLoginEvent, passThroughData );
  • sequence.run();

Add a new step that simulates a user clicking on the “login” button.

Wait for the “loginRequested” event.

Add an “assertHandler” to check the login when it is completed.

Run the test.

testing uicomponents test method24

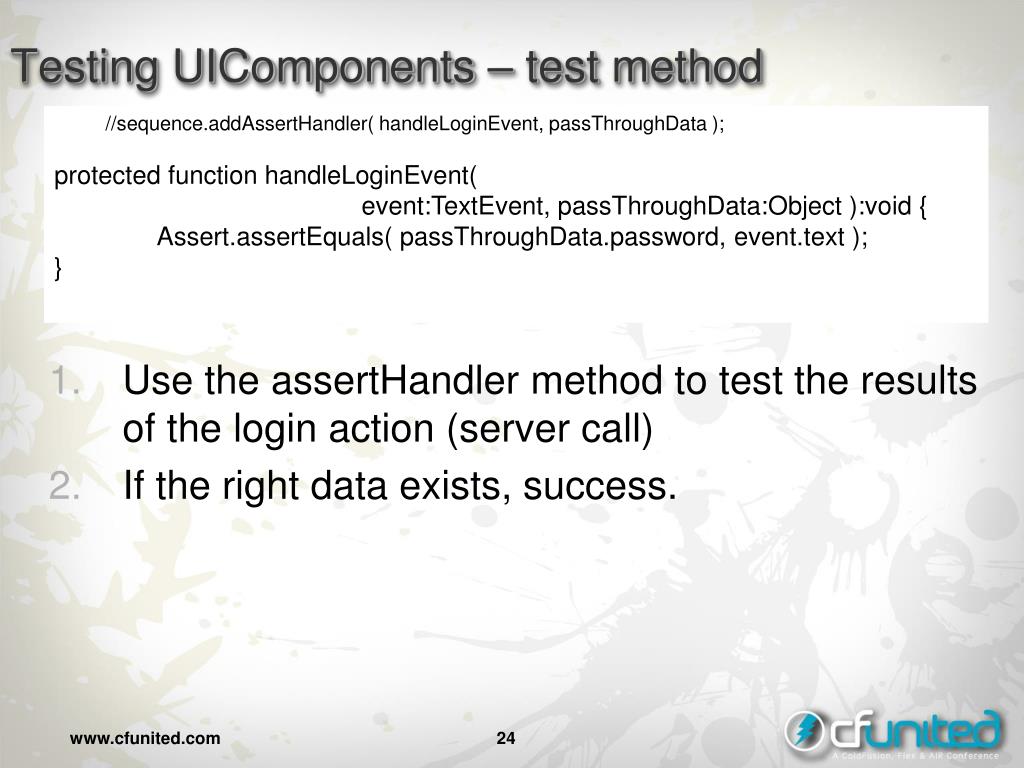

Testing UIComponents – test method
    • //sequence.addAssertHandler( handleLoginEvent, passThroughData );
  • protected function handleLoginEvent(
  • event:TextEvent, passThroughData:Object ):void {
  • Assert.assertEquals( passThroughData.password, event.text );
  • }

Use the assertHandler method to test the results of the login action (server call)

If the right data exists, success.

integration testing flexmonkey

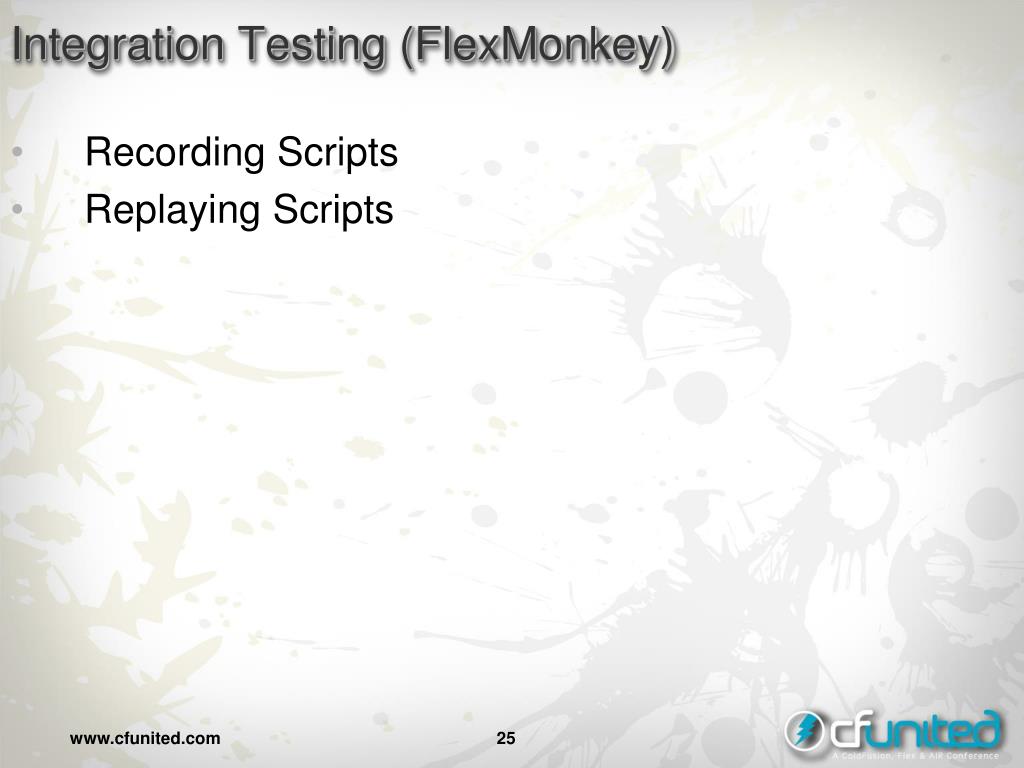

Integration Testing (FlexMonkey)

Recording Scripts

Replaying Scripts

slide26
Tips

All Software projects should be thoroughly tested!!

Automated testing saves you money by preventing bugs form returning again and again.

A getting started rule of thumb for writing a new test case

Write one test that passes the “usual” case

Write one test that passes by testing the extremes

Write one test that is supposed to fail

Continue building your test cases, by writing a test case for every bug that is submitted – before you close the bug as fixed.

Tests cases should “clean up” after themselves

Any developer should be able to run the tests without custom setup – if possible.

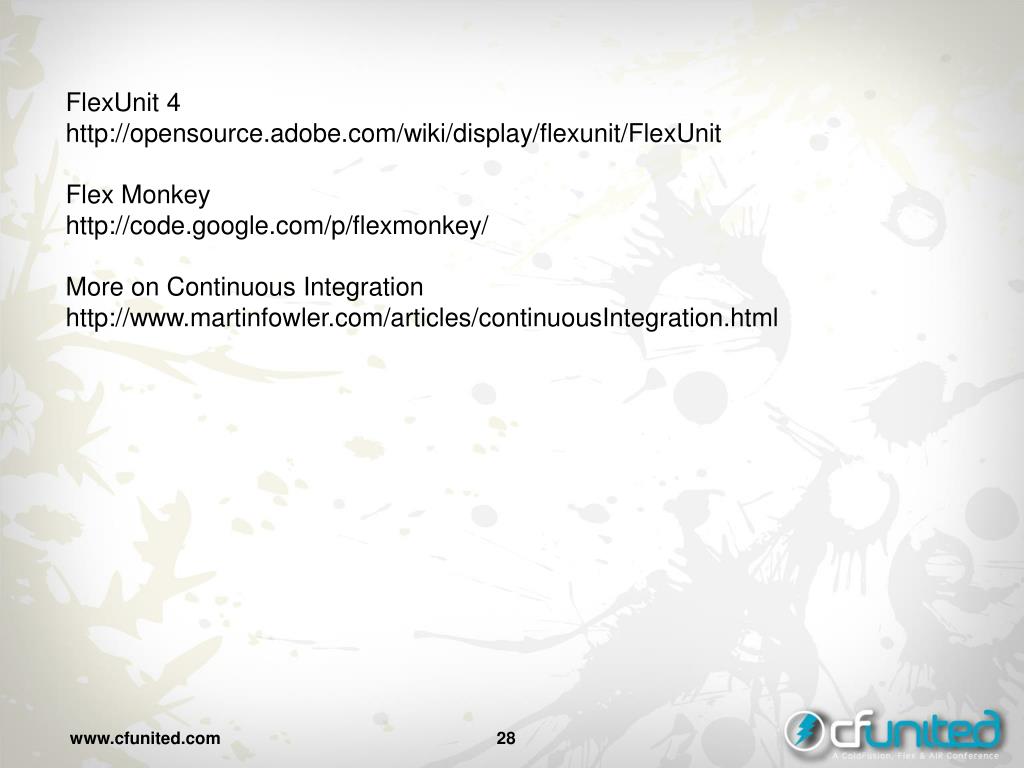

slide28

FlexUnit 4

http://opensource.adobe.com/wiki/display/flexunit/FlexUnit

Flex Monkey

http://code.google.com/p/flexmonkey/

More on Continuous Integration

http://www.martinfowler.com/articles/continuousIntegration.html
