  1. India's 10 best construction tech startups 2023 recognised by INNOVATIVE SOLUTIONS for Inspired Living Scan to call Scan for website

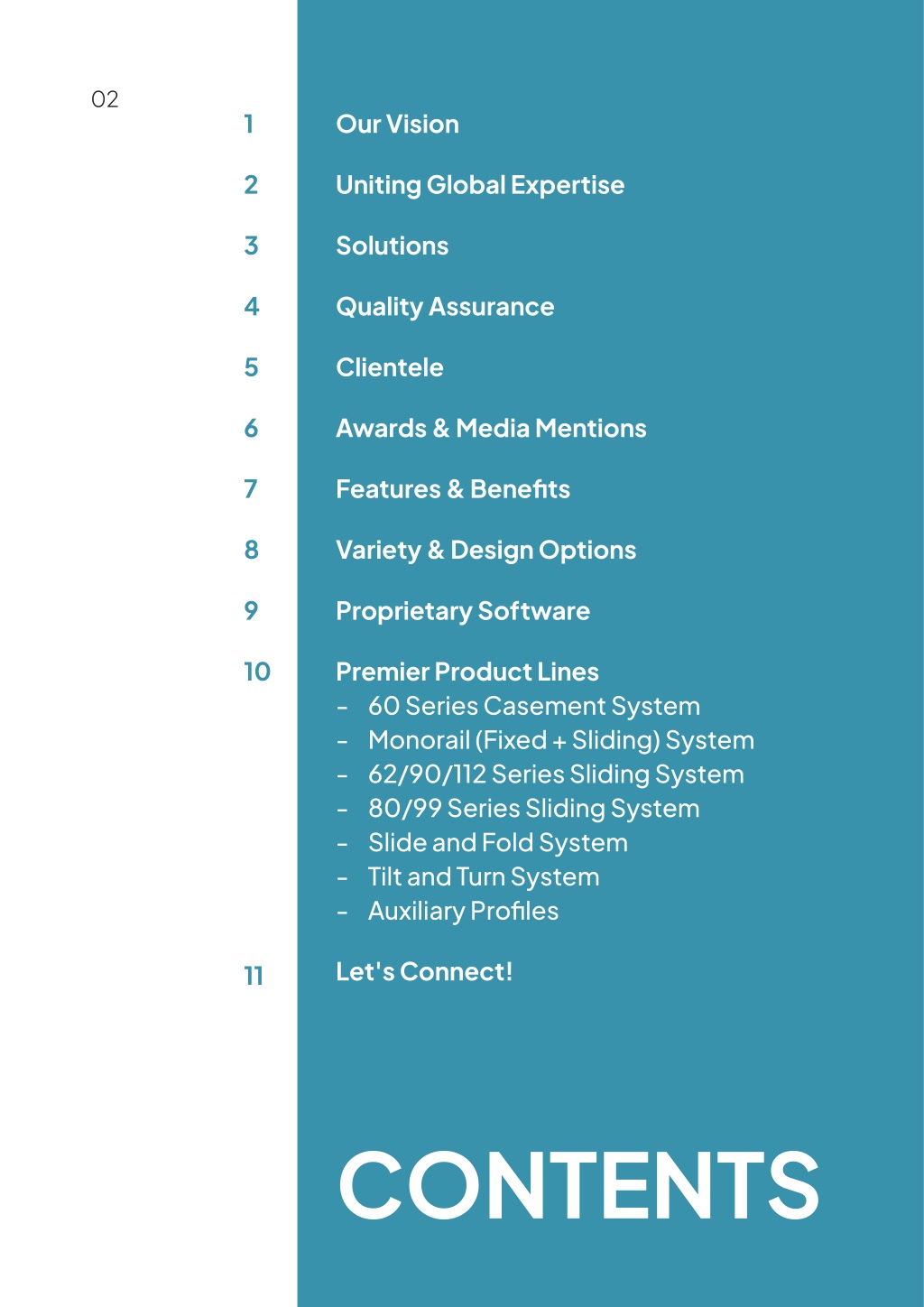

  2. 02 1 Our Vision 2 Uniting Global Expertise 3 Solutions 4 Quality Assurance 5 Clientele 6 Awards & Media Mentions 7 Features & Benefits 8 Variety & Design Options 9 Proprietary Software 10 Premier Product Lines - 60 Series Casement System - Monorail (Fixed + Sliding) System - 62/90/112 Series Sliding System - 80/99 Series Sliding System - Slide and Fold System - Tilt and Turn System - Auxiliary Profiles Let's Connect! 11 CONTENTS

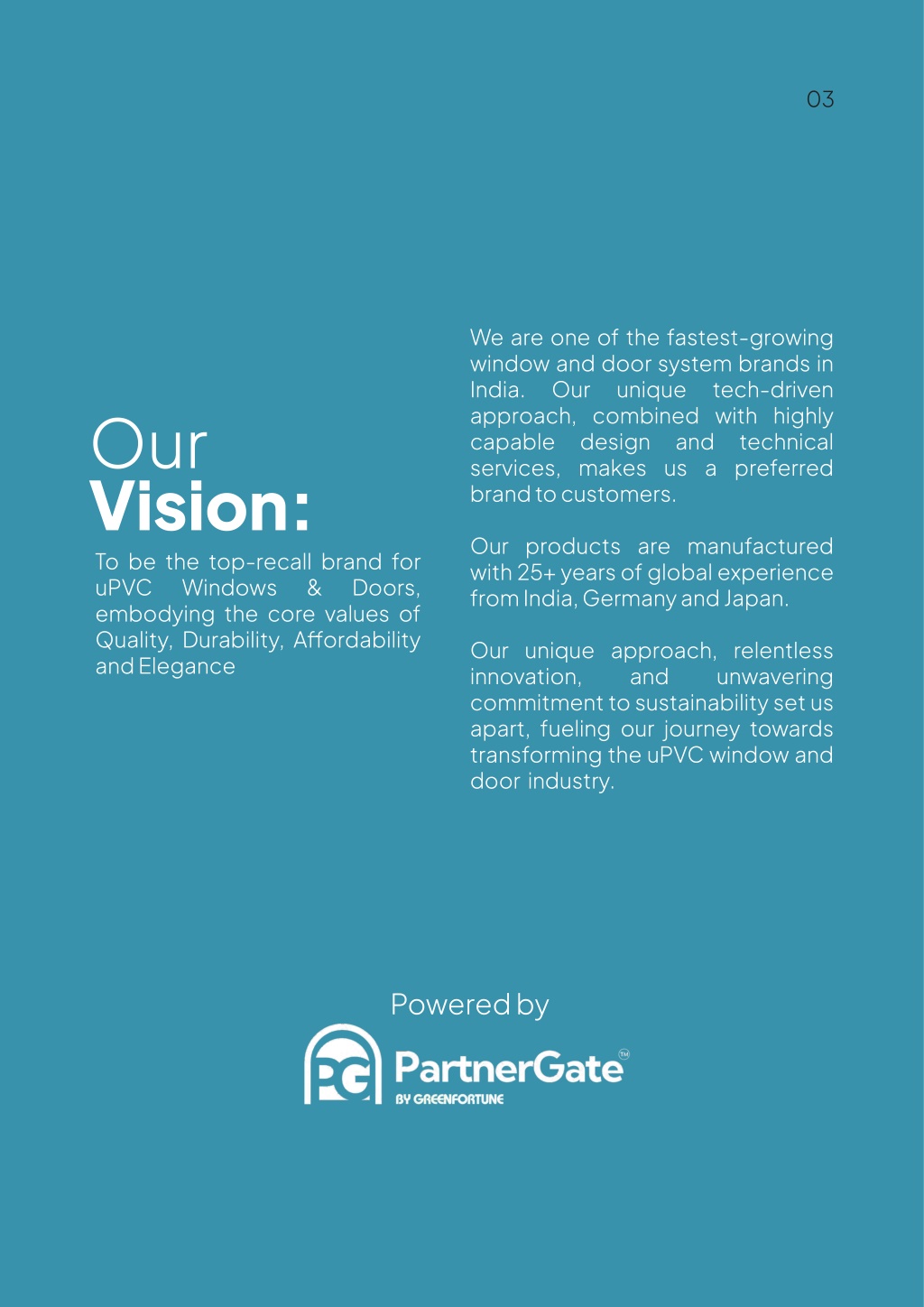

  3. 03 We are one of the fastest-growing window and door system brands in India. Our unique approach, combined with highly capable design services, makes us a preferred brand to customers. tech-driven Our Vision: and technical Our products are manufactured with 25+ years of global experience from India, Germany and Japan. To be the top-recall brand for uPVC Windows embodying the core values of Quality, Durability, Affordability and Elegance & Doors, Our unique approach, relentless innovation, and commitment to sustainability set us apart, fueling our journey towards transforming the uPVC window and door industry. unwavering Powered by

  4. 04 Our Acclaimed Team Varun Algh Kunal Bahl Rohit Bansal JAPAN Mumbai Based construction companies PARTNERS FUND INDIA SINGAPORE

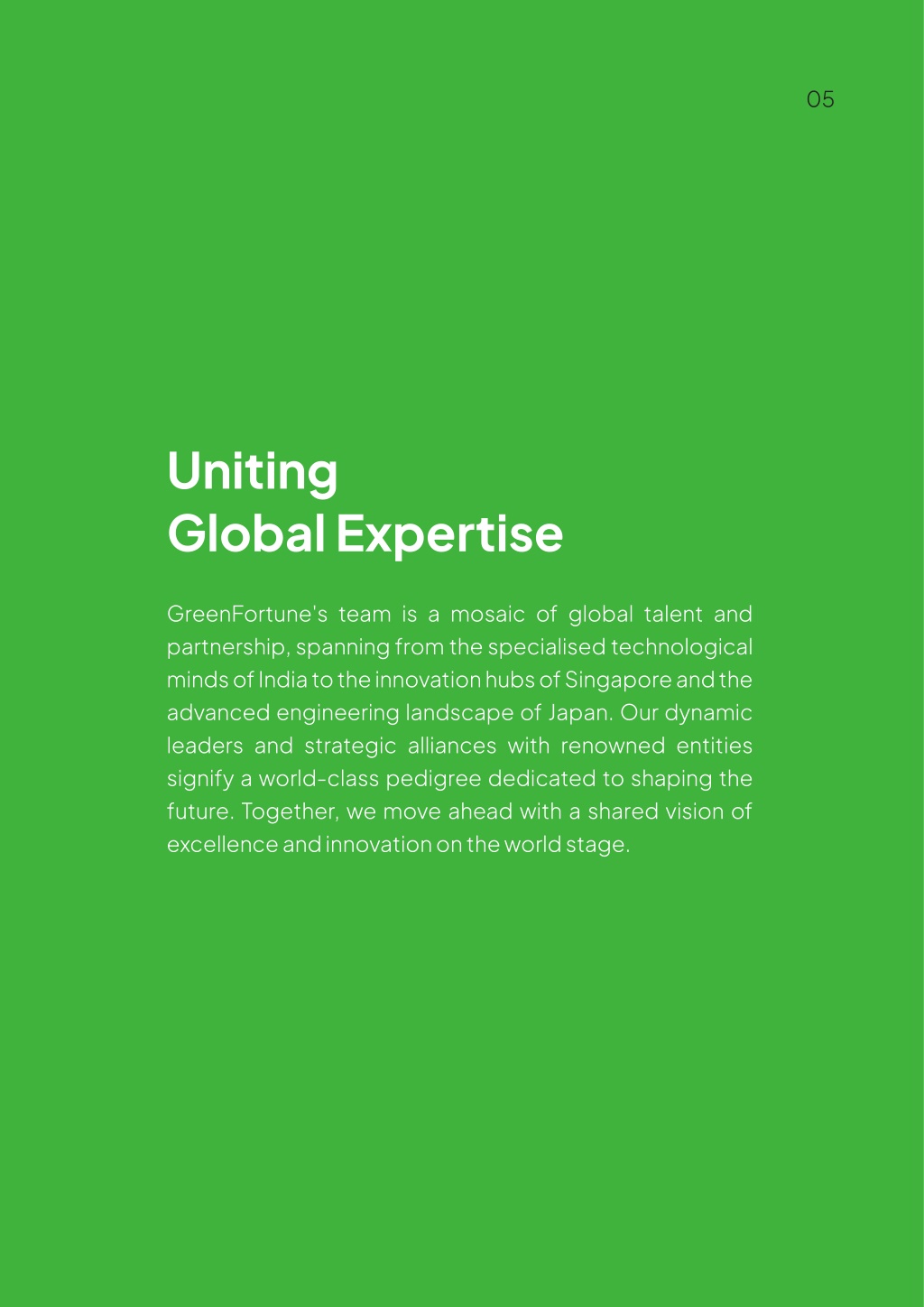

  5. 05 Uniting Global Expertise GreenFortune's team is a mosaic of global talent and partnership, spanning from the specialised technological minds of India to the innovation hubs of Singapore and the advanced engineering landscape of Japan. Our dynamic leaders and strategic alliances with renowned entities signify a world-class pedigree dedicated to shaping the future. Together, we move ahead with a shared vision of excellence and innovation on the world stage.

  6. 06 PREMIER PRODUCT LINES, TAILORED, CRAFTED AND ENGINEERED BY INDIANS, FOR INDIANS

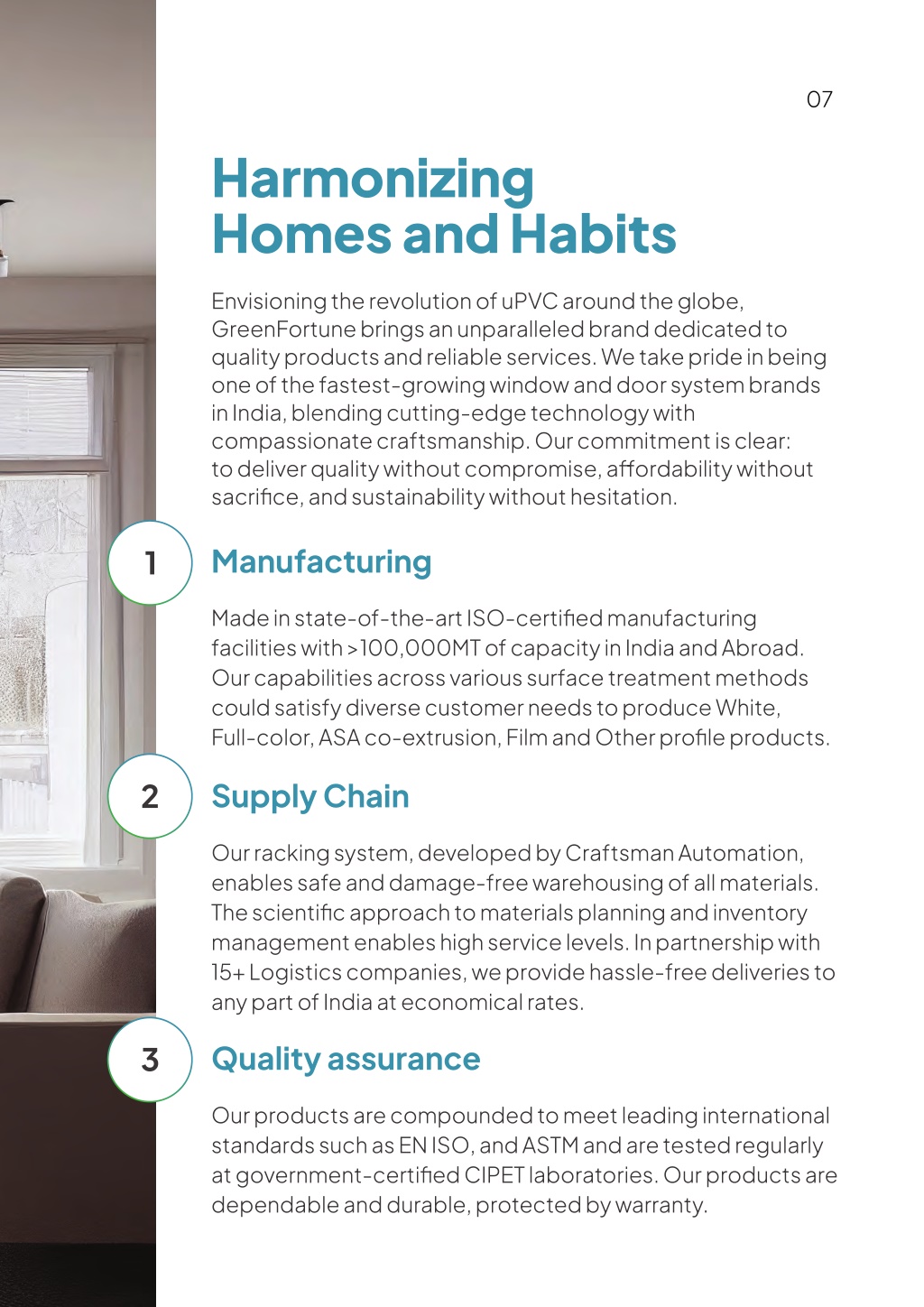

  7. 07 Harmonizing Homes and Habits Envisioning the revolution of uPVC around the globe, GreenFortune brings an unparalleled brand dedicated to quality products and reliable services. We take pride in being one of the fastest-growing window and door system brands in India, blending cutting-edge technology with compassionate craftsmanship. Our commitment is clear: to deliver quality without compromise, affordability without sacrifice, and sustainability without hesitation. Manufacturing Made in state-of-the-art ISO-certified manufacturing facilities with >100,000MT of capacity in India and Abroad. Our capabilities across various surface treatment methods could satisfy diverse customer needs to produce White, Full-color, ASA co-extrusion, Film and Other profile products. Supply Chain Our racking system, developed by Craftsman Automation, enables safe and damage-free warehousing of all materials. The scientific approach to materials planning and inventory management enables high service levels. In partnership with 15+ Logistics companies, we provide hassle-free deliveries to any part of India at economical rates. Quality assurance Our products are compounded to meet leading international standards such as EN ISO, and ASTM and are tested regularly at government-certified CIPET laboratories. Our products are dependable and durable, protected by warranty.

  8. 08 Unwavering Commitment to Quality Test Value Obtained Test Name Standard Unit Density ASTM D 792 g/cc 1.49 Flammability (Vertical burning) at 2.2mm thickness UL-94 V-0 Limiting Oxygen Index ASTM D 2863 % 42.6 Vicat Softening Point at 5Kg Load ASTM D 1525 °C 82.1 Thermal Conductivity at 55 °C Mean Temperature ASTM D 1530 W/mK 0.242 Co-efficient of Linear Thermal Expansion (30°C to 60 °C) ASTM E 228 /°C 4.95 X 10−5 Tensile Strength ASTM D 638 MPA 27.1 Elongation at break ASTM D 638 % 50.0 Charpy Impact Strength (Notched) ASTM D 6110 kJ/m2 47.87 Flexural Modulus ASTM D 790 N/mm2 2762 Flexural Strength ASTM D 790 N/mm2 47.62 Hardness (Shore D) ASTM D 2240 76 Ball Impact Hardness (Rockwell Hardess - R - Scale) ASTM D 785 58

  9. 09 Quality with Affordability Our Clientele Developers/Builders Institutions/Offices/Hospitals Institutions/Schools/Colleges Government and many more Note: Includes projects executed by our fabricators.

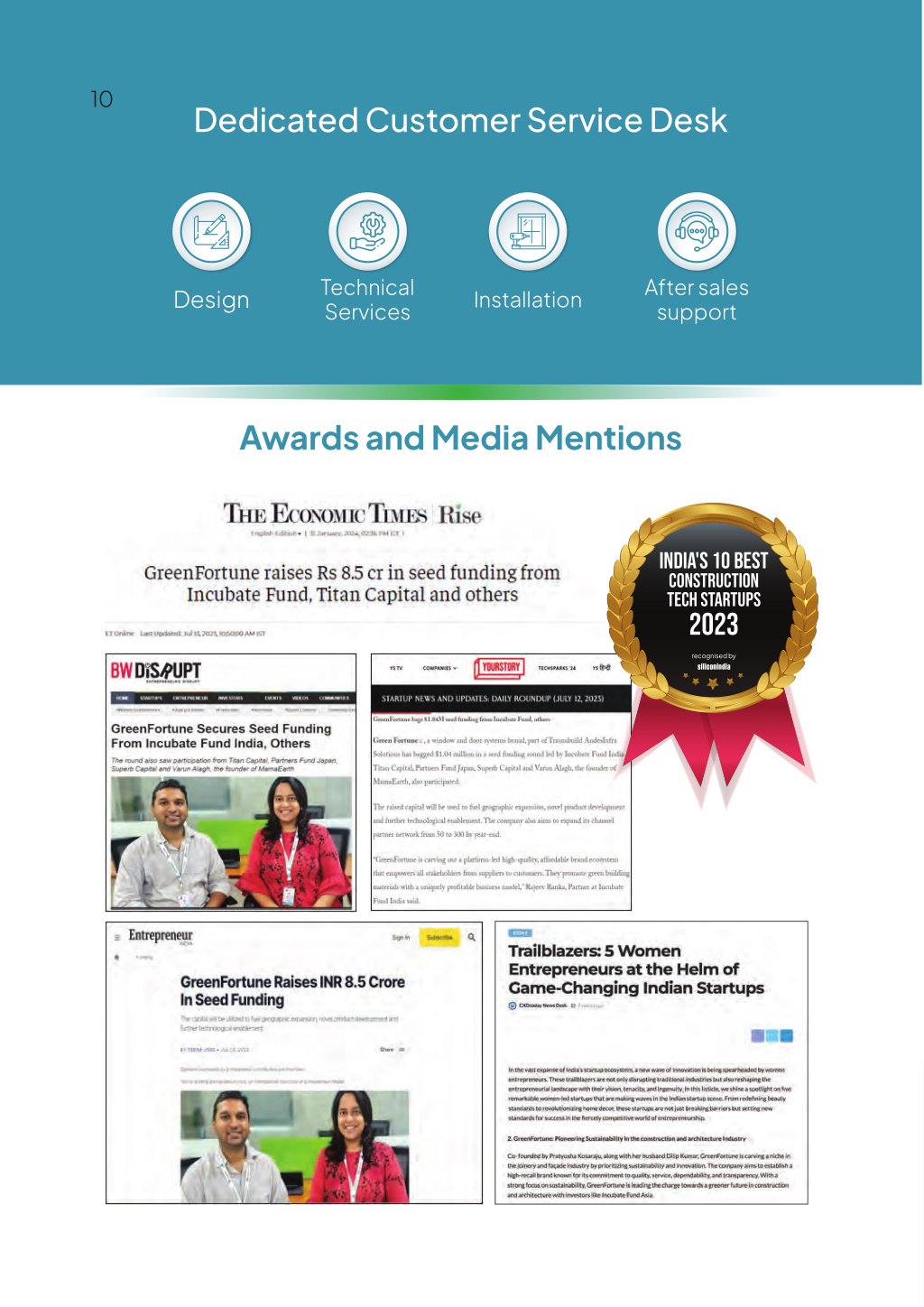

  10. 10 Dedicated Customer Service Desk Technical Services After sales support Design Installation Awards and Media Mentions India's 10 best construction tech startups 2023 recognised by

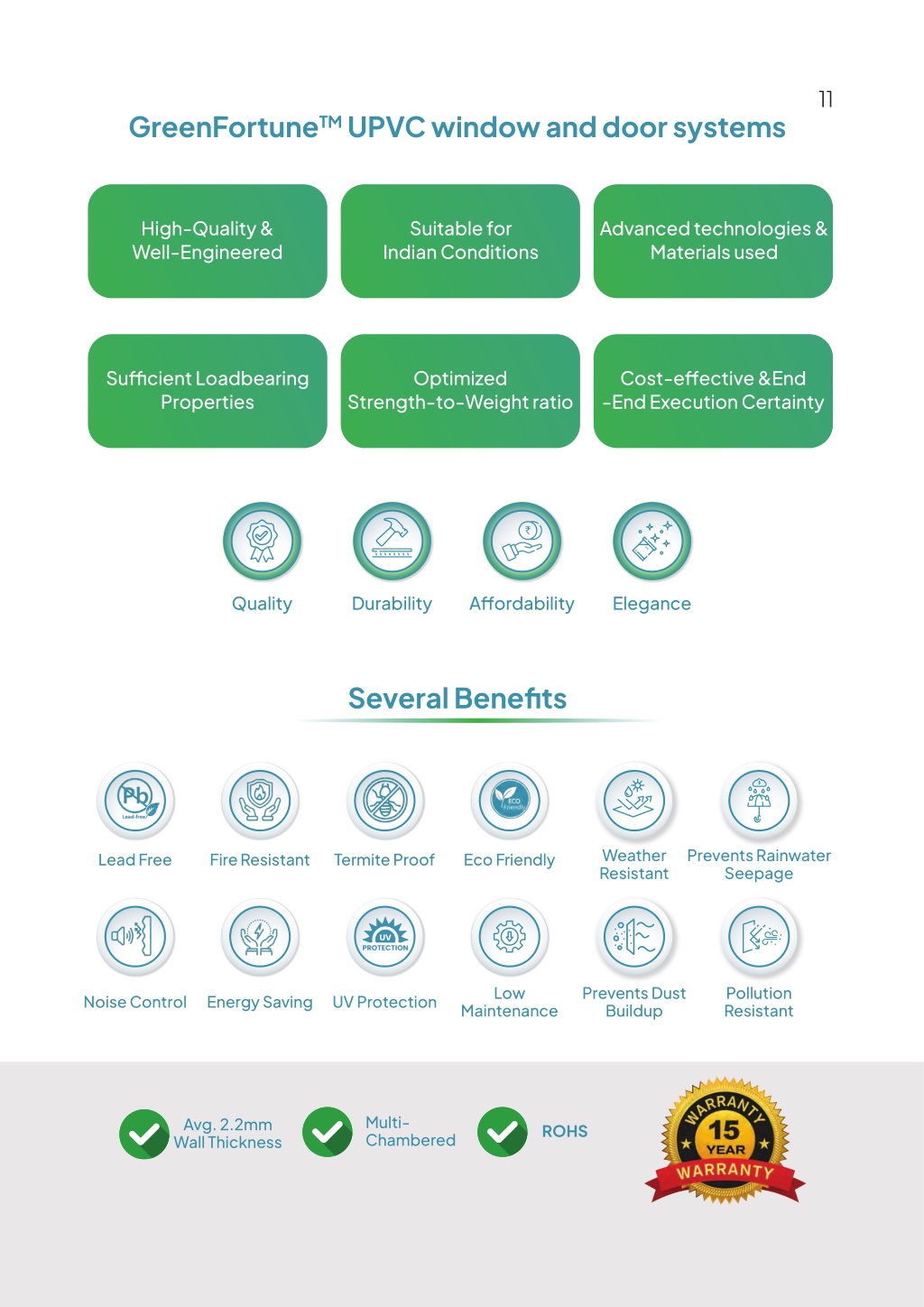

  11. 11 GreenFortuneTM UPVC window and door systems High-Quality & Well-Engineered Suitable for Indian Conditions Advanced technologies & Materials used Sufficient Loadbearing Properties Optimized Cost-effective &End -End Execution Certainty Strength-to-Weight ratio Quality Durability Affordability Elegance Several Benefits Weather Resistant Prevents Rainwater Seepage Lead Free Fire Resistant Termite Proof Eco Friendly Low Prevents Dust Buildup Pollution Resistant Noise Control Energy Saving UV Protection Maintenance Multi- Chambered Avg. 2.2mm Wall Thickness ROHS

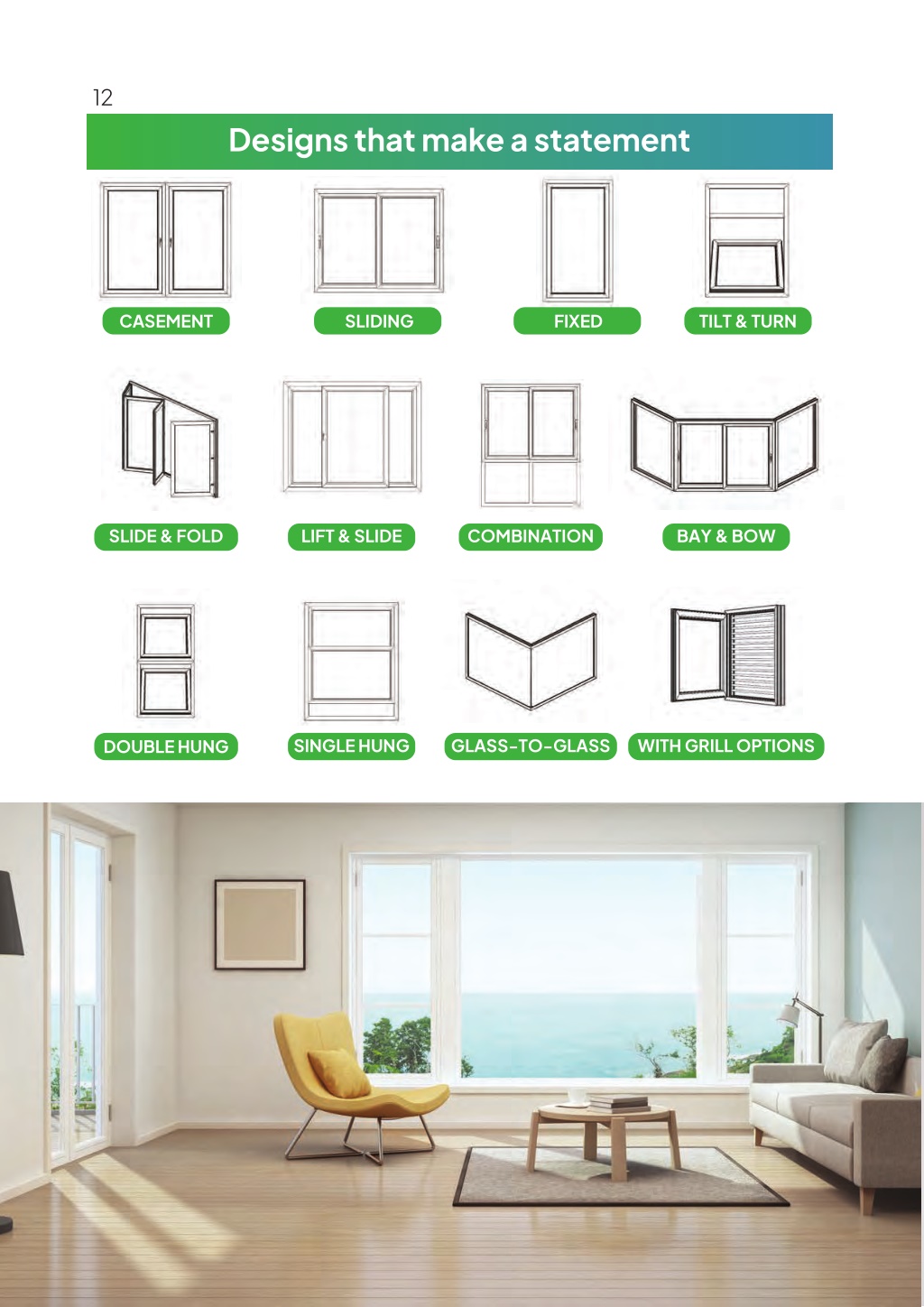

  12. 12 Designs that make a statement CASEMENT SLIDING FIXED TILT & TURN SLIDE & FOLD LIFT & SLIDE COMBINATION BAY & BOW SINGLE HUNG GLASS-TO-GLASS WITH GRILL OPTIONS DOUBLE HUNG

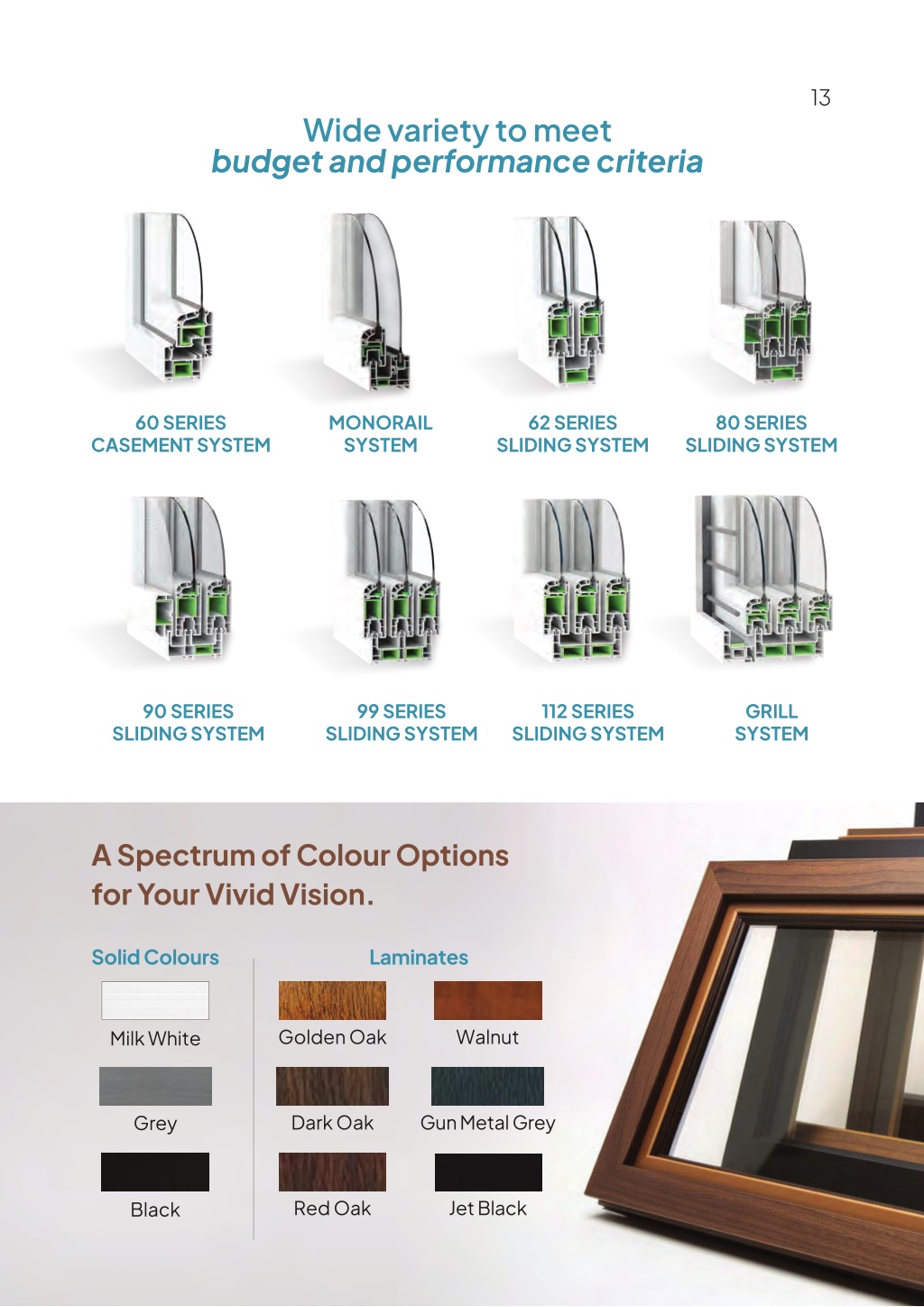

  13. 13 Wide variety to meet budget and performance criteria 60 SERIES CASEMENT SYSTEM MONORAIL SYSTEM 62 SERIES SLIDING SYSTEM 80 SERIES SLIDING SYSTEM 90 SERIES SLIDING SYSTEM 99 SERIES SLIDING SYSTEM 112 SERIES SLIDING SYSTEM GRILL SYSTEM A Spectrum of Colour Options for Your Vivid Vision. Solid Colours Laminates Golden Oak Walnut Milk White Dark Oak Gun Metal Grey Grey Red Oak Jet Black Black

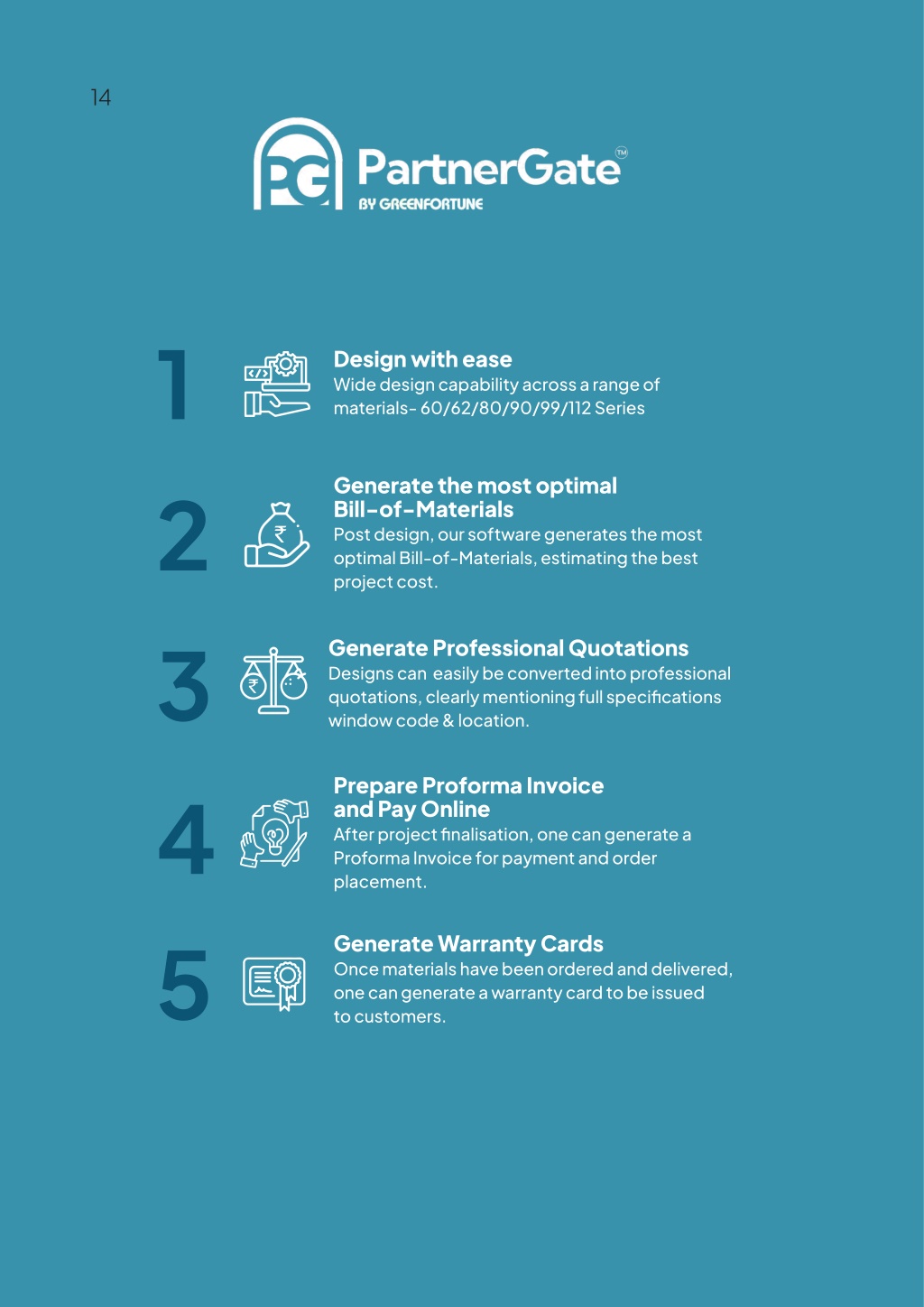

  14. 14 1 Design with ease Wide design capability across a range of materials- 60/62/80/90/99/112 Series Generate the most optimal Bill-of-Materials Post design, our software generates the most optimal Bill-of-Materials, estimating the best project cost. 2 3 4 5 Generate Professional Quotations Designs can easily be converted into professional quotations, clearly mentioning full specifications window code & location. Prepare Proforma Invoice and Pay Online After project finalisation, one can generate a Proforma Invoice for payment and order placement. Generate Warranty Cards Once materials have been ordered and delivered, one can generate a warranty card to be issued to customers.

  15. 15 PROPRIETARY SOFTWARE Simplify Design to Delivery with GreenFortune Our proprietary software allows you to Design, Generate Bill-of- Materials, Optimize cut lengths, Prepare professional quotations, Purchase materials and Generate warranty cards. 1

  16. 16

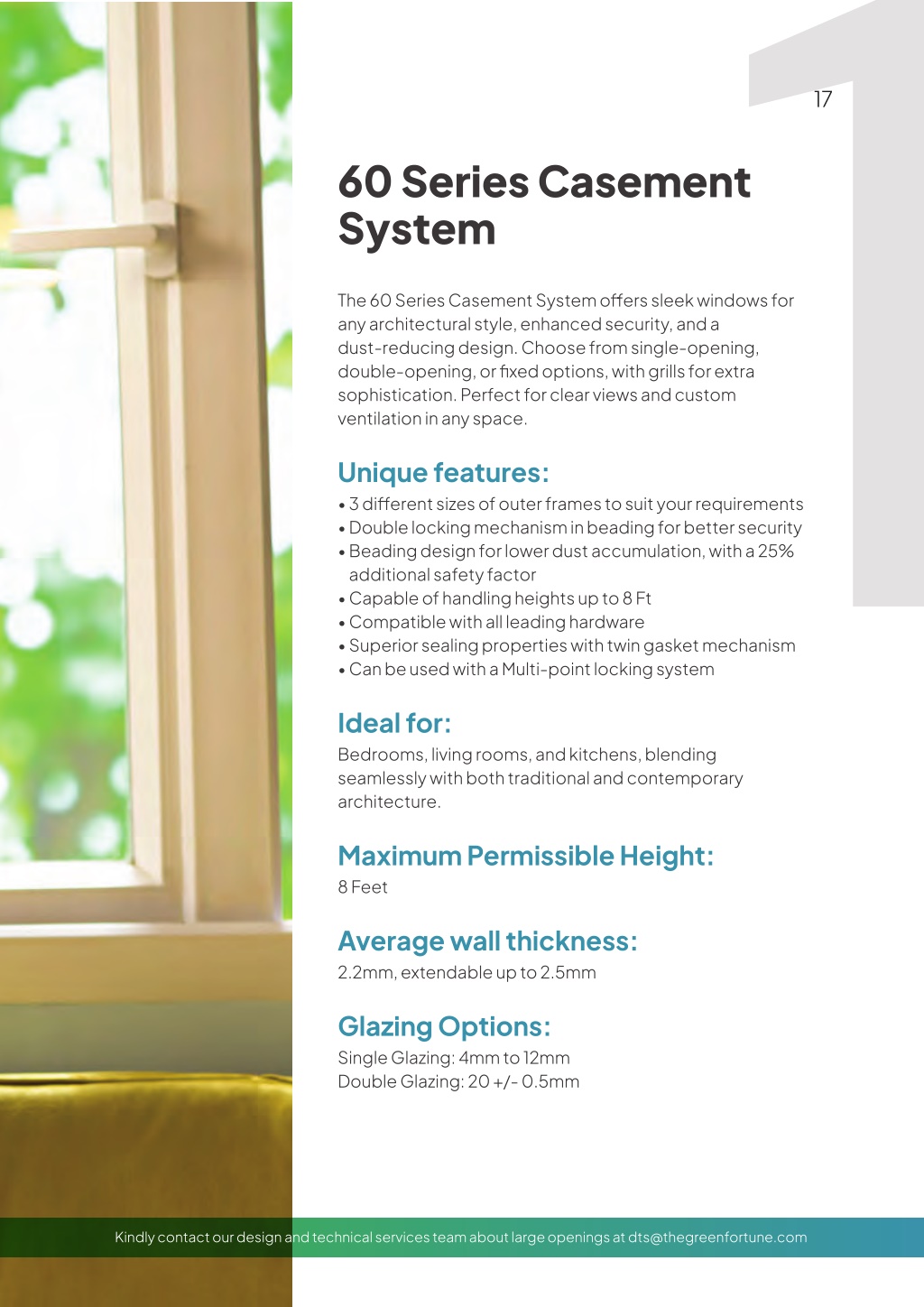

  17. System1 17 60 Series Casement The 60 Series Casement System offers sleek windows for any architectural style, enhanced security, and a dust-reducing design. Choose from single-opening, double-opening, or fixed options, with grills for extra sophistication. Perfect for clear views and custom ventilation in any space. Unique features: • 3 different sizes of outer frames to suit your requirements • Double locking mechanism in beading for better security • Beading design for lower dust accumulation, with a 25% additional safety factor • Capable of handling heights up to 8 Ft • Compatible with all leading hardware • Superior sealing properties with twin gasket mechanism • Can be used with a Multi-point locking system Ideal for: Bedrooms, living rooms, and kitchens, blending seamlessly with both traditional and contemporary architecture. Maximum Permissible Height: 8 Feet Average wall thickness: 2.2mm, extendable up to 2.5mm Glazing Options: Single Glazing: 4mm to 12mm Double Glazing: 20 +/- 0.5mm Kindly contact our design and technical services team about large openings at dts@thegreenfortune.com

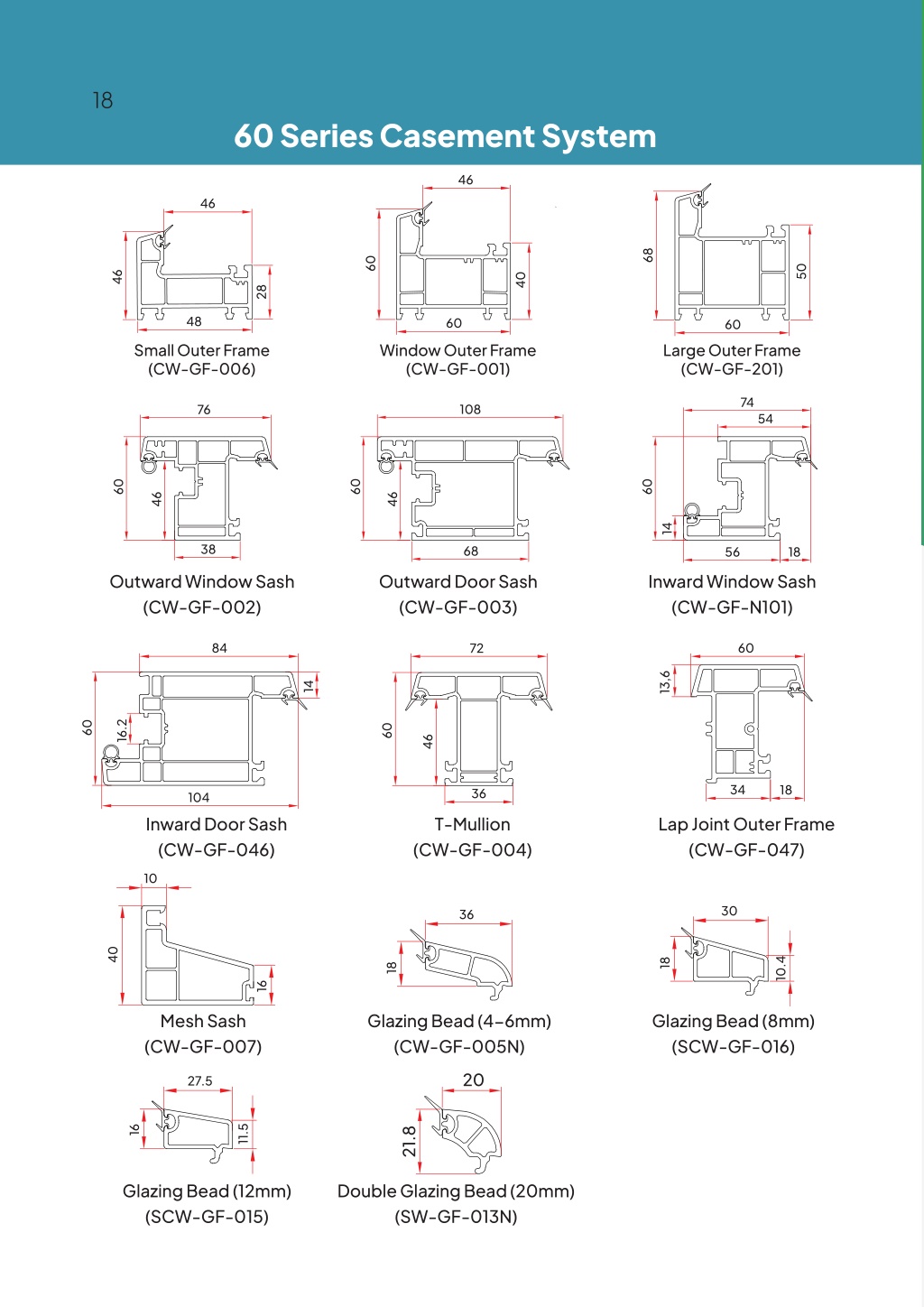

  18. 18 60 Series Casement System 46 46 68 60 50 46 40 28 48 60 60 Small Outer Frame (CW-GF-006) Window Outer Frame (CW-GF-001) Large Outer Frame (CW-GF-201) 74 108 76 54 60 60 60 46 46 14 38 68 56 18 Outward Window Sash (CW-GF-002) Outward Door Sash (CW-GF-003) Inward Window Sash (CW-GF-N101) 84 60 72 13,6 14 16.2 60 60 46 34 18 36 104 Inward Door Sash (CW-GF-046) T-Mullion (CW-GF-004) Lap Joint Outer Frame (CW-GF-047) 10 30 36 40 10.4 18 18 16 Mesh Sash (CW-GF-007) Glazing Bead (4−6mm) (CW-GF-005N) Glazing Bead (8mm) (SCW-GF-016) 20 27.5 11.5 16 21.8 Glazing Bead (12mm) (SCW-GF-015) Double Glazing Bead (20mm) (SW-GF-013N)

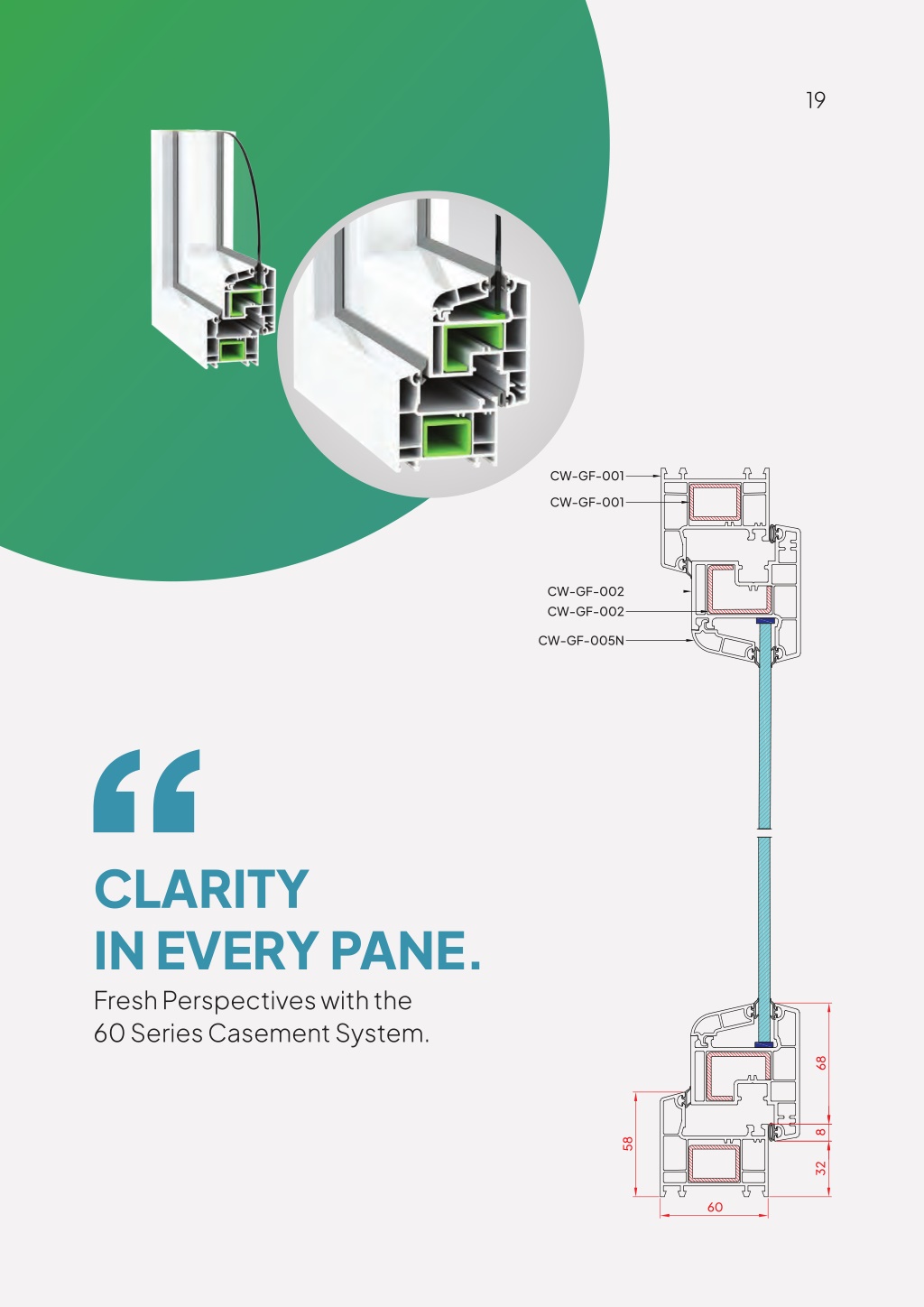

  19. 19 CW-GF-001 CW-GF-001 CW-GF-002 CW-GF-002 CW-GF-005N CLARITY IN EVERY PANE. Fresh Perspectives with the 60 Series Casement System. 68 8 58 32 60

  20. 20

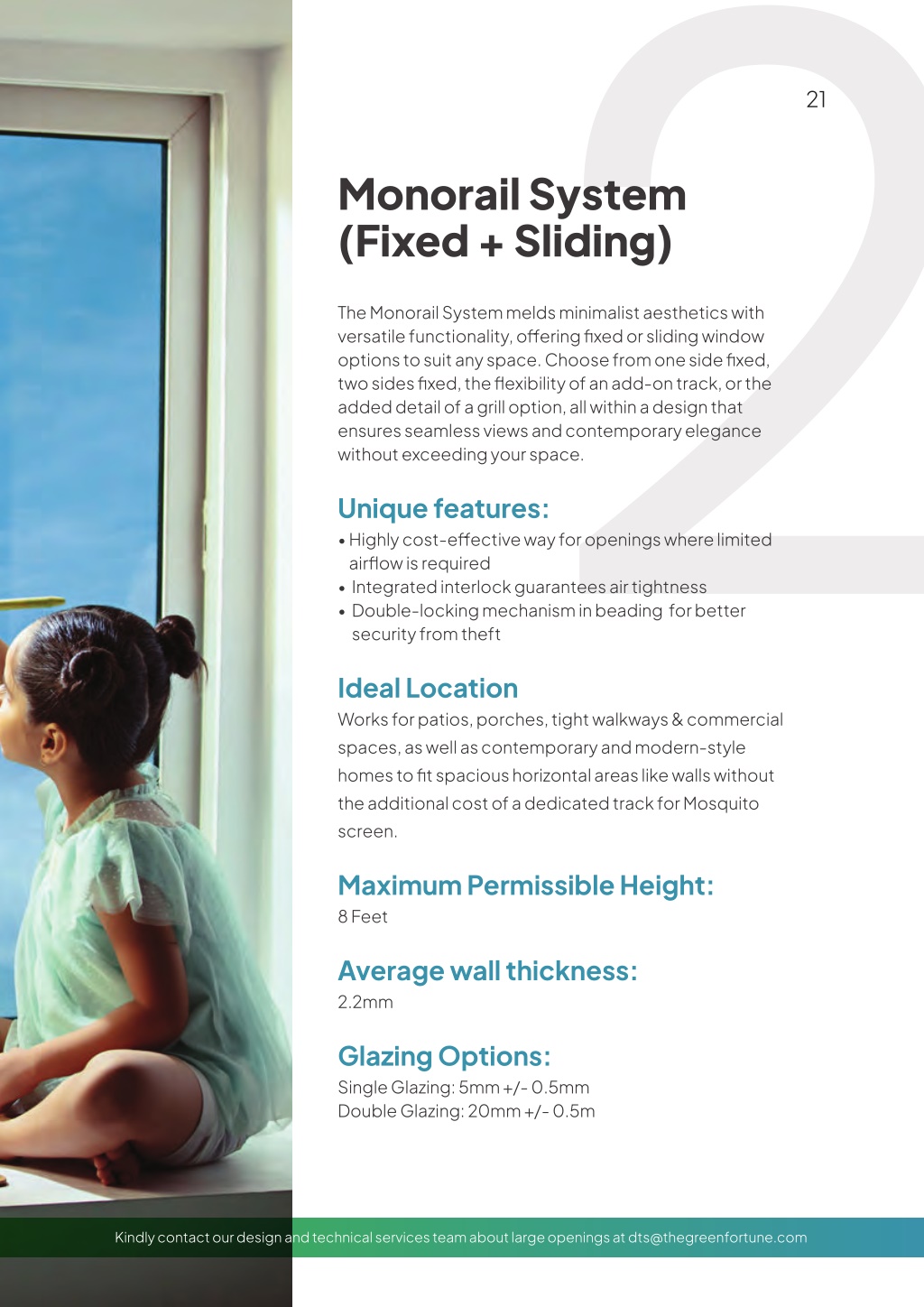

  21. Kindly contact our design and technical services team about large openings at dts@thegreenfortune.com2 3 21 Monorail System (Fixed + Sliding) The Monorail System melds minimalist aesthetics with versatile functionality, offering fixed or sliding window options to suit any space. Choose from one side fixed, two sides fixed, the flexibility of an add-on track, or the added detail of a grill option, all within a design that ensures seamless views and contemporary elegance without exceeding your space. Unique features: • Highly cost-effective way for openings where limited airflow is required • Integrated interlock guarantees air tightness • Double-locking mechanism in beading for better security from theft Ideal Location Works for patios, porches, tight walkways & commercial spaces, as well as contemporary and modern-style homes to fit spacious horizontal areas like walls without the additional cost of a dedicated track for Mosquito screen. Maximum Permissible Height: 8 Feet Average wall thickness: 2.2mm Glazing Options: Single Glazing: 5mm +/- 0.5mm Double Glazing: 20mm +/- 0.5m

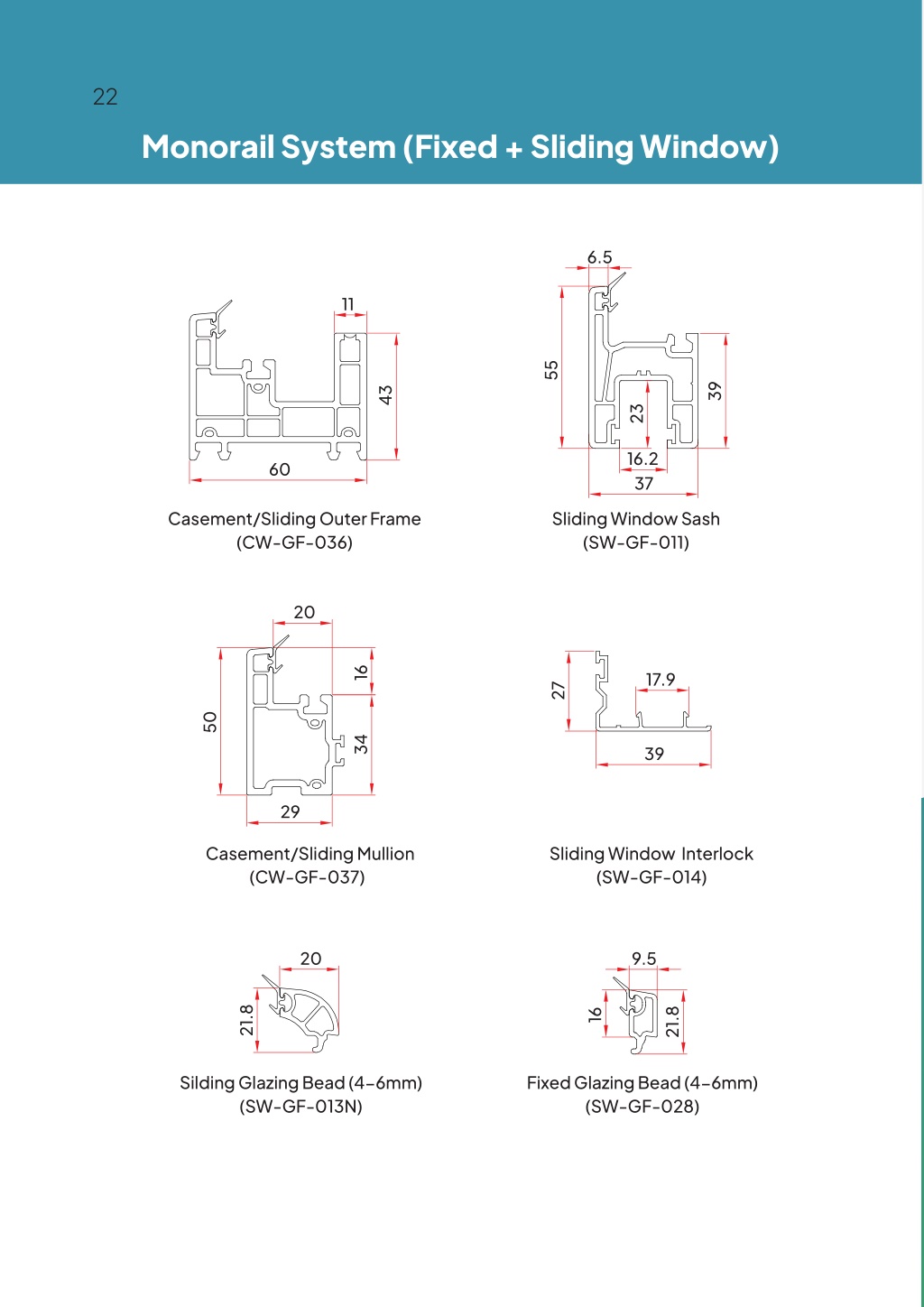

  22. 22 Monorail System (Fixed + Sliding Window) 6.5 11 55 39 43 23 16.2 37 60 Casement/Sliding Outer Frame (CW-GF-036) Sliding Window Sash (SW-GF-011) 20 16 17.9 27 50 34 39 29 Casement/Sliding Mullion (CW-GF-037) Sliding Window Interlock (SW-GF-014) 20 9.5 21.8 21.8 16 Silding Glazing Bead (4−6mm) (SW-GF-013N) Fixed Glazing Bead (4−6mm) (SW-GF-028)

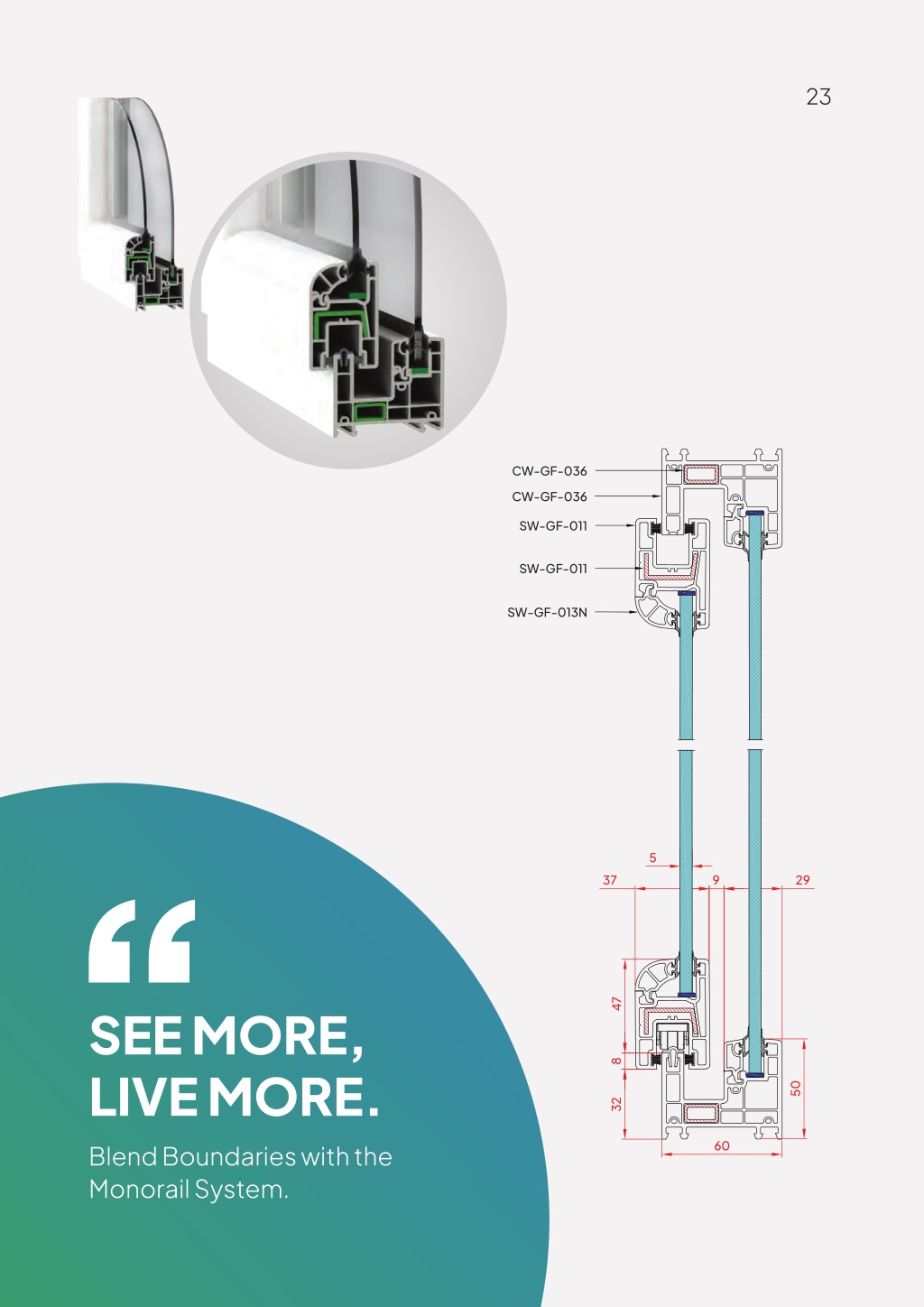

  23. 23 CW-GF-036 CW-GF-036 SW-GF-011 SW-GF-011 SW-GF-013N 5 37 9 29 47 SEE MORE, LIVE MORE. 8 50 32 60 Blend Boundaries with the Monorail System.

  24. 24

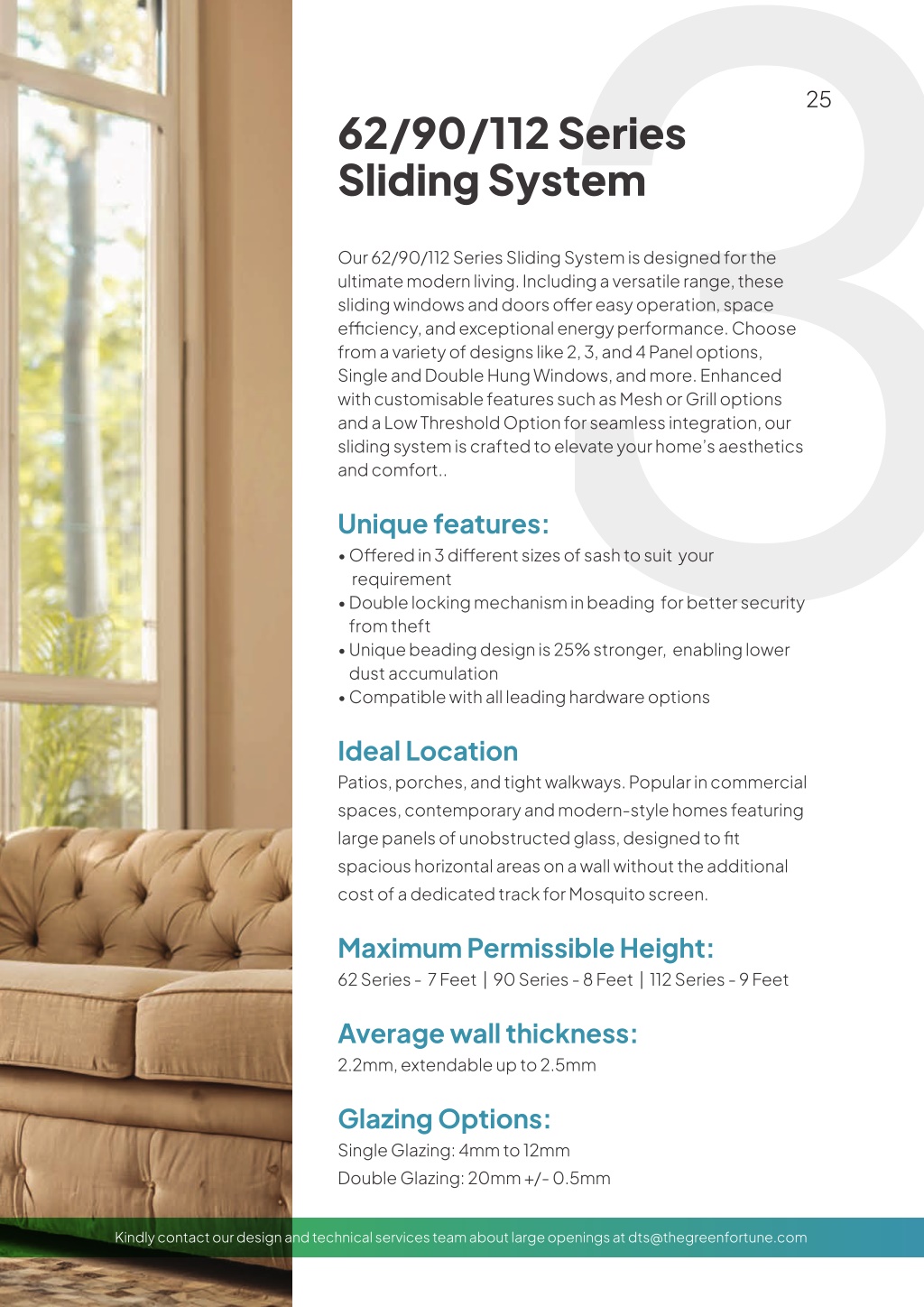

  25. Sliding System3 25 62/90/112 Series Our 62/90/112 Series Sliding System is designed for the ultimate modern living. Including a versatile range, these sliding windows and doors offer easy operation, space efficiency, and exceptional energy performance. Choose from a variety of designs like 2, 3, and 4 Panel options, Single and Double Hung Windows, and more. Enhanced with customisable features such as Mesh or Grill options and a Low Threshold Option for seamless integration, our sliding system is crafted to elevate your home’s aesthetics and comfort.. Unique features: • Offered in 3 different sizes of sash to suit your requirement • Double locking mechanism in beading for better security from theft • Unique beading design is 25% stronger, enabling lower dust accumulation • Compatible with all leading hardware options Ideal Location Patios, porches, and tight walkways. Popular in commercial spaces, contemporary and modern-style homes featuring large panels of unobstructed glass, designed to fit spacious horizontal areas on a wall without the additional cost of a dedicated track for Mosquito screen. 4 Maximum Permissible Height: 62 Series - 7 Feet | 90 Series - 8 Feet | 112 Series - 9 Feet Average wall thickness: 2.2mm, extendable up to 2.5mm Glazing Options: Single Glazing: 4mm to 12mm Double Glazing: 20mm +/- 0.5mm Kindly contact our design and technical services team about large openings at dts@thegreenfortune.com

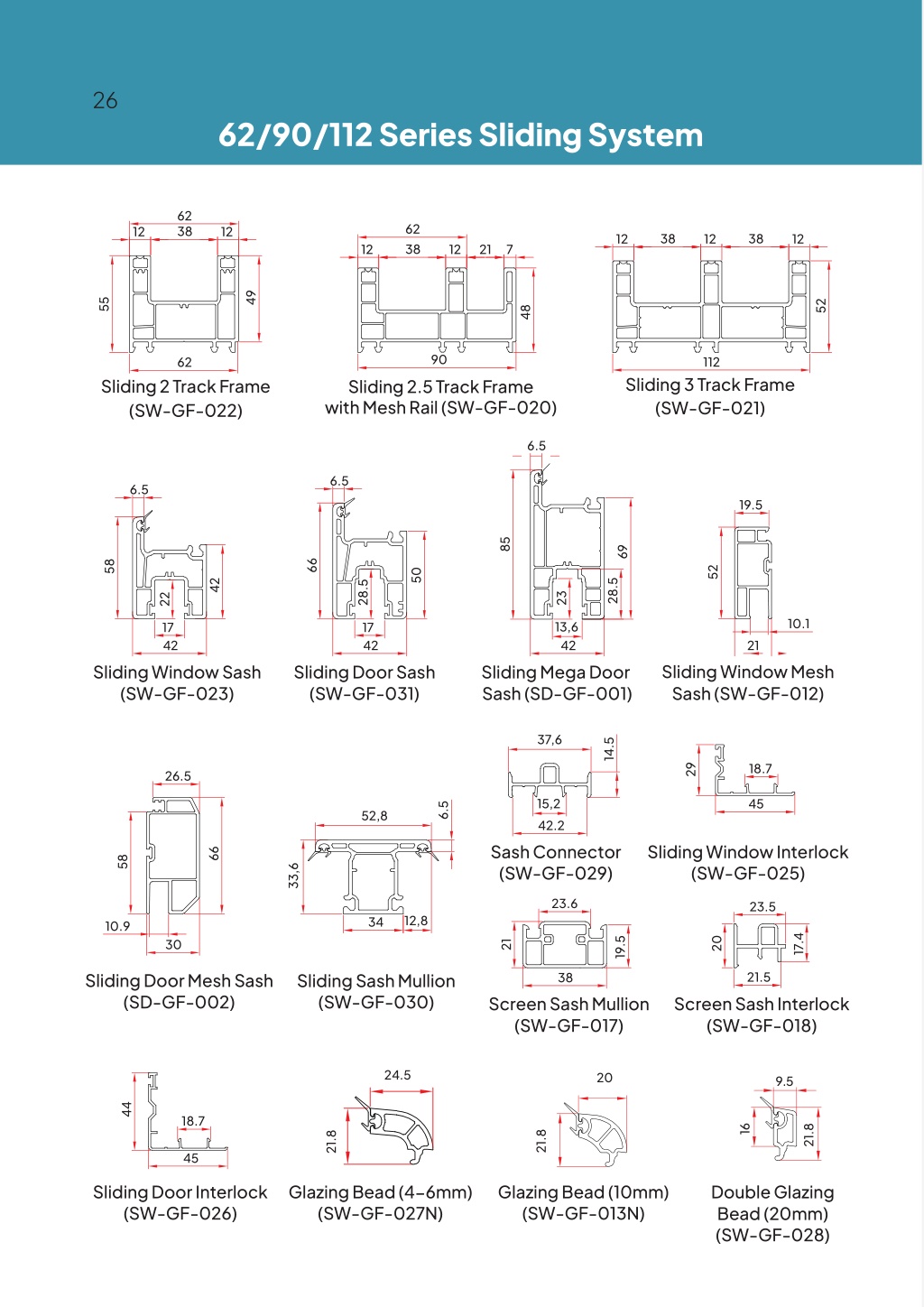

  26. 3 26 62/90/112 Series Sliding System 62 38 62 38 12 12 38 38 12 12 12 12 12 21 7 49 55 52 48 90 112 62 Sliding 3 Track Frame Sliding 2 Track Frame Sliding 2.5 Track Frame with Mesh Rail (SW-GF-020) (SW-GF-021) (SW-GF-022) 6.5 6.5 6.5 19.5 85 69 66 58 52 50 28.5 42 28.5 23 22 10.1 13,6 17 42 17 42 42 21 Sliding Window Mesh Sliding Window Sash Sliding Door Sash Sliding Mega Door (SW-GF-023) (SW-GF-031) Sash (SD-GF-001) Sash (SW-GF-012) 37,6 14.5 18.7 29 26.5 15,2 45 6.5 52,8 42.2 Sash Connector Sliding Window Interlock 66 58 (SW-GF-029) (SW-GF-025) 33,6 23.6 23.5 12,8 34 10.9 17.4 20 19.5 30 21 21.5 Sliding Door Mesh Sash Sliding Sash Mullion 38 (SD-GF-002) (SW-GF-030) Screen Sash Mullion (SW-GF-017) Screen Sash Interlock (SW-GF-018) 24.5 20 9.5 44 18.7 16 21.8 21.8 21.8 45 Sliding Door Interlock Glazing Bead (4−6mm) Glazing Bead (10mm) Double Glazing Bead (20mm) (SW-GF-026) (SW-GF-027N) (SW-GF-013N) (SW-GF-028)

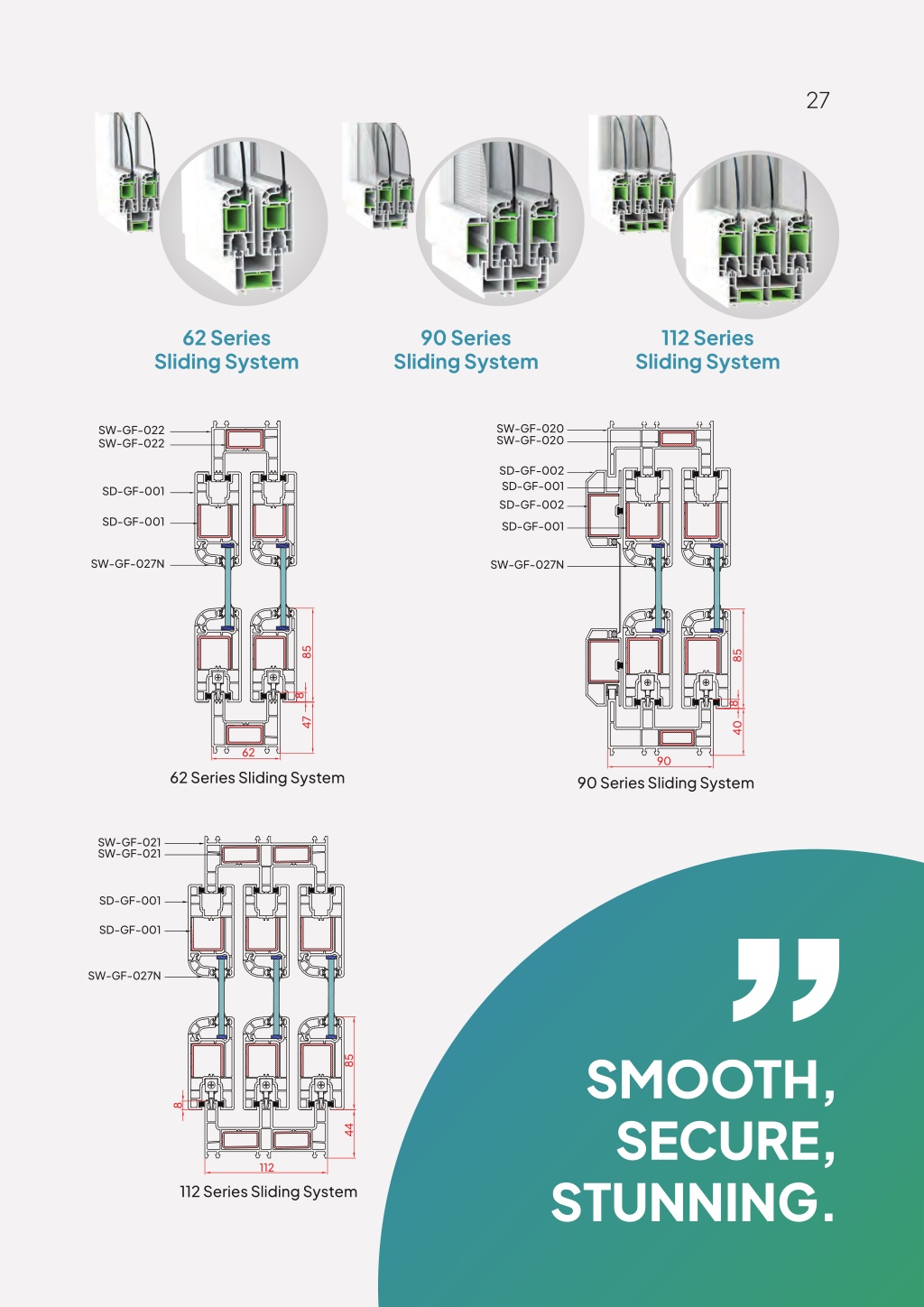

  27. 27 62 Series Sliding System 90 Series Sliding System 112 Series Sliding System SW-GF-020 SW-GF-020 SW-GF-022 SW-GF-022 SD-GF-002 SD-GF-001 SD-GF-002 SD-GF-001 SD-GF-001 SD-GF-001 SW-GF-027N SW-GF-027N 85 85 8 8 47 40 62 90 62 Series Sliding System 90 Series Sliding System SW-GF-021 SW-GF-021 SD-GF-001 SD-GF-001 SW-GF-027N SMOOTH, SECURE, STUNNING. 85 8 44 112 112 Series Sliding System

  28. 28

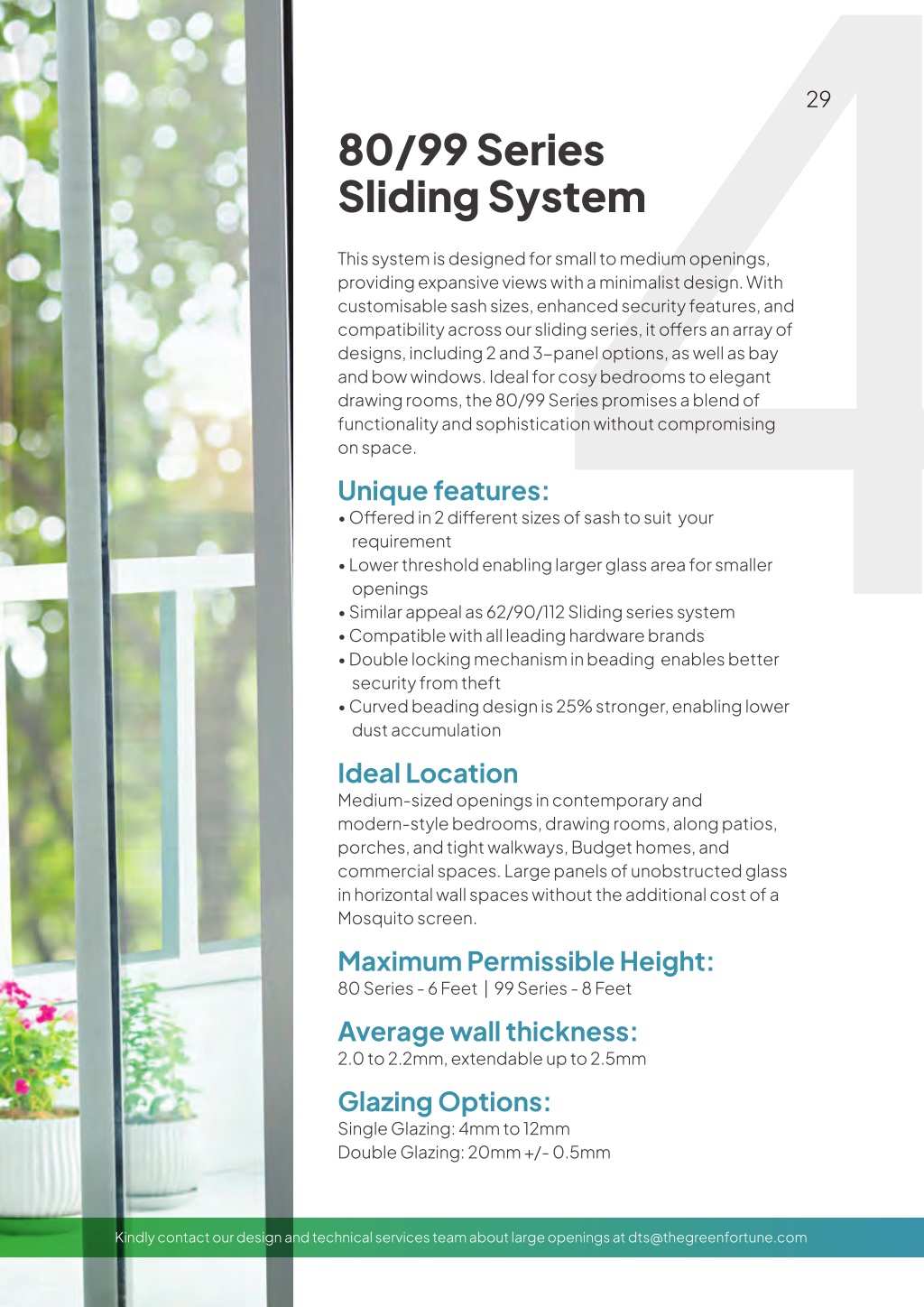

  29. Sliding System4 29 80/99 Series This system is designed for small to medium openings, providing expansive views with a minimalist design. With customisable sash sizes, enhanced security features, and compatibility across our sliding series, it offers an array of designs, including 2 and 3−panel options, as well as bay and bow windows. Ideal for cosy bedrooms to elegant drawing rooms, the 80/99 Series promises a blend of functionality and sophistication without compromising on space. Unique features: • Offered in 2 different sizes of sash to suit your requirement • Lower threshold enabling larger glass area for smaller openings • Similar appeal as 62/90/112 Sliding series system • Compatible with all leading hardware brands • Double locking mechanism in beading enables better security from theft • Curved beading design is 25% stronger, enabling lower dust accumulation Ideal Location Medium-sized openings in contemporary and modern-style bedrooms, drawing rooms, along patios, porches, and tight walkways, Budget homes, and commercial spaces. Large panels of unobstructed glass in horizontal wall spaces without the additional cost of a Mosquito screen. 5 Maximum Permissible Height: 80 Series - 6 Feet | 99 Series - 8 Feet Average wall thickness: 2.0 to 2.2mm, extendable up to 2.5mm Glazing Options: Single Glazing: 4mm to 12mm Double Glazing: 20mm +/- 0.5mm Kindly contact our design and technical services team about large openings at dts@thegreenfortune.com

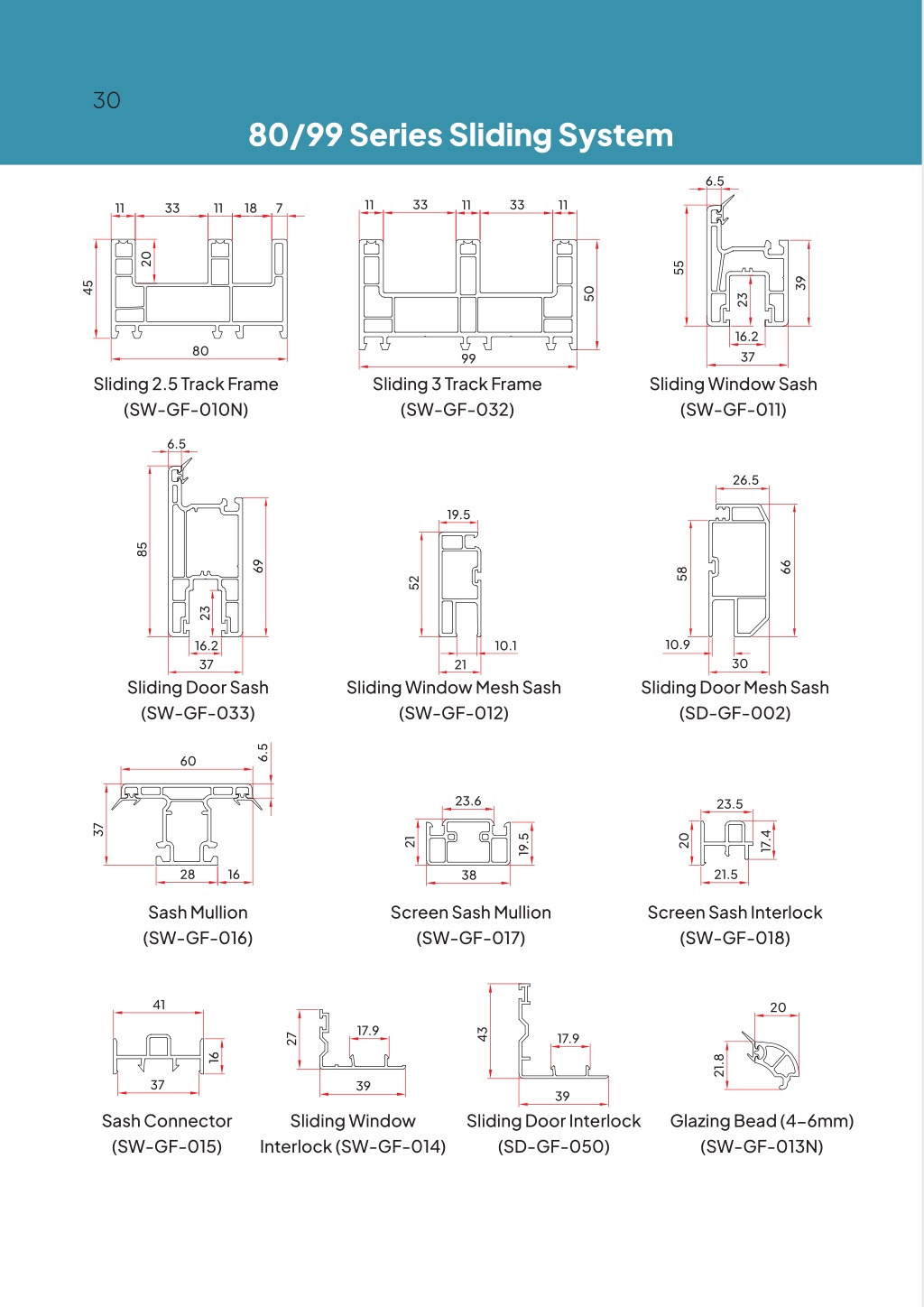

  30. 30 80/99 Series Sliding System 6.5 33 11 33 11 11 11 33 11 18 7 20 55 39 45 50 23 16.2 37 80 99 Sliding 3 Track Frame (SW-GF-032) Sliding Window Sash (SW-GF-011) Sliding 2.5 Track Frame (SW-GF-010N) 6.5 26.5 19.5 85 69 66 58 52 23 10.9 16.2 10.1 30 37 21 Sliding Door Sash (SW-GF-033) Sliding Window Mesh Sash (SW-GF-012) Sliding Door Mesh Sash (SD-GF-002) 6.5 60 23.6 23.5 37 17.4 20 19.5 21 28 16 21.5 38 Sash Mullion (SW-GF-016) Screen Sash Mullion (SW-GF-017) Screen Sash Interlock (SW-GF-018) 41 20 17.9 43 17.9 27 16 21.8 37 39 39 Sash Connector (SW-GF-015) Sliding Window Interlock (SW-GF-014) Sliding Door Interlock (SD-GF-050) Glazing Bead (4−6mm) (SW-GF-013N) 5

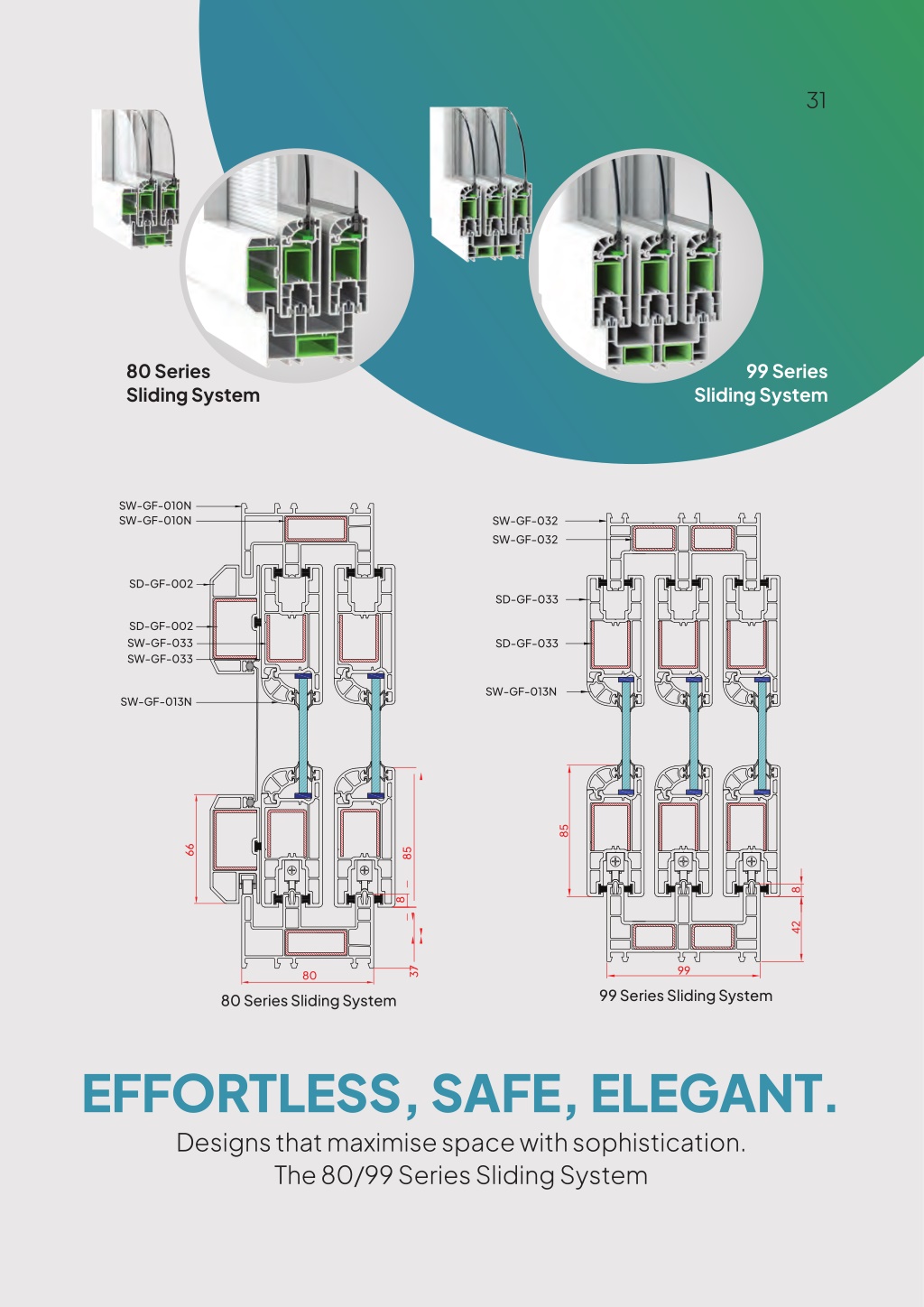

  31. 31 80 Series Sliding System 99 Series Sliding System SW-GF-010N SW-GF-010N SW-GF-032 SW-GF-032 SD-GF-002 SD-GF-033 SD-GF-002 SW-GF-033 SD-GF-033 SW-GF-033 SW-GF-013N SW-GF-013N 85 66 85 8 8 42 99 37 80 99 Series Sliding System 6 80 Series Sliding System EFFORTLESS, SAFE, ELEGANT. Designs that maximise space with sophistication. The 80/99 Series Sliding System

  32. 32 CW-GF-046 CW-GF-047 68 CW-GF-003 60 60

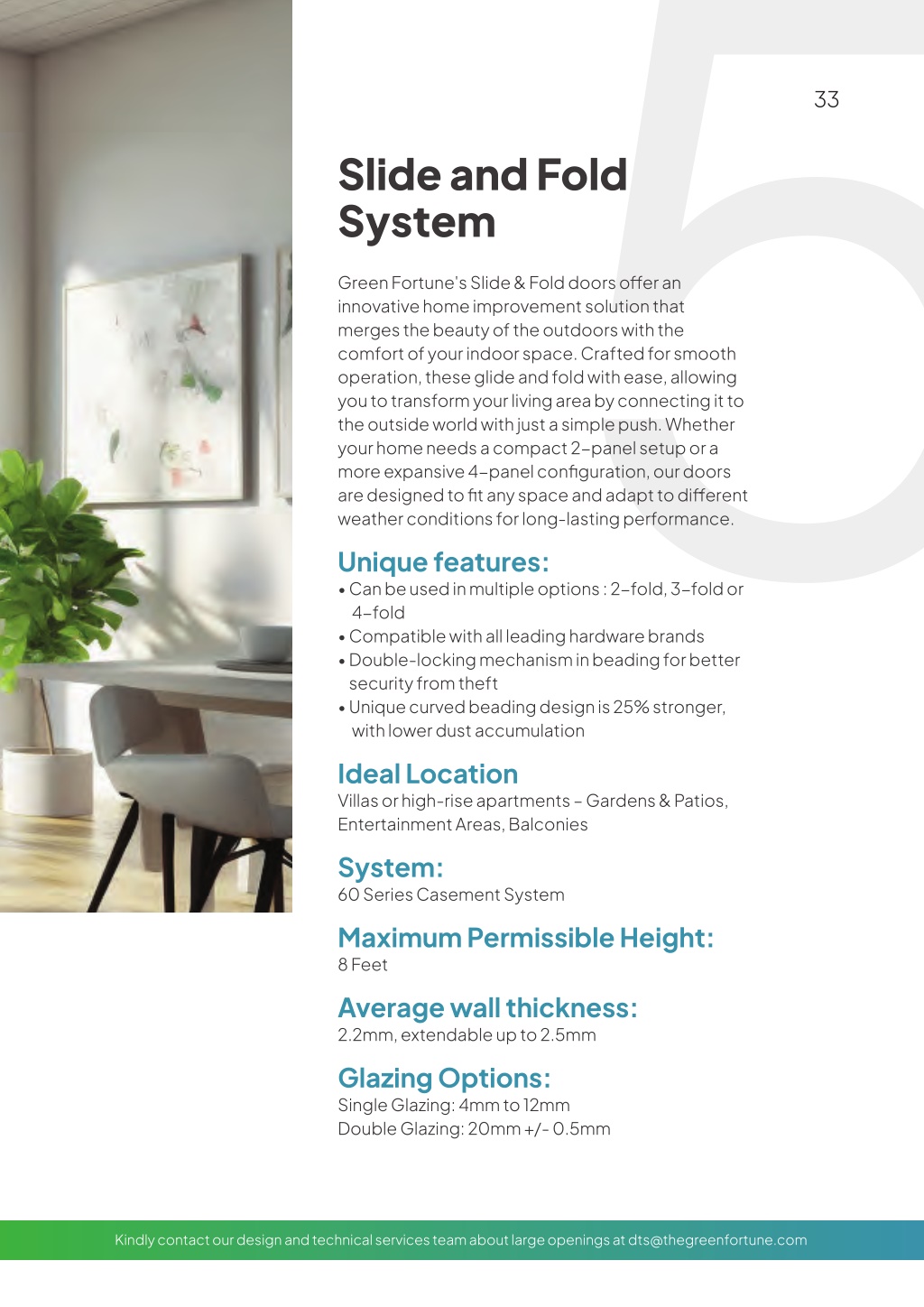

  33. 5 Entertainment Areas, Balconies 33 Slide and Fold System Green Fortune's Slide & Fold doors offer an innovative home improvement solution that merges the beauty of the outdoors with the comfort of your indoor space. Crafted for smooth operation, these glide and fold with ease, allowing you to transform your living area by connecting it to the outside world with just a simple push. Whether your home needs a compact 2−panel setup or a more expansive 4−panel configuration, our doors are designed to fit any space and adapt to different weather conditions for long-lasting performance. Unique features: • Can be used in multiple options : 2−fold, 3−fold or 4−fold • Compatible with all leading hardware brands • Double-locking mechanism in beading for better security from theft • Unique curved beading design is 25% stronger, with lower dust accumulation Ideal Location Villas or high-rise apartments – Gardens & Patios, System: 60 Series Casement System Maximum Permissible Height: 8 Feet Average wall thickness: 2.2mm, extendable up to 2.5mm Glazing Options: Single Glazing: 4mm to 12mm Double Glazing: 20mm +/- 0.5mm Kindly contact our design and technical services team about large openings at dts@thegreenfortune.com

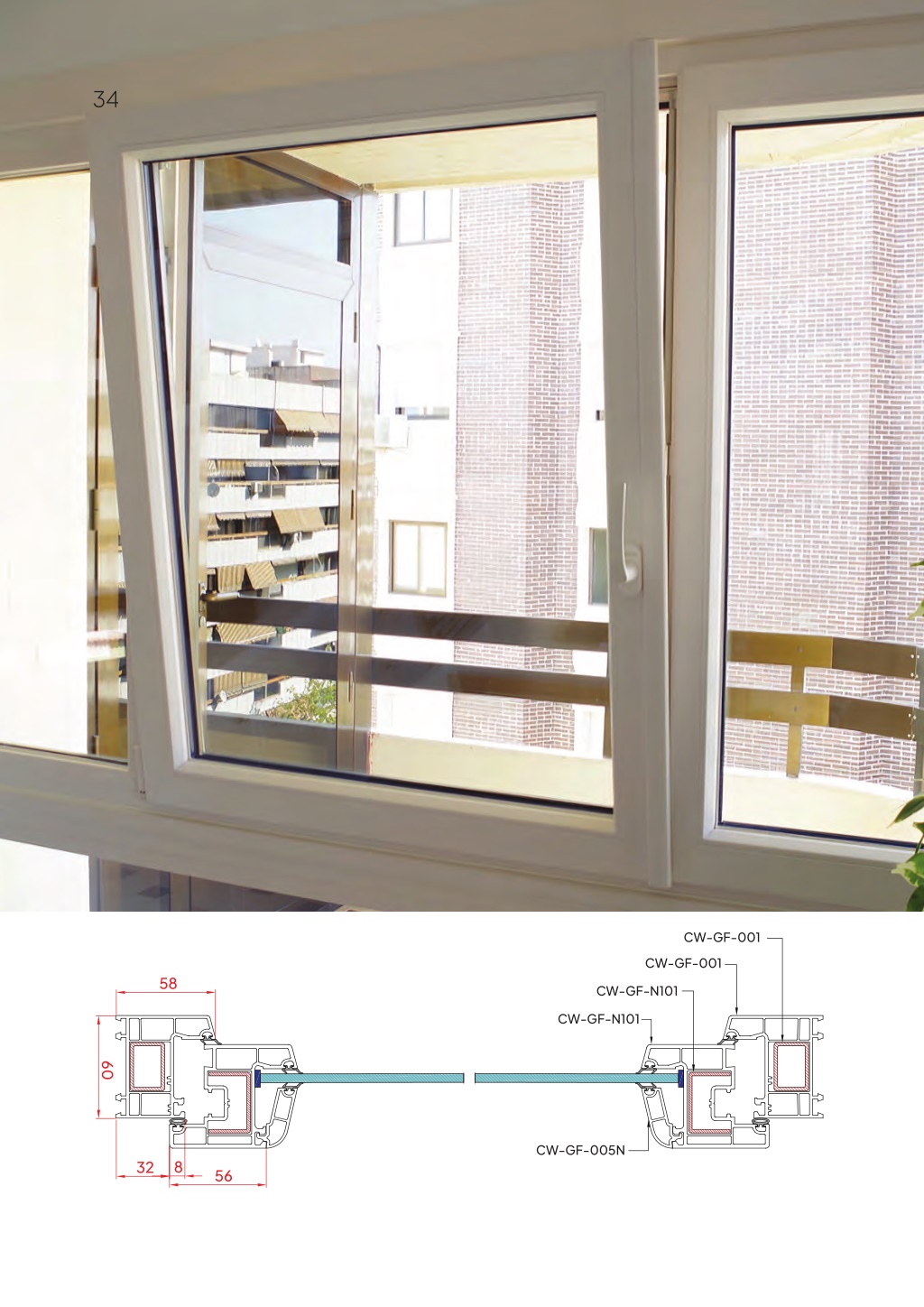

  34. 5 34 CW-GF-001 CW-GF-001 58 CW-GF-N101 CW-GF-N101 60 CW-GF-005N 8 32 56

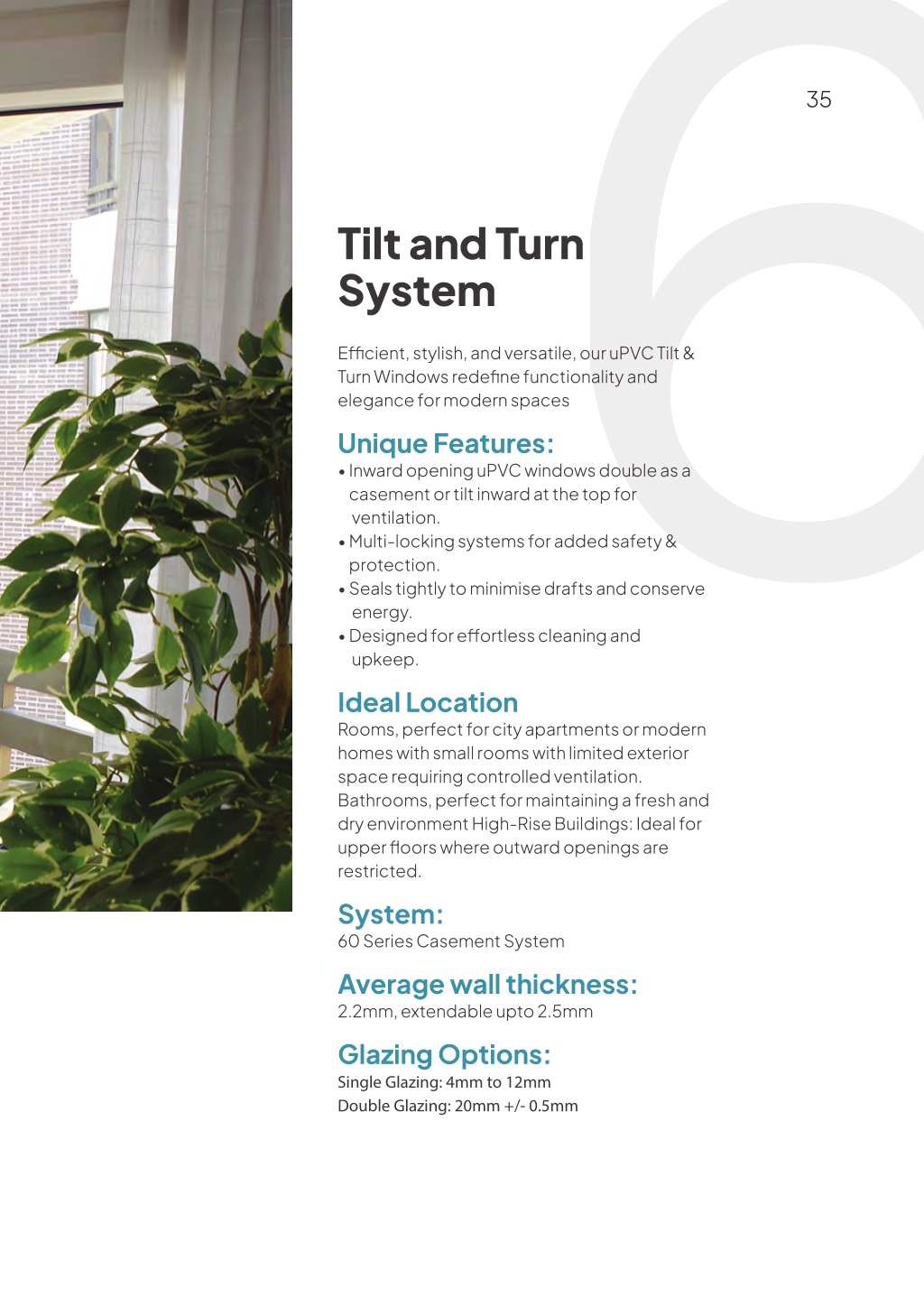

  35. 6 dry environment High-Rise Buildings: Ideal for upper floors where outward openings are restricted. 35 Tilt and Turn System Efficient, stylish, and versatile, our uPVC Tilt & Turn Windows redefine functionality and elegance for modern spaces Unique Features: • Inward opening uPVC windows double as a casement or tilt inward at the top for ventilation. • Multi-locking systems for added safety & protection. • Seals tightly to minimise drafts and conserve energy. • Designed for effortless cleaning and upkeep. Ideal Location Rooms, perfect for city apartments or modern homes with small rooms with limited exterior space requiring controlled ventilation. Bathrooms, perfect for maintaining a fresh and System: 60 Series Casement System Average wall thickness: 2.2mm, extendable upto 2.5mm Glazing Options: Single Glazing: 4mm to 12mm Double Glazing: 20mm +/- 0.5mm

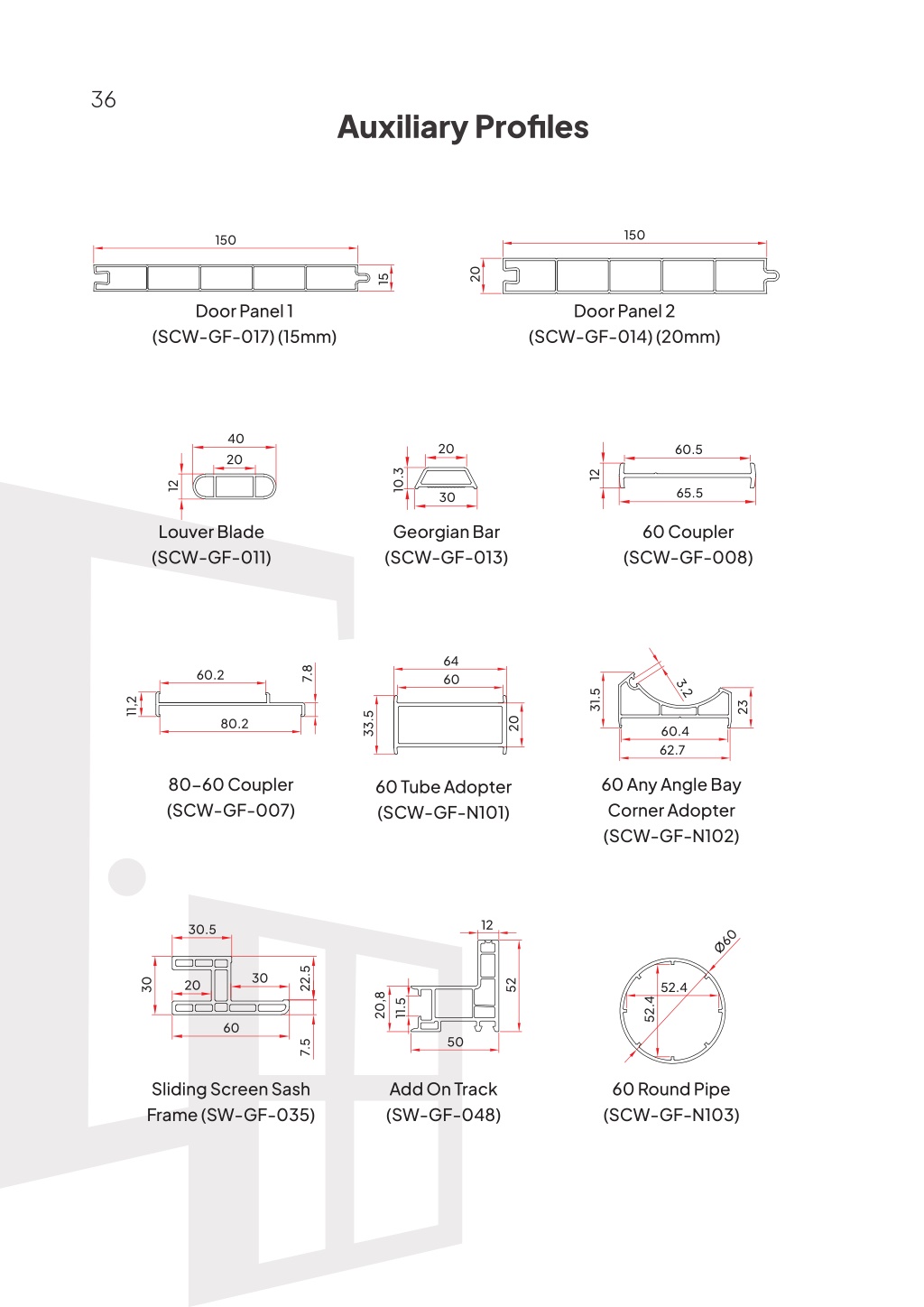

  36. 36 Auxiliary Profiles 150 150 20 15 Door Panel 1 (SCW-GF-017) (15mm) Door Panel 2 (SCW-GF-014) (20mm) 40 20 60.5 20 10.3 12 12 65.5 30 Louver Blade (SCW-GF-011) Georgian Bar (SCW-GF-013) 60 Coupler (SCW-GF-008) 64 60 7.8 60.2 3.2 31.5 11,2 23 33.5 20 80.2 60.4 62.7 80−60 Coupler (SCW-GF-007) 60 Any Angle Bay Corner Adopter (SCW-GF-N102) 60 Tube Adopter (SCW-GF-N101) 12 30.5 Ø60 22.5 30 30 20 52 52.452.4 20,8 11.5 60 50 7.5 Sliding Screen Sash Frame (SW-GF-035) Add On Track (SW-GF-048) 60 Round Pipe (SCW-GF-N103)

  37. 37 16.8 14 46 6.1 4 20 1.9 13 6.4 51 41 20.2 13 17 42 47 14.9 7 Switch Frame (SCW-GF-N104) Universal Cornice (SCW-GF-N106) Door Sash Cover (SCW-GF-N108) Universal Corner (SCW-GF-N105) 48.5 60 46 14.8 13 18 88 Louver Shutter Bead (SCW-GF-012) 88−60 Coupler (SCW-GF-006) 60.5 38 38 12 12 12 27 21 112.5 4.3 112 117.5 112−60 Coupler (SCW-GF-N107) Low Threshold Aluminium (SCW-GF-N109) 66.4 92.8 67.5 60 60 88.3 60 Baypole (CW-GF-010) 90 Baypole (SCW-GF-009)

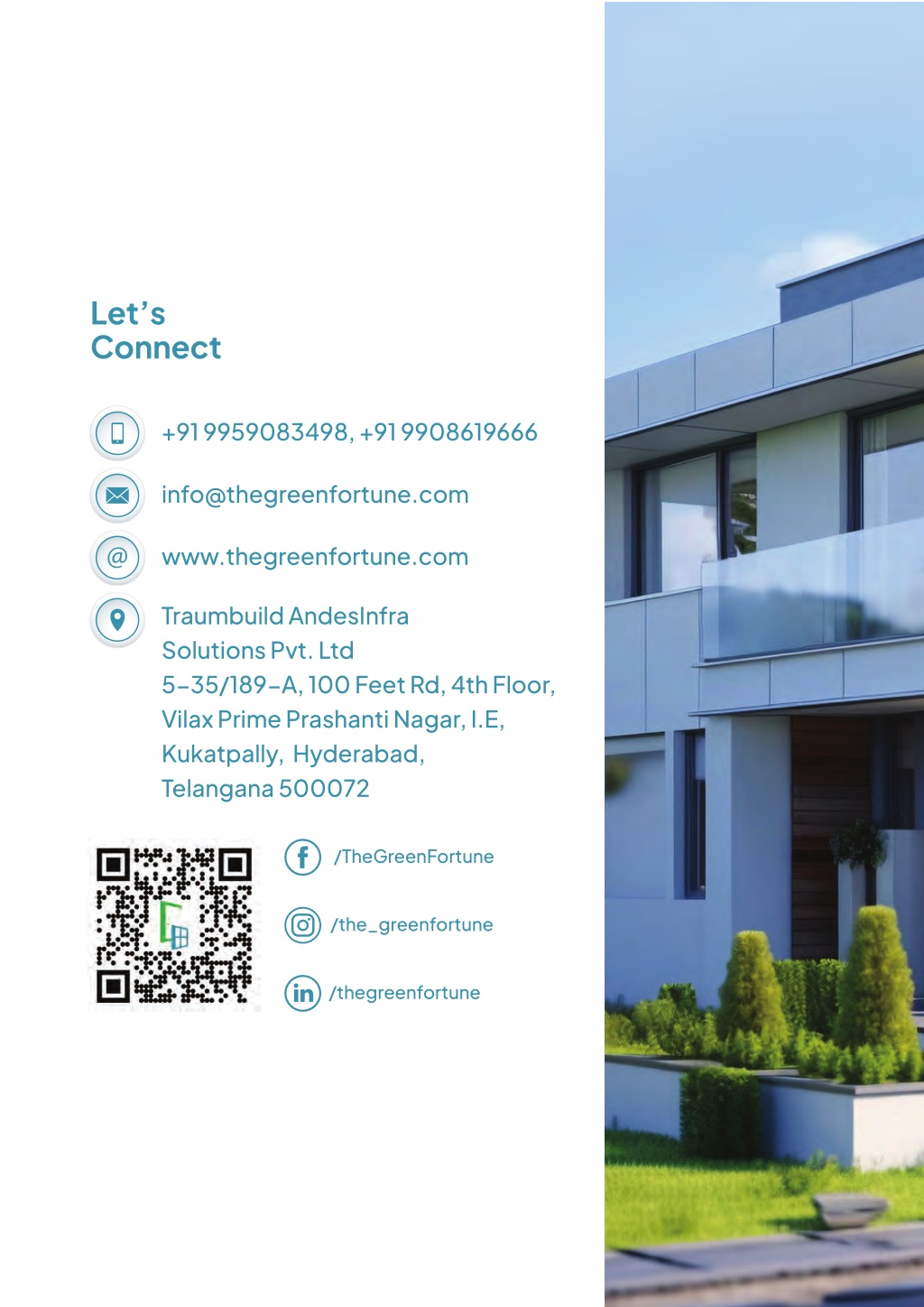

  38. Let’s Connect +91 9959083498, +91 9908619666 info@thegreenfortune.com www.thegreenfortune.com Traumbuild AndesInfra Solutions Pvt. Ltd 5−35/189−A, 100 Feet Rd, 4th Floor, Vilax Prime Prashanti Nagar, I.E, Kukatpally, Hyderabad, Telangana 500072 /TheGreenFortune /the_greenfortune /thegreenfortune
