Presentation Transcript

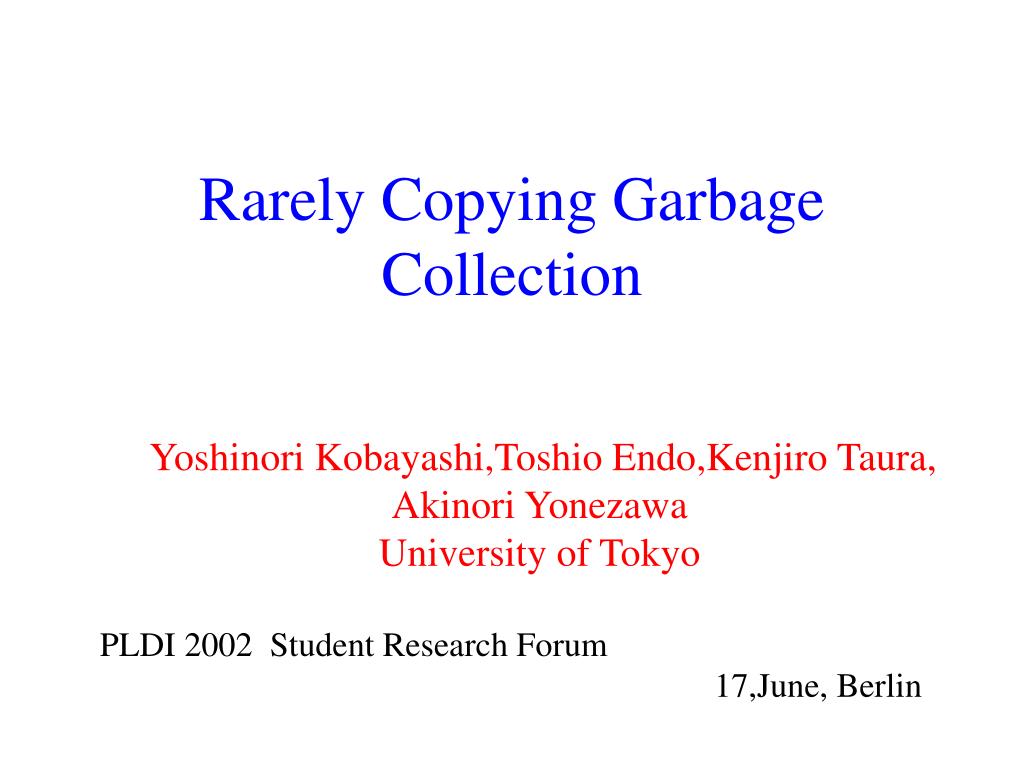

  1. Rarely Copying Garbage Collection Yoshinori Kobayashi,Toshio Endo,Kenjiro Taura, Akinori Yonezawa University of Tokyo PLDI 2002 Student Research Forum 17,June, Berlin

  2. Contents • Design Goals • Mark&Sweep v.s. Copying Collector • Conservative Garbage Collector • Bartlett's Mostly Copying Collector • Rarely-Copying Collector • Experiments and Discussion

  3. Design Goals • Design Goals • Fast Allocation • Conservative GC • Fast GC • To achieve fast GC,it use hybrid strategy(Mark&Sweep,Copying) • Target • Allocation intensive programs • Programs written in a type accurate language and partially written in C language

  4. Fast Allocation Linear Allocation void* allocate(size_t size){ prev = free; free = free + size; if(free < limit){ return prev; }else{ ・・・ } } free size Allocation request limit There must be a large continuous free area

  5. cf. Allocation From Freelist • Allocator must search a sufficient area for an allocation request from freelist.

  6. Copying GC makes a large continuous area From_space From_space To_space

  7. Mark&Sweep GC causes fragmentation

  8. Performance tradeoff between Mark&Sweep and Copying General tendency • It strongly depends on the amount of live objects.

  9. Cost of GC and Allocation cost of mark&sweep GC cost of copy GC L(live objects) Copy GC is better Mark-Sweep is better

  10. Performance tradeoff

  11. Conservative Garbage Collector • Ambiguous pointer • A word that Garbage Collector doesn’t know whether it is a pointer or not. • It appears in a program written in C language. • The conservative collector considers objects pointed to by ambiguous pointerslive. • The collector cannot update ambiguous pointers • We cannot copy objects pointed to by ambiguous pointers

  12. WhyConservative GC? • Our GC's target • Programs written in type accurate language,partially written in C language • Developing programs in a given language very often requires programmers to integrate libraries written in other languages. • Programmers don’t like complex native interface. • A simple interface below needs Ambiguous Pointers.

  13. Another approach – Permit the existence of “Ambiguous Pointers” int X_sum_Array(int* body){ (some work using body) ・・・ } ○ Simple Native Interface × Fully Type-Accurate GC is impossible Which interface would you like to use?

  14. Another approach – Permit the existence of “Ambiguous Pointers” One approach – Prohibit the existence of “Ambiguous Pointers” An example : JNI JNIEXPORT jint JNICALL Java_Foo_sumArray(JNIEnv* env,jobject* obj,jintArray arr){ jint* body = (*env)->GetIntArrayElements(env,arr,0); (some work using body) (*env)->ReleaseIntArrayelements(env,arr,body,0); ・・・ } ○ Fully Type-Accurate GC ×Complex Native Interface int X_sum_Array(int* body){ (some work using body) ・・・ } ○ Simple Native Interface × Fully Type-Accurate GC is impossible Which interface would you like to use?

  15. Existing Work : Mostly-Copying Collector (Copy GC + Conservative GC) Copying Garbage Collector in the presence of ambiguous pointers • The root set consists of ambiguous pointers • There is no ambiguous pointer in the heap The whole heap consists of fixed size blocks (pages) • The pages pointed to by ambiguous pointers : Mark & Sweep • The pages pointed to only by exact pointers : Copying GC

  16. Mostly-Copying Collector Root set live dead

  17. Why Rarely Copying Collector?(1) Mostly-Copying collector • Mostly-Copying collector It copies live objects regardless of the amount of live objects. It copies too many objects. GC is too expensive.

  18. Why Rarely Copying Collector?(2) Our approach Our approach: The whole heap consists of fixed size blocks(pages). Mark & Selective Copy Mark phase : it takes statistics. It chooses better strategy for each page • Copying - pages the amount of live objects is small • Sweep - pages the amount of live objects is large • Our focus is making the total performance better than a collector with a single strategy. • Mark&Copy or Mark&Sweep for each page

  19. Rarely-Copying Collector • Rcgc() { • Mark_with_profiling(); • Sweep(pages_to_sweep); • Copy(pages_to_copy); • } • Profiling: for each page,keeping track of • The size of live objects in each page • the pointers which point to objects inside the page

  20. Copy or Sweep?~for each page~ Yes Is an object in the page pointed to by ambiguous pointers? No Yes amount of live objects > Lth # of Pointers > Pth Lth, Pth: the thresholds given by the user No copy sweep

  21. Experiments We will measure the costs of • Allocation • Garbage collection changing the thresholds. The experiments are now in progress. The preliminary results will be available in a month.

  22. Expected performance GC time Allocation time Mark-Sweep Copy GC Profiling overhead Rarely-Copying Mark Sweep Copy

  23. Discussion • Preliminary resultsshow that this technique reduces ..... by ** % and improves program performance by ??? % over Boehm's collector.

  24. Summary • We are implementing Rarely-Copying GC • Fast Allocation • Conservative Collector • Select Copy or Sweep • Experiments are still in progress. • Preliminary results will be available in a month.

  25. ENDE
