  1. ESCC/Internet2 Joint Techs Summer Meeting July 16, 2007 Fermi Lab Batavia, Illinois Hybrid Network Control Plane Interoperation Between Internet2 and ESnet Tom Lehman Information Sciences Institute East, University of Southern California Chin Guok Network Engineering Services Group, ESnet Andy Lake, John Vollbrecht University Corporation for Advanced Internet Development, Internet2

  2. Hybrid NetworksHeterogeneous By Nature • Hybrid networks are extremely heterogeneous at several levels • DataPlane can be constructed from • router based Multiprotocol Label Switching (MPLS) tunnels • Ethernet VLAN based Circuits • Synchronous Optical Network / Synchronous Digital Hierarchy (SONET/SDH) circuits • Wavelength Division Multiplexing (WDM) connections • Combinations of the above

  3. Hybrid NetworksHeterogeneous By Nature • Control Planes can be based on • Multiprotocol Label Switching (MPLS) • Generalized Multiprotocol Label Switching (GMPLS) • Web Services • Management Systems • Combinations of the above • Client (user) services or attachment points could be • Ethernet • SONET • IP Router • InfiniBand

  4. IDC WS E-NNI Inter-Domain Controller (IDC) WS E-NNI IDC WS I-NNI IF Management System (I-NNI) WS UNI WS UNI WS I-NNI IF WS I-NNI IF MPLS (I-NNI) GMPLS (I-NNI) SONET/TDM (Dataplane) Router(MPLS)/PSC (Dataplane) Ethernet/L2SC (Dataplane) Hybrid NetworksWeb Service Control Plane Interfaces • Web Services provides a mechanism to deal with heterogeneous control planes • inspired by the standards bodies work on control plane protocols, but not just recreating that work at the web service level • Better described as using control plane techniques to develop a “service plane”

  5. Hybrid NetworksWeb Service Control Plane Interfaces • Four Primary Web Services Areas: • Topology Exchange, Resource Scheduling, Signaling, User Request

  6. Hybrid NetworksControl Plane Architecture • The benefits offered by Web Services include • standardized mechanisms for user authentication and policy management • flexible features for interfacing with a diverse set of I-NNI mechanisms • Allows focus on several issues that current control plane work has not addressed in a robust manner: • scalability, stability, security, flexible application of policy, AAA, scheduling • Will still allow for peering domains with compatible non web service E-NNI (i.e. GMPLS based) to utilize that as desired • a domain might peer with one domain at GMPLS level, and another at the Web Service level

  7. Web Service based E-NNIThree Main Components • Routing • Topology Exchange • Domain Abstraction • Varying levels of dynamic information • Resource Scheduling • Multi-Domain path computation techniques • Resource identification, reservation, confirmation • Signaling • path setup, service instantiation

  8. Web Service Based Multi-Domain Provisioning – Collaborative Effort • Architecture and Web Services Design effort is a collaborative effort between: • Internet2 • ESnet • DANTE (GEANT, Autobahn) • Also collaborating with University of Amsterdam on Token based RSVP signaling and topology exchange

  9. Internet2 and ESnetImplementation Goals and Methods • Goal • Dynamically provision layer 2 circuits between Internet2 network and ESnet/SDN • Methods • Use existing control plane software where appropriate • Provide multidomain AAA architecture for message exchanges • Exchange topology information • Coordinate the scheduling of resources • Signal circuit setup between domains

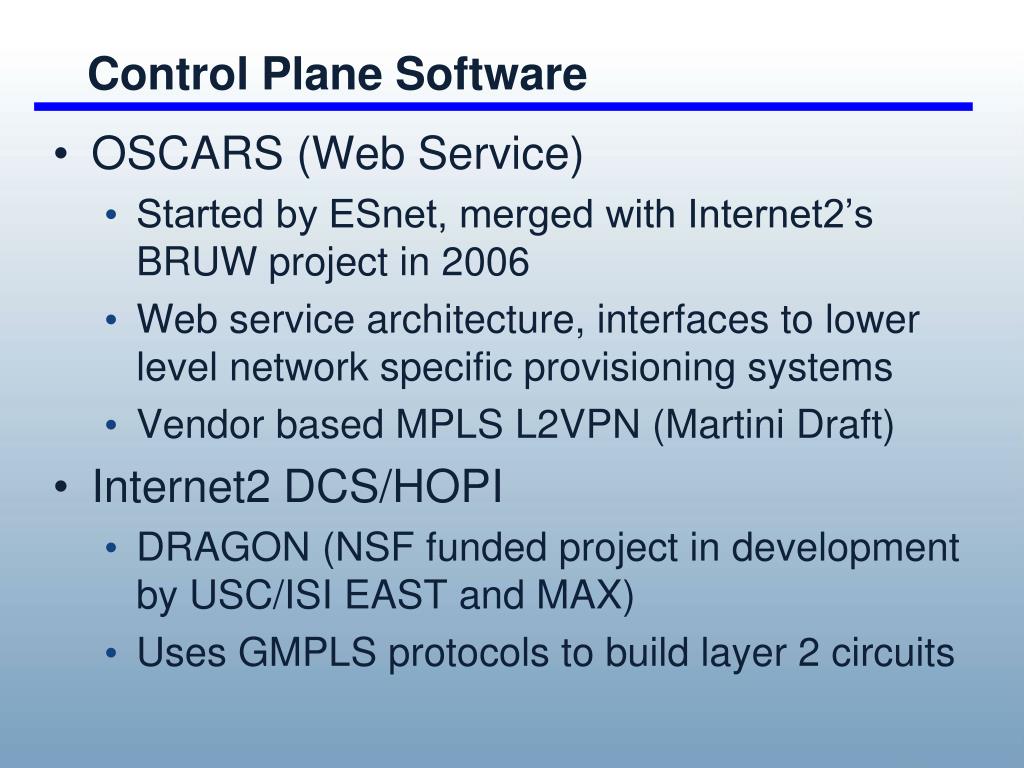

  10. Control Plane Software • OSCARS (Web Service) • Started by ESnet, merged with Internet2’s BRUW project in 2006 • Web service architecture, interfaces to lower level network specific provisioning systems • Vendor based MPLS L2VPN (Martini Draft) • Internet2 DCS/HOPI • DRAGON (NSF funded project in development by USC/ISI EAST and MAX) • Uses GMPLS protocols to build layer 2 circuits

  11. OSCARS Architecture Customer Site External Peer End-Host Application Resource Manager Web-Services Interface (Signed SOAP Messages) User Link Reservations Bandwidth Scheduler Web-User Interface Topology I-NNI Authentication Authorization Path Setup (MPLS) Path Setup (GMPLS) Policy OSCARS Resource Manager

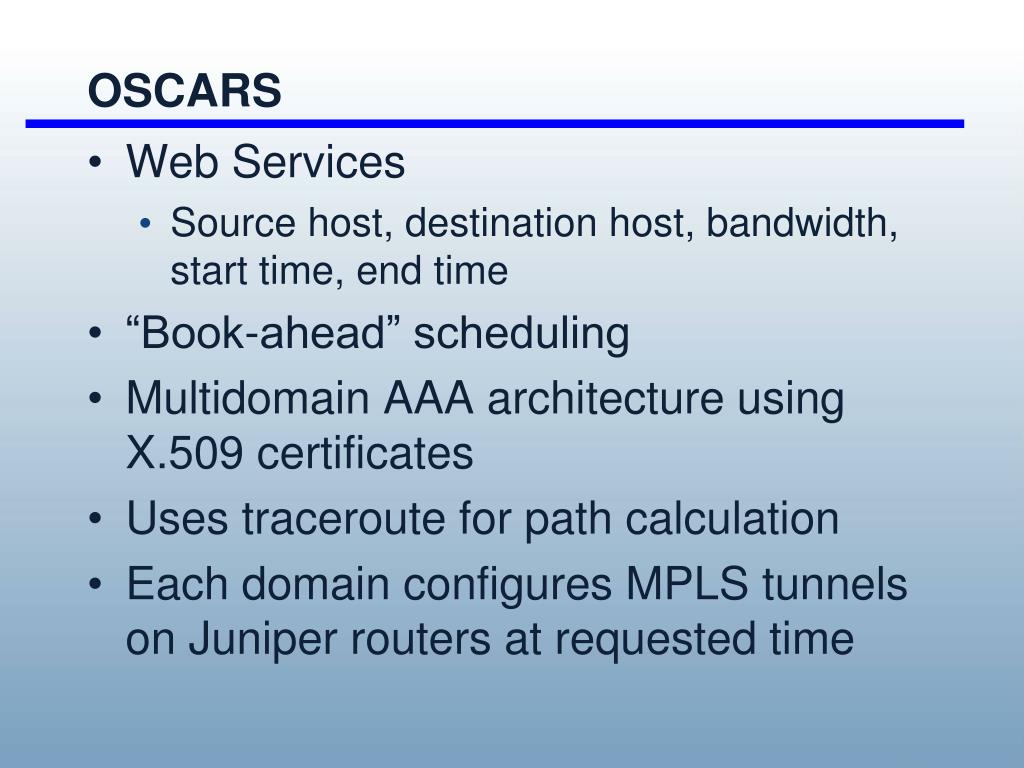

  12. OSCARS • Web Services • Source host, destination host, bandwidth, start time, end time • “Book-ahead” scheduling • Multidomain AAA architecture using X.509 certificates • Uses traceroute for path calculation • Each domain configures MPLS tunnels on Juniper routers at requested time

  13. DRAGON • Virtual Label Switched Router(VLSR) • PC based control plane software • Manages and provisions various network equipment such as ethernet switches, SDH/SONET • Signaling with RSVP packets • Network Aware Resource Broker (NARB) • Stores topology in OSPF-TE database • Performs inter/intradomain path calculation • Exchanges interdomain topology

  14. OSCARS-DRAGON Integration

  15. AAA and Security • OSCARS AAA • SSL Encryption • Authentication • X.509 Certificates • User to Domain • Domain to Domain • Web Service Security by OASIS • SAML assertions about end-user (future) • Authorization • OSCARS attribute based system

  16. Topology Exchange • XML topology schema • Developed by DICE • Domain, Node, Port, Link hierarchy • Namespace extension to the NMWG/PerfSonar Topology Schema • Interdomain exchanges between OSCARS servers via web services • Topology storage flexible • NARB, XMDR, static file • Path Computation by NARB or other component that uses topology data

  17. Resource Scheduling • OSCARS web service message • Source port, destination port, bandwidth, start time, end time • Optional parameters such as VLAN tag • Generates information important to later signaling • Global-ID, secure token • Stored in OSCARS reservation database

  18. Signaling • XML signaling • OSCARS receives XML signaling message • Contacts VLSR to initiate path setup • Could also talk to Juniper router or other device • RSVP signaling • User signals VLSR directly • Token-based signaling developed by University of Amsterdam’s Phosphorous project • Token, Global Reservation ID

  19. Timelines and Future Work • Timeline • Hope to have test release by end of Summer 2007 • Official release in Fall 2007 • Future Work • Continue collaboration with international partners • Explore use of federated identity software such as Shibboleth

  20. Questions/Comments? • Tom Lehman (tlehman@east.isi.edu) • Chin Guok (chin@es.net) • Andy Lake (alake@internet2.edu) • John Vollbrecht (jrv@internet2.edu)
