Pressure Die Casting Tool Manufacturing

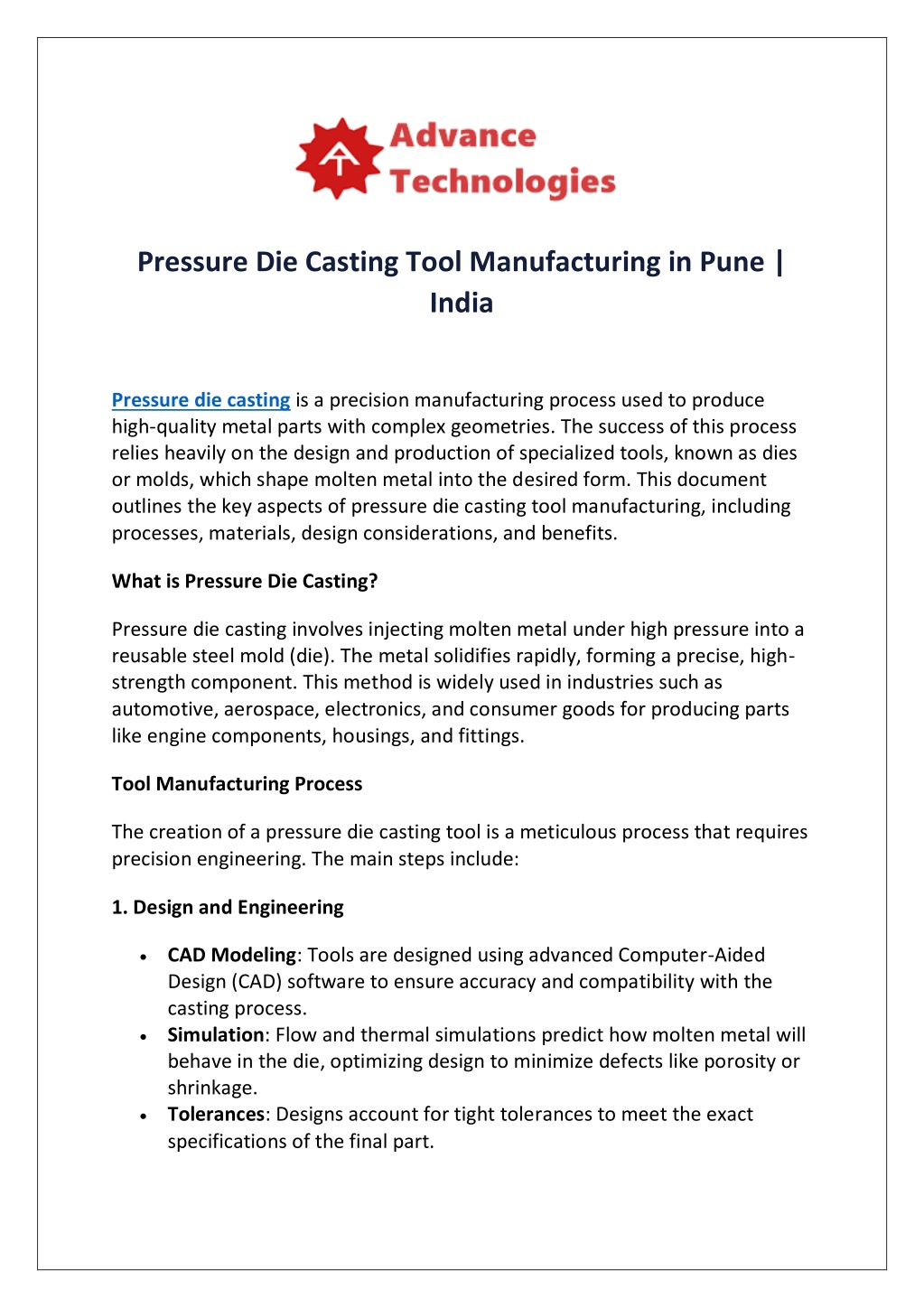

1. Pressure Die Casting Tool Manufacturing in Pune | India Pressure die casting is a precision manufacturing process used to produce high-quality metal parts with complex geometries. The success of this process relies heavily on the design and production of specialized tools, known as dies or molds, which shape molten metal into the desired form. This document outlines the key aspects of pressure die casting tool manufacturing, including processes, materials, design considerations, and benefits. What is Pressure Die Casting? Pressure die casting involves injecting molten metal under high pressure into a reusable steel mold (die). The metal solidifies rapidly, forming a precise, high- strength component. This method is widely used in industries such as automotive, aerospace, electronics, and consumer goods for producing parts like engine components, housings, and fittings. Tool Manufacturing Process The creation of a pressure die casting tool is a meticulous process that requires precision engineering. The main steps include: 1. Design and Engineering CAD Modeling: Tools are designed using advanced Computer-Aided Design (CAD) software to ensure accuracy and compatibility with the casting process. Simulation: Flow and thermal simulations predict how molten metal will behave in the die, optimizing design to minimize defects like porosity or shrinkage. Tolerances: Designs account for tight tolerances to meet the exact specifications of the final part.

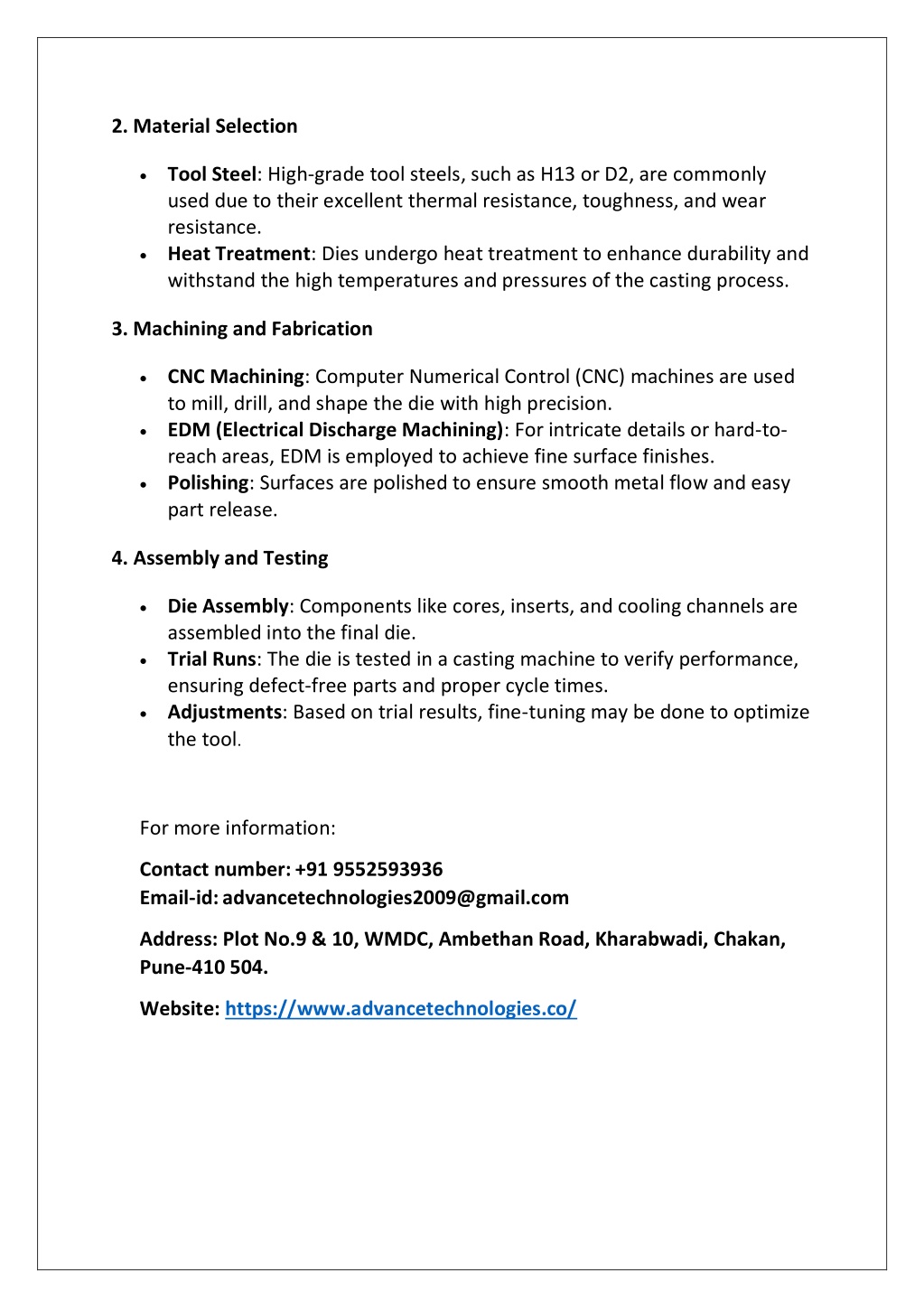

2. 2. Material Selection Tool Steel: High-grade tool steels, such as H13 or D2, are commonly used due to their excellent thermal resistance, toughness, and wear resistance. Heat Treatment: Dies undergo heat treatment to enhance durability and withstand the high temperatures and pressures of the casting process. 3. Machining and Fabrication CNC Machining: Computer Numerical Control (CNC) machines are used to mill, drill, and shape the die with high precision. EDM (Electrical Discharge Machining): For intricate details or hard-to- reach areas, EDM is employed to achieve fine surface finishes. Polishing: Surfaces are polished to ensure smooth metal flow and easy part release. 4. Assembly and Testing Die Assembly: Components like cores, inserts, and cooling channels are assembled into the final die. Trial Runs: The die is tested in a casting machine to verify performance, ensuring defect-free parts and proper cycle times. Adjustments: Based on trial results, fine-tuning may be done to optimize the tool. For more information: Contact number:+91 9552593936 Email-id:advancetechnologies2009@gmail.com Address: Plot No.9 & 10, WMDC, Ambethan Road, Kharabwadi, Chakan, Pune-410 504. Website: https://www.advancetechnologies.co/
