BPM Microsystems, LP. BPM Microsystems Training Course # TAPF-001 Rev. A. ELECTRONIC TAPE FEEDER (Tape and Reel Input). Teaching Method of the Course. Covers the fundamentals More details in BPWin Help Step by Step Broken down to steps Start with Installation
An Image/Link below is provided (as is) to download presentation
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.Content is provided to you AS IS for your information and personal use only.Download presentation by click this link.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.During download, if you can't get a presentation, the file might be deleted by the publisher.
Teaching Method of the Course • Covers the fundamentals • More details in BPWin Help • Step by Step • Broken down to steps • Start with Installation • Continue through complete operation • Examples • Photos • Diagrams • Self taught or a taught course. • When complete, trainee should be able to install and operate the Tape Feeder.
Tools Needed for the Course • Tape Feeder(s) • Installation Kit, FTAPEIN3X or FTAPEIN4X • Set of SAE Hex Keys (Allen Wrenches) • Reel of Devices to match Feeder
Tape Feeder Training Chapters • Identification of parts • Installing and removing individual Feeders • Loading and Unloading the Tape Feeder • Programming the Tape Feeder • Teaching the Tape Feeder • Clearing Jams • Tape Feeder Maintenance • Installing the Tape Feeder Option

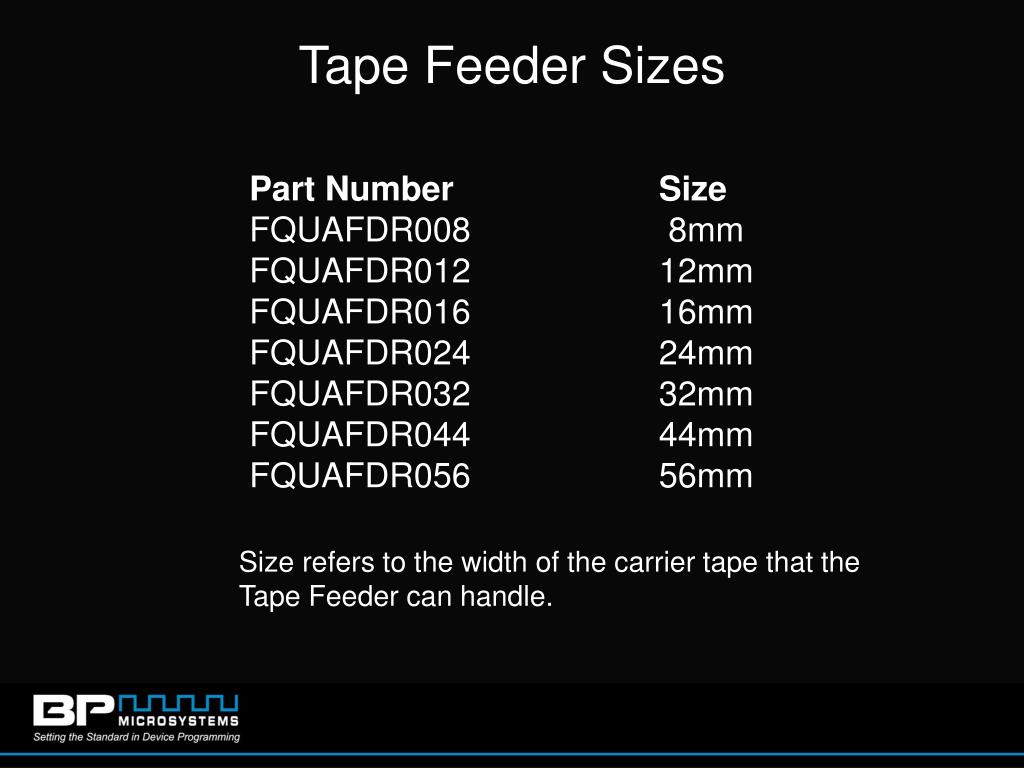

Tape Feeder Sizes Part Number Size FQUAFDR008 8mm FQUAFDR012 12mm FQUAFDR016 16mm FQUAFDR024 24mm FQUAFDR032 32mm FQUAFDR044 44mm FQUAFDR056 56mm Size refers to the width of the carrier tape that the Tape Feeder can handle.

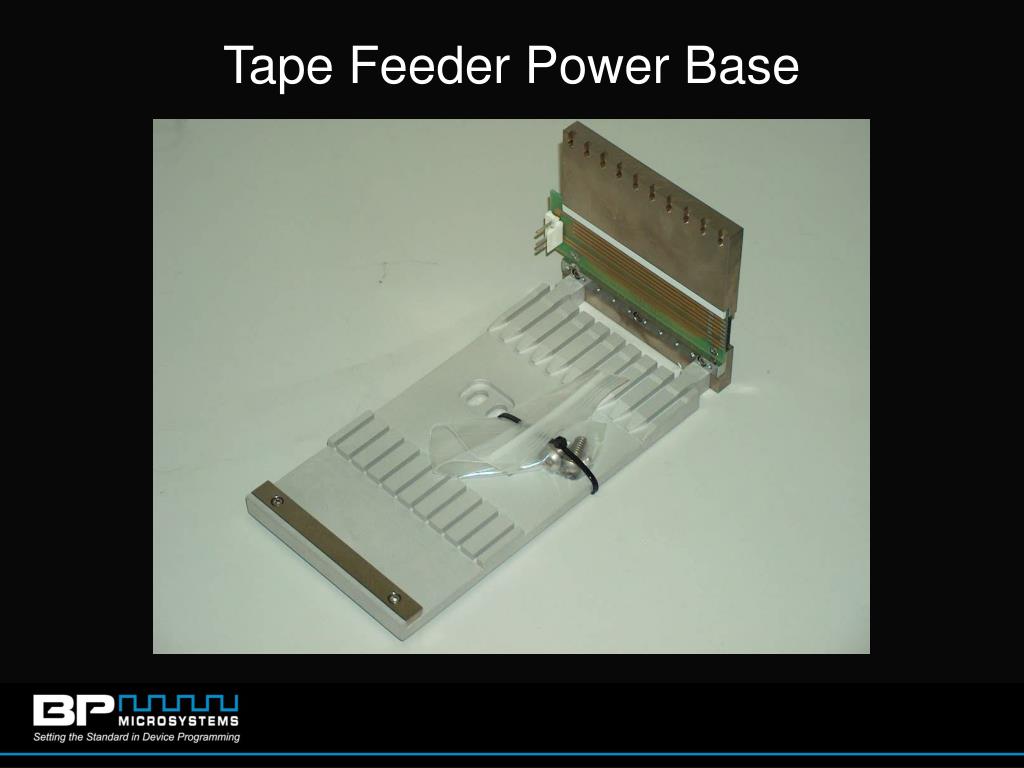

Installing and Removing Individual Tape Feeders • Align tape feeder with power base. • Depress locking lever. • Slide the tape feeder into a groove in the power base and push the feeder against the wall. CAUTION: Do not twist the feeder! • Push down on the rear of the feeder and release the locking lever. • Grab the feeder and try to move it side to side. It should stay firmly in place if installed correctly. • The green LED should be illuminated if installed correctly.

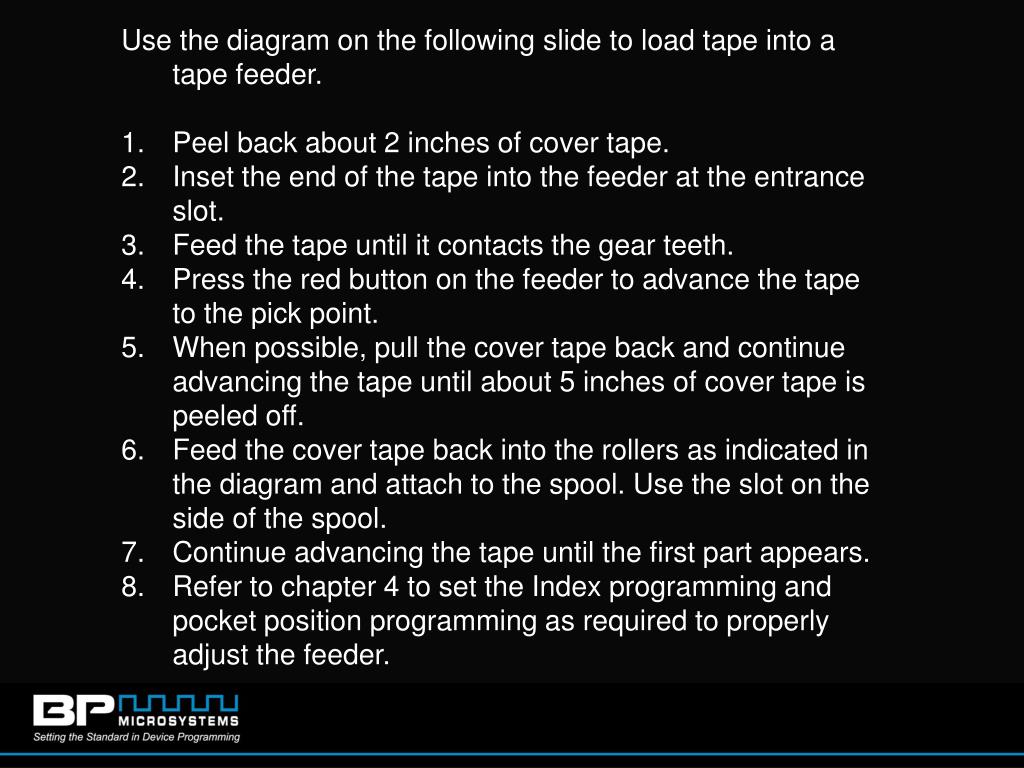

Use the diagram on the following slide to load tape into a tape feeder. • Peel back about 2 inches of cover tape. • Inset the end of the tape into the feeder at the entrance slot. • Feed the tape until it contacts the gear teeth. • Press the red button on the feeder to advance the tape to the pick point. • When possible, pull the cover tape back and continue advancing the tape until about 5 inches of cover tape is peeled off. • Feed the cover tape back into the rollers as indicated in the diagram and attach to the spool. Use the slot on the side of the spool. • Continue advancing the tape until the first part appears. • Refer to chapter 4 to set the Index programming and pocket position programming as required to properly adjust the feeder.

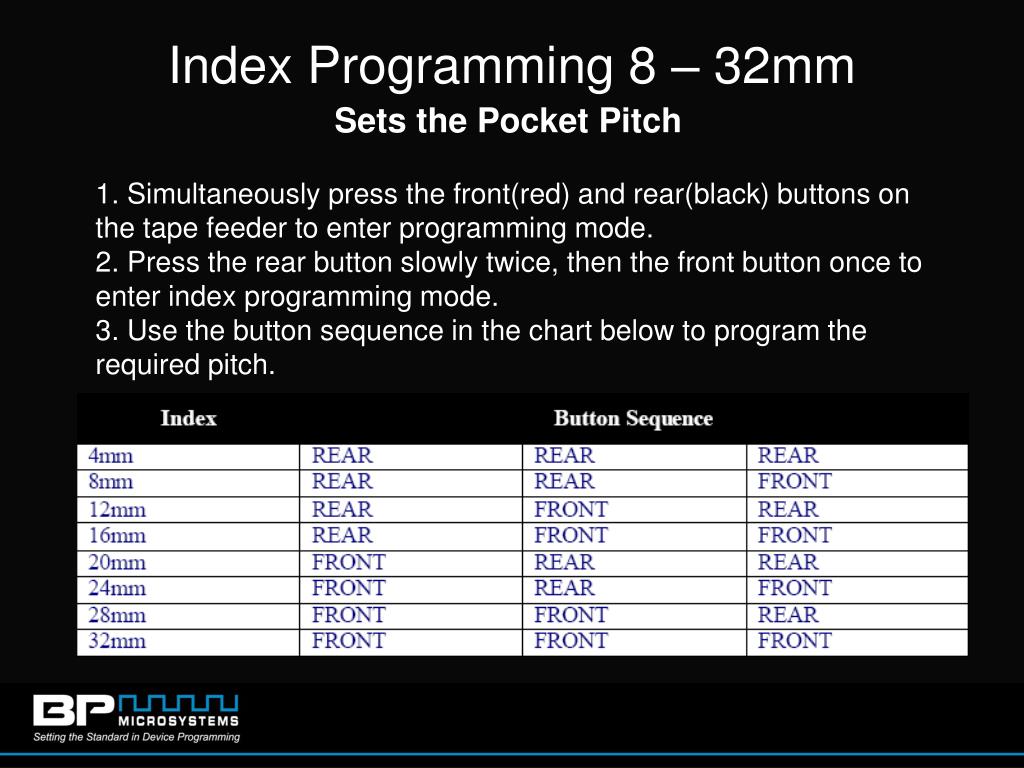

Index Programming 8 – 32mm Sets the Pocket Pitch 1. Simultaneously press the front(red) and rear(black) buttons on the tape feeder to enter programming mode. 2. Press the rear button slowly twice, then the front button once to enter index programming mode. 3. Use the button sequence in the chart below to program the required pitch.
Index Programming 36 – 44mm Sets the Pocket Pitch 1. Simultaneously press the front(red) and rear(black) buttons on the tape feeder. (Both LEDs should go out) 2. Press the front button three times slowly. This enters the Pocket Programming Memory Modify Mode. 3. Press this button sequence slowly: Rear Front Front Rear Rear Rear Rear Front. 4. For 36 mm indexing press: Front Front Front Front Front Front Front Front. For 40 mm indexing press: Front Front Front Front Rear Front Front Rear. For 44 mm indexing press: Front Front Front Front Rear Front Rear Front. 5. Simultaneously press the front(red) and rear(black) buttons on the tape feeder. (Both LEDs should go out) 6. Press the front button once and the rear button twice to store the sequence in memory.
Pocket Position Programming Centers the pocket in the feeder 1. Simultaneously press the front(red) and rear(black) buttons on the tape feeder. 2. Press the rear button slowly three times to enter the pocket position programming mode. 3. Press and release the front button to advance the tape incrementally. Press and hold the front button to advance the tape rapidly. 4. Center the pocket on the etched indicator mark on the tape feeder. 5. Press the rear button once to save the position. 6. Test the setting by blocking the sensor with your finger. Repeat if necessary.
Ensure that the carrier tape can exit smoothly. Clear bunched tape if necessary. • Check the spent cover tape spool for excessive cover tape. Remove cover tape if necessary. • Press the reverse (black) button and see if the tape will back out. Remove excess devices if necessary. • Remove the feeder from the base and visually inspect for jammed devices and jammed tape. • Cut the tape at the tape entry point or exit point. • Press the rear button to back out the remaining tape fragments. • Reload the tape feeder.

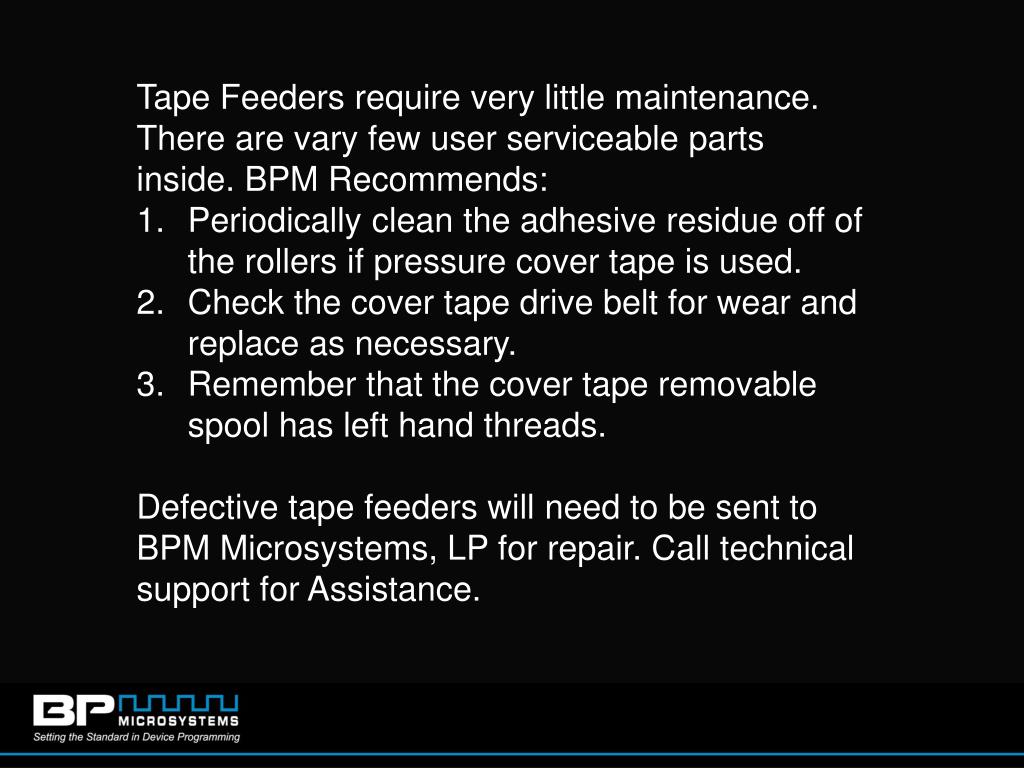

Tape Feeders require very little maintenance. • There are vary few user serviceable parts • inside. BPM Recommends: • Periodically clean the adhesive residue off of the rollers if pressure cover tape is used. • Check the cover tape drive belt for wear and replace as necessary. • Remember that the cover tape removable spool has left hand threads. • Defective tape feeders will need to be sent to • BPM Microsystems, LP for repair. Call technical • support for Assistance.
Mount the 4” tape Feeder Base to the table top between sites 5 and 9. The exact position is unimportant, as long as the downward camera can see the pick point, and the feeder base is square to the tape top. Drill and tap ¼ - 20 hole(s) if necessary.

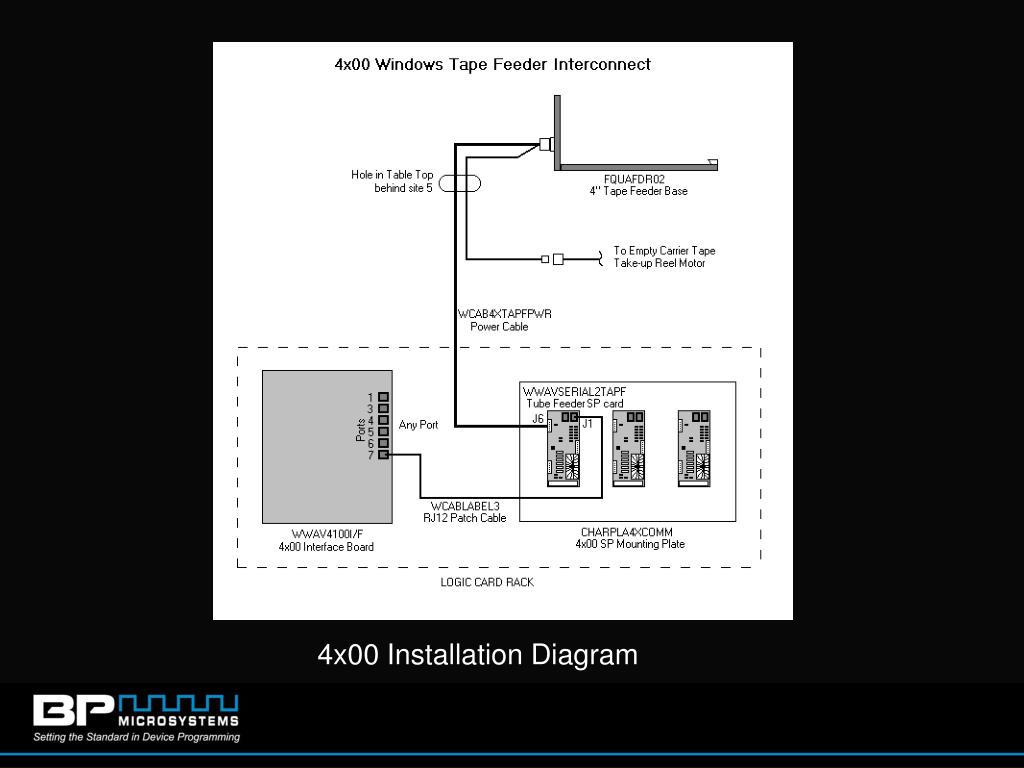

4. Connect the WCAB4XTAPFPWR cable 9 pin connector to J6 of the Serial Peripheral card. 5. Run the cable through the machine and out of the diagonal slot behind site 5. 6. Connect the 4 pin connector to the T/F base. 7. Connect the two pin connector to the empty carrier take-up reel option (if present). 8. Connect one RJ12 connector of the WCABSHUTLPWRCOM cable to J1 on the SP card. 9. Connect the other RJ12 connector to any unused port on the Interface board also located in the Logic card rack. 10. Use the anchors and tie wraps to complete the hardware installation.
