jet engine materials

Jet Engine Materials

A quick overview of the materials requirements, the materials being used, and the materials being developed

motivation for materials development
Motivation for Materials Development
  • Higher Operating Temperatures
  • Higher Rotational Speeds
  • Lower Weight Engine Components
  • Longer Operating Lifetime
  • Decreased Failure Occurrence
  • This all adds up to:
    • Better Performance
    • Lower Life Cycle Costs
materials requirements
Materials Requirements
  • thousands of operating hours at temperatures up to 1,100°C (2000 °F)
  • high thermal stresses caused by rapid temperature changes and large temperature gradients
  • high mechanical stresses due to high rotational speeds and large aerodynamic forces
  • low- and high-frequency vibrational loading
  • oxidation
  • corrosion
  • time- , temperature- and stress-dependent effects such as creep, stress rupture, and high- and low-cycle fatigue.
regions of the engine
Regions of the Engine
  • Cold Sections
    • Inlet/Fan
    • Compressor
    • Casing
  • Hot Sections
    • Combustor
    • Turbine/Outlet
cold section materials requirements
Cold Section Materials Requirements
  • High Strength (static, fatigue)
  • High Stiffness
  • Low Weight
  • Materials:
    • Titanium Alloys
    • Aluminum Alloys
    • Polymer Composites
    • Titanium intermetallics and composites
fiber reinforced polymer composite properties graphite kevlar
Fiber Reinforced Polymer Composite Properties - Graphite/Kevlar
  • Very high strength-weight ratios
  • Very high stiffness-weight ratio (graphite)
  • Versatility of design and manufacture
  • Specific gravity: ~1.6 (compared to 4.5 for titanium & 2.8 for aluminum)
  • Can only be used at low temperatures < 300 °C (600 °F)
titanium alloys used for critical cold section components
Titanium alloys used for critical cold section components
  • Fan disks/blade
  • Compressor disks/blades
  • Typical Alloy:Ti-6Al-4V
titanium properties
Titanium Properties
  • High strength & stiffness to weight ratios > 150 ksi, E = 18 Msi
  • Specific gravity of 4.5 ( 58 % that of steel)
  • Titanium alloys can be used up to temperatures of ~ 590 °C (1100 °F)
  • Good oxidation/corrosion resistance (also used in medical implants)
  • High strength alloys hard to work - therefore many engine components are cast
metallurgy of disks critical to achieve desired properties and to eliminate defects
Metallurgy of disks critical to achieve desired properties and to eliminate defects
  • Accident occurred JUL-19-89 at SIOUX CITY, IAAircraft: MCDONNELL DOUGLAS DC-10-10, Injuries: 111 Fatal, 47 Serious, 125 Minor, 13 Uninjured.
  • A FATIGUE CRACK ORIGINATING FROM A PREVIOUSLY UNDECTECTED METALLURGICAL DEFECT LOCATED IN A CRITICAL AREA OF THE STAGE 1 FAN DISK THAT WAS MANUFACTURED BY GENERAL ELECTRIC AIRCRAFT ENGINES. THE SUBSEQUENT CATASTROPHIC DISINTEGRATION OF THE DISK RESULTED IN THE LIBERATION OF DEBRIS IN A PATTERN OF DISTRIBUTION AND WITH ENERGY LEVELS THAT EXCEEDED THE LEVEL OF PROTECTION PROVIDED BY DESIGN FEATURES OF THE HYDRAULIC SYSTEMS THAT OPERATED THE DC-10'S FLIGHT CONTROLS.
aluminum alloys can reduce weight over titanium
Aluminum alloys can reduce weight over titanium
  • Conventional alloys have lower strength/weight ratios than Ti but more advanced alloys approach that of Ti.
  • Specific gravity: 2.8 ( 62 % that of Ti)
  • Lower cost than Ti
  • Max temp for advanced alloys: ~ 350 °C (600 °F)
  • Lower weight & rotating part inertia
titanium aluminide ti 3 al
Titanium Aluminide Ti3Al
  • An intermetallic alloy of Ti and Al
  • Extends the temperature range of Ti from 1100 °F to 1200-1300 °F
  • Suffers from embrittlement due to exposure to atmosphere at high temperature - needs to be coated.
titanium composites mmc
Titanium Composites (MMC)
  • Titanium matrix with SiC fibers
  • Decreases weight while increases strength and creep strength

TYPICAL Ti/SiC COMPOSITE

100X

hot section materials requirements
Hot Section Materials Requirements
  • High Strength(static, fatigue, creep-rupture)
  • High temperatureresistance 850 °C - 1100 °C (1600 °F - 2000 °F)
  • Corrosion/oxidation resistance
  • Low Weight
high temperatures 1100 c 2000 f
High Temperatures - 1100 °C (2000 °F)
  • Creep becomes at factor for conventional metals when the operating temperature reaches approximately 0.4 Tm (absolute melting temp.)
      • Conventional engineering metals at 1100 °C:
          • Steel ~0.9 Tm
          • Aluminum ~1.4 Tm
          • Titanium ~0.7 Tm
  • Conclusion: We need something other than conventional materials!
high temperatures 1100 c 2000 f what materials can be used
High Temperatures - 1100 °C (2000 °F)What Materials Can Be Used?
  • Unconventional metal alloys - or superalloys
  • Ceramics
superalloys
Superalloys
  • Nickel (or Cobalt) based materials
  • Can be used in load bearing applications up to 0.8Tm - this fraction is higher than for any other class of engineering alloys!
  • High strength /stiffness
  • Specific gravity ~8.8 (relatively heavy)
  • Over 50% weight of current engines
typical compositions of superalloys
Typical Compositions of Superalloys

CHEMICAL COMPOSITION, WEIGHT PERCENT

Chromium yields corrosionresistance

microstructure of a superalloy
Microstructure of a Superalloy
  • Superalloys are dispersion hardened
  • Ni3Al and Ni3Tiin a Ni matrix
  • Particles resistdislocation motion andresist growth at hightemperatures
creep rupture
Creep - Rupture
  • Strain increases over time under a static load - usually only at elevated temperatures (atoms more mobile at higher temperatures)
  • The higher energy states of the atoms at grain boundaries causes grain boundaries - particularly ones transverse to load axis - to creep at a rate faster than within grains
  • Can increase creep-rupture strength by eliminating transverse grain boundaries
controlled grain structure in turbine blades
Controlled grain structure in turbine blades:

Directionally solidified (DS)

Single Crystal (SX)

Equi-axed

performance of superalloy parts enhanced with thermal barrier coatings
Performance of superalloy parts enhanced with thermal barrier coatings
  • Thin coating - plasma sprayed
  • MCrALY coating materials
  • Increased corrosion/oxidation resistance
  • Can reduce superalloy surface temperature by up to 40 °C (~100 °F)
non metallics ceramics

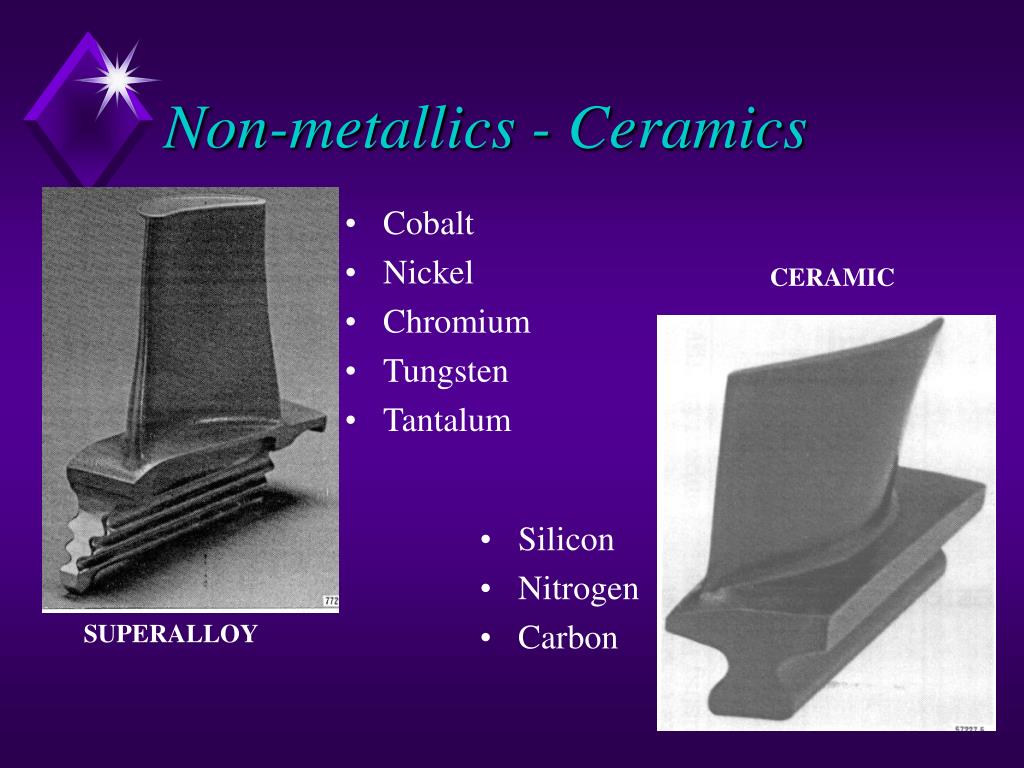

Non-metallics - Ceramics
  • Cobalt
  • Nickel
  • Chromium
  • Tungsten
  • Tantalum

CERAMIC

  • Silicon
  • Nitrogen
  • Carbon

SUPERALLOY

ceramics advantages
Ceramics - Advantages
  • Higher Temperatures
  • Lower Cost
  • Availability of Raw Materials
  • Lighter Weight
  • Materials:
    • Al2O3, Si3N4, SiC, MgO
ceramics challenges

Superalloys

Ceramics

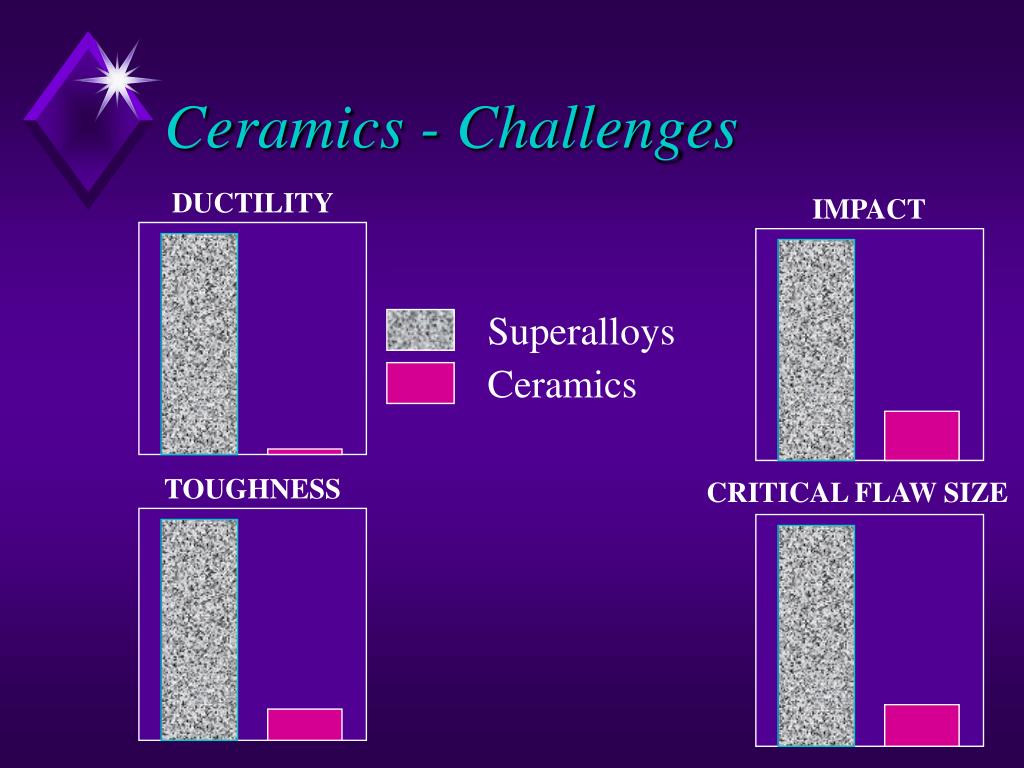

Ceramics - Challenges

DUCTILITY

IMPACT

TOUGHNESS

CRITICAL FLAW SIZE

ceramic composites
Ceramic Composites
  • Ceramic Fiber Reinforced Ceramic Matrix
  • Improve toughness
  • Improve defecttolerance
  • Fiber pre-form impregnated with powder and then hot-pressed to fuse matrix
carbon carbon composite
Carbon-Carbon composite
  • Carbon fibers in a carbon matrix
  • Has the potential for the highest temperature capability > 2000 °C (~4000 °F)
  • Must be protected from oxidation (e.g. SiC)
  • Currently used for nose-cone for space shuttle which has reentry temperatures of 1650 °C (3000 °F)
trends in turbine materials
Trends in turbine materials

TURBINE ROTOR INLET

TEMP, F

materials for f109 engine
Materials for F109 engine

F109 FAN MODULE MATERIALS

slide30

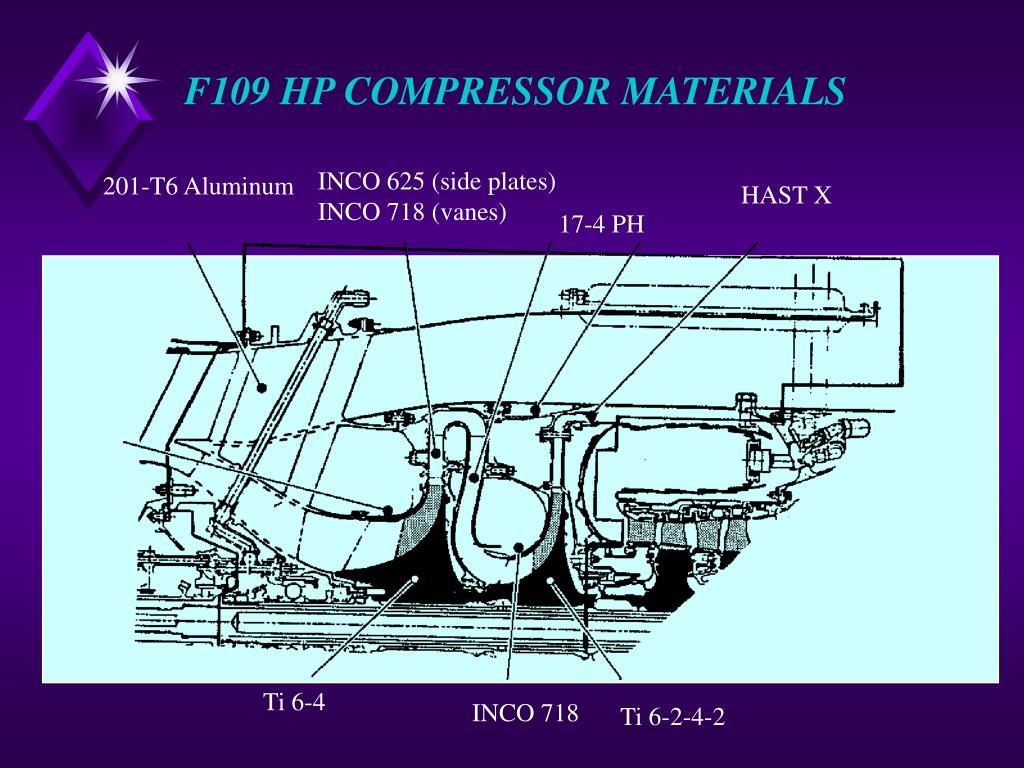

F109 HP COMPRESSOR MATERIALS

INCO 625 (side plates)

INCO 718 (vanes)

201-T6 Aluminum

HAST X

17-4 PH

Ti 6-4

INCO 718

Ti 6-2-4-2

slide31

F109 COMBUSTOR/MIDFRAME MATERIALS

HS 188

+ TBC

INCO 718

300 SS

HS 188

INCO 718

INCO 718

INCO 600

HS 188

HAST S

HAST X

slide32

F109 HP TURBINE MATERIALS

MAR-M 247

INCO 738

MAR-M 247

DS

MAR-M 247

DS

MAR-M 247

DS

HAST X

HAST S

INCO 738

HAST X

INCO 718

WASP B

slide33

F109 LP TURBINE MATERIALS

HAST X BACK WITH HAST X

0.032 CELL. HONEYCOMB

INCONEL 625

HAST X BACK WITH HAST X

0.032 CELL. HONEYCOMB

INCONEL 625

HASTELLOY X

EQUIAXED MAR-M

247 COATED WITH

RT-21

EQUIAXED MAR-M 247

EQUIAXED MAR-M 247

COATED WITH RT-21

HAST X BACK WITH

HAST X0.032 CELL.

HONEYCOMB

HAST X BACK WITH HAST X

0.032 CELL. HONEYCOMB

WASPALOY

WASPALOY

WASPALOY

WASPALOY

WASPALOY
