business agreements management registry

Business Agreements - Management & Registry

Proof of Concept Proposal

May 2005

David RR Webber

david@drrw.net

project overview
Project Overview

Introduction

  • Problem Statement
  • Proposed Solution
  • Approach

Planning

  • Solution Architecture
  • Solution Process
  • Deployment Plan
  • Participants

Supplemental Details

  • Technology Components
problem statement
Problem Statement
  • Need to formulize and manage partner agreements both inside and outside enterprise
  • Speed-up ability to integrate with partners by providing intuitive business-centric tools
  • Provide common point of reference for partners to ensure consistent operational practices
  • Facilitate re-use across enterprise by providing templates of proven solutions
  • Provide open standards-based approach that can be accessed by implementation systems
1 memorandum of understanding mou
1. Memorandum of Understanding - MoU

Proposed Solution:Triad

Business Managers

  • Meeting of the Minds
  • Business Goals
  • Define Scope
  • Rough Timeline
  • Creation / Best Practice Wizard

3. On-line Registry

Systems Administrators

  • Manage operational use
  • Provide automation access

2. Collaboration Protocol Agreements

Operations Managers

  • Precise Choreography
  • Automated
  • Messaging Parameters
  • ebMS transport
  • WSDL web services
approach
Approach
  • Needs:
    • The Business Mission Area needs a new type of Collaboration Agreement especially designed to address net-centric data sharing activities
    • The Business Mission Area also needs state-of-the-art techniques for creating and maintaining net-centricdata sharing agreements between data producers and consumers
  • Road Map:
    • Review components of existing data sharing agreement formats
    • Identify candidate data sharing agreement formats to be used
    • Identify techniques for creating and maintaining these agreements
collaboration agreement summary impact to business mission area

Mission Area

  • Combatant
  • Commanders
  • Components and Programs
  • NII
  • Policy
  • Develop Mission Area Directive establishing Collaboration Agreements (CPP/CPA Triad)
  • In accordance with the NII policies (Data Sharing Directive, etc), BMA develops local policies on architecture and implementation using CPP/CPA Triad
  • Engineering/ Technology
  • Establish requirement for data integration tools to support certain “Semantic Web” standards for CPP/CPA Triad
  • Better defines interfaces for accessing information and enables a meaning-based data integration and sharing environment
  • Portfolio Management
  • Enables portfolio resolution to interfaces to harness topology across domains in the mission area
  • Enables portfolio resolution to interfaces to harness topology across COIs in the Domain
  • Enables portfolio resolution to interfaces to harness topology among systems in purview of a COI
  • Enables portfolio resolution to interfaces to harness topology among systems in accordance with NII approach
  • Compliance
  • Add compliance process for tools and implementations to include CPP/CPA Triad & use standards.
  • Add compliance process for tools and implementations to include CPP/CPA Triad & use standards.
  • Add compliance process for tools and implementations to include CPP/CPA Triad & use standards.
  • Supports overall solution
  • Governance
  • Add governance process to ensure mission area CPP/CPA Triad meet the standards and work with the overall approach
  • Add governance process to ensure domain CPP/CPA Triad meet the standards and work with the overall approach
  • Add governance process to ensure local CPP/CPA Triad meet the standards and work with the overall approach
  • Data Objectives
  • Enable actionable data sharing across the mission area and make information available across DoD
  • Enable actionable data sharing across the Domain COIs and making information discoverable & accessible
  • Enable actionable data sharing across the Domain and making information discoverable & accessible
  • Enable data sharing across DoD, meeting the requirements and approaches of the NII-level net centric data strategy

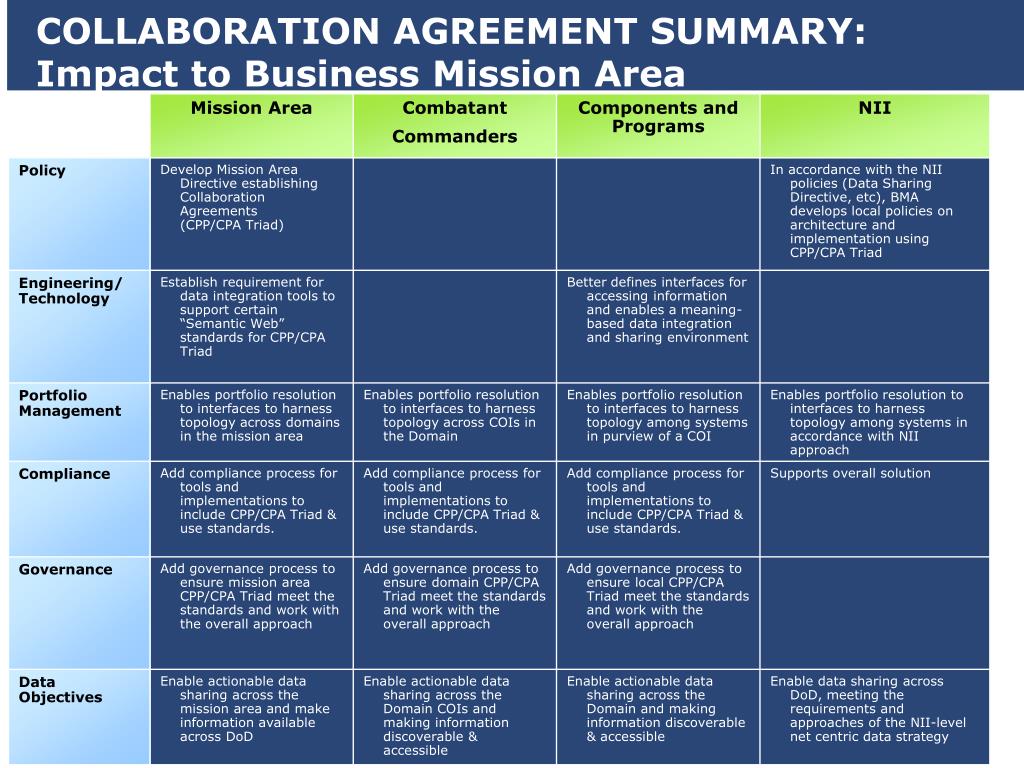

COLLABORATION AGREEMENT SUMMARY: Impact to Business Mission Area
solution planning

Solution Planning

Solution Architecture

Solution Process

Deployment Plan

Participants

netcentric solution architecture
netCentric Solution Architecture
  • Wizard
  • runtime
  • CPA Designer
  • runtime extensions – ebMS and WSDL

3

1

2

  • MoU Guide
  • Partner Interface
  • Agreement builder + review / support / completion workflow
  • Reuse
  • rationale & maps

4

  • design time
  • supports
  • ebMS exchanges and
  • Web services WSDL

CPA

with

MoU

Linking

6

XML

  • Library
  • Object templates/Components
  • Management
  • Configuration & Reports

5

  • Facets
  • Questions / Data
  • Registry
  • and digital bag store
solution process
Solution Process
  • Select domain and category of MoU from available template options
  • Interact with Wizard Guide and create new MoU
  • Proceed to CPA step; uses components from MoU
  • Complete one or more CPA entries using screens dialogue with runtime transport for ebMS / WSDL
  • Store to secure Registry catalogue (each enterprise has its own distinct domain and private entries)
  • Enterprise support staff review new submissions for accuracy and acceptance
deployment plan

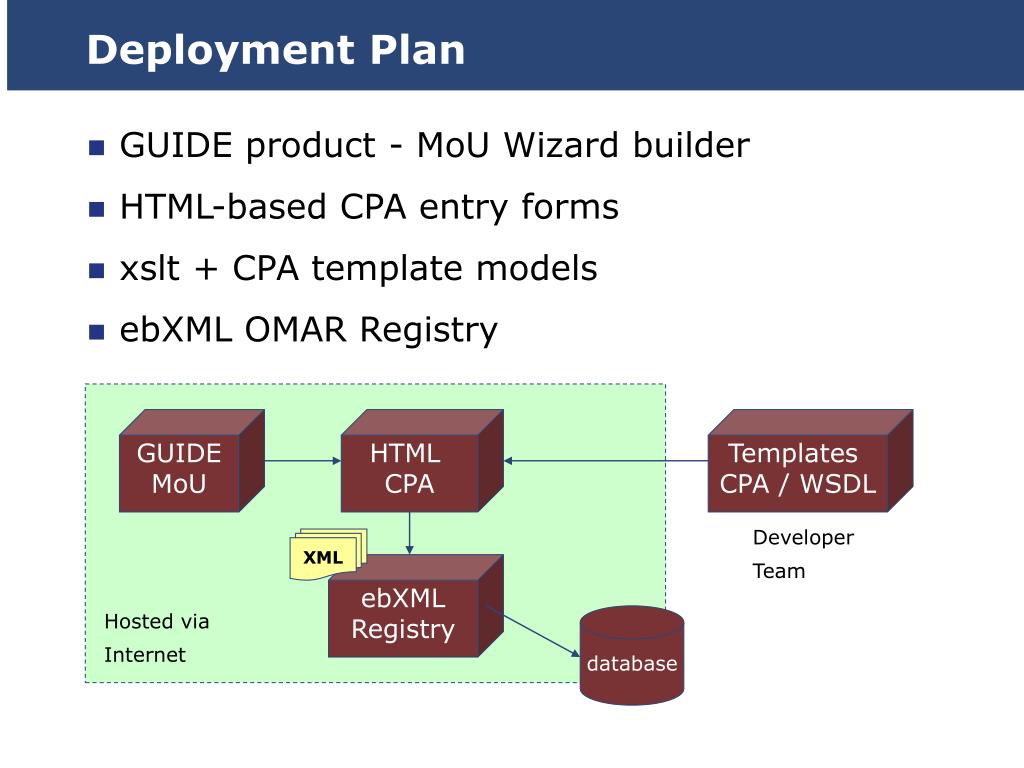

Deployment Plan
  • GUIDE product - MoU Wizard builder
  • HTML-based CPA entry forms
  • xslt + CPA template models
  • ebXML OMAR Registry

GUIDE

MoU

HTML

CPA

Templates

CPA / WSDL

Developer

Team

XML

ebXML

Registry

Hosted via

Internet

database

participants
Participants
  • Domain Participants:
  • Navy
  • DOD / DFAS
  • Consulting services:
  • eProcess Solutions (MoU design, CPA design, Webservices)
  • ebXML Registry
  • Navy supporting contractors (domain use cases, testing)
technology details

Technology Details

Components Overview

mou builder wizard
MoU Builder Wizard
  • Every MoU instance is a unique combination of common parts
  • Allow users to assemble MoU from pre-built components
  • Simplify and formulize MoU process – under configuration control
  • Dynamically configurable to match business domain and terminology
  • Use intuitive HTML web-based interfaces

Conceptual Components

Who : Stakeholders

Scope

1. Scope

This Memorandum of Understanding… entered into between… and ….

2. Objective

The purpose of this MOU is to facilitate the exchange of … data …

3. Responsibilities of Parties

3.1 Both parties agree:

3.1.1 …

3.1.2 …

3.1.4 to semantically align business concepts (preferred term, aliases and XML tag) by target date: _2005-07-22__. Reference Appendix A; Concept DefinitionsTemplate (.xls)

3.1.5 to technical exchange considerations by target date: __2005-08-04___ . Reference Appendix B; Interface Specification

Why / What

When

mou builder wizard continued
MoU Builder Wizard (continued)

Focus on the business – pick, choose, reuse from libraries to build MoU wizards

mou builder wizard continued15
MoU Builder Wizard (continued)

Guide Users step-by-step

logical information lexicon
Logical Information Lexicon

Business MoU Compendium

Where

When

Who

What

How

Why?

memorandum of understanding mou continued18

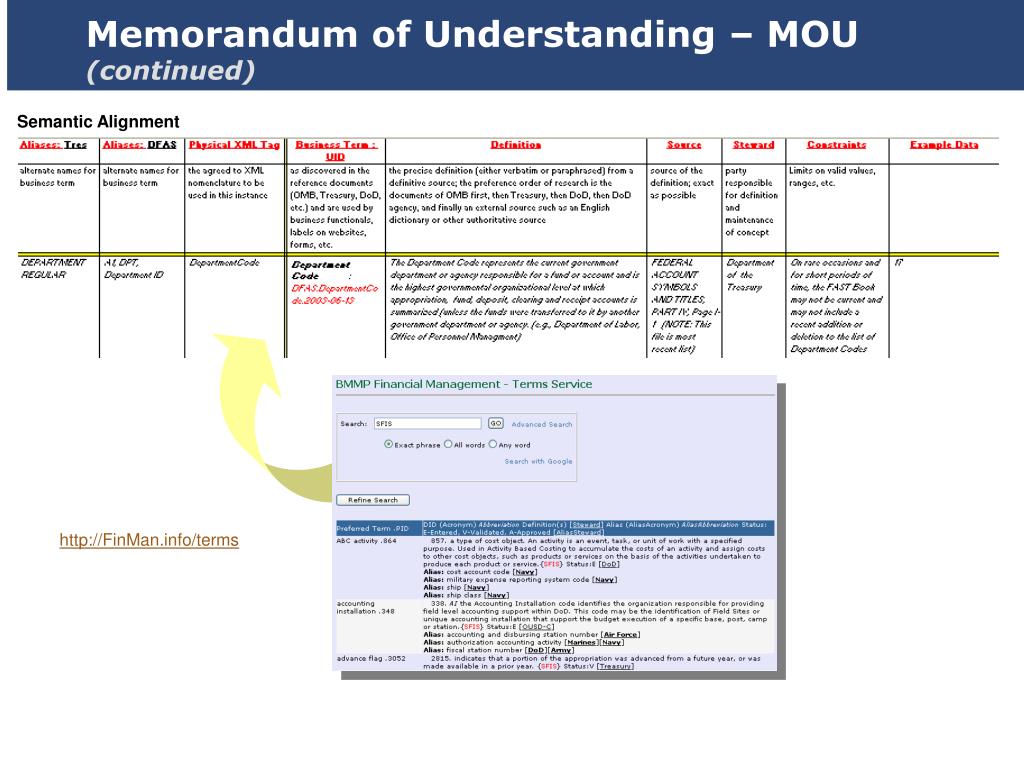

Memorandum of Understanding – MOU (continued)

Semantic Alignment

http://FinMan.info/terms

cpa structure overview

Internal

External

CPA Structure Overview

http://www.oasis-open.org/committees/download.php/253/cpa-example-2_0b.xml

collaboration agreement build steps
Collaboration Agreement Build Steps

BPSS (OV-6C-based)

Query By CAGE CODE

2

CPP

Query By Company Name

CAGE System

Messaging

Preferences

1

3

Via Web Service

Via EDI

WSDL support

4

Message Exchange Details

CPA

ebxml cpa functions
ebXML CPA Functions
  • ebXML CPA provides:
  • Service name and parameters
  • Endpoint for invocation
  • Role of an organization in the context of a service
  • Organization demographic information
  • Failure scenarios
  • Business process scenario and business transaction activity step
  • Link to partner responsibilities
  • Transaction Messages being exchanged
  • Transport level QOS parameters
  • Certificate and Encryption configuration
  • Business status of agreement
controlling versioning via cpa id

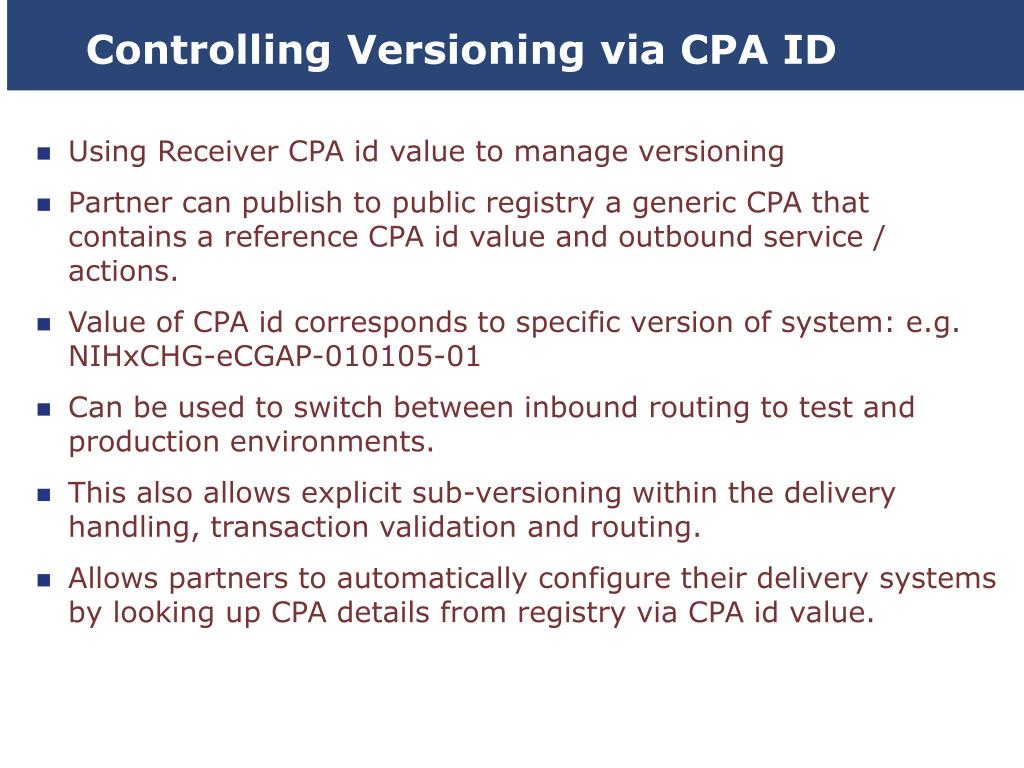

Controlling Versioning via CPA ID
  • Using Receiver CPA id value to manage versioning
  • Partner can publish to public registry a generic CPA that contains a reference CPA id value and outbound service / actions.
  • Value of CPA id corresponds to specific version of system: e.g. NIHxCHG-eCGAP-010105-01
  • Can be used to switch between inbound routing to test and production environments.
  • This also allows explicit sub-versioning within the delivery handling, transaction validation and routing.
  • Allows partners to automatically configure their delivery systems by looking up CPA details from registry via CPA id value.
what is a moa mou

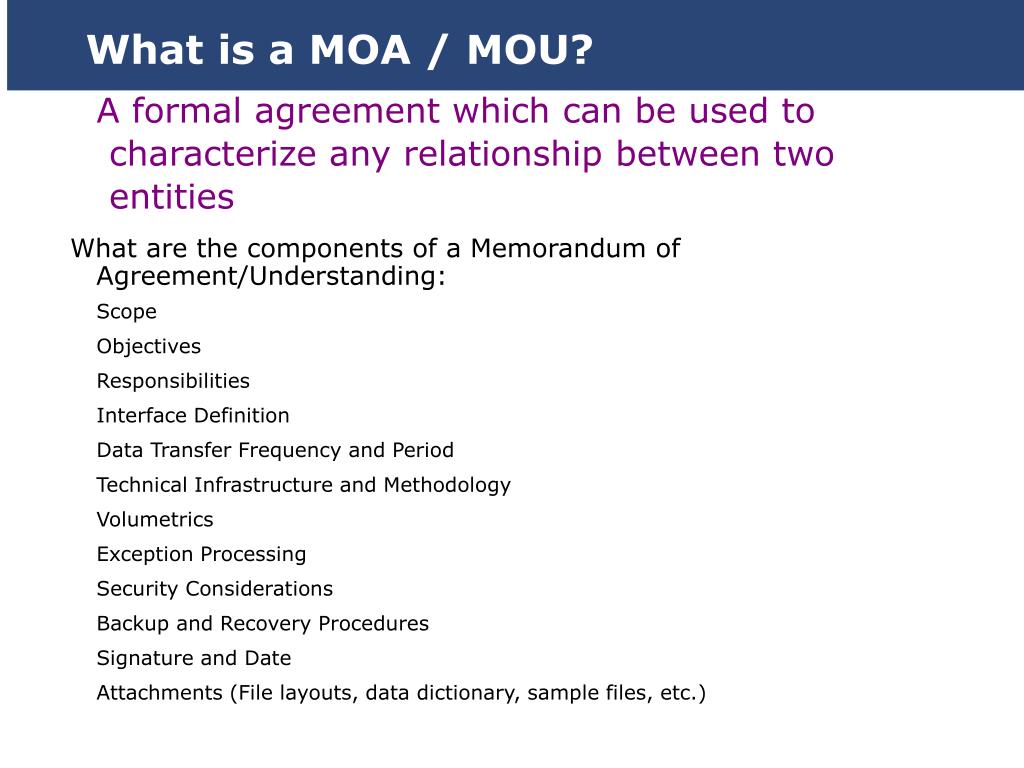

What is a MOA / MOU?
    • A formal agreement which can be used to characterize any relationship between two entities
  • What are the components of a Memorandum of Agreement/Understanding:
    • Scope
    • Objectives
    • Responsibilities
    • Interface Definition
    • Data Transfer Frequency and Period
    • Technical Infrastructure and Methodology
    • Volumetrics
    • Exception Processing
    • Security Considerations
    • Backup and Recovery Procedures
    • Signature and Date
    • Attachments (File layouts, data dictionary, sample files, etc.)
what is a trading partner service level agreement

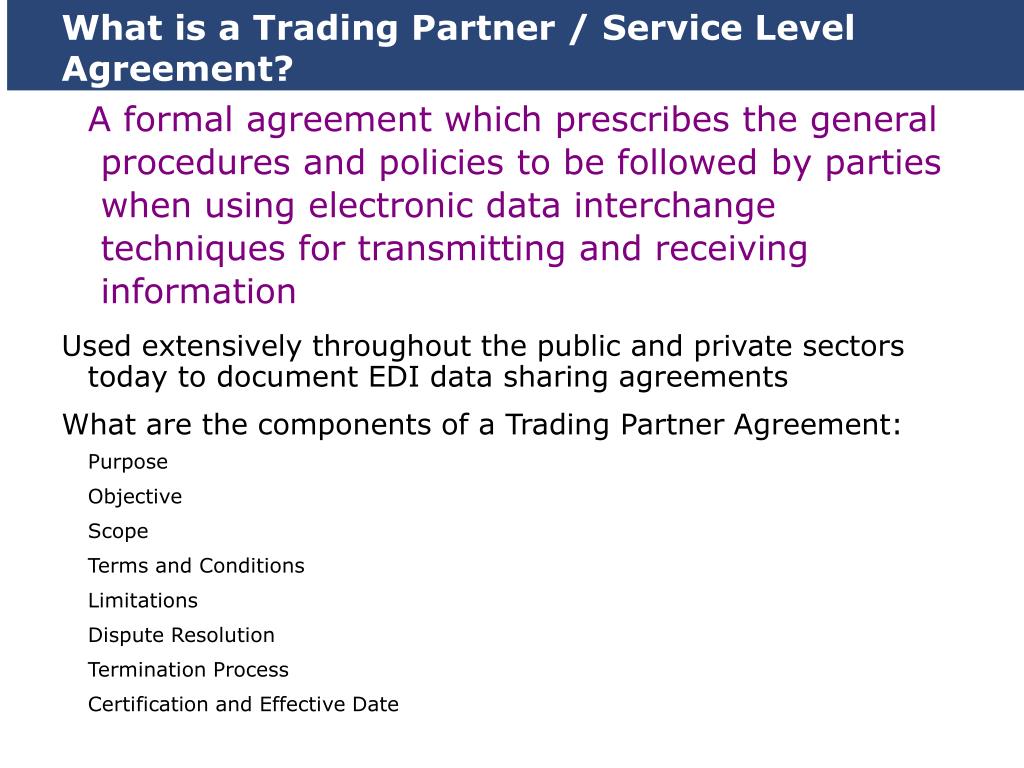

What is a Trading Partner / Service Level Agreement?
    • A formal agreement which prescribes the general procedures and policies to be followed by parties when using electronic data interchange techniques for transmitting and receiving information
  • Used extensively throughout the public and private sectors today to document EDI data sharing agreements
  • What are the components of a Trading Partner Agreement:
    • Purpose
    • Objective
    • Scope
    • Terms and Conditions
    • Limitations
    • Dispute Resolution
    • Termination Process
    • Certification and Effective Date
what is a data sharing agreement
What is a Data Sharing Agreement
    • A formal agreement which sets forth the terms and conditions governing the exchange of data between two or more parties
  • What are the components of a Data Sharing Agreement:
    • Requestor (Agency Name, Address, POC Name, POC Phone Number)
    • Data Provider (Agency Name, Address, POC Name, POC Phone Number)
    • Purpose
    • Period of Agreement
    • Justification for Access
    • Description of Data
    • Method of Access of Transfer
    • Location of Data and Custodial Responsibility
    • Disposition of Data
    • Confidentiality
    • Signatures and Effective Dates
