Presentation Transcript

  1. Class II Restorations Dr Jamal Naim Dean of the faculty of dentistry University of Palestine/Al-Zahra City

  2. Bite Wing X-ray

  3. MO, OD, MOD

  4. Restorative techniques • There are several different restorative techniques available to the clinician. • We will discuss two options. Amalgam Filling Composite Filling

  5. Gaining Access

  6. Depth

  7. Outline

  8. Proximal Caries

  9. Outline Bur # 330

  10. Caries removal • Clean DEJ and remove infected dentine. • Size of bur determined by extent of caries

  11. Proximal Box Preparation Preparation of gingival seat, buccal and lingual walls and axial wall of the proximal box

  12. Proximal Box Preparation Adjacent tooth protection with matrix band

  13. Proximal Box Preparation Extent buccal and lingual walls of proximal Box so margins lie into self cleansing areas

  14. Proximal Box Preparation • Don’t leave unsupported enamel • Gingival seat parallel to occlusal surface

  15. Proximal Box Preparation

  16. Caries removal • Line dentin with adequate base material (zinc phosphate cement or GIC)

  17. Matrix Band • Apply matrix band • Apply wedge from palatal side • Burnish contact area

  18. Review cavity The cavity must be checked for the followings before manipulation of amalgam • Adequate self-retention. • Proper resistance. • CSA 90. • No caries, debris or moisture. • Pulp is protected with cavity varnish, linear or base material depending on the cavity depth. • Proper matrix is fitted.

  19. Restoration • Transfer amalgam to cavity in increments • Start with proximal box

  20. Restoration • Condense amalgam thoroughly • Use largest possible plugger

  21. Restoration • Overfill the cavity • Separate amalgam from the matrix with a probe

  22. Restoration • Carve with half hollenbach carver • Carve from tooth to filing following the margins • Don’t over carve

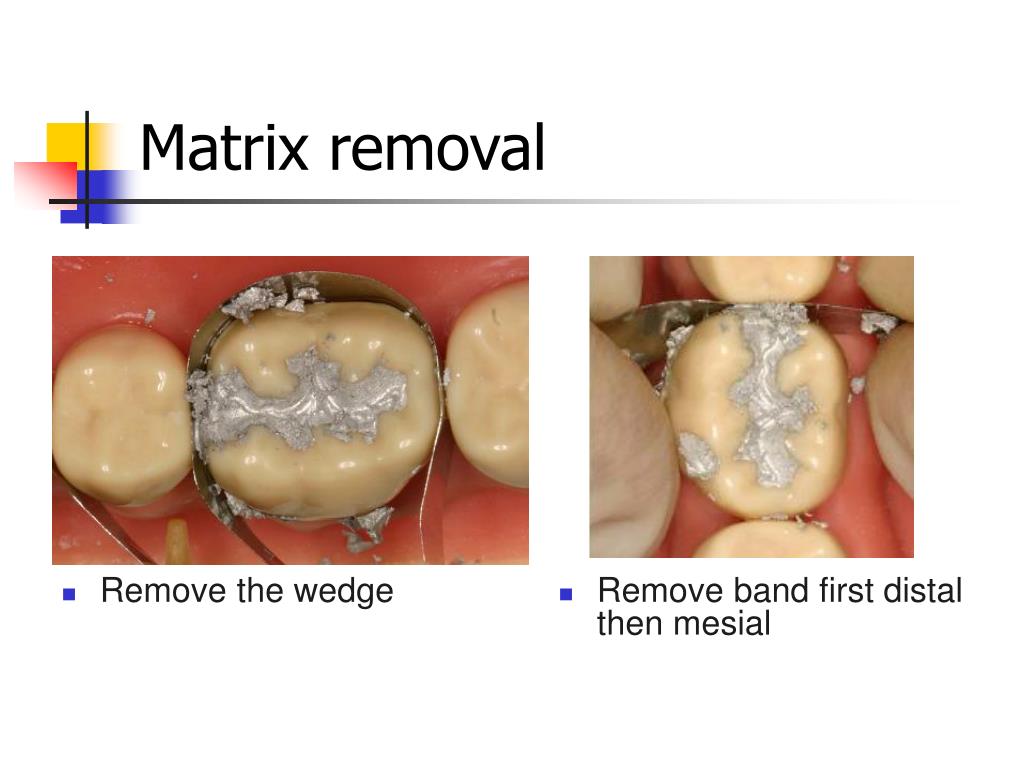

  23. Matrix removal

  24. Matrix removal • Remove the wedge • Remove band first distal then mesial

  25. The gingival margin is then checked for any over hanged margin of amalgam using sharp probe and also carving of the gingival embrasure if needed.

  26. Finishing • Complete carving • Burnish all possible areas

  27. Finishing • The patient is then instructed not to use this side for the next 24 hours to avoid cracking or fracturing of the restoration. • Also the patient should be advised to come after 24 hours for finishing and polishing of amalgam. Why? After 24 hours of carving to avoid disturbing crystallization of amalgam.

  28. Finishing and polishing Aims: 1. Removal of any premature contact, marginal flashes or marginal over hangs. 2. Provide a lustrous homogenous amalgam surface. Advantages: 1. Increases corrosion resistance. 2. Decreases bacterial plaque retention and liability to recurrent caries. 3. Minimizes gingival irritation. 4. Improves strength of amalgam, as it removes the surface irregularities that act as stress concentration areas.

  29. Finishing and polishing Technique: Finishing: • Using finishing bur in a direction from the tooth to restoration. • Using sandpaper discs for accessible surface.

  30. Finishing and polishing Technique: Polishing: • Using pumice with brush or rubber cup. • Avoid heat generation, as it will lead to attraction of Hg to the surface resulting in: a) Weakening of the surface. b) Weakening of the bulk due to the formed porosity.

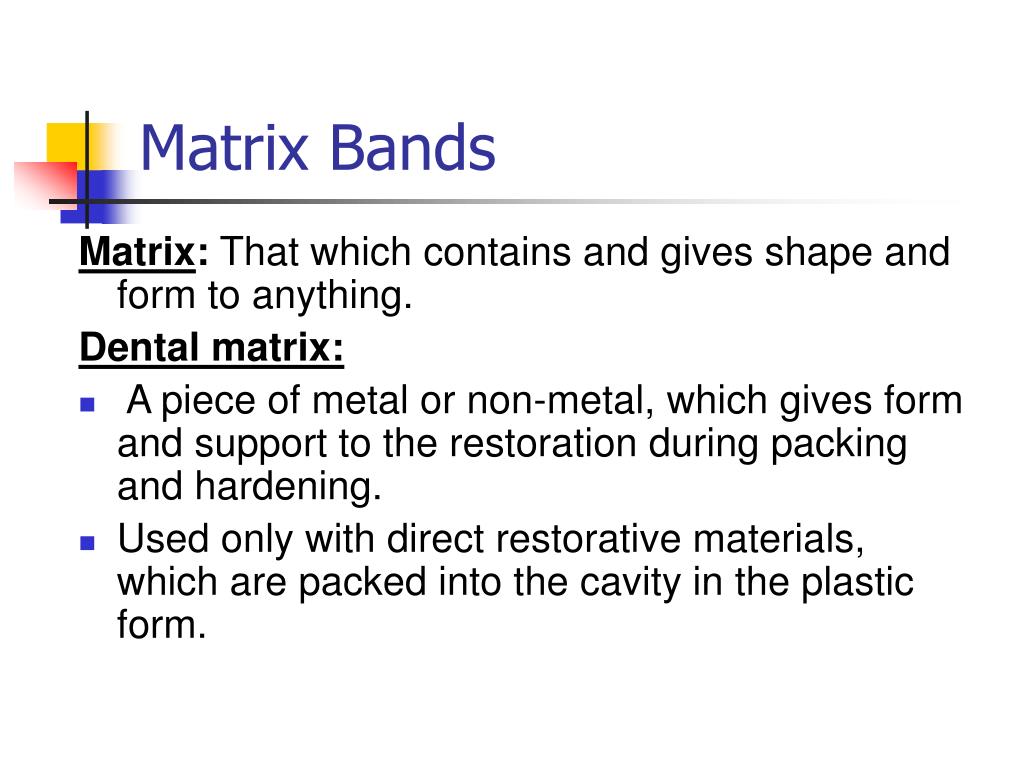

  31. Matrix Bands Matrix: That which contains and gives shape and form to anything. Dental matrix: • A piece of metal or non-metal, which gives form and support to the restoration during packing and hardening. • Used only with direct restorative materials, which are packed into the cavity in the plastic form.

  32. Matrix Bands

  33. Tofflemire Matrix band

  34. Tofflemire Matrix band

  35. Function of matrix • Serves as temporary wall or walls during condensation of plastic materials packed into compound or complex cavities. • Gives form and shape to the restoration especially in contact area. • Maintains this form of the restoration until it hardens. • Prevents gingival marginal overhangs.

  36. Wooden wedges The matrix band should be properly supported with a wedge to provide adaptation of the band on the gingival floor and prevents marginal overhangs.

  37. The cavity should be properly matriced and wedged before manipulation of amalgam.

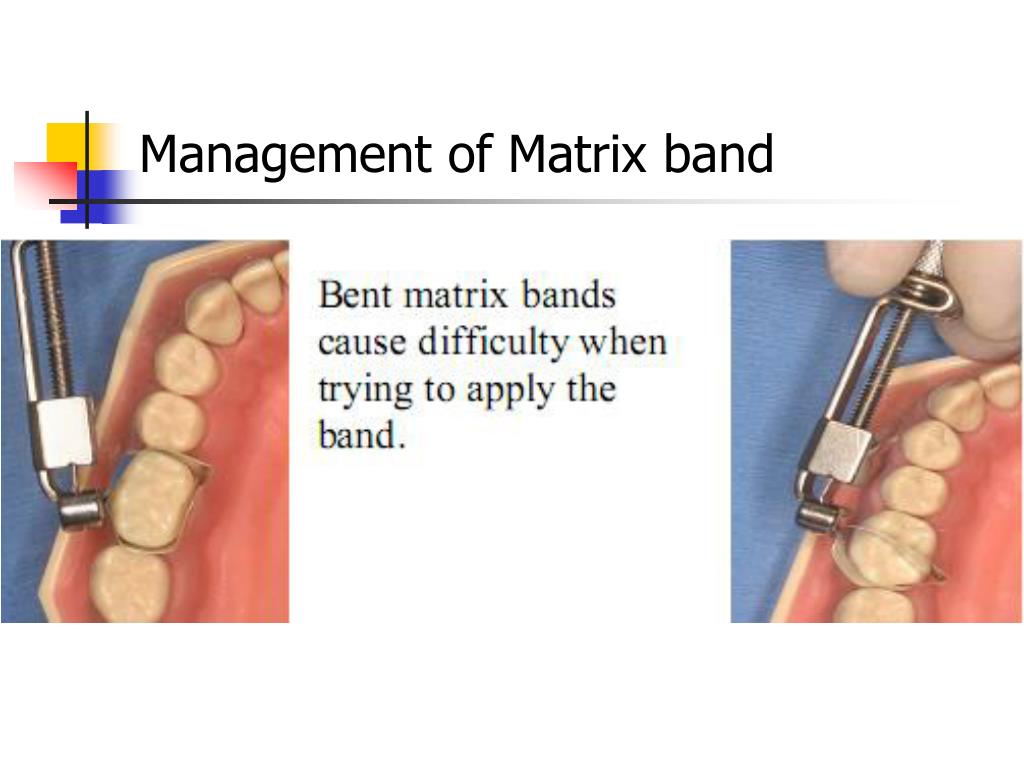

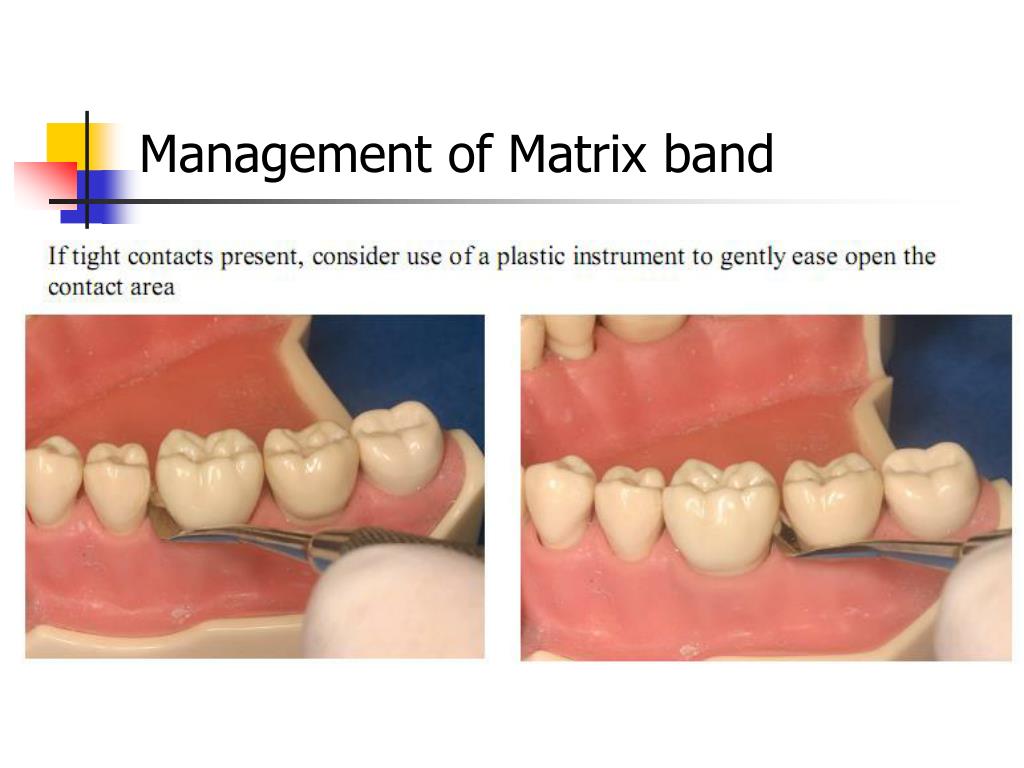

  38. Management of Matrix band

  39. Management of Matrix band

  40. Management of Matrix band

  41. Management of Matrix band

  42. Management of Matrix band

  43. Management of Matrix band

  44. Matrix band application

  45. Matrix band application

  46. Matrix band application
