Quantum Dots for Neuronal Stimulation

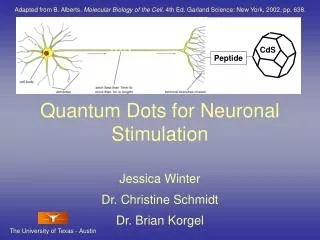

Adapted from B. Alberts. Molecular Biology of the Cell . 4th Ed. Garland Science: New York, 2002, pp. 638. CdS. Peptide. Quantum Dots for Neuronal Stimulation. Jessica Winter Dr. Christine Schmidt Dr. Brian Korgel. The University of Texas - Austin. Prosthetics. Retinal Implant.

acton-gates
Download Presentation

Quantum Dots for Neuronal Stimulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Adapted from B. Alberts. Molecular Biology of the Cell. 4th Ed. Garland Science: New York, 2002, pp. 638. CdS Peptide Quantum Dots for Neuronal Stimulation Jessica Winter Dr. Christine Schmidt Dr. Brian Korgel The University of Texas - Austin

  2. Prosthetics Retinal Implant. Boston Retinal Implant Project http://www.bostonretinalimplant.org/ Therapeutics Deep Brain Stimulator http://www.medtronic.com/ Microelectrode Arrays. P. Fromherz, et.al. PNAS, 98, p. 10457. Biosensors Electrical Stimulation of Cells

  3. Ion Channel. Adapted from www.mhhe.com/biosciesp/2001_gbla/folder_structure/ce/m3/s1 nm Cell Diameter Cell Nucleus Ion Channel Retinal/Cochlear Implant Electrode 20 μm E-Beam Lithography Nanowire Quantum Dot Cell Receptors and Electronics Nerve Cell on FET Microelectrode Array. P Fromherz. Chem Phys Chem. 2002, 3, 276 Nanocrystals (Yellow) Bound to Nerve Cell Receptors. JO Winter, TY Liu, BA Korgel, CE Schmidt. Adv Mats 13, 1673, 2001.

  4. Our Goal Exploit quatum dot – cell binding to create functional interfaces that directly interact with nerve cell receptors

  5. 5 nm Peptide HOOCH2CS SCH2COOH Core HOOCH2CS Peptide Shell Peptide SCH2COOH SCH2COOH Quantum Dots TEM of Nanoparticle. Lattice planes demonstrate crystallinity. CdS Passivated With Ligands. Ligand Passivationelectrically insulates the crystal and provides water solubility. Core-Shell Nanocrystal. The addition of a shell layer can further passivate the particle.

  6. Quantum Dot Optical Properties • Size Tunable Fluorescence • Photostability • Narrow Bandwidth Quantum Dot Photobleaching (L) and Bandwidth (R) WCW Chan, S Nie. Science 281, 2016, 1998. Quantum Dot Fluorescent Emission Wavelengths M Bruchez, Jr., AP Alivisatos, et. al. Science 281, 2013, 1998.

  7. HEAT Qdot-Cell Electrical Properties Dipole Moment Y Wang, N Herron. J Phys Chem 95:525, 1991. Light 380 nm Electron Tranfer Y Nosaka, et.al. Langmiur 11(4): 1170, 1995. e- + - Heat Transfer SR Sershen, et. al. JBMR 51: 293, 2000. Cell Quantum Dot

  8. Aqueous Biologically Compatible Easily Passivated Undesirable Surface Defects Organic Few Surface Defects High Quantum Yield Requires Ligand Exchange for Biocompatibility Step 1: Chemicals Ligand Step 2: Chemicals Vacuum Injection Port N2 Quantum Dot Synthesis

  9. Ligand:Cd Ratio pH Cd:S Ratio Size Ligand Length Size Nanocrystal Size Dependence JO Winter, N Gomez, S Gatzert, BA Korgel, CE Schmidt. Submitted, 2003

  10. Cd:S Ratio pH Ligand:Cd Ratio Ligand Length- Different pH Ligand Length PL Quantum Yield PL Quantum Yield. Quantum Yield is maximum for intermediate sized particles ~ 2 nm. JO Winter, N Gomez, S Gatzert, BA Korgel, CE Schmidt. Submitted, 2003

  11. Rapid Crystal Growth Reduced Passivation PL Quantum Yield Larger Smaller Particle Size Growth Mechanism Nanoparticle Quantum Yield As a Function of Particle Size. JO Winter, N Gomez, S Gatzert, BA Korgel, CE Schmidt. Submitted, 2003

  12. pH 11 pH 5 pH 7 20 μm Non-Specific Binding Non-Specific Binding of CdS nanocrystals synthesize at different pH values. SK-N-SH Human Neuroblastoma Cells autofluoresce blue, nanocrystal fluorescence is yellow. SK-N-SH Neuroblastoma Cells. Minimum non-specific binding occurs with the same particles that display maximum quantum yield!

  13. 10 μm 10 μm Non-Specific Binding Non-Specific Binding of CdS (Yellow) to Primary Cells. Rat Neonatal Cortical Cells in Simultaneous Phase Contrast and Fluorescence Non-Specific Binding of CdS to Primary Cells. Rat Neonatal Cortical Cells in Phase Contrast

  14. QUANTUM DOT 30 nm SECONDARY ANTIBODY ANTI-INTEGRIN ANTIBODY LIPID BILAYER Antibody Attachment to Cells. (To scale) Antibody Conjugation JO Winter, TY Liu, BA Korgel, CE Schmidt. Adv Mat 13(22): 1673, 2001

  15. B A 60 m C Quantum Dot Neuron Interfaces formed with Antibodies. SK-N-SH Neuroblastoma Cells. 30 m 30  Antibody-Directed Binding Absorbance data from antibody-qdot complexes. Complexes (dashed) demonstrate both antibody (squares) and qdot peaks (solid). JO Winter, TY Liu, BA Korgel, CE Schmidt. Adv Mat 13(22): 1673, 2001

  16. Cysteine - C QUANTUM DOT 3 nm C G G G G D R S RGDS PEPTIDE INTEGRIN RECEPTOR LIPID BILAYER Peptide Attachment to Cells. Peptide Conjugation GGG- Glycine-Glycine-Glycine Hydrogen R Group, Reduces Steric Hindrance RGDS- Arginine-Glycine-Aspartic Acid- Serine Binds Cell Surface Receptors: Integrins JO Winter, TY Liu, BA Korgel, CE Schmidt. Adv Mat 13(22): 1673, 2001

  17. 20 μm Peptide Directed Binding Absorbance and PL Emission of MAA (Black) and MAA-Peptide (Red) Conjugated Nanocrystals. FTIR Spectra of Free Peptide (Black) and Peptide Conjugated Nanocrystals (Red). Peptide Directed Nanocrystal Labeling. SK-N-SH Neuroblastoma Cells

  18. Microelectrode Array SEM of De-Insulated Electrode (White). PMMA (gray) supports cell growth on Silicon (white) as seen in SEM. SK-N-SH Neuroblastoma Cells.

  19. Oscilloscope Microscope Laser Micropositioner Preamplifier Computer Microelectrodes Cell Whole-cell Clamping System. Whole-cell Clamping

  20. “Traditional” neuronal ion channels not expressed Resting membrane potential is abnormal Require large input of voltage to produce steps Die within a few minutes K+ Channels Open Computer Induced Voltage Steps Unlabeled (control) Voltage-Step of Cell Electrophysiology of Cultured Cells

  21. 15 μm 15 μm 15 μm 100 μm Phase contrast and fluorescence images of labeled cells. Phase contrast and fluorescence images of labeled cell. Cultured vs. Primary Neurons Cultured Neurons SK-N-SH Neuroblastoma Primary Neurons Rat Neonatal Cortical

  22. Increasing Cell Viability • Labeling Procedure • Solvents (PBS, aCSF) • Washing and Adhesion • Coatings • Inorganic Caps (ZnS, silica) • Biological Agents (BSA, polylysine)

  23. 80 μm 80 μm Labeling Procedure Old Method New Method

  24. Future Work • Examine biocompatible qdot coatings – BSA and PEG • Continue alternative binding approaches – con A • Organic Quantum Dots – CdTe • Alternative presentations of qdots – SAMs

  25. Conclusions • Nanocrystal synthesis conditions alter spectroscopic properties • Antibodies and peptides may be conjugated to nanocrystals for targeted cell binding • Unprotected quantum dots may be toxic to cells, especially primary cell lines

  26. Prosthetics Retinal Implant. Boston Retinal Implant Project http://www.bostonretinalimplant.org/ Therapeutics Deep Brain Stimulator http://www.medtronic.com/ Microelectrode Arrays. P. Fromherz, et.al. PNAS, 98, p. 10457. Biosensors Electrical Stimulation of Cells

  27. Acknowledgements Personal Funding NSF IGERT Fellowship NSF Graduate Research Fellowship Collaborators Dr. Richard Morrisett Dr. Adam Hendricson Graduate Students Natalia Gomez Felice Shieh Project Funding Texas Higher Education Coordinating Board (ARP) NSF DARPA Undergraduates Tim Liu Sam Gatzert Sheila Chin Facilities Center for Nano and Molecular Materials (Welch Foundation) Texas Materials Institute Advisors Dr. Christine Schmidt Dr. Brian Korgel

  28. Ion Channels Voltage Gated Ion Channel Activation. A depolarization of the membrane surfaces attracts charged segments of the ion channel protein, opening the pore. H Lodish, A Berk, SL Zipursky, P Matsudaira, D Baltimore, JE Darnell. Molecular Cell Biology. W. H. Freeman & Co., New York: 2000, Figure 21-13.

  29. r Dipole Moment CdSe dipole moment ~ 32 Debye Alivisatos, et. al. J Phys Chem 97:730, 1992. http://hyperphysics.phy-astr.gsu.edu/hbase/electric/dipole.html Nanoparticle Dipole Interaction with Ion Channels. The dipole moment produced by particle optical excitation may be strong enough to elicit a membrane voltage potential change.

  30. - - - - + - - - + + + + + - - - - + + + + + Debye Screening Debye Screening of the Dipole-Induced Electric Field. The electric field is screened by ions in solution, reducing the effective dipole moment.

  31. 10 mm x 10 mm Silicon Chip 2 X 1 mm 30 um 35 um 2 X 2 mm 5 x 5 um Electrode Bond Pad Bond Pad Insulated by PMMA Gold Bond Pad Microelectrode Array Design
