Characteristics and Applications of Common Materials for Connectors

The choice of insulating materials used for connectors varies greatly depending on the environment and application. If you need custom connectors, do you know how to choose the most suitable material? The following information will briefly introduce you to the characteristics and applications of several insulating materials that are commonly used for connectors. I aim to provide you with the assistance needed in choosing the right product.

ackconnector
Download Presentation

Characteristics and Applications of Common Materials for Connectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

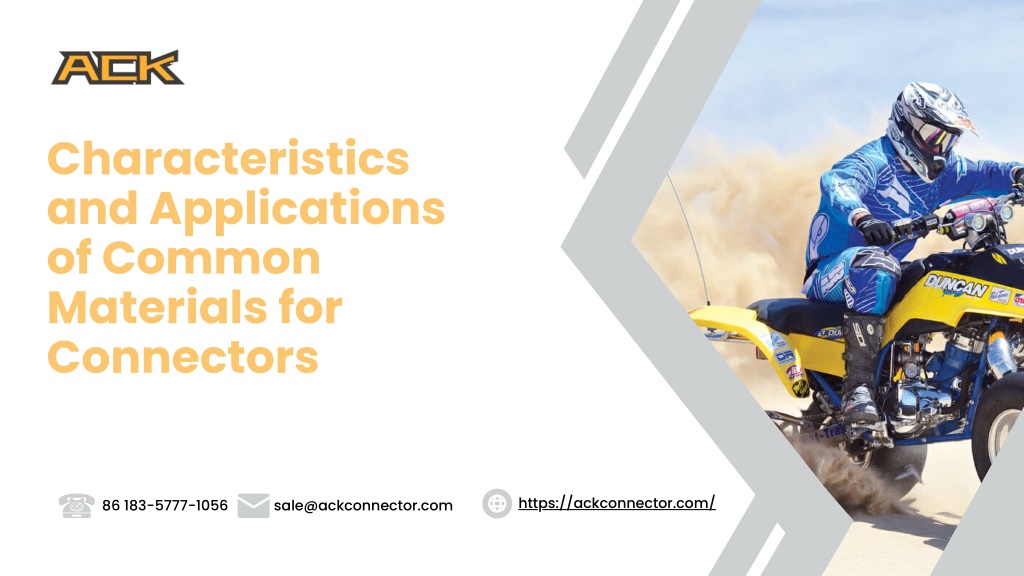

  1. Characteristics and Applications of Common Materials for Connectors https://ackconnector.com/ 86 183-5777-1056 sale@ackconnector.com

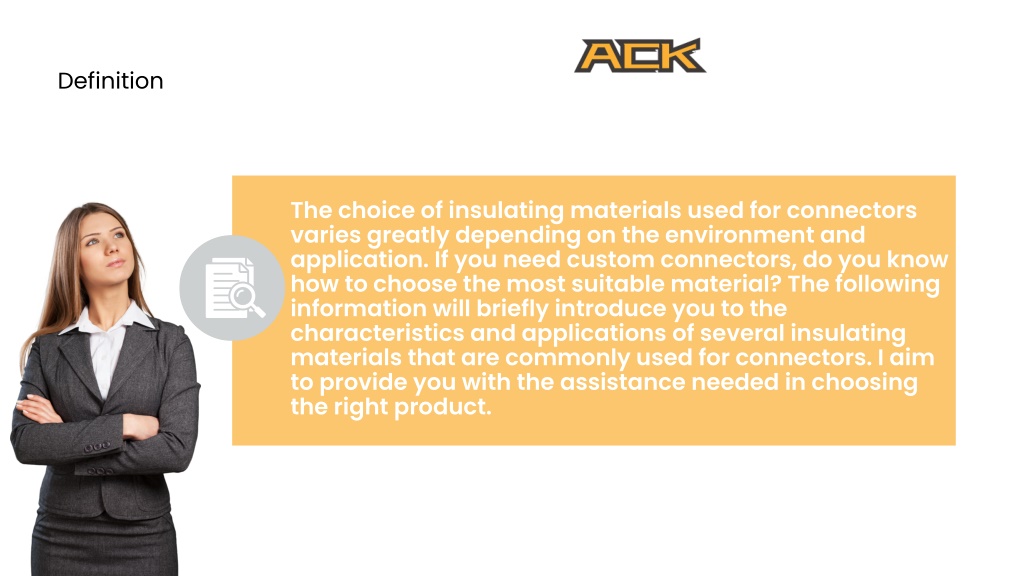

  2. Definition The choice of insulating materials used for connectors varies greatly depending on the environment and application. If you need custom connectors, do you know how to choose the most suitable material? The following information will briefly introduce you to the characteristics and applications of several insulating materials that are commonly used for connectors. I aim to provide you with the assistance needed in choosing the right product.

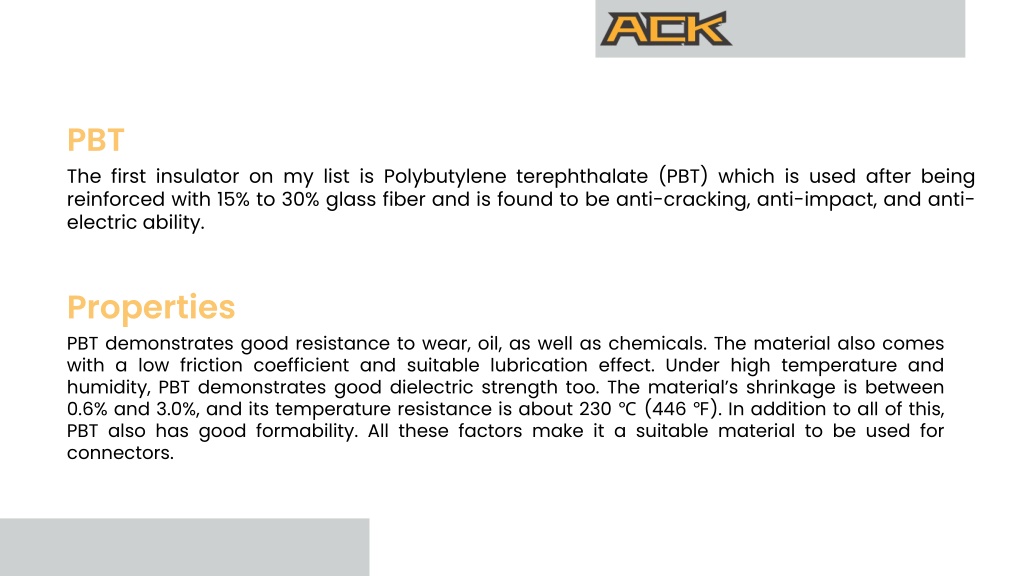

  3. PBT The first insulator on my list is Polybutylene terephthalate (PBT) which is used after being reinforced with 15% to 30% glass fiber and is found to be anti-cracking, anti-impact, and anti- electric ability. Properties PBT demonstrates good resistance to wear, oil, as well as chemicals. The material also comes with a low friction coefficient and suitable lubrication effect. Under high temperature and humidity, PBT demonstrates good dielectric strength too. The material’s shrinkage is between 0.6% and 3.0%, and its temperature resistance is about 230 ℃ (446 ℉). In addition to all of this, PBT also has good formability. All these factors make it a suitable material to be used for connectors.

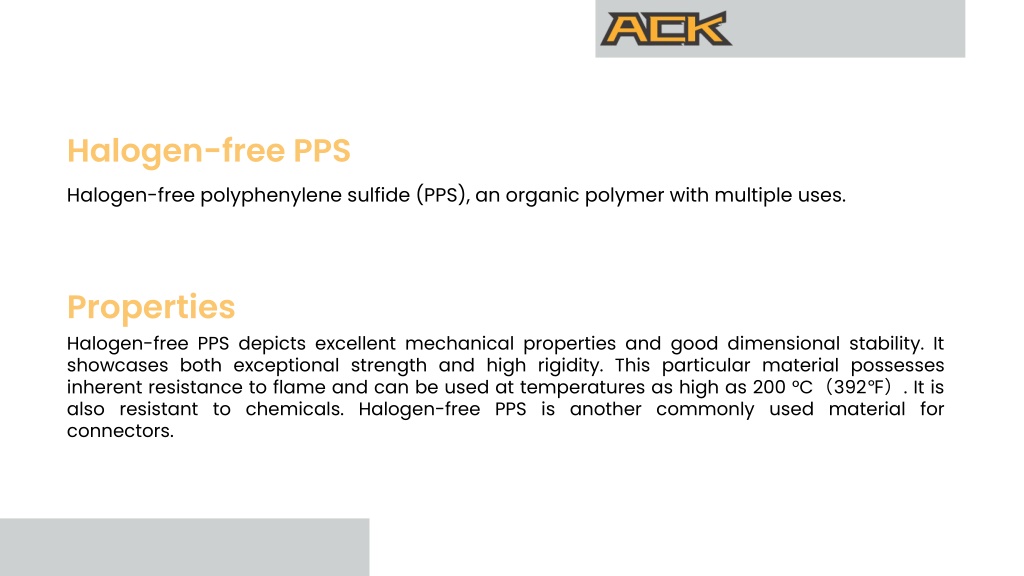

  4. Halogen-free PPS Halogen-free polyphenylene sulfide (PPS), an organic polymer with multiple uses. Properties Halogen-free PPS depicts excellent mechanical properties and good dimensional stability. It showcases both exceptional strength and high rigidity. This particular material possesses inherent resistance to flame and can be used at temperatures as high as 200 °C（392℉）. It is also resistant to chemicals. Halogen-free PPS is another commonly used material for connectors.

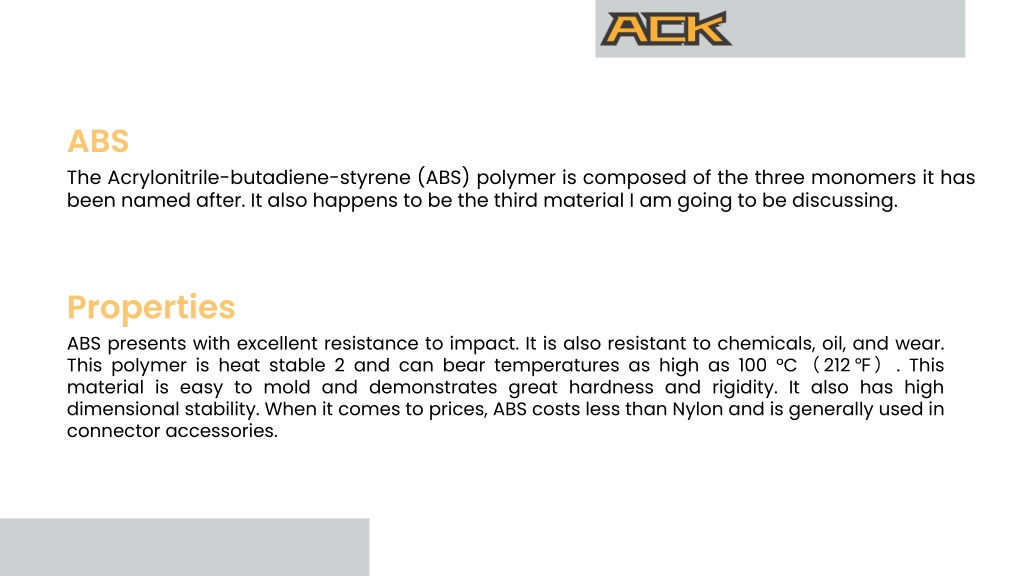

  5. ABS The Acrylonitrile-butadiene-styrene (ABS) polymer is composed of the three monomers it has been named after. It also happens to be the third material I am going to be discussing. Properties ABS presents with excellent resistance to impact. It is also resistant to chemicals, oil, and wear. This polymer is heat stable 2 and can bear temperatures as high as 100 °C （ 212 ℉ ） . This material is easy to mold and demonstrates great hardness and rigidity. It also has high dimensional stability. When it comes to prices, ABS costs less than Nylon and is generally used in connector accessories.

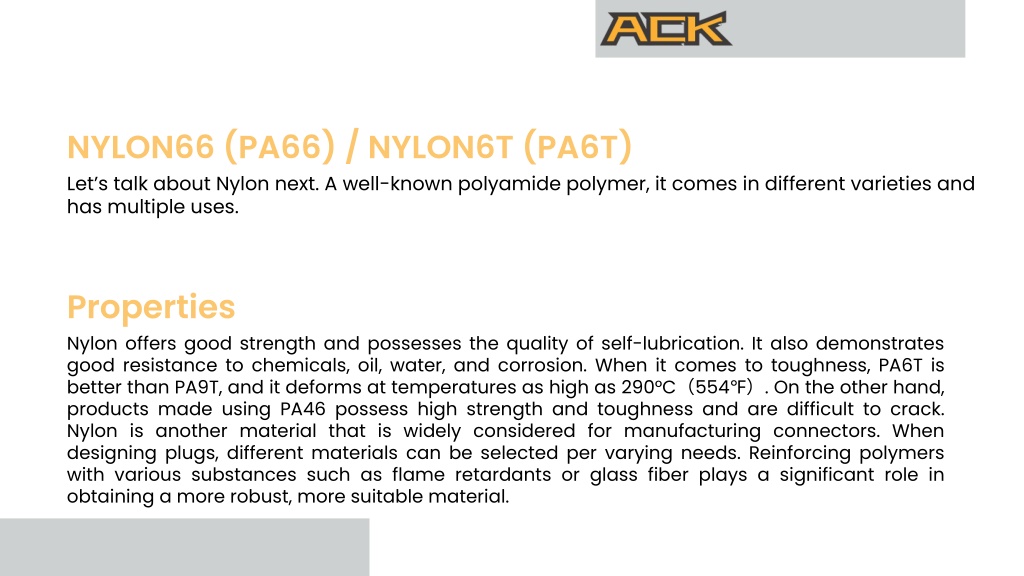

  6. NYLON66 (PA66) / NYLON6T (PA6T) Let’s talk about Nylon next. A well-known polyamide polymer, it comes in different varieties and has multiple uses. Properties Nylon offers good strength and possesses the quality of self-lubrication. It also demonstrates good resistance to chemicals, oil, water, and corrosion. When it comes to toughness, PA6T is better than PA9T, and it deforms at temperatures as high as 290°C（554℉）. On the other hand, products made using PA46 possess high strength and toughness and are difficult to crack. Nylon is another material that is widely considered for manufacturing connectors. When designing plugs, different materials can be selected per varying needs. Reinforcing polymers with various substances such as flame retardants or glass fiber plays a significant role in obtaining a more robust, more suitable material.

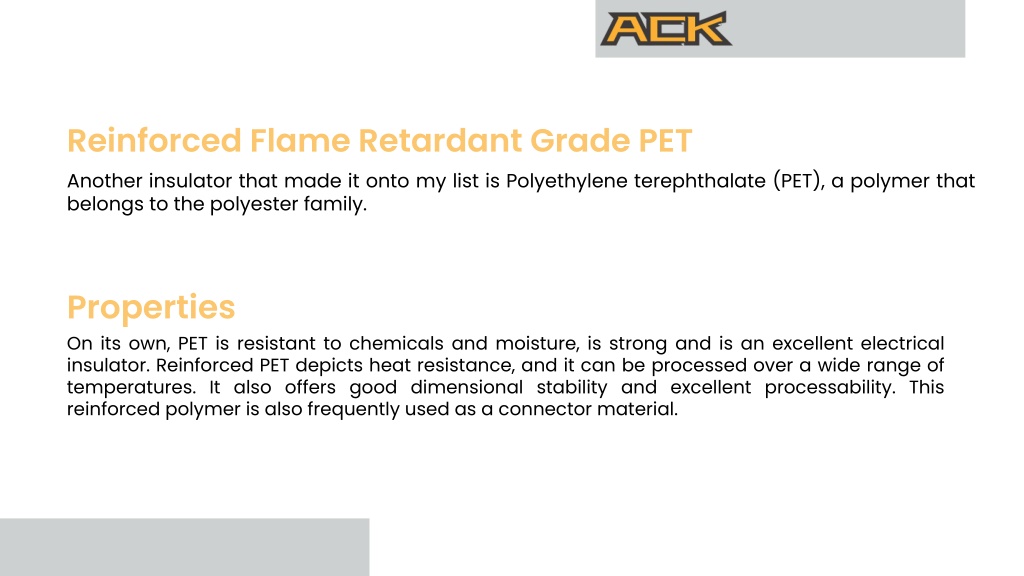

  7. Reinforced Flame Retardant Grade PET Another insulator that made it onto my list is Polyethylene terephthalate (PET), a polymer that belongs to the polyester family. Properties On its own, PET is resistant to chemicals and moisture, is strong and is an excellent electrical insulator. Reinforced PET depicts heat resistance, and it can be processed over a wide range of temperatures. It also offers good dimensional stability and excellent processability. This reinforced polymer is also frequently used as a connector material.

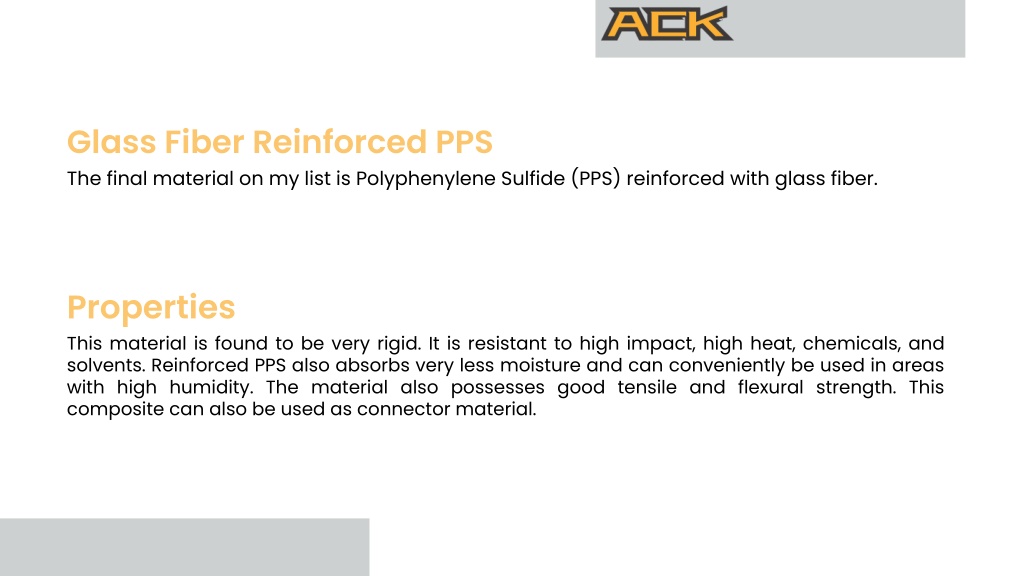

  8. Glass Fiber Reinforced PPS The final material on my list is Polyphenylene Sulfide (PPS) reinforced with glass fiber. Properties This material is found to be very rigid. It is resistant to high impact, high heat, chemicals, and solvents. Reinforced PPS also absorbs very less moisture and can conveniently be used in areas with high humidity. The material also possesses good tensile and flexural strength. This composite can also be used as connector material.

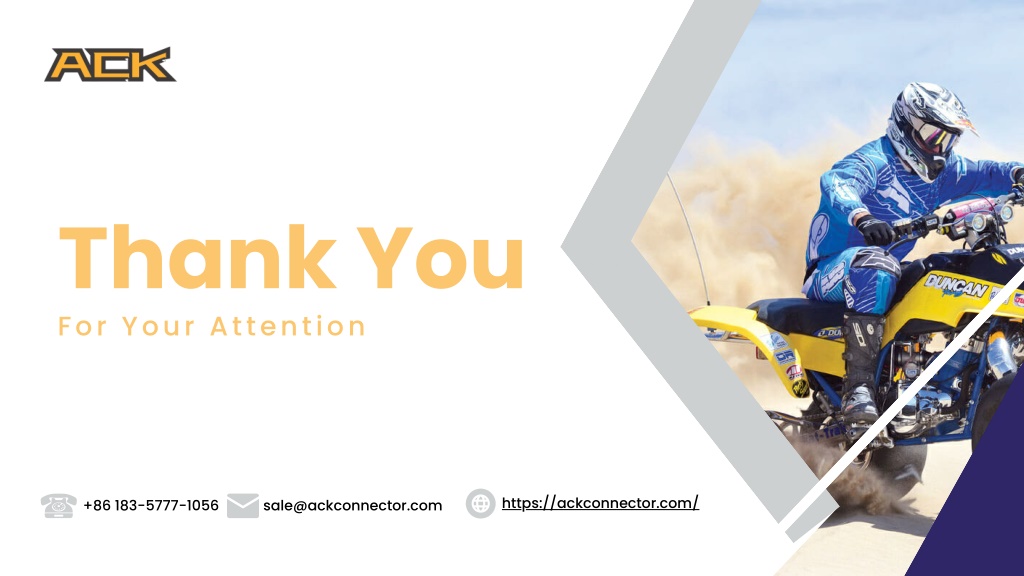

  9. Thank You For Your Attention https://ackconnector.com/ +86 183-5777-1056 sale@ackconnector.com
