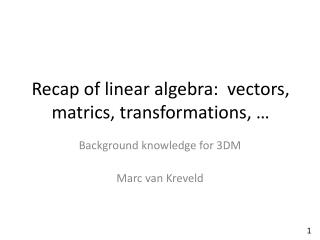

Recap of linear algebra: vectors, matrics, transformations, …. Background knowledge for 3DM Marc van Kreveld. Vectors, points. A vector is an ordered pair, triple, … of (real) numbers, often written as a column

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Recap of linear algebra: vectors, matrics, transformations, …' - abril

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
recap of linear algebra vectors matrics transformations

Recap of linear algebra: vectors, matrics, transformations,

Background knowledge for 3DM

Marc van Kreveld

vectors points
Vectors, points
  • A vector is an ordered pair, triple, … of (real) numbers, often written as a column
  • A vector (3, 4) can be interpreted as the point with x-coordinate 3 and y-coordinate 4, so (3, 4) as well
  • A vector like (2, 1, –4) can be interpreted as a point in 3-dimensional space

Three times the vector (3, 2), and the point (3, 2)

vector addition
Vector addition
  • Two vectors of the same dimensionality can be added; just add the corresponding components: (a,b) + (c,d) = (a+c, b+d)
  • The result is a vector of the same dimensionality
  • Geometric interpretation: place one arrow’s start at the end of the other, and take the resulting arrow

purple + purple = blue

scalars vectors multiplication
Scalars, vectors, multiplication
  • A value is also called a scalar
  • We can multiply a scalar k with a vector (a, b); this is defined to be the vector (ka, kb)
  • Geometric interpretation where a vector is an arrow:
    • k = – 1 : reverse the direction of an arrow
    • k = 2 : double the length of an arrow; same as adding a vector to itself
vector multiplication
Vector multiplication
  • One type of vector multiplication is called the dotproduct, it yields a scalar (a value)
  • Example: (a, b, c)  (d, e, f) = ad + be + ef
  • It works in all dimensions
  • The dot product rule/equality for vectors u and v:u v = |u||v| cos 
  • Perpendicular vectors have a dot product 0
vector multiplication1
Vector multiplication
  • Another type of multiplication is the cross product, denoted by 
  • It applies only to two vectors in 3D and yields a vector in 3D
    • the result is normal to the input vectors
    • if the input vectors are parallel, we get the null vector (0, 0, 0)
vector multiplication2
Vector multiplication
  • The length of the result vector of the cross product is related to the lengths of the input vectors and their angle|a  b| = |a||b| sin In words: the length of the result a  b is the area of the parallelogram with a and bas sides
  • Other terms of importance:
    • linear independence
    • spanning a (sub)space
    • basis
    • orthogonal basis
    • orthonormal basis
  • Matrices are grids of values; an m-by-n (mn) matrix consists of m rows and n columns
  • An mn matrix represents a linear transformation from m-space to n-space, but it could represent many other things
  • A linear transformation:
    • maps any point/vector to exactly one point/vector
    • maps the origin/null vector to the origin/null vector
    • preserves straightness: mapping a line segment (its points) yields a line segment (its points), which can degenerate to a single pointExample:

point or vector


mirror in y-axis

shear the x-coordinate


scale x and y by 1.5

rotate by  = /6 radians

  • Matrix addition: entry-wise
  • Multiplication with scalar: entry-wise
  • Multiplication of two matrices A and B:
    • #columns of A must match #rows of B
    • not commutative
    • AB represents the lineartransformation whereB is applied first and Ais applied second
  • Other terms of importance:
    • identity matrix
    • rank of a matrix
    • determinant: converts a square matrix to a scalarGeometric interpretation: tells something about the area/volume enlargement (2D/3D) of a matrixDet = 2 (in 2D): a transformed triangle has twice the areaDet = 0: the transformation is a projection
    • matrix inversion: represents the transformation that is the reverse of what the matrix did
    • Gaussian elimination: process (algorithm) that allows us to invert a matrix, or solve a set of linear equations
translations and matrices
Translations and matrices
  • A 3x3 matrix can represent any linear transformation from 3-space to 3-space, but no other transformation
  • The most important missing transformation is translation (which never maps the origin to the origin so it cannot be a linear transformation)
homogeneous coordinates
Homogeneous coordinates
  • Combinations of linear transformations and translations (one applied after the other) are called affine transformations
  • Using homogeneous coordinates, we can use a 4x4 matrix to represent all 3-dim affine transformations (generally: (d+1)x(d+1) matrix for d-dim affine tr.) the homogeneous coordinates of the point (a, b, c) are simply (a, b, c, 1)
homogeneous coordinates1
Homogeneous coordinates
  • The matrix for translation by the vector (a, b, c) using homogeneous coordinates is:Just apply this matrix to the origin = (0, 0, 0, 1) and see where it ends up: (a, b, c, 1)
vectors of points
Vectors of points
  • It is possible to define and use vectors of points:( (a, b), (c, d), (e,f) ) instead of vectors of scalars
  • We can add two of these because vector addition is naturally defined
  • We can also multiply such a thing by a scalar( (a, b), (c, d), (e,f) ) + ( (g, h), (i, j), (k,l) ) = ( (a, b)+(g, h), (c, d)+(i, j), (e,f)+(k,l) ) =( (a+g, b+h), (c+i, d+j), (e+k, f+l) ) 3 ( (a, b), (c, d), (e,f) ) = ( 3(a, b), 3(c, d), 3(e,f) ) = ( (3a, 3b), (3c, 3d), (3e, 3f) )
vectors of points1
Vectors of points
  • We can not add such a thing and a normal 3D vector because we cannot add a scalar and a vector/point( (a, b), (c, d), (e,f) ) + ( g, h, i ) = undefined
vectors of points2
Vectors of points
  • We can even apply (scalar) matrices to these things:

This works be cause we know how to add points and multiply scalars and points

  • Let S be the collection of all strings. Define
    • addition of two strings as their concatenation
    • multiplication of a string with a nonnegative integer by repeating the string as often as the value of the integer
