Presentation Transcript

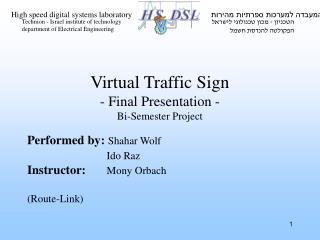

slide1

Technion - Israel institute of technology

department of Electrical Engineering

הטכניון - מכון טכנולוגי לישראלהפקולטה להנדסת חשמל

Virtual Traffic Sign

- Final Presentation -

Bi-Semester Project

Performed by: Shahar Wolf

Ido Raz

Instructor: Mony Orbach

(Route-Link)

motivation
Motivation
  • One of the causes for traffic accidents is the driver’s alert of the road.
  • In order to raise the driver’s attention to risky situations in the road there’s a need for a system that will alert the driver in the necessary cases.
the idea
The Idea

Car position received through GPS

Signs data received through GSM network

Vehicle Coordinates

Enter Alert Zone ?

Sign Coordinates

Enter Safe Profile ?

the idea cont
The Idea (cont.)
  • Receive local area driving profile

(traffic signs, maximum speed etc.)

from local GSM network, and the

car’s coordinates from GPS module.

  • When driving according to the local

profile - the system should keep silent!

the idea cont1
The Idea (cont.)
  • When deviating from the local

profile (for example: approaching too

fast to a stop sign) - the system should

alert the driver accordingly!

project goal
Project Goal
  • Design and Implement a controller for virtual traffic signs alert system, that will:
      • Manage data from GSM and GPS modules.
      • Cross-analyze and integrate the GPS data and the traffic data from the GSM, according to known profiles.
      • Send appropriate real time feedback to driver (if necessary).
system requirements
System Requirements
  • Controller with processing abilities.
  • High frequency in order to support real time functionality.
  • At least two serial ports for communication with the GSM and GPS modules.
  • Low power consumption.
  • Debug capabilities.
project progress
Project Progress
  • Semester A :
    • Study the design and development environment
    • Design the interface between the controller and the g18 card
    • Build GSM/GPS drivers
    • Simulate small test-case
  • Semester B:
    • Design the Virtual traffic signs application and algorithm
    • Debug and simulate final system functionality
    • Evaluation of system performance
system general view
System General View
  • Texas Instruments TMS320F2812 ezDSP controller (150MHz).
  • Motorola g18 integrated GSM/GPS card.
  • Development Enviornment:
      • Code Composer Studio 2
block diagram

DSP

Block Diagram

g18 evaluation board

eZdSP

GSM

F2812

SCIA

DRX

DTX

HOST PC

Code Composer Studio

UART

SCIB

DRX

DTX

JTAG

GPS

On-board 1MB

External memory

layers and modules description
Layers and Modules Description
  • Search and manage Database
  • Analyze data according to known profiles
  • Send feedback to driver

Application

  • GPS Module:
  • Communication functions
  • Get data: location, velocity
  • GSM Module:
  • Communication functions
  • Request/get traffic data

Interface/Drivers

Physical Layer

GPS

GSM

simulation block diagram

DSP

Simulation Block Diagram

g18 evaluation board

eZdSP

GSM

F2812

SCIA

DRX

DTX

HOST PC

Code Composer Studio

JTAG

UART

SCIB

DRX

DTX

GPS

On-board 1MB

External memory

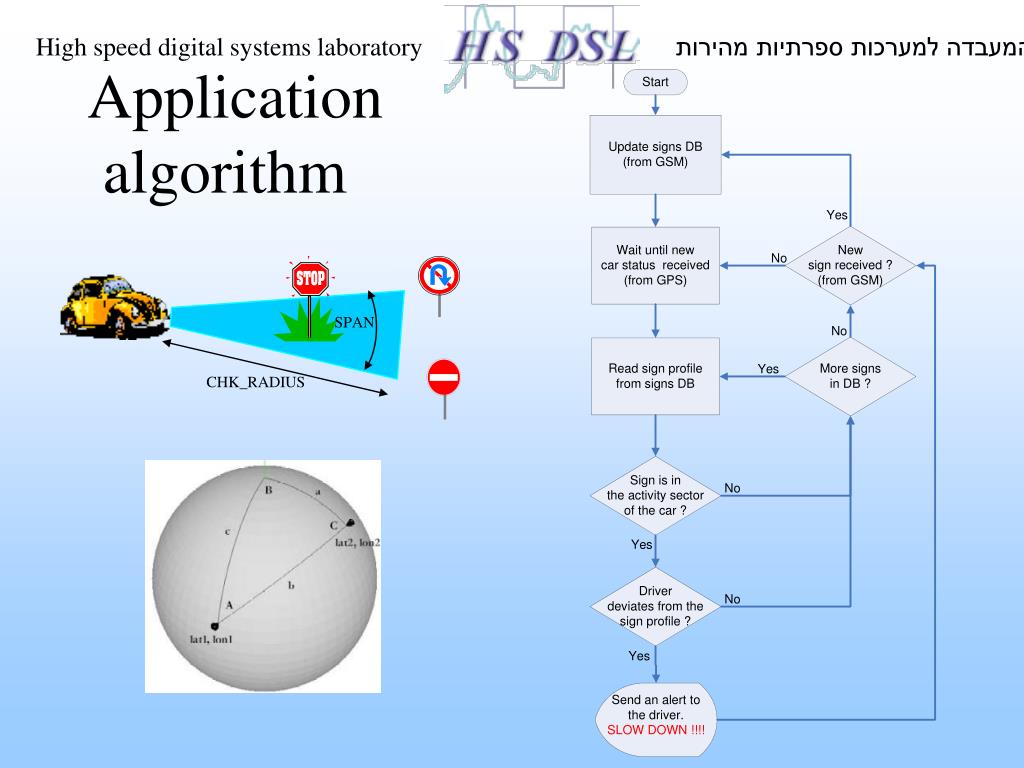

distance and azimuth calculation
Distance and Azimuth Calculation
  • Because of the near-spherical shape of the Earth, calculating an accurate distance between two points requires the use of spherical geometry and trigonometric math functions – require heavy floating-point calculation.
  • For solving the distance/azimuth bottleneck we searched for reduction of the floating-point instructions consumption.
  • Thus we found from the TI website the IQmath library which is collection of highly optimized and high precision mathematical Function Library for C/C++ programmers to seamlessly port the floating-point algorithm into fixed point code on TMS320C28x devices.
system performance
System Performance

There are two main parameters for evaluation of the system performance:

  • The car position update rate
  • The car position accuracy (location, velocity, etc.)
1 the car position update rate
1. The car position update rate
  • There are two characteristics that influence the car position update rate :

The GPS update rate and the rate in which the DSP is ready to receive new car position.

  • The Motorola g18 GPS module has update rate of 1 update per second (1PPS).
the dsp analyzing performance
The DSP analyzing performance
  • This characteristic depends on the time that takes for the DSP to analyze the car position against every sign.
  • DSP performance with the basic application:

From the Rate parameter we find out that with GPS data update of 1 per

second we can analyze approximately 2142 signs from the database.

the dsp analyzing performance cont
The DSP analyzing performance (cont.)
  • For solving the distance/azimuth bottleneck we searched for reduction of the floating-point instructions consumption and thus we found the IQmath library.
  • DPS performance with the IQmath library:

From the Rate parameter we find out that with GPS data update of 1 per

second we can analyze approximately 5882 signs from the database.

the dsp analyzing performance cont1
The DSP analyzing performance (cont.)
  • Then we turned to optimize the code by using heavy function as minimum as possible (mainly by reducing the number of running of DecDeg function) and we received the following results:

From the Rate parameter we find out that with GPS data update of 1 per

second we can analyze approximately 20,000 signs from the database.

2 the car position accuracy
2. The car position accuracy
  • This parameter is determined by the GPS module and given by the GPS module manufacturer.
  • In our system we use the Motorola g18 DVG/slim that contain the M12 Oncore GPS service module.
  • The accuracy of that system is:
    • Location : 1 to 5 meter
    • Velocity : 0.072 Km/H
  • From these parameters we can see that the GPS system has satisfactory accuracy relatively to the car velocity and not adding any error to our calculation.
