  1. How to Make a Game LikeSpace Invaders

  2. What IS Space Invaders? • a SHMUP (shoot-em-up) • Player has one ship, enemy has many • Player and enemies interact by shooting at each other • Top-down 2D (usually)

  3. Concepts

  4. Video Frames/Ticks • A film is made of 24 still pictures per second • Motion is achieved by small changes to each picture, but 24 fps is still fast

  5. Video Frames/Ticks 2 • Video games are usually 30 or 60-80 fps • Video games achieve movement by moving each screen object a little bit every frame

  6. Shmups are very object-oriented • Ships are objects • Bullets are objects • The player is an object • Explosions are objects • Levels can be objects (certainly made of objects)

  7. Question • How many bullets can be on the screen at once? • Space Invaders = 1 for player, 2 for enemies • Modern = completely arbitrary

  8. Lists • A great way to store and organize objects • Most beginners get hung up here • Conceptually harder than arrays • C and C++ use linked lists (with pointers) • BlitzBasic has list:TList

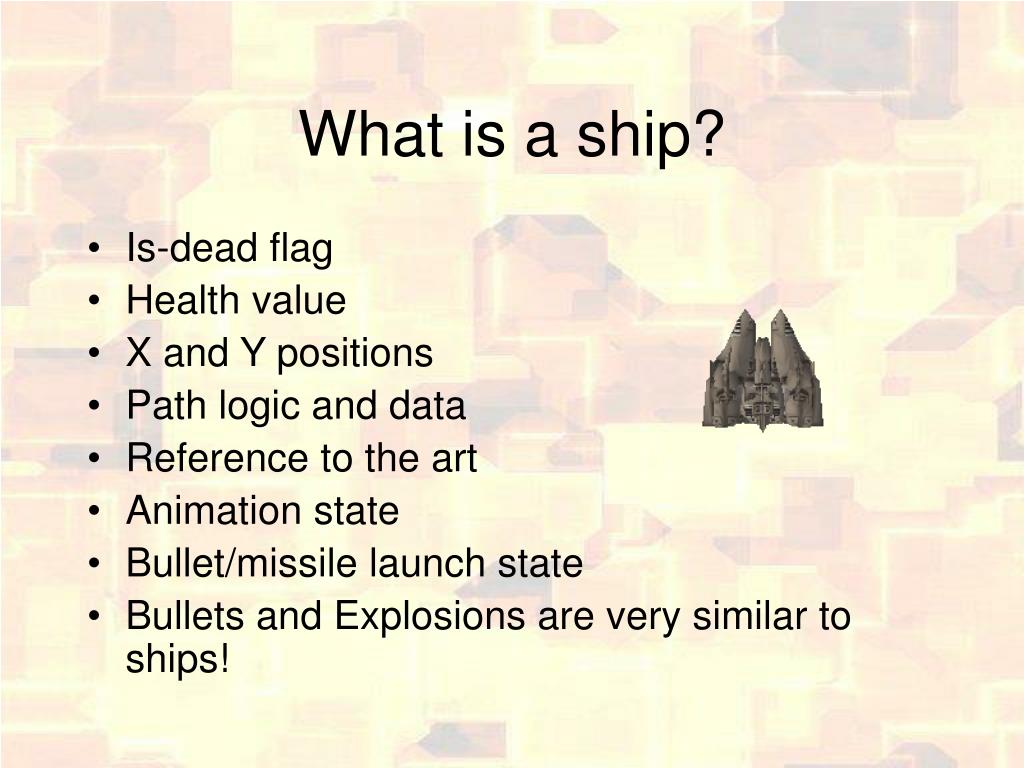

  9. What is a ship? • Is-dead flag • Health value • X and Y positions • Path logic and data • Reference to the art • Animation state • Bullet/missile launch state • Bullets and Explosions are very similar to ships!

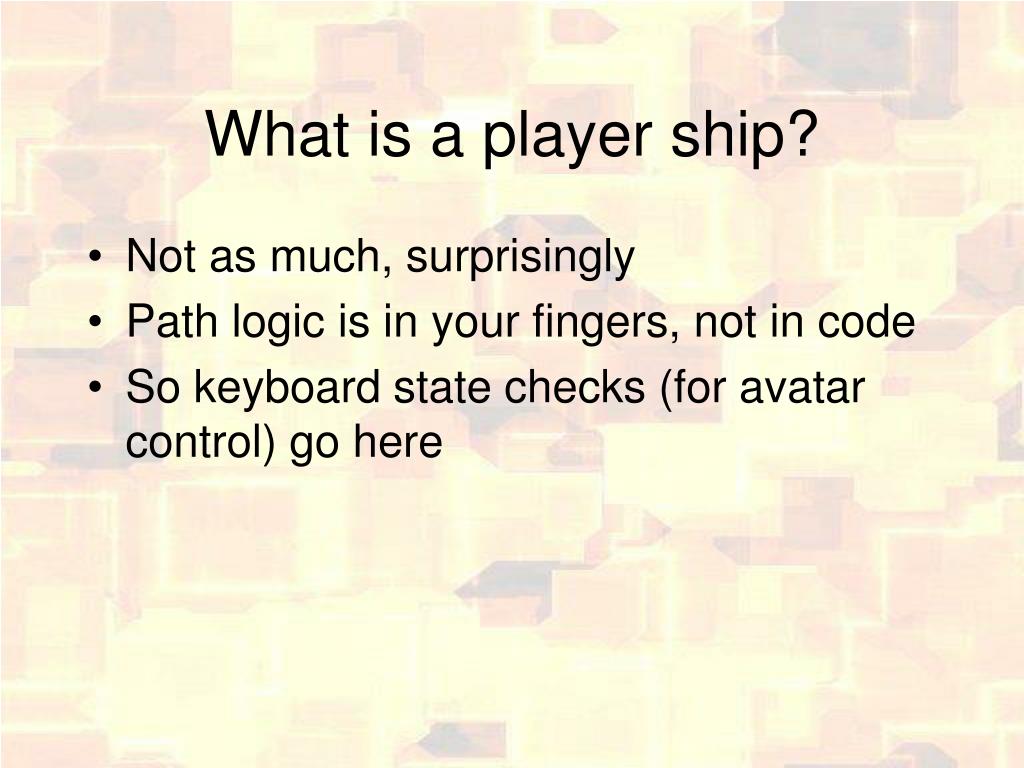

  10. What is a player ship? • Not as much, surprisingly • Path logic is in your fingers, not in code • So keyboard state checks (for avatar control) go here

  11. What is a bullet/missile? • Like a ship, but (usually) simpler movement • Erased when it goes off screen, not when it reaches the end of its path • State: Player shot or Enemy shot • Each Player-bullet collides against every enemy • Each Enemy-bullet collides against player

  12. So, to make space invaders… • Make a player • Make a bunch of enemies • Move them every frame, have them create bullets • Move the bullets every frame • Check for enemy-bullet collision every frame • Keep going, even if all the enemies or the player is dead

  13. Programming

  14. Main loop in Pseudocode Main() { SetupEverything(); CreatePlayer(); CreateAllEnemies(); done = false; while (done == false) { TickPlayer(); TickEnemyList(); TickBulletList(); DrawPlayer(); DrawEnemyList(); DrawBulletList(); if (EscapeKeyPressed() == TRUE) done = TRUE; WaitForNextFrame(); } ShutDownEverything(); }

  15. Timer callback version TimerFunction() { TickPlayer(); TickEnemyList(); TickBulletList(); // some systems, like Flash and Torque, do the drawing for you DrawPlayer(); DrawEnemyList(); DrawBulletList(); if (EscapeKeyPressed() == TRUE) done = TRUE; }

  16. TickBulletList() TickBulletList() { ForEach( bullet) { x = x + dx; y = y + dy; if (BulletOffScreen()) { isDead = TRUE; } ForEach(enemy) { if (Collides(enemy, bullet)) { isDead = TRUE; DamageEnemy(enemy); } } } RemoveDeadBulletsFromList(); }

  17. Basic Math

  18. Vectors and Offsets • Where is your Ship? X and Y

  19. Vectors and Offsets 2 • Where is your bullet? Also X and Y • Where is your bullet in relation to your ship? bulletX – shipX and bulletY – shipY

  20. Vectors and Offsets 3 • How far apart are they? Pythagorean theorem (sqr(a) + sqr(b) = sqr(c)) • This requires a slow square root function

  21. Vectors and Offsets 2 • What direction from the ship to the bullet? Arctangent • Atan2(bulletX – shipX, bulletY – shipY)

  22. Arctangent • Usually gives a direction in radians, from 0-(2*PI) • PI is 3.1415927 (= 180 degrees) • Radian to degrees = dir / (PI*2) * 360

  23. Vectors and Offsets 3 • So you can describe the relationship between two objects on the screen in two different ways

  24. Offsets • Offset = x and y coordinates (or differences)

  25. Vectors • Vector = direction and distance

  26. Translate Offsets to Vectors • Get distance with Pythagoras • Get direction with Atan2 (Arctangent)

  27. Translate Vectors to Offsets • X = sin(direction) * distance • Y = cos(direction) * distance

  28. Vectors & Offsets = important • Shooting bullet directly at the player • Homing missiles • Collision detection (is bullet close enough?) • Enemy follows path

  29. What is TurnTowardsPoint() • If you want the homing missile to turn slowly towards the enemy (instead of instantly) what do you do? • The answer is the TurnTowardPoint() algorithm.

  30. Designing Your Game

  31. Bosses • Traditional part of shmups • Each one is a love letter to the player • Multiple weapons • Multiple parts • Multiple Modes • It’s a boss, not just an extended enemy

  32. Powerups • Functionally just like Bullets • Give expanded powers to the player • Key to one of the basic metagames

  33. The Game Modes • Play mode • Start mode • Results mode (you are dead, how’d you do) • Pause mode • Credits mode • Options mode

  34. Game Modes 2 • Recognize that game modes are just states • Completely different states than game states

  35. Scrolling Background • Space Invaders background was black • Galaga and others had winking, scrolling stars • Zaxxon and others started making the background complex and interactive • Treasure games are famous for complex, puzzle-like environments

  36. What are Shmup levels? • Hand-crafted definitions of when each enemy shows up • The things that happen before a boss shows up • Divisions of art • Scoring opportunities

  37. How are levels made? • Make the editors yourself, for yourself • Ship path editor (mirror-able) • Level editor • Place art tiles • Place ship spawn points • Place camera path • Boss editor
