  1. Kris Gaj Assistant Professor at GMU since Fall 1998 • Research and teaching interests: • cryptography • computer arithmetic • VLSI design and testing • Contact: • Science & Technology II, room 223 • kgaj@gmu.edu, (703) 993-1575 Office hours:Monday, 6:00-7:00 PM and after class Tuesday, 7:30-8:30 PM

  2. Computer Arithmetic Spring 2000 ECE 699:001 Advanced Topics in Electrical and Computer Engineering: Computer Arithmetic Since Fall 2000 ECE 645 Computer Arithmetic: Implementations in Hardware and Software

  3. ECE 645 Part of: MS in CpE Digital Systems Design (required course) Network and System Security MS in EE Certificate in VLSI Design/Manufacturing PhD in IT PhD in ECE

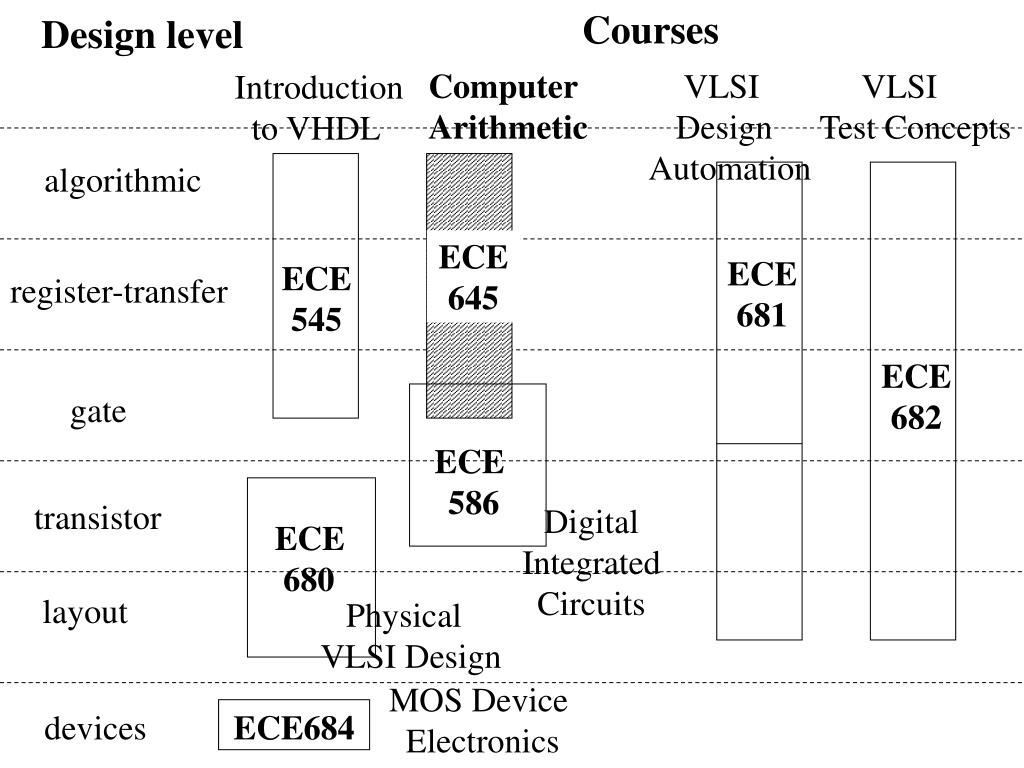

  4. Courses Design level Computer Arithmetic VLSI Design Automation VLSI Test Concepts Introduction to VHDL algorithmic ECE 645 ECE 681 ECE 545 register-transfer ECE 682 gate ECE 586 transistor Digital Integrated Circuits ECE 680 layout Physical VLSI Design MOS Device Electronics devices ECE684

  5. Course web page ECE web page  Courses  Course web pages  ECE 645 http://teal.gmu.edu/courses/ECE645/index.htm Contains basic information about the course To be extended in the future

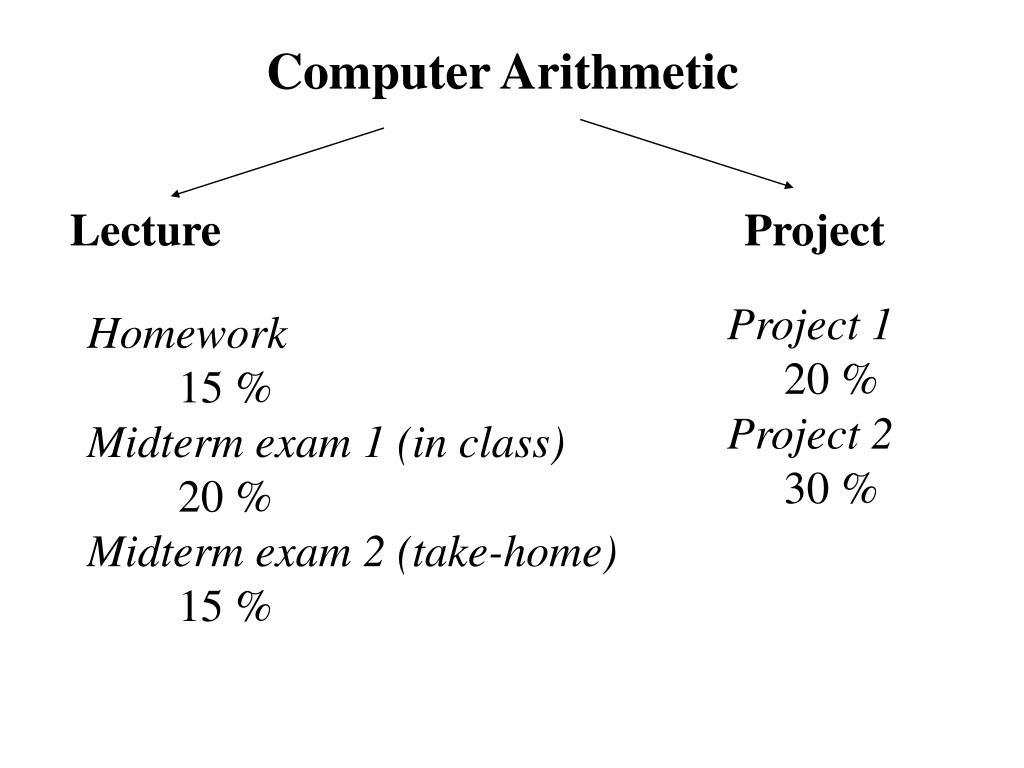

  6. Computer Arithmetic Lecture Project Project 1 20 % Project 2 30 % Homework 15 % Midterm exam 1 (in class) 20 % Midterm exam 2(take-home) 15 %

  7. Advanced digital circuit design course covering Efficient • addition and subtraction • multiplication • division and modular reduction • exponentiation • Elements • of the Galois • field GF(2n) • polynomial base Integers unsigned and signed Real numbers • fixed point • single and double precision • floating point

  8. Lecture topics (1) INTRODUCTION 1. Applications of computer arithmetic algorithms 2. Number representation • Unsigned Numbers • Signed Numbers

  9. ADDITION AND SUBTRACTION 1. Basic addition, subtraction, and counting 2. Carry-lookahead adders 3. Adders based on Parallel Prefix Networks

  10. MULTIOPERAND ADDITION 1. Carry-save adders 2. Wallece and Dadda Trees 3. Adding multiple signed numbers

  11. MULTIPLICATION In hardware 1. Basic hardware multipliers 2. High-radix multipliers 3. Tree multipliers 4. Array multipliers 5. Multiplication of signed numbers and squaring In software 6. Survey of software multiplication algorithms

  12. DIVISION In hardware 1. Basic hardware dividers 2. High-radix dividers 3. Array dividers In software 4. Survey of algorithms for division modular reduction, and modular exponentiation

  13. FLOATING POINT ARITHMETIC 1. Floating-point number representations 2. Floating-point operations GALOIS FIELD ARITHMETIC 1. Representations of elements of the Galois Field 2. Galois Field operations

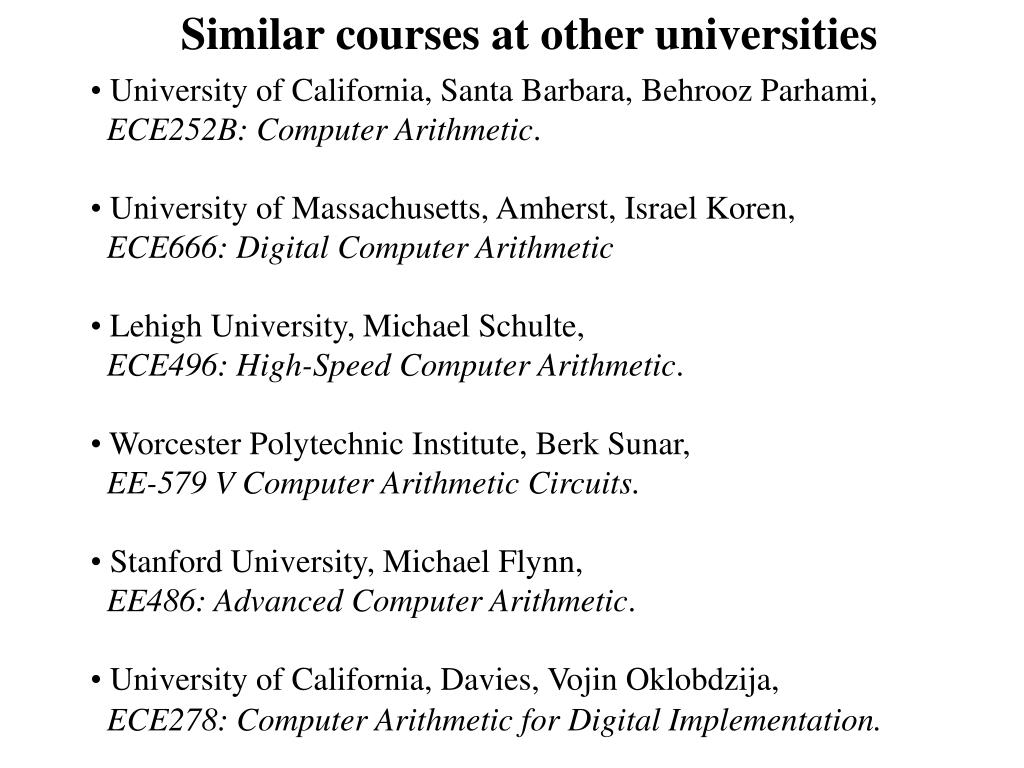

  14. Similar courses at other universities • University of California, Santa Barbara, Behrooz Parhami, • ECE252B: Computer Arithmetic. • University of Massachusetts, Amherst, Israel Koren, • ECE666: Digital Computer Arithmetic • Lehigh University, Michael Schulte, • ECE496: High-Speed Computer Arithmetic. • Worcester Polytechnic Institute, Berk Sunar, • EE-579 V Computer Arithmetic Circuits. • Stanford University, Michael Flynn, • EE486: Advanced Computer Arithmetic. • University of California, Davies, Vojin Oklobdzija, • ECE278: Computer Arithmetic for Digital Implementation.

  15. New in this course • hardware vs. software algorithms • real life project based on VHDL or Verilog HDL • operations in the Galois Field (communications)

  16. Possible follow-up course Advanced Computer Arithmetic Square root Exponential and logarithm functions Trigonometric functions Hyperbolic functions Fault tolerant arithmetic Low power arithmetic

  17. Literature (1) Required textbooks: Behrooz Parhami, Computer Arithmetic: Algorithms and Hardware Design, Oxford University Press, 1999. Recommended textbooks: Sundar Rajan, Essential VHDL: RTL Synthesis Done Right, S & G Publishing, 1998. Milos D. Ercegovac and Tomas Lang Digital Arithmetic, Morgan Kaufmann Publishers, 2004

  18. Literature (2) Supplementary books: • M. Lu, Arithmetic and Logic in Computer Systems, Wiley • Interscience 2004. • 2. I. Koren, Computer Arithmetic Algorithms, Brookside Court • Publishers, 1998. • 3. E. E. Swartzlander, Jr., Computer Arithmetic, vols. I and II, • IEEE Computer Society Press, 1990. • 4. Alfred J. Menezes, Paul C. van Oorschot, and Scott A. Vanstone, • Handbook of Applied Cryptology, Chapter 14, Efficient • Implementation, Zipped pdf file, 630k, CRC Press, Inc., • Boca Raton, 1998. • 5. Christof Paar, Efficient VLSI Architectures for Bit Parallel • Computation in Galois Fields, VDI Verlag, 1994.

  19. Literature (3) Proceedings of conferences ARITH - International Symposium on Computer Arithmetic ASIL - Asilomar Conference on Signals, Systems, and Computers ICCD - International Conference on Computer Design CHES - Workshop on Cryptographic Hardware and Embedded Systems Journals and periodicals IEEE Transactions on Computers, in particular special issues on computer arithmetic: 8/70, 6/73, 7/77, 4/83, 8/90, 8/92, 8/94. IEEE Transactions on Circuits and Systems IEEE Transactions on Very Large Scale Integration IEE Proceedings: Computer and Digital Techniques Journal of VLSI Signal Processing

  20. Homework • reading assignments (main textbook + articles) • analysis of hardware and software algorithms • and implementations • design of small hardware units using VHDL Optional assignments Possibility of trading analysis vs. design software vs. hardware

  21. Midterm exams Exam 1 - 2 hrs 30 minutes, in class multiple choice + short problems Exam 2 – 48 hrs, take-home analysis and design of arithmetic units using VHDL Practice exams on the web Tentative days of exams: Exam 1 - March 28 Exam 2 - May 7-8

  22. Project (1) Project I (20% of grade) Design and comparative analysis of fast adders (several hundred bits long) • Optimization criteria: • minimum latency • maximum throughput • minimum area • minimum product latency · area • maximum ratio throughput/area • scalability Similar for all students Done individually Final report due Monday, March 21

  23. Project (2) Project II (30% of grade) Long unsigned or signed integers • Fast • multiplication • squaring • division • modular reduction, or • modular exponentiation or Floating-point numbers • Fast • addition or • multiplication

  24. Project II (rules) • Real life application • Requirements derived from the analysis of the application • Typically both hardware and software design • Several project topics proposed on the web • You can choose project topic by yourself • Can be done in a group of 1-3 students Written report& oral presentation Thursday May 12

  25. Project II (rules) • Every team works on a slightly different problem • Project topics should be more complex for larger teams • Cooperation (but not exchange of code) • between teams is encouraged

  26. Project Hardware Software High level language (C preferred) VHDL (or Verilog) code Latency and/or throughput Execution time Area Memory requirements Scalability Scalability

  27. Prerequisites ECE 545 Introduction to VHDL or Permission of the instructor, granted assuming that you know VHDL orVerilog, High level language

  28. Degrees of freedom and possible trade-offs speed area ECE 645 power testability ECE 682 ECE 586, 681

  29. Degrees of freedom and possible trade-offs speed latency area throughput

  30. Timing parameters definition units pipelining time pointpoint ns delay ns bad latency time inputoutput throughput Mbits/s good #output bits/time unit rising edge rising edge of clock ns good clock period 1 MHz clock frequency good clock period

  31. Project technologies semi-custom Application Specific Integrated Circuits and Field Programmable Gate Arrays

  32. Levels of design description Algorithmic level Level of description most suitable for synthesis Register Transfer Level Logic (gate) level Circuit (transistor) level Physical (layout) level

  33. Register Transfer Logic (RTL) Design Description Registers … Combinational Logic Combinational Logic Clock

  34. RTL Block Synthesis* Estimated Area Estimated Timing *Simplified design flow

  35. Design Process for ASICs (1) VHDL code VHDL simulator Functional verification Library of standard cells Logic Synthesis Speed without routing Area without routing Netlist

  36. Design Process (2) Netlist Library of standard cells Placing & routing Area with routing Speed with routing Layout

  37. Design process for FPGAs (1) Design and implement a simple unit permitting to speed up encryption with RC5-similar cipher with fixed key set on 8031 microcontroller. Unlike in the experiment 5, this time your unit has to be able to perform an encryption algorithm by itself, executing 32 rounds….. Specification (Lab Experiments) VHDL description (Your Source Files) Library IEEE; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; entity RC5_core is port( clock, reset, encr_decr: in std_logic; data_input: in std_logic_vector(31downto0); data_output: out std_logic_vector(31downto0); out_full: in std_logic; key_input: in std_logic_vector(31downto0); key_read: out std_logic; ); end AES_core; Functional simulation Synthesis Post-synthesis simulation

  38. Design process for FPGAs (2) Implementation Timing simulation Configuration On chip testing

  39. CAD software available at GMU (1) VHDL simulators • ModelSim (under Unix) • available from all PCs in the ECE educational labs • using an X-terminal emulator • available remotely from home using a fast Internet • connection • Aldec Active-HDL (under Windows) • available in the FPGA Lab, S&T II, room 203

  40. CAD software available at GMU (2) Tools used for logic synthesis • Synopsys Design Compiler (under Unix) • available from all PCs in the ECE educational labs • using an X-terminal emulator • available remotely from home using a fast Internet • connection • Synplicity Synplify Pro (under Windows) • available in the FPGA Lab, S&T II, room 203

  41. CAD software available at GMU (3) Tools used for implementation in the FPGA technology • Xilinx ISE (under Windows) • available in the FPGA Lab, S&T II, room 203

  42. How to learn CAD software available at GMU? • ModelSim (under Unix) • covered in ECE 545 Introduction to VHDL • MGC Mega Tutorial available at http://cpe.gmu.edu/mgc.htm • Synopsys Design Compiler (under Unix) • introduction covered in ECE 545 Introduction to VHDL (F04) • additional hands-on session at the end of February • Aldec Active-HDL (under Windows) • Synplicity Synplify Pro (under Windows) • Xilinx ISE (under Windows) • covered in ECE 545 Introduction to VHDL (F04)

  43. VHDL for Specification VHDL for Simulation VHDL for Synthesis VHDL for Synthesis VHDL for Synthesis of Arithmetic Circuits

  44. dataflow VHDL Design Styles VHDL Design Styles behavioral (algorithmic) structural Components and interconnects Concurrent statements Sequential statements • Registers • State machines • Test benches Subset most suitable for synthesis

  45. Data-flow VHDL: Example

  46. Data-flow VHDL: Example LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY fulladd IS PORT (Cin, x, y : IN STD_LOGIC ; s, Cout : OUT STD_LOGIC ) ; END fulladd ; ARCHITECTURE LogicFunc OF fulladd IS BEGIN s <= x XOR y XOR Cin ; Cout <= (x AND y) OR (Cin AND x) OR (Cin AND y) ; END LogicFunc ;

  47. Data-flow VHDL Major instructions Concurrent statements • concurrent signal assignment () • conditional concurrent signal assignment • (when-else) • selected concurrent signal assignment • (with-select-when) • generate scheme for equations • (for-generate)

  48. Structural VHDL: Example x y x y x y x y 2 2 3 1 1 0 0 3 c c c 2 3 1 c c FA FA FA FA out in s s s s 3 2 1 0 MSB position LSB position

  49. Structural VHDL: Example LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY adder4 IS PORT ( Cin : IN STD_LOGIC ; x3, x2, x1, x0 : IN STD_LOGIC ; y3, y2, y1, y0 : IN STD_LOGIC ; s3, s2, s1, s0 : OUT STD_LOGIC ; Cout : OUT STD_LOGIC ) ; END adder4 ; ARCHITECTURE Structure OF adder4 IS SIGNAL c1, c2, c3 : STD_LOGIC ; COMPONENT fulladd PORT ( Cin, x, y : IN STD_LOGIC ; s, Cout : OUT STD_LOGIC ) ; END COMPONENT ; BEGIN stage0: fulladd PORT MAP ( Cin, x0, y0, s0, c1 ) ; stage1: fulladd PORT MAP ( c1, x1, y1, s1, c2 ) ; stage2: fulladd PORT MAP ( c2, x2, y2, s2, c3 ) ; stage3: fulladd PORT MAP ( Cin => c3, Cout => Cout, x => x3, y => y3, s => s3 ) ; END Structure ;

  50. Structural VHDL Major instructions • component instantiation (port map) • component instantiation with generic • (generic map, port map) • generate scheme for component instantiations • (for-generate)
