Chlorophyll Meter

DESCRIPTION

<br>Chlorophyll Meter is designed to improve crop quality by providing accurate and reliable data on chlorophyll content, leaf temperature, nitrogen content, and leaf humidity. <br>Easy-to-use interface with real-time data display. It measures SPAD values ranging from 0.0 to 99.9 and temperature from -10 to 99.9u00b0C. Ample on-board data storage stores up to <br>999 data groups. Equipped with a lithium-ion battery which is rechargeable according to needs.

Download Presentation

Chlorophyll Meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

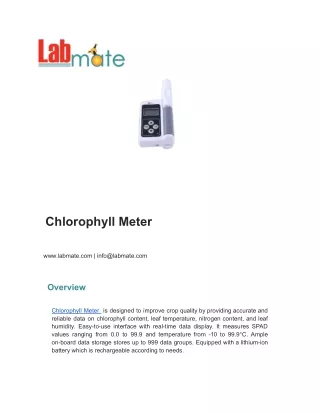

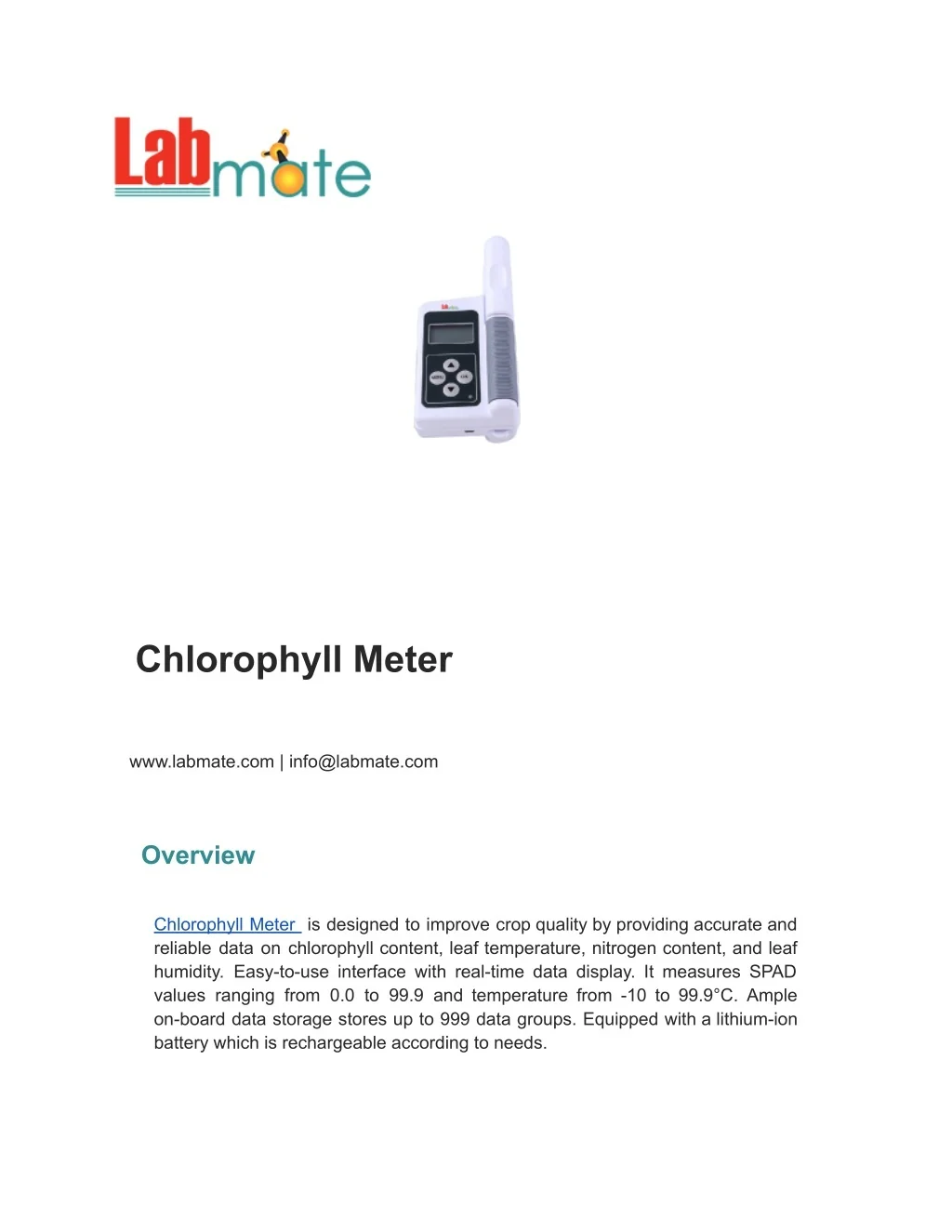

  1. Chlorophyll Meter www.labmate.com | info@labmate.com Overview Chlorophyll Meter is designed to improve crop quality by providing accurate and reliable data on chlorophyll content, leaf temperature, nitrogen content, and leaf humidity. Easy-to-use interface with real-time data display. It measures SPAD values ranging from 0.0 to 99.9 and temperature from -10 to 99.9°C. Ample on-board data storage stores up to 999 data groups. Equipped with a lithium-ion battery which is rechargeable according to needs.

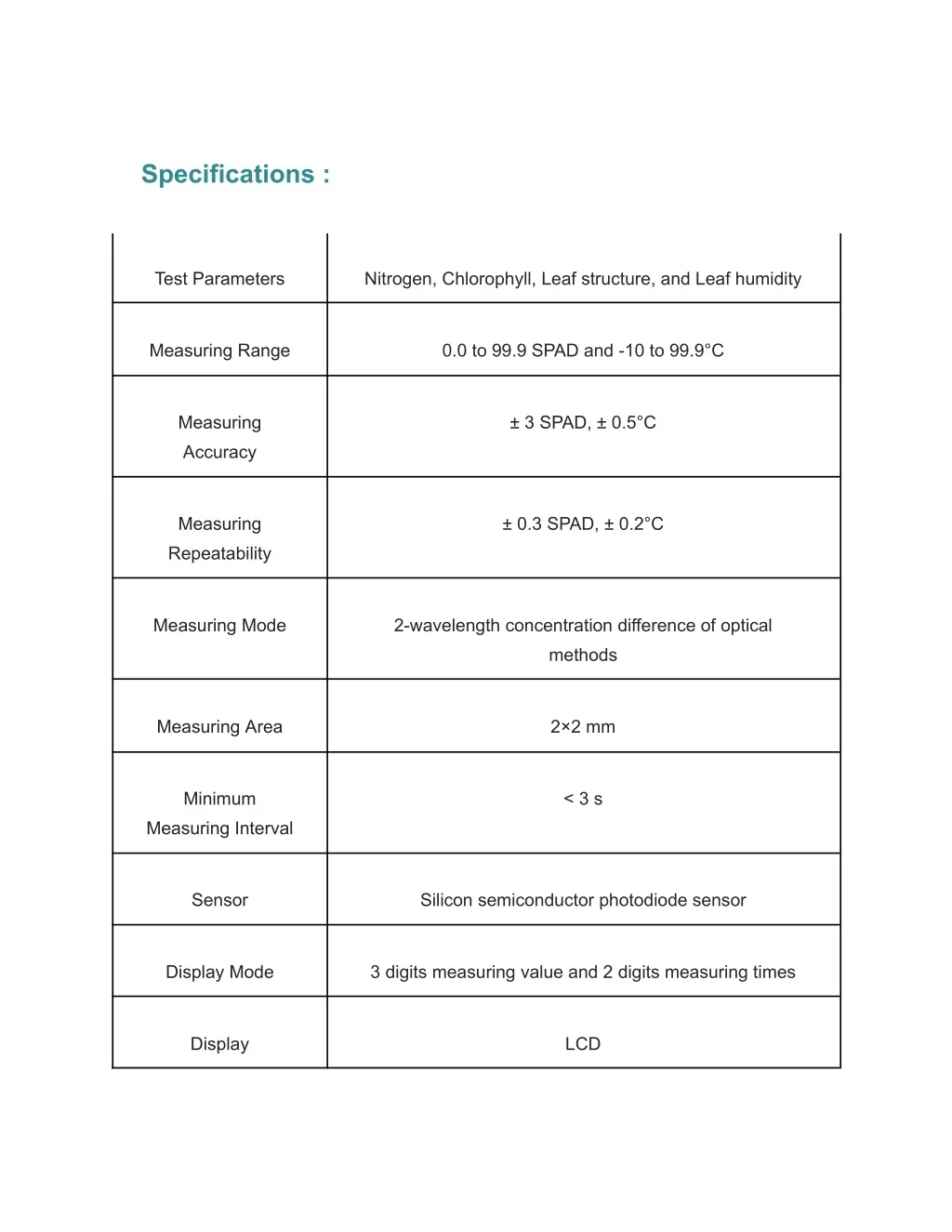

  2. Specifications : Test Parameters Nitrogen, Chlorophyll, Leaf structure, and Leaf humidity Measuring Range 0.0 to 99.9 SPAD and -10 to 99.9°C Measuring ± 3 SPAD, ± 0.5°C Accuracy Measuring ± 0.3 SPAD, ± 0.2°C Repeatability Measuring Mode 2-wavelength concentration difference of optical methods Measuring Area 2×2 mm Minimum < 3 s Measuring Interval Sensor Silicon semiconductor photodiode sensor Display Mode 3 digits measuring value and 2 digits measuring times Display LCD

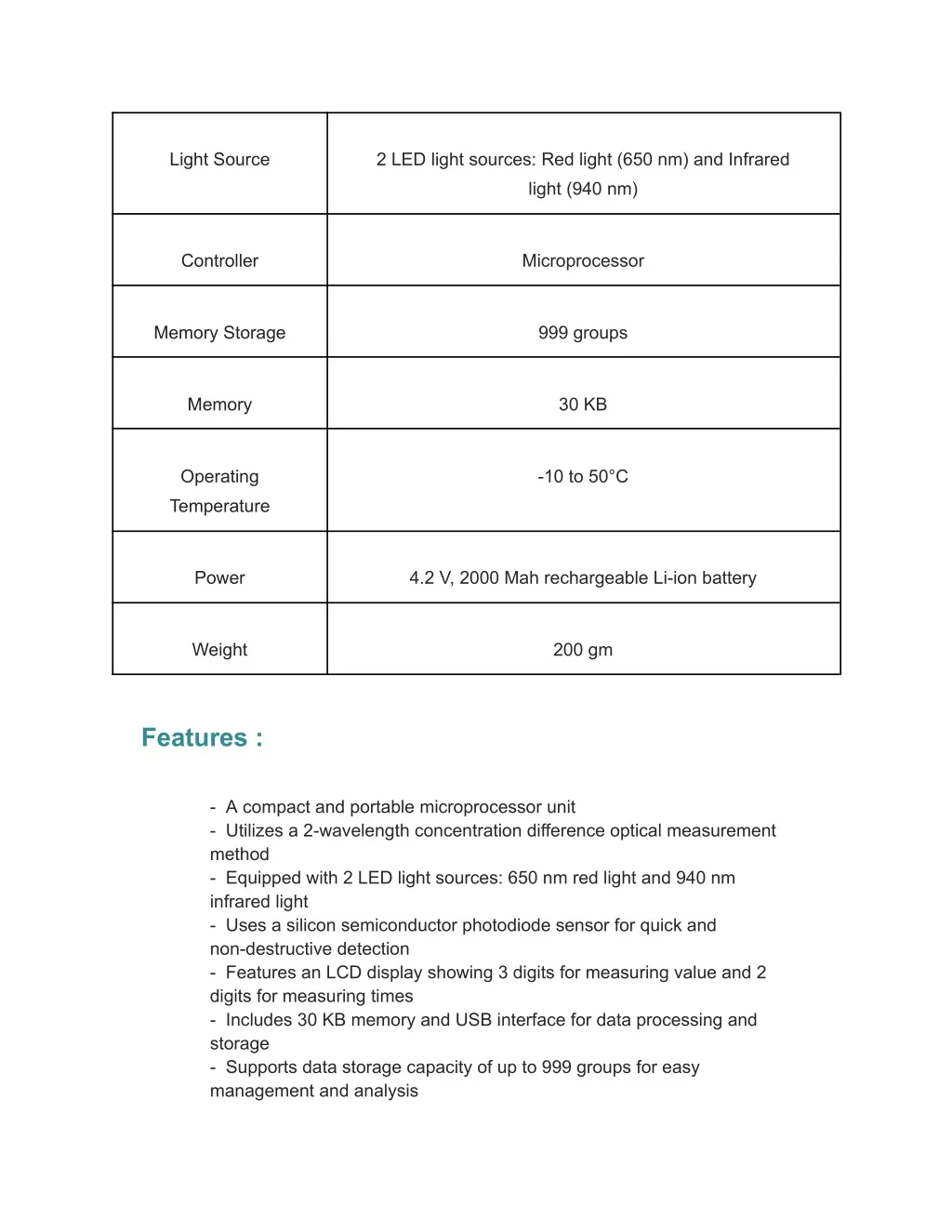

  3. Light Source 2 LED light sources: Red light (650 nm) and Infrared light (940 nm) Controller Microprocessor Memory Storage 999 groups Memory 30 KB Operating -10 to 50°C Temperature Power 4.2 V, 2000 Mah rechargeable Li-ion battery Weight 200 gm Features : - A compact and portable microprocessor unit - Utilizes a 2-wavelength concentration difference optical measurement method - Equipped with 2 LED light sources: 650 nm red light and 940 nm infrared light - Uses a silicon semiconductor photodiode sensor for quick and non-destructive detection - Features an LCD display showing 3 digits for measuring value and 2 digits for measuring times - Includes 30 KB memory and USB interface for data processing and storage - Supports data storage capacity of up to 999 groups for easy management and analysis

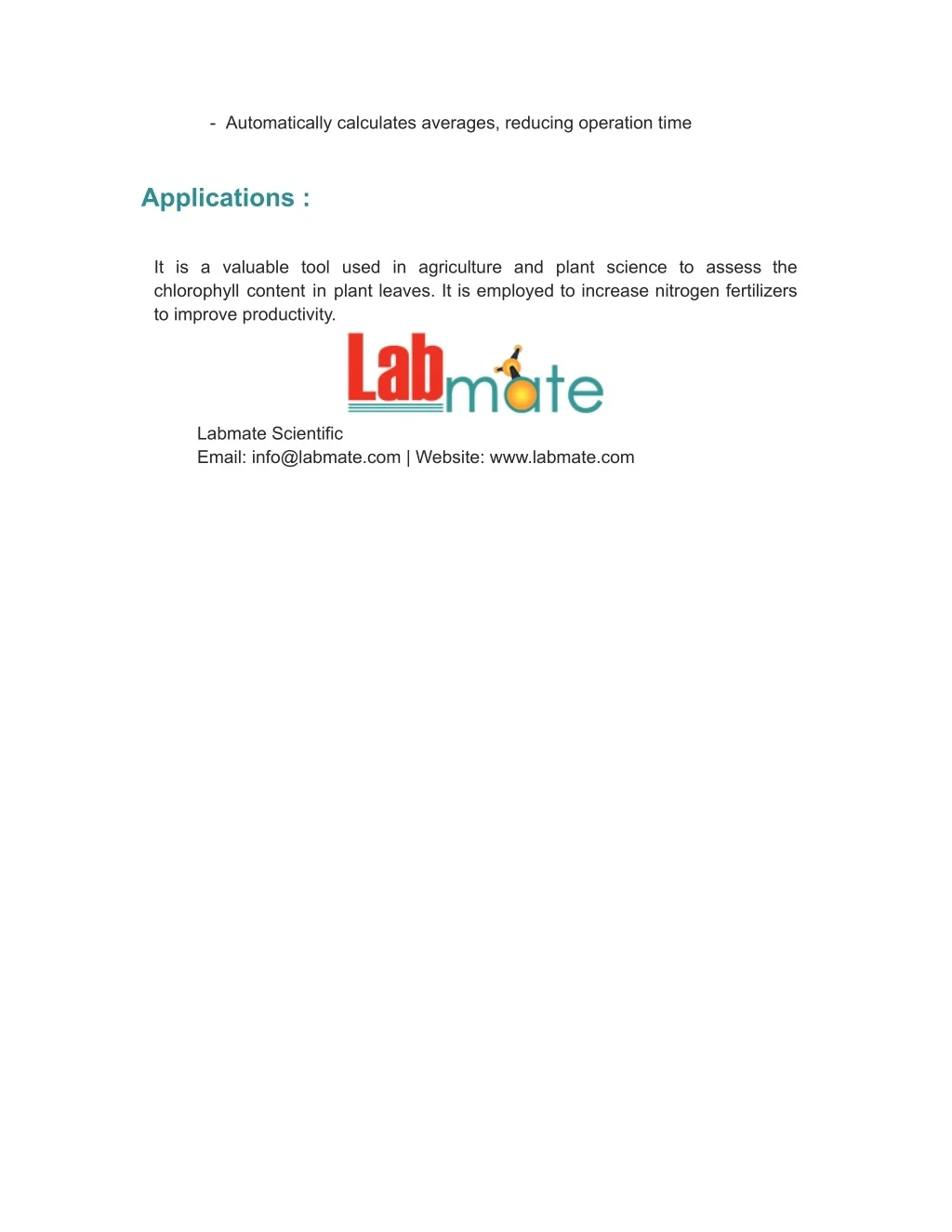

  4. - Automatically calculates averages, reducing operation time Applications : It is a valuable tool used in agriculture and plant science to assess the chlorophyll content in plant leaves. It is employed to increase nitrogen fertilizers to improve productivity. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
