High-Performance Vacuum Casting Machines for Precise Manufacturing

1. VACUUM CASTING SYSTEMS BY XDM

2. VCX-Series System by XDM Vacuum casting system is a technology that utilizes a vacuum to remove air from a mold cavity, allowing liquid resin to fill the mold under low pressure, producing accurate prototypes or small-scale production parts with high-quality surface finishes. and intricate Key Features: Solid Structural Construction Perfect Visibility through large openings and Transparent Cups Compact and Easy to Use. Technical Specificatons MODEL VCX-400 VCX-600 VCX-900 Max Mold Size 350x350x350 mm 550x550x550 mm 850x850x750 mm Pump Capacity 25 m3/hr 45 m3/hr 100 m3/hr Pouring Capacity A:B - 0.5:1 kg A:B - 0.5:1 kg A:B - 2:5 | 1:2 kg Ultimate Vacuum 0.5 mbar 0.5 mbar 0.5 mbar Evacuation Time 3-4 min 3-4 min 3-4 min Machine Weight 500 Kg 800 Kg 1600 Kg Shell Material IS 2062 E 350 IS 2062 E 350 IS 2062 E 350 Power Consumption 1 Phase, 0.7 kW 3 Phase, 2 kW 3 Phase, 2.3 kW

3. VCX-Series System by XDM Features Manual Semi Automatic Full Automatic HMI Screen and PLC Resin Ratio Calculator Reset able Timers Hand Valve Operated Solenoid Operated Solenoid Operated Exhaust Percentage and Bar Graph Vacuum Level Digital Gauge Digital Gauge Operations Lever Operated Panel Operated HMI and Panel Economical Compact Less Operator Fatigue High Advantages Repeatability Service Support and Maintenance Service with Preventive Care plan Reliability meets non-stop productivity We take over the maintenance planning and responsibility for servicing your Machine on a regular basis. Our Preventive Care plan is tailored to your machine’s needs.This allows you to focus fully on your production. We use genuine spare parts and oil and our services are conducted by vacuum specialists. This enhances your machine performance, reducing the risk of downtime and enabling your production to run more smoothly.

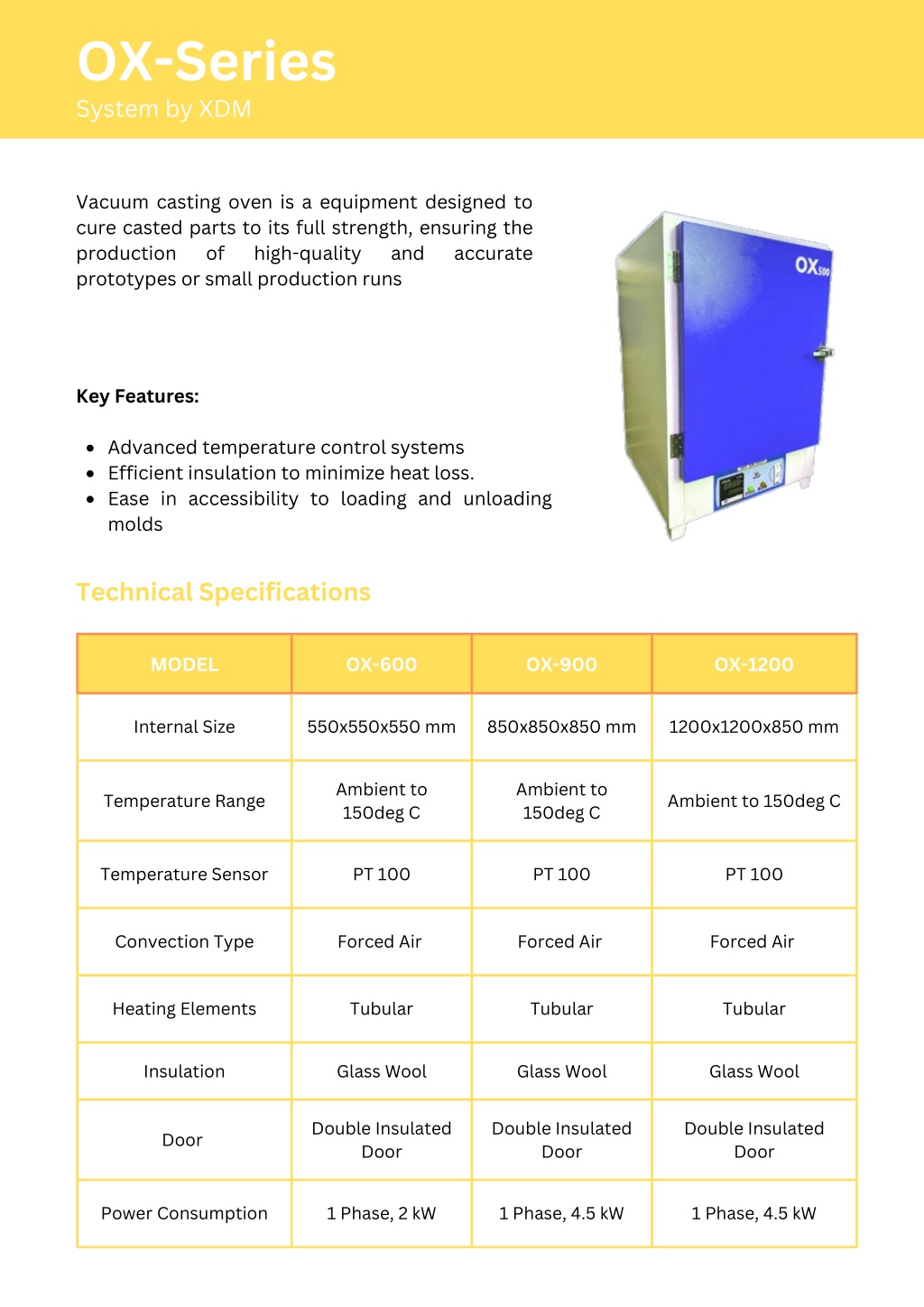

4. OX-Series System by XDM Vacuum casting oven is a equipment designed to cure casted parts to its full strength, ensuring the production of high-quality prototypes or small production runs and accurate Key Features: Advanced temperature control systems Efficient insulation to minimize heat loss. Ease in accessibility to loading and unloading molds Technical Specifications MODEL OX-600 OX-900 OX-1200 Internal Size 550x550x550 mm 850x850x850 mm 1200x1200x850 mm Ambient to 150deg C Ambient to 150deg C Temperature Range Ambient to 150deg C Temperature Sensor PT 100 PT 100 PT 100 Convection Type Forced Air Forced Air Forced Air Heating Elements Tubular Tubular Tubular Insulation Glass Wool Glass Wool Glass Wool Double Insulated Door Double Insulated Door Double Insulated Door Door Power Consumption 1 Phase, 2 kW 1 Phase, 4.5 kW 1 Phase, 4.5 kW

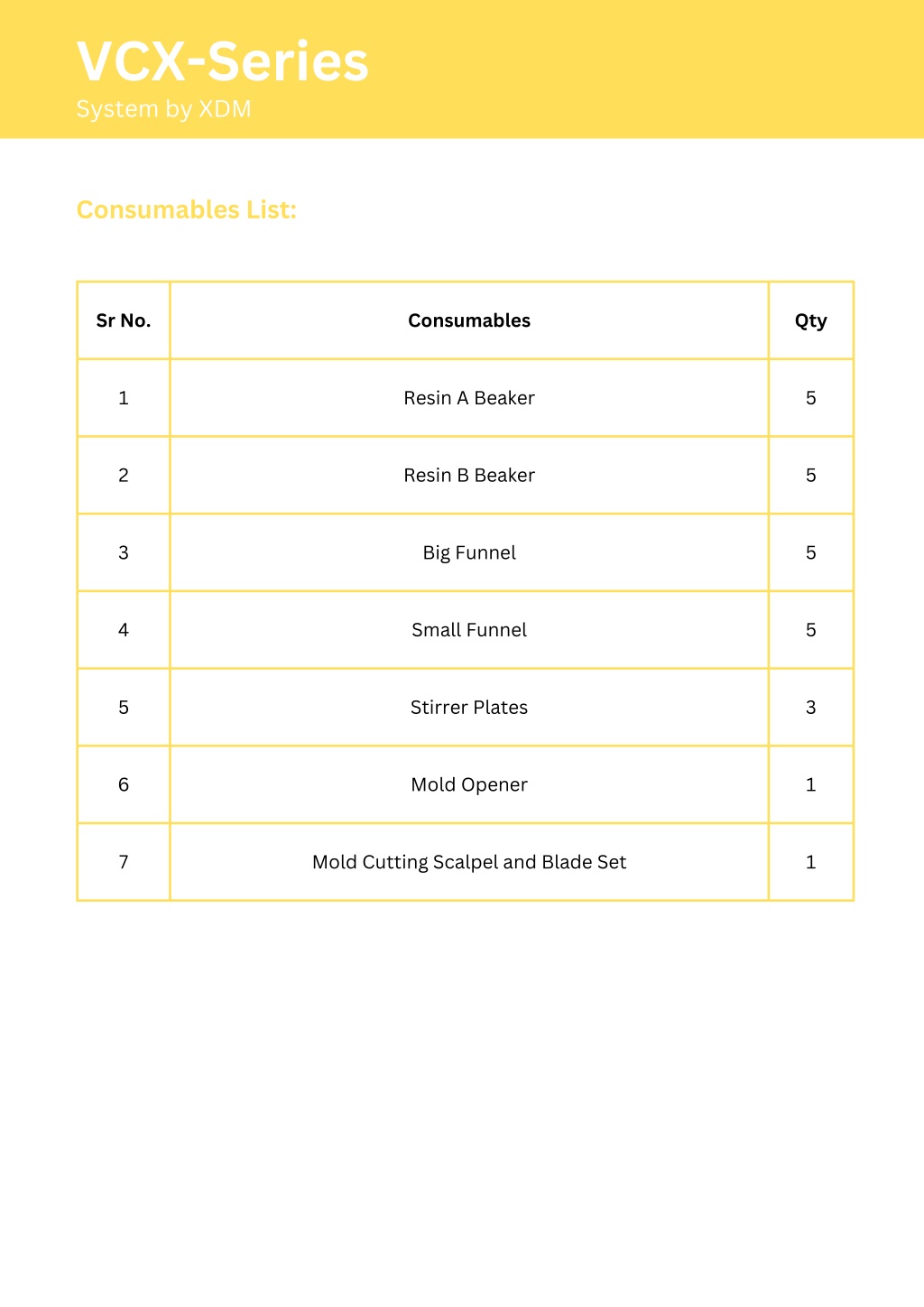

5. VCX-Series System by XDM Consumables List: Sr No. Consumables Qty 1 Resin A Beaker 5 2 Resin B Beaker 5 3 Big Funnel 5 4 Small Funnel 5 5 Stirrer Plates 3 6 Mold Opener 1 7 Mold Cutting Scalpel and Blade Set 1

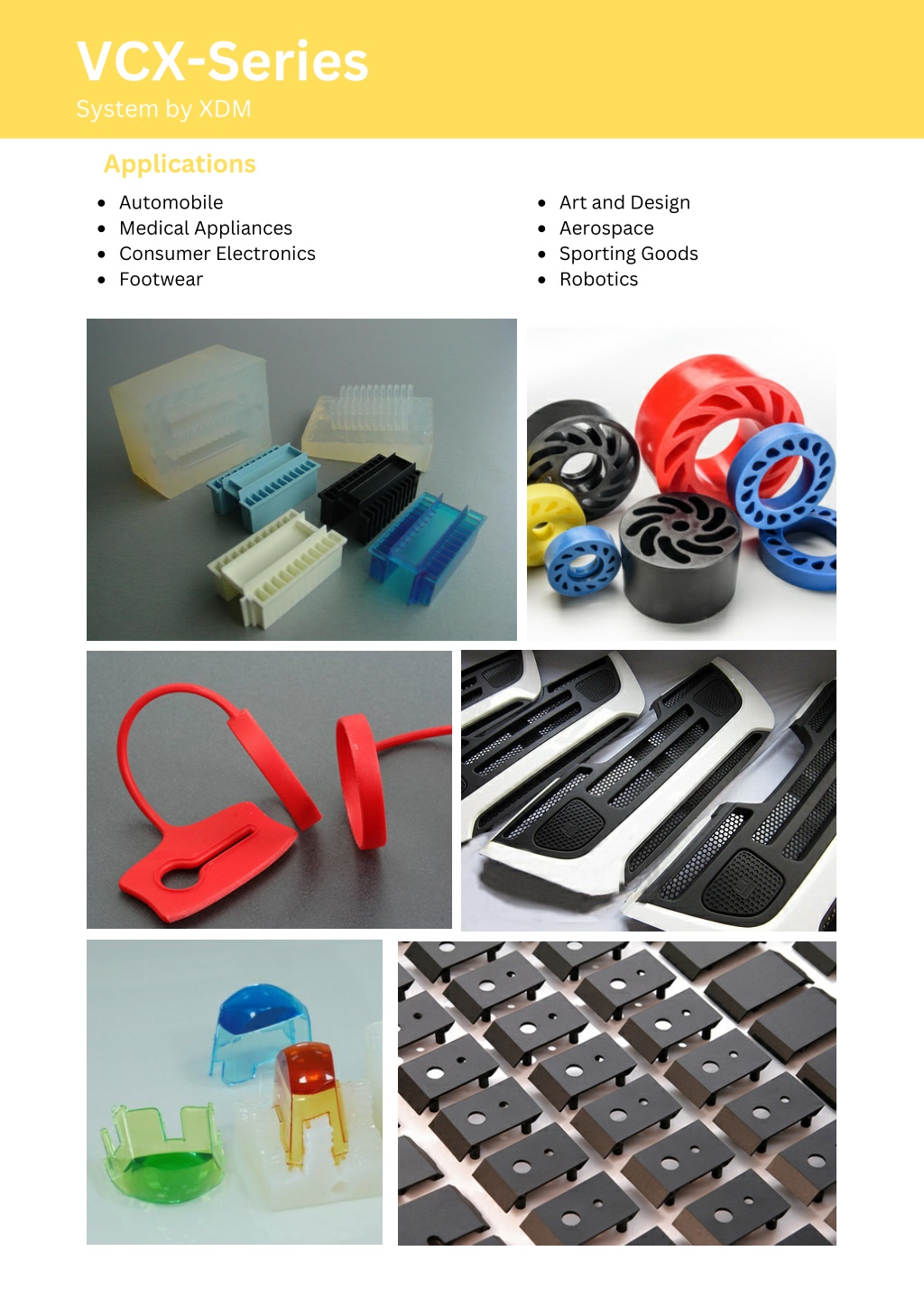

6. VCX-Series System by XDM Applications Automobile Medical Appliances Consumer Electronics Footwear Art and Design Aerospace Sporting Goods Robotics

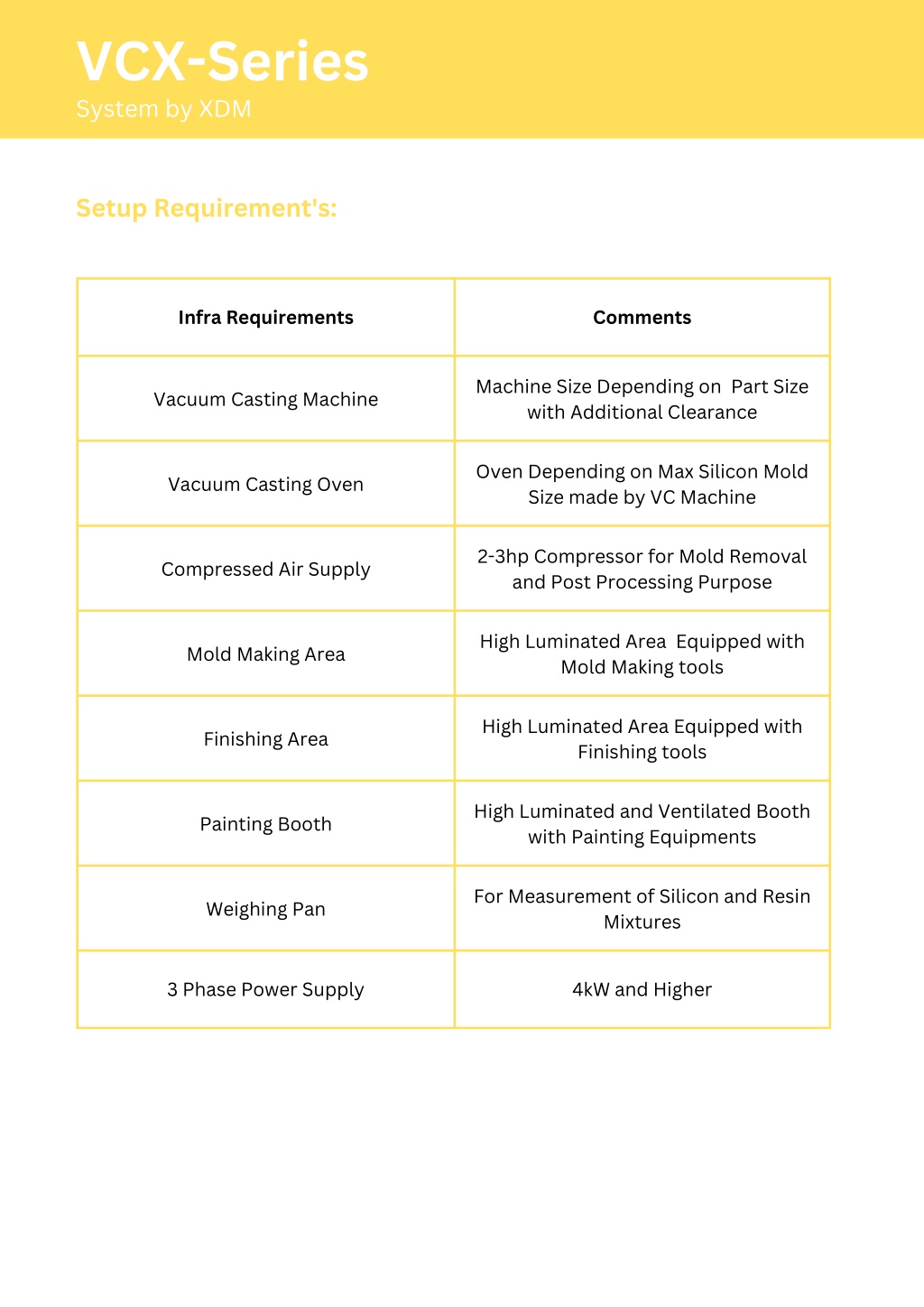

7. VCX-Series System by XDM Setup Requirement's: Infra Requirements Comments Machine Size Depending on Part Size with Additional Clearance Vacuum Casting Machine Oven Depending on Max Silicon Mold Size made by VC Machine Vacuum Casting Oven 2-3hp Compressor for Mold Removal and Post Processing Purpose Compressed Air Supply High Luminated Area Equipped with Mold Making tools Mold Making Area High Luminated Area Equipped with Finishing tools Finishing Area High Luminated and Ventilated Booth with Painting Equipments Painting Booth For Measurement of Silicon and Resin Mixtures Weighing Pan 3 Phase Power Supply 4kW and Higher

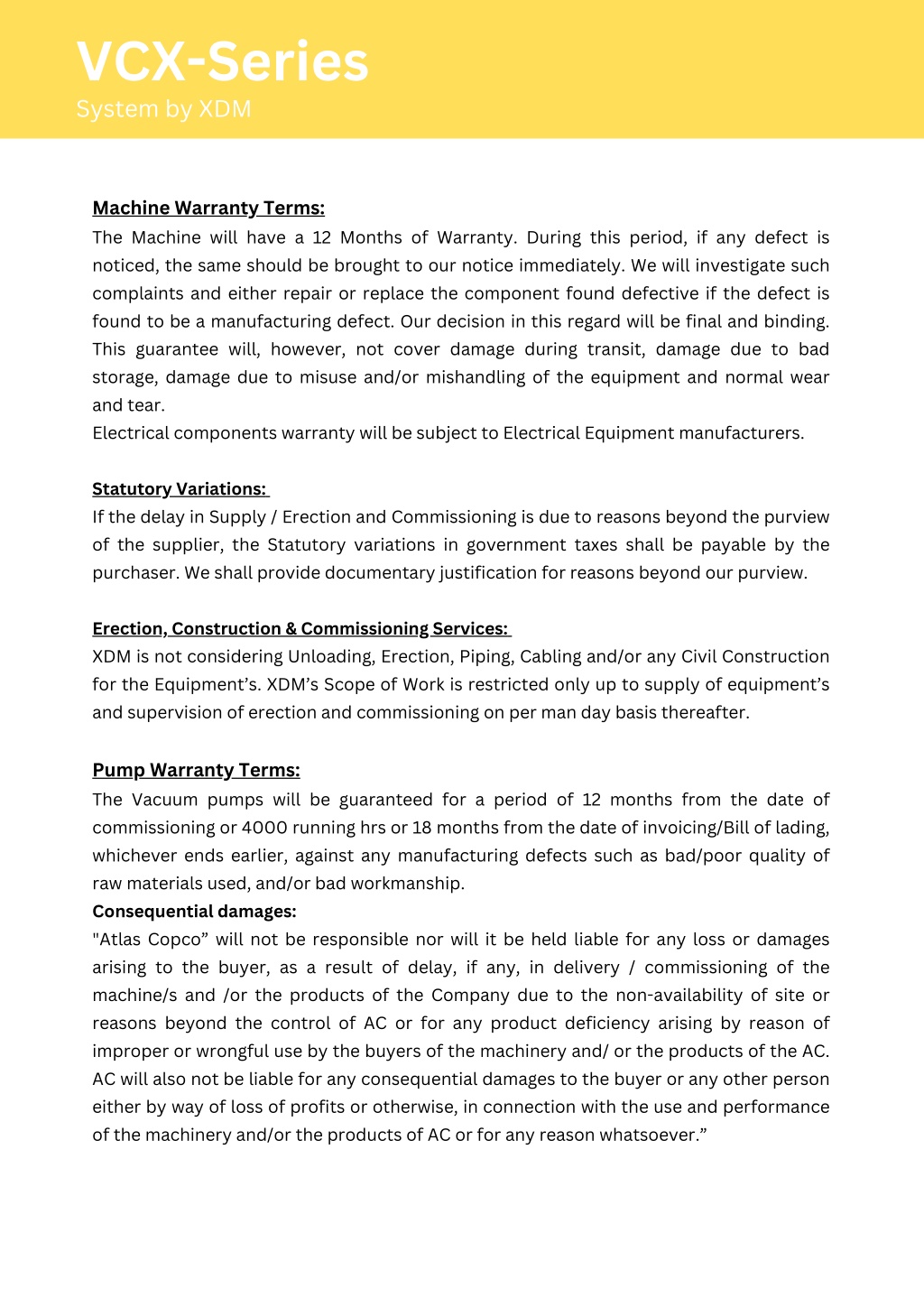

8. VCX-Series System by XDM Machine Warranty Terms: The Machine will have a 12 Months of Warranty. During this period, if any defect is noticed, the same should be brought to our notice immediately. We will investigate such complaints and either repair or replace the component found defective if the defect is found to be a manufacturing defect. Our decision in this regard will be final and binding. This guarantee will, however, not cover damage during transit, damage due to bad storage, damage due to misuse and/or mishandling of the equipment and normal wear and tear. Electrical components warranty will be subject to Electrical Equipment manufacturers. Statutory Variations: If the delay in Supply / Erection and Commissioning is due to reasons beyond the purview of the supplier, the Statutory variations in government taxes shall be payable by the purchaser. We shall provide documentary justification for reasons beyond our purview. Erection, Construction & Commissioning Services: XDM is not considering Unloading, Erection, Piping, Cabling and/or any Civil Construction for the Equipment’s. XDM’s Scope of Work is restricted only up to supply of equipment’s and supervision of erection and commissioning on per man day basis thereafter. Pump Warranty Terms: The Vacuum pumps will be guaranteed for a period of 12 months from the date of commissioning or 4000 running hrs or 18 months from the date of invoicing/Bill of lading, whichever ends earlier, against any manufacturing defects such as bad/poor quality of raw materials used, and/or bad workmanship. Consequential damages: "Atlas Copco” will not be responsible nor will it be held liable for any loss or damages arising to the buyer, as a result of delay, if any, in delivery / commissioning of the machine/s and /or the products of the Company due to the non-availability of site or reasons beyond the control of AC or for any product deficiency arising by reason of improper or wrongful use by the buyers of the machinery and/ or the products of the AC. AC will also not be liable for any consequential damages to the buyer or any other person either by way of loss of profits or otherwise, in connection with the use and performance of the machinery and/or the products of AC or for any reason whatsoever.”
