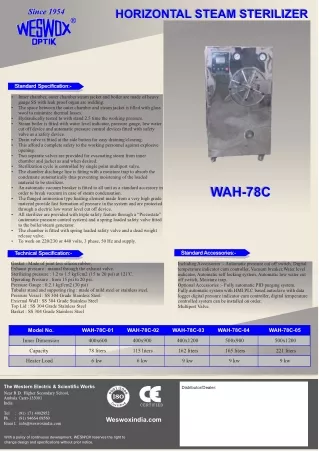

WAH-78C HORIZONTAL STEAM STERILIZER

1. Since 1954 Since 1954 HORIZONTAL STEAM STERILIZER HORIZONTAL STEAM STERILIZER ® ® Standard Specication:- Standard Specication:- Inner chamber, outer chamber steam jacket and boiler are made of heavy gauge SS with leak proof organ arc welding. The space between the outer chamber and steam jacket is lled with glass wool to minimize thermal losses. Hydraulically tested to with stand 2.5 time the working pressure. Steam boiler is tted with water level indicator, pressure gauge, low water cut off device and automatic pressure control devices tted with safety valve as a safety device. Drain valve is tted at the side button for easy draining/clearing. This afford a complete safety to the working personnel against explosive opening. Two separate valves are provided for evacuating steam from inner chamber and jacket as and when desired. Sterilization cycle is controlled by single point multiport valve. The chamber discharge line is tting with a moisture trap to absorb the condensate automatically thus preventing moistening of the loaded material to be sterilizer. An automatic vacuum breaker is tted to all unit as a standard accessory in order to break vacuum in case of steam condensation. The anged immersion type heating element made from a very high grade material provide fast formation of pressure in the system and are protected through a electric low water level cut off device. All sterilizer are provided with triple safety feature through a “Piezostate” (automatic pressure control system) and a spring loaded safety valve tted to the boiler/steam generator. The chamber is tted with spring loaded safety valve and a dead weight release valve. To work on 220/230 or 440 volts, 3 phase, 50 Hz and supply.          WAH-78C WAH-78C      Standard Accessories:- Standard Accessories:- Technical Specication:- Technical Specication:- Gasket : Made of joint less silicon rubber. Exhaust pressure : manual through the exhaust valve. Sterilizing pressure : 1.2 to 1.5 kgf/cm2 (15 to 20 psi) at 121'C. Operating Pressure : from 15 psi to 20 psi. Pressure Gauge : 0.2.1 kgf/cm2 (30 psi) Tubular stand and suppoting ring : made of mild steel or stainless steel. Pressure Vessel : SS 304 Grade Stainless Steel External WaII : SS 304 Grade Stainless Steel Top Lid : SS 304 Grade Stainless Steel Basket : SS 304 Grade Stainless Steel Including Accessories :- Automatic pressure cut off switch, Digital temperature indicator cum controller, Vacuum breaker,Water level indicator, Automatic self locking system, Automatic low water cut off switch, Moisture trap. Optional Accessories :- Fully automatic PID purging system. Fully automatic system with HMI PLC based autoclave with data logger digital pressure indicator cum controller, digital temperature controlled system can be installed on order. Multiport Valve. Model No. WAH-78C-01 WAH-78C-02 WAH-78C-03 WAH-78C-04 WAH-78C-05 Inner Dimension 400x600 400x900 400x1200 500x900 500x1200 Capacity 78 liters 115 liters 162 liters 165 liters 221 liters Heater Load 6 kw 6 kw 9 kw 9 kw 9 kw The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
