POLARISING MICROSCOPE PL-50

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX POLARISING (PETROLOGICAL) MICROSCOPE (STUDENT MODEL) Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

POLARISING MICROSCOPE PL-50

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

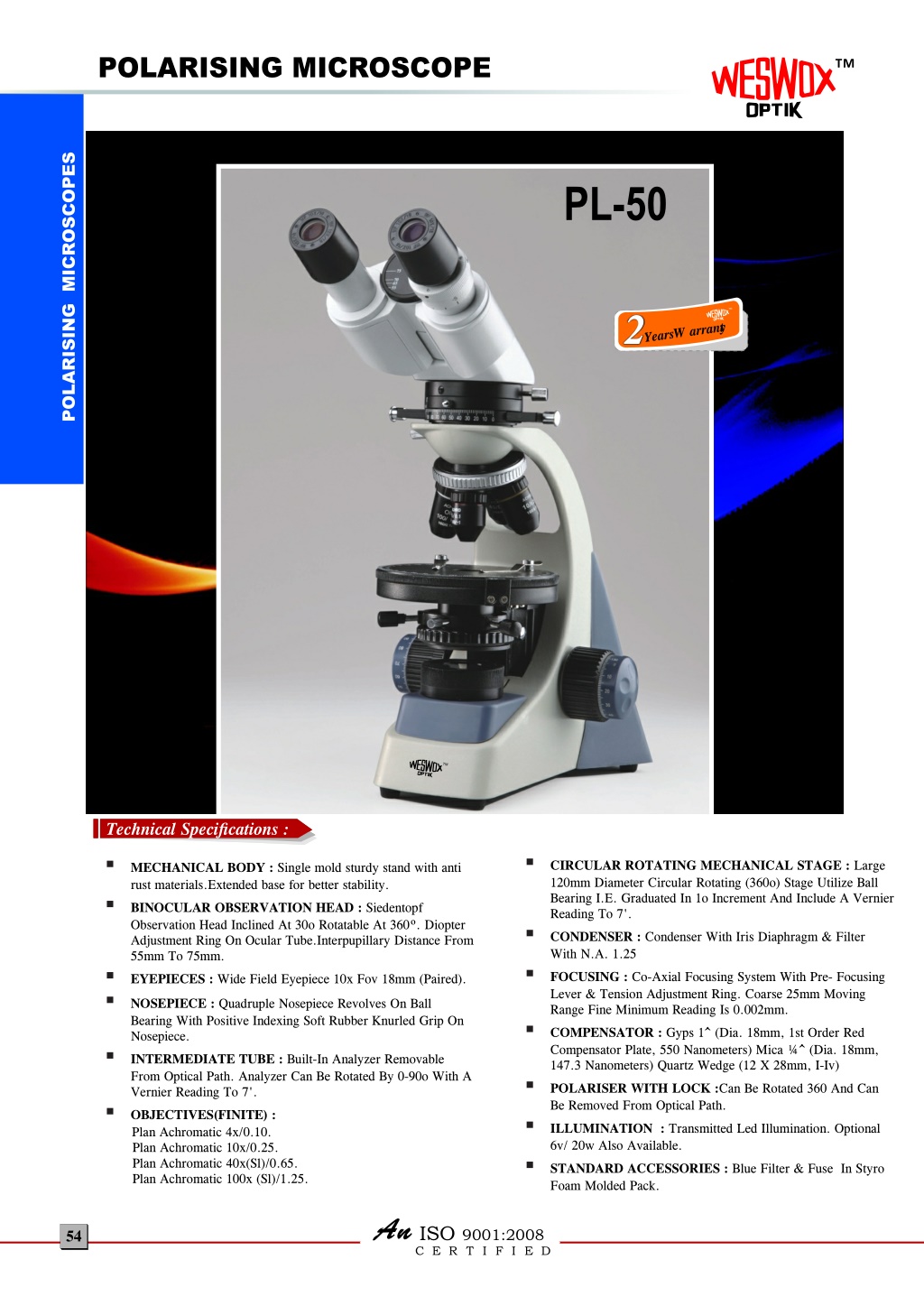

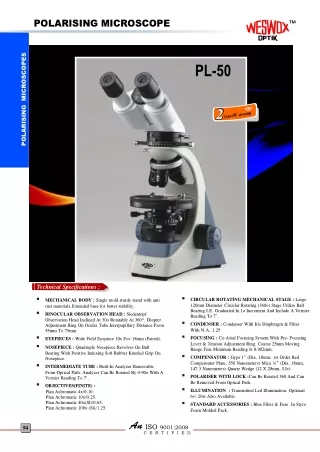

  1. POLARISING MICROSCOPE TM POLARISING MICROSCOPES PL-50 2 M T ar any r t r W ea s Y TM Technical Specifications : Technical Specifications :   CIRCULAR ROTATING MECHANICAL STAGE : Large 120mm Diameter Circular Rotating (360o) Stage Utilize Ball Bearing I.E. Graduated In 1o Increment And Include A Vernier Reading To 7'. MECHANICAL BODY : Single mold sturdy stand with anti rust materials.Extended base for better stability.  BINOCULAR OBSERVATION HEAD : Siedentopf Observation Head Inclined At 30o Rotatable At 360º. Diopter Adjustment Ring On Ocular Tube.Interpupillary Distance From 55mm To 75mm.  CONDENSER : Condenser With Iris Diaphragm & Filter With N.A. 1.25    FOCUSING : Co-Axial Focusing System With Pre- Focusing Lever & Tension Adjustment Ring. Coarse 25mm Moving Range Fine Minimum Reading Is 0.002mm. EYEPIECES : Wide Field Eyepiece 10x Fov 18mm (Paired). NOSEPIECE : Quadruple Nosepiece Revolves On Ball Bearing With Positive Indexing Soft Rubber Knurled Grip On Nosepiece.  COMPENSATOR : Gyps 1^ (Dia. 18mm, 1st Order Red Compensator Plate, 550 Nanometers) Mica ¼^ (Dia. 18mm, 147.3 Nanometers) Quartz Wedge (12 X 28mm, I-Iv)  INTERMEDIATE TUBE : Built-In Analyzer Removable From Optical Path. Analyzer Can Be Rotated By 0-90o With A Vernier Reading To 7'.  POLARISER WITH LOCK :Can Be Rotated 360 And Can Be Removed From Optical Path.  OBJECTIVES(FINITE) : Plan Achromatic 4x/0.10. Plan Achromatic 10x/0.25. Plan Achromatic 40x(Sl)/0.65. Plan Achromatic 100x (Sl)/1.25.  ILLUMINATION : Transmitted Led Illumination. Optional 6v/ 20w Also Available.  STANDARD ACCESSORIES : Blue Filter & Fuse In Styro Foam Molded Pack. ISO9001:2008 An 54 C E R T I F I E D
