IVF STEREO MICROSCOPE SZM-200 IVF

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX STEREO ZOOM MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

IVF STEREO MICROSCOPE SZM-200 IVF

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

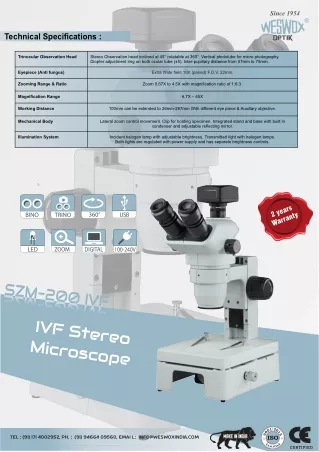

  1. Since 1954 ® ® Technical Specifications : Trinocular Observation Head Stereo Observation head inclined at 45° rotatable at 360°. Vertical phototube for micro photography. Diopter adjustment ring on both ocular tube (±5). Inter-pupillary distance from 57mm to 75mm. Eyepiece (Anti fungus) Extra Wide eld 10X (paired) F.O.V. 22mm. Zooming Range & Ratio Zoom 0.67X to 4.5X with magnication ratio of 1:6:3. Magnication Range 6.7X – 45X Working Distance 100mm can be extended to 26mm-287mm With different eye piece & Auxillary objective. Mechanical Body Lateral zoom control movement. C lip for holding specimen. I ntegrated stand and base with built in condenser and adjustable reecting mirror. Illumination System Incident halogen lamp with adjustable brightness. T ransmitted light with halogen lamps. Both lights are regulated with power supply and has separate brightness controls. 2 years Warranty SZM-200 IVF SZM-200 IVF IVF Stereo Microscope :2 1 0 1 5 0 0 9 Tel : (91) 171 4002952, Ph. : (91) 94664 09560, Emai l: info@weswoxindia.com
