BINOCULAR MICROSCOPE WITH LED LIGHT SOURCE TRHL-66

Weswox Is The Leading Supplier Manufacturer Exporter Of BINOCULAR MICROSCOPE WITH LED LIGHT SOURCE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.<br>

Weswox
Download Presentation

BINOCULAR MICROSCOPE WITH LED LIGHT SOURCE TRHL-66

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

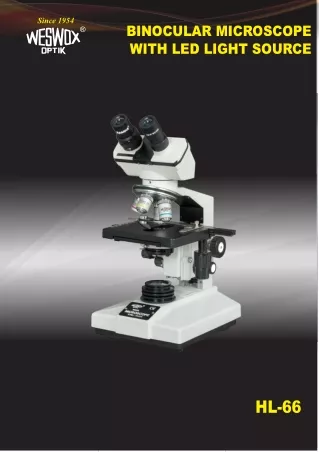

  1. Since 1954 BINOCULAR MICROSCOPE WITH LED LIGHT SOURCE ® HL-66

  2. BINOCULAR MICROSCOPE WITH LED LIGHT SOURCE ® HL-66 TRHL-66 Technical Specifications :  Stand  Observation Head  Eyepiece  Nosepiece  Objectives : Rigid & Heavy single mold aluminum die-cast stand. : Binocular/Trinocular head inclined at 45 and rotatable in 360 . :10x WF (paired) anti-fungal eyepiece. H6x (paired) extra. : Quadruple ball bearing revolving nose piece : 4x/0.10, 10x/NA 0.25, 40x/NA 0.65(SL) & 100x/NA 1.25(SL) Oil imm. : Size 120x140mm with co-axial controls for X & Y movement. : Separate coarse and fine knobs reading up to 0.002mm. : NA 1.25 fitted with iris diaphragm and blue filter holder. : LED 3V with variable intensity control. : AC input 100V-240V, 50/60 Hz ISO 9001, CE approved. : Styrofoam molded, Nylon Dust cover. o o  Stage  Focusing  Condenser  Illumination  Power  Packaging Contents The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
