Understanding Isolation Resistance Measurement in Ground Fault Monitoring

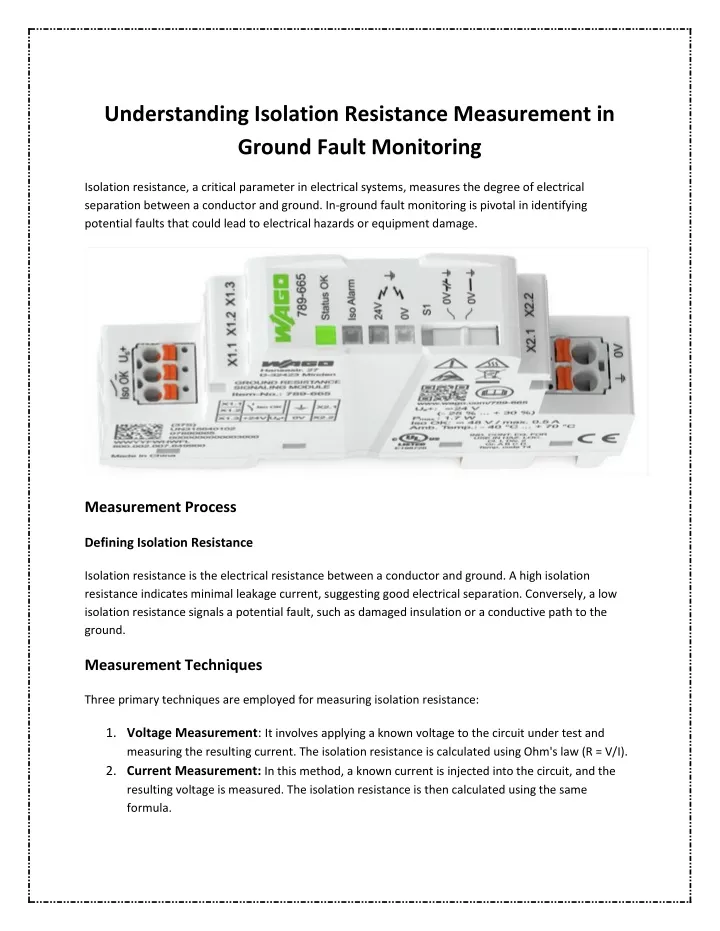

1. Understanding Isolation Resistance Measurement in Ground Fault Monitoring Isolation resistance, a critical parameter in electrical systems, measures the degree of electrical separation between a conductor and ground. In-ground fault monitoring is pivotal in identifying potential faults that could lead to electrical hazards or equipment damage. Measurement Process Defining Isolation Resistance Isolation resistance is the electrical resistance between a conductor and ground. A high isolation resistance indicates minimal leakage current, suggesting good electrical separation. Conversely, a low isolation resistance signals a potential fault, such as damaged insulation or a conductive path to the ground. Measurement Techniques Three primary techniques are employed for measuring isolation resistance: 1.Voltage Measurement: It involves applying a known voltage to the circuit under test and measuring the resulting current. The isolation resistance is calculated using Ohm's law (R = V/I). 2.Current Measurement: In this method, a known current is injected into the circuit, and the resulting voltage is measured. The isolation resistance is then calculated using the same formula.

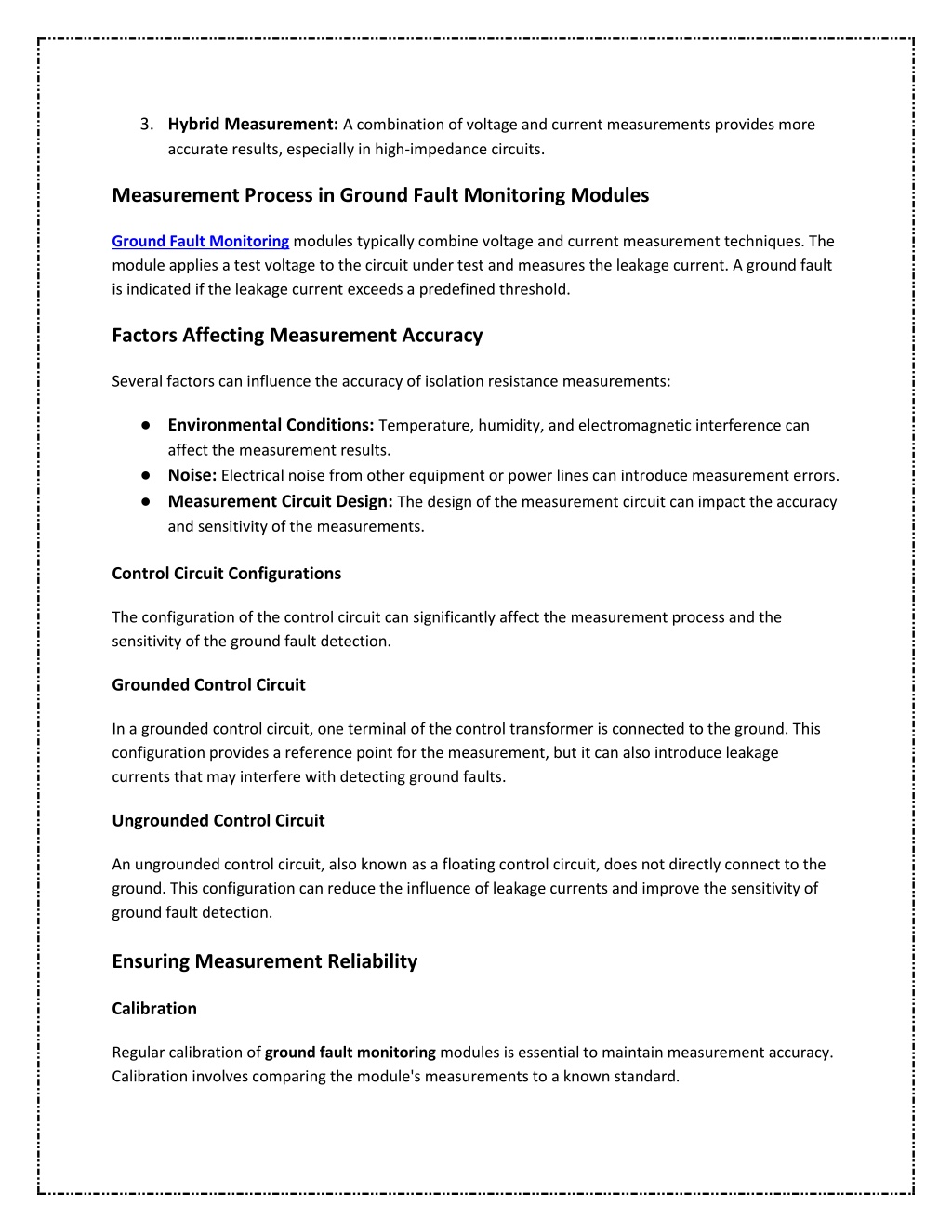

2. 3.Hybrid Measurement:A combination of voltage and current measurements provides more accurate results, especially in high-impedance circuits. Measurement Process in Ground Fault Monitoring Modules Ground Fault Monitoring modules typically combine voltage and current measurement techniques. The module applies a test voltage to the circuit under test and measures the leakage current. A ground fault is indicated if the leakage current exceeds a predefined threshold. Factors Affecting Measurement Accuracy Several factors can influence the accuracy of isolation resistance measurements: ●Environmental Conditions:Temperature, humidity, and electromagnetic interference can affect the measurement results. ●Noise:Electrical noise from other equipment or power lines can introduce measurement errors. ●Measurement Circuit Design:The design of the measurement circuit can impact the accuracy and sensitivity of the measurements. Control Circuit Configurations The configuration of the control circuit can significantly affect the measurement process and the sensitivity of the ground fault detection. Grounded Control Circuit In a grounded control circuit, one terminal of the control transformer is connected to the ground. This configuration provides a reference point for the measurement, but it can also introduce leakage currents that may interfere with detecting ground faults. Ungrounded Control Circuit An ungrounded control circuit, also known as a floating control circuit, does not directly connect to the ground. This configuration can reduce the influence of leakage currents and improve the sensitivity of ground fault detection. Ensuring Measurement Reliability Calibration Regular calibration of ground fault monitoring modules is essential to maintain measurement accuracy. Calibration involves comparing the module's measurements to a known standard.

3. Environmental Considerations Monitoring and controlling environmental factors, such as temperature and humidity, can help minimise their impact on measurement accuracy. Diagnostic Tools and Data Analysis Advanced diagnostic tools and data analysis techniques can be used to identify potential issues and ensure the reliability of the measurement process. Final Thoughts By understanding the principles of isolation resistance measurement and implementing appropriate measures to ensure reliability, organisations can effectively monitor their electrical systems and prevent costly downtime due to ground faults. Contact Details: Address:Wago India, Block No. 94, National Highway-8, Village Vadsala, Varnama 391243 Vadodara, Gujarat, India Call:+91 265 681 2100 Email:contact.india@wago.com Website:https://www.wago.com/in/
