Ventilator-System-MVS-702 (1)

Medlon Ventilator System features a 15-inch TFT LCD touch screen, power input of 250u2013900 VA, and supports multiple ventilation modes. It operates with an air compressor, uses oxygen and air sources, and offers oscillogram displays for detailed respiratory analysis.

Vanessa96
Download Presentation

Ventilator-System-MVS-702 (1)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

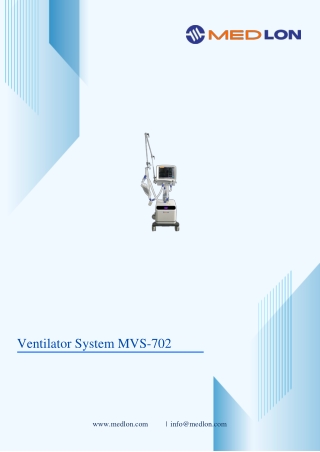

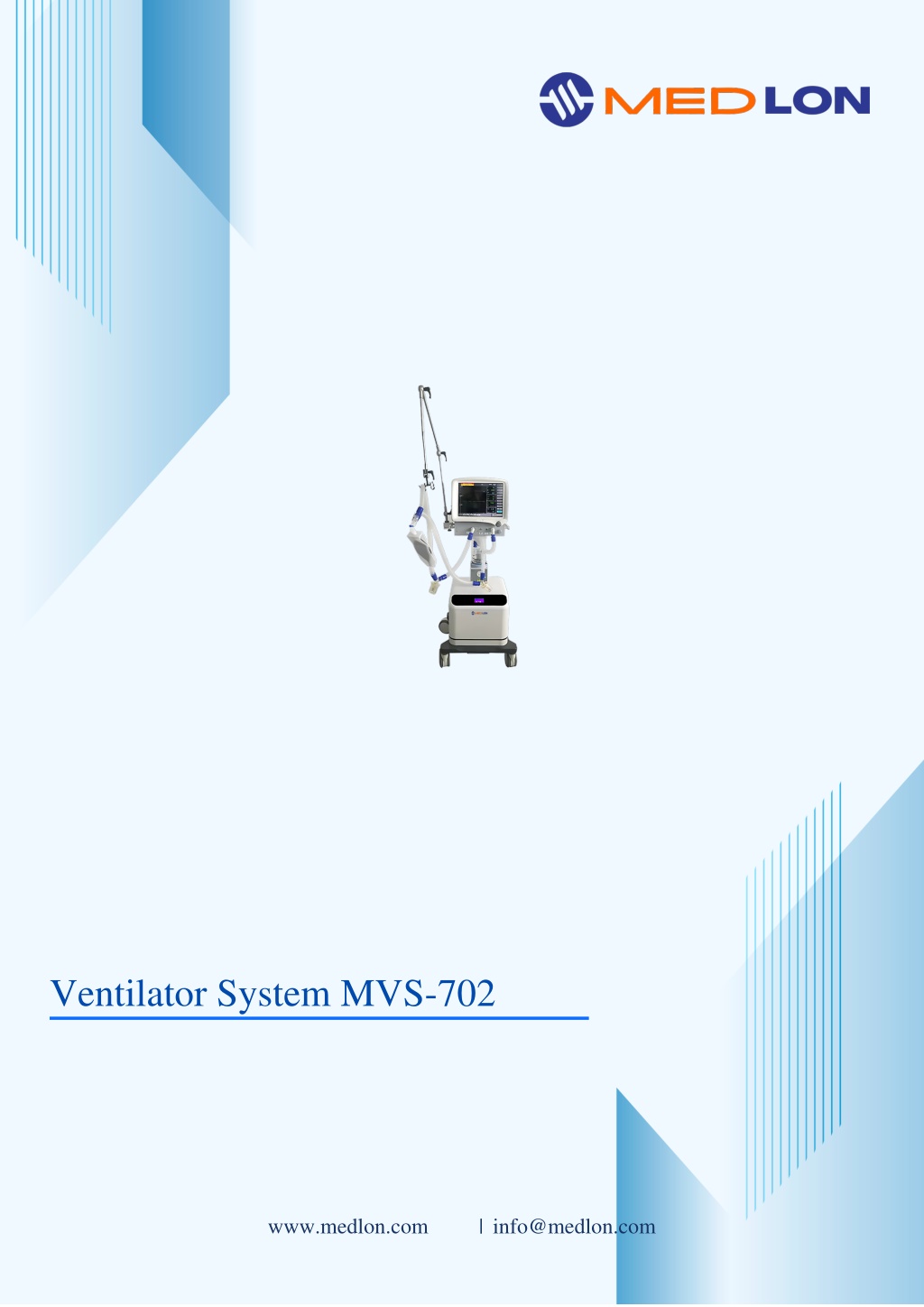

  1. Ventilator System MVS-702 www.medlon.com | info@medlon.com

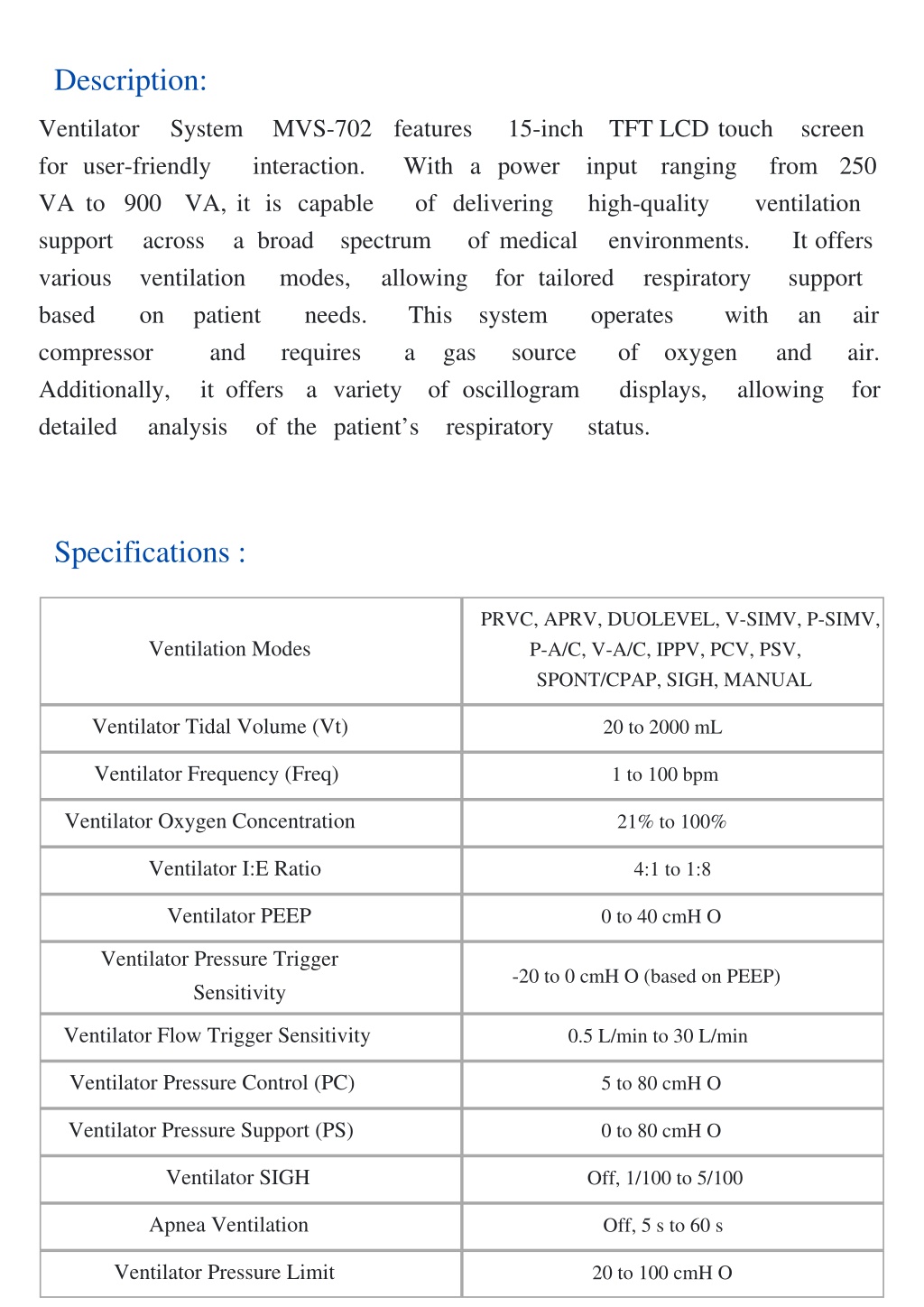

  2. Description: Ventilator for user-friendly VA to 900 support various based compressor Additionally, detailed MVS-702 features interaction. VA, it is capable across a broad ventilation modes, on patient needs. and requires it offers a variety analysis of the patient’s System TFT LCD touch input ranging high-quality environments. for tailored system operates source of of oscillogram respiratory status. 15-inch screen from 250 ventilation It offers support with an oxygen displays, allowing With a power of delivering spectrum allowing This a gas of medical respiratory air air. for and Specifications : PRVC, APRV, DUOLEVEL, V-SIMV, P-SIMV, P-A/C, V-A/C, IPPV, PCV, PSV, SPONT/CPAP, SIGH, MANUAL Ventilation Modes Ventilator Tidal Volume (Vt) 20 to 2000 mL Ventilator Frequency (Freq) 1 to 100 bpm Ventilator Oxygen Concentration 21% to 100% Ventilator I:E Ratio 4:1 to 1:8 Ventilator PEEP 0 to 40 cmH?O Ventilator Pressure Trigger Sensitivity -20 to 0 cmH?O (based on PEEP) Ventilator Flow Trigger Sensitivity 0.5 L/min to 30 L/min Ventilator Pressure Control (PC) 5 to 80 cmH?O Ventilator Pressure Support (PS) 0 to 80 cmH?O Ventilator SIGH Off, 1/100 to 5/100 Apnea Ventilation Off, 5 s to 60 s Ventilator Pressure Limit 20 to 100 cmH?O

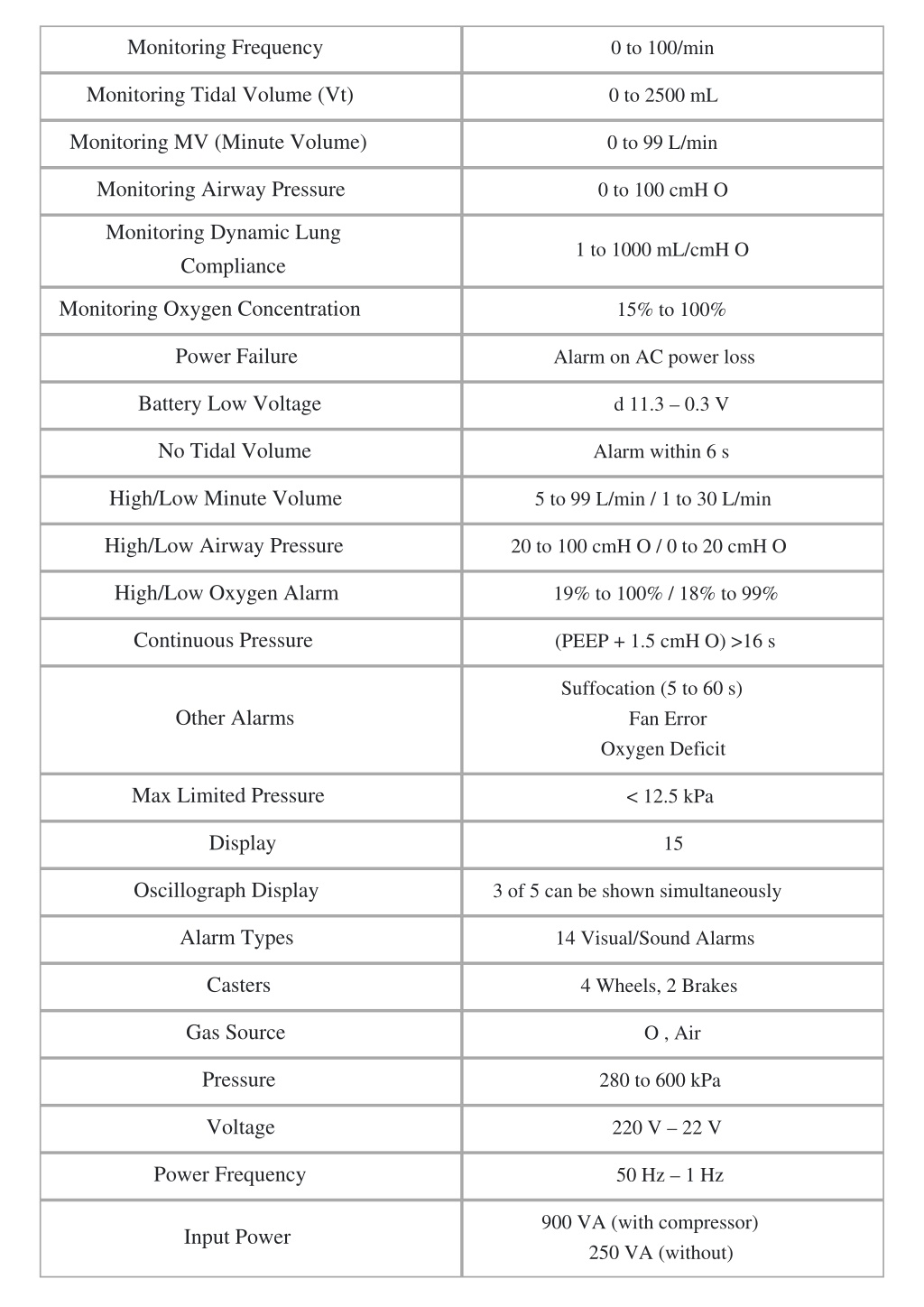

  3. Monitoring Frequency 0 to 100/min Monitoring Tidal Volume (Vt) 0 to 2500 mL Monitoring MV (Minute Volume) 0 to 99 L/min Monitoring Airway Pressure 0 to 100 cmH?O Monitoring Dynamic Lung Compliance 1 to 1000 mL/cmH?O Monitoring Oxygen Concentration 15% to 100% Power Failure Alarm on AC power loss Battery Low Voltage d 11.3 – 0.3 V No Tidal Volume Alarm within 6 s High/Low Minute Volume 5 to 99 L/min / 1 to 30 L/min High/Low Airway Pressure 20 to 100 cmH?O / 0 to 20 cmH?O High/Low Oxygen Alarm 19% to 100% / 18% to 99% Continuous Pressure (PEEP + 1.5 cmH?O) >16 s Suffocation (5 to 60 s) Fan Error Oxygen Deficit Other Alarms Max Limited Pressure < 12.5 kPa Display 15 Oscillograph Display 3 of 5 can be shown simultaneously Alarm Types 14 Visual/Sound Alarms Casters 4 Wheels, 2 Brakes Gas Source O?, Air Pressure 280 to 600 kPa Voltage 220 V – 22 V Power Frequency 50 Hz – 1 Hz 900 VA (with compressor) 250 VA (without) Input Power

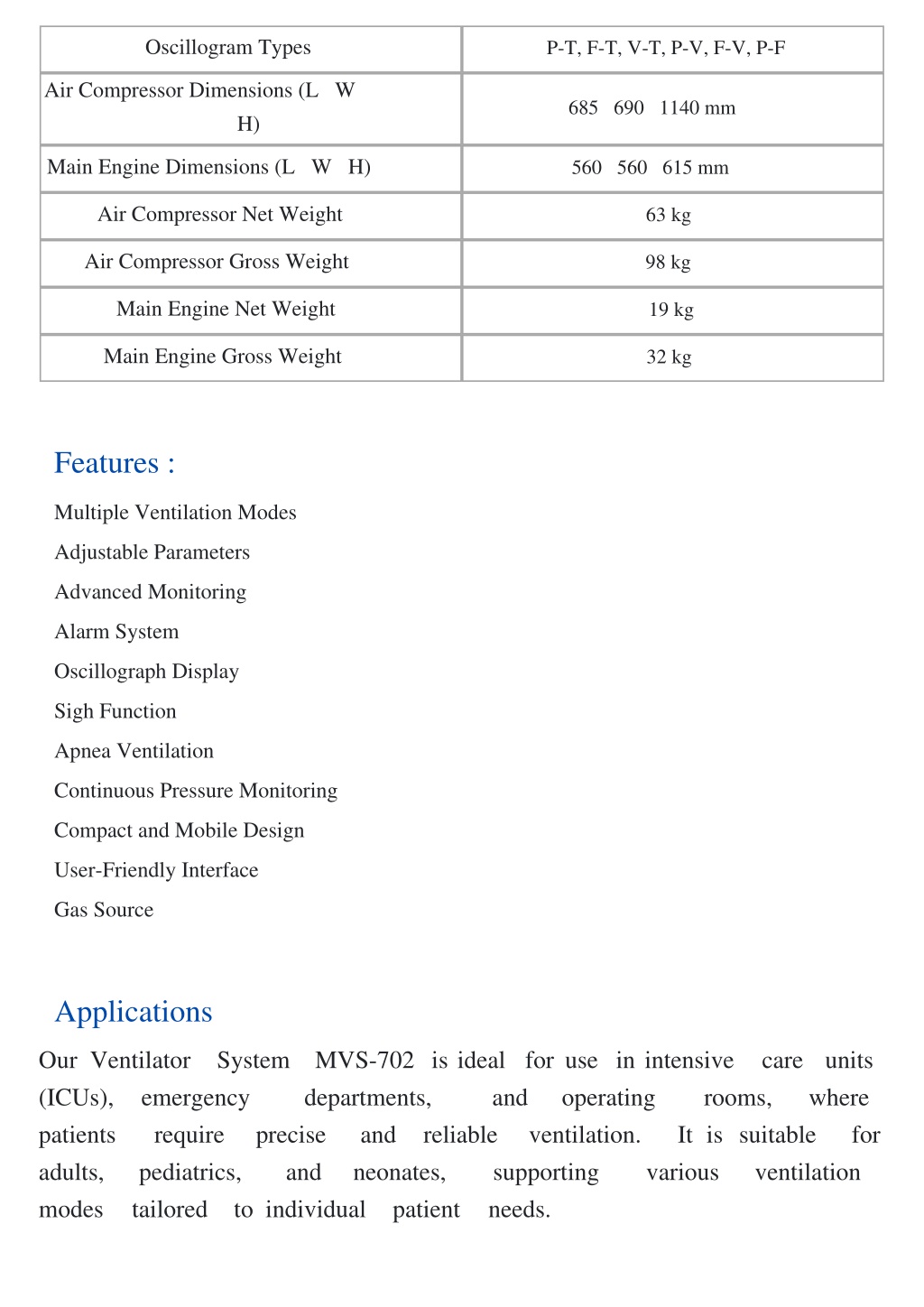

  4. Oscillogram Types P-T, F-T, V-T, P-V, F-V, P-F Air Compressor Dimensions (L ? W ? 685 ? 690 ? 1140 mm H) Main Engine Dimensions (L ? W ? H) 560 ? 560 ? 615 mm Air Compressor Net Weight 63 kg Air Compressor Gross Weight 98 kg Main Engine Net Weight 19 kg Main Engine Gross Weight 32 kg Features : Multiple Ventilation Modes Adjustable Parameters Advanced Monitoring Alarm System Oscillograph Display Sigh Function Apnea Ventilation Continuous Pressure Monitoring Compact and Mobile Design User-Friendly Interface Gas Source Applications Our Ventilator (ICUs), patients adults, modes System MVS-702 is ideal for use in intensive departments, and precise and reliable and neonates, supporting to individual patient care units where emergency require pediatrics, tailored operating ventilation. rooms, It is suitable various for ventilation needs.

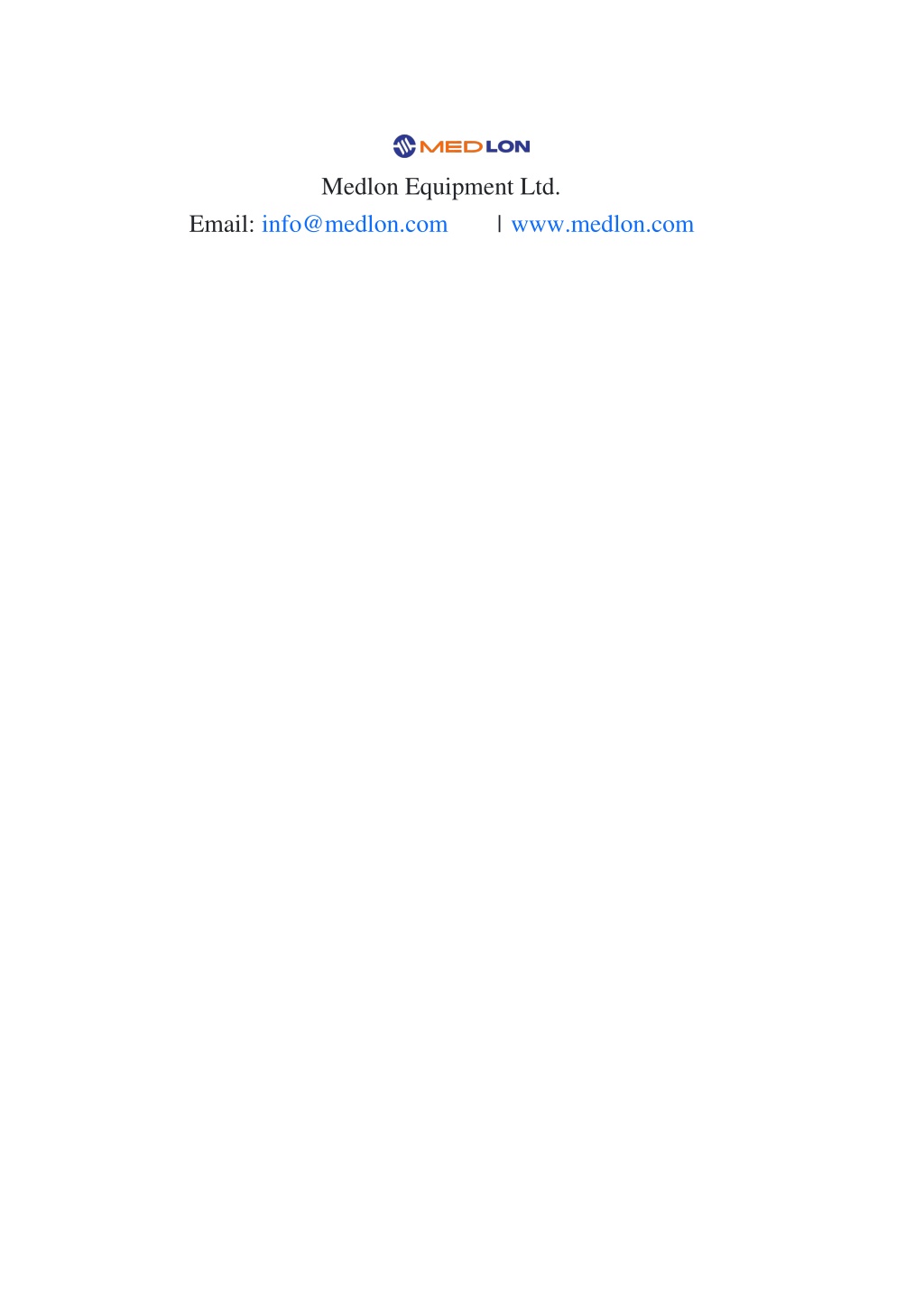

  5. Medlon Equipment Ltd. info@medlon.com Email: | www.medlon.com
