Medlon Ventilator System offers pressure-trigger sensitivity from -20 to 0 cmHu2082O, configurable sigh and apnea settings, and a 10.4-inch TFT screen. With multiple modes, safety alarms, and trolley-mounted design, it ensures reliable, mobile support in critical care.

Vanessa96
Download Presentation

Ventilator-System-MVS-701

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

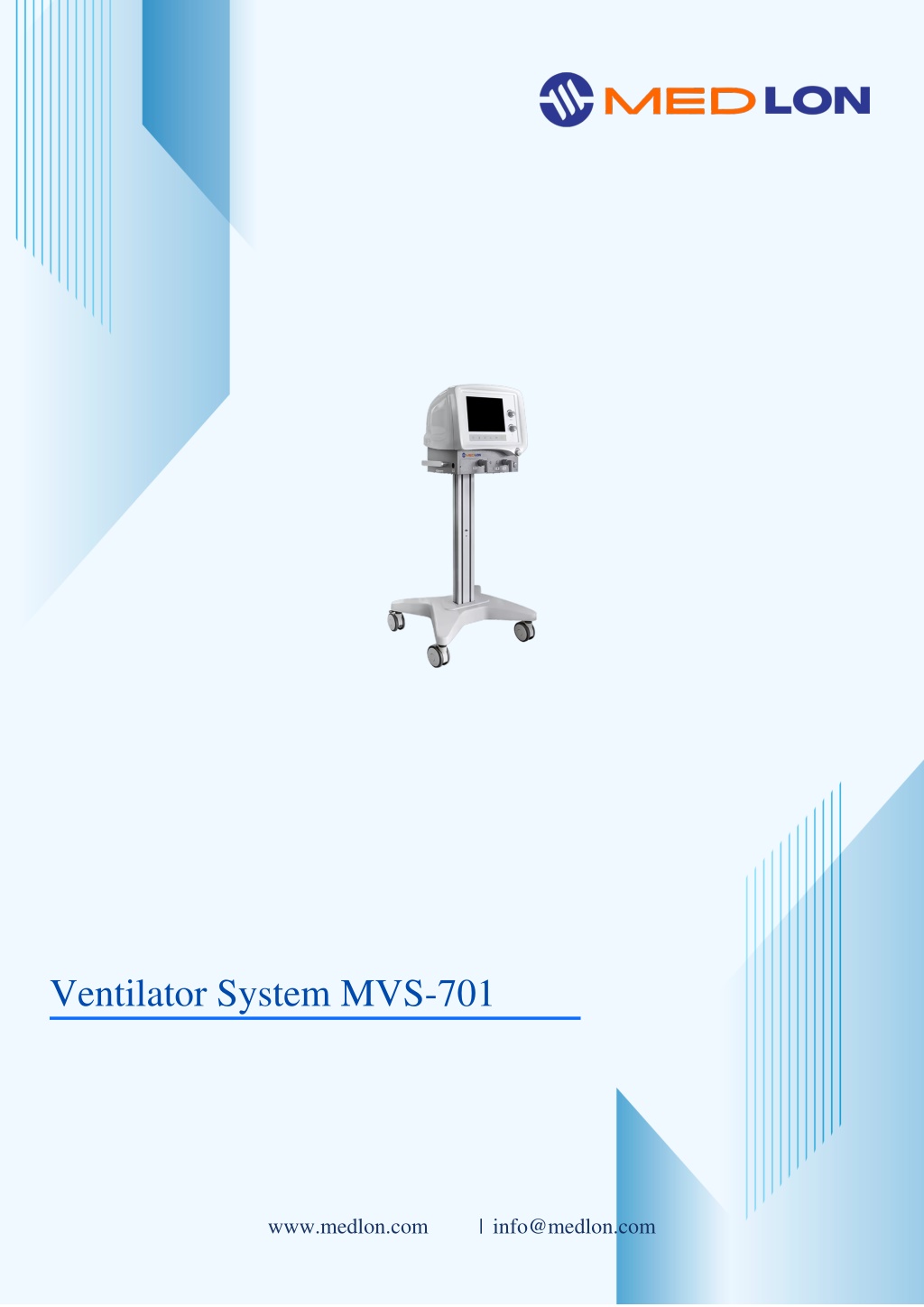

  1. Ventilator System MVS-701 www.medlon.com | info@medlon.com

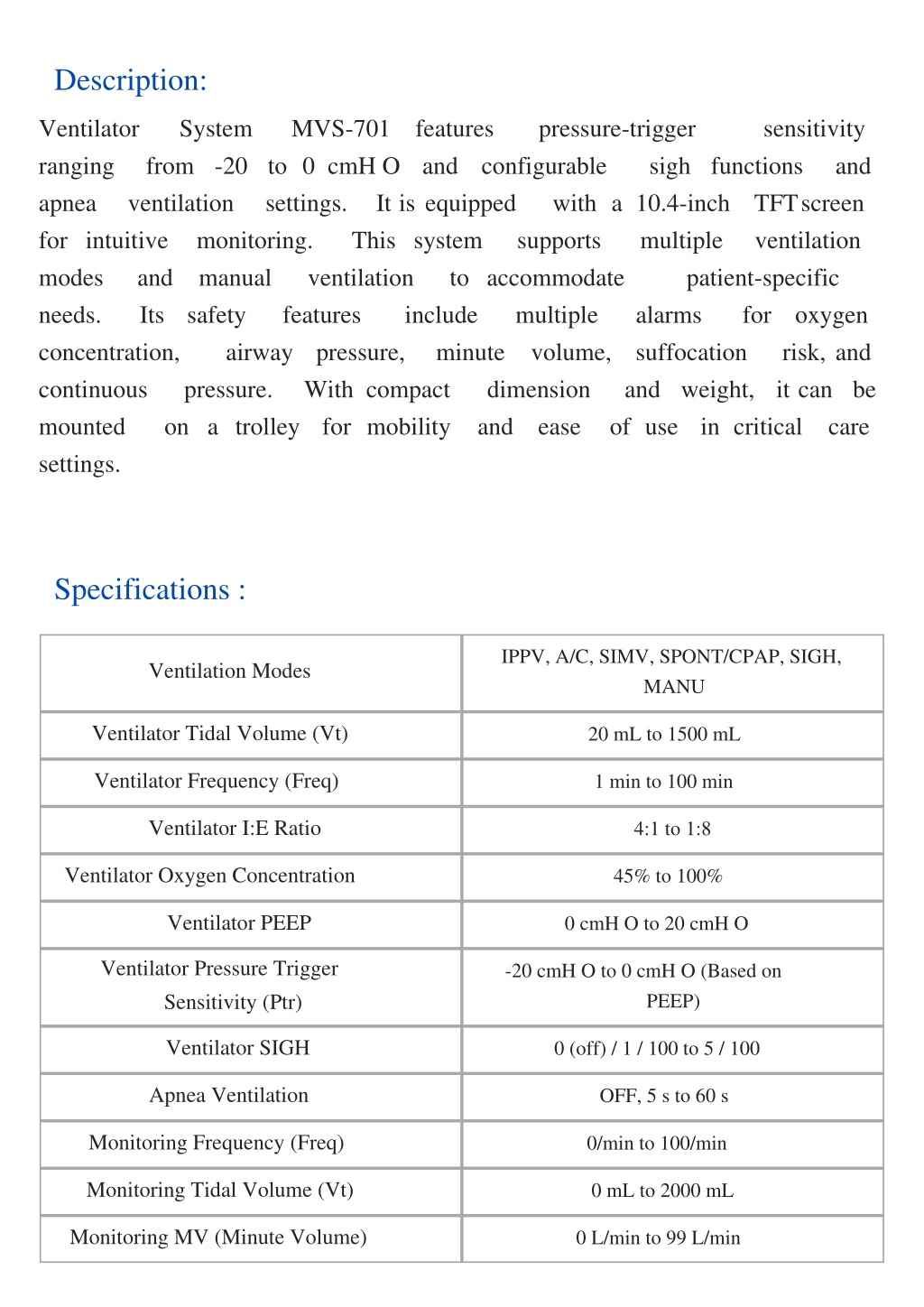

  2. Description: Ventilator ranging apnea for intuitive modes needs. concentration, continuous mounted settings. System from -20 to 0 cmH?O and ventilation settings. monitoring. and manual Its safety features airway pressure. on a trolley for mobility MVS-701 pressure-trigger configurable It is equipped This system supports ventilation to accommodate include pressure, minute With compact dimension and features sensitivity sigh functions and with a 10.4-inch multiple TFTscreen ventilation patient-specific alarms suffocation and weight, it can be of use in critical multiple volume, for oxygen risk, and ease care Specifications : IPPV, A/C, SIMV, SPONT/CPAP, SIGH, MANU Ventilation Modes Ventilator Tidal Volume (Vt) 20 mL to 1500 mL Ventilator Frequency (Freq) 1 min to 100 min Ventilator I:E Ratio 4:1 to 1:8 Ventilator Oxygen Concentration 45% to 100% Ventilator PEEP 0 cmH?O to 20 cmH?O Ventilator Pressure Trigger Sensitivity (Ptr) -20 cmH?O to 0 cmH?O (Based on PEEP) Ventilator SIGH 0 (off) / 1 / 100 to 5 / 100 Apnea Ventilation OFF, 5 s to 60 s Monitoring Frequency (Freq) 0/min to 100/min Monitoring Tidal Volume (Vt) 0 mL to 2000 mL Monitoring MV (Minute Volume) 0 L/min to 99 L/min

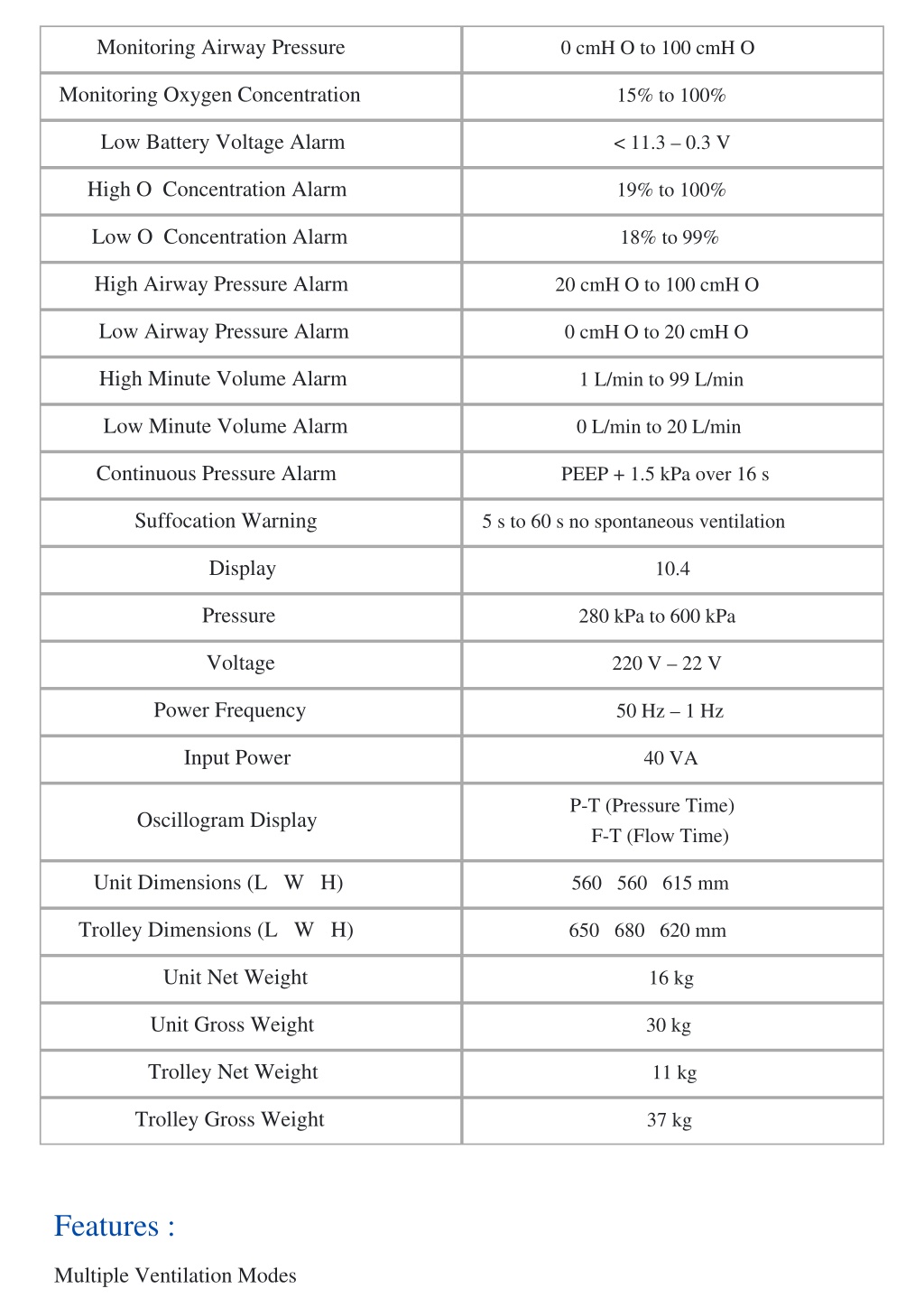

  3. Monitoring Airway Pressure 0 cmH?O to 100 cmH?O Monitoring Oxygen Concentration 15% to 100% Low Battery Voltage Alarm < 11.3 – 0.3 V High O? Concentration Alarm 19% to 100% Low O? Concentration Alarm 18% to 99% High Airway Pressure Alarm 20 cmH?O to 100 cmH?O Low Airway Pressure Alarm 0 cmH?O to 20 cmH?O High Minute Volume Alarm 1 L/min to 99 L/min Low Minute Volume Alarm 0 L/min to 20 L/min Continuous Pressure Alarm PEEP + 1.5 kPa over 16 s Suffocation Warning 5 s to 60 s no spontaneous ventilation Display 10.4 Pressure 280 kPa to 600 kPa Voltage 220 V – 22 V Power Frequency 50 Hz – 1 Hz Input Power 40 VA P-T (Pressure?Time) F-T (Flow?Time) Oscillogram Display Unit Dimensions (L ? W ? H) 560 ? 560 ? 615 mm Trolley Dimensions (L ? W ? H) 650 ? 680 ? 620 mm Unit Net Weight 16 kg Unit Gross Weight 30 kg Trolley Net Weight 11 kg Trolley Gross Weight 37 kg Features : Multiple Ventilation Modes

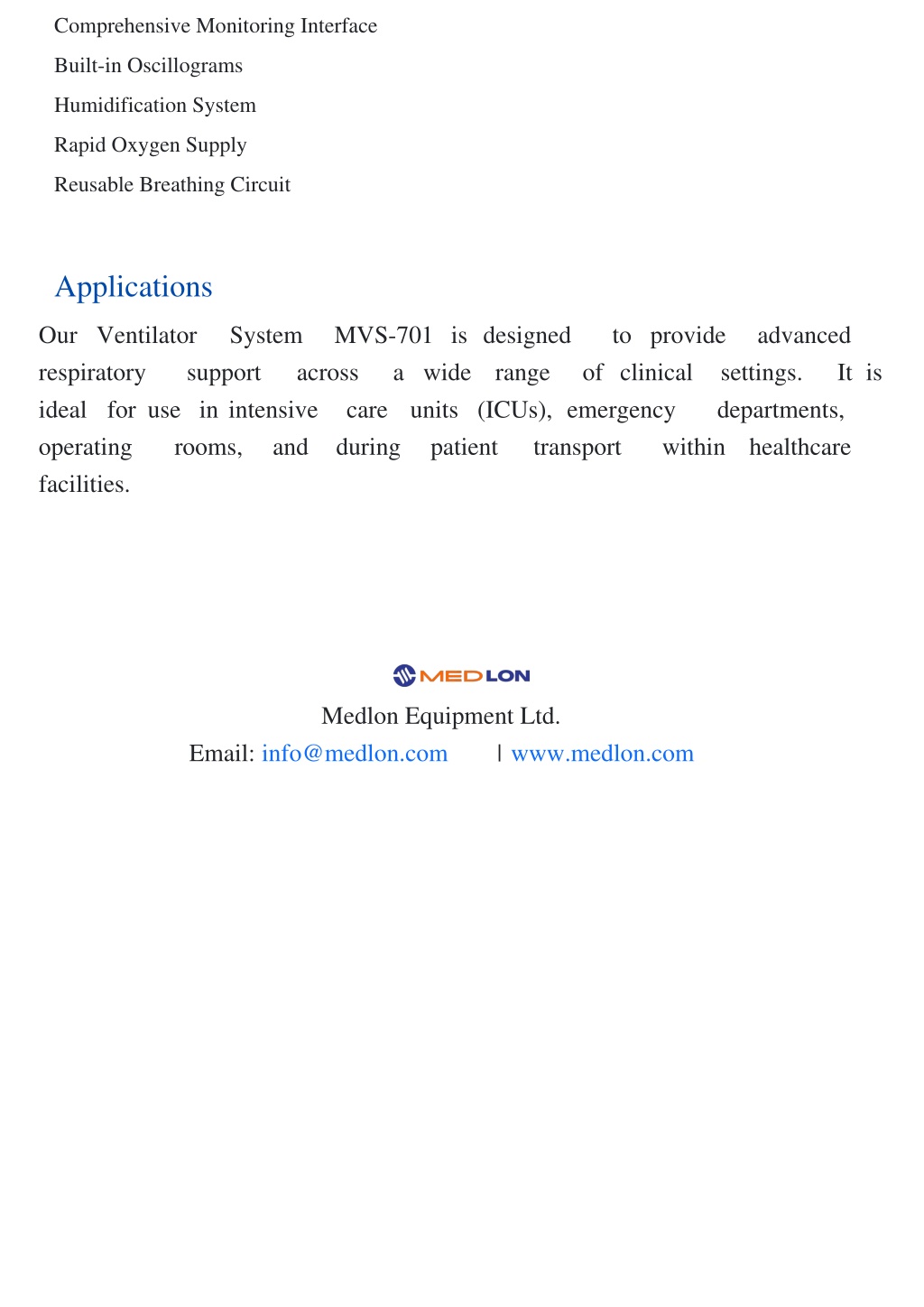

  4. Comprehensive Monitoring Interface Built-in Oscillograms Humidification System Rapid Oxygen Supply Reusable Breathing Circuit Applications Our Ventilator respiratory ideal for use in intensive operating rooms, facilities. System MVS-701 is designed across a wide care units (ICUs), emergency and during patient to provide of clinical advanced settings. departments, within healthcare support range It is transport Medlon Equipment Ltd. info@medlon.com Email: | www.medlon.com
