  1. Troubleshooting a Malfunctioning Convertible Top: Step-by-Step Repair Guide

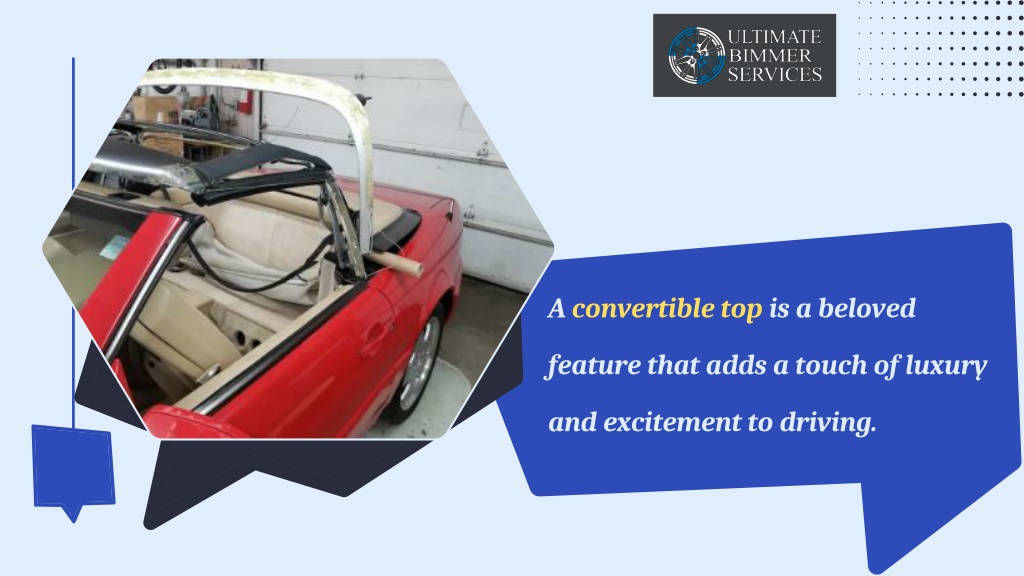

  2. A convertible top is a beloved feature that adds a touch of luxury and excitement to driving.

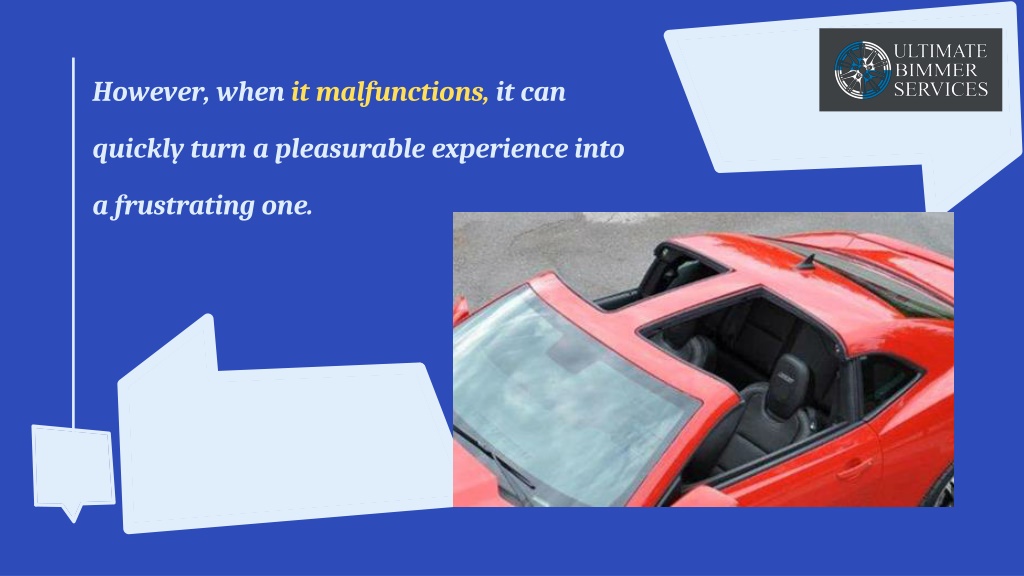

  3. However, when it malfunctions, it can quickly turn a pleasurable experience into a frustrating one.

  4. Here's a step-by-step guide to help you troubleshoot and potentially repair common convertible top issues:

  5. Identify the Problem: Pinpoint the exact issue, whether it's a slow or noisy operation, a leak, or a complete failure to open or close.

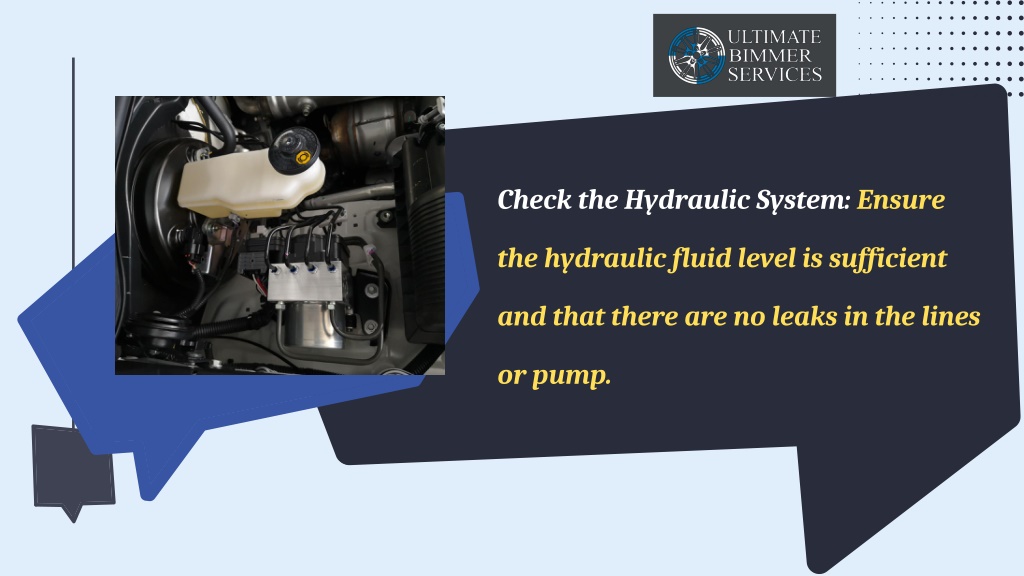

  6. Check the Hydraulic System: Ensure the hydraulic fluid level is sufficient and that there are no leaks in the lines or pump.

  7. Inspect the Electrical System: Verify the fuse box for blown fuses and inspect the wiring harness for damage or loose connections.

  8. 1. SLOW OR NOISY OPERATION

  9. Lubricate Moving Parts: Apply a silicone-based lubricant to the hinges, latches, and other moving components to reduce friction.

  10. Clean the Tracks: Remove debris and dirt from the tracks to ensure smooth operation.

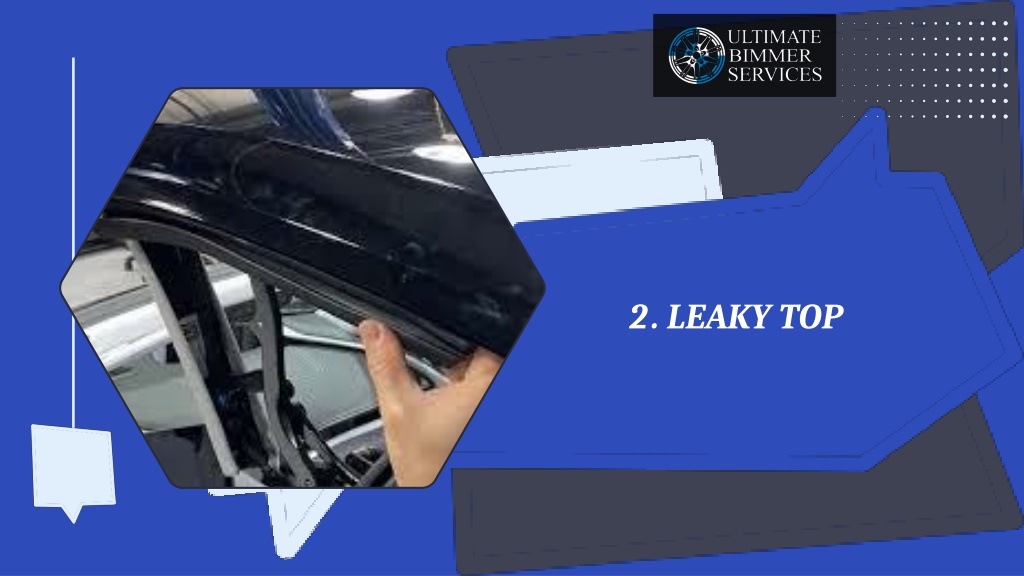

  11. 2. LEAKY TOP

  12. Inspect the Seals: Check for worn or damaged seals around the windows, top, and trunk.

  13. Adjust the Tension: Ensure the top is tensioned correctly to prevent leaks.

  14. 3. TOP WON'T OPEN OR CLOSE

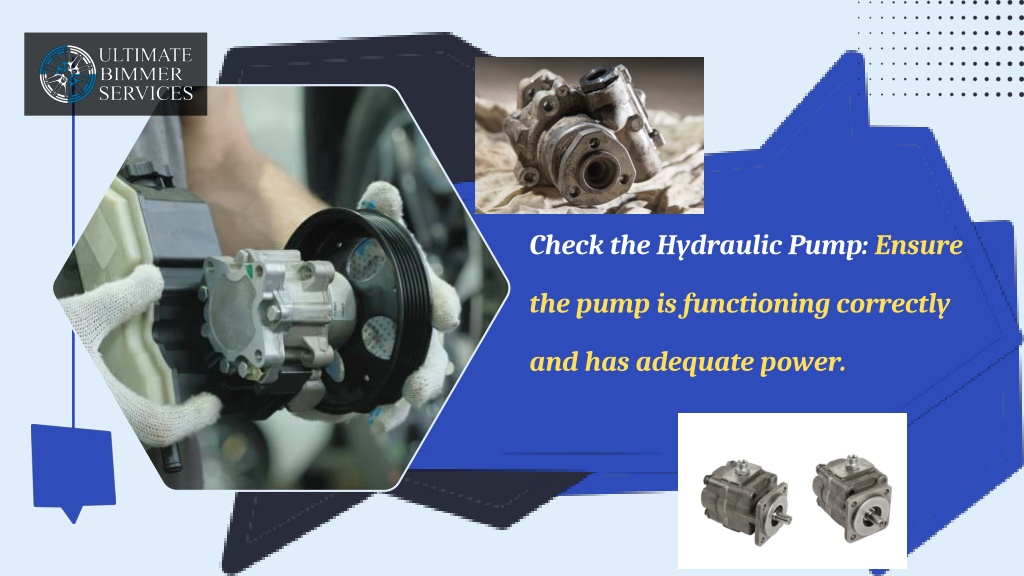

  15. Check the Hydraulic Pump: Ensure the pump is functioning correctly and has adequate power.

  16. Inspect the Motor: Verify the motor is receiving power and is not burned out.

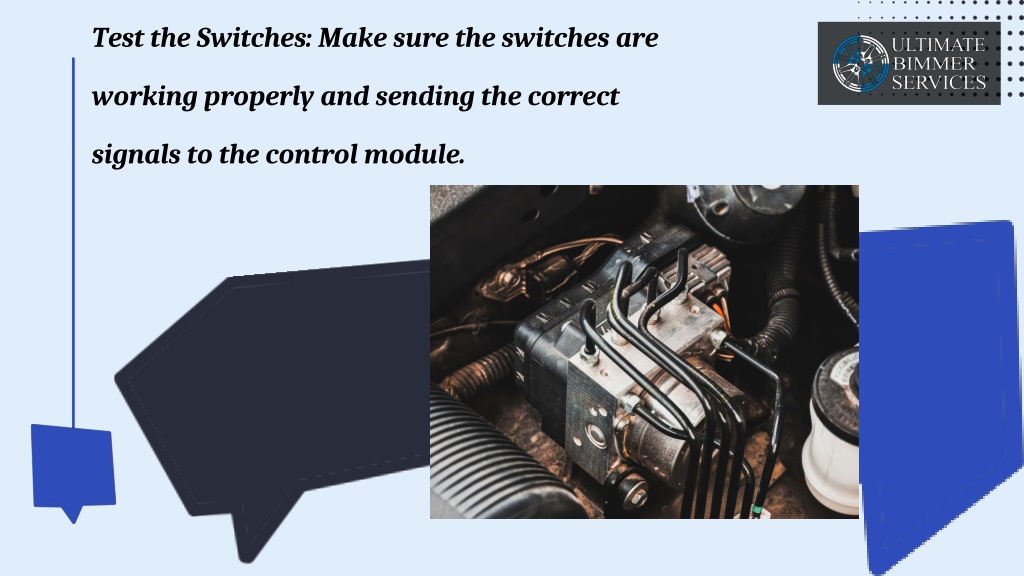

  17. Test the Switches: Make sure the switches are working properly and sending the correct signals to the control module.

  18. 4. TOP WON'T LATCH

  19. Clean the Latch Mechanism: Remove dirt and debris from the latch mechanism to ensure proper engagement.

  20. Adjust the Latch: If necessary, adjust the latch to ensure a secure fit.

  21. 5. ELECTRICAL ISSUES

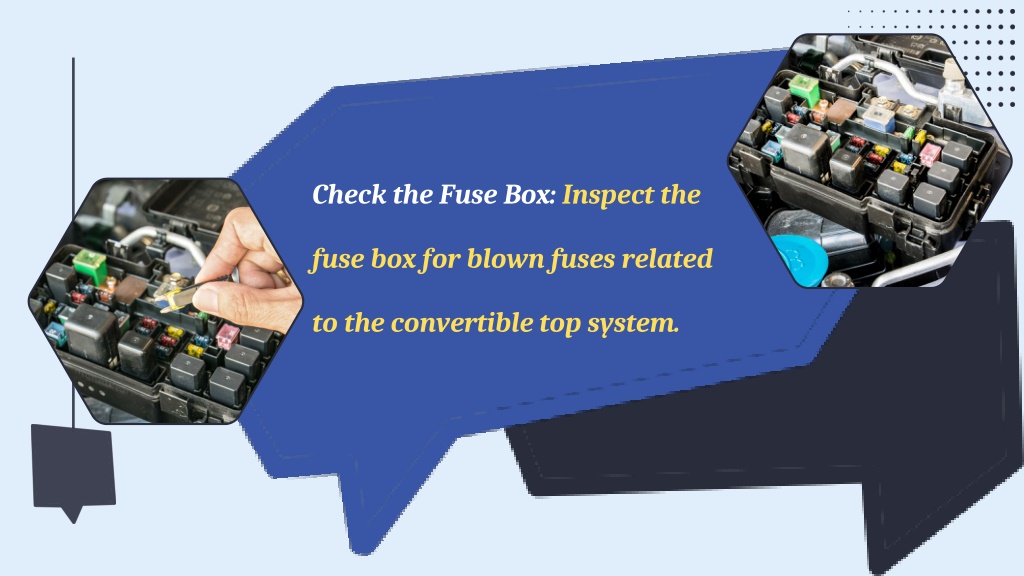

  22. Check the Fuse Box: Inspect the fuse box for blown fuses related to the convertible top system.

  23. Test the Wiring Harness: Look for damaged or frayed wires in the wiring harness.

  24. Diagnose the Control Module: If other troubleshooting steps fail, consult a professional to diagnose and repair the control module.

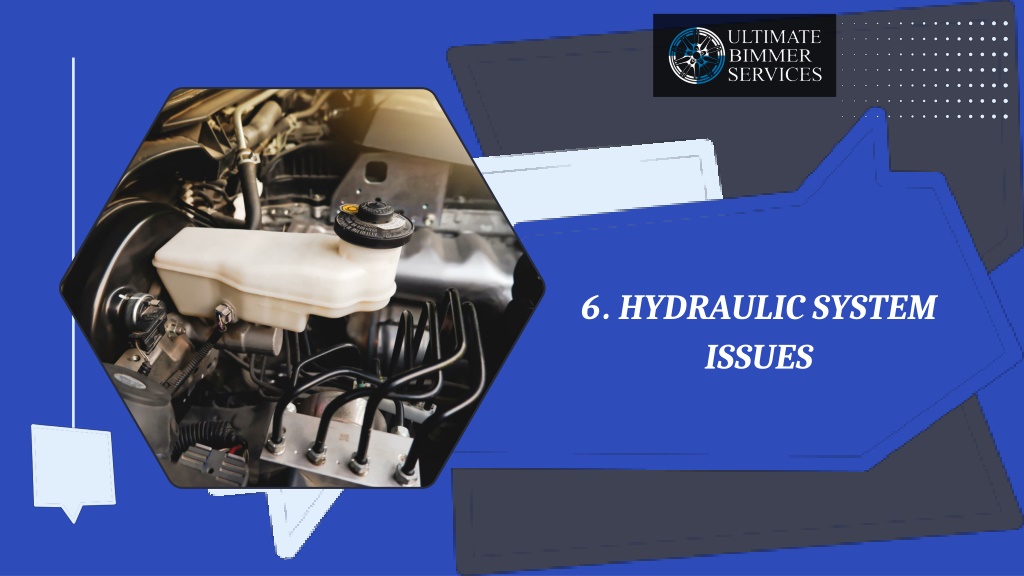

  25. 6. HYDRAULIC SYSTEM ISSUES

  26. Check the Fluid Level: Ensure the hydraulic fluid level is sufficient. Inspect the Pump and Hoses: Look for leaks or damage to the hydraulic pump and hoses.

  27. C O N C L U S I O N:

  28. By following these steps and addressing the specific issues, you can often resolve common convertible top problems.

  29. However, for complex electrical or hydraulic issues, it's advisable to seek professional assistance.

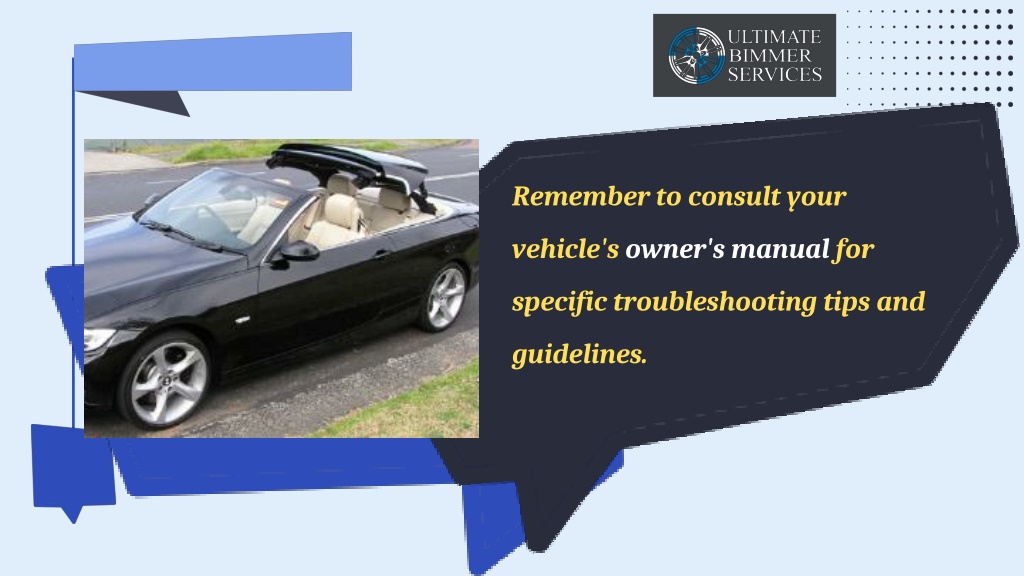

  30. Remember to consult your vehicle's owner's manual for specific troubleshooting tips and guidelines.

  31. https://ultimatebimmerservices.com/ THANK YOU
