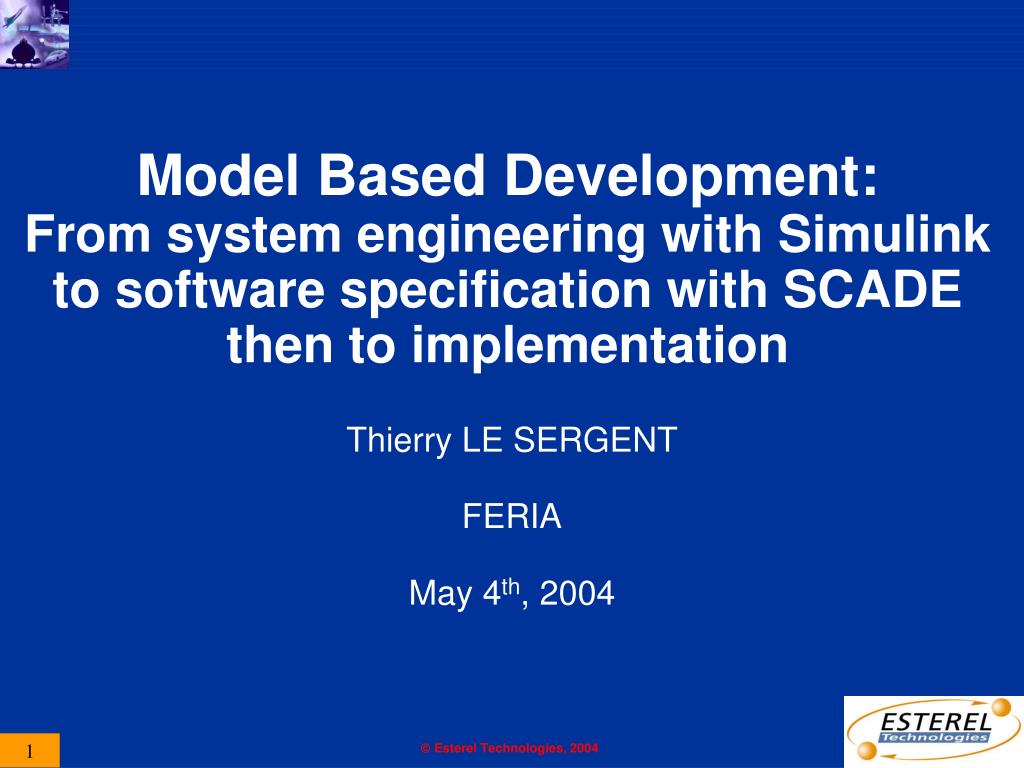

Model Based Development:From system engineering with Simulink to software specification with SCADEthen to implementation

Thierry LE SERGENT

FERIA

May 4th, 2004

agenda
Agenda
  • Model based development
  • Simulink vs. SCADE
  • Principles of Simulink Gateway

Esterel Technologies, 2004

context

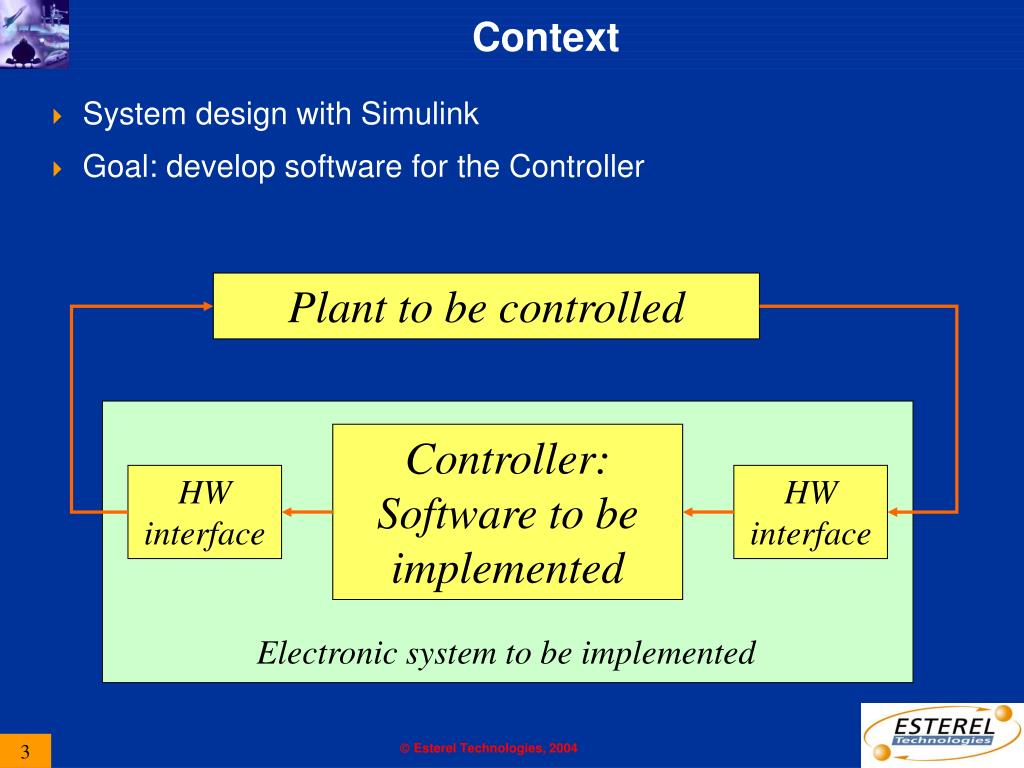

Context
  • System design with Simulink
  • Goal: develop software for the Controller

Plant to be controlled

Controller: Software to be implemented

HW interface

HW interface

Electronic system to be implemented

Esterel Technologies, 2004

software development

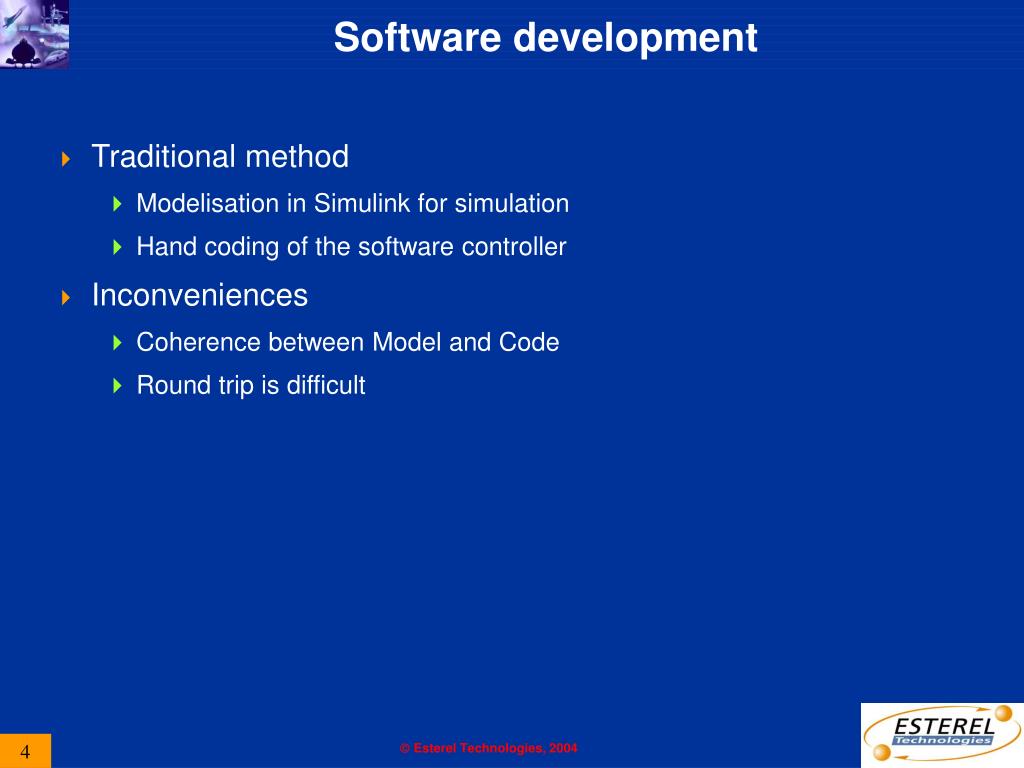

Software development
  • Traditional method
    • Modelisation in Simulink for simulation
    • Hand coding of the software controller
  • Inconveniences
    • Coherence between Model and Code
    • Round trip is difficult

Esterel Technologies, 2004

model based development
Model based development

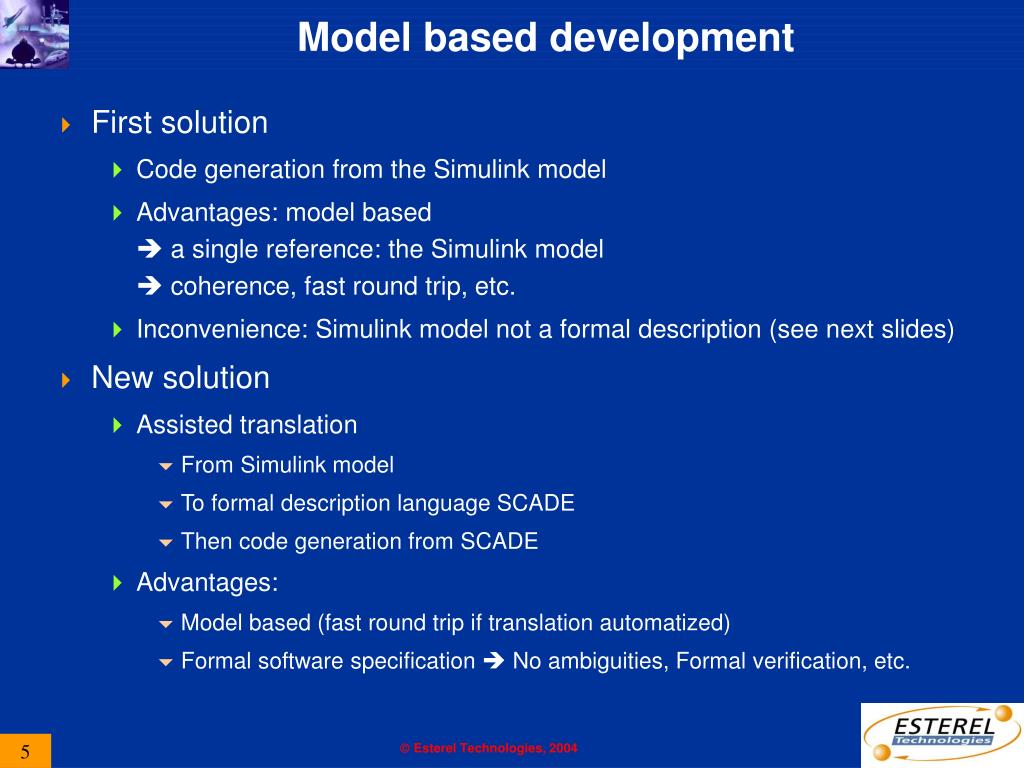

  • First solution
    • Code generation from the Simulink model
    • Advantages: model based a single reference: the Simulink model coherence, fast round trip, etc.
    • Inconvenience: Simulink model not a formal description (see next slides)
  • New solution
    • Assisted translation
      • From Simulink model
      • To formal description language SCADE
      • Then code generation from SCADE
    • Advantages:
      • Model based (fast round trip if translation automatized)
      • Formal software specification  No ambiguities, Formal verification, etc.

Esterel Technologies, 2004

w orkflow
Workflow

System Engineering

Software Specification

Software Implementation

SCADE Specification

Simulink model

SCADE Simulink Gateway

SCADE Implementer

SCADE implementation

Engineering to specification

Specification to implementation

C code

Esterel Technologies, 2004

different tools for different purposes

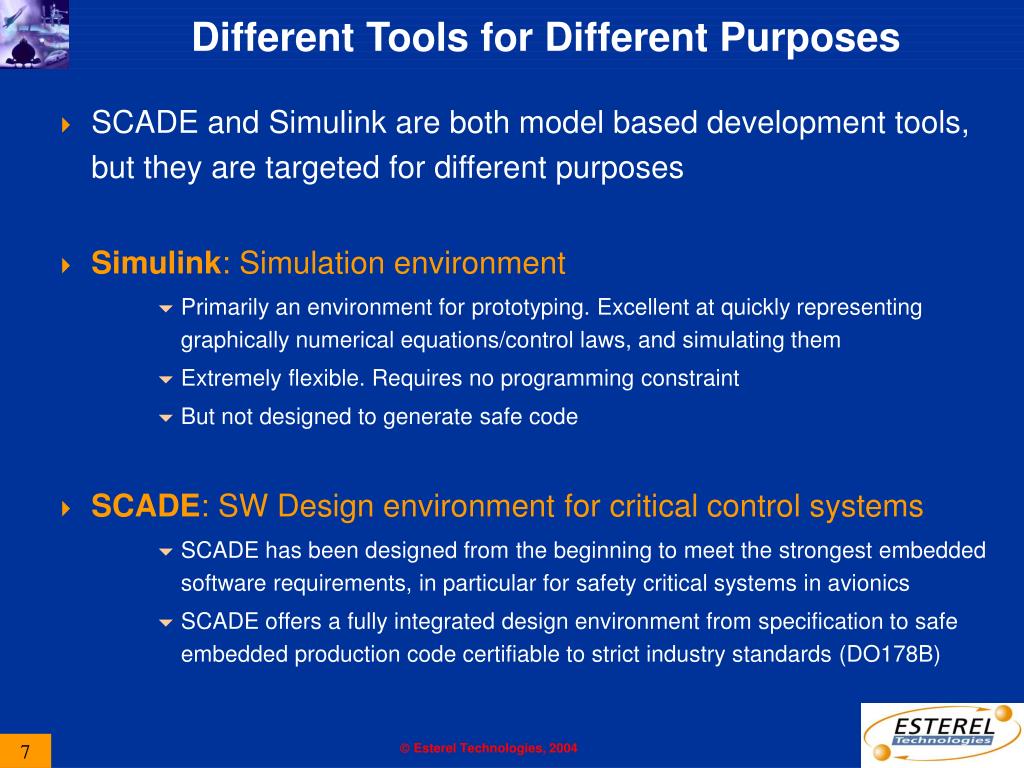

Different Tools for Different Purposes
  • SCADE and Simulink are both model based development tools, but they are targeted for different purposes
  • Simulink: Simulation environment
      • Primarily an environment for prototyping. Excellent at quickly representing graphically numerical equations/control laws, and simulating them
      • Extremely flexible. Requires no programming constraint
      • But not designed to generate safe code
  • SCADE: SW Design environment for critical control systems
      • SCADE has been designed from the beginning to meet the strongest embedded software requirements, in particular for safety critical systems in avionics
      • SCADE offers a fully integrated design environment from specification to safe embedded production code certifiable to strict industry standards (DO178B)

Esterel Technologies, 2004

from simulink to scade

Simulink

SCADE

C code generation

&

embedding

From Simulink to SCADE

  • Modelling of environment (system) + controller
  • Simulation of the whole system
  • Validation of the controller model
  • Code generation
  • The translation must:
    • Explicit some implicit behavior
    • Filter unsafe constructs
    • Compute types and clocks

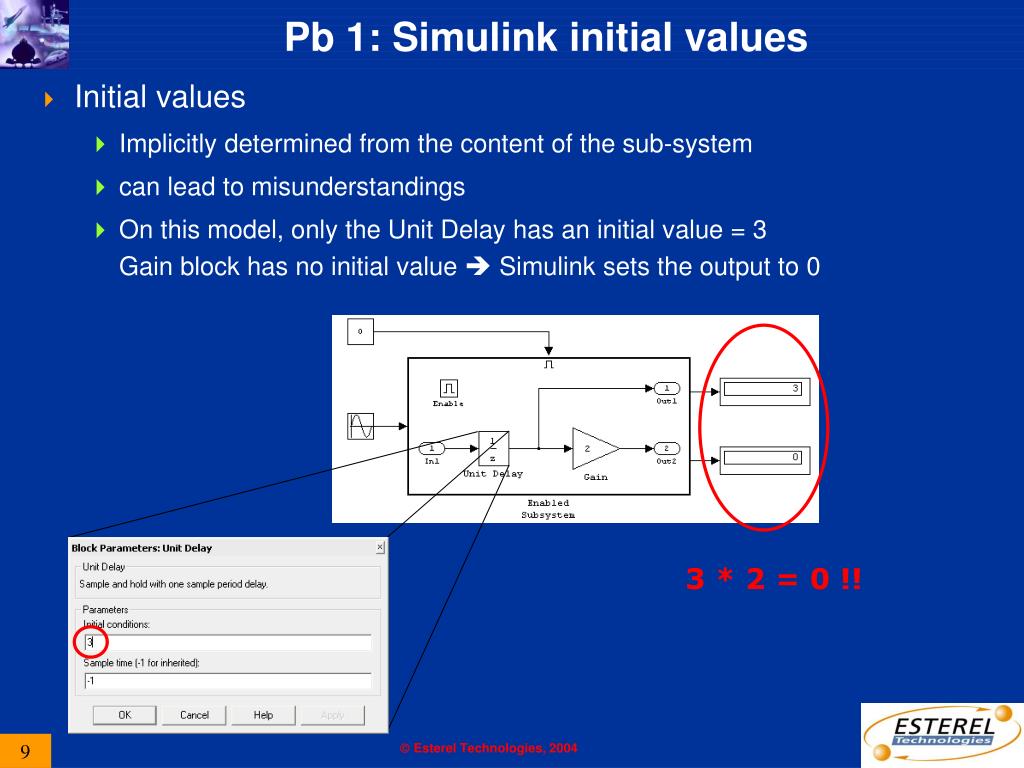

pb 1 simulink initial values
Pb1: Simulink initial values
  • Initial values
    • Implicitly determined from the content of the sub-system
    • can lead to misunderstandings
    • On this model, only the Unit Delay has an initial value = 3Gain block has no initial value  Simulink sets the output to 0

3 * 2 = 0 !!

Esterel Technologies, 2004

pb 1 scade initial values
Pb1: SCADE initial values

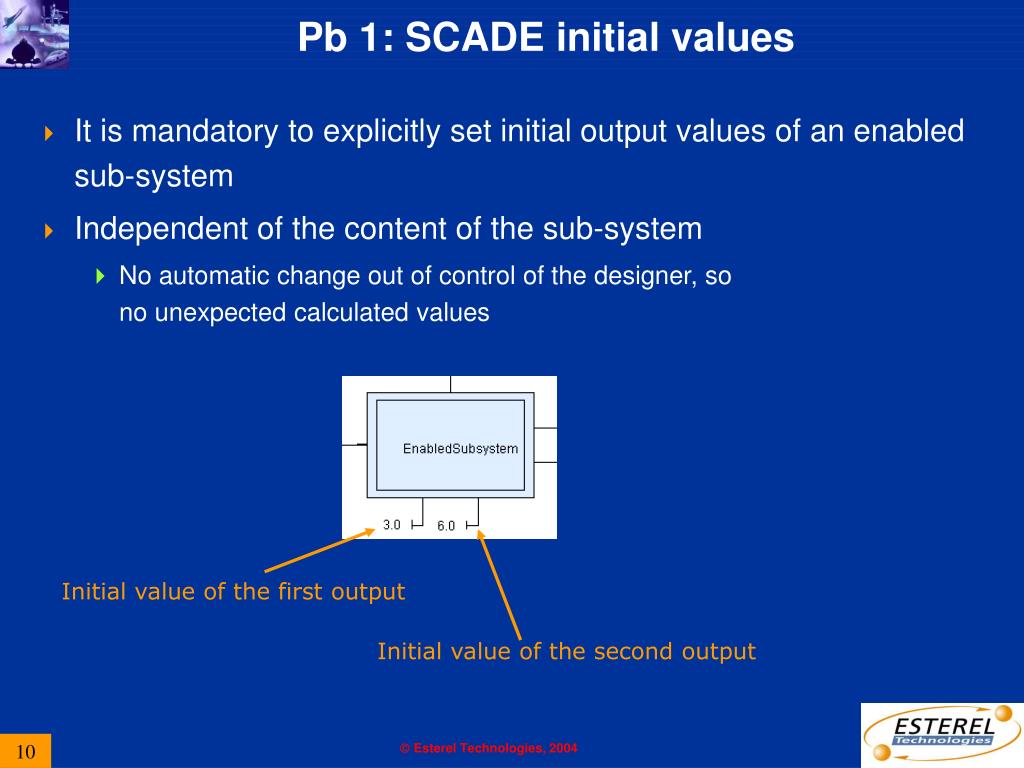

  • It is mandatory to explicitly set initial output values of an enabled sub-system
  • Independent of the content of the sub-system
    • No automatic change out of control of the designer, sono unexpected calculated values

Initial value of the first output

Initial value of the second output

Esterel Technologies, 2004

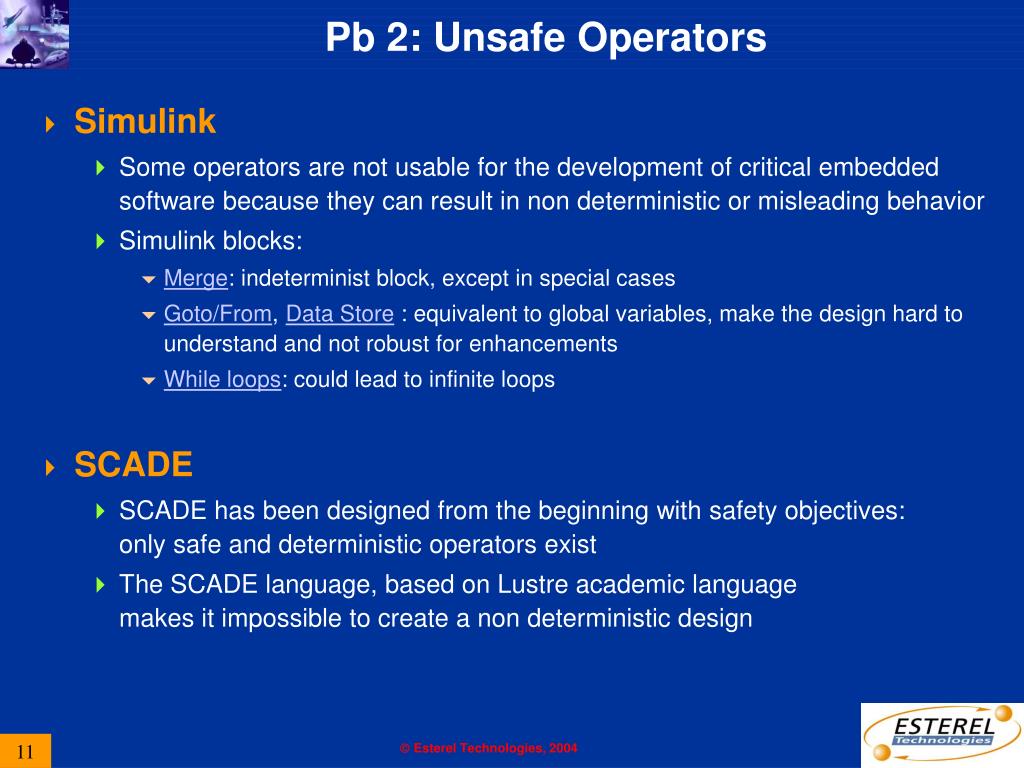

pb 2 unsafe operators
Pb 2: Unsafe Operators
  • Simulink
    • Some operators are not usable for the development of critical embedded software because they can result in non deterministic or misleading behavior
    • Simulink blocks:
      • Merge: indeterminist block, except in special cases
      • Goto/From, Data Store : equivalent to global variables, make the design hard to understand and not robust for enhancements
      • While loops: could lead to infinite loops
  • SCADE
    • SCADE has been designed from the beginning with safety objectives: only safe and deterministic operators exist
    • The SCADE language, based on Lustre academic languagemakes it impossible to create a non deterministic design

Esterel Technologies, 2004

unsafe operators merge
Unsafe Operators: Merge

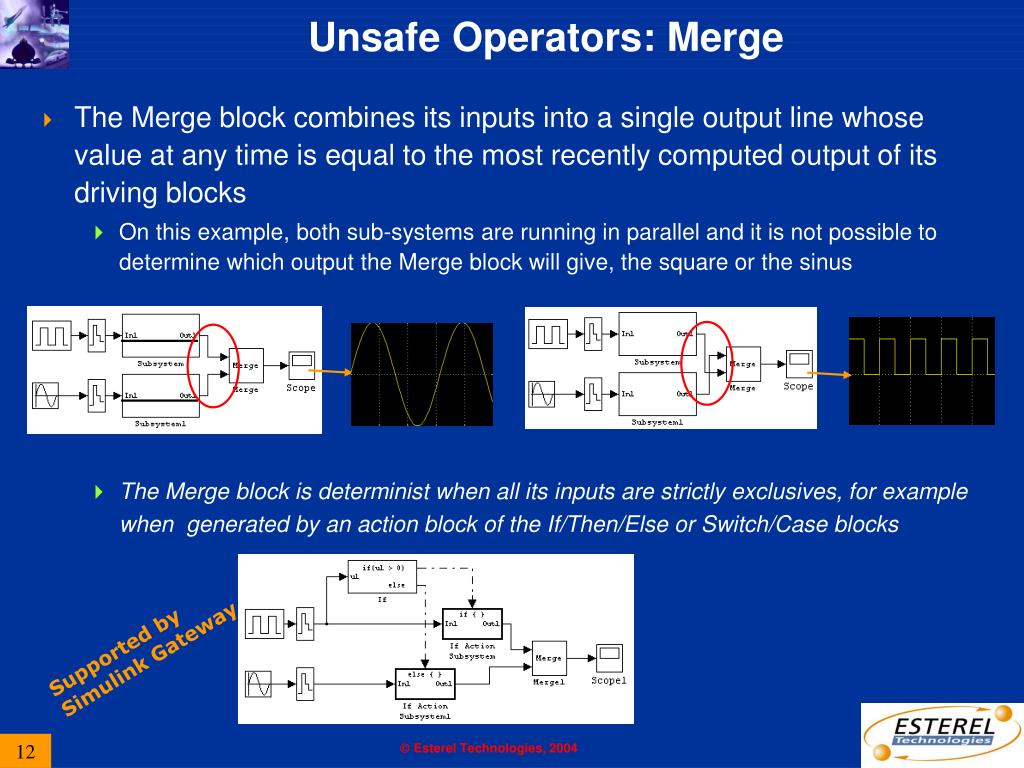

  • The Merge block combines its inputs into a single output line whose value at any time is equal to the most recently computed output of its driving blocks
    • On this example, both sub-systems are running in parallel and it is not possible to determine which output the Merge block will give, the square or the sinus
  • The Merge block is determinist when all its inputs are strictly exclusives, for example when generated by an action block of the If/Then/Else or Switch/Case blocks

Supported by Simulink Gateway

Esterel Technologies, 2004

pb 3 modularity

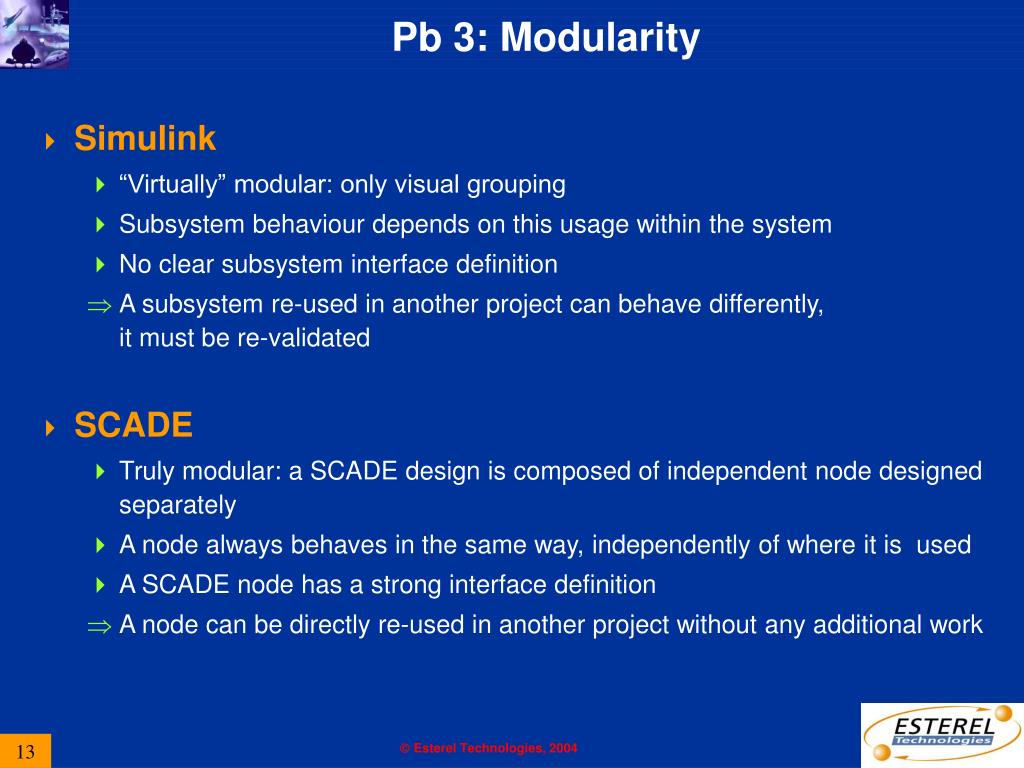

Pb 3: Modularity
  • Simulink
    • “Virtually” modular: only visual grouping
    • Subsystem behaviour depends on this usage within the system
    • No clear subsystem interface definition
    • A subsystem re-used in another project can behave differently, it must be re-validated
  • SCADE
    • Truly modular: a SCADE design is composed of independent node designed separately
    • A node always behaves in the same way, independently of where it is used
    • A SCADE node has a strong interface definition
    • A node can be directly re-used in another project without any additional work

Esterel Technologies, 2004

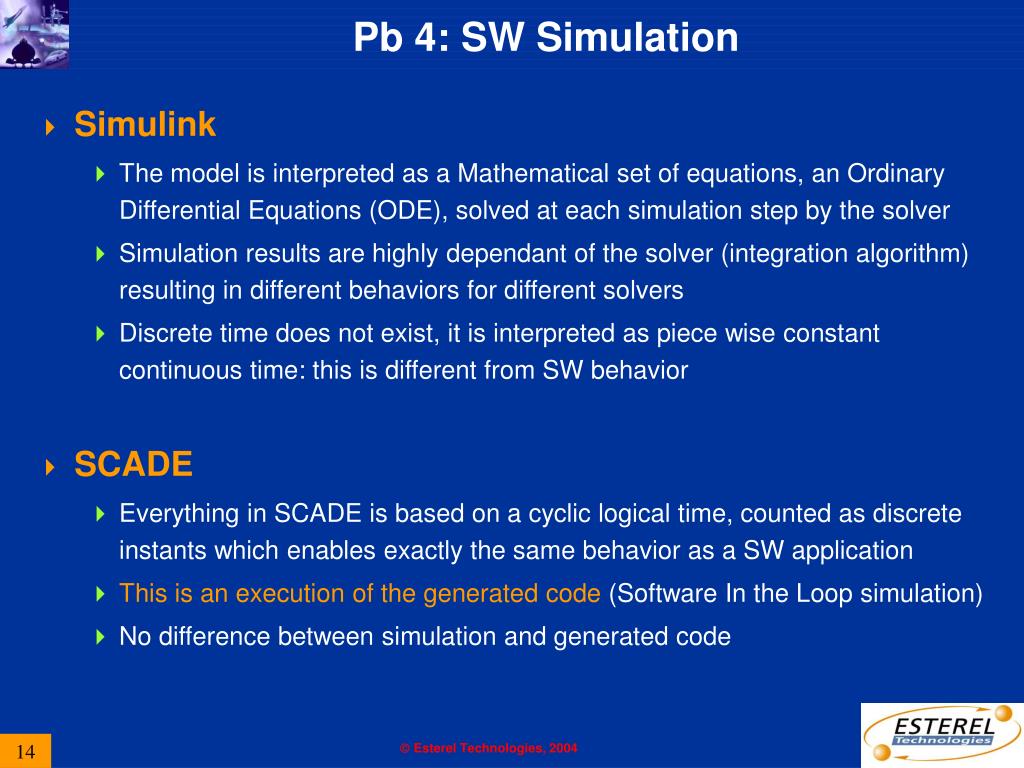

pb 4 sw simulation
Pb 4: SW Simulation
  • Simulink
    • The model is interpreted as a Mathematical set of equations, an Ordinary Differential Equations (ODE), solved at each simulation step by the solver
    • Simulation results are highly dependant of the solver (integration algorithm) resulting in different behaviors for different solvers
    • Discrete time does not exist, it is interpreted as piece wise constant continuous time: this is different from SW behavior
  • SCADE
    • Everything in SCADE is based on a cyclic logical time, counted as discrete instants which enables exactly the same behavior as a SW application
    • This is an execution of the generated code (Software In the Loop simulation)
    • No difference between simulation and generated code

Esterel Technologies, 2004

simulink to scade translation

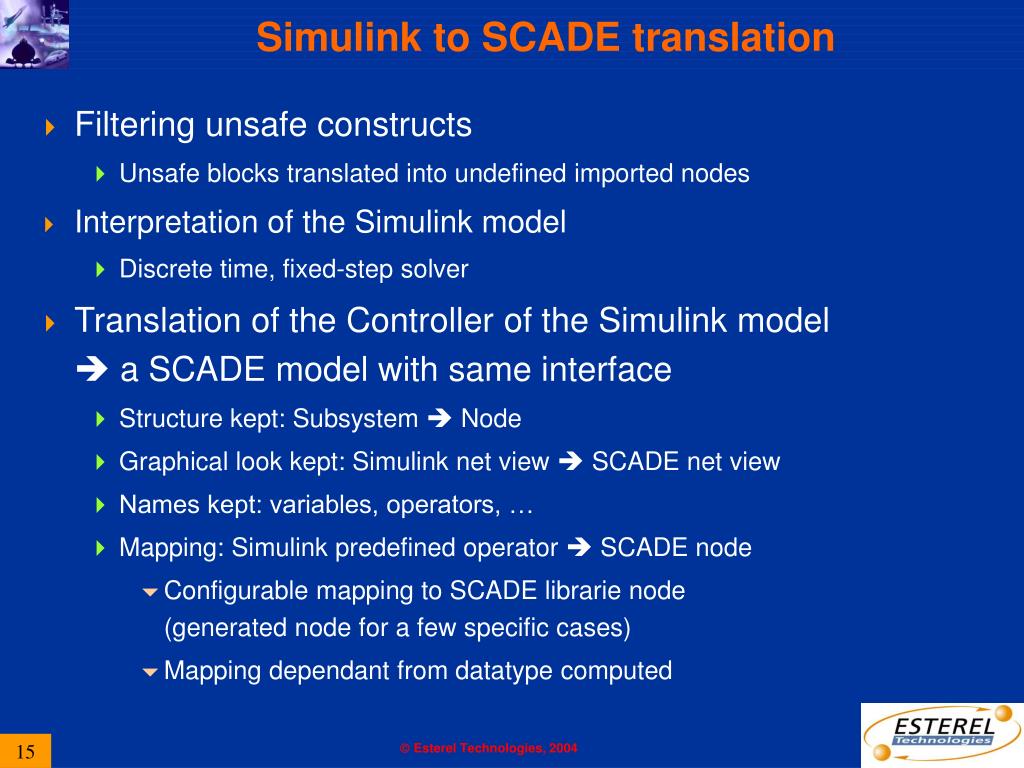

Simulink to SCADE translation
  • Filtering unsafe constructs
    • Unsafe blocks translated into undefined imported nodes
  • Interpretation of the Simulink model
    • Discrete time, fixed-step solver
  • Translation of the Controller of the Simulink model a SCADE model with same interface
    • Structure kept: Subsystem  Node
    • Graphical look kept: Simulink net view  SCADE net view
    • Names kept: variables, operators, …
    • Mapping: Simulink predefined operator  SCADE node
      • Configurable mapping to SCADE librarie node(generated node for a few specific cases)
      • Mapping dependant from datatype computed

Esterel Technologies, 2004

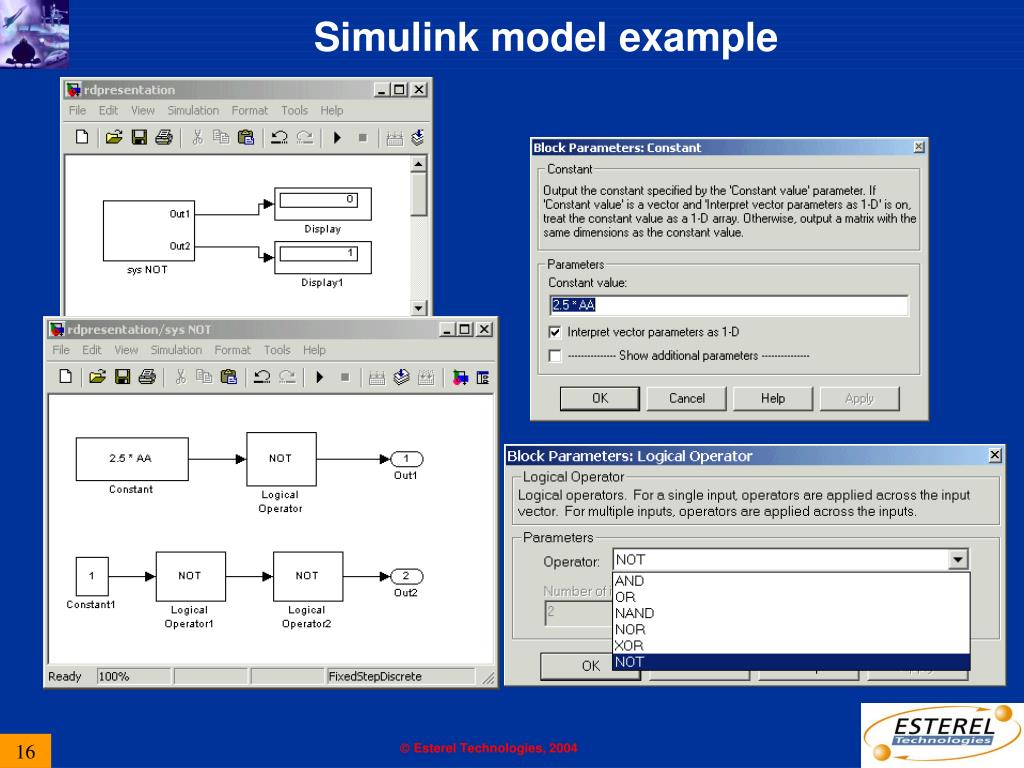

simulink model example
Simulink model example

Esterel Technologies, 2004

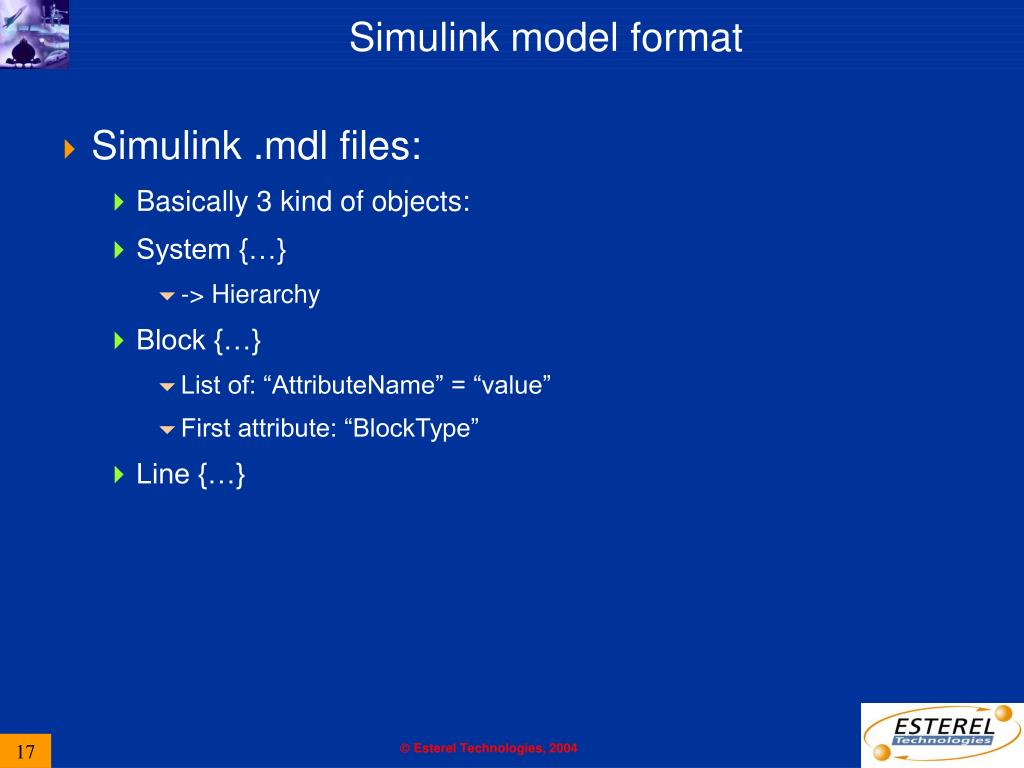

simulink model format
Simulink model format
  • Simulink .mdl files:
    • Basically 3 kind of objects:
    • System {…}
      • -> Hierarchy
    • Block {…}
      • List of: “AttributeName” = “value”
      • First attribute: “BlockType”
    • Line {…}

Esterel Technologies, 2004

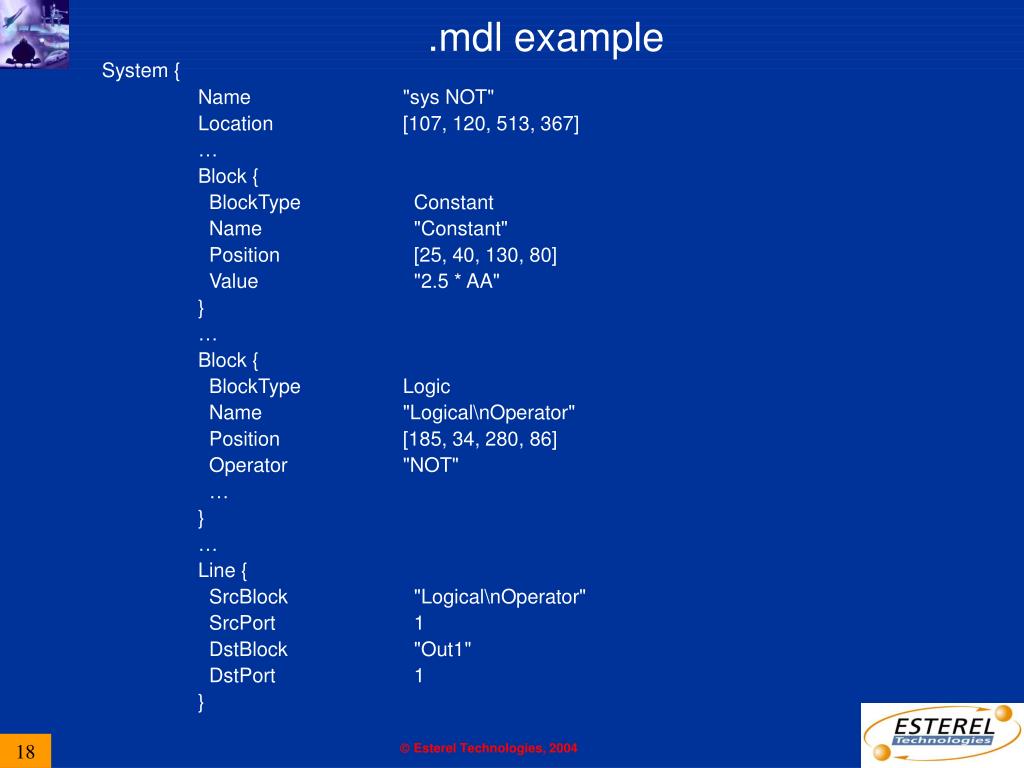

mdl example
.mdl example

System {

Name "sys NOT"

Location [107, 120, 513, 367]

Block {

BlockType Constant

Name "Constant"

Position [25, 40, 130, 80]

Value "2.5 * AA"

}

Block {

BlockType Logic

Name "Logical\nOperator"

Position [185, 34, 280, 86]

Operator "NOT"

}

Line {

SrcBlock "Logical\nOperator"

SrcPort 1

DstBlock "Out1"

DstPort 1

}

Esterel Technologies, 2004

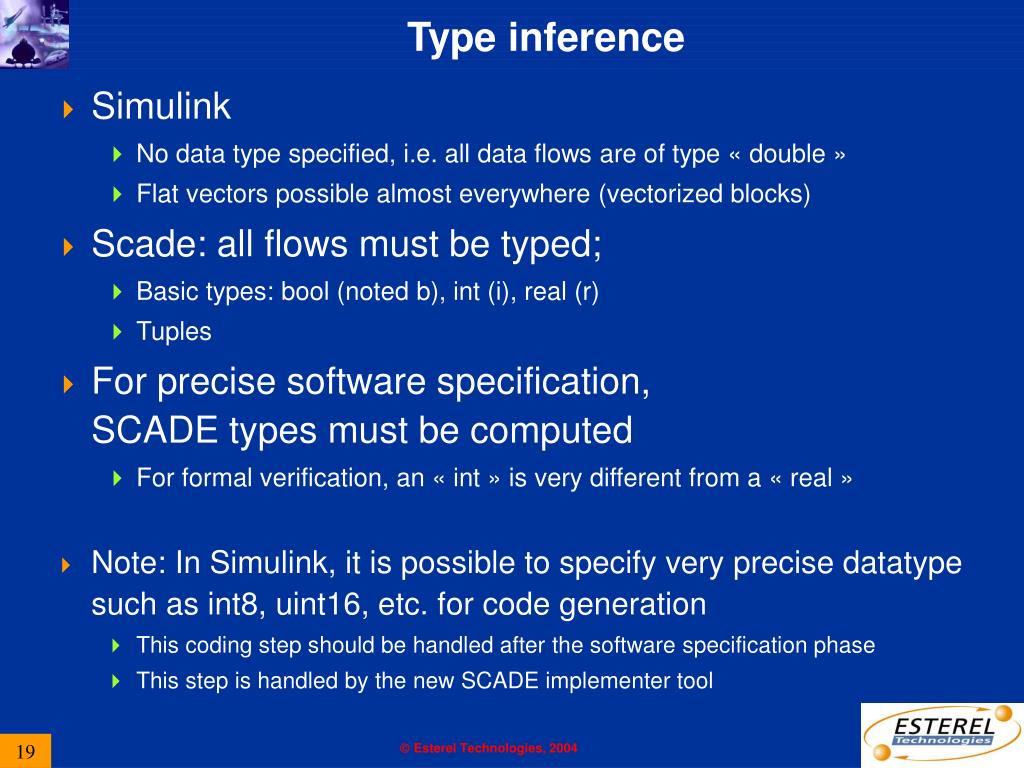

type inference
Type inference
  • Simulink
    • No data type specified, i.e. all data flows are of type « double »
    • Flat vectors possible almost everywhere (vectorized blocks)
  • Scade: all flows must be typed;
    • Basic types: bool (noted b), int (i), real (r)
    • Tuples
  • For precise software specification, SCADE types must be computed
    • For formal verification, an « int » is very different from a « real »
  • Note: In Simulink, it is possible to specify very precise datatype such as int8, uint16, etc. for code generation
    • This coding step should be handled after the software specification phase
    • This step is handled by the new SCADE implementer tool

Esterel Technologies, 2004

principles
Principles
  • Always compute the smallest types (bool < int < real)
  • Start from the value of the static expressions (also for Matlab variables)
  • “Propagate” the types on the flow
  • Show the result on a decompiled, annotated Simulink model

Esterel Technologies, 2004

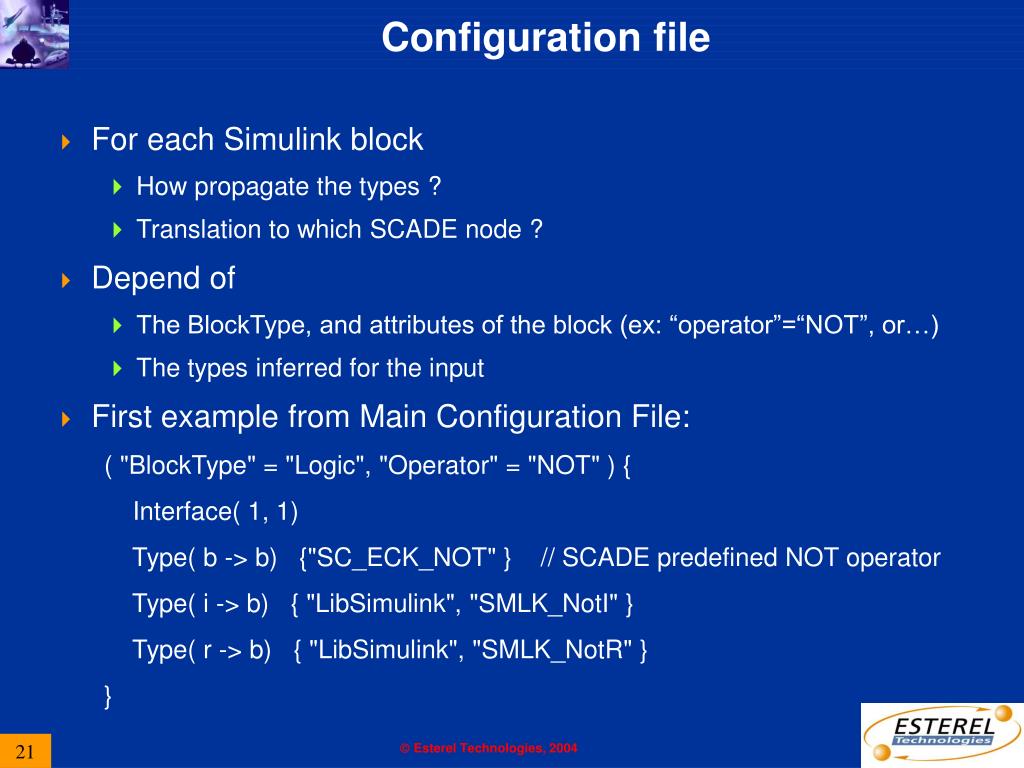

configuration file
Configuration file
  • For each Simulink block
    • How propagate the types ?
    • Translation to which SCADE node ?
  • Depend of
    • The BlockType, and attributes of the block (ex: “operator”=“NOT”, or…)
    • The types inferred for the input
  • First example from Main Configuration File:

( "BlockType" = "Logic", "Operator" = "NOT" ) {

Interface( 1, 1)

Type( b -> b) {"SC_ECK_NOT"} // SCADE predefined NOT operator

Type( i -> b) { "LibSimulink", "SMLK_NotI"}

Type( r -> b) { "LibSimulink", "SMLK_NotR"}

}

Esterel Technologies, 2004

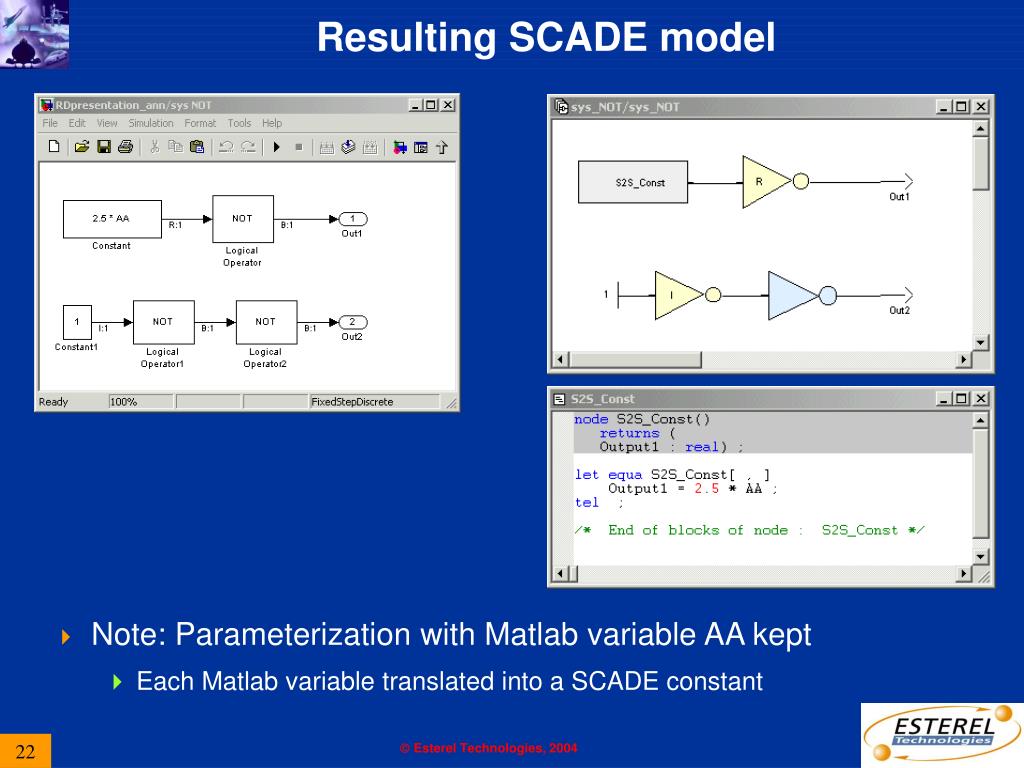

resulting scade model
Resulting SCADE model
  • Note: Parameterization with Matlab variable AA kept
    • Each Matlab variable translated into a SCADE constant

Esterel Technologies, 2004

set of mapping rules

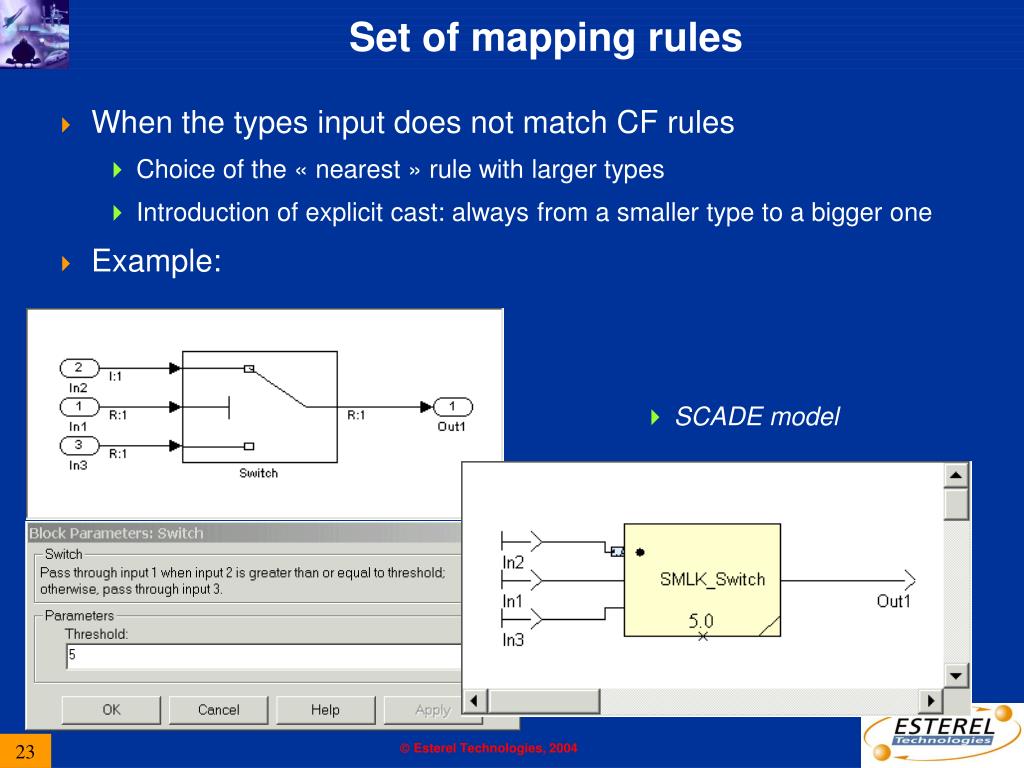

Set of mapping rules
  • When the types input does not match CF rules
    • Choice of the « nearest » rule with larger types
    • Introduction of explicit cast: always from a smaller type to a bigger one
  • Example:
  • SCADE model

Esterel Technologies, 2004

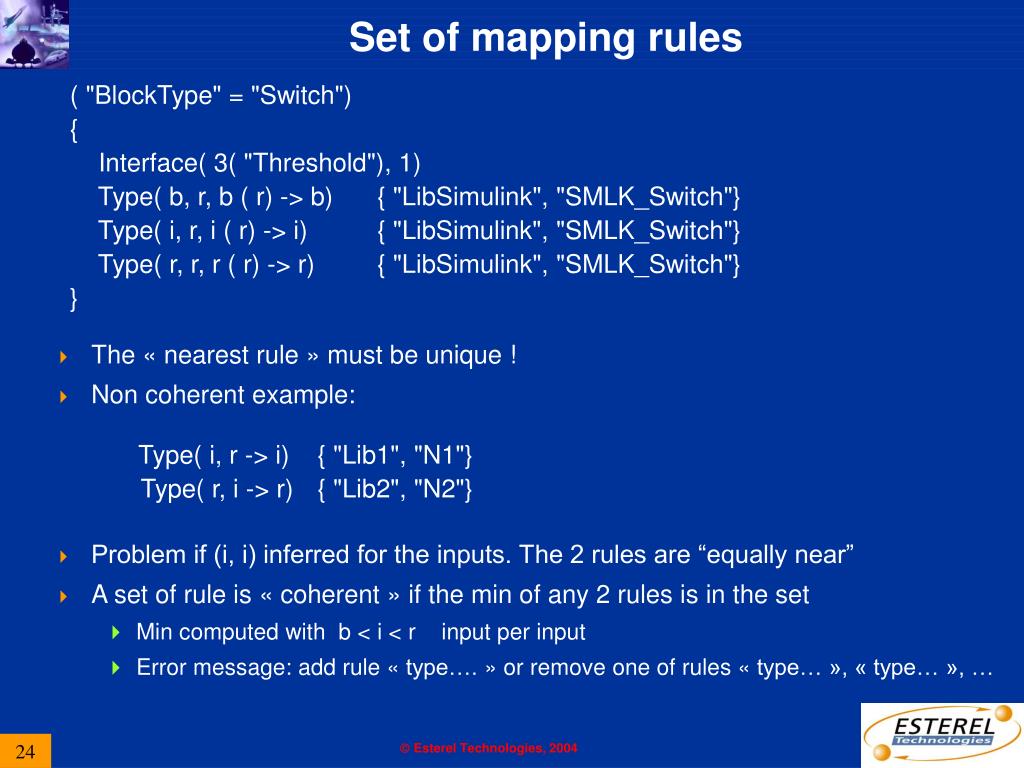

set of mapping rules24
Set of mapping rules

( "BlockType" = "Switch")

{

Interface( 3( "Threshold"), 1)

Type( b, r, b ( r) -> b) { "LibSimulink", "SMLK_Switch"}

Type( i, r, i ( r) -> i) { "LibSimulink", "SMLK_Switch"}

Type( r, r, r ( r) -> r) { "LibSimulink", "SMLK_Switch"}

}

  • The « nearest rule » must be unique !
  • Non coherent example:
  • Problem if (i, i) inferred for the inputs. The 2 rules are “equally near”
  • A set of rule is « coherent » if the min of any 2 rules is in the set
    • Min computed with b < i < r input per input
    • Error message: add rule « type…. » or remove one of rules « type… », « type… », …

Type( i, r -> i) { "Lib1", "N1"}

Type( r, i -> r) { "Lib2", "N2"}

Esterel Technologies, 2004

vectorization
Vectorization

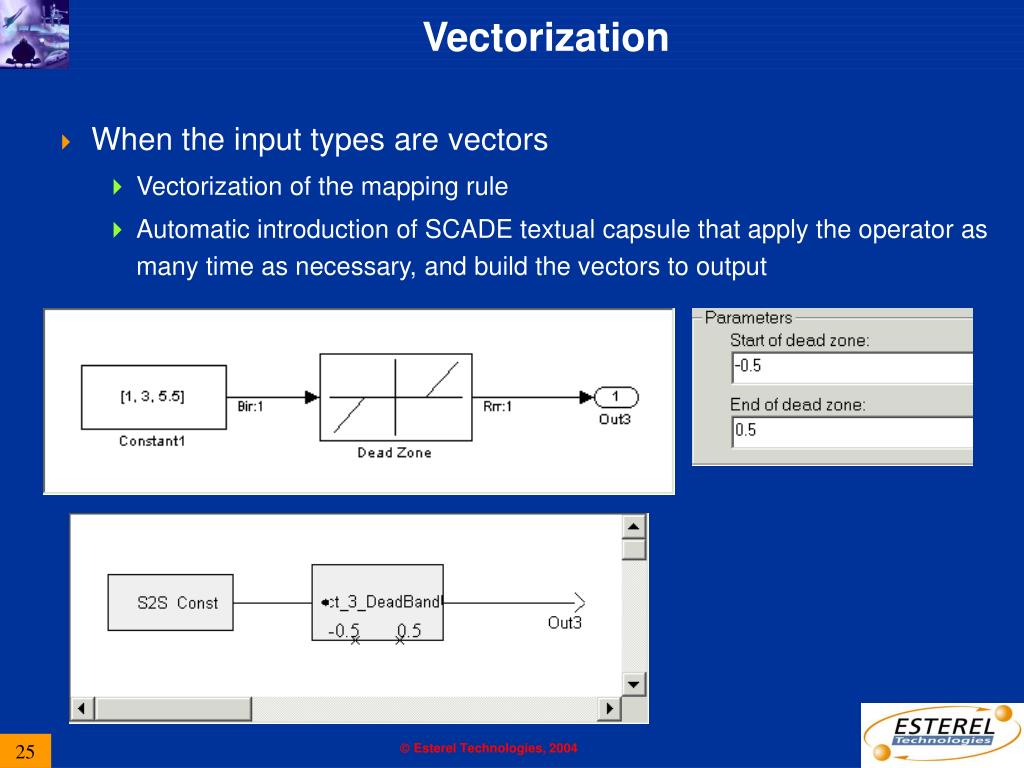

  • When the input types are vectors
    • Vectorization of the mapping rule
    • Automatic introduction of SCADE textual capsule that apply the operator as many time as necessary, and build the vectors to output

Esterel Technologies, 2004

vectorization capsule

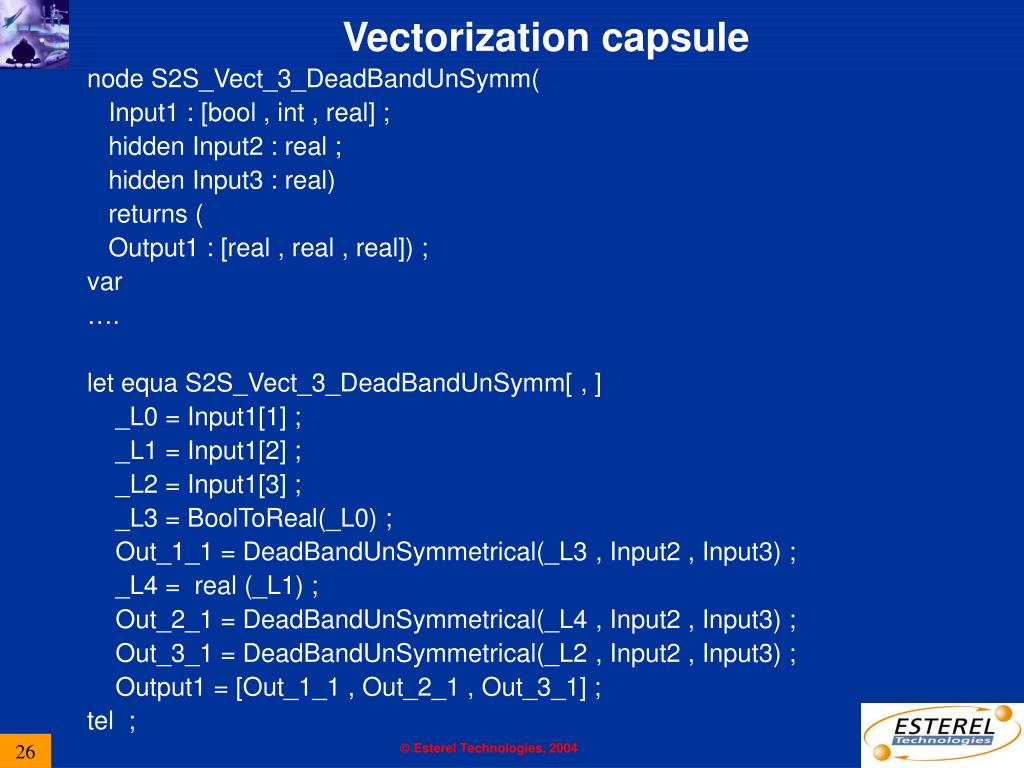

Vectorization capsule

node S2S_Vect_3_DeadBandUnSymm(

Input1 : [bool , int , real] ;

hidden Input2 : real ;

hidden Input3 : real)

returns (

Output1 : [real , real , real]) ;

var

….

let equa S2S_Vect_3_DeadBandUnSymm[ , ]

_L0 = Input1[1] ;

_L1 = Input1[2] ;

_L2 = Input1[3] ;

_L3 = BoolToReal(_L0) ;

Out_1_1 = DeadBandUnSymmetrical(_L3 , Input2 , Input3) ;

_L4 = real (_L1) ;

Out_2_1 = DeadBandUnSymmetrical(_L4 , Input2 , Input3) ;

Out_3_1 = DeadBandUnSymmetrical(_L2 , Input2 , Input3) ;

Output1 = [Out_1_1 , Out_2_1 , Out_3_1] ;

tel ;

Esterel Technologies, 2004

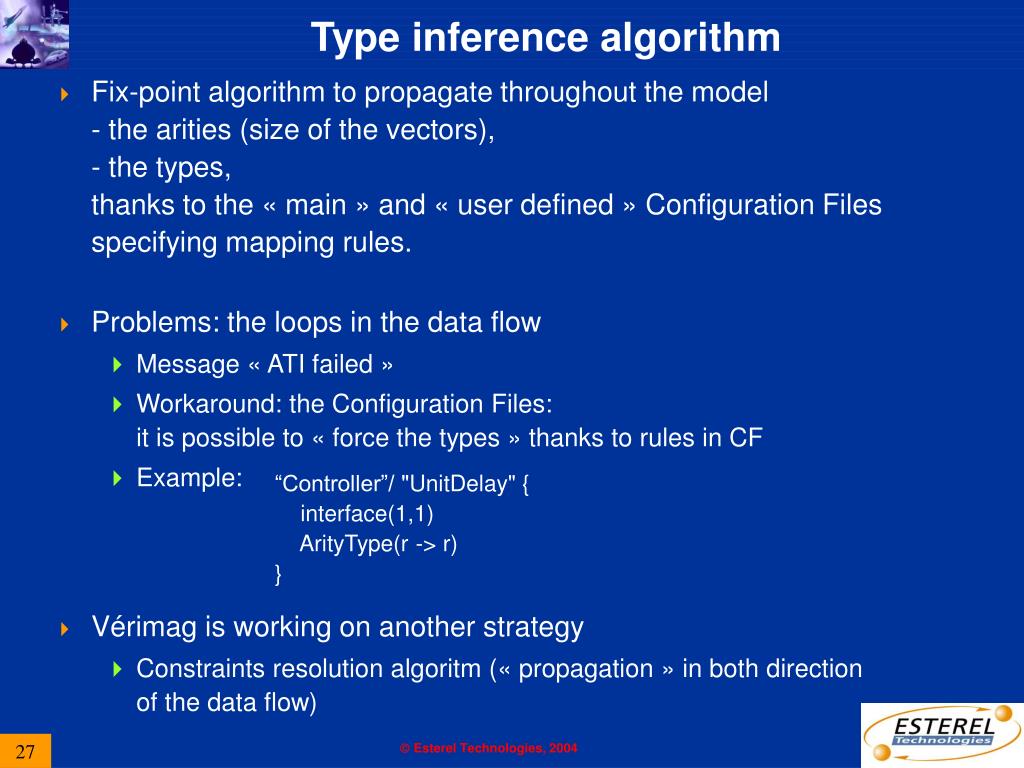

type inference algorithm
Type inference algorithm
  • Fix-point algorithm to propagate throughout the model - the arities (size of the vectors),- the types,thanks to the « main » and « user defined » Configuration Filesspecifying mapping rules.
  • Problems: the loops in the data flow
    • Message « ATI failed »
    • Workaround: the Configuration Files:it is possible to « force the types » thanks to rules in CF
    • Example:
  • Vérimag is working on another strategy
    • Constraints resolution algoritm (« propagation » in both direction of the data flow)

“Controller”/ "UnitDelay"{

interface(1,1)

ArityType(r -> r)

}

Esterel Technologies, 2004

clock inference 1 3

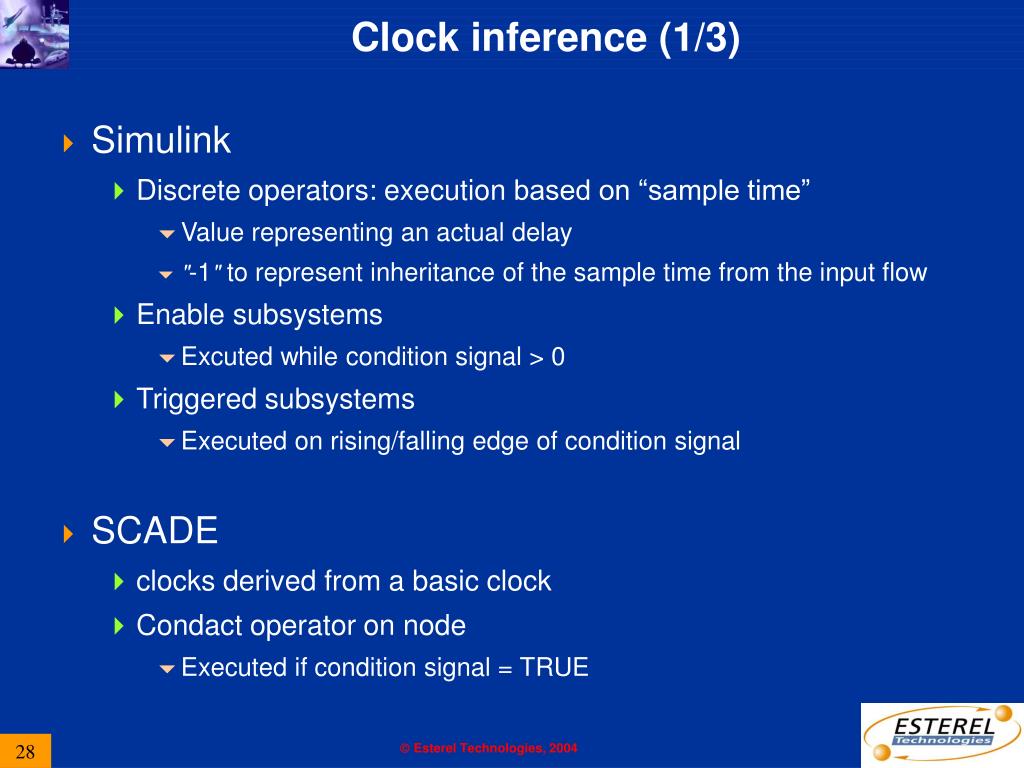

Clock inference (1/3)
  • Simulink
    • Discrete operators: execution based on “sample time”
      • Value representing an actual delay
      • "-1" to represent inheritance of the sample time from the input flow
    • Enable subsystems
      • Excuted while condition signal > 0
    • Triggered subsystems
      • Executed on rising/falling edge of condition signal
  • SCADE
    • clocks derived from a basic clock
    • Condact operator on node
      • Executed if condition signal = TRUE

Esterel Technologies, 2004

clock inference 2 3

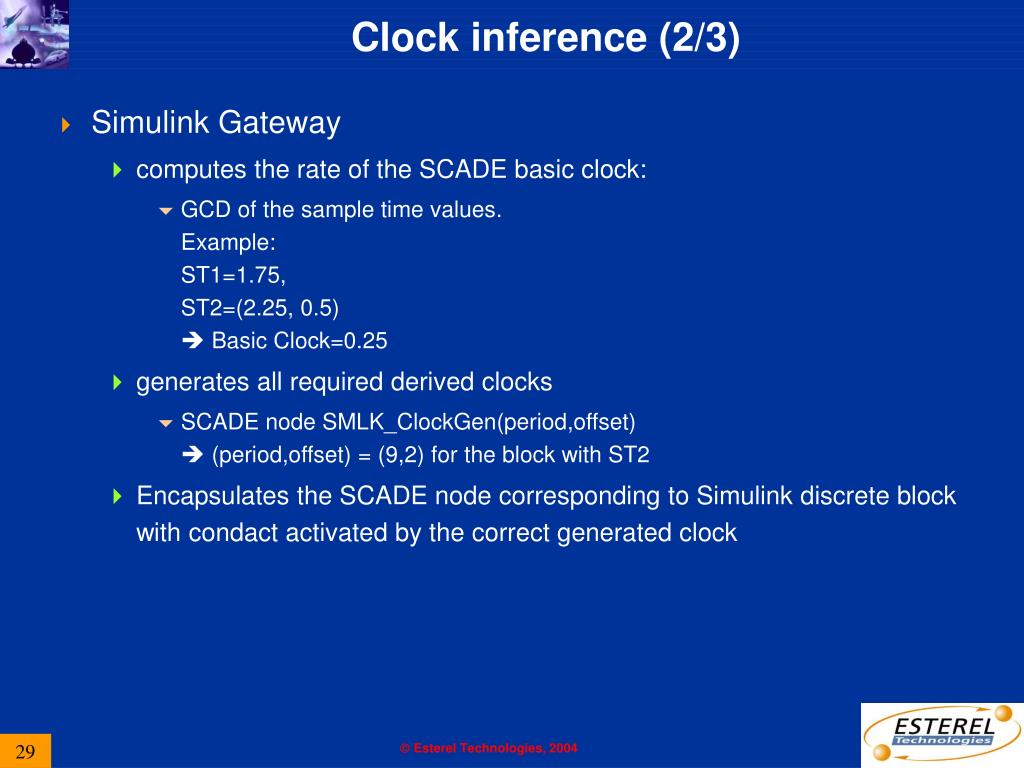

Clock inference (2/3)
  • Simulink Gateway
    • computes the rate of the SCADE basic clock:
      • GCD of the sample time values.Example: ST1=1.75, ST2=(2.25, 0.5)  Basic Clock=0.25
    • generates all required derived clocks
      • SCADE node SMLK_ClockGen(period,offset)  (period,offset) = (9,2) for the block with ST2
    • Encapsulates the SCADE node corresponding to Simulink discrete block with condact activated by the correct generated clock

Esterel Technologies, 2004

clock inference 3 3

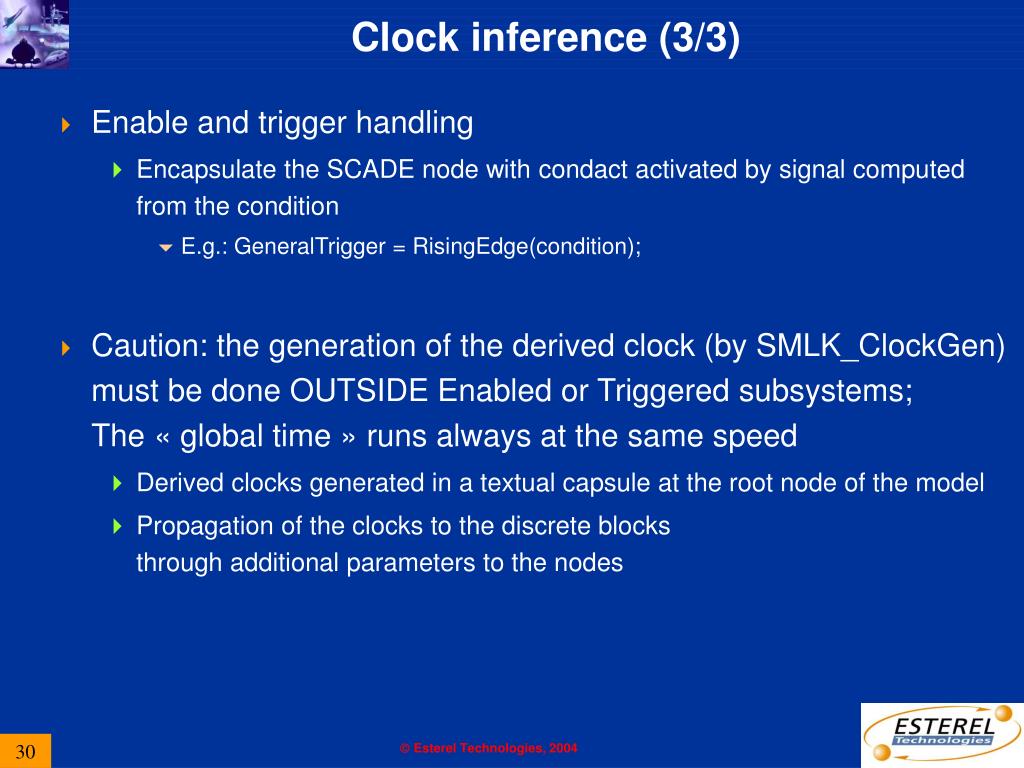

Clock inference (3/3)
  • Enable and trigger handling
    • Encapsulate the SCADE node with condact activated by signal computed from the condition
      • E.g.: GeneralTrigger = RisingEdge(condition);
  • Caution: the generation of the derived clock (by SMLK_ClockGen) must be done OUTSIDE Enabled or Triggered subsystems;The « global time » runs always at the same speed
    • Derived clocks generated in a textual capsule at the root node of the model
    • Propagation of the clocks to the discrete blocks through additional parameters to the nodes

Esterel Technologies, 2004

slide31

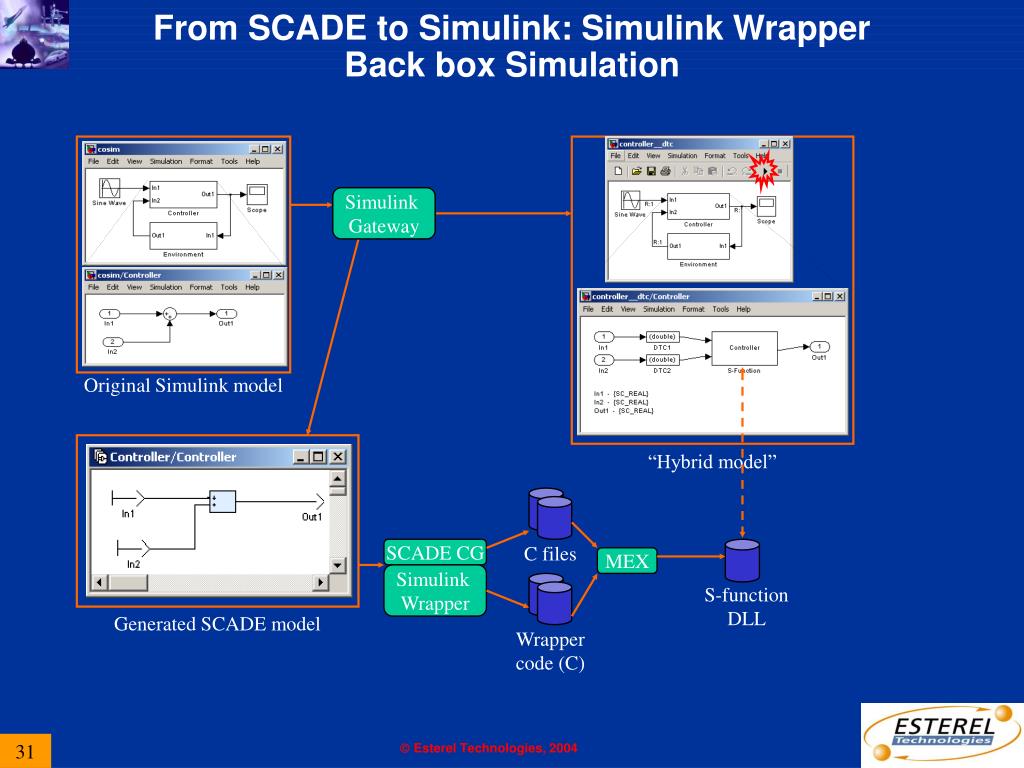

From SCADE to Simulink: Simulink Wrapper

Back box Simulation

Simulink

Gateway

Original Simulink model

“Hybrid model”

SCADE CG

C files

MEX

Simulink

Wrapper

S-function DLL

Generated SCADE model

Wrapper code (C)

Esterel Technologies, 2004

simulink wrapper
Simulink Wrapper
  • The SCADE model is integrated into Simulink as an “S-Function”
  • The S-Function is automatically generated :
    • C code generated by the SCADE Code Generator
    • Capsule code generated by the Wrapper
  • Simulation under Simulink:
    • The SCADE node is a black box
    • Next release: also white box co-simulation with SCADE simulator
    • The embeddable code interacts with Simulink environment
  • May be used Independently or coupled with Simulink translator

Esterel Technologies, 2004

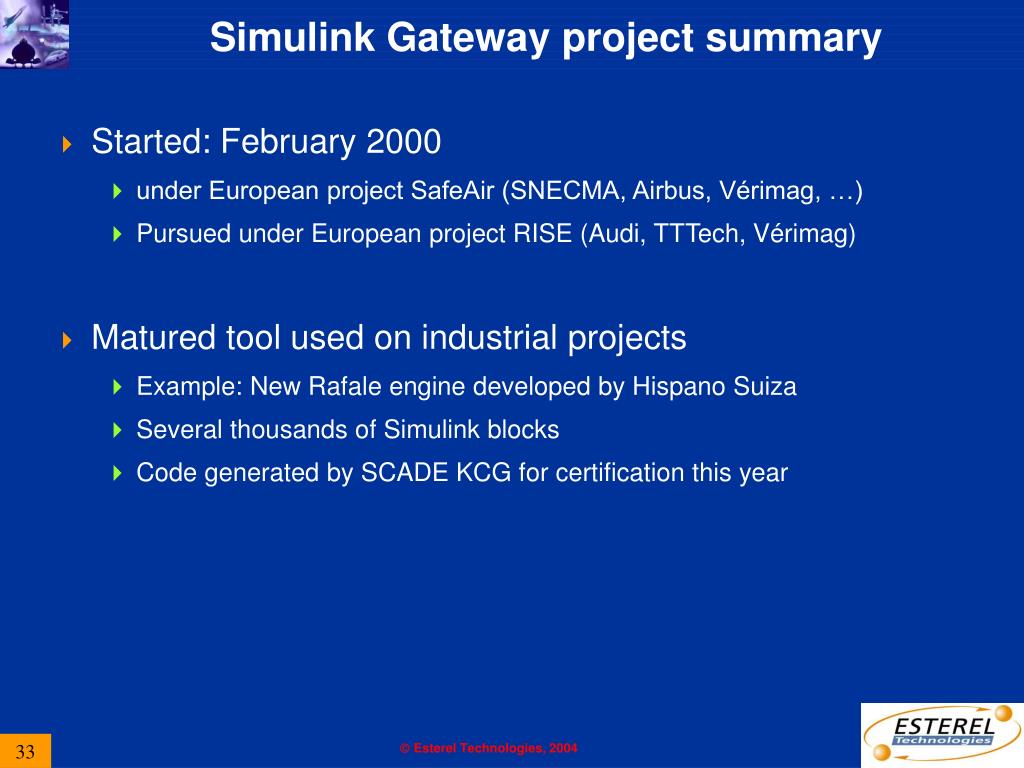

simulink gateway project summary
Simulink Gateway project summary
  • Started: February 2000
    • under European project SafeAir (SNECMA, Airbus, Vérimag, …)
    • Pursued under European project RISE (Audi, TTTech, Vérimag)
  • Matured tool used on industrial projects
    • Example: New Rafale engine developed by Hispano Suiza
    • Several thousands of Simulink blocks
    • Code generated by SCADE KCG for certification this year

Esterel Technologies, 2004
