cs 501 software engineering
CS 501: Software Engineering

Lecture 10

Techniques for Requirements Definition and Specification II

formal specification
Formal Specification

Why?

 Precise standard to define and validate software.

Why not?

 May be time consuming

 Methods are not suitable for all applications

formal specification using mathematical notation

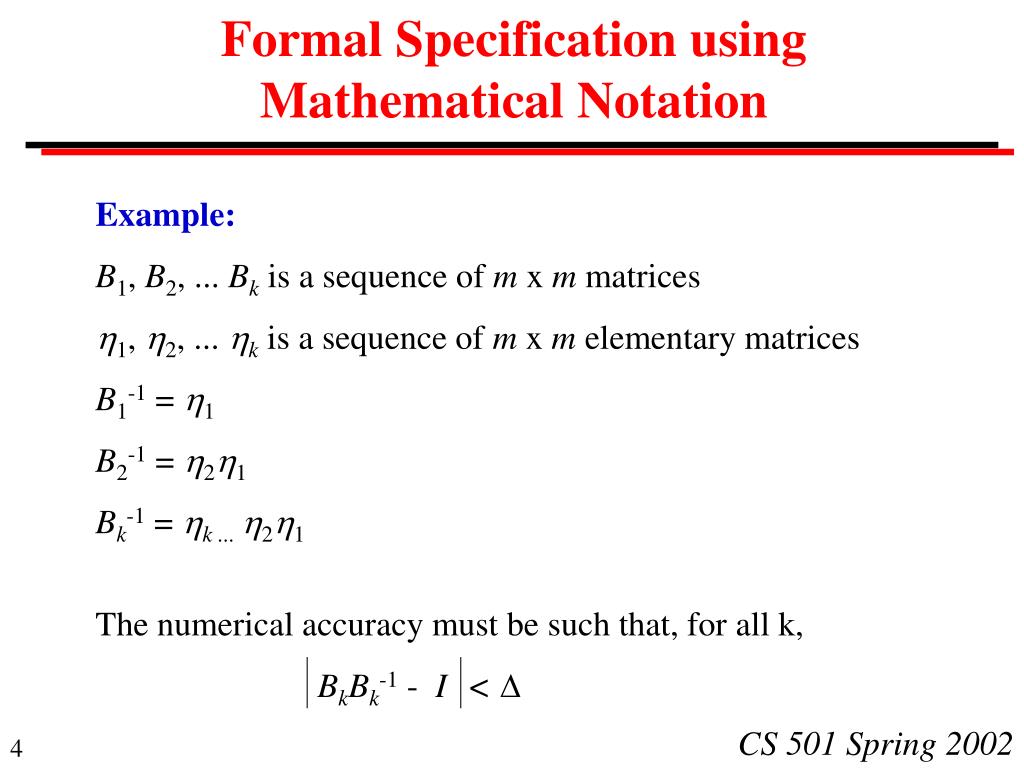

Formal Specification using Mathematical Notation

Example:

B1, B2, ... Bk is a sequence of m x m matrices

1, 2, ... k is a sequence of m x m elementarymatrices

B1-1 = 1

B2-1 = 21

Bk-1 = k ... 21

The numerical accuracy must be such that, for all k,

BkBk-1 - I<

formal specification using diagrams

digit

digit

+

.

E

-

Formal Specification Using Diagrams

Pascal number syntax

unsigned integer

unsigned number

unsigned integer

unsigned integer

formal specification of programming languages
Formal Specification of Programming Languages

Pascal number syntax

<unsigned number> ::= <unsigned integer> | <unsigned real>

<unsigned integer> ::= <digit> {<digit>}

<unsigned real> ::= <unsigned integer> . <digit> {<digit>} |

<unsigned integer> . <digit> {<digit>} E <scale factor> |

<unsigned integer> E <scale factor>

<scale factor> ::= <unsigned integer> | <sign> <unsigned integer>

<sign> ::= + | -

formal specification using z zed

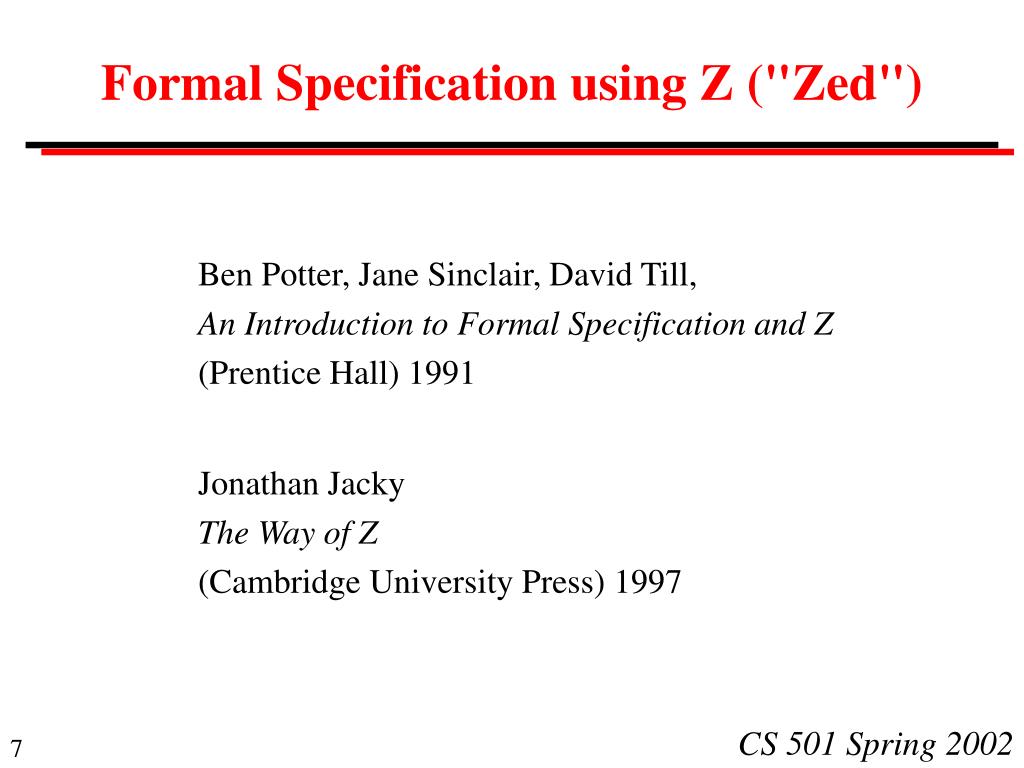

Formal Specification using Z ("Zed")

Ben Potter, Jane Sinclair, David Till,

An Introduction to Formal Specification and Z

(Prentice Hall) 1991

Jonathan Jacky

The Way of Z

(Cambridge University Press) 1997

two rules
Two Rules

 Formal specification does not guarantee correctness

 Formal specification does not prescribe the implementation

example specification using z
Example: Specification using Z

Informal: The function intrt(a) returns the largest integer whose square is less than or equal to a.

Formal (Z):

intrt: NN

a : N •

intrt(a) * intrt(a) < a < (intrt(a) + 1) * (intrt(a) + 1)

example algorithm

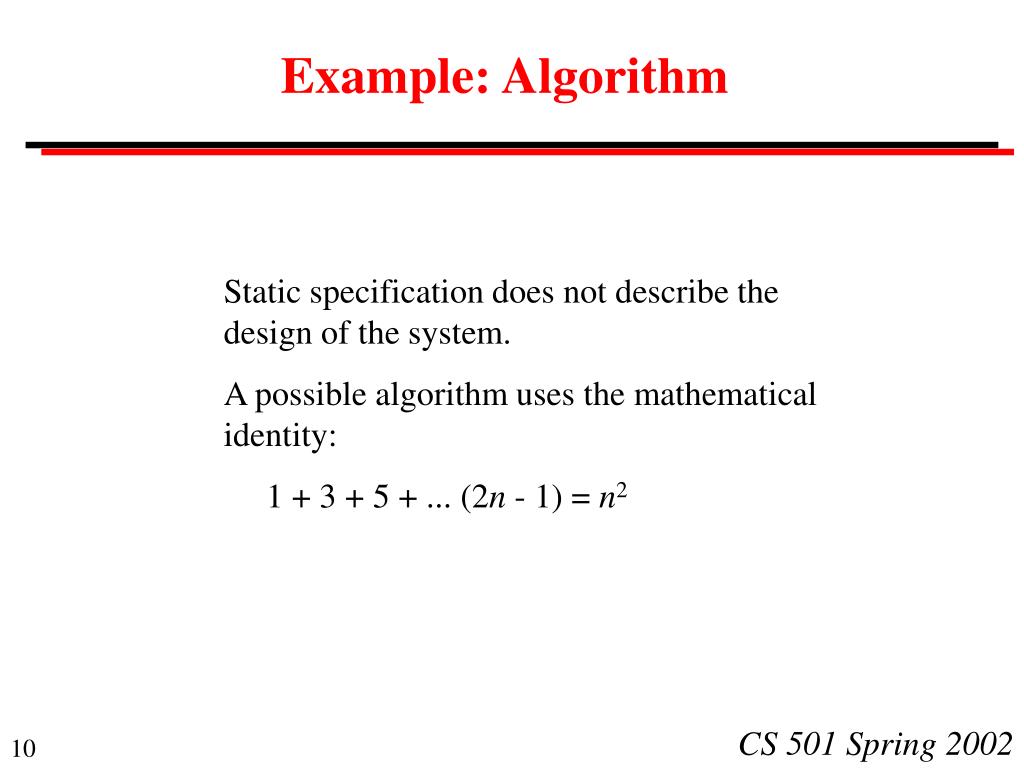

Example: Algorithm

Static specification does not describe the design of the system.

A possible algorithm uses the mathematical identity:

1 + 3 + 5 + ... (2n - 1) = n2

example program

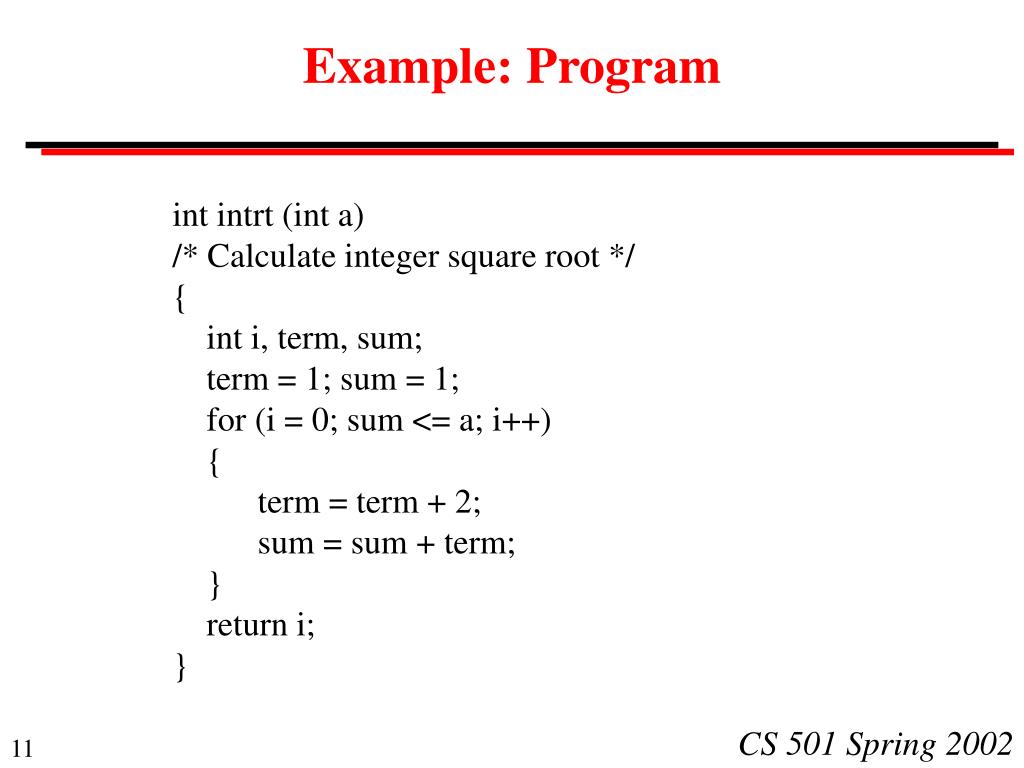

Example: Program

int intrt (int a)

/* Calculate integer square root */

{

int i, term, sum;

term = 1; sum = 1;

for (i = 0; sum <= a; i++)

{

term = term + 2;

sum = sum + term;

}

return i;

}

formal specification using finite state machine
Formal Specification Using Finite State Machine

A broadly used method of formal specification:

 Event driven systems (e.g., games)

 User interfaces

 Protocol specification

etc., etc., ...

finite state machine
Finite State Machine

Example:

Therapy control console

[informal description]

state transition diagram
State Transition Diagram

Select field

Start

Enter

Enter

(ok)

Beam

on

Patients

Fields

Setup

Ready

Stop

(interlock)

Select patient

state transition table

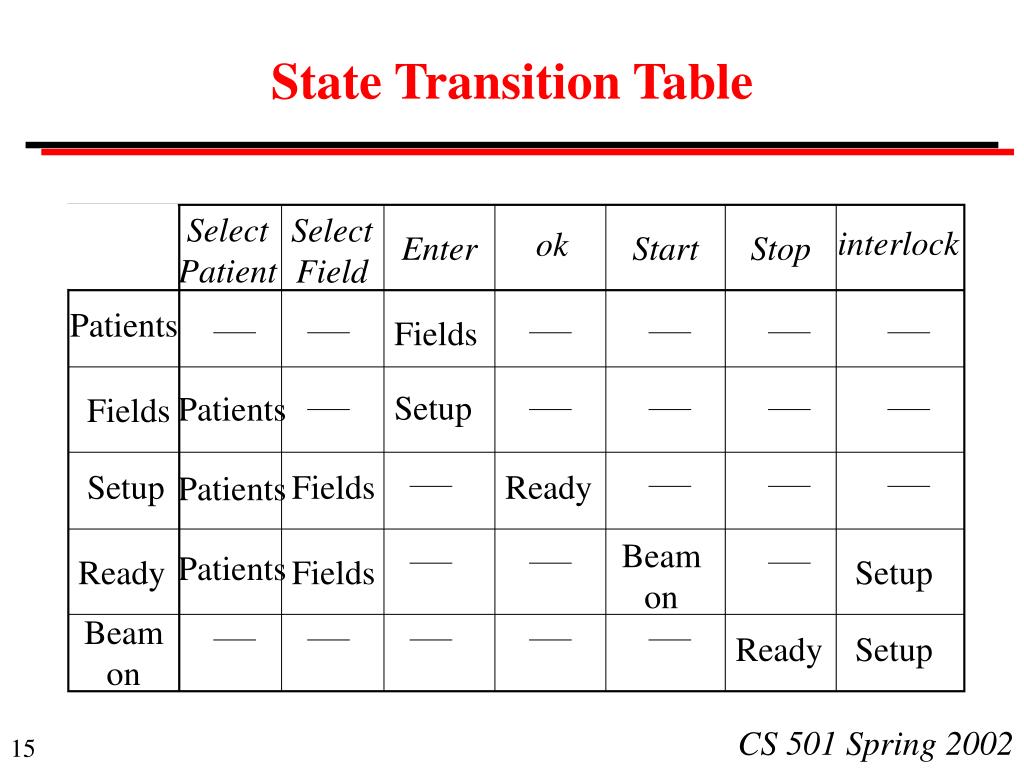

State Transition Table

Select

Patient

Select

Field

interlock

ok

Enter

Start

Stop

Patients

Fields

Setup

Patients

Fields

Setup

Fields

Ready

Patients

Beam

on

Patients

Ready

Fields

Setup

Beam

on

Ready

Setup

z specification

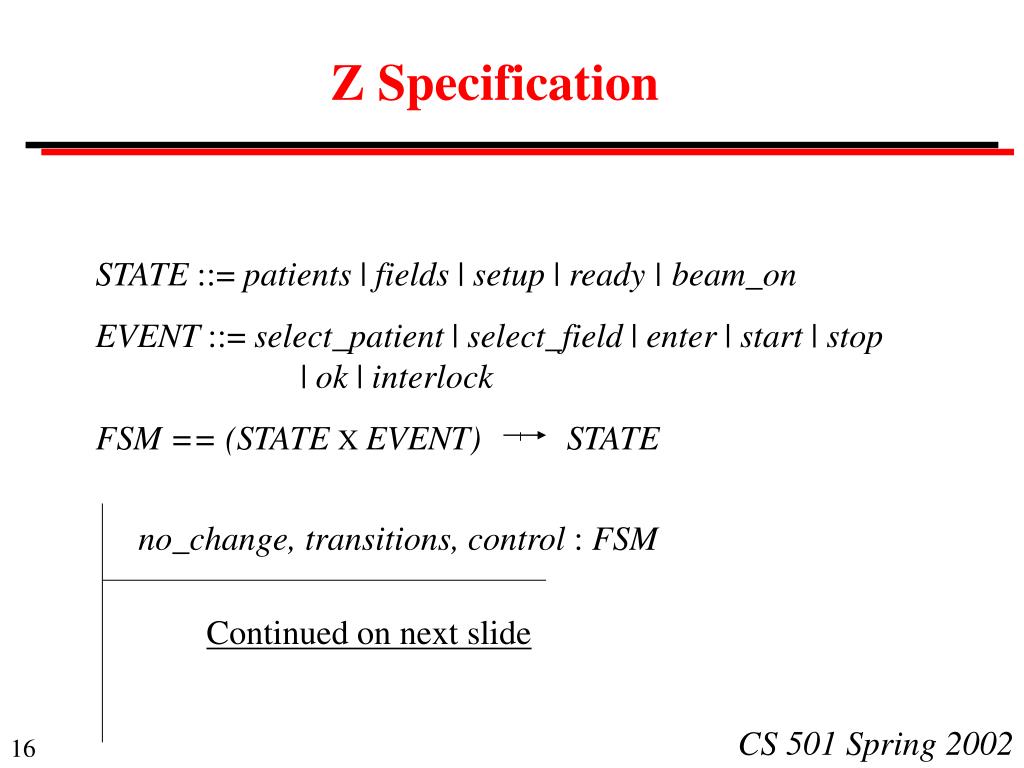

Z Specification

STATE ::= patients | fields | setup | ready | beam_on

EVENT ::= select_patient | select_field | enter | start | stop

| ok | interlock

FSM == (STATE X EVENT) STATE

no_change, transitions, control : FSM

Continued on next slide

z specification continued

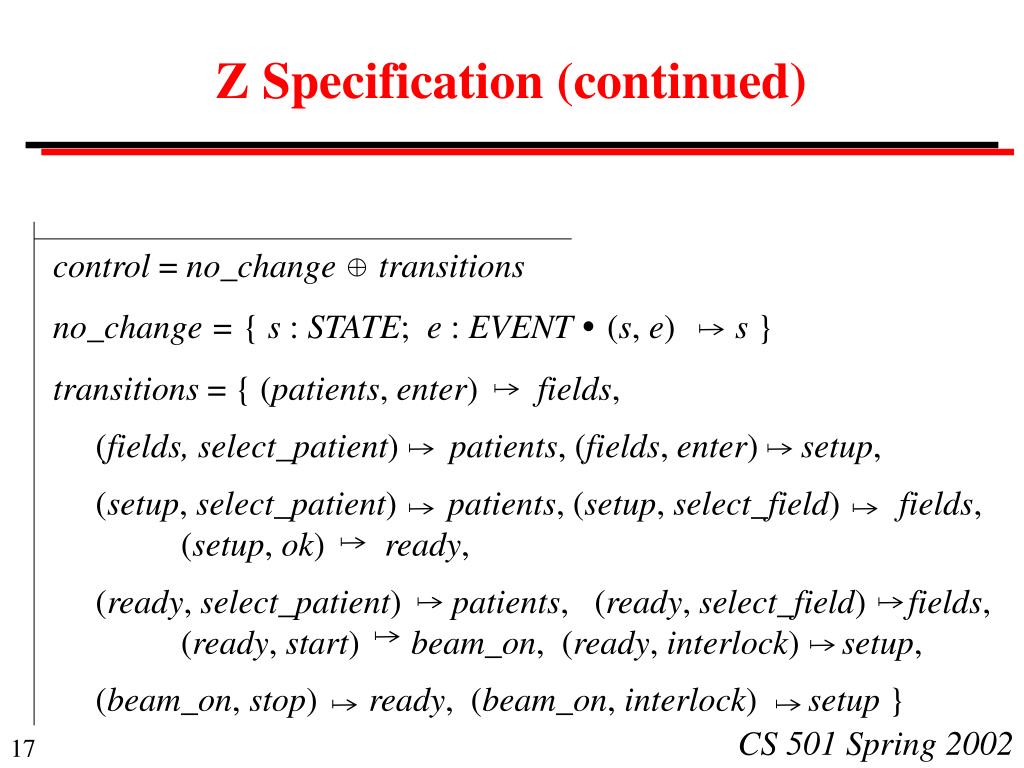

Z Specification (continued)

control = no_change transitions

no_change = { s : STATE; e : EVENT • (s, e) s }

transitions = { (patients, enter)fields,

(fields, select_patient) patients, (fields, enter) setup,

(setup, select_patient) patients, (setup, select_field) fields,

(setup, ok) ready,

(ready, select_patient) patients, (ready, select_field) fields,

(ready, start) beam_on, (ready, interlock) setup,

(beam_on, stop) ready, (beam_on, interlock) setup }

schemas

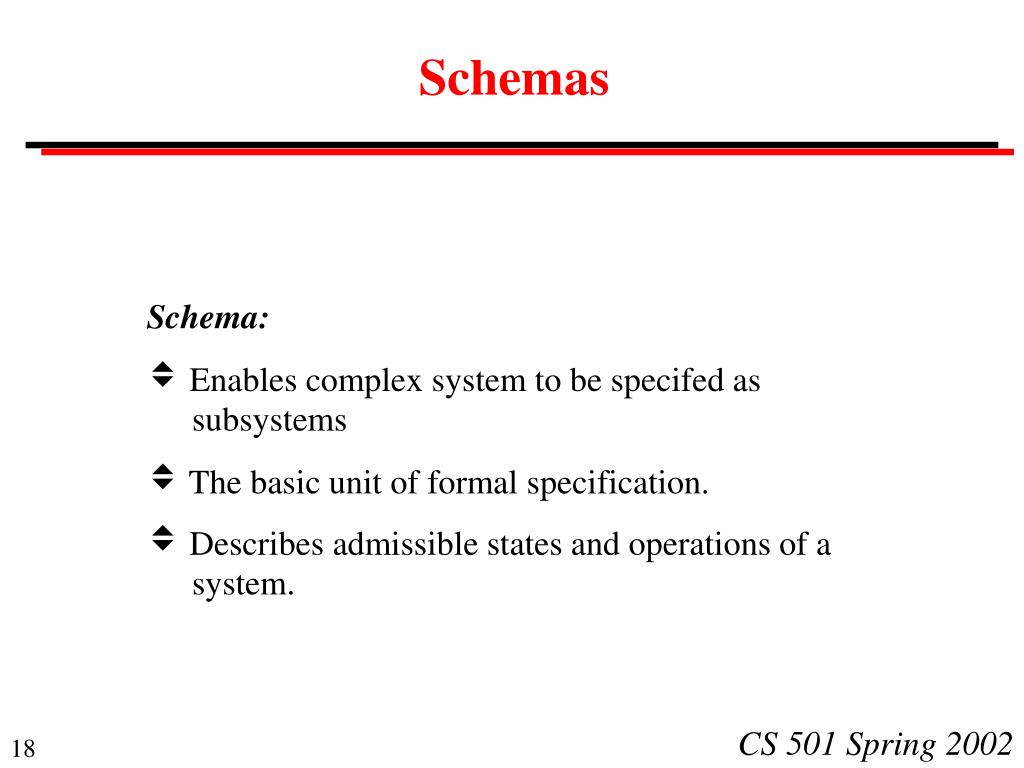

Schemas

Schema:

 Enables complex system to be specifed as subsystems

 The basic unit of formal specification.

 Describes admissible states and operations of a system.

libsys an example of z
LibSys: An Example of Z

Library system:

 Stock of books

 Registered users.

 Each copy of a book has a unique identifier.

 Some books on loan; other books on shelves available for loan.

 Maximum number of books that any user may have on loan.

libsys operations

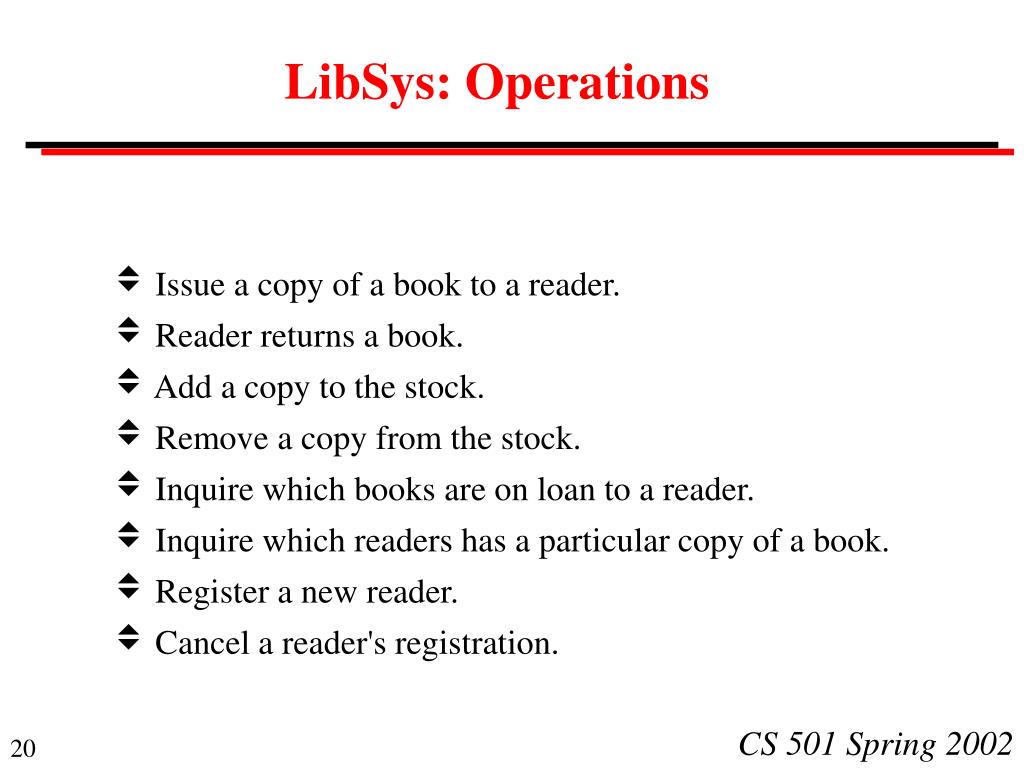

LibSys: Operations

 Issue a copy of a book to a reader.

 Reader returns a book.

 Add a copy to the stock.

 Remove a copy from the stock.

 Inquire which books are on loan to a reader.

 Inquire which readers has a particular copy of a book.

 Register a new reader.

 Cancel a reader's registration.

libsys

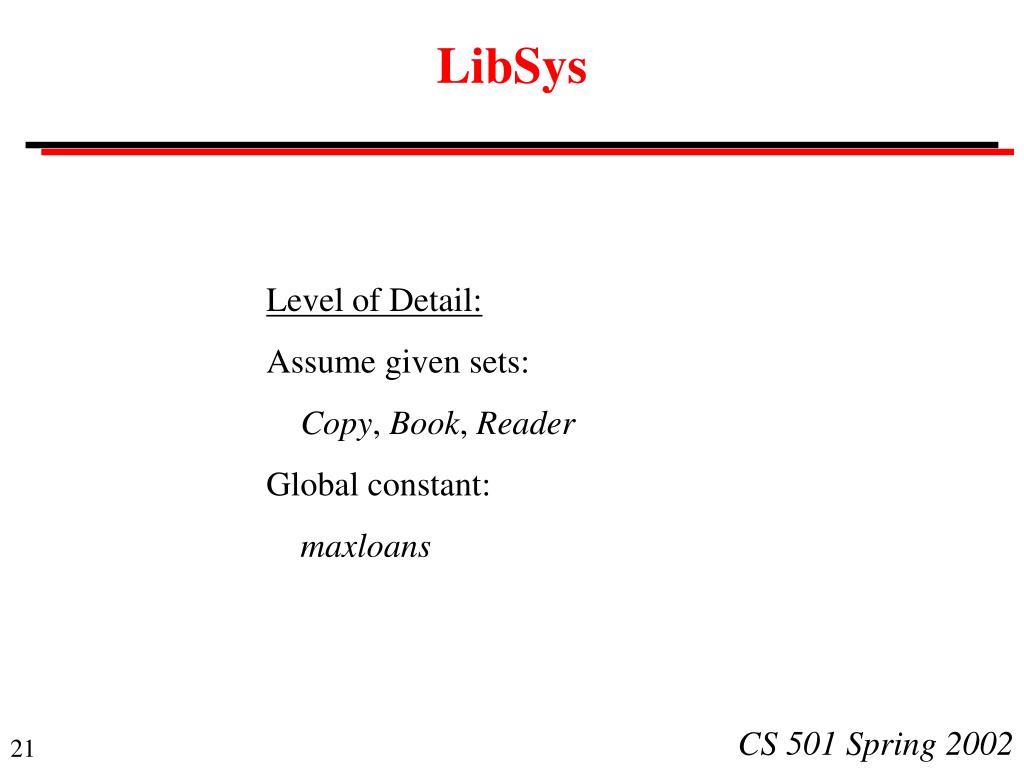

LibSys

Level of Detail:

Assume given sets:

Copy, Book, Reader

Global constant:

maxloans

domain and range
Domain and Range

ran m

X

dom m

Y

m

y

x

m : XY

dom m = { x X :  y  Y  xy}

ran m = { y Y :  x  X  xy}

domain:

range:

libsys schema for abstract states

<

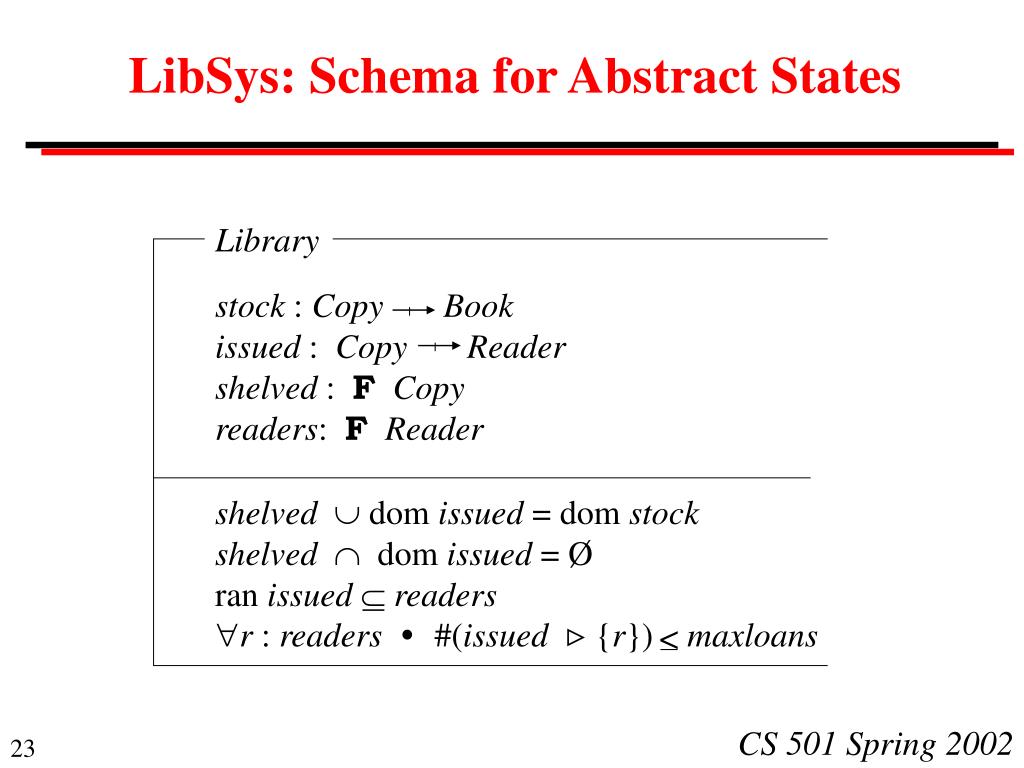

LibSys: Schema for Abstract States

Library

stock : CopyBook

issued : CopyReader

shelved : FCopy

readers: FReader

shelved dom issued = dom stock

shelved dom issued = Ø

ran issued readers

r : readers• #(issued {r}) maxloans

schema inclusion

<

Schema Inclusion

LibDB

stock : Copy Book

readers: FReader

LibLoans

issued : Copy Reader

shelved : FCopy

r : Reader• #(issued {r}) maxloans

shelved dom issued = Ø

schema inclusion continued

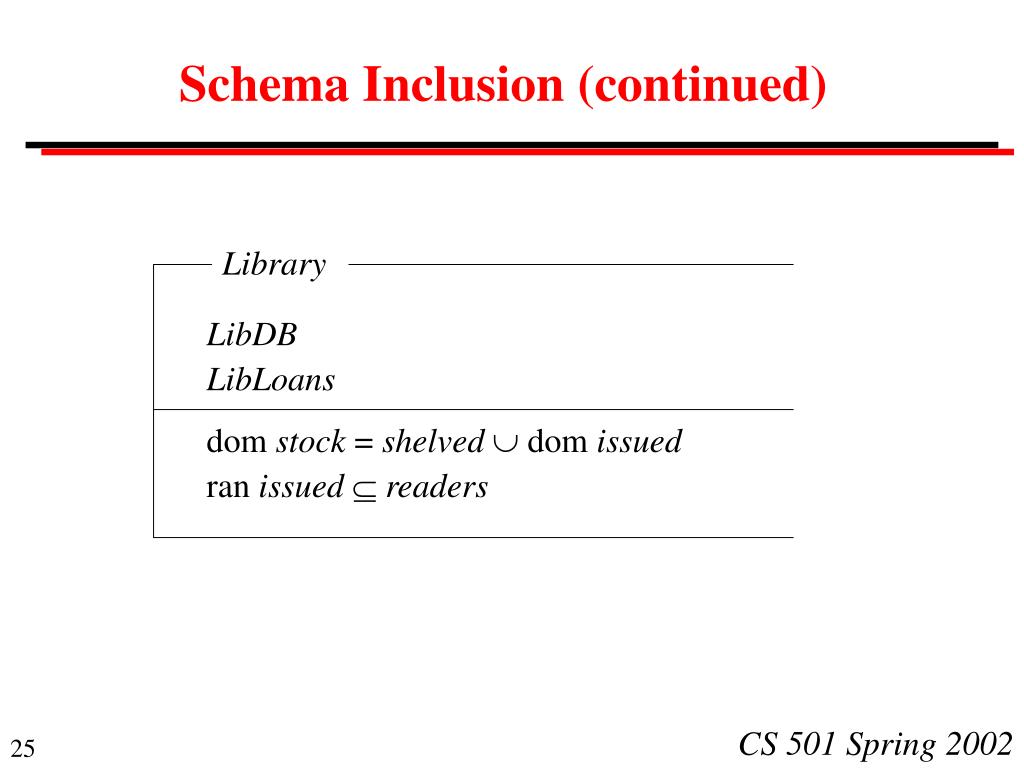

Schema Inclusion (continued)

Library

LibDB

LibLoans

dom stock = shelved dom issued

ran issued  readers

schemas describing operations

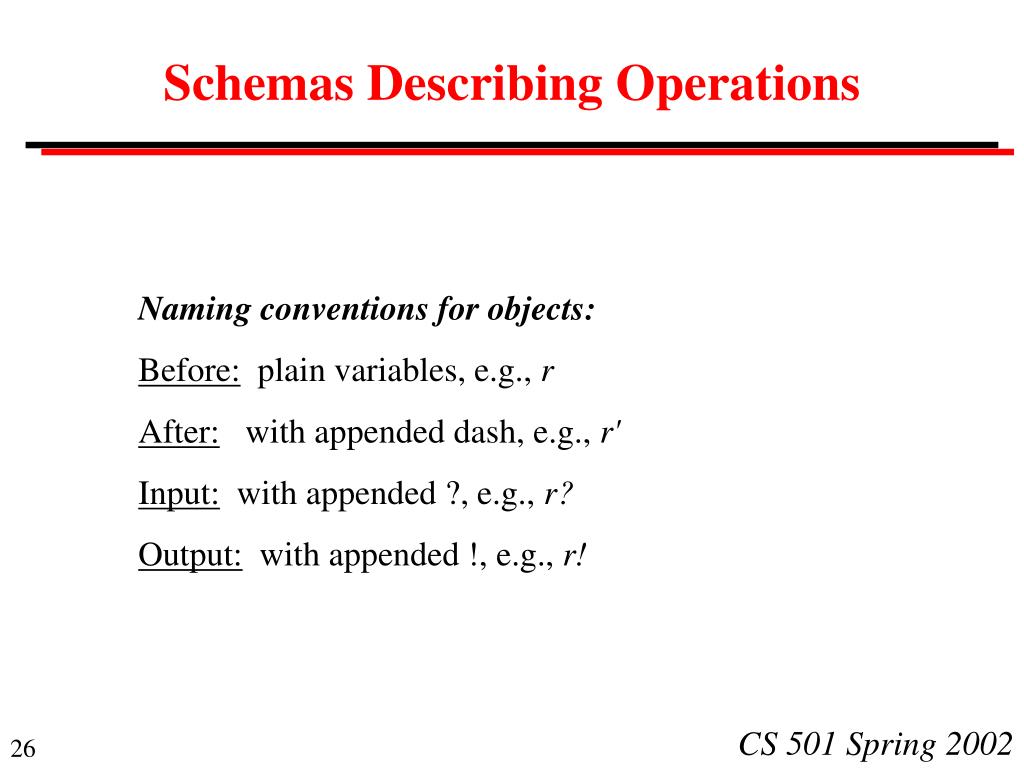

Schemas Describing Operations

Naming conventions for objects:

Before: plain variables, e.g., r

After: with appended dash, e.g., r'

Input: with appended ?, e.g., r?

Output: with appended !, e.g., r!

operation issue a book

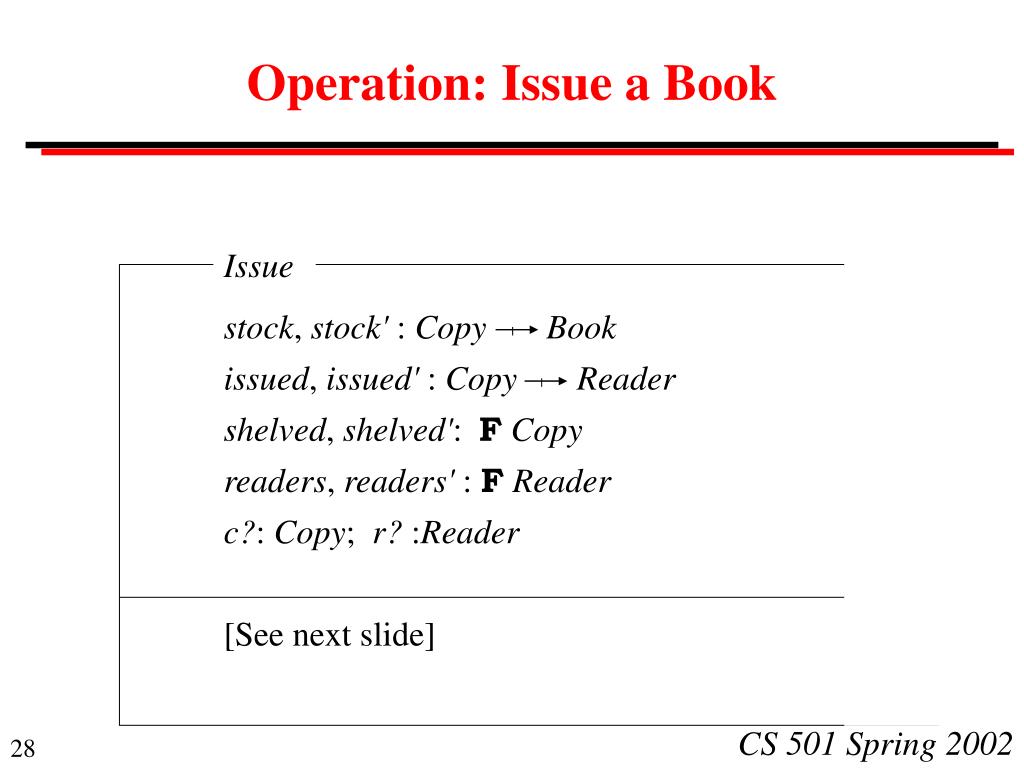

Operation: Issue a Book

 Inputs: copy c?, reader r?

 Copy must be shelved initially: c?  shelved

 Reader must be registered: r?  readers

 Reader must have less than maximum number of books on loan:

#(issued {r?}) < maxloans

 Copy must be recorded as issued to the reader:

issued' = issued {c? r?}

 The stock and the set of registered readers are unchanged:

stock' = stock; readers' = readers

operation issue a book28
Operation: Issue a Book

stock, stock' : Copy Book

issued, issued' : Copy Reader

shelved, shelved': FCopy

readers, readers' : FReader

c?: Copy; r? :Reader

[See next slide]

Issue

operation issue a book continued

<

<

Operation: Issue a Book (continued)

Issue

[See previous slide]

shelved dom issued = dom stock

shelved' dom issued' = dom stock'

shelved  dom issued = Ø; shelved'  dom issued' = Ø

ran issued  readers; ran issued'  readers'

r : readers  #(issued {r}) maxloans

r : readers'  #(issued' {r}) maxloans

c? shelved; r?  readers; #(issued  {r?}) < maxloans

issued' = issued  {c? r?}

stock' = stock; readers' = readers

schema decoration

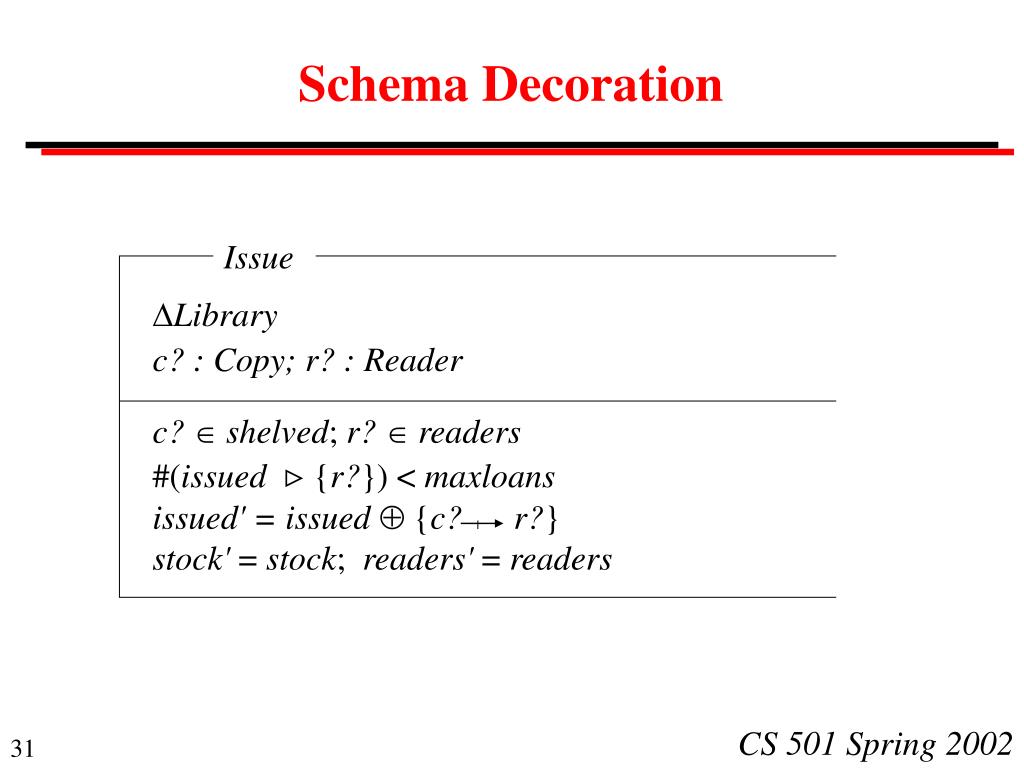

Schema Decoration

Issue

Library

Library'

c? : Copy; r? : Reader

c? shelved; r?  readers

#(issued {r?}) < maxloans

issued' = issued  {c? r?}

stock' = stock; readers' = readers

schema decoration31
Schema Decoration

Issue

Library

c? : Copy; r? : Reader

c? shelved; r?  readers

#(issued {r?}) < maxloans

issued' = issued  {c? r?}

stock' = stock; readers' = readers

the schema calculus

^

^

=

=

The Schema Calculus

Schema inclusion

Schema decoration

Schema disjunction:

AddCopy AddKnownTitle  AddNewTitle

Schema conjunction:

AddCopyEnterNewCopy  AddCopyAdmin

Schema negation

Schema composition
