  1. ACCOMODATING A380 OPERATIONS ATMIAMI INTERNATIONAL AIRPORTPROJECT STATUS Presented by José A. Ramos Chief of Aviation Planning, Development Division Miami-Dade Aviation Department ACI-NA A380 Meeting, Washington DC January 25, 2005

  2. Expected A380 Operations Miami International Airport • Airlines that to date have announced their intention to operate the Airbus A380 into and out of MIA are: • Lufthansa Airlines • Air France • Virgin Atlantic Airways • Miami Dade Aviation Department (MDAD) anticipates a maximum of six daily operations (three daily arrivals and departures) by the Airbus A380 • Operations by A380 could be as early as 2008 by Lufthansa • Some limited potential exists for FEDEX, or UPS operations to their Latin America hub operation.

  3. Runway 9-27 that design group VI A380 aircraft be permitted to operate on 150-foot (45 m) wide runway with 50 foot (15 m) wide shoulders. All blast pad dimensions to remain at 250 X 400 feet (76.2 X 121.9 m) as opposed to the ADG VI standard of 280 X 500 ft. (85.3 X 152.4 m) The current design standards for taxiway/taxiway and taxiway/taxilane separation need to be revised to allow MIA to accommodate the A380 without requiring significant restrictions - modifications to the airfield are impossible due to space limitations. FAA approval of operational procedures will be required for specific taxiway routings and procedures to keep adjacent taxiways clear/limited while the A380s land/take-off and while taxiing to/from gates. Adaptations to Design Standards for A380 Compatibility

  4. Proposed Adaptations to FAA Design Standards

  5. MIA MOS Project Status FAA Guidance • Issued Engineering Brief (EB) #63 • Allows the use of non-standard 75’ (in lieu of 100’) straight taxiway sections for A380 taxiing operations with specific conditions and overall taxiway width of 180 feet. • Issued Engineering Brief (EB) #65 • Allows  a permissible alternative to temporarily widen an existing 150’ wide runway to accommodate limited operations by A380 aircraft. • Requires the strengthening of 25 feet of shoulder pavement on existing 150-foot wide runwayin order to provide 200 feet of usable runway pavement and the relocation of existing runway edge markings and lighting to the new edges of the runway. • Total runway and shoulder width of 280’ in lieu of Group V 220’ • FAA will approve A380 operations on 150-foot wide runway if Aircraft Certification shows that the aircraft can safely operate on a 150-foot wide runway. Pending the Aircraft Certification, FAA will require the application of EB#65. Airbus believes that the FAA will have enough data by the time of the certification to approve operations on 150-foot wide runway.

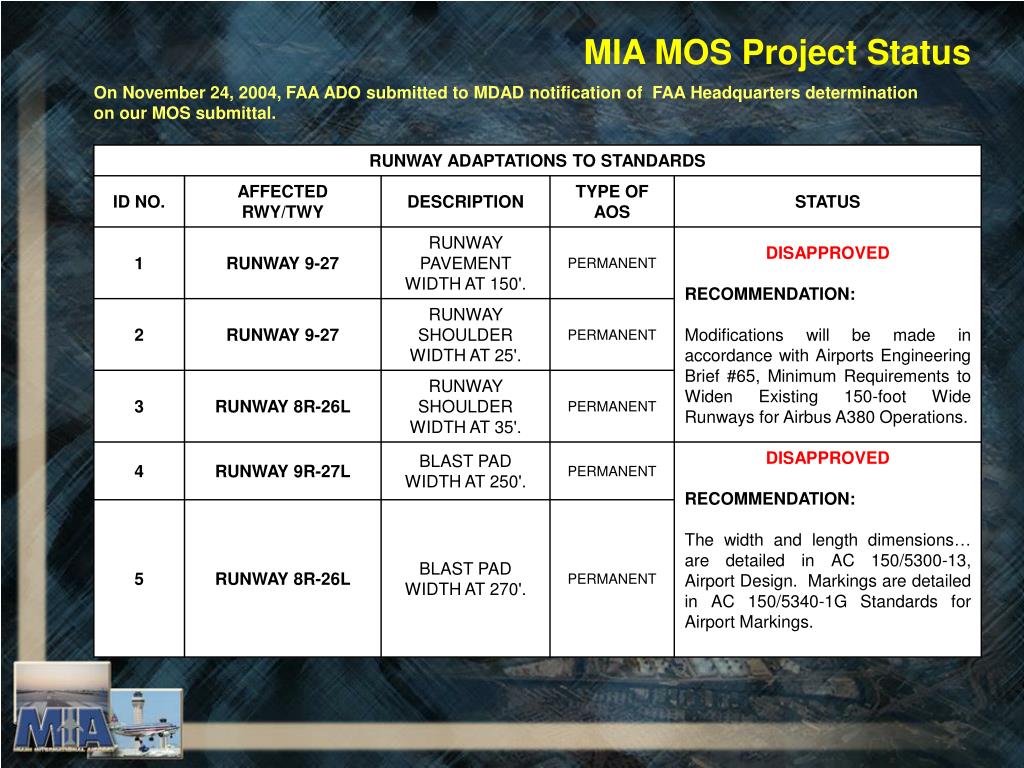

  6. MIA MOS Project Status • On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  7. MIA MOS Project Status On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  8. The Implications of Engineering Brief #65 Engineering Brief #65 recommends: - The strengthening of 25 feet of shoulder pavement on existing 150-foot wide runwayin order to provide 200 feet of usable runway pavement. - The relocation of existing runway edge markings and lighting to the new edges of the runway. - The widening of existing shoulders to provide an overall width of 280 feet. Widening of the shoulders will reduce the storm retention swale capacity which will negatively affect runway and airfield drainage. The preliminary cost estimates associated with such improvements are as follow: • Runway 8R-26L: $11 M • Runway 9-27: $25 M Thus, the widening of the runways to 280 feet will be extremely costly compared to the benefits provided by additional runway pavement shoulders and the very low level of expected A380 operations at the airport.

  9. MIA MOS Project Status On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  10. MIA MOS Project Status On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  11. MIA MOS Project Status On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  12. MIA MOS Project Status On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  13. MIA MOS Project Status On November 24, 2004, FAA ADO submitted to MDAD notification of FAA Headquarters determination on our MOS submittal.

  14. LEGEND ` A380 Taxi Paths Required Shoulder Pavement Width A380 Operations between Runway 8R-26L and Concourse J (Alternate Route) Minimum Improvements Required to Comply with EB #63 and 65

  15. Terminal ImprovementsKey Issues

  16. Terminal ImprovementsKey Issues • A380 airlines major preference is for two passenger boarding bridges (PBB) at doors M2 (Main Deck) and U1 (Upper Deck). This arrangement offers the opportunity to both airports and airlines for: • Service and access differentiation • Reduced efforts and simplified processes for passengers with reduced mobility access. • Three passenger boarding bridges per gate, although a preference by Airlines, is not an option in MIA due to facility constraints. • Total projected Terminal and gate improvements at MIA are estimated between $15 to $20M. This cost is currently unfunded and not in the CIP.

  17. Terminal Improvements Projected Terminal improvements One A380 capable gate under construction on: J - 17 Three additional gates (unfunded) identified on: H- 15 F- 19/21 E- 6/8

  18. Terminal Improvements Gate J-17 • Possible A380 upper deck access via escalator located on fixed PBB • on J-17. • Additional Construction Cost $1M • Proposal at this time. • Requires funding approval by • MDAD User’s Group. • Only A380 capable gate currently planned for MIA. • Under construction expected completion 2006. • 2 passenger boarding bridges at second level. • Hold room not configured for PAX segregation. • Hold room sized for a B747.

  19. Terminal Improvements Gate H-15 • A380 main deck access via additional sterile core and two fixed PBB’s on H-15. • Est. Construction Cost: $8M • Possible A380 upper deck access via additional third level sterile core and one fixed PBB. • Est. Add. Const. Cost: $4M • Passenger segregation at hold room possible. • Adequate hold room. • Proposal at this time. Requires funding approval by MDAD User’s Group.

  20. Terminal Improvements Gate F-19/F-21 • A380 main deck access via two PBB. • New fixed vestibule at F-21. • (F21A + B). • Est. Construction Cost: $3.2M • Possible A380 upper deck access via • escalator located on fixed PBB on F-19. • Additional Construction Cost $1M • Proposal at this time. Requires funding approval by MDAD User’s Group. • Possible hold room passenger segregation • Hold room sized for a B747

  21. Terminal Improvements Gate E-6 / E-8 • Possible hold room passenger segregation • Hold room sized for a B747 • Proposal at this time. Requires funding approval by MDAD User’s Group. • A380 main deck access via two PBB’s • and new fixed vestibule at E-8 and E-6. • Est. Construction Cost: $3M • Possible A380 upper deck access via • escalator located on fixed PBB on E-8. • Additional Construction Cost $1M • New PBB to activate E-10 • Additional Construction Cost $1M

  22. Way Forward Look Ahead • Initiating Airbus A380 Implementation Strategy Study outlining: • Required airfield improvements • Required terminal Improvements • Implementation / construction schedule • Construction cost estimate • Funding strategies

  23. THANK YOU Discussions and Q+A
