Double Pipe Heat Exchanger

A two-pipe heat exchanger is also sometimes referred to as a "pipe in a pipe" heat exchanger. As the name implies, it consists of two pipes, one in the other. One fluid flows through the inner tube as to the tubular side of the jacket and tubular exchanger, while the other fluid flows through the outer tube that surrounds the inner tube as to the tubular side of the jacket and tubular exchanger. Double Pipe Heat Exchanger is characterized by low maintenance and design costs and flexibility.

TGMachines
Download Presentation

Double Pipe Heat Exchanger

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

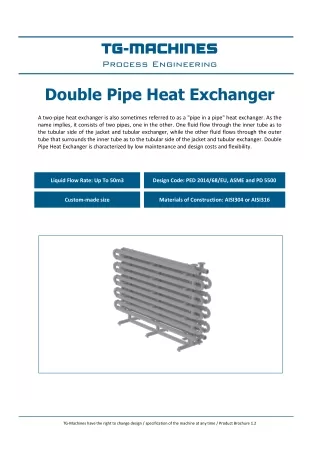

  1. TG-MACHINES Process Engineering Double Pipe Heat Exchanger A two-pipe heat exchanger is also sometimes referred to as a "pipe in a pipe" heat exchanger. As the name implies, it consists of two pipes, one in the other. One fluid flow through the inner tube as to the tubular side of the jacket and tubular exchanger, while the other fluid flows through the outer tube that surrounds the inner tube as to the tubular side of the jacket and tubular exchanger. Double Pipe Heat Exchanger is characterized by low maintenance and design costs and flexibility. Liquid Flow Rate: Up To 50m3 Design Code: PED 2014/68/EU, ASME and PD 5500 Custom-made size Materials of Construction: AISI304 or AISI316 TG-Machines have the right to change design / specification of the machine at any time / Product Brochure 1.2

  2. TG-MACHINES Process Engineering Application:  Oil Refining & Petrochemicals  Chemicals Processing  Pulp & Paper  Oil Extraction  Wastewater Treatment  Biogas Production  Steel Industry  Mining Industry  Minerals Industry  Edible Oils  Pharmaceuticals  Biotechnology  Renewable Energy  Biofuels Industry  Sugar & Alcohol  Heating or cooling of process fluids in different industrial applications of small heat transfer areas of up to 50 m2 TG-MACHINES Process Engineering Phone: +48 792 665 291 / E-mail: info@tg-machines.com / www: tg-machines.com Poland - Ostrowiec Świętokrzyski / China - Fangqiao Town, Yixing City, Jiangsu TG-Machines have the right to change design / specification of the machine at any time / Product Brochure 1.2
