How do you calculate predicted values in response surface methodology using design expert software

To use Design Expert software for Response Surface Methodology (RSM), start by defining your experimentu2019s goals and key factors. Design the experiment using software options like Central Composite Design (CCD) or Box-Behnken Design (BBD). Conduct the experiments and input the data into the software. Fit a model (linear, quadratic, etc.) based on statistical criteria. Generate predicted values by entering factor levels in the u201cModel Graphsu201d or u201cNumerical Optimizationu201d sections. Validate the model with actual results.

Systech1
Download Presentation

How do you calculate predicted values in response surface methodology using design expert software

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

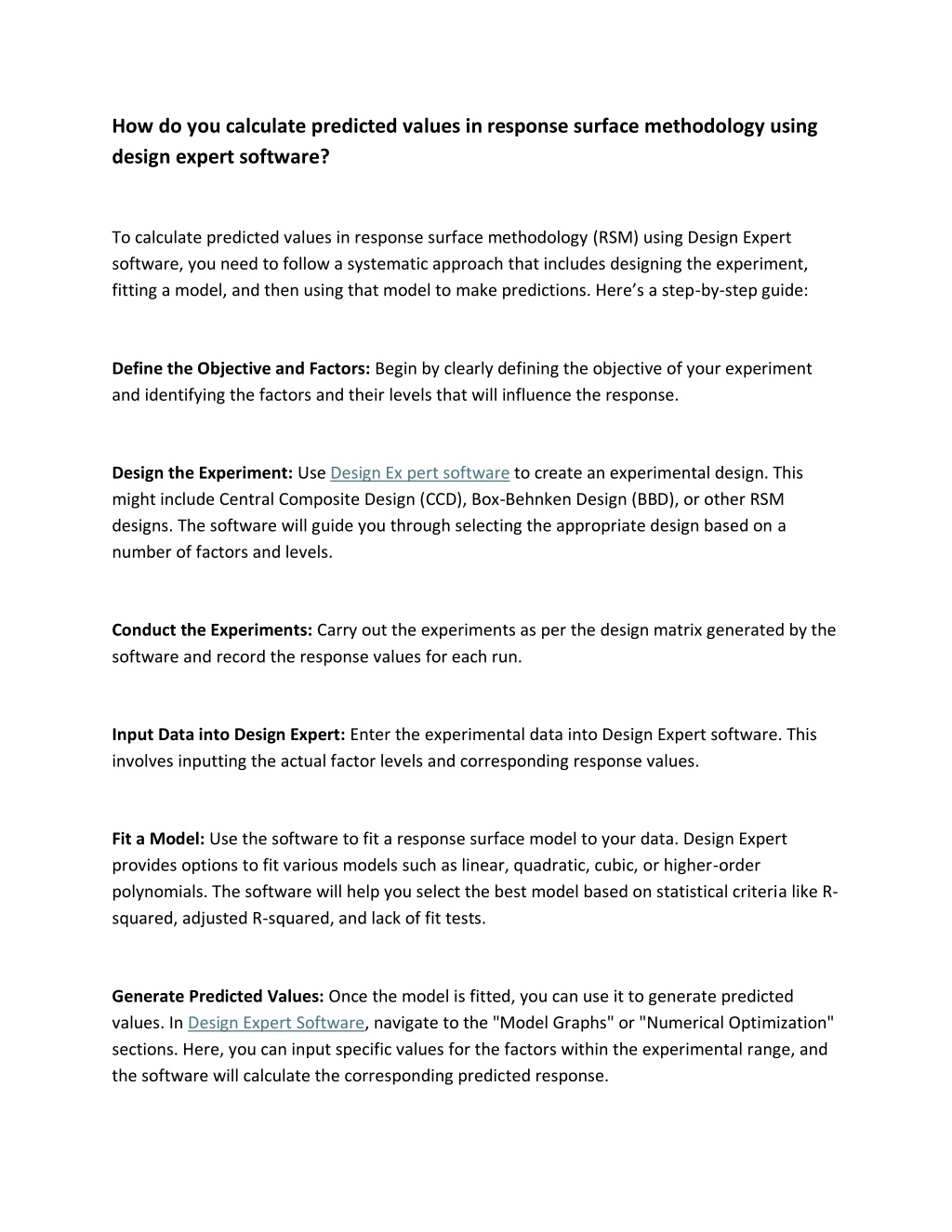

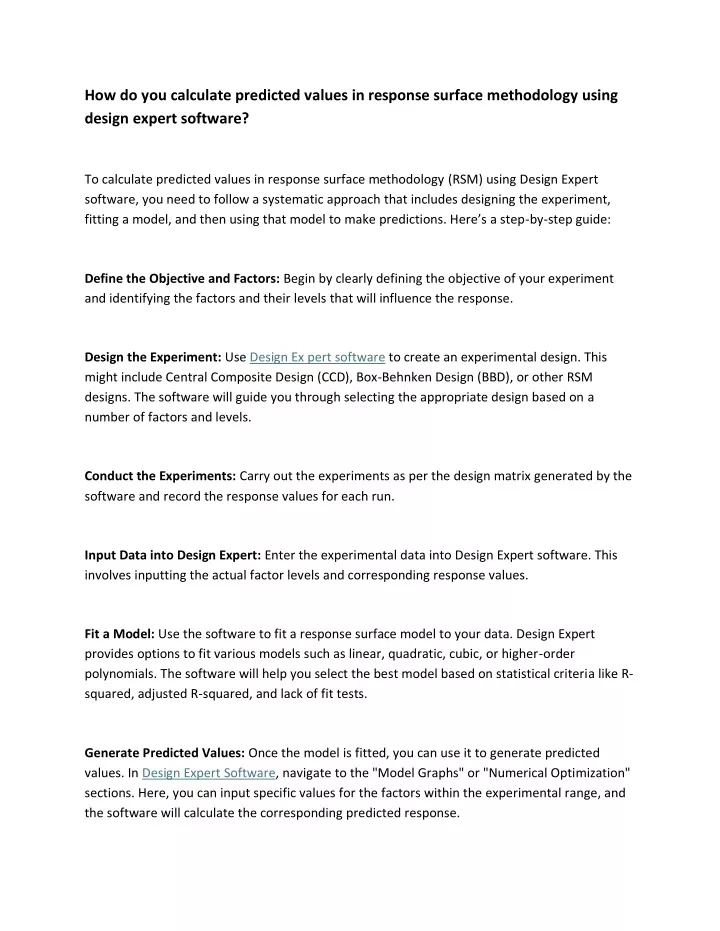

  1. How do you calculate predicted values in response surface methodology using design expert software? To calculate predicted values in response surface methodology (RSM) using Design Expert software, you need to follow a systematic approach that includes designing the experiment, fitting a model, and then using that model to make predictions. Here’s a step-by-step guide: Define the Objective and Factors: Begin by clearly defining the objective of your experiment and identifying the factors and their levels that will influence the response. Design the Experiment: Use Design Ex pert software to create an experimental design. This might include Central Composite Design (CCD), Box-Behnken Design (BBD), or other RSM designs. The software will guide you through selecting the appropriate design based on a number of factors and levels. Conduct the Experiments: Carry out the experiments as per the design matrix generated by the software and record the response values for each run. Input Data into Design Expert: Enter the experimental data into Design Expert software. This involves inputting the actual factor levels and corresponding response values. Fit a Model: Use the software to fit a response surface model to your data. Design Expert provides options to fit various models such as linear, quadratic, cubic, or higher-order polynomials. The software will help you select the best model based on statistical criteria like R- squared, adjusted R-squared, and lack of fit tests. Generate Predicted Values: Once the model is fitted, you can use it to generate predicted values. In Design Expert Software, navigate to the "Model Graphs" or "Numerical Optimization" sections. Here, you can input specific values for the factors within the experimental range, and the software will calculate the corresponding predicted response.

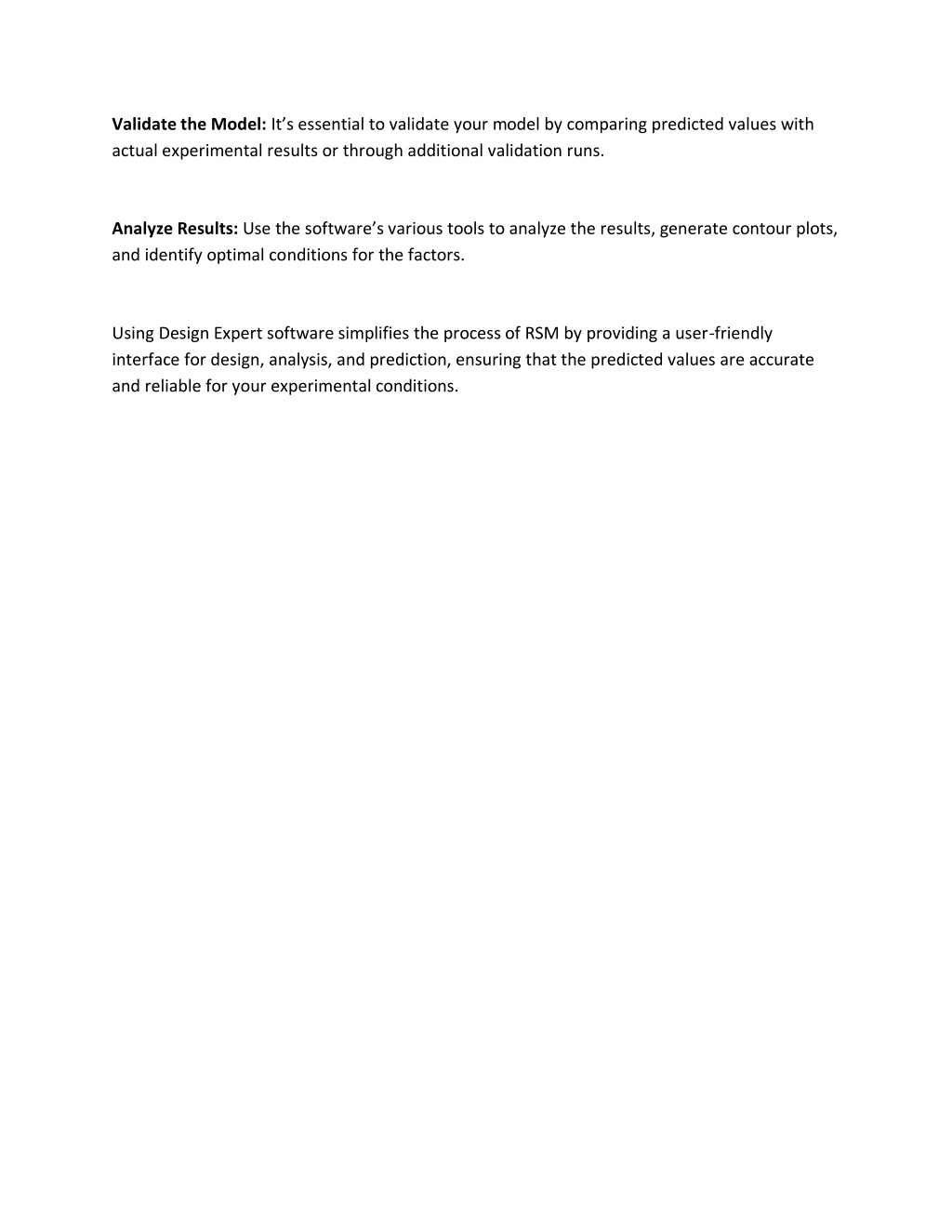

  2. Validate the Model:It’s essential to validate your model by comparing predicted values with actual experimental results or through additional validation runs. Analyze Results:Use the software’s various tools to analyze the results, generate contour plots, and identify optimal conditions for the factors. Using Design Expert software simplifies the process of RSM by providing a user-friendly interface for design, analysis, and prediction, ensuring that the predicted values are accurate and reliable for your experimental conditions.
