ClockSpring Spiral Cable

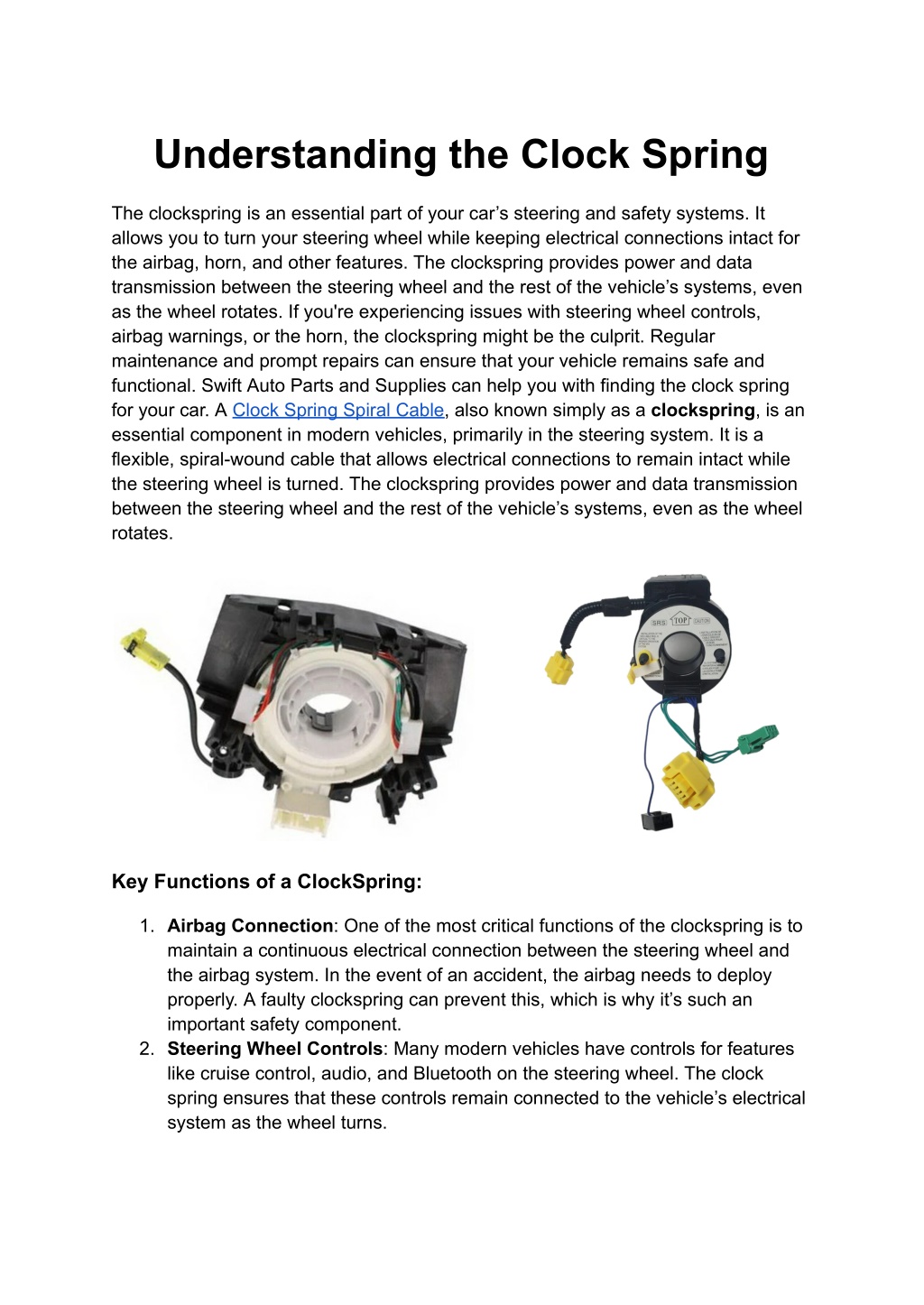

1. Understanding the Clock Spring The clockspring is an essential part of your car’s steering and safety systems. It allows you to turn your steering wheel while keeping electrical connections intact for the airbag, horn, and other features. The clockspring provides power and data transmission between the steering wheel and the rest of the vehicle’s systems, even as the wheel rotates. If you're experiencing issues with steering wheel controls, airbag warnings, or the horn, the clockspring might be the culprit. Regular maintenance and prompt repairs can ensure that your vehicle remains safe and functional. Swift Auto Parts and Supplies can help you with finding the clock spring for your car. A Clock Spring Spiral Cable, also known simply as a clockspring, is an essential component in modern vehicles, primarily in the steering system. It is a flexible, spiral-wound cable that allows electrical connections to remain intact while the steering wheel is turned. The clockspring provides power and data transmission between the steering wheel and the rest of the vehicle’s systems, even as the wheel rotates. Key Functions of a ClockSpring: 1. Airbag Connection: One of the most critical functions of the clockspring is to maintain a continuous electrical connection between the steering wheel and the airbag system. In the event of an accident, the airbag needs to deploy properly. A faulty clockspring can prevent this, which is why it’s such an important safety component. 2. Steering Wheel Controls: Many modern vehicles have controls for features like cruise control, audio, and Bluetooth on the steering wheel. The clock spring ensures that these controls remain connected to the vehicle’s electrical system as the wheel turns.

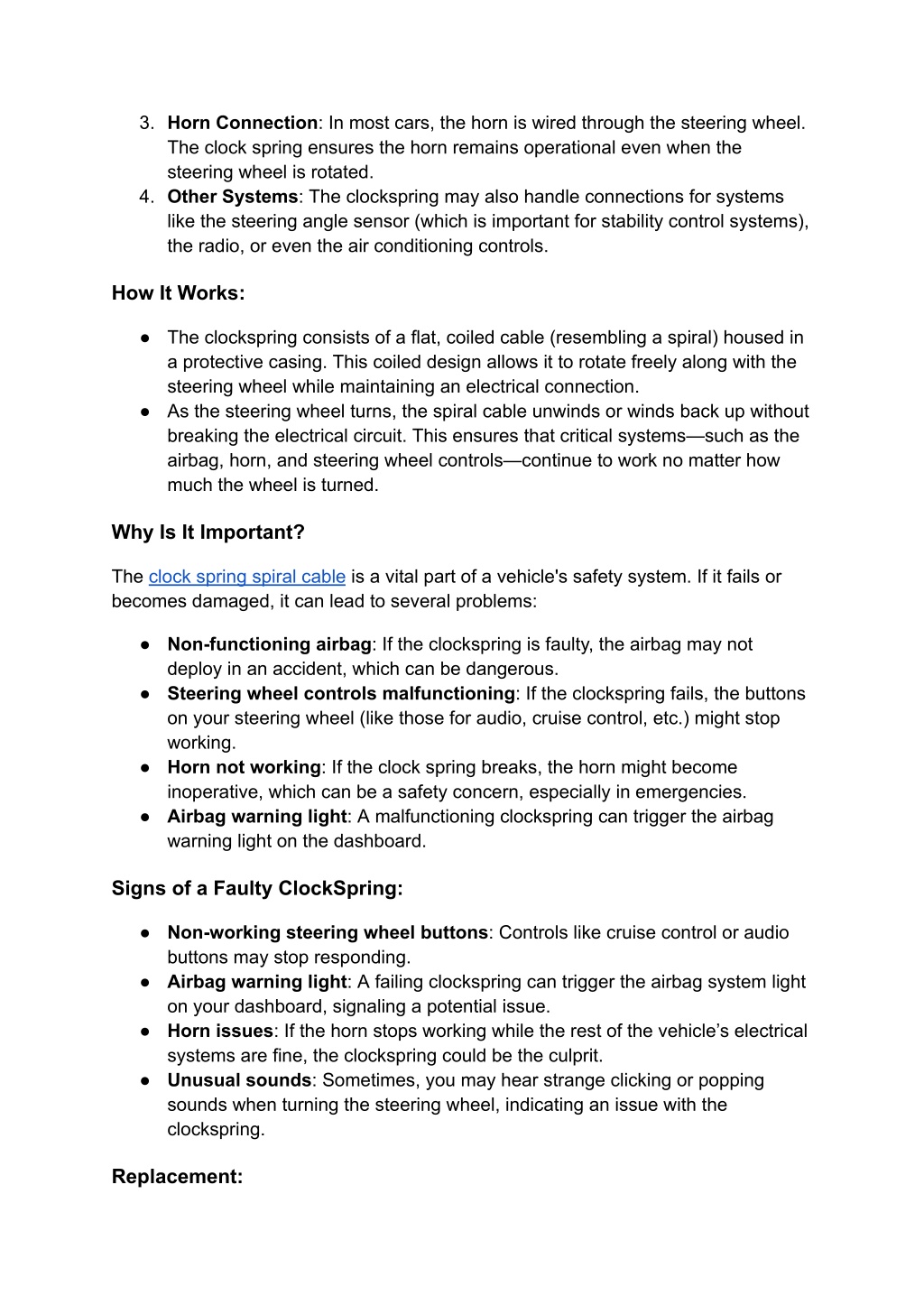

2. 3. Horn Connection: In most cars, the horn is wired through the steering wheel. The clock spring ensures the horn remains operational even when the steering wheel is rotated. 4. Other Systems: The clockspring may also handle connections for systems like the steering angle sensor (which is important for stability control systems), the radio, or even the air conditioning controls. How It Works: ● The clockspring consists of a flat, coiled cable (resembling a spiral) housed in a protective casing. This coiled design allows it to rotate freely along with the steering wheel while maintaining an electrical connection. ● As the steering wheel turns, the spiral cable unwinds or winds back up without breaking the electrical circuit. This ensures that critical systems—such as the airbag, horn, and steering wheel controls—continue to work no matter how much the wheel is turned. Why Is It Important? The clock spring spiral cable is a vital part of a vehicle's safety system. If it fails or becomes damaged, it can lead to several problems: ● Non-functioning airbag: If the clockspring is faulty, the airbag may not deploy in an accident, which can be dangerous. ● Steering wheel controls malfunctioning: If the clockspring fails, the buttons on your steering wheel (like those for audio, cruise control, etc.) might stop working. ● Horn not working: If the clock spring breaks, the horn might become inoperative, which can be a safety concern, especially in emergencies. ● Airbag warning light: A malfunctioning clockspring can trigger the airbag warning light on the dashboard. Signs of a Faulty ClockSpring: ● Non-working steering wheel buttons: Controls like cruise control or audio buttons may stop responding. ● Airbag warning light: A failing clockspring can trigger the airbag system light on your dashboard, signaling a potential issue. ● Horn issues: If the horn stops working while the rest of the vehicle’s electrical systems are fine, the clockspring could be the culprit. ● Unusual sounds: Sometimes, you may hear strange clicking or popping sounds when turning the steering wheel, indicating an issue with the clockspring. Replacement:

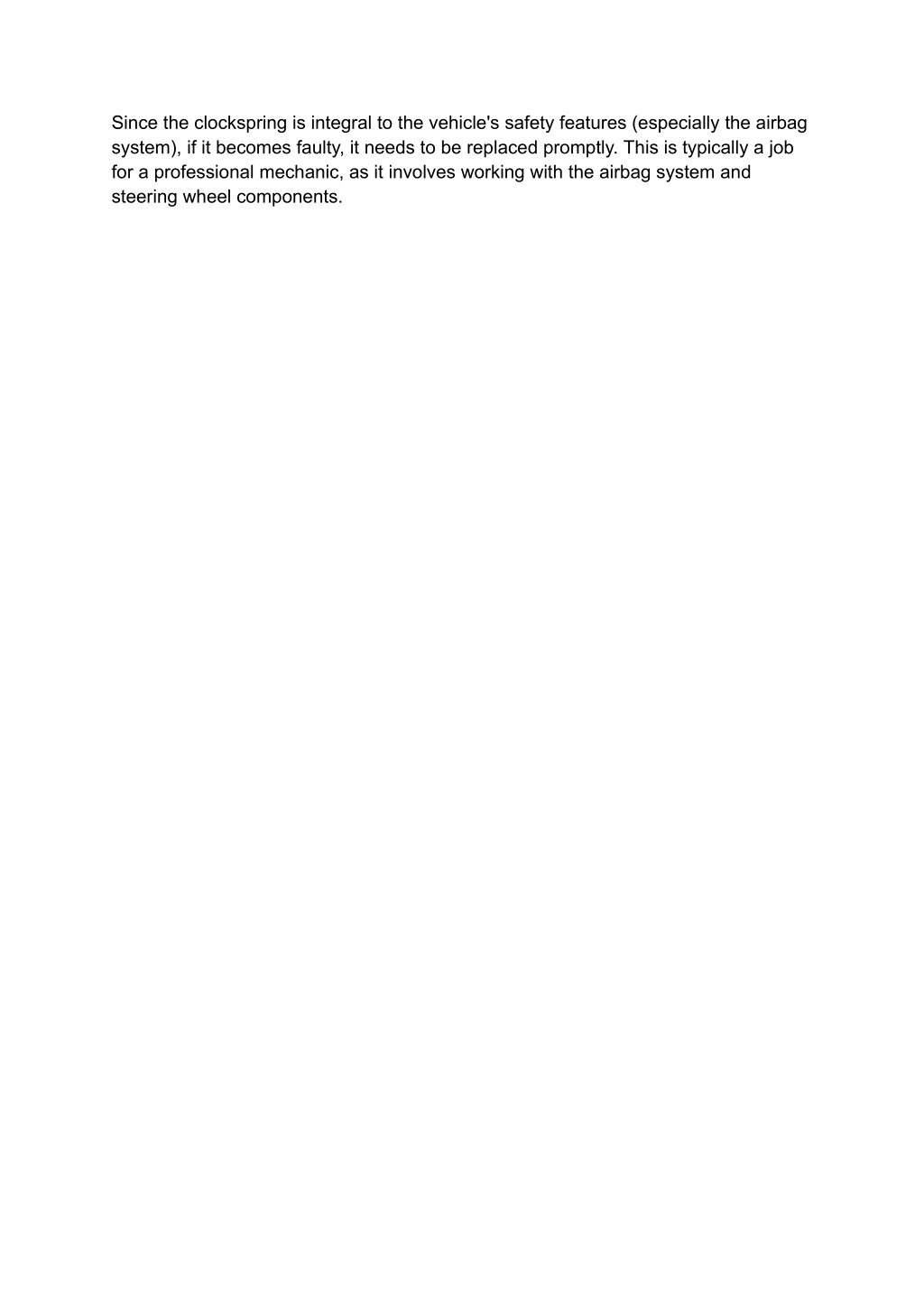

3. Since the clockspring is integral to the vehicle's safety features (especially the airbag system), if it becomes faulty, it needs to be replaced promptly. This is typically a job for a professional mechanic, as it involves working with the airbag system and steering wheel components.
