Actuators

This is a PPT for Actuators

Soubhagya
Download Presentation

Actuators

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

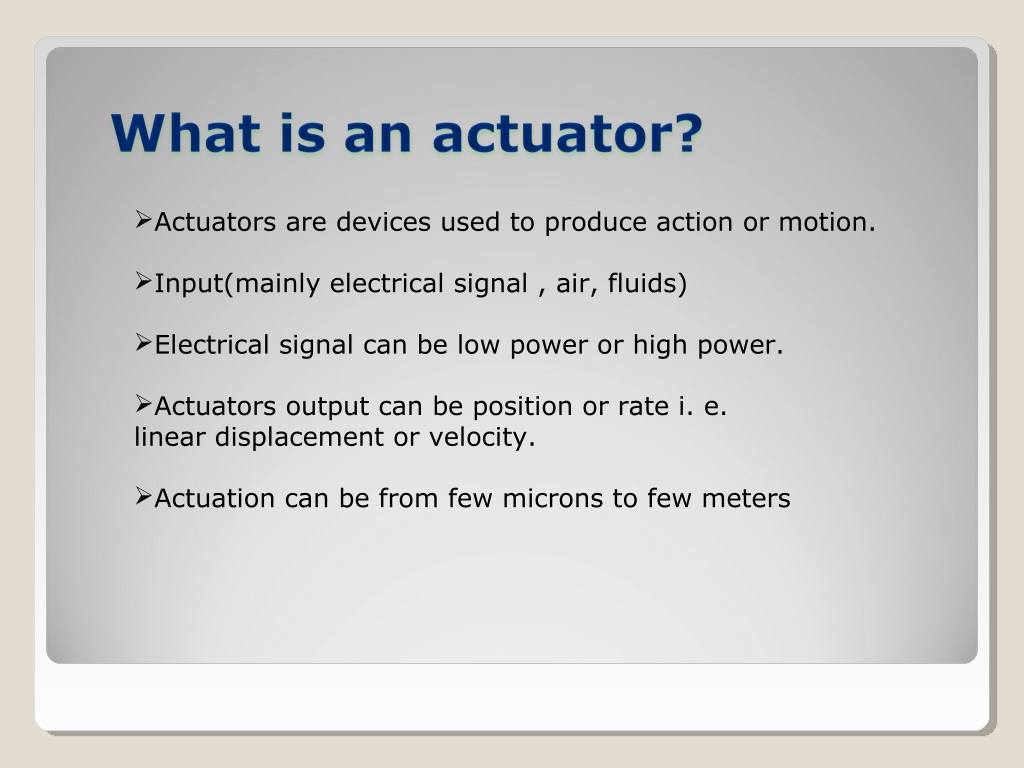

  1. Actuators are devices used to produce action or motion. Input(mainly electrical signal , air, fluids) Electrical signal can be low power or high power. Actuators output can be position or rate i. e. linear displacement or velocity. Actuation can be from few microns to few meters

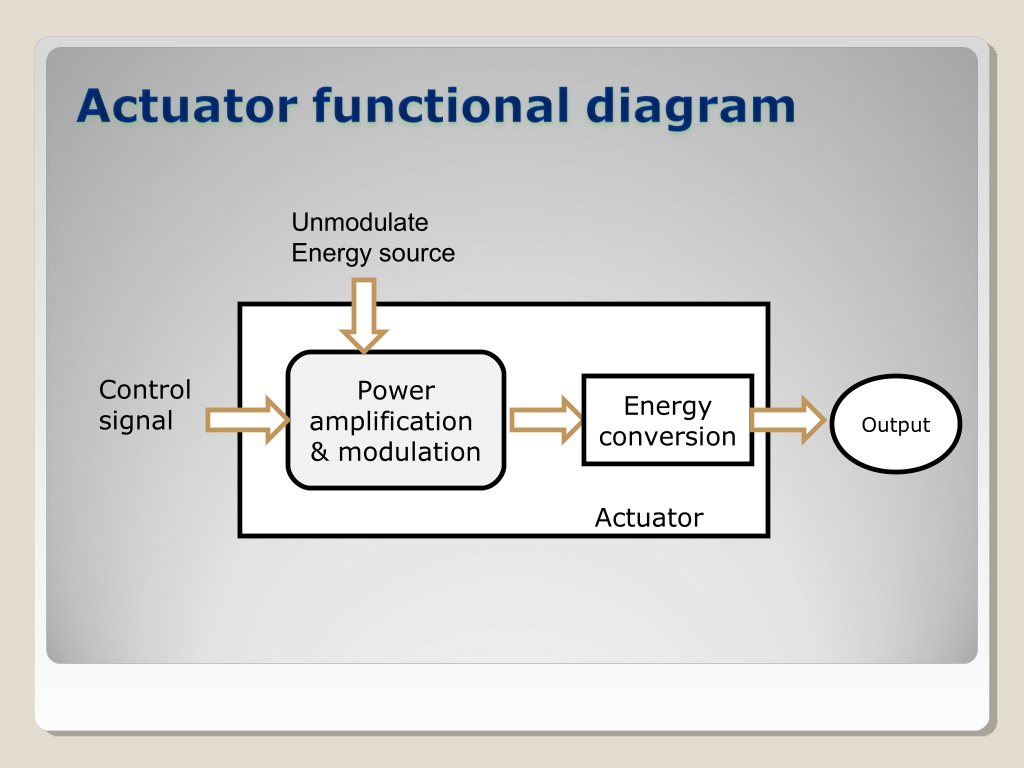

  2. Unmodulate Energy source Control signal Power Energy conversion amplification & modulation A Output Actuator

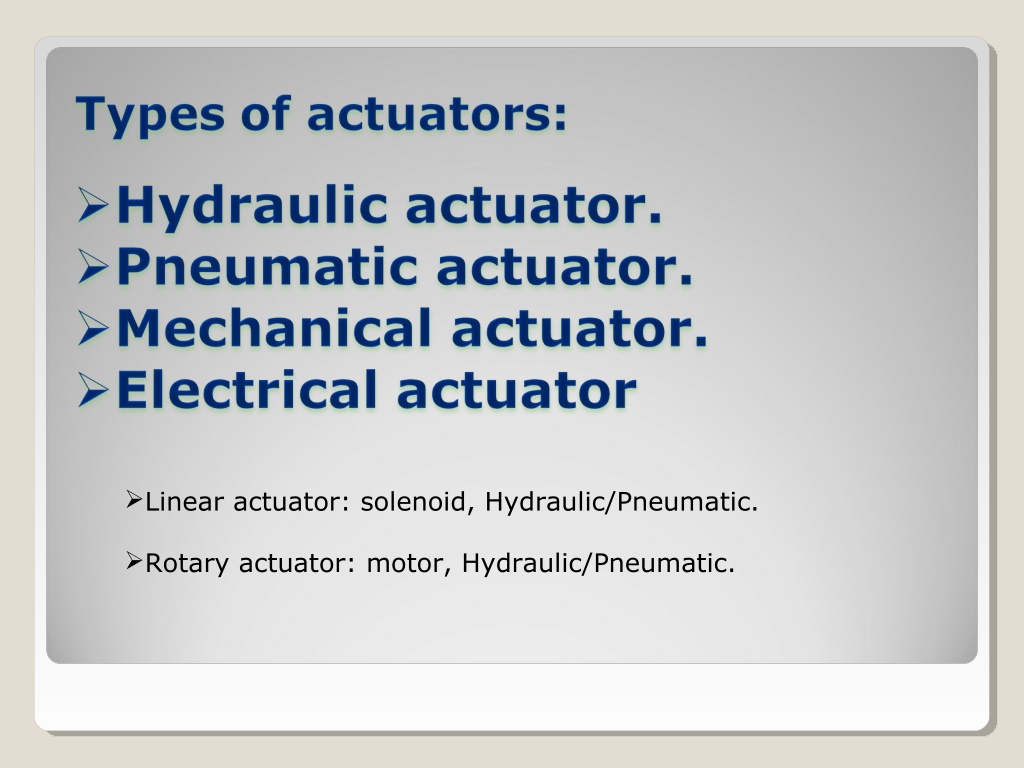

  3. Linear actuator: solenoid, Hydraulic/Pneumatic. Rotary actuator: motor, Hydraulic/Pneumatic.

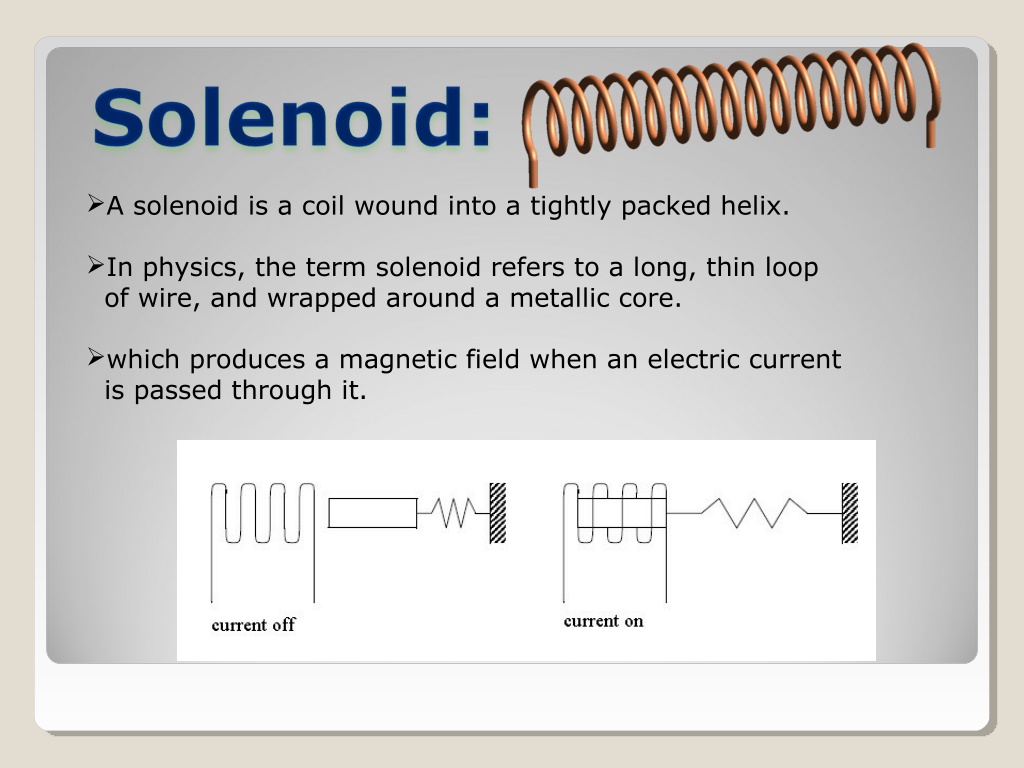

  4. A solenoid is a coil wound into a tightly packed helix. In physics, the term solenoid refers to a long, thin loop of wire, and wrapped around a metallic core. which produces a magnetic field when an electric current is passed through it.

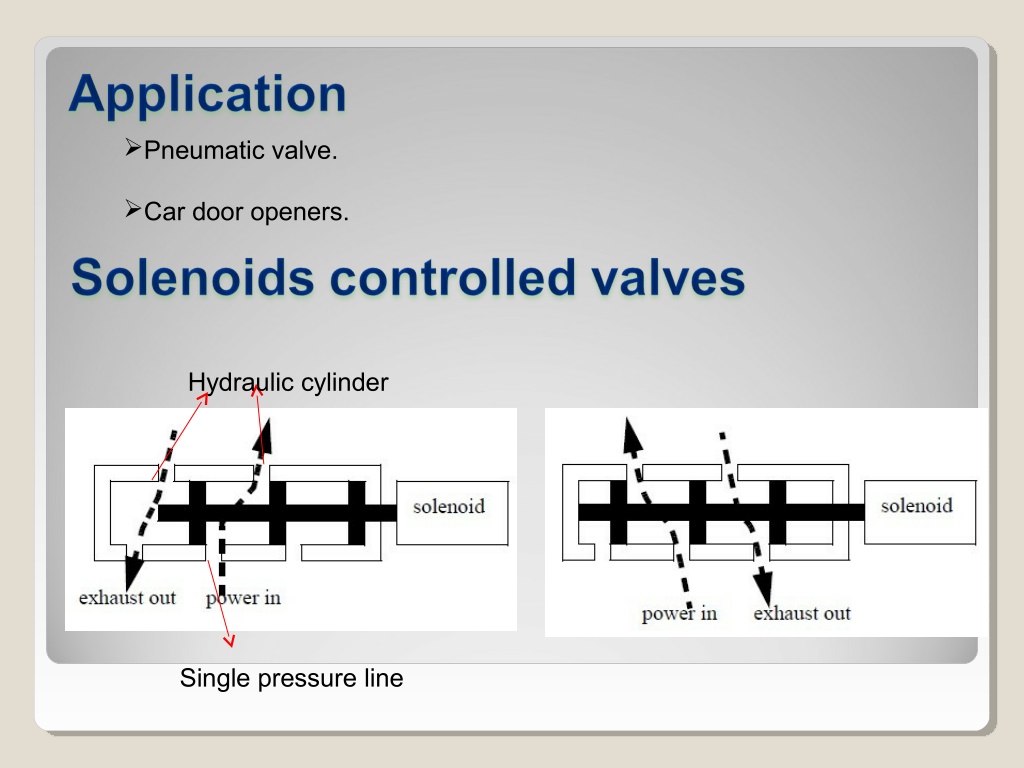

  5. Pneumatic valve. Car door openers. Hydraulic cylinder Single pressure line

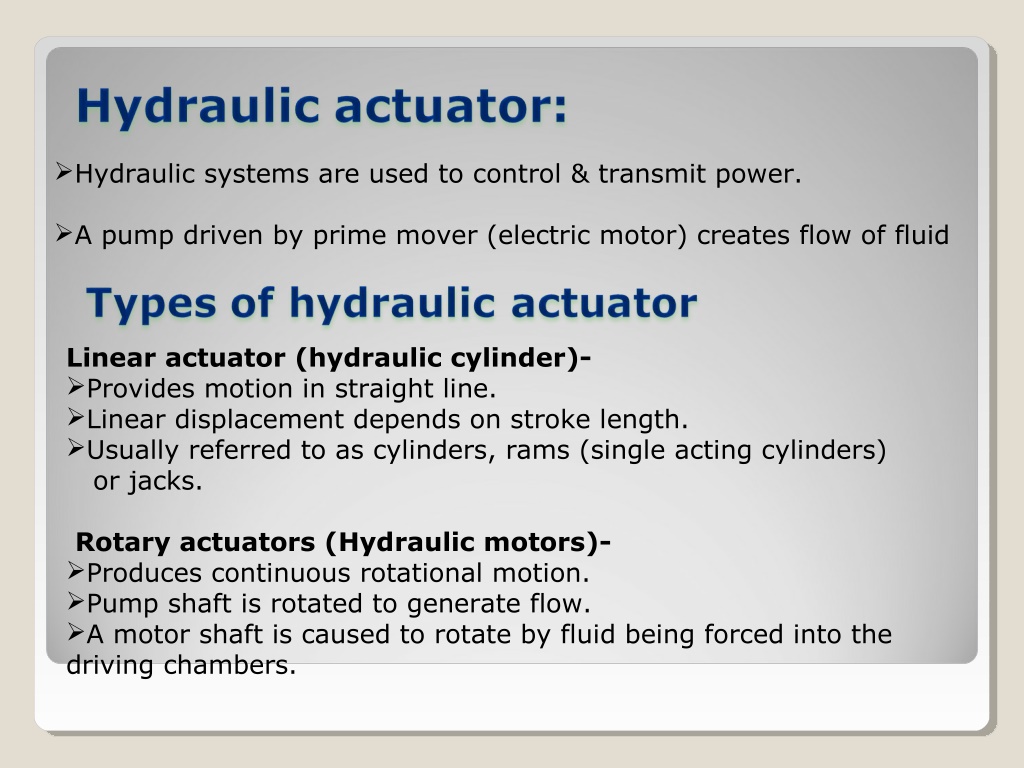

  6. Hydraulic systems are used to control & transmit power. A pump driven by prime mover (electric motor) creates flow of fluid Linear actuator (hydraulic cylinder)- Provides motion in straight line. Linear displacement depends on stroke length. Usually referred to as cylinders, rams (single acting cylinders) or jacks. Rotary actuators (Hydraulic motors)- Produces continuous rotational motion. Pump shaft is rotated to generate flow. A motor shaft is caused to rotate by fluid being forced into the driving chambers.

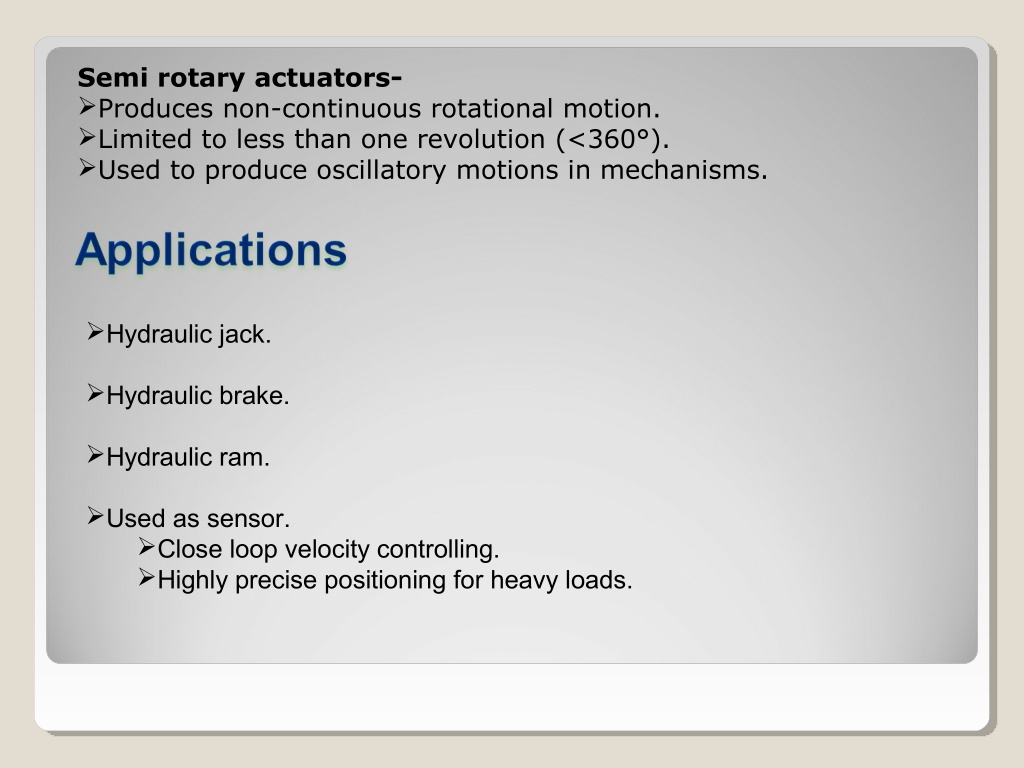

  7. Semi rotary actuators- Produces non-continuous rotational motion. Limited to less than one revolution (<360°). Used to produce oscillatory motions in mechanisms. Hydraulic jack. Hydraulic brake. Hydraulic ram. Used as sensor. Close loop velocity controlling. Highly precise positioning for heavy loads.

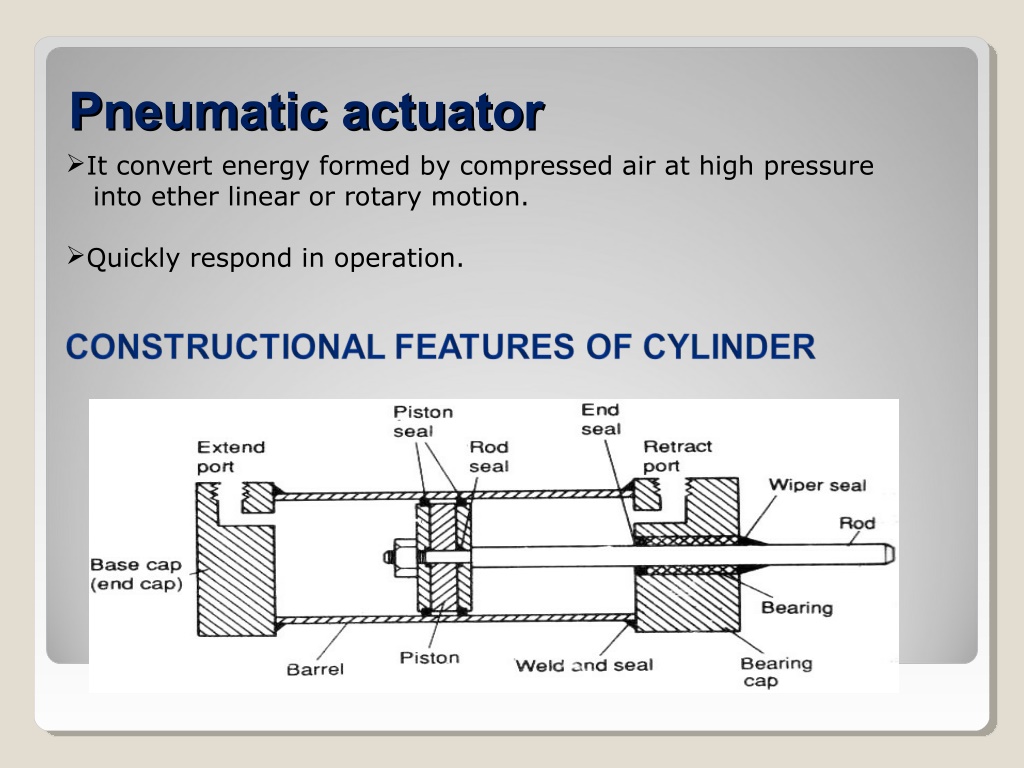

  8. Pneumatic actuator Pneumatic actuator It convert energy formed by compressed air at high pressure into ether linear or rotary motion. Quickly respond in operation.

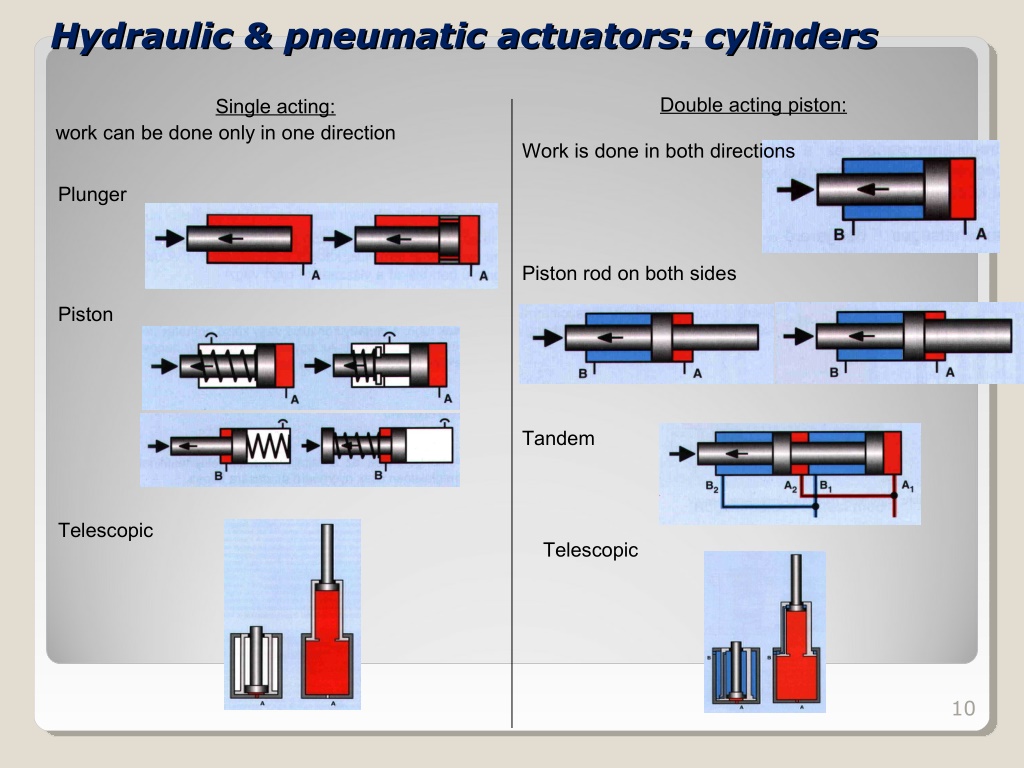

  9. Hydraulic & pneumatic actuators: cylinders Hydraulic & pneumatic actuators: cylinders Double acting piston: Single acting: work can be done only in one direction Work is done in both directions Plunger Piston rod on both sides Piston Tandem Telescopic Telescopic 10

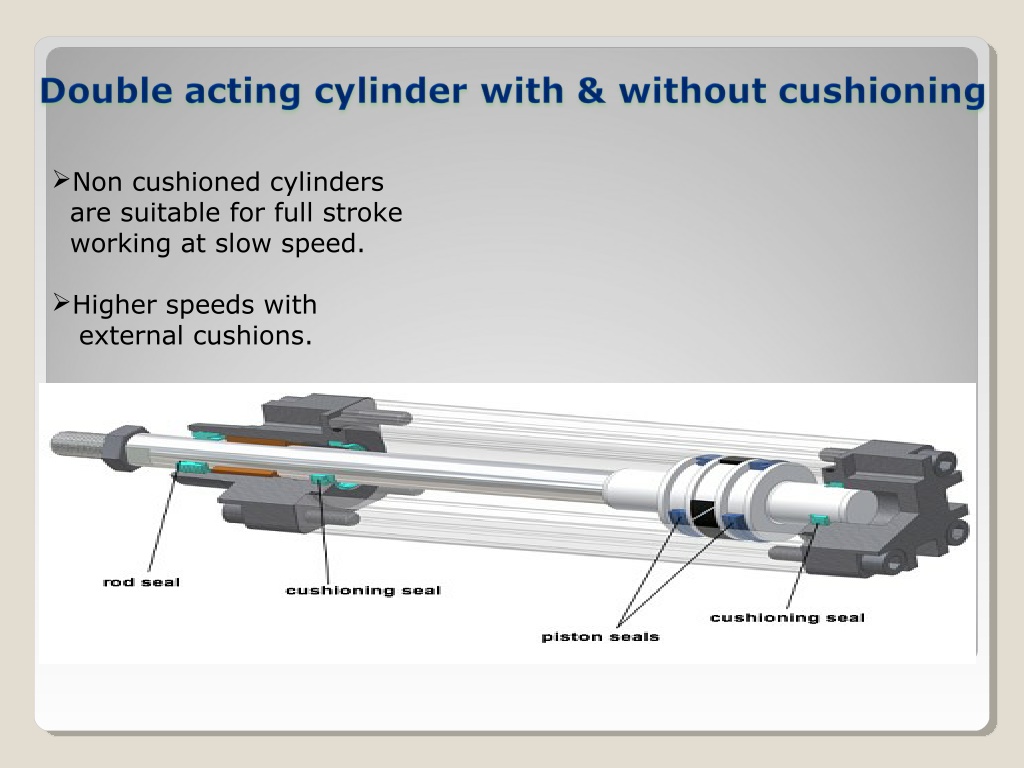

  10. Non cushioned cylinders are suitable for full stroke working at slow speed. Higher speeds with external cushions.

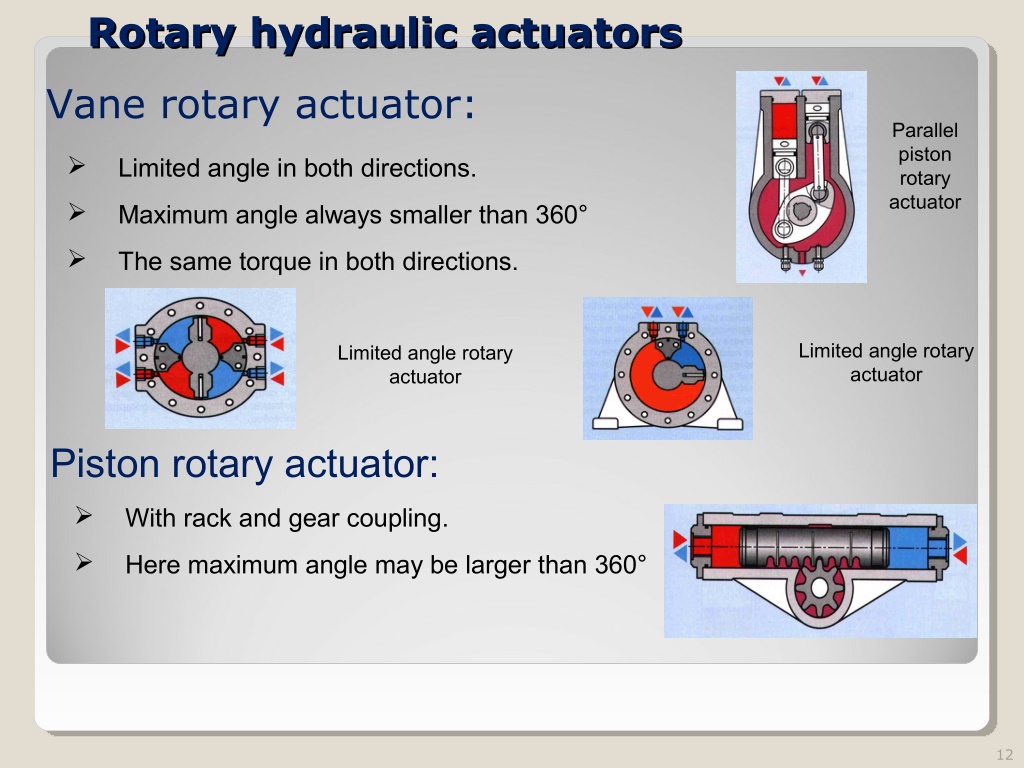

  11. Rotary hydraulic actuators Rotary hydraulic actuators Vane rotary actuator: Parallel piston rotary actuator  Limited angle in both directions.  Maximum angle always smaller than 360°  The same torque in both directions. Limited angle rotary actuator Limited angle rotary actuator Piston rotary actuator:  With rack and gear coupling.  Here maximum angle may be larger than 360° 12

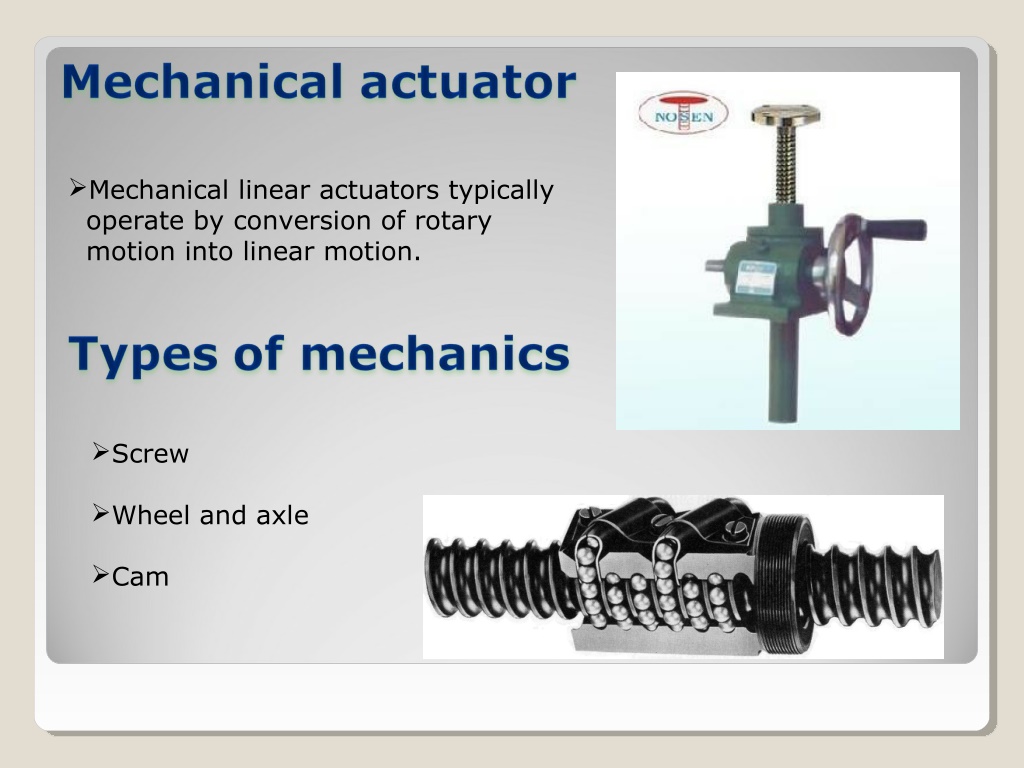

  12. Mechanical linear actuators typically operate by conversion of rotary motion into linear motion. Screw Wheel and axle Cam

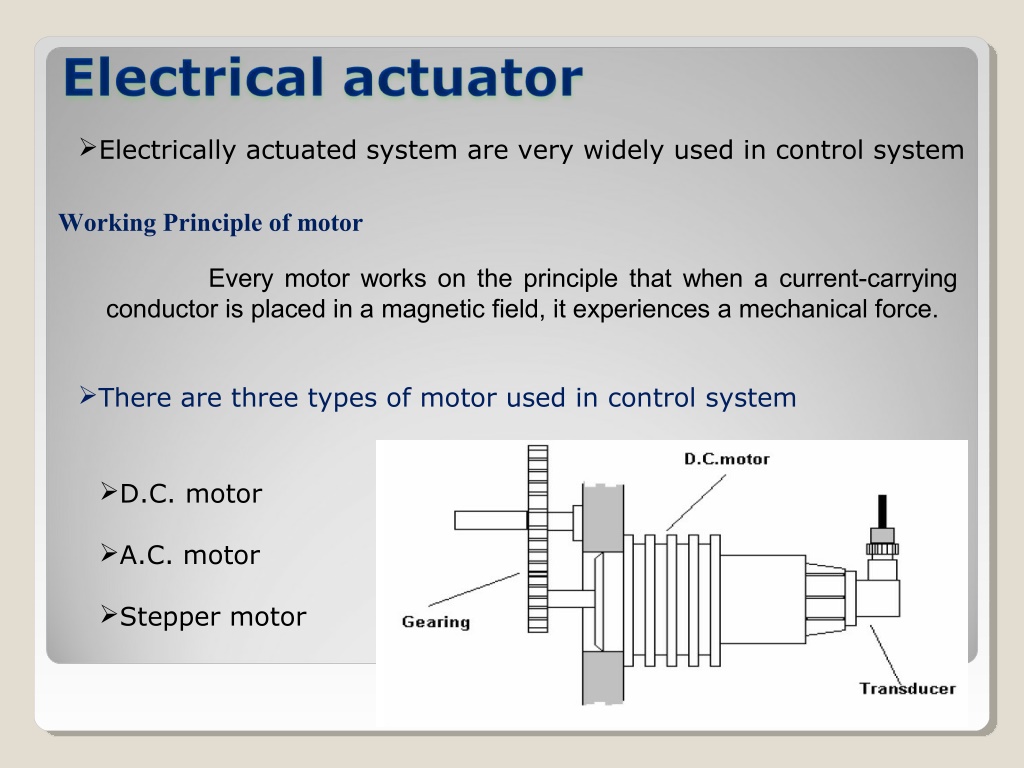

  13. Electrically actuated system are very widely used in control system Working Principle of motor Every motor works on the principle that when a current-carrying conductor is placed in a magnetic field, it experiences a mechanical force. There are three types of motor used in control system D.C. motor A.C. motor Stepper motor

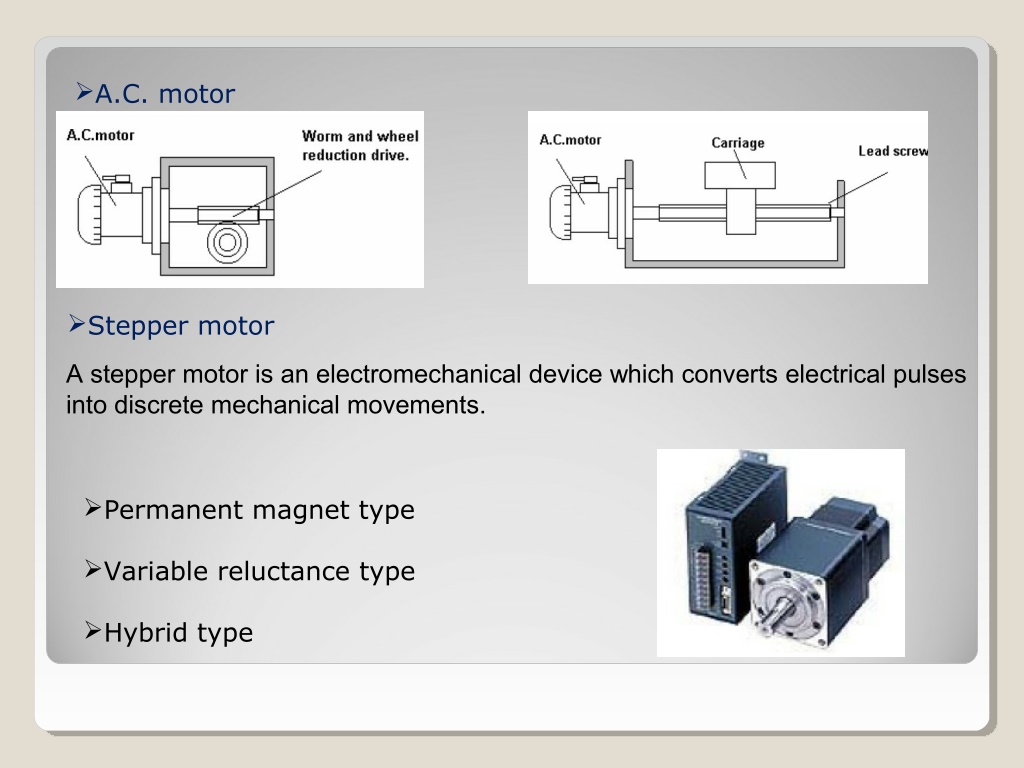

  14. A.C. motor Stepper motor A stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements. Permanent magnet type Variable reluctance type Hybrid type

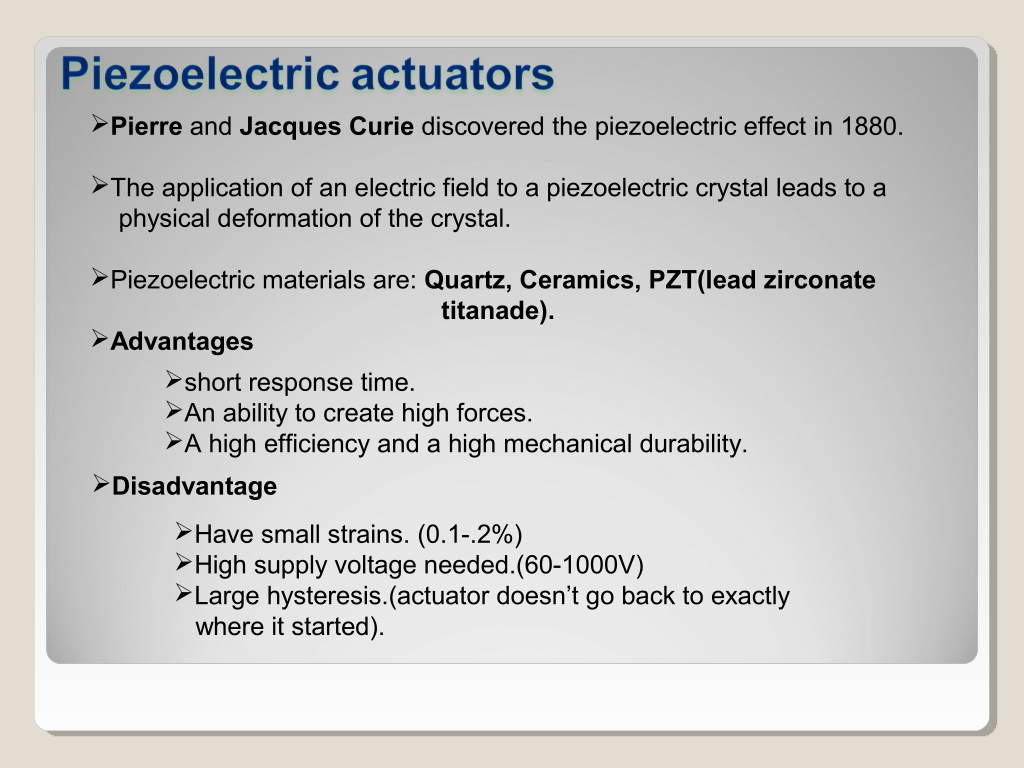

  15. Pierre and Jacques Curie discovered the piezoelectric effect in 1880. The application of an electric field to a piezoelectric crystal leads to a physical deformation of the crystal. Piezoelectric materials are: Quartz, Ceramics, PZT(lead zirconate titanade). Advantages short response time. An ability to create high forces. A high efficiency and a high mechanical durability. Disadvantage Have small strains. (0.1-.2%) High supply voltage needed.(60-1000V) Large hysteresis.(actuator doesn’t go back to exactly where it started).

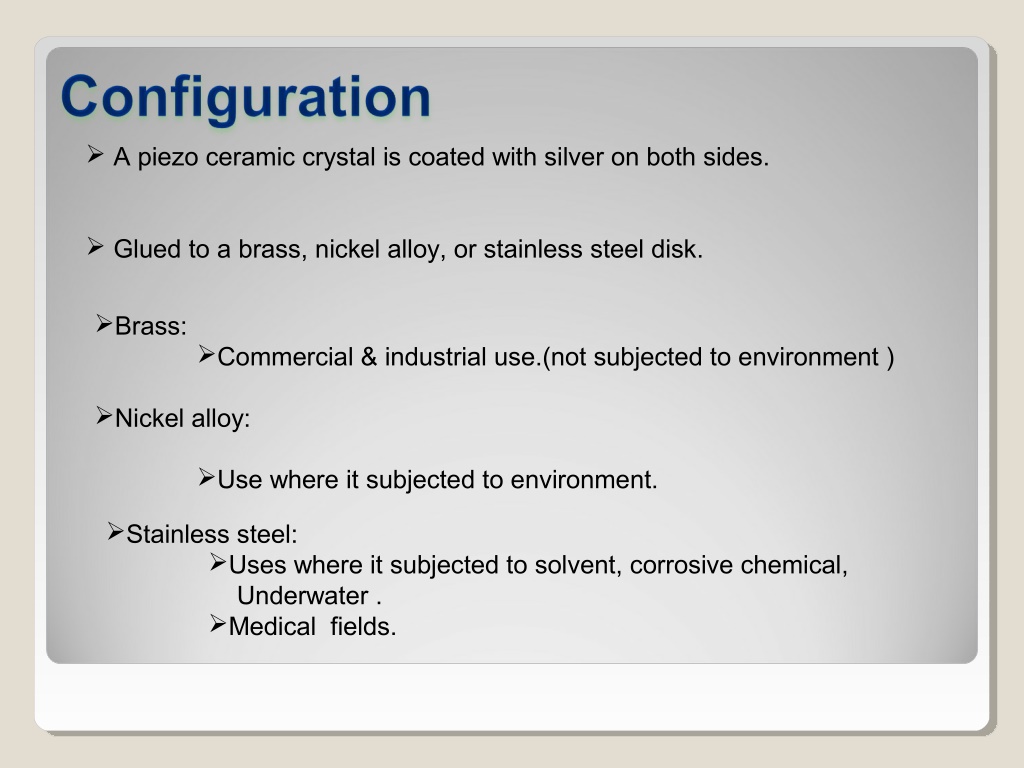

  16.  A piezo ceramic crystal is coated with silver on both sides.  Glued to a brass, nickel alloy, or stainless steel disk. Brass: Commercial & industrial use.(not subjected to environment ) Nickel alloy: Use where it subjected to environment. Stainless steel: Uses where it subjected to solvent, corrosive chemical, Underwater . Medical fields.

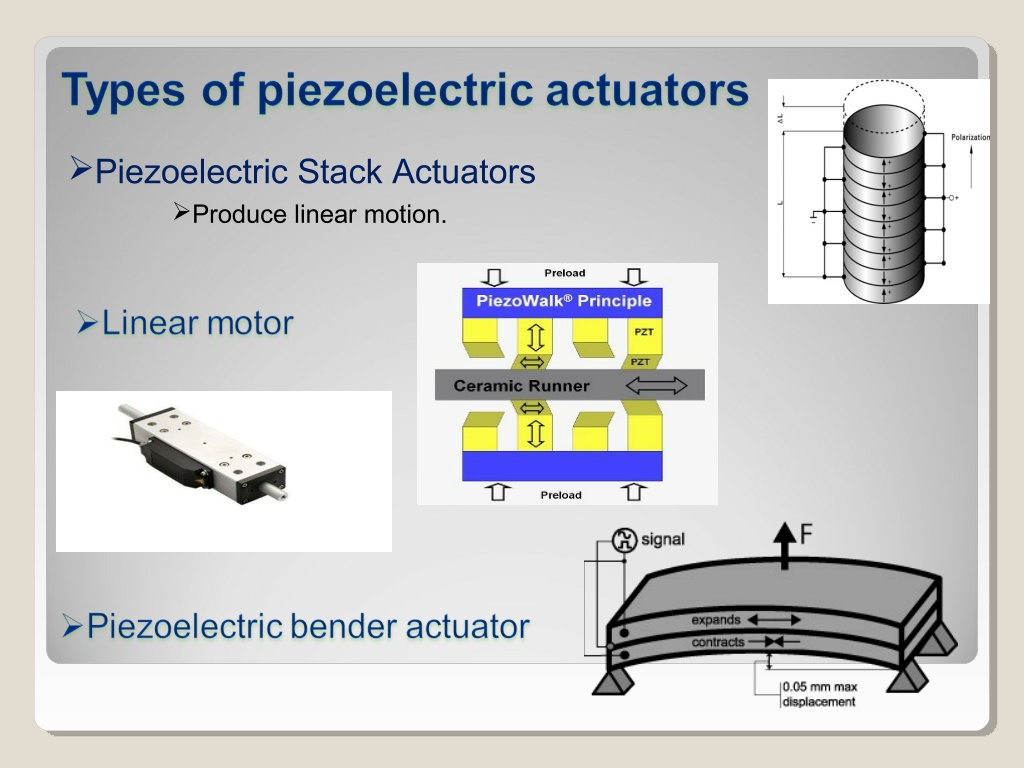

  17. Piezoelectric Stack Actuators Produce linear motion.

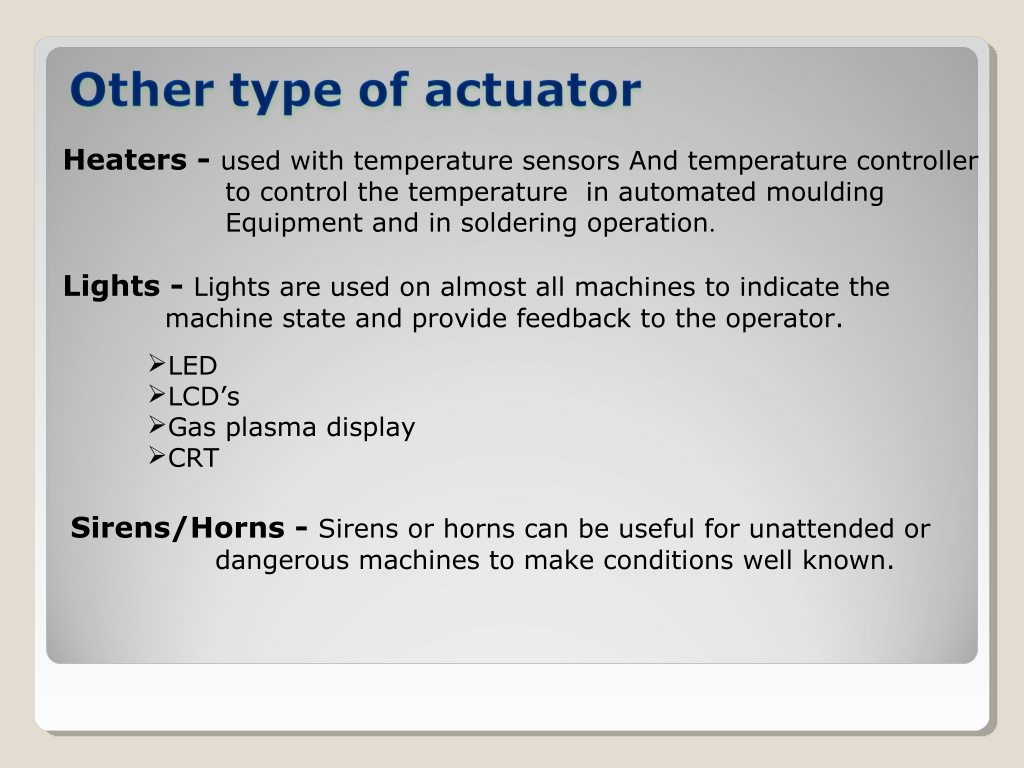

  18. Heaters - used with temperature sensors And temperature controller to control the temperature in automated moulding Equipment and in soldering operation. Lights - Lights are used on almost all machines to indicate the machine state and provide feedback to the operator. LED LCD’s Gas plasma display CRT Sirens/Horns - Sirens or horns can be useful for unattended or dangerous machines to make conditions well known.
